USER MANUAL JX-10 SERIE II JABRA

© 2006 Jabra, GN Mobile A/S (GN Netcom A/S). All rights reserved. Jabra® is a registered trademark of GN Mobile A/S (GN Netcom A/S). All other trademarks included herein are the property of their respective owners. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Mobile A/S (GN Netcom A/S) is under license. (Design and specifications subject to change without notice)

What your headset can do

Remember, driving comes first, not the call!

Using a mobile phone while driving can distract you and increase the likelihood of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car, difficult road conditions), pull off the road and park before making or answering calls. Also, try to keep conversations short and do not make notes or read documents.

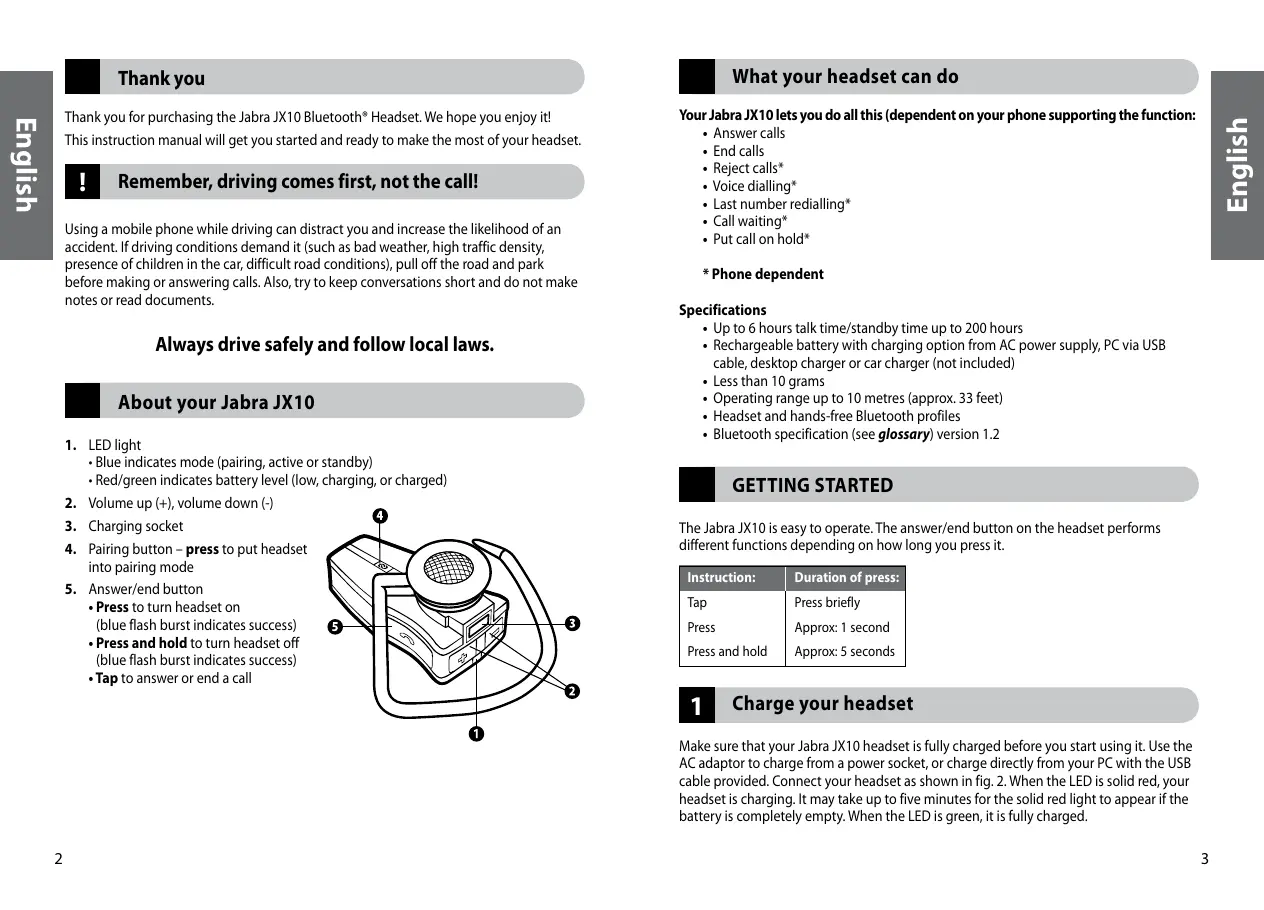

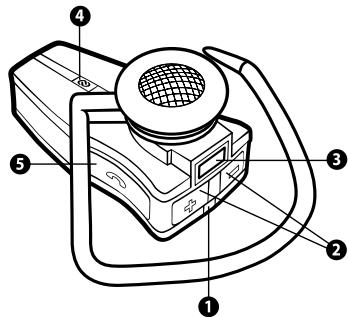

Always drive safely and follow local laws. About your Jabra JX10 1. LED light • Blue indicates mode (pairing, active or standby) • Red/green indicates battery level (low, charging, or charged) 2. Volume up (+), volume down (-) 3. Charging socket 4. Pairing button – press to put headset into pairing mode 5. Answer/end button • Press to turn headset on (blue flash burst indicates success) • Press and hold to turn headset off (blue flash burst indicates success) • Tap to answer or end a call

Your Jabra JX10 lets you do all this (dependent on your phone supporting the function: • Answer calls • End calls • Reject calls* • Voice dialling* • Last number redialling* • Call waiting* • Put call on hold*

Thank you for purchasing the Jabra JX10 Bluetooth® Headset. We hope you enjoy it! This instruction manual will get you started and ready to make the most of your headset.

* Phone dependent Specifications • Up to 6 hours talk time/standby time up to 200 hours • Rechargeable battery with charging option from AC power supply, PC via USB cable, desktop charger or car charger (not included) • Less than 10 grams • Operating range up to 10 metres (approx. 33 feet) • Headset and hands-free Bluetooth profiles • Bluetooth specification (see glossary) version 1.2

GETTING STARTED The Jabra JX10 is easy to operate. The answer/end button on the headset performs different functions depending on how long you press it. Instruction:

Make sure that your Jabra JX10 headset is fully charged before you start using it. Use the AC adaptor to charge from a power socket, or charge directly from your PC with the USB cable provided. Connect your headset as shown in fig. 2. When the LED is solid red, your headset is charging. It may take up to five minutes for the solid red light to appear if the battery is completely empty. When the LED is green, it is fully charged.

Turning your headset on and off

Press the answer/end button to turn on your headset. Press and hold the answer/end button to turn off your headset.

Pair it with your phone

Before you use your Jabra JX10, you need to pair it with your mobile phone. 1. Put the headset in pairing mode • Make sure the headset is on. • Press the pairing button marked

2. Set your Bluetooth phone to ‘discover’ the Jabra JX10 Follow your phone’s instruction guide. This usually involves going to a ‘setup,’ ‘connect’ or ‘Bluetooth’ menu on your phone and selecting the option to ‘discover’ or ‘add’ a Bluetooth device. * (See example from a typical mobile phone in fig. 6).

Answer a call • Tap the answer/end button on your headset to answer a call. End a call • Tap the answer/end button to end an active call. Make a call • When you make a call from your mobile phone, the call will (subject to phone settings) automatically transfer to your headset. If your phone does not allow this feature, tap on the Jabra JX10’s answer/end button to transfer the call to the headset. Reject a call* • Press the answer/end button when the phone rings to reject an incoming call. Depending on your phone settings, the person who called you will either be forwarded to your voice mail or hear a busy signal. Activate voice dialing* • Tap the answer/end button. For best results, record the voice-dialling tag through your headset. Please consult your phone’s user manual for more information about using this feature.

3. Your phone will find the Jabra JX10 Your phone then asks if you want to pair with it. Accept by pressing ‘Yes’ or ‘OK’ on the phone and confirm with the passkey or PIN = 0000 (4 zeros).

Redial last number* • Press the answer/end button.

Your phone will confirm when pairing is complete. In case of unsuccessful pairing, repeat steps 1 to 3.

Adjust sound and volume • Press the volume up or down (+ or -) to adjust the volume. (Show fig 1).

Wear it how you like it

The Jabra JX10 is ready to wear on your right ear. If you prefer the left, gently remove the earhook and rotate to fit left ear. (See fig. 4) For optimal performance, wear the Jabra JX10 and your mobile phone on the same side of your body or within line of sight. In general, you will get better performance when there are no obstructions between your headset and your mobile phone.

Charge from your desktop holder Connect your USB cable/AC power adaptor to the desktop holder. Place your JX10 in the cradle as shown in fig. 3

Call waiting and placing a call on hold* This lets you put a call on hold during a conversation and answer a waiting call. • Press the answer/end button once to put the active call on hold and answer the waiting call. • Press the answer/end button to switch between the two calls. • Tap the answer/end button to end the active conversation. * Functions marked with * are dependent on your phone supporting these features. Check your phone’s user manual for further information.

What the lights mean

What you see Flashing blue light Flashing blue light Flashing red light Solid red light Solid green light Solid blue light

What is the mean about your headset Flashing every second: active on a call Flashing every three seconds: in standby mode Running low on battery Charging Fully charged In pairing mode – see section 3

• Always store the Jabra JX10 with the power off and safely protected. • Avoid storage at extreme temperatures (above 45°C/113°F – including direct sunlight – or below -10°C/14°F). This can shorten battery life and may affect operation. High temperatures may also degrade performance. • Do not expose the Jabra JX10 to rain or other liquids.

Troubleshooting & FAQ I hear crackling noises For the best audio quality, always wear your headset on the same side of the body as your mobile phone. I cannot hear anything in my headset • Increase the volume on the headset. • Ensure that the headset is paired with the phone. • Make sure that the phone is connected to the headset – if it does not connect either from the phone’s Bluetooth menu or by tapping the answer/end button, follow the pairing procedure (see section 3). I have pairing problems even though my phone indicates otherwise You may have deleted your headset pairing connection in your mobile phone. Follow the pairing instructions in section 3. Will the Jabra JX10 work with other Bluetooth equipment? The Jabra JX10 is designed to work with Bluetooth mobile phones. It can also work with other Bluetooth devices that are compliant with Bluetooth version 1.1 or 1.2 and support a headset and/or hands-free profile.

See the inside cover for your country’s support details.

Taking care of your headset

Jabra (GN Netcom) warrants this product against all defects in material and workmanship for a period of two years from the date of original purchase. The conditions of this warranty and our responsibilities under this warranty are as follows: • The warranty is limited to the original purchaser. • A copy of your receipt or other proof of purchase is required • The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorized third parties. • The responsibility of Jabra (GN Netcom) products shall be limited to the repair or replacement of the product at its sole discretion. • Any implied warranty on Jabra (GN Netcom) products is limited to two years from the date of purchase on all parts, including any cords and connectors. • Specifically exempt from any warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, decorative finishes, batteries, and other accessories. • Jabra (GN Netcom) is not liable for any incidental or consequential damages arising from the use or misuse of any Jabra (GN Netcom) product. • This warranty gives you specific rights and you may have other rights which vary from area to area. • Unless otherwise instructed in the User Manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on this unit, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work. • Jabra (GN Netcom) will not assume any responsibility for any loss or damage incurred in shipping. Any repair work on Jabra (GN Netcom) products by unauthorized third parties voids any warranty.

Certification and safety approvals

CE This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC). Hereby, GN Netcom, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.jabra.com Within the EU this device is intended to be used in Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, United Kingdom, and within EFTA in Iceland, Norway and Switzerland

Merci . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 1. Charger le casque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2. Mettre en marche et éteindre le casque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3. Appairer le casque avec votre téléphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4. Position au choix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 5. Comment …… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 6. Explication des voyants lumineux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Bluetooth The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom is under license. Other trademarks and trade names are those of their respective owners.

1 Bluetooth is a radio technology that connects devices, such as mobile phones and headsets, without wires or cords over a short distance (approx. 30 feet). Get more information at www.bluetooth.com. 2 Bluetooth profiles are the different ways that Bluetooth devices communicate with other devices. Bluetooth phones support either the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone’s software. 3 Pairing creates a unique and encrypted link between two Bluetooth devices and lets them communicate with each other. Bluetooth devices will not work if the devices have not been paired. 4 Passkey or PIN is a code that you enter on your mobile phone to pair it with your Jabra JX10. This makes your phone and the Jabra JX10 recognize each other and automatically work together. 5 Standby mode is when the Jabra JX10 is passively waiting for a call. When you ‘end’ a call on your mobile phone, the headset goes into standby mode.

Dispose of the product according to local standards and regulations. www.jabra.com/weee
