USER MANUAL LM 2147 CMD JONSERED

The present manual constitutes an integral part of the product and it should be kept for all future reference.

Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.

This manual has been prepared for use with different models of lawn mowers having different shapes and equipment.

We wish to thank you for choosing our lawn mower. We are confident that the high quality of our machine will meet with your satisfaction and appreciation and that your lawn mower will give you long-lasting service. Before starting to use your machine, make sure to read with care this manual, which has been purposely drawn up to provide you with all the necessary information for proper use, in compliance with basic safety requirements.

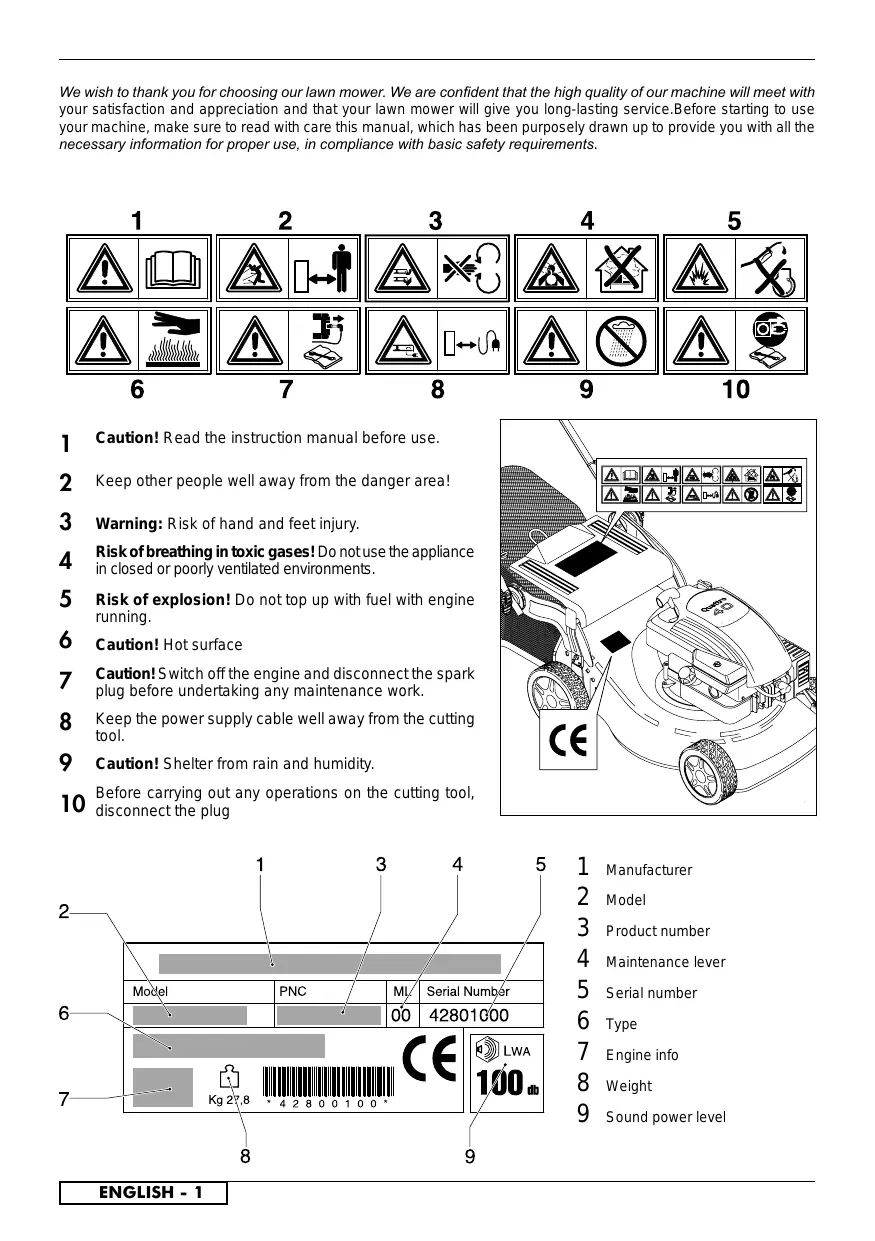

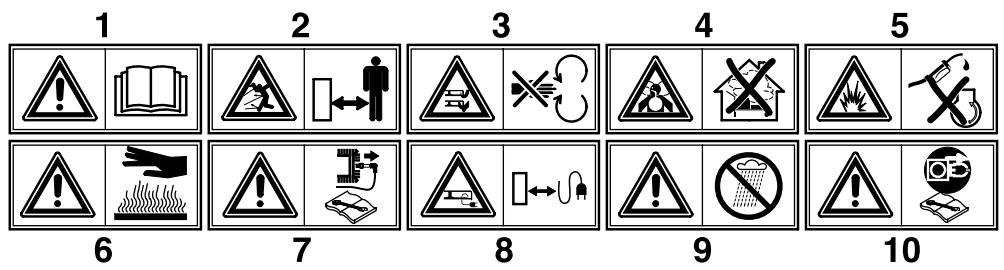

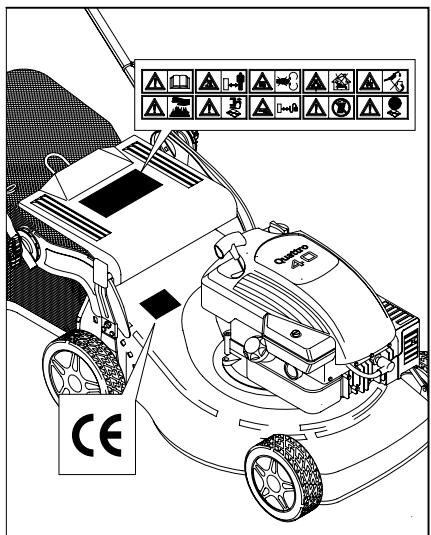

1 Caution! Read the instruction manual before use.
2 Keep other people well away from the danger area!
3 Warning: Risk of hand and feet injury.
4 Risk of breathing in toxic gases! Do not use the appliance in closed or poorly ventilated environments.
5 Risk of explosion! Do not top up with fuel with engine running.
6 Caution! Hot surface
7 Caution! Switch off the engine and disconnect the spark plug before undertaking any maintenance work.
8 Keep the power supply cable well away from the cutting tool.
9 Caution! Shelter from rain and humidity.
10 Before carrying out any operations on the cutting tool, disconnect the plug

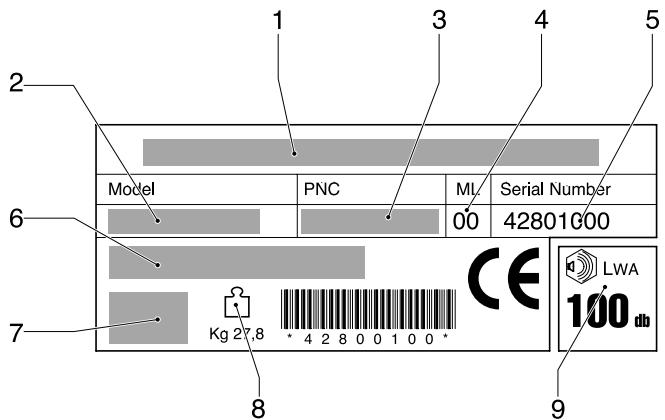

1 Manufacturer
2 Model
3 Product number
4 Maintenance lever
5 Serial number
6 Type
7 Engine info
8 Weight
9 Sound power level

SAFETY RULES

Safe Operation Practices for Pedestrian-Controlled Rotary Lawnmowers

IMPORTANT: This cutting machine is ca pa ble of amputat ng hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

I. Training

• Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
• Never allow children or people un familiar with the instructions to use the lawnmower. Local regulations may restrict the age of the operator.
• Never mow while people, especially children, or pets are nearby.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

II. Preparation

• While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.
• Thoroughly inspect the area where the equipment is to be used and remove all objects which may be thrown by the machine.

• WARNING - Petrol is highly flammable.

• Store fuel in containers specifically de signed for this purpose.

• Refuel outdoors only and do not smoke while refueling.

• Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the engine is hot.

• If petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapors have dissipated.

• Replace all fuel tanks and container caps securely.

• Replace faulty silencers.

• Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to pre serve balance.
• On multibladed machines, take care as rotating one blade can cause other blades to rotate.

III. Operation

• Do not operate the engine in a confined space where dangerous carbon mon oxide fumes can collect.
• Mow only in daylight or in good artificial light.
• Avoid operating the equipment in wet grass, where feasible.
  Always be sure of your footing on slopes.
• Walk, never run.
• For wheeled rotary machines, mow across the face of slopes, never up and down.
  Exercise extreme caution when changing direction on slopes.
• Do not mow excessively steep slopes.

• Use extreme caution when reversing or pulling the lawnmower towards you.

• Stop the blade if the lawnmower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawnmower to and from the area to be mowed.

• Never operate the lawnmower with defective guards, or without safety de vic es, for example defi ectors and/or grass catchers, in place.
• Do not change the engine governor settings or overspeed the engine. Operating the engine at excessive speed may increase the hazard of personal injury.
• Disengage all blade and drive clutches before starting the engine.
• Start the engine or switch on the motor carefully according to instructions and with feet well away from the blade.
• Do not tilt the lawnmower when starting the engine or switching on the motor, except if the lawnmower has to be tilted for starting. In this case, do not tilt more than absolutely nec es sary and lift only the part which is away from the op er a tor.
• Do not start the engine when standing in front of the discharge chute.
• Do not put hands or feet near or under rotating parts. Keep clear of the dis charge opening at all times.
• Never pick up or carry lawnmower while the engine is running.

• Stop the engine and disconnect the spark plug wire: - before cleaning blockages or un clog ging chute;

• before checking, cleaning or working on the lawnmower;

• after striking a foreign object. Inspect the lawnmower for damage and make repairs before re starting and operating the lawnmower;

• if the lawnmower starts to vibrate abnormally (check immediately).

• Stop the engine:

• whenever you leave the lawnmower;

• before refuelling.

• Reduce the throttle setting during en gine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

• Go slow when using a trailing seat.

IV. Maintenance and Storage

• Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.
• Never store the equipment with petrol in the tank inside a building where fumes may reach an open flame or spark.
• Allow the engine to cool before storing in any enclosure.
• To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease.
• Check the grass catcher frequently for wear or deterioration.
• Replace worn or damaged parts for safety.
• If the fuel tank has to be drained, this should be done outdoors.

DESCRIPTION

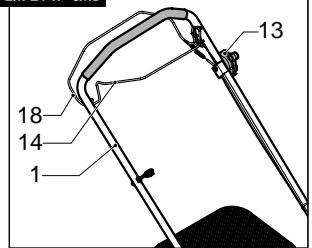

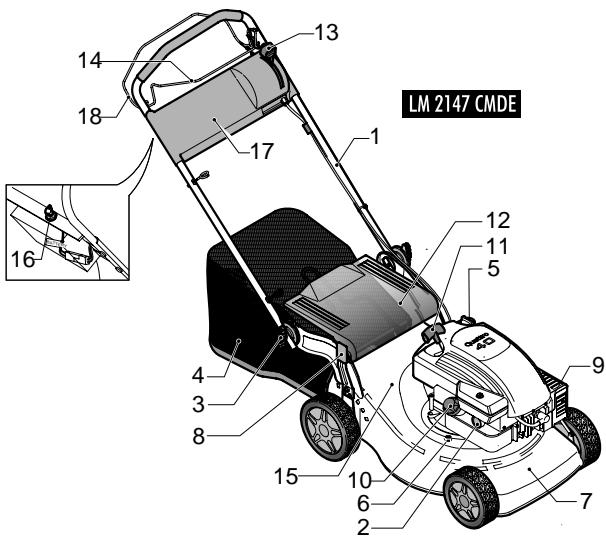

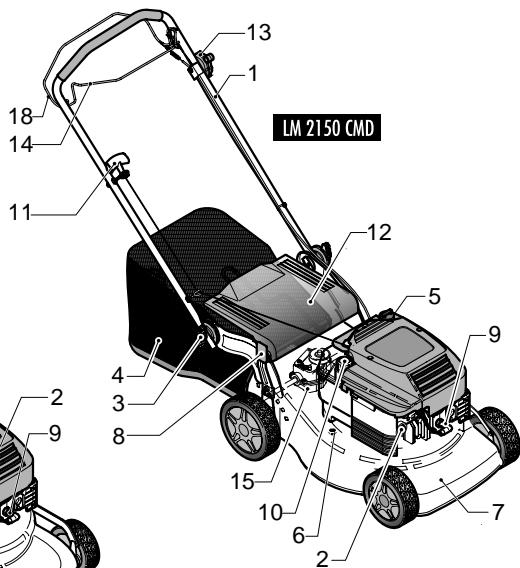

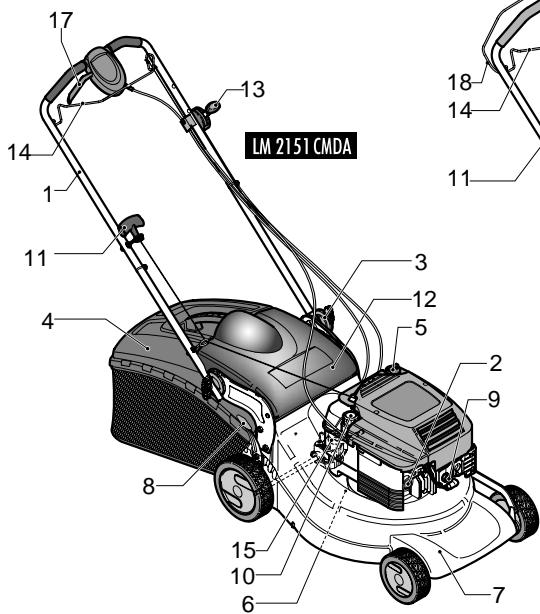

1 Upper handles

12 Rear deflector

2 Fuel-enrichment pump

13 Throttle lever

3 Fastening knobs for upper handles

14 Engine stop lever

4 Grass catcher

15 Reduction gear

5 Oil filler cap

16 Ignition key

6 Oil drain plug

17 Handle advance speed

7 Deck

18 Clutch lever

8 Adjusting levers for cutting height

9 Spark plug
10 Fuel cap
11 Engine start-grip

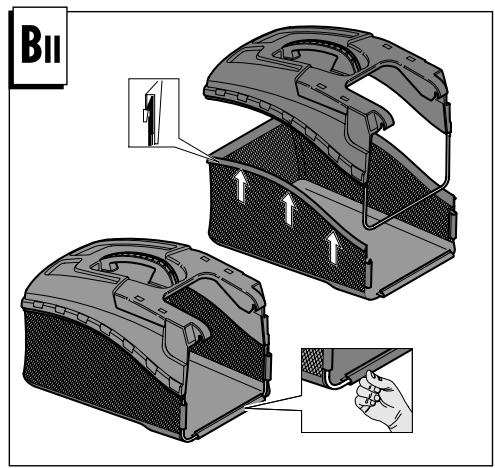

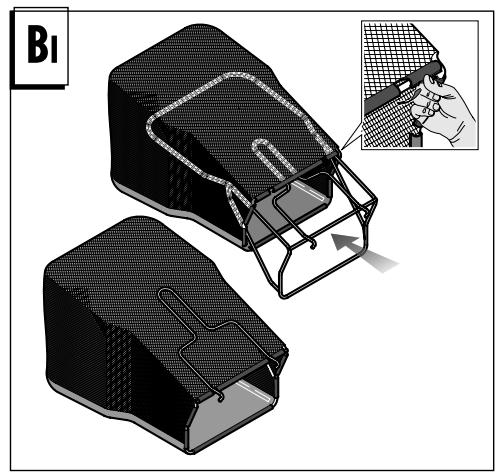

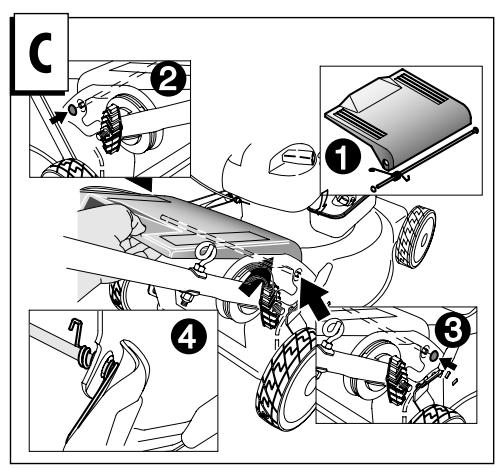

ASSEMBLY OF GRASS CATCHER

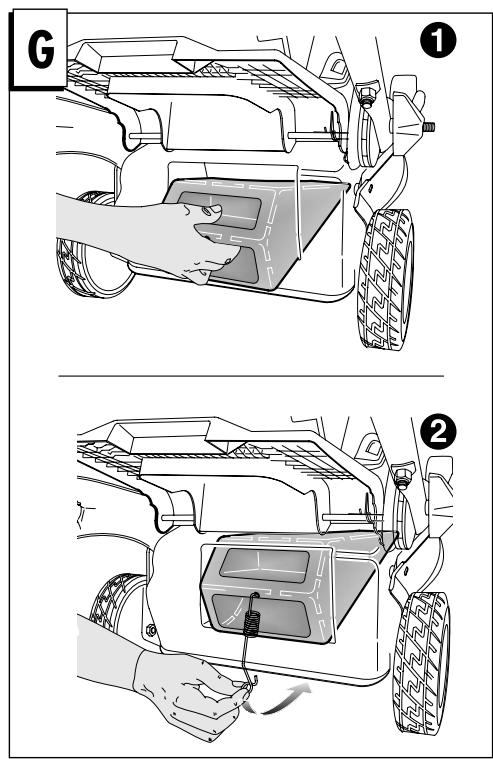

ASSEMBLY DEFLECTOR (if not already assembly)

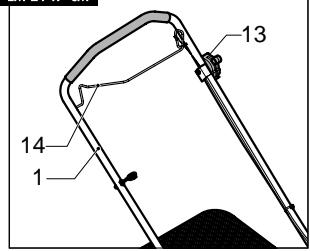

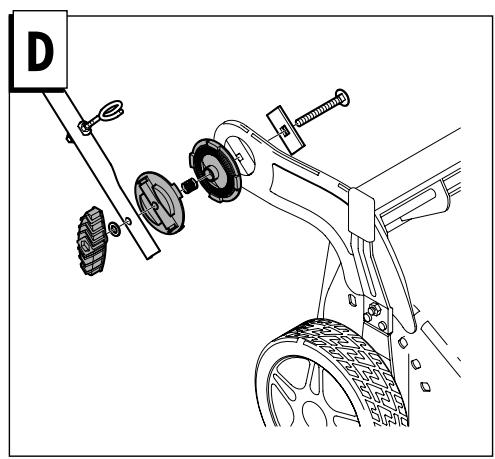

ASSEMBLYHANDLES (lower)

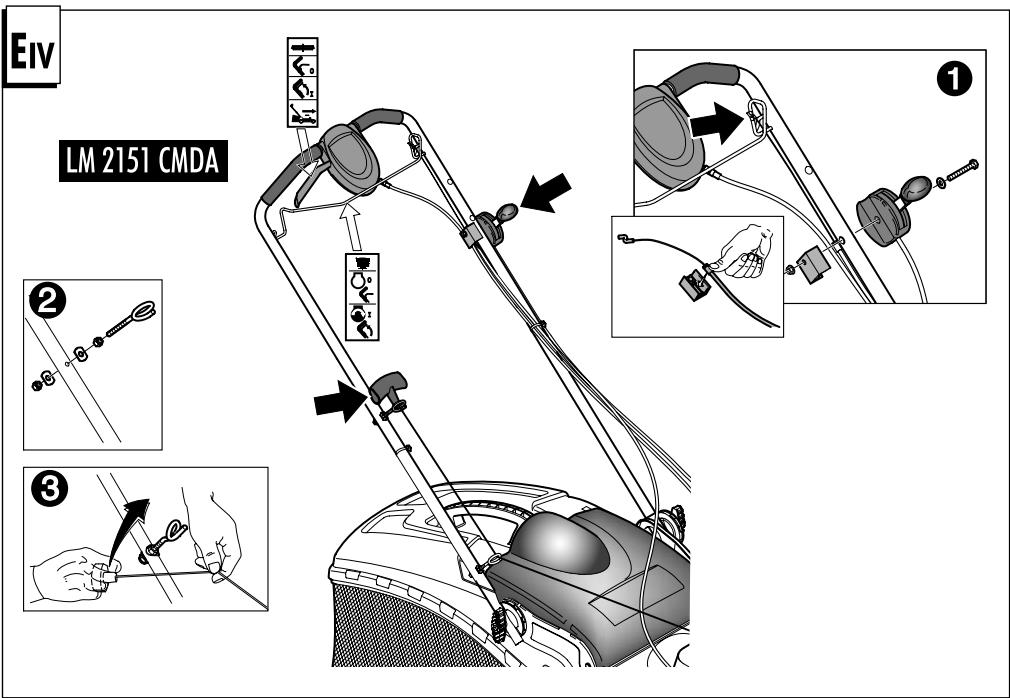

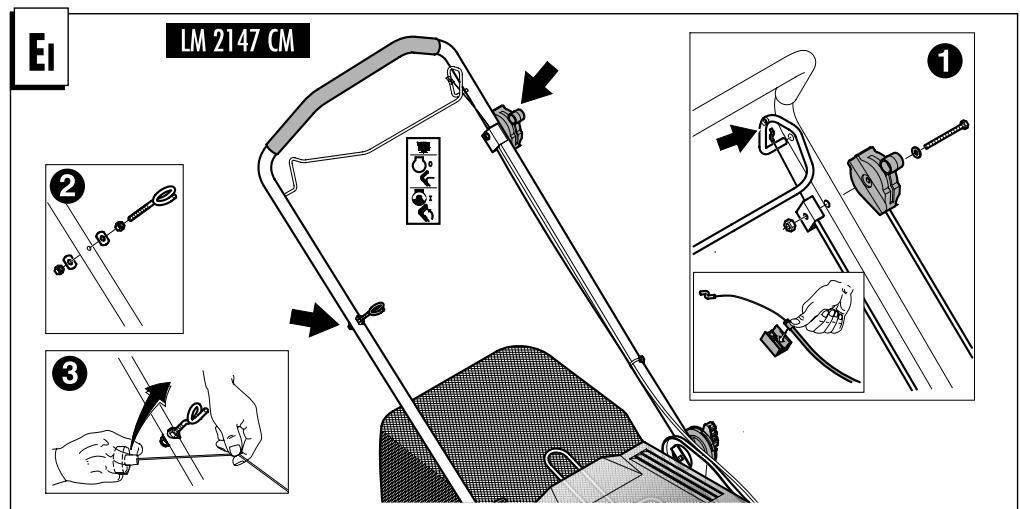

ASSEMBLY HANDLES (upper)

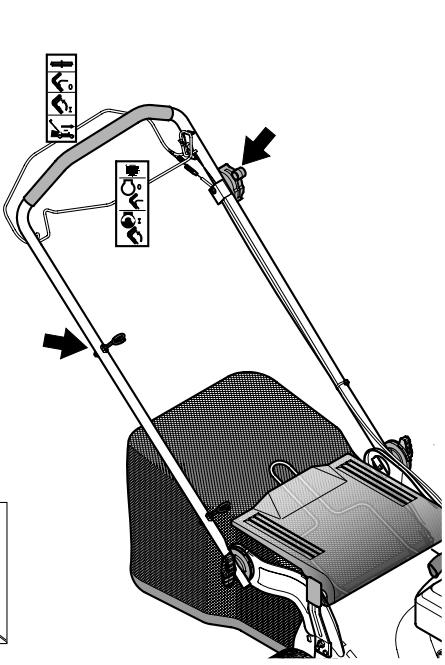

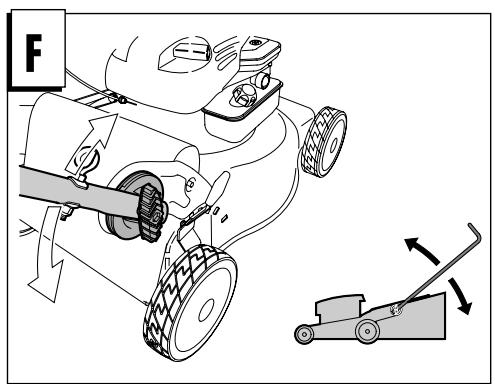

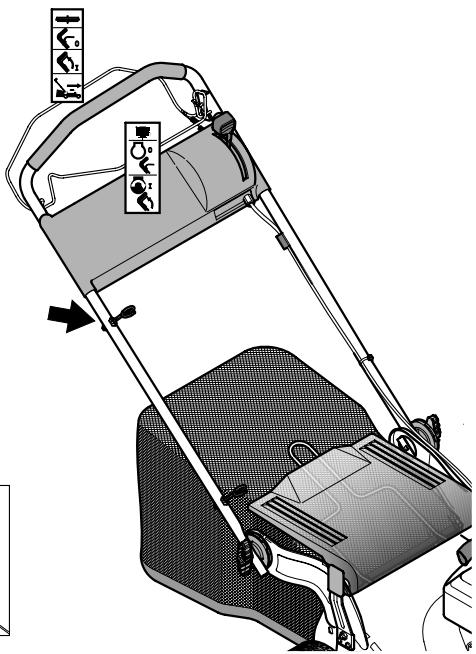

ADJUSTMENT OF HANDLES

MULCHING CAP INSERTION (for the models where it is included only)

To cut the grass with the mulching system (no grass collection), lift the rear deflector panel and insert the cap by fixing it with the spring as shown in the figure.

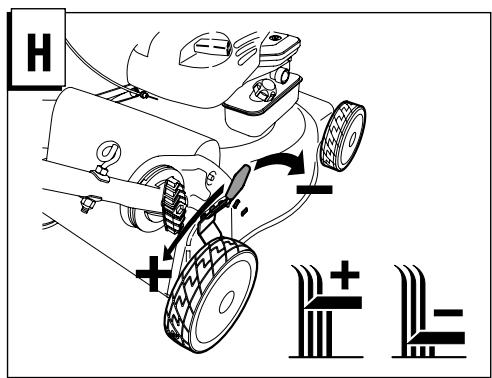

ADJUSTMENT OF CUTTING HEIGHT

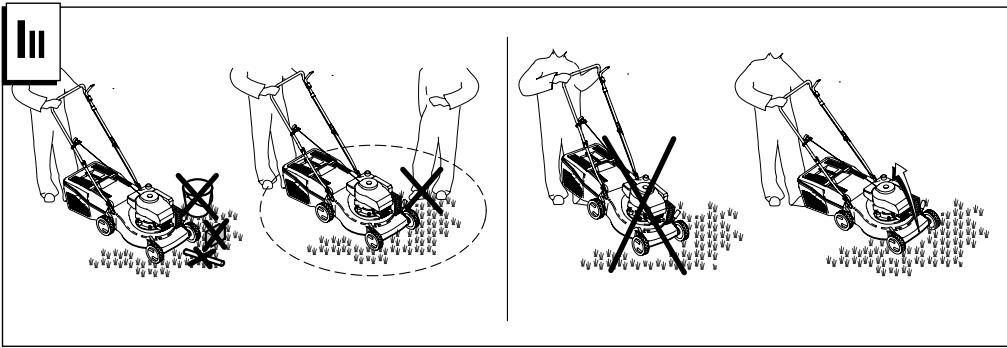

SAFETY PRECAUTIONS

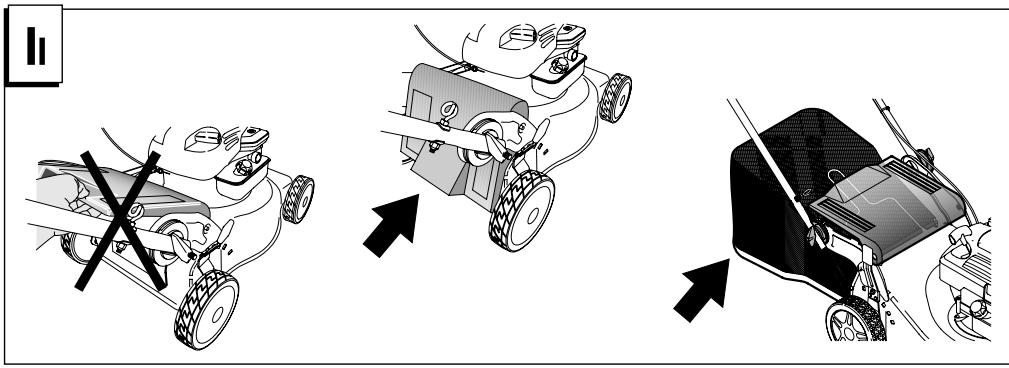

• Always operate with the deflector or grasscatcher in the correct position.
• Always stop the engine before removing the grasscatcher or adjusting the height of cut.

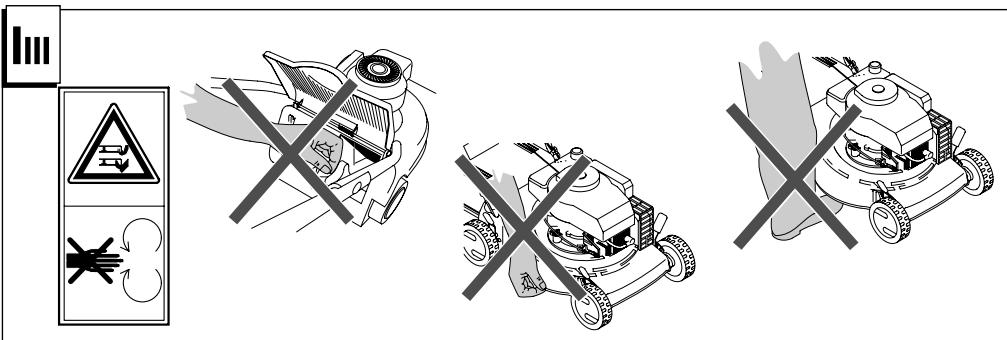

• Never place your hands or feet underneath the deck or into the grass discharge chute while the engine is running.

Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed.

Never lift the rear of the mower while starting the engine or during normal operation.

Never place your hands or feet underneath the deck or into the rear discharge chute while the engine is running.

OPERATION

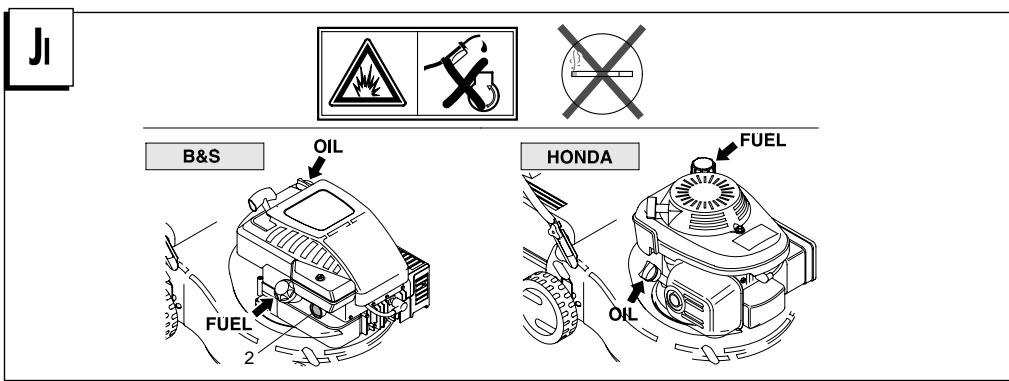

ENGINE ADJUSTMENTS (Fig.JI)

Refer to the engine manufacturer's maintenance manual.

CAUTION:- 0.6l Oil must be added to the engine before use

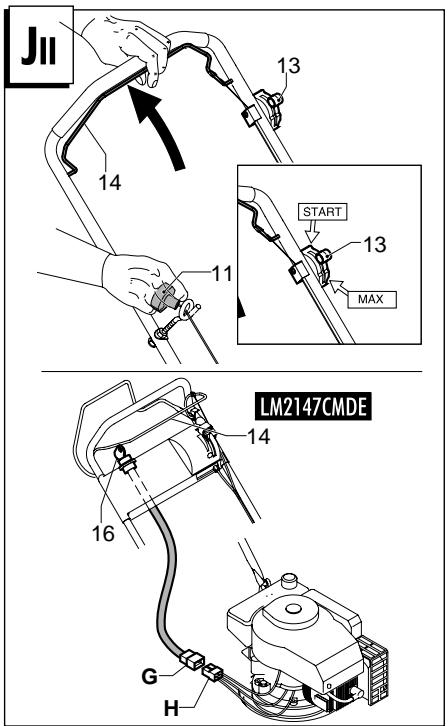

STARTING THE ENGINE (Fig.Jit)

Once the machine has been set up properly, start the engine as follows:

a) Engines with choke system:
when the engine is cold, position the accelerator lever (13) on START
b)Operate the engine stop lever (14) to prepare the engine for start, keep lever pressed against handle while starting and using the machine (it operates the engine brake).
c) Engines with primer system:

Press the fuel-enrichment pump (2) located on the carburettor 3 or 4 times position the accelerator lever (13) on MAX.

For further information and explanations, read carefully the user instruction manual of the engine.
d) Start engine.

MANUAL STARTING: (While holding the engine stop lever (14)).

Hold the engine start-grip (11) and pull the starter rope gently until you feel the resistance caused by compression. Return the starter rope slowly then pull the handle firmly towards you to its full extent.

ELECTRICAL STARTING: (While holding the engine stop lever (14)).

• Insert the plug (G) in the socket (H) on the engine.
  Turn the ignition key (16).

CAUTION: The blade starts turning as soon as the engine is started.

Keep the engine stop lever (14) depressed during machine operation. When the lever is released, the engine stops.

MOWING

To cut the grass, push the lawn mower manually or insert the automatic advance gear.

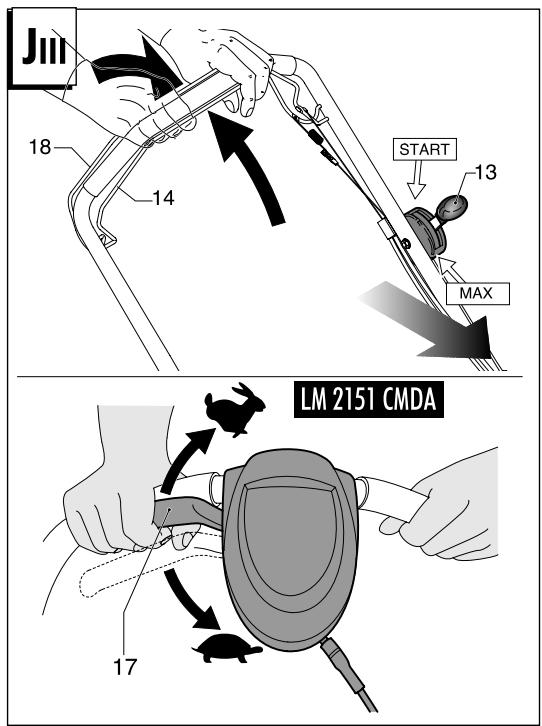

How to insert automatic advance (Fig. JIII): Lift up the clutch handle (17 - 18) and keep it pressed in position.

CAUTION: Engage the gear only when the engine is running.

How to disengage advance: Release the clutch handle.

ADJUSTMENT OF CLUTCH CABLE (for self-propelled versions only)

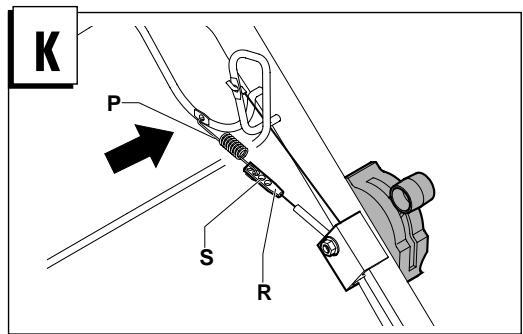

Important: If, when you press the clutch lever, the automatic advance gear does not engage, the clutch cable should be adjusted by inserting the spring (P) in one of the subsequent holes in the plate (R) or in the hole "S".

MAINTENANCE

Caution! Switch off the motor and disconnect the spark plug before undertaking any maintenance work.

• For a four stroke engine, check the oil level and change the oil when dirty. For further explanation, see ENGINE INSTRUCTION BOOK.
• Frequently check the mower and ensure that all grass deposits are removed from beneath the deck.
• Never clean the mower by pouring water over it: this may seriously damage the electric start system.
  Take care, the exhaust muffler may be very hot.

• Frequently check the blade for damage.

• The lawn mower must be checked by a SERVICE DEALER.

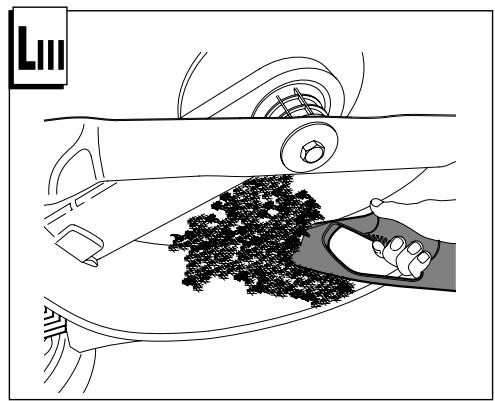

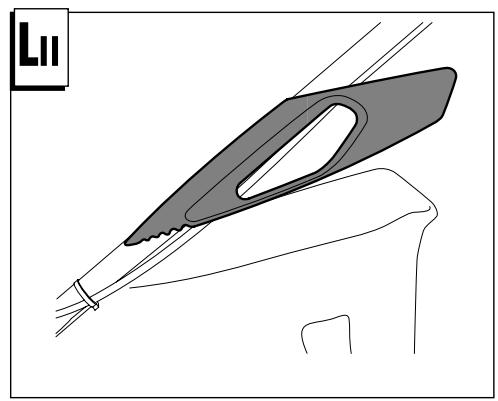

• Cleaning under the bodywork

With machine at a standstill and off.

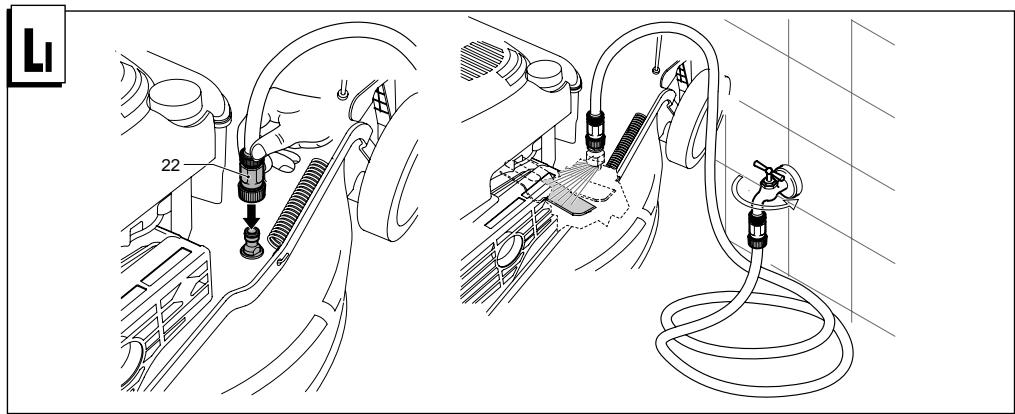

• Attach fitting (22) on the deck to the water supply tap.
  Turn on the tap.
• start up the motor (blade in rotation), allowing it to warm up for a few minutes.
• at the end of cleaning switch off the motor, turn off the tap, detach the tube from the deck connection.

BLADE

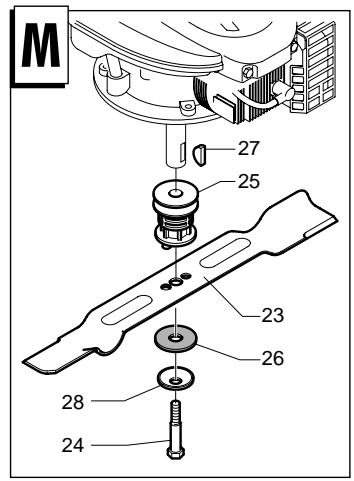

To remove the blade (23) unscrew the screw (24).

• Check the conditions of the blade-support (25), the washer (26), the key (27) and the washer (28) and replace any parts which are damaged.

• When reassembling, make sure that the key (271) is correctly seated in the shaft and that the cutting edges face in the direction of the engine rotation. The blade screw (24) must be torqued to 5,34 Kgm (52,4 Nm).

KIT ELECTRIC STARTING

Before starting the motor for the first time, you are advised to keep the battery on charge for 2

to 3 hours.

If the battery proves to be low during starting, charge it for 24 hours.

When starting, don't keep trying to start for more than 5 seconds.

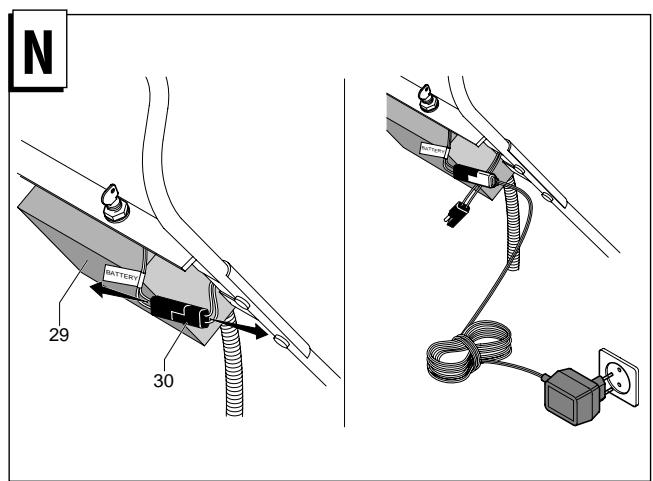

BATTERY MAINTENANCE

IMPORTANT

For correct battery maintenance (29), especially in preparation for a long period of inactivity, and for recharging, it is not necessary to remove it from its casing, but to simply proceed as follows:

1) Remove contact (30
2) Store the battery in a fresh and dry place.
3) Recharge the battery before use at room temperature for 24-36 hours.
4) Restore the contact (30) before use

BATTERY DISPOSAL

Those batteries marked with a "crossed out waste disposal bin" and bearing the chemical symbol Pb (battery containing lead) are not to be disposed in domestic waste bins.

The user is legally obliged to take the used batteries to special collection points or to return them to the retailer.

GUARANTEE AND GUARANTEE POLICY

If any part is found to be defective due to faulty manufacture within the guarantee period, Husqvarna Outdoor Products, through its Authorised Service Repairers will effect the repair or replacement to the customer free of charge providing:
a) The fault is reported directly to the Authorised Repa.
pairer.
b) Proof of purchase is provided.
c) The fault is not caused by misuse, neglect or faulty adjustment by the user.
d) The failure has not occurred through fair wear and tear.
e) The machine has not been serviced or repaired, taken apart or tampered with by any person not authorised by Husqvarna Outdoor Products.
f) The machine has not been used for hire.
g) The machine is owned by the original purchaser.
h) The machine has not been used commercially.
- This guarantee is additional to, and in no way diminishes the customers statutory rights.

Failures due to the following are not covered, therefore it is important that you read the instructions contained in this Operator's Manual and understand how to operate and maintain your machine:

Failures not covered by guarantee

• Replacing worn or damaged blades
• Failures as a result of not reporting an initial fault.
• Failures as a result of sudden impact.
• Failures as a result of not using the product in accordance with the instructions and recommendations contained in this Operator's Manual.
• Machines used for hire are not covered by this guarantee.
• The following items listed are considered as wearing parts and their life is dependent on regular maintenance and are, therefore not normally subject to a valid warranty claim: Blades, Electric Mains cable, Belt

CAUTION!

Husqvarma Outdoor Products does not accept liability under the warranty for defects caused in whole or part, directly or indirectly by the fitting of replacement parts or additional parts that are not either manufactured or approved by Husqvarma Outdoor Products, or by the machine having been modified in any way.

EC DECLARATION OF CONFORMITY

I, the undersigned Bengt Ahlund, of Husqvarna Outdoor Products Italia Spa, Via Como 72, 23868 Valmadrera (LC).

Certify that the Lawnmower:-

Category... .Petrol Wheeled Rotary

Make. Husqvarna Outdoor Products

Conforms to the specifications of Directive 2000/14/EEC

Type.

Version.

Width of cut. C

Guaranteed sound power level.

Measured sound power level.

Sound pressure livel at the ear.

Vibration of the handle.

(See the last page for references)

Type of Cutting Device . Rotary Blade

Identification of Series . See Product Rating Label

Conformity Assessment Procedure. ANNEX VI

Notified Body. Nr. 0470 - NEMKO AS

Gaustadalleen 30 - PO Box 73 Blindern

0314 OSLO - Norway

Other Directives 98/37/EC, 93/68/EEC, 2002/88/EC, 2004/108/EC

& applicable standards normative EN836,EN ISO14982,EN1033,EN ISO 3744,EN ISO11201

Berger Ablund, Technical Manager

Husevarna Outdoor Product Italia S.p.A.

Via Como 72 - 23868 Valmadrera (LC)

3/08/2006

E AUFBAU GRIFF (Oberer)

#

EC DÉCLARATION DE CONFORMITÉ

Je sousigned Bengt Ahlund, Husqvarna Outdoor Products Italia Spa, Via Como 72, 23868 Valmadrera (LC) certifie que la tondeuse:--

Marque . Husqvarna Outdoor Products

est conforme aux specifications de la Directive 2000/14/EEC

Type. A

Version. B

Largeur de coupe. C

WERKEN MET DE MAAIMACHINE

VOORBEREIDING VAN DE MOTOR (Fig.JI)

Merk. Husqvarna Outdoor Products

Merke....Husqvarna Outdoor Products

Marca....Husqvarna Outdoor Products

Marca....Husqvarna Outdoor Products

e com as normas . EN836,EN ISO14982,EN1033,EN ISO 3744,EN ISO11201

Husqvarna Outdoor Product Italia S.p.A.

Via Como 72 - 23868 Valmadrera (LC)

3/08/2006

Marca. Husqvarna Outdoor Products

ELEKTROMOS INDITO KIT

AIOP02EH TOY KAALQAIOTY SYMIIAEKTH (Movo yia tis autouarE xdoos

IIooxη eav πieovtac tnv λaβn ouμλextn, n oνvdeon autóμatnc πoωθησε δev γívei, παeπ va xáveτe tnv qoθμηotou xαλδoiu ouμλextn εισχωqvατac to ελαntgio (P) σμα aπo tiç diαðoxες oπες tns πλαxtos (R) nσtnv oπ (S).

ΣYNTHPHSEH

Iqoox! v e t e tov xivntgaa kai a e t e to o u c i ngoiou xavete noiaodnote evogeia ouvtigonc

Eaeyxete taixia tv staun eoaiou twtqaoovw xvntnogue ooeotuxxauonPiogote tnaaceto 1eaoavxieiaetai. Tia neoaitow dioivqneoi eoubouveute iexyioidoo oywn toxvntnpa.
EeYxTe neoioaTo oqiMoTo vBiodov xai ToV nOoxyAIOw. Meto toXoumuTov xogtaoov peneria va XaaogicTe tnv mAnvNxa 0to xawN aTo dWu meoc. Mny apnive xoyapia kato 0aoi.
Mn xonouoiee vgo yia to eioeua xaoaetaa taunxvns. Mtogei va poaxaleo oobae cnaes sto ouottnua naxtovng exxvnong
IoooeetovoiayoTqiaaupyngaeiou mogei va...xaie.

ELeyTe Ovya ta maiaqia yia va bbaowte ot dev exouv uootai qoepc.
To taoTcns TcN 0eTeoXnG XaO To eivan n nnXavn yA To yaxoVa aExyete an oEv aXevo O6gic.
Kαθασμοςνποσασι

Me tyn mnxavn obnouevn xai otatnuevn.
- Suðděte to gaxóq (22) επι του σασι με το qouμπiνéto τορθoδoia vερον. Avojεtě to qouμπiνétó.
- Exxiviete tov xivntna (maaqi o neigtoopn) apovnto va laeiouygiia yia meixa leptar.
-Apoov yiveo 0 a0aoguooc oBnveTe tov xivntnoa. Kaivete to qouuiveto, acete tov oAInva aTo to oaoxogaa.

MAXAIPI

SYNTHPHEH MIIATAPIA2

\PPO OXH

Tia ma oosrn oovtnonnncmaatagiac (29),iudixa me ta aio ma eynan neigo do anqxiac xata yia tnyo qoogtnen dev Xoeiaetai va nbyalate aanto nthy npan aa Iooxoeite xata tv ene 1000

1)Bγαετετηνεπαρή (30)
2)Φuλayετe την μπαταρία σε ξηο και δροσεόμερος
3)ΦoIzTeTe TnJyAtoqiaqNvIyXgOJNe OeOeOxQa- aieipaiaoovr en 24-36 oqE.
4) E (30) giv .

MIIATAPIA

H aataqiae to oufoo "ovtauueo xouviia diayqauevo" xai e Tnv Evdeiogn Tou Xnixoxouboaov Pb (= aataqiae uoalob) dev πiovtarotov xaoivosntiow oxouitoiov.

O xonotnsivauoxoepouvoa novuva naqabidei tiaxonotecmuataoe cstaedixka ouyvevtqotxa oneia eeneoyasiacaobnantov n otou matanlntes

ENTYIO EΓΓYH2H2

Eva onoiodnote ano ta meo xalaoei, eaiiac Eaattouatixnc nenegeyiaiai kata tvneigdo tni yvynon, Husqvarna Outdoor Products, duaeow twv exosiodotmeevw Kevtov Etiogooew Tov diotet, 0a qayatotoinie geavv tn vioxevn Tnv antixa-tostan, naTva epocov:

Husqvarna Outdoor Products

GWARANCJA I WARUNKI GWARANCJI

• OctaHOBITE DBnIraTeJIb:

• KaKdIbI pa3, KOrIa Bb bOCTaBnIe Ta0HOHOKoNlky 6e3 PnICMOTpa;

• nepeed 3anpaBkoTOnJIINBOM.

-Пи Вькнючим Идгателя Heo6xOДМо YmehbIshITb perynIOBky DIOccESN I, eCNI DBVfAteTb OCHaIeH OTceHbIM KlaanAHOM, BvKIIIOUHTb NOdaY TOnTNBaNo 3abepseHnIO paObToI ra3OHOKOcIKNk.
- Пиюлбзовани заимero сдемпяпесь мед�нho.

IV. Texo6cnyxmbaHne u xpaHHeHne

Bce raiKn,60ntbI n BmHTbI DOnKhbl 6bItb HaeXHO 3aTnytI dIbeOcneYHeN 6eOnaChbIX yCNoBn paobToI 6OpDyBaHnA.
3anpeIaetcXpaHHTbOobpyoBaHHe CbeHnHOM B 6akeB NOpMeIeHN, Ide Ra3bI MOrYT DOCTMH OTKpblTOFIO pAmEHNI INCk.
- Doxndtecb Oxjaidehn ABnraTeJnepeTem, KAK NOMEuaTb Ha xpaHeHne B NIO6oe 3aKpbItoe NOMeUHeHne.
CueIbIO NCKLIHOUeHnB BO3rOpAHnI DEpKNTe DnuratEn, rnyuHTenB, GatapeHbIM OTcEKN MeCTO XpaHENH BeHNHa CBO6oDhBMN OIT TaPbbl, NJIcTbeB INNnN3NIuHErO KOnUHeCTBa CMa30OHyBx MATEnpaNoB.
- Periomena Kneckn npoebpeTte Tpaboc6opHnik Ha npedmet n3Hocca uHn nopurn.
B-uenx 6oeceuehenie 6e0anachoctn npobodnte 3aMeHy M3HOoehhNbI NIOPBKDeHnhX quchen.
- EcInn Heo6xOIMO CnITb TOnIINBO I3 TOnIIIBHOro 6aKa, npOBIOnte 3Ty ONepauHIO HA OTKpbIOM BO3dyxe.

TexHHueckoe 06cIyKHBaHne aKKMyJITropHoi 6atapeH.

Bakhoe 3ameuHHe:

Длгправнльноухнчecкогообслuyжвань AkkyMVITOPHOIбатер（29），OCO6eHNOprnIOLOTOTOBKEДлгпгельноП配电HODa63dEICTBn，ИдгпpeЗapДК，НБОБ3ATElbHo BbIHMaTb eH 0TEcKa，IproctoPpOdeJIaJIte CJIeDyHooee:

1) OToeINHHTe KOHTaKT (30).
2) CoXpaHnIte aKKymyIaTOpHyO 6aTapeIO B IpoXJaIaHOM IN cyXOM MecTe.
3）IpeepaIHTe 6aTapeIOpeI HcIIb3OBaHHem IIpH KOMHaTHoI TeMnepatyBe TteuHeNe 24-36 qacob.
4) BocCTaHOBHTe KOHTaKT (30) IpeEД ИСПОЛБЗВАНЕМ.

YTHJH3aHHaKKyMJIITOpHoi 6aTapeH.

JaHHbIe 6aTapEn MapKnpyOTc HaJIINHcBIO 3AMKHYtaR 6aHTKa HA OTXoBJy UTNIH3aINH N H
He cyUHcHE CMBOJ Pb (6aTape, coIEpKaIIaJcBHNH)
He JOIbIXbYtHIINHrpoBAtcBcRA KOHTeHepax IJI
6bTOBIXx OTXIOJB.

IIOJIb3OBAteJIb NO 3aKoHv OBa3aH nepeJaBaTb HCIOJIb3OBAHnHe AKKYMUYIaTOPbHe b6aTaApH Na CIEINaJIbHbIe cOOpHbIe NyHKtB HII IN B03BpaIaTb IN TXPOTOBII.

TAPAHTHI I YCJIOBHRA TAPAHTHI

B cIyuea IIOLOMKH IIO6oH qAcTH, B 3aBHcHMOcTH O T hKeauCTBEHHO H60a6OTKN BO bPemA nepHOda rapaHTn, cHpMa Husqvarna Outdoor Products, nocpeJCTbOM CBOHX pa3peuHEHHx pEmoHTbIX XeHTpOB, bEyIe TB bIIOJIHTb 6eIIaTHo pEmoHT HIN 3aMEHy, B cIyuae eCIN:

a)ПлOMka 6ыla coo6иHa npЯMo pa3peHHomy pemOHTHOMY IeHTpy.
b)IIpeIcTabJIaTeC KBrTHaHcHIO NOKyIKN.
c)IIIOJOMKA He 3ABHCNT OT HeINPABHLB HORO HIOJIb3OBAHnH, He6peKHXOCT HJH HeINpABHbHBx pERyIIMPOBOK, BbIOJIHEHbIbIOJIb3OBATeJE.M
d)ПлOMka He 3aBHCHT OTO6bUHOrO H3HOca H3-3a HcNoJIb3OBaHHJ.
e)Ha maiiHHe He 6bIbI bblIOJIHeHb OIIpeaIIHn 06cJIyKHHaHH, peMOHTa, OHa He 6blIa IeMOHTNpOBaHa NII INCkAKeHa IepcoHaJOM He pa3peIeHHbIM HIpMoH Husqvarna Outdoor Products.
f)MaHHa He 6bila cdaHa Hapokat TpbeTM JIiAm.
g)MaIIHHa YBJIeTcH MHyIeCTBOM opHrHHaJIbHOro NOKyIaTeJI.
h) MaIIHHa He HcIOJIb3yEtc IJIa KOMMepueckoro yIOTpeBJIeHn.
HactoiaIra rapaTHra -doIOJIHaTJieraJIbHbIe IpaBaKJIHeHTn He COKPATHTHX B JIO6OM CIOOC6OM.

IIOJOMK, KOtOpbIe 3aBHCrT OT OJHOH HJIH 6OJIbHHe HNKeIepeUHcJIeHHx IINuH HNe IIOKpblTbI rapaHTHN, IO30MY pekOMeHcyTeC YHTaTB BHHMaTeJIbHO HNCTpyKlHN Ha PyKoBDCTBe IIO JIOI3OBATEJIHO HBIIOHE NOHMaTb paOOTy I INOeDpybIO NO6ClJyKBaHnHO MAIIHHs.

ПлOMКн He ПOKрВТы rapaHTH.

-3aMeHa H3HOceHHbIX HJIN IOBpeKJeHHbIX HOKOB.

-ПлOMК,КOTOBIe 3aBHCrT O TOCYrCTBnC COO6HHe HauJIbHOJ ПОLOMKN.

-ПлOMКи,КOTOBIE3aBnCrtОн HeOKHДaHHOrOуД.apa.

• IIOIOMKn, KOTOpbIe 3aBHCsT OTHecO6JIIOJHeHHN HcHTpyKuHH IN peKoMeHlaaH yka3AHbIX HA PyKaBOdCTBE IOIIOHB3OBATEJIHO.

• FapaHTHHe NIOKpbIbAeT MaIIINHbI CdaHbI HApPOKaT.

• HnHexyKa3AHbIe YacTHcHHTaOTcPacXoIDhIXuacteH Hx cPoK pa60Tb 3aBHCNT O HOPMaJIbHOrO 6cJLYKHBAnHH, IIO3OMy rapaHTHNe HIOKpBlBaet HOJH, IIITaTeJIbHBe KaeJIH, pemHH.

OCTOPOKHO

BHytpn ycIOBnHaCTOJIeI rapaHTH HpMa Husqvarna Outdoor Products He BO3bMet Ha c6e8 OTBeTCTBeHHoct8 3a DeEKeTb, KOTOpBe BINOJIHe HJN qACTHNO, IPIMO HJN KOcBEHNO, 3aBNCrT OT YNOTpe6JIeHn 3aJIaCteR HJN DOJIJIHnTeJIbHbIX qAteR He IpnOH3BeHEn HJN He pa3peIIHe HfPmOi Husqvarna Outdoor Products HJN 3a Te Je EKeTb, KOTOpBe 3aBNCrT OT N3MeHEHn BbIOJIHeHb JIIO6OM CIOOC6e HA MaIIINHE.

EC TEKJIAPAIIH COOTBETCTBHA

Полпсаошин Bengt Ahlund, Husqvarna Outdoor Products Italia Spa, Via Como 72, 23868 Valmadrera (LC) 3aayBlaeT, YTO ra3oHokocnIky.-

Kateropn. BpaatateJIbHna, 6eH3HHo, c KOJIecamn

Marca .Husqvarna Outdoor Products

COOTBETCTBYET HOpMaTHBaM IInpeKTHB 2000/14/CEE.

THI. A

BapnaHT .

IIHHpHa pe3aHnA C

IapaaHTnpoBAHHb3ByKOBoy ypoBeHb.

H3mepeHHbI 3BykoBOy yPOBeHb. E

YpOBeHbakycTHueckoro daBJIeHHa

Bn6paunHa pykoTke.

TnHoka .BpaIaTeJIbHbI

HHeHTnΦHkaIaIe cepHH ...CmOrpH EtHKeTky o DaHHbIX o IpoJyKTe

IpoueDypa OuenKn COOTBeTCTBnA.. ANNEX VI

Opran 3aBJIeHn.. Nr.0470-NEMKO AS

Gaustadalleen 30 - PO Box 73 Blindern

0314 OSLO - Norway

Дугне Директнвы 98/37/EC, 93/68/EEC, 2002/88/EC, 2004/108/EC

H npyTne HopMaTHBbI EN836,EN ISO14982,EN1033,EN ISO 3744,EN ISO11201

Husqvarna Outdoor Product Italia S.p.A.

Via Como 72 - 23868 Valmadrera (LC)

3/08/2006

Mark....Husqvarna Outdoor Products

Vastab direktiivi 2000/14/EMU spetsifikatsoinidele.

Tuup A

Versoon. B

Löikelaius. C

Garanteeritud muratase. D

Mödetud müratase. E

Müratase körvas

A
LM2146 CD LM 2147 CMD

LM 2147 CM

EII

LM 2146 CD

LM 2147 CMD

LM 2150 CMD

EIII

LM 2147 CMDE

A	LM2146
B	CV-CC-SP-SC-SL-CL-SK
C	46 cm
D	96 dB (A)
E	95 dB (A)
F	84 dB (A)
G	5 m/s²

A	LM2147
B
C	46 cm
D	96 dB (A)
E	95 dB (A)
F	84 dB (A)
G	5 m/s2

A	LM2150
B
C	53 cm
D	98 dB (A)
E	97 dB (A)
F	84 dB (A)
G	5 m/s²

A	LM2151CMDA
B
C	50,2 cm
D	98 dB (A)
E	97 dB (A)
F	84 dB (A)
G	5 m/s²
