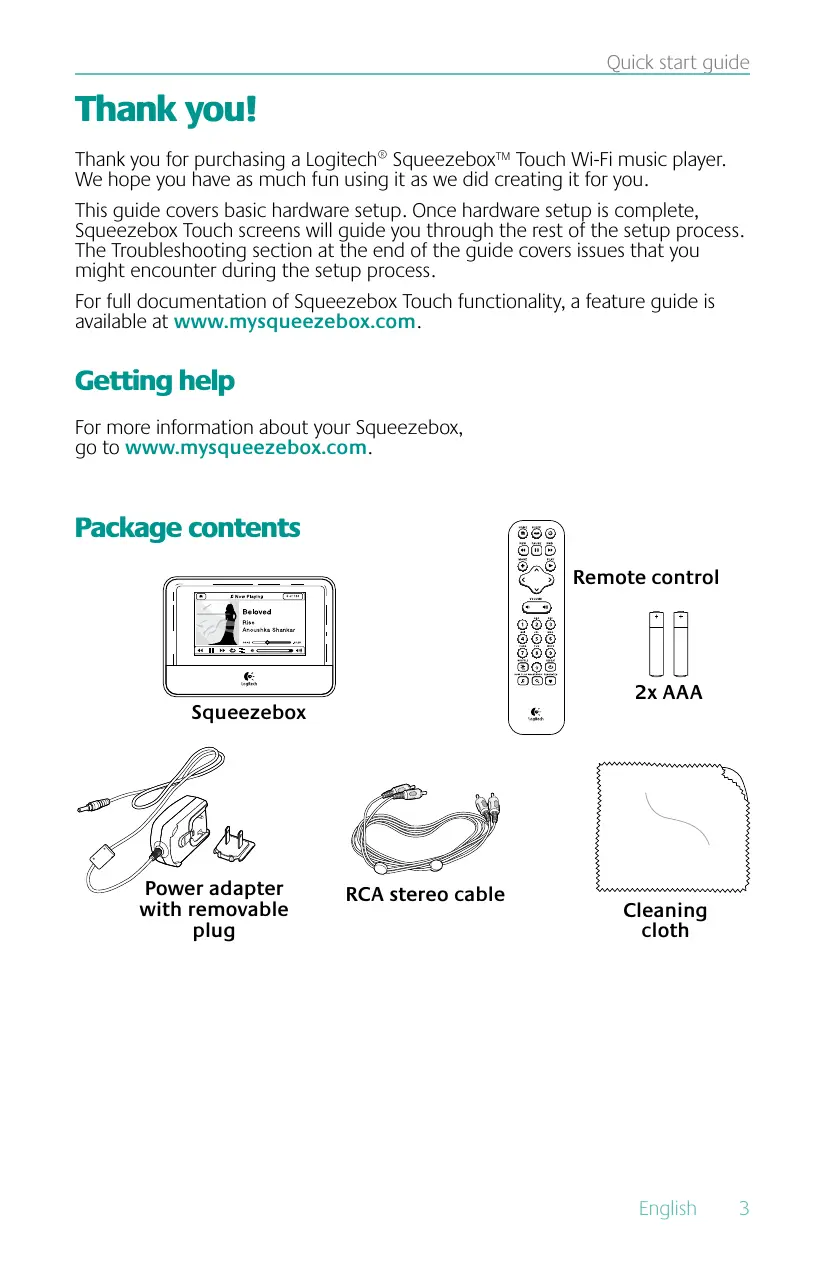

Thank you! Thank you for purchasing a Logitech® Squeezebox™ Touch Wi-Fi music player. We hope you have as much fun using it as we did creating it for you. This guide covers basic hardware setup. Once hardware setup is complete, Squeezebox Touch screens will guide you through the rest of the setup process. The Troubleshooting section at the end of the guide covers issues that you might encounter during the setup process. For full documentation of Squeezebox Touch functionality, a feature guide is available at www.mysqueezebox.com.

For more information about your Squeezebox, go to www.mysqueezebox.com.

Power adapter with removable plug

What you need to get started

To start using your Squeezebox Touch, you will need: • A stereo system or set of powered speakers • A broadband Internet connection (for example, DSL or cable modem) • The name and password of your wireless network

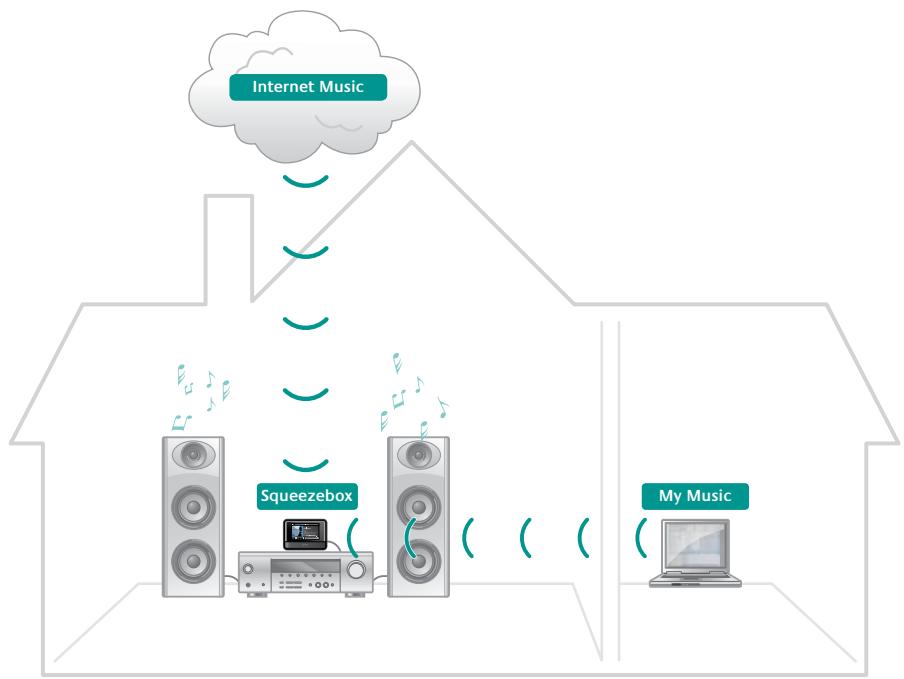

G A typical Squeezebox Touch setup

Find a good location

Place Squeezebox Touch where you can easily connect it to your stereo, and where the Squeezebox touchscreen is visible and accessible. Squeezebox Touch will need to be connected to an electrical outlet at all times. If you will be adding Squeezebox Touch to a wireless network, make sure that your Squeezebox is within range of your wireless network. If you will be setting up a wired connection, locate Squeezebox Touch within r each of both your home stereo and an Ethernet jack.* * Ethernet cable not included. 4   English

Squeezebox at a glance

Squeezebox Touch connects directly to your stereo, allowing you to hear the music that you want on your own stereo system or powered speakers. To manage Squeezebox Touch, use the touchscreen or the remote control.

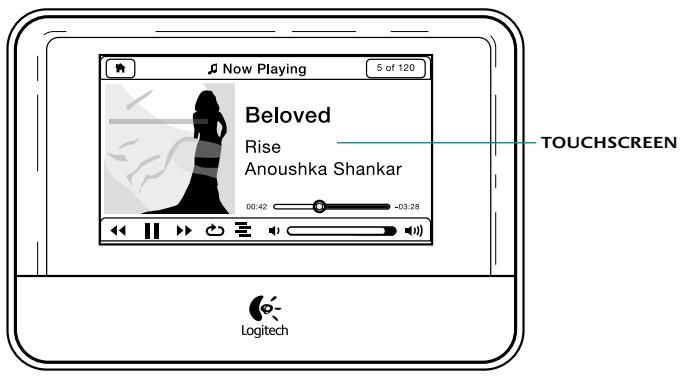

TOUCHSCREEN Squeezebox Front

Note Please use only the enclosed cloth or an eyeglass cloth to clean the Squeezebox touchscreen. Tissues and other materials can cause scratches. The back of Squeezebox Touch includes ports for connecting to your stereo or powered speakers, as well as one for connecting to a wired Ethernet network.

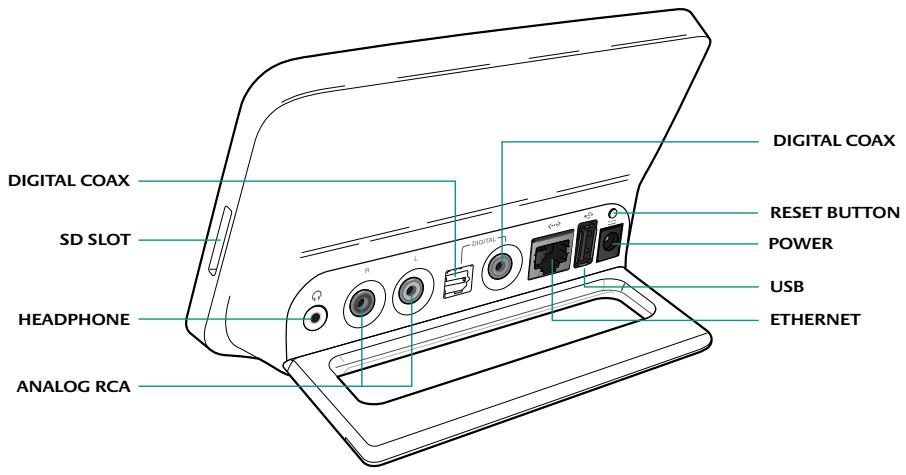

DIGITAL COAX DIGITAL COAX RESET BUTTON SD SLOT Remote control

You can navigate your Squeezebox with the touchscreen or the remote control. Note When using the remote, maintain line of sight with your Squeezebox. The infrared light from the remote needs to be able to communicate with the sensor on Squeezebox Touch.

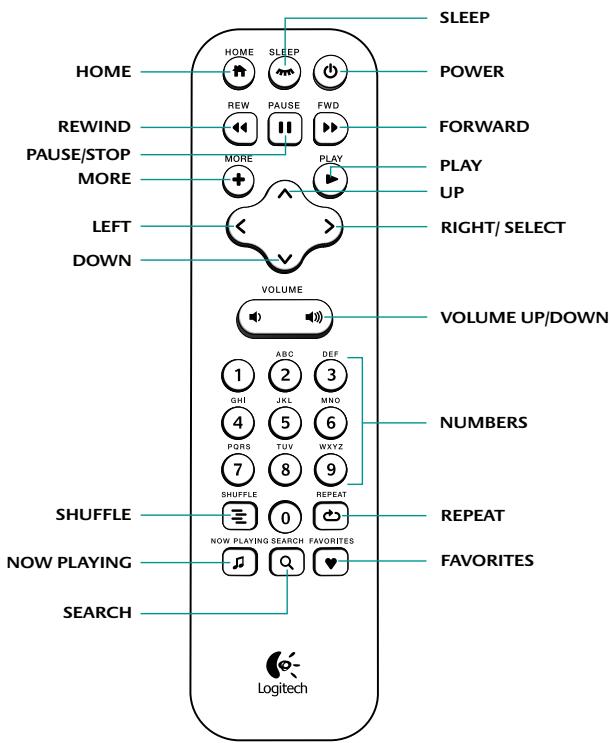

SLEEP HOME REWIND PAUSE/STOP MORE LEFT DOWN VOLUME UP/DOWN NUMBERS Squeezebox remote control

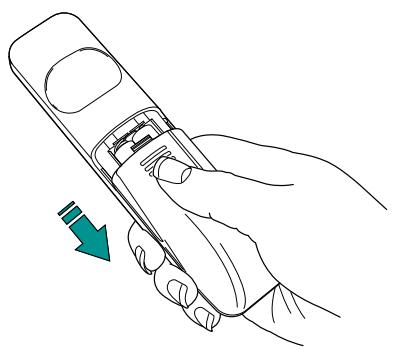

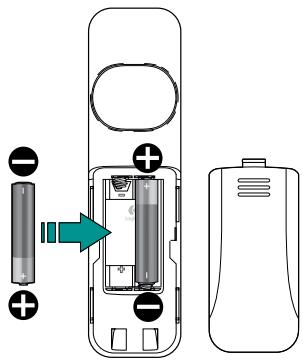

Step 1: Insert batteries into remote

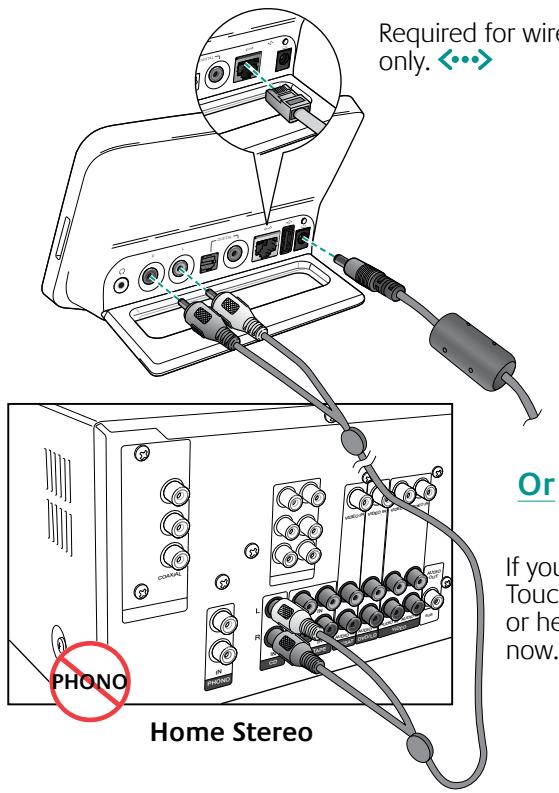

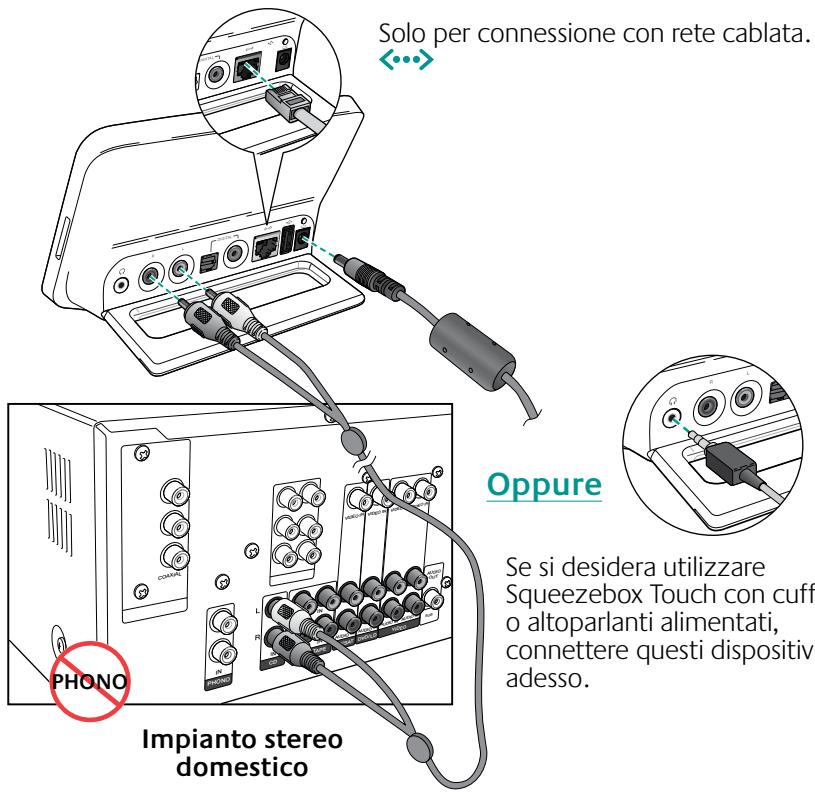

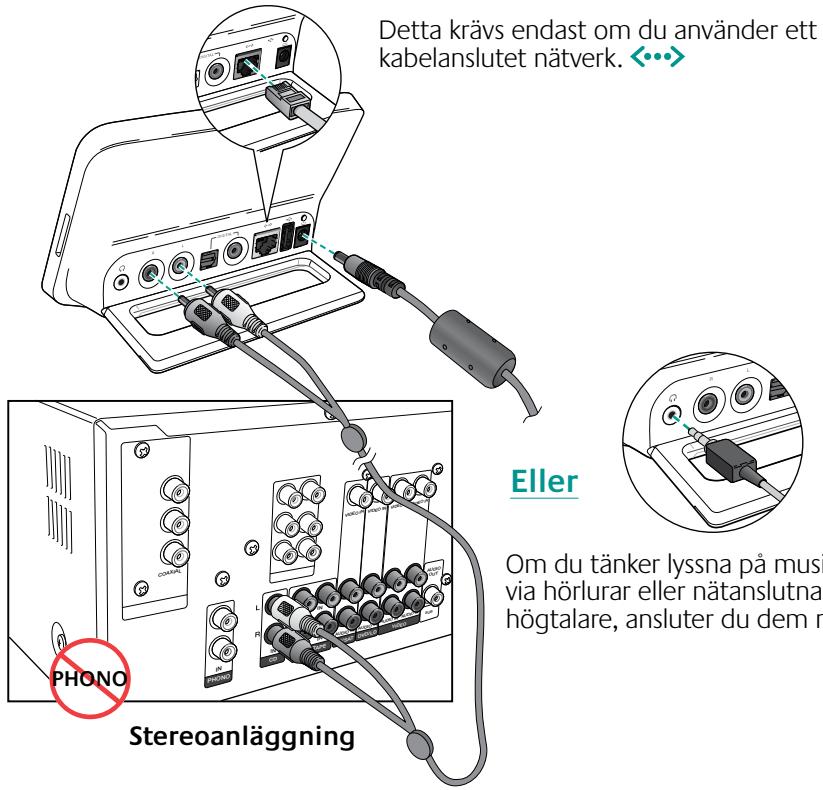

Step 2: Connect Squeezebox

Required for wired network option only.

IN VIDEO COAX IN VIDEO IN VIDEO AUDIO OUT IAL IN IN IN TAPE B AUDIO IN T XX/SA AUDIO IN DVD/L AUDIO SU R IO IN OFE AUD WO IN VIDEO D CD PHONO Or

IN VIDEO If you want to use Squeezebox

Touch with powered speakers or headphones, connect them now.

IN PHON O Home Stereo

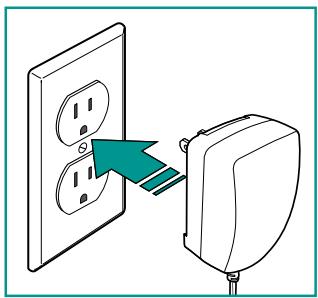

Step 3: Plug in Squeezebox

Logitech® Squeezebox™ Touch Wi-Fi Music Player

After plugging in your Squeezebox Touch, it will automatically turn on after a few seconds.

Squeezebox Touch startup screen

Step 4: Go to on-screen setup

To complete the setup process, make sure your router is on, and has an internet connection. Follow the simple on-screen steps using the touchscreen or remote.

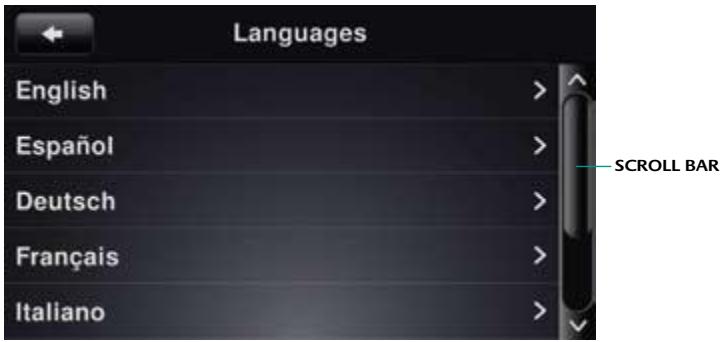

SCROLL BAR Begin the on-screen setup process.

After the setup process is complete, a brief on-screen tutorial will get you up and running.

Using your Squeezebox Touch

Playing music from the internet As a Squeezebox Touch user, you can browse and add music services and other add-on apps directly from the Squeezebox Touch screen, or by visiting www.mysqueezebox.com.

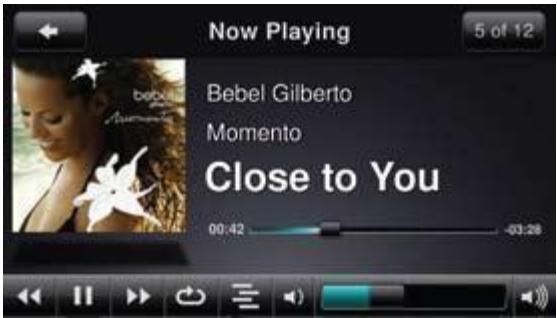

Playing music from your computer After you’ve completed the setup process, go to www.mysqueezebox.com and download Squeezebox software. Squeezebox Touch can then play music that you have stored on your computer. Files that are in iTunes or another music library are scanned and indexed. After that, you simply select your computer name from the My Music screen on your Squeezebox, navigate to the tune you want, and play.

Playing music from a USB drive or SD card

In addition to playing music from the Internet and from your computer, you can play music directly from a USB drive or an SD card. Simply plug your drive into the USB connector on the back of your Squeezebox, or insert your SD card into the slot on the right side. Then, select your device name from the My Music screen on your Squeezebox, navigate to the tune you want, and play. To download the Squeezebox Touch Feature Guide, go to www.mysqueezebox.com.

Reset your Squeezebox To reset Squeezebox Touch, press the reset button located on the back of your Squeezebox above the power plug. Hold the button until a “Factory Reset” message appears on the screen. Alternatively, go to Home > Settings > Advanced > Factory Reset > Continue. The Logitech logo will appear, followed by a Factory Reset message. I don’t have my wireless network name and password If you don’t know your network name and password and you have a wireless network, do the following: 1. Check to see if you have them written down somewhere. 2. Ask someone else in your home if they know them. 3. Contact the person who set up your home network. 4. Check your router manual. 5. Contact your router manufacturer for assistance.

Logitech® Squeezebox™ Touch Wi-Fi Music Player

As part of the setup process, you need the name and password that were assigned to your wireless network when it was installed. A network name is sometimes referred to as an SSID, and a password is sometimes referred to as a wireless key, or security key. I can’t find my network If your network does not appear in the list of wireless networks, do the following: 1. Make sure Squeezebox Touch is within range of your wireless network. 2. Go to your computer to make sure your network is working. 3. If your router is configured to not broadcast your network name (SSID), select Other Networks at the bottom of the list of networks, and enter yours. 4. Unplug your router, wait 30 seconds, and plug it back in. 5. Refer to your router documentation or contact the manufacturer for assistance.

Password not accepted

If your password was not accepted, do the following: 1. Try entering it again. There could be a typo. 2. Convert your password from ASCII to hexadecimal. If your network password is not accepted, it could be in ASCII format. (This only applies to WEP passwords that are either 5 or 13 characters in length.)

For more information, see our Knowledge Base at www.mysqueezebox.com/ support.

Network connection not made If Squeezebox Touch does not connect to your home network, do the following: 1. Confirm that you have selected the correct network name. 2. Try selecting your network name again, or rename your network. If yours has a common name such as linksys, there could be multiple networks of that name in your neighborhood. One way to avoid this issue is to rename your wireless network to a more unique name. 3. Enter a static IP address. If your router is not set to use DHCP to assign IP addresses, your Squeezebox will display an Address Problem screen. From there, you can enter your IP address, subnet mask, gateway address, and DNS server address. For help with this, contact the person who set up your wireless network, or your router vendor.* 4. Turn off MAC filtering. If your router is using MAC filtering, turn it off or add the MAC address on the bottom of your Squeezebox to the router’s table of allowed devices. 5. Unplug your router, wait 30 seconds, plug it back in and try the setup process again. 6. Contact your router vendor for assistance.

* Squeezebox Touch normally relies on a DHCP server to provide an IP address during setup. If you prefer to use a static IP address, you can do it one of two ways: • Make sure your DHCP server is off, and input a static IP address when Squeezebox Touch displays the a ppropriate screen. • Set up and connect your Squeezebox as normal using DHCP. After setup is complete, go to the Settings screen and change the IP address by entering it manually.

For more information on how to set a static IP address, go to: www.mysqueezebox.com/support.

Music is not playing 1. If music is not playing, do the following: 2. Check the cables to your stereo or powered speakers to make sure they are connected properly. 3. Check the input selector on your stereo to make sure it matches the inputs you used. 4. Check the volume on your stereo. 5. Add exceptions to your firewall software. If you are listening to music from your computer (using Squeezebox software), make sure there are no firewall warnings on your screen and make sure your firewall has the proper exceptions. Required exceptions include: port 3483 UDP, port 3483 TCP, and port 9000 TCP. 6. As a test, try playing a different song. 7. If Squeezebox Touch says “Stopped,” check your internet connection.

I can’t find my music collection in My Music

If you want to play the music collection that is stored on your computer but your computer name does not appear in My Music, do the following: 1. Make sure that you’ve installed Squeezebox software from www.mysqueezebox.com. 2. Make sure Squeezebox software is running. • Windows - Hover your mouse pointer over the software icon in your task bar. If you don’t see “Squeezebox software Running,” right-click on the icon and select Start Squeezebox software. • Macintosh - Click on System Preferences, and then click on Squeezebox software. If the button displays Start Server, click it. If the button is labeled Stop Server, the application is already running. 3. If you are using a third-party firewall such as Trend Micro, Norton, McAfee or OneCare, please see our Knowledge Base at www.mysqueezebox.com/support and search for articles on your specific firewall. If your firewall is not covered by our Knowledge Base, add exceptions for three ports as follows: port 3483 UDP, port 3483 TCP, and port 9000 TCP. For information on how to make this change in your firewall software, search the internet for “exceptions, ports, <your firewall application name>,” or contact technical support for your firewall software. 4. If your network uses multiple routers or Voice over IP (VOIP) or you’re on a corporate network that has a complex or segmented network configuration, ensure that your computer and Squeezebox Touch are on the same network segment. This allows Squeezebox Touch to automatically connect to Squeezebox software on your computer.
