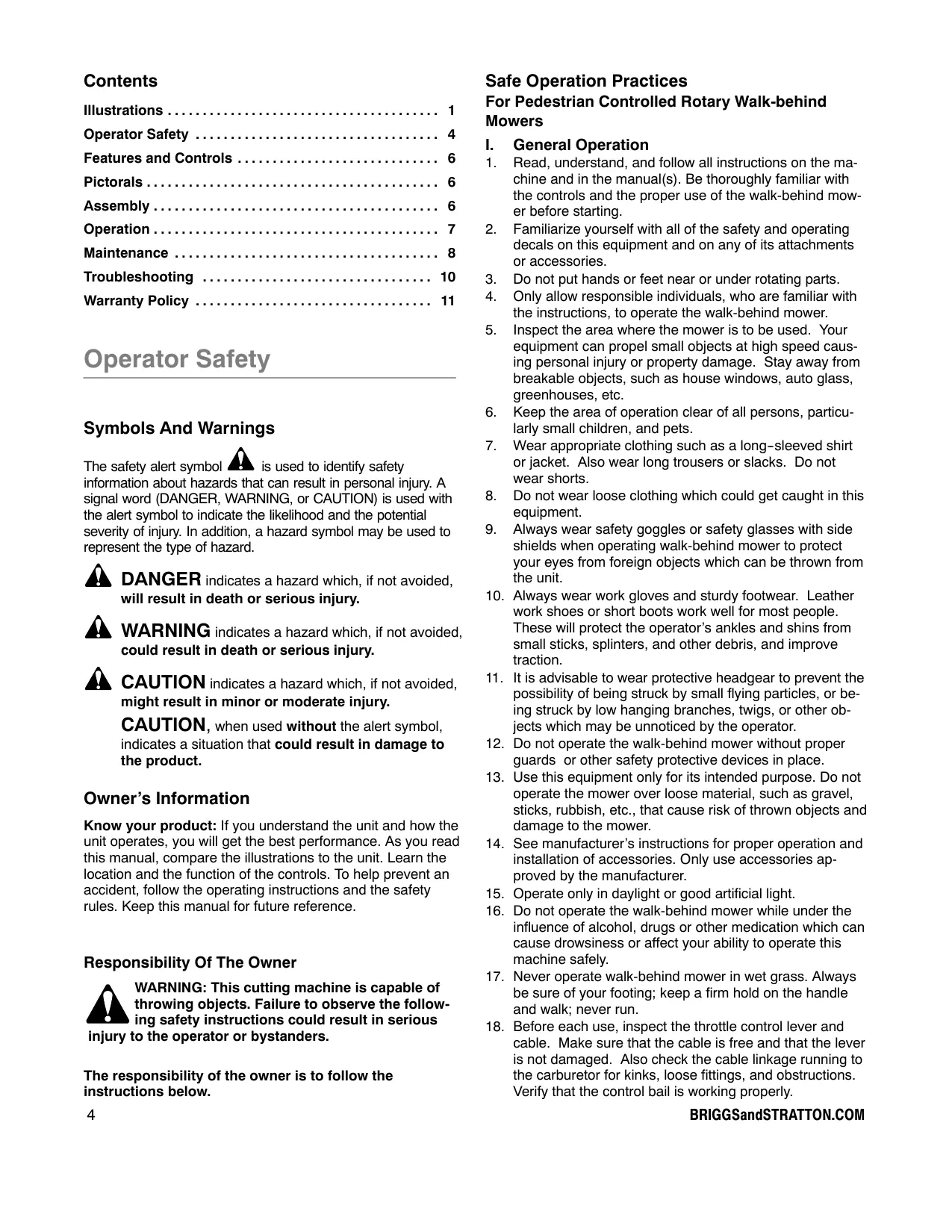

Operator Safety

Symbols AndWarnings

The safety alert symbol is used to identify safety information about hazards that can result in personal injury. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may be used to represent the type of hazard.

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury.

CAUTION, when used without the alert symbol, indicates a situation that could result in damage to the product.

Owner's Information

Know your product: If you understand the unit and how the unit operates, you will get the best performance. As you read this manual, compare the illustrations to the unit. Learn the location and the function of the controls. To help prevent an accident, follow the operating instructions and the safety rules. Keep this manual for future reference.

Responsibility Of The Owner

WARNING: This cutting machine is capable of throwing objects. Failure to observe the following safety instructions could result in serious

injury to the operator or bystanders.

The responsibility of the owner is to follow the instructions below.

Safe Operation Practices

For Pedestrian Controlled Rotary Walk-behind Mowers

I. General Operation

1. Read, understand, and follow all instructions on the machine and in the manual(s). Be thoroughly familiar with the controls and the proper use of the walk-behind mower before starting.
2. Familiarize yourself with all of the safety and operating decals on this equipment and on any of its attachments or accessories.
3. Do not put hands or feet near or under rotating parts.
4. Only allow responsible individuals, who are familiar with the instructions, to operate the walk-behind mower.
5. Inspect the area where the mower is to be used. Your equipment can propel small objects at high speed causing personal injury or property damage. Stay away from breakable objects, such as house windows, auto glass, greenhouses, etc.
6. Keep the area of operation clear of all persons, particularly small children, and pets.
7. Wear appropriate clothing such as a long-sleeved shirt or jacket. Also wear long trousers or slacks. Do not wear shorts.
8. Do not wear loose clothing which could get caught in this equipment.
9. Always wear safety goggles or safety glasses with side shields when operating walk-behind mower to protect your eyes from foreign objects which can be thrown from the unit.
10. Always wear work gloves and sturdy footwear. Leather work shoes or short boots work well for most people. These will protect the operator's ankles and shins from small sticks, splinters, and other debris, and improve traction.
11. It is advisable to wear protective headgear to prevent the possibility of being struck by small flying particles, or being struck by low hanging branches, twigs, or other objects which may be unnoticed by the operator.
12. Do not operate the walk-behind mower without proper guards or other safety protective devices in place.
13. Use this equipment only for its intended purpose. Do not operate the mower over loose material, such as gravel, sticks, rubbish, etc., that cause risk of thrown objects and damage to the mower.
14. See manufacturer's instructions for proper operation and installation of accessories. Only use accessories approved by the manufacturer.
15. Operate only in daylight or good artificial light.
16. Do not operate the walk-behind mower while under the influence of alcohol, drugs or other medication which can cause drowsiness or affect your ability to operate this machine safely.
17. Never operate walk-behind mower in wet grass. Always be sure of your footing; keep a firm hold on the handle and walk; never run.
18. Before each use, inspect the throttle control lever and cable. Make sure that the cable is free and that the lever is not damaged. Also check the cable linkage running to the carburetor for kinks, loose fittings, and obstructions. Verify that the control bail is working properly.

BRIGGSandSTRATTON.COM

1. Stop the engine (motor) when crossing gravel drives, walks, or roads.
2. Watch for traffic when operating near, or when crossing roads.
3. Stop the engine (motor) whenever you leave the equipment, before cleaning repairing or inspecting the unit, be sure that all moving parts have stopped. Let the engine cool, disconnect the spark plug wire and move it away from the spark plug.
4. If the equipment should start to vibrate abnormally, stop the engine (motor), disconnect the spark plug wire and prevent it from touching the spark plug. Check immediately for the cause. Vibration is generally a warning of trouble.
5. After striking a foreign object, stop the engine (motor). Remove the wire from the spark plug. Inspect the walkbehind mower for damage. If damaged, repair before starting and operating the walk-behind mower.
6. Regularly inspect the walk-behind mower. Make sure parts are not bent, damaged or loose.
7. Never pick up or carry the walk-behind mower while the engine is running.
8. Prolonged exposure to noise and vibration from petrol engine powered equipment should be avoided. Take intermittent breaks and/or wear ear protection from engine noise as well as heavy work gloves to reduce vibration in the hands.

II. Slope Operation

Slopes are a major factor related to slip and fall accidents which can result in severe injury. All slopes require extra caution. If you feel uneasy on a slope, do not mow it.

Do mow across the face of slopes; never up and down.

Do remove objects such as rocks, tree limbs, etc.

Do watch for holes, ruts, or bumps. Tall grass can hide obstacles.

Do not mow near drop-offs, ditches, or embankments. The operator could lose footing or balance.

Do not mow excessively steep slopes.

Do not mow excessively steep slopes (maximum 15 degrees) or areas where the ground is very rough. Exercise extreme caution when changing direction on slopes.

Do not mow on wet grass. Reduced footing could cause slipping.

III. Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the mower and the mowing activity. Never assume that children will remain where you last saw them.

1. Keep children out of the mowing area and under the watchful care of a responsible adult.
2. Be alert and turn walk-behind mower off if children enter the area.
3. Before and while moving backwards, look behind and down for small children.
4. Never allow children to operate the walk-behind mower.
5. Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

en

IV. Service

1. Use extra care in handling petrol and other fuels. They are flammable and vapors are explosive.

a. Use only an approved container.
b. Never remove fuel cap or add fuel with the engine running. Allow engine to cool before refueling. Do not smoke.
c. Never refuel the machine indoors.
d. Never store the machine or fuel container inside where there is an open flame, such as a water heater.
e. If the fuel tank has to be drained, this should be done outdoors. The drained fuel should be stored in a container specifically designed for fuel storage or it should be disposed of carefully.
f. Old oil and petrol should be carefully poured into containers especially designed for oil and fuel.
g. Filled containers should be carefully transported to a collection center for proper recycling.

1. Never run an engine indoors or inside a closed area.
2. Never make adjustments or repairs with the engine (motor) running. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting (remove the ignition key if equipped with an electric start). Always wear eye protection when you make adjustments or repairs.
3. Check the engine mounting bolts at frequent intervals for proper tightness.
4. Keep all nuts and bolts tight and keep equipment in good condition. If items are replaced, make sure the mounting fasteners are tight.
5. Never tamper with safety devices. Check their proper operation regularly.
6. When servicing or repairing the walk-behind mower, do not tip the machine over or up unless specifically instructed to do so in this Manual. Service and repair procedures can be done with the walk-behind mower in an upright position. Some procedures will be easier if the machine is lifted on a raised platform or working surface.
7. To reduce fire hazard, keep walk-behind mower free of grass, leaves, or other debris build-up. Clean up oil or fuel spillage. Allow walk-behind mower to cool before storing.
8. Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.
9. Always disconnect spark plug wire before cleaning, repairing, or adjusting.
10. Do not change the engine governor setting or over-speed the engine.
11. Clean and replace safety and instruction decals as necessary.
12. To guard against engine over-heating, always have engine debris filter mounted and clean.
13. Inspect walk-behind mower before storage.
14. Use only original equipment or authorized replacement parts.
15. Replace the cutting blade with factory authorized part.

Description

The walk-behind lawn mower is an engine powered rotary type mower. The engine drives a cutting blade located under the mower housing. The blade lifts and cuts through the grass. The height of cut can be adjusted to give the lawn the desired finish. The cut pieces of grass are either collected into a rear mounted grass bag or, on some mowers, it can be recycled to feed the lawn. Recycling the cut grass is known as "mulching". Push models require the operator to push the mower. Self-propelled models have a rear wheel drive system to make mowing easier.

Intended Use/Limits Of Use

The walk-behind lawn mower is designed to cut lawn grass. Any other use is not permitted. It is not designed to cut grass over 15cm in length or grass mixed with tall weeds. The lawn mower is only suitable for private use in a domestic garden. It is not suitable for cutting grass in public parks or playing fields.

Features and Controls

(Figure 1) Compare the following features and controls with your model. Make sure that you know the location and understand their purpose.

A. Engine Stop Lever
B. Upper Handle
C. Knob or Locking Lever
D. Lower Handle
E. Rear Door
F. Engine
G. Height Adjuster
H. Nameplate
I. Grass Bag
J. Recoil Starter Handle
K. Drive Lever (Self-propelled model)
L. Mulcher Plug

Pictorals

IMPORTANT: The following pictorials are located on your unit or on literature supplied with the product. Before you operate the unit, learn and understand the purpose for each pictorial.

Safety Warning Pictorials (Figure 23)

A. WARNING
B. IMPORTANT: Read Owner's Manual Before Operating This Machine.
C. WARNING: Thrown Objects. Keep Bystanders Away. Read User Instructions Before Operating This Machine.
D. WARNING: Do Not Use This Machine On Slopes Greater Than 10 Degrees.
E. WARNING: No Step.

F. WARNING: Keep Feet And Hands Away From Rotating Blade.
G. CAUTION: Disconnect Spark Plug Wire Before Servicing Unit.
H. WARNING: Crushed Fingers.

Control And Operating Pictorials (Figure 24)

I. Slow
J. Fast
K. Oil
L. Fuel
M. Engine - Start/Run/Stop
N. Drive Control Lever - Engaged/Disenaged

Assembly

Illustrations and pictorialis begin on page 1.

Unpacking instructions

The mower was fully assembled at the factory. When the mower was put in the carton, the handle was put in the storage position. To put the handle in the operating position, follow the steps below.

1. Remove the mower from the carton.
2. (Figure 2) Raise the lower handle (A) until the ends of the lower handle are locked in the operating position (B). Tighten knob (D) until the lower handle is secure.
3. (Figure 3) Remove knob (A) and the fasteners from the lower handle (C) Put the upper handle (B) in the operating position. Tighten the knobs (A) until the upper handle and lower handle are locked in place.
4. (Figure 4) To mount the recoil starter rope, you must first engage the engine stop lever (F). Slowly pull the recoil starter handle (G) and install the recoil starter rope into the rope guide (H).
5. (Figure 2) On self-propelled models, secure the cables to the handle with the cable retainers (F)

CAUTION: Be careful when you fold or raise the handle. Do not damage the cables. A cable that is bent will not work correctly. Before you use the unit, replace a bent or damaged cable.

How To Assemble The Grass Bag

1. (Figure 5) Slide the frame assembly (A) into the open end of the grass bag (B).
2. (Figure 6) Make sure the handle (C) is on the outside of the grass bag. Attach the clips (D) to the frame assembly (E).

How To Mount The Grass Bag (Figure 7)

1. To mount the grass bag on the mower, raise the rear door (F). Hold the handle (G) of the grass bag and mount the grass bag hooks (H) onto the rear door pivot rod (I). Lower the rear door.

IMPORTANT: Make sure the grass bag hooks (H), are mounted on the rear door pivot rod (I).

How To Prepare The Engine

WARNING: For the type of petrol and oil to use, see the Operator's Manual for the engine. Always use a safety petrol container. Do not

smoke when adding petrol to the engine. When inside an enclosure, do not fill with petrol. Before you add petrol, stop the engine. Let the engine cool for several minutes.

CAUTION: The engine does not contain OIL or PETROL. Before you start the engine, make sure you add oil according to the instructions in the Operator's Manual for the engine. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty.

For the type of petrol and oil to use, see the Operator's Manual for the engine. Before you use the unit, read the information on Safety, Operation, Maintenance, and Storage.

How To Change The Mulcher Plug

WARNING: Before you remove or install the mulcher plug, disconnect the spark plug wire and keep it away from the spark plug.

(Figure 8) Some models have an optional mulcher plug. Use the mulcher plug (A) to mulch the grass for a clean, fine cut. To discharge the grass into the grass bagger, remove the mulcher plug as follows.

How To Remove The Mulcher Plug

1. (Figure 9) Raise the rear door (B).
2. Remove the mulcher plug (A) from the discharge opening.

How To Install The Mulcher Plug

1. (Figure 9) Raise the rear door (B).
2. Slide the mulcher plug (A) into the discharge opening.

Operation

Illustrations and pictorialis begin on page 1.

Engine Stop Lever (Figure 10)

Release the engine stop lever (A) and the engine and the blade will automatically stop. To start and run the engine, hold the engine stop lever (A) in the operating position (B).

Before you start the engine, operate the engine stop lever several times. Make sure that the engine stop cable moves freely and that the engine stop lever operates correctly.

How To Stop The Engine (Figure 10)

To stop the engine, release the engine stop lever (A). Disconnect the wire and keep it away from the spark plug to keep the engine from starting.

en

Rear Wheel Drive System (Figure 11)

WARNING: For safe operation, the drive system must immediately disengage when the drive lever is released. If the drive system does not engage correctly, do not operate the mower until the system is adjusted or repaired by an authorized centre.

Self-propelled models have a rear wheel drive system. Operate the drive system as follows.

1. Hold the engine stop lever (A) in the operating position. Start the engine.
   NOTE: To stop the engine, release the engine stop lever (A).
2. Push the drive lever (C) completely forward. The drive system is now engaged and the mower will move forward.
3. To disengage only the drive system, release the drive lever (C). In the disengaged position (D), the mower will stop moving forward but the engine will continue to run.
4. To disengage both the drive system and also to stop the engine, completely release the engine stop lever (A).

NOTE: When the drive system is disengaged on a new unit, it is possible for the rear wheels to rotate if lifted off the ground. This is normal with a new belt and will stop after one or two hours of operation.

How To Start The Engine

WARNING: The blade will rotate when the engine runs.

IMPORTANT: Before you start the engine, operate the engine stop lever several times. Make sure that the engine stop cable moves freely and that the engine stop lever operates correctly.

1. Check the oil. See the Operator's Manual for the engine.
2. Fill the fuel tank with regular unleaded petrol. See "How To Prepare The Engine".
3. Make sure the spark plug wire is connected to the spark plug.
4. (Figure 12) Engines with primer: For most temperature conditions, firmly push the primer bulb (E) three times. In cooler weather, additional priming may be needed. A warm engine will usually not require priming. Every time you push the primer button, wait two seconds.

NOTE: When starting a new engine for the first time, push the primer bulb five times.

NOTE: Excessive priming can flood the carburettor with fuel. See "The Engine Will Not Start" in the Troubleshooting section.

1. (Figure 11) Self-propelled models: Make sure the drive lever (C) is in the disengaged position (D).
2. (Figure 13) Stand behind the mower. Use one hand to hold the engine stop lever (A) in the operating position as shown. Use the other hand to hold the recoil starter handle (F).
3. Slowly pull the recoil starter handle until resistance is felt, then pull quickly to start the engine. Slowly return the recoil starter handle.
4. If the engine does not start in 5 or 6 tries, see the Troubleshooting section.

Before Operation Of The Mower

WARNING: Check the condition of the grass bag for wear or deterioration. If worn or damaged, replace the parts only with approved factory re

placement parts.

To completely fill the grass bag, operate the engine with the throttle control (if equipped) in the fast position.

• To completely fill the grass bag (if equipped) operate the engine with the throttle control (if equipped) in the fast position.
• Make sure the grass bag (if equipped) is properly mounted.
• Check the condition of the grass bag for wear or deterioration. If worn or damaged, replace the parts only with approved factory replacement parts.

How To Adjust The Height Of Cut

WARNING: The blade will rotate when the engine runs. Before you change the height of cut, disconnect the spark plug wire and keep it away

from the spark plug.

Models With Individual Wheel Adjusters (Figure 15)

To change the height of cut, move the position of the adjuster arm (A) at each wheel as follows.

1. Disengage the adjuster arm (A).
2. Move the adjuster arm to another position.
3. Make sure that each adjuster arm is in the same position so that the mower will cut level.

Models With Single-Lever Adjuster (Figure 16 and Figure 17)

To change the height of cut, move the position of the adjuster arm (B) as follows.

1. Disengage the adjuster arm (B).
2. Move the adjuster arm to another position.

How To Empty The Grass Bag

WARNING: Before you remove the grass bag, stop the engine. Before you remove any grass from the mower housing, disconnect the spark

plug wire and keep it away from the spark plug.

1. (Figure 7) Raise the rear door (A).
2. Hold the handle (B) of the grass bag. Lift the frame assembly (C) over the rear door pivot rod (D).
3. (Figure 13) Empty the grass from the grass bag (E).

Mowing Tips

Some models have an optional mulcher plug. If the mulcher plug is installed, the grass is finely cut and will easily recycle. Because the nutrients are returned to the soil, the lawn will need less fertilizer.

The following tips will increase performance and improve the appearance of the lawn.

• The grass must be dry. If the grass is wet, it will be difficult to cut and cause heavy clumps of grass.
• The grass must not be too tall. The maximum height to effectively cut is 9.8cm . Set the height adjusters so that only the top third of the grass is cut.
• If the grass is more than 9.8cm high, two mowings will be necessary. For the first mowing, set the height adjusters in the highest position. Then, lower the height adjusters for the second mowing.
• Keep a sharp edge on the blade. A blade that is not sharp will cause the ends of the grass to become brown.
• Clean the bottom of the mower housing. If grass and other debris accumulate on the bottom of the mower housing, performance will be reduced.

To improve the quality of cut, try the following:

• raise height of cut
  cut more frequently
• operate at a slower ground speed
  reduce width of cut
• change direction
• mow a second time

Maintenance

Engine Maintenance

Illustrations and pictorialis begin on page 1.

Use the following maintenance section to keep your unit in good operating condition. Before you start the engine, read this manual and also the Operator's Manual for the engine. All the maintenance information for the engine is in the Operator's Manual for the engine.

WARNING: Before you make an inspection, adjustment, or repair, disconnect the spark plug wire and keep it away from the spark plug.

Engine Tipping

(Figure 14) Caution: Do not tip the engine with the spark plug down.

When you service the engine, inspect the blade, or clean the bottom of the mower housing; make sure to always tip the engine with the spark plug up. Transporting or tipping the engine with the spark plug down will cause the following.

hard starting
- engine smoking
spark plug fouling.
- oil or fuel saturation of the air filter

Lubrication

1. For maximum performance, lubricate the wheels and all pivot points with engine oil every 25 hours.
2. To lubricate the engine, refer to the Operator's Manual for the engine.

NOTE: Do not lubricate the engine stop cable. Lubricants will damage the cable and prevent the cable from moving freely. Replace the cable if bent or damaged.

How To Clean The Mower Housing

WARNING: The blade will rotate when the engine runs. Before you clean the mower housing, stop the engine and disconnect the spark plug wire

and keep it away from the spark plug.

If grass and other debris accumulate on the bottom of the mower housing, performance will be reduced. After you mow, clean the mower housing as follows.

1. Stop the engine.
2. Disconnect the wire from the spark plug.
3. Clean the top and the bottom of the mower housing.

How To Remove The Drive Belt

To remove or service the drive belt, take the mower to an approved service dealer.

How To Adjust The Drive Cable (Figure 19)

WARNING: Before you adjust the drive cable, release the engine stop lever and wait for the engine to stop.

If the drive system does not engage and disengage correctly, check the handle for correct assembly. Make sure that all parts are in good condition, not broken or bent, and that all fasteners are tight.

Worn parts will change the performance of the drive system. When you mow in high thick grass or on hills, the drive system can slip if the drive cable is too loose. If the drive system slips, adjust as follows or take the mower to an authorized service centre.

1. (Figure 19) If the drive system slips, turn the cable adjuster (A) one turn in the direction as shown in the illustration. Operate the mower and test the drive system.
2. If the drive system still slips, turn the cable adjuster one more turn to shorten the cable. Again, test the drive system.
3. Repeat the adjustment and test until the drive system does not slip.
4. Before you begin to mow, make sure the drive system will correctly disengage and that the mower will stop. If the drive system will not disengage, take the mower to an authorized service centre before you operate the mower.

Blade Service (Figure 20)

WARNING: Before you inspect the blade (B) or the blade adapter (E), disconnect the spark plug wire and keep it away from the spark plug. If the

blade hits an object, stop the engine. Disconnect the wire to the spark plug. Check the unit for damage.

Frequently check the blade (B) for wear or damage such as cracks. Frequently check the bolt (A) that holds the blade. Keep the bolt tight. If the blade hits an object, stop the engine. Disconnect the wire to the spark plug. Check the blade adapter (E) for damage. Check for a bent or damaged blade, a badly worn blade, or other damage. Before you operate the unit, damaged parts must be replaced with factory replacement parts. For safety, replace the blade every two years. Keep a sharp edge on the blade. A blade that is not sharp will cause the ends of the grass to become brown. To remove or service the blade, take the mower to an approved service dealer.

en

Check The Level Of Cut (Figure 20)

Test the unit in a small area. If the height of cut is not level or if the cut grass is not discharged or does not cut even, see the Troubleshooting section.

Folding Handle Storage

CAUTION: Be careful when you fold or raise the handle. Do not damage the cables. A cable that is bent will not work correctly. Before you use the unit, replace a bent or damaged cable.

How To Fold The Handle

1. (Figure 21) On models with knobs (A), loosen the knobs (A) that hold the upper handle (B) to the lower handle (C). CAUTION: As you fold or raise the handle, make sure that the cables are not caught between the upper and lower handles or around the handle fasteners.
2. (Figure 22) Rotate the upper handle (B) toward the back of the unit.
3. Push in on the ends of the lower handle (C).
4. Rotate the handle forward over the engine as shown. Make sure that the cables are not damaged.

How To Raise The Handle

1. (Figure 22) Pull the lower handle (C) back until the ends of the lower handle lock into the operating position. Then secure with fasteners.
2. Lift the upper handle (B) into the operator's position.
3. (Figure 21) On model with knobs (A), tighten the knobs.

How To Prepare The Mower For Storage

WARNING: Do not remove petrol while inside a building, near a fire, or while you smoke. Petrol fumes can cause an explosion or a fire.

1. Drain the fuel tank.
2. Let the engine run until it is out of petrol.
3. Drain the oil from the warm engine. Fill the engine crank-case with new oil.
4. Remove the spark plug from the cylinder. Pour one ounce of oil into the cylinder. Slowly pull the recoil starter handle so that the oil will protect the cylinder. Install a new spark plug in the cylinder.
5. Clean the dirt and debris from the cylinder cooling fins and the engine housing.
6. Clean the bottom of the mower housing.
7. Completely clean the mower to protect the paint.
8. Put the unit in a building that has good ventilation.
9. Make sure the grass bag is empty of grass. Grass remaining in the bag during storage will damage the bag.

How To Order Replacement Parts

Use only manufacturer's authorized or approved replacement parts. Do not use attachments or accessories not specifically recommended for this product. In order to obtain proper replacement parts you must supply the model number which is located on the product nameplate.

When ordering the following information is required:

Model Number
Serial Number
Part Number
Quantity

If you are not able to get parts or service in the manner given above, then contact:

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Troubleshooting

The Engine will not start.

1. Make sure the fuel tank is filled with clean petrol. Do not use old petrol.
2. On a cold engine, push the primer button (optional on some models) five times.
3. Make sure the wire for the spark plug is connected to the spark plug.
4. Adjust the carburettor. See the Operator's Manual for the engine.
5. There is too much petrol in the engine cylinder. Remove and dry the spark plug. Pull the recoil starter handle several times. Install the spark plug. Connect the wire to the spark plug. Start the engine.
6. The engine is difficult to start in heavy or high grass. Move the mower to a clean dry surface.
7. Make sure the engine stop lever is in the operating position.
8. Make sure the fuel valve is in the ON position. See the Operator's Manual for the engine.

The Engine will not stop.

1. Release the engine stop lever.
2. Check the engine stop cable. Replace the cable if bent or damaged.

The Engine performance is bad.

1. Check the height of cut settings. Raise the height of cut if the grass is high.
2. Check the bottom of the blade housing. Clean the blade housing of grass and other debris.
3. Check the wire to the spark plug. Make sure the wire is connected.
4. Clean the engine cooling fins of grass and other debris.
5. Check the carburettor adjustments. See the Operator's Manual for the engine.
6. Check the spark plug gap. Set the spark plug gap at 0.76 mm (0.030 in).
7. Check the amount of oil in the engine. Fill with oil if necessary.
8. Check the engine air cleaner. See the Operator's Manual for the engine.
9. The petrol is bad. Drain and clean the fuel tank. Fill the fuel tank with clean petrol.

Excessive Vibration.

1. The blade is not balanced. Remove the blade and replace with a factory replacement blade.
2. Check for a bent or broken blade. A damaged blade is dangerous and must be replaced.
3. Check the blade adapter. Replace a broken blade adapter.
4. If the vibration continues, take the mower to an authorized service centre.

The grass will not discharge correctly.

1. Clean the bottom of the mower housing.
2. Check for a badly worn blade. Remove and sharpen the blade. For safety, replace the blade every two years with a factory replacement blade.

The grass is not cut even.

1. Check the height adjustment at each wheel. The height adjustment must be the same for each wheel.
2. Make sure the blade is sharp.
3. Check for a bent or broken blade. A damaged blade is dangerous and must be replaced.
4. Check for a broken blade adapter. Replace a broken blade adapter.
5. Move the throttle control (if equipped) to the fast or start position.
6. Check the throttle control (if equipped). Make sure that the throttle control is not in the choke position.
7. Move the throttle control (if equipped) to the fast position. Check the speed of the engine according to the Operator's Manual for the engine.

LIMITED WARRANTY

Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the product that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in your area. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at www.murray.com.

There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from purchase, or to the extent permitted by law and and all implied warranties are excluded. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.

WARRANTY TERMS

Product Type

Walk-behind Lawn Mower

Consumer Use

2 years

Commercial Use

90 days

The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated in the table above. "Consumer use" means personal residential household use by a retail consumer. "Commercial use" means all other uses, including use for commercial, income producing or rental purposes. Once product has experienced commercial use, it shall thereafter be considered as commercial use for purposes of this warranty.

No warranty registration is necessary to obtain warranty. Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to determine the warranty.

ABOUT YOUR WARRANTY

We welcome warranty repair and apologize to you for being inconvenienceed. Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would not apply to the product if damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, the warranty is void if the serial number on the product has been removed or the product has been altered or modified.

This warranty covers product related defective material and/or workmanship only. To avoid misunderstanding which might occur between the customer and the Dealer, listed below are some of the causes of product failure that the warranty does not cover.

• Normal Wear: Small Engine Powered Equipment, like all mechanical devices, needs periodic parts and service to perform well. Warranty does not cover repair when normal use has exhausted the life of the product or part.
• Installation: This warranty does not apply to product that has been subjected to improper or unauthorized installation, alteration or modification. Nor installations that prevent starting, cause unsatisfactory engine performance.
• Improper Maintenance: The life of this product depends upon the conditions under which it operates, and the care it receives. Recommended maintenance and adjustment intervals are stated in the Operator's Manual. Often product, such as tillers, edgers, rotary mowers, are used in dusty or dirty conditions, which can cause what appears to be premature wear. Such wear, when caused by dirt, dust, or other abrasive material entering the product because of improper maintenance is not covered by warranty. The warranty will not cover repairs due to problems caused by replacement parts that are not original manufactured part(s).
  Incorrect and/or insufficient fuel or lubrication: This warranty does not cover damage caused by the use of stale fuel, or altered gaslines. Damage to engine or engine components ie, combustion chamber, valves, valve seats, valve guides, burned starter motor windings caused by use of alternate fuels such as liquified petroleum, natural gas, are not covered unless engine is certified for this operation. Parts which are scored or broken because product was operated with insufficient, contaminated or incorrect grade of lubricating oil as well as product components damaged due to lack of lubrication are not covered.
• Operational Misuse: Proper operation of the product is stated in the Operator's Manual. Product damaged by overspeeding, overheating, or operation in a confined area without sufficient ventilation. Product broken by excessive vibration caused by a loose engine mounting, loose or unbalanced blades, impellers, overspeeding, or bent crankshaft due to striking of solid object. Damage or malfunctions resulting from accidents, abuse, or improper servicing or freezing or chemical deterioration, as well as operating in excess of recommended capacities as outlined in the Operator's Manual are not covered.
  Routine tune-up, wear items or adjustments: This warranty excludes wear items such as oil, belts, blades, o-rings, filters, etc.
• Other exclusions: Repair or adjustments for part(s) that are not manufactured by Briggs & Stratton are not covered. This warranty excludes failures due to acts of God and other force majeure events beyond the manufacturers control. Also excluded are used, reconditioned, and demonstration products.

Warranty service is available only through Authorized Service Dealers. Locate your nearest dealer in our locator map at BRIGGSandSTRATTON.COM.

en

Indholdsfortegnelse

Illustrationer 1

Sikkerhed for operatoren 12

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Fejlfinding

Motoren vil参加会议.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Fehlersuche

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Avíxvεuση Bλαβών

O kivntipac 8v naipvei npoosta.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Vianetsintä

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Dépannage

Vibrations excessives.

CONDITIONS DE LA GARANTIE

Type de produit

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Ricerca dei guasti

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Storingzoeken

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Motoren starter nikke.

1. Sjekk at drivstofftanken er fylt med fersk bensin. Bruk ikke gammel bensin.
2. Hvis motoren er kald, trykkes primerballongen inn (valgfri på enkelte modeller) fem ganger.
3. Sjekk at pennpluggkabelen sitter på pennpluggen.
4. Juster forgasseren. Se Operatorens handbok som tilhorer motoren.
5. Det er for mye bensin i motorens cylinder. Ta ut pennpluggen og tork den. Trekk flere ganger i startsnoren. Sett inn pennpluggen. Sett kabelen pa pennpluggen. Start motoren.
6. Motoren er vanskelig Å starte i tungt eller høyt gress. Flytt gressklipperen til et rent og tørt underlag.
7. Sjekk at motorens stoppespak stär i kjorestilling.
8. Sjekk at drivstoffkranen stär i stillingen ON (på). Se Operatørens handbok som tilhører motoren.

Motoren stopper jak.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Felsökning

Motorn startar inte.

Ako ce yBCTBaTe HecnIpyeH BHaKIOHa, He ro Kocete.

N3BbPwBaIte KOceHeTO HAppeH0 Ha NOBbPxHOCTTa Ha NaKIOHnTe; HNKORA HaDoJy N Harope.

N3BbPwBaIte OTCTpaHЯBaHe Ha IpeДmEt N KaTo CkaJIH N KbCOBe, eДри KJIoHи Idp.

N3BbPwBaIte Na6IIIODeHnE 3a DnyK, 6pa3dN nIIN N3dyTnHi. Bucoka TpeBa MoKe Da cKnBa IpenrTCTBnTa.

He KOCete pR3KO HAKJIOHEH NIIOUI, KaHaBKn IJIb SaHKeTNIpepaTopbT MoKe Da 3aRy6n Cta6nIHoCT NJIp paBHObecne.

He KOCETe N3KJIIOUHTeJIHO CTpBmHn HaKJIOHN.

He KOCeTe N3KJIIOUHTeJIHO CTpBmHn HAKJIOHn (MaKcMym 15 rpaIyca) INI TEpeHN, B KOINTO 3emrTa e MHORo HepaBHn. IporBaBaiTe N3KJIIOUHTeJIHO BHIMAHne, KORATo pPOMeHrTe NocOKaTHa KOCeHe B HAKJIOHa.

He KOCeTe MOKpa TpeBa. 3a6abeHTo CTbIbaHe MOKe Da IOBeDe Do IIOxJIb3BaHe.

III. Deua

TpaunHn Heuactn CnyaH MoTa Da Ce CnyaT, aKO OepaTopbT He e npdeynpeDeH 3a npcsbCTBneTO Ha Deca. Deata YecTo 6NBat npnbniuaHn OT KocaykaTa n HneHOTo DeiCTBne.Hnkora He npneMaIte, ye deLaTa Ie OCTaHaT Ha MICTOTO, Ha KOETO CTe Tn BIndJIa 3a NocleDeH PtTb.

1.ДрьжTe Deцata N3BbN ПОСТРанCTBOTO Ha KOCHe IN NOД ГИХКITE Ha OTROBOPEH Bb3paCTeH.
2.БbTe BnMaTeJIHn nI3KJIHOte KocaKaTAp, aKO Deua HABJ3aT B pa6OTHO npOCTpaHCTBO.
3. Ппеби Когато ce пдвжВаTe Ha3aД ce orleDAIte HaOKOLO 3a MaJIKn Deua.
4. HnKora He no3B0JIbAaIe Ha MaJIKN Deua Da pa6oTATC KocaykaTa 3a onepaTOp, XODeu 3aJ HeJ.
5. 06pbuataTe DoIbHHTeHOBHMaHHe KOraTo DObJnxBaTa bTn, 3aD KOtO HMA BUNMOCT, Uy6paU, DpbBeTa NIN dpyTN OBeKTH, KOtO MORaT Da Ra HAMJIaT.

IV. 06cnyxBaHe

1. 06pbuayte DoIbHnTeJHo BVHMaHne npi 6opabHeTo c 6eH3nH n dpyrnpropBa. Te ca 3anaJIMn, a n3napeHnra NM ca EKcPiO3NBHn.

a. ɪnəʊnʒBaɪte ᵠeɪnHCTBænoOdo6peŋ Kɔnteɪneɪp.
b. HNKORA He cBaanTe KaanaykaTa 3a ropnBOTo n He HAnBaIe TepnBO npn paBoTeu. OctabeTe DBriratEnJa ce Oxna, ppeJ da ro 3apeJnte OTHOB.He nyweTe B6ln3OCT.

c. HnKora He 3apeXdaIe MaunHaTa B 3aTBopeHo NOMEUeHne.
d. Hnkora He cKlaIpaIte MaunHaTa IJN KOHTeHep 3a rOpIBO B NOMEueHne, B KOETO IMA OTKpIT PllambK, HapPIMep C BODoHaRpeBaTeJ.
e. Ako pe3epBoApbT 3a ropNbOTo Tpr6Ba da 6bJe n3TOueH, TOBA Tpr6Ba Da CTaba Ha OTKpIto. V3TOyeHOTo ropNbO Tpr6Ba Da ce CxbpaHra BA CneuHaIO npoeKtupan KOHTeHep 3a cKlaDnpaHe Ha ropNb IIN Tpr6Ba da 6bJe BHNMaTeJIHO NIKBnDnPaHO.
f. OctapnTo MaCNo 6eH3nTp6Ba BHMMaTeJIHO Da Ce HaneT B KOHTeHepn, CneuaJIHO npoeKtpaHn 3a T8X.
g. ΠbJIHnTe KOHTeHnEepr76Ba Da ce TpaHcNOpTnpaT BHIMaTeJHo B cHTbPa 3a Cb6npaHETo IM 3a NOxOJaIO peuKJInpaHe.

1. HnKora He cTaptnpaIte DnIraTeIaBbTpE nIIN B 3aTBOpEHO npOcTpaHCTBO.
2. HnKora He npaBeTe peRyIinpoBKn nIIN nonpaBKn c pa6Oteu DnIraTeN.Pa3KaueTe KaBena 3a CBeUta N ro DpBXTe Ha pa3CTOAnHe OT He, 3a Da IpeDToBpaTIne CnyauHNO CTapTnpAHe (OTCTpaHete KJIIOua 3a 3anaIbaHe, aKO nMa eNEKtpnuecko CTapTnpAHe). BnHarn Hocete 3aunTHn OOnJa, KOraTO n3BbPWBaTe peRyIinpaHe nIIN nonpaBKn.
3. Поберразе дам мотхнite блгова на вогателca дбpe 3aterHatи Ha cheTи INTEPBaIOn OT bpeMe.
4. ДрьжтЕ BCNUKи RAJKИ 6OЛTOBE 3aTeHATи И пaTeTe CbOpBXeHNeTO BДОБР OсБСТОHnE. AKO CA CMeHeH NЯКочactN, yBepete Ce, QueФИКcaTOpIte IM Ca 3aTeHnat.
5. Подьркай Te BCnKn RaKeyи 6OJIToBE 3aTeHaTn I ПОДьржай Te OБоруДВаHTo B Do6Po CbCTOЯHne. ПpoBepraBaIte MOHTaxHATA KOHCTpyKUЯ BCEKn ПbT, KOrato CMeHBAte UNI 3aTOUBAte HOJa.
6. HnKora He 3aMeHnTe yCTpoiCTBaTa 3a 6e30nacHa pa6ota. PpOBepraBaiTe rI peDobHO 3a npabuHaTa IM pa6ota.
7. Korato obcnykbaTe nIIN nonpaBte KocaykaTa, ynpabnBaHa ot OepaTOp 3ad He, He NaIOHbAite MaunHata Ha d IINI B NOBEe OT CneuaJIHO yKa3aHOTOKa Ka de HApBn B HAcToJIoTO PbKOBOCTBO. IpOceDpyrTe No noDbPbXkTa a pEmoHTa Ha KocaykaTa MORat Da ce N3BpUWBaT B N3npaBeHa N03uY. HAKO ONepaunCa PO-JeCHN 3a N3IbJIHeHne, aKO MaunHata Ce noCTaBn Ha N3dInHATA PNaTcOpMa IINI pa6OTHa NOBbpxHOCT.
8. 3a da ce hamajn nojkapHaTa onachoct, noiBpKaIte KocaykaT a uCTa OT TpeBa, IuCTa nn dpyr HATpynHOTNOMKn. IooNCTBaIe 6paKyBaHITe MacNo nn rOpNbO. Octabete KOcaykata da ce oxJaDi npeDn da J CKlaInpate.
9. Cnpete n npobepete o6opuydBaHeto, ako yapnte HkaKbB ppeMeT. Ako e Heo6xoDIMO, HanpaBete nonpaBkA, ppeDi da CTaptnipate OTHOBO.
10. BnHaHr OTKaUBaTe Ka6eNa Ha CBeuTa Ipei noOuHCTBaHe, NoPpaBHe NJI peYJInpaHe.
11. He npomehyTe ynpaBnBaAsaTa HacpoKa Ha DnIraTeJI N He yBeJIuHaBaIte OobOpTNe MY.
12. Почистваite и Смениваite п dedупедentелнтete Taбелкina 3a Инструкции и 6e3oponacha pa6oTa, korato e Heo6xOДIMо.
13. 3a da ce npedna3n DnBiratela OT nperepaBaHe, qnlTbpT 3a OTLOMKn BnHaRn Da sbJe MOHTupaH n IOuHCTeH.
14. Поверразыт КocaykaТа педдяя склдиратe.
    16.ИЗнOL3ВаиTe само оригиHaJIHo OБоруДВаHe n OdoBpeHn pe3eRbHn YacTn.
15. CmehraBaiTe HOka 3a KOceHe c Odo6peHa OT 3aBOda pe3epBHa Yact.

OncanHe

Kocaykata 3a onepaTOp, KOITo ce DbNxN cIeH e, e Kocayka potaOnoHEn TIN, 3aDbNxBaHa OT DBIrataJI. DBrirateJIrT 3aDbNxBa peKeuH NOK, pa3nOJoxeH NOd Koxyha Ha Kocaykata. HoXbT NobDInra H KOCn TpeBaTA. BIncOnHATA Ha KocHe MoKe Da ce perylnipa, 3a da npndaJe Ha Mopabata XeJaanH OkOHcATEJeH n3rIeJ. Okocenite OTrp3bUOn OT TpeBaTa 6BnBt IIN Cb6npaHn B pa3noJoxeHa OT3aD Top6a 3a TpeBa, INI, PnHrkON KocauKn, MOKe Da 6bDaT peCNIpaHn 3a HATOPBAHe Ha Mopabata. PeCNIpaHeto Ha OTP3aHATA TpeBa e No3hato KaTO "MUnpAne" (NOKPBAHe Ha NoCbata). ModeJIte 3a 6yTahe HanaRat OepaTopbT Da n36yTbHa HApPeI Kocaykata. CamOXoDNHTe MoDeJI NImat 3aJaHa CnCTema 3a 3aDbNxBaHe, KOITO yIeChRA Ba KOCHeTO.

ZeIeBa yIooTpe6a/ΓpaHnCi Ha yIooTpe6a

Kocaykata 3a onepaTOp, KoITo ce DnJxN cIeI HeI, e npoeKTnpaHa da Kocn IInBaIHa TpeBa. He ce pa3peWaba HnKaBa dpyra ynoTpe6a. Ta He e npoeKTnpaHa 3a Kocnt6a Ha TpeBa, no-DbIra oT 15 cm nII npimeCeHa C BnCOKn nIeBEn. Kocaykata e noDxoIyua eINHCTBeHO 3a InuHo nOJ3BaHe B DomAunHaTa rpaIHa. He e noDxoIyua 3a KocHe Ha TpeBa B OoIeCTBeHn napKOBe nII nIrpuIa.

Elenentnyynpablenya

(Фура 1)Сразнелсдваше щемени упраьлени С Bavши модел.Убedingе с,чп пзавate pa3ноюженьeto ИМ и pa3бира te Tяхото npedha3nauehoe.

A. loct 3a cnipahe Ha DnBiratena
B. TogHa npbXkKa
C. Byton niiin 6nokupaiaoct
D.Долнадрьхка
E. Kanak Ha IIpeJaBaTeJIHr MExaHn3bM
F.Диогател
G. Perynatop Ha BncoHnHaTa
H.ИнформадионнаТабелka

I. Top6a 3a TpeBaTa
J. PbkoXBaTKa 3a pbuHnA CTapTeP
K. 3aДвиЖВац loCT (CamaXOДeH moДeJI)
L. Kow 3a haTopraBaHe

Yka3aTeJIHnФИrgpN

BAJHO: CneHnTe yka3aTeHn fHyprn ca pa3noJoxeHn Bbpy Ba7aTa MaunHa nIb DocTabeHnTe C HeN HCTpyKuIn. PpeDi na PoohHeTe da pa6OTnTe C MaunHaTa, pa3yHeT n pa36epTe ppeHa3NaeHneTo Ha BCKa yka3aTeHa fHypra.

3aMeHete YacHTe cAmO Cpe3epBHN YactN, Ipon3BeDeH N 3aBOda.

3aДанayyeTe HAnbJIHo TOp6aTa 3a TpeBa, BKNIOUeTe DnBraTeJIc CpbuHa ra3 (aKo nMa) Ha N03nCn3a 6bP3n O6OpOTn.

3a da HnblHnTe n3zIIO TOp6aTa 3a TpeBa, (ako IMa TaKaba) pa6oTeC dBnraTeJI npu pBuHa ra3 (ako IMa TaKaba) Ha no3nIg fast (bprn o6opOTn).
- Y6eTeCe, Ye Top6aTa 3a TpeBa (aKO Ima TaKaBa) e npabuHNo NoCTaBeHa.
- Пюверете сбсторно на Торбата 3a Трева 3a ИЗнOCBAне Или NOВраз. Ак e ИЗносян Или NOВразЕна, 3ameheteЧастпe CamO C peЗерВиЧастN, РОИЗBEДЕНИ B 3aBOДa.

N3npo6BaIte yctpoiCtBOTo Bbpxy OrpaHnueHa nIoU. Ako BnCOuHaTAt Ha KOCHe He e paBHomepHa nII NOKOcHaTa TpeBa He ce pa3TOBapBa nII pIOCTO HMa KOCHe, HanpaBeTe cnpaBA Ka B pa3dEn Hen3npaBHOCTn I OTCTpAraBaHoTo mM.

CrbBaHe Ha npbXkata npn cKnaDnpaHe

BHIMAHHE: BbTeB HmAteJIHn, KOraTO cBbATE nIIN 3dngate pkoXbaKata. He nobpeJdaIte ka6JInte. Ka6eJ, KOTo e nperehAT, Hma da pa6OTn npabNIHO. PpeJn da noJ3BaTe MaunHaT, CMeHete npereBHaTn IIN NOpeDen Ka6eJ.

Kak da cbrBaTe npBXkata

1. (Фиура 21) Рп моделите с блораши 6утони (A),да ce pa3хлабват 6утони (A), коют задьржат roрнata част на дръккata (В) Кьм долната и част (С).BHIMAHINE: Рпсгваени ра3гваени на дръкката ce уberete, che kaбелITE не са зхваати мекдиу roрнata и долнata част на дръкката плп Okоло.Texнite скооби.
2. (Фигура 22) 3abpbTeTe rohpata yact Ha npbkkata (B) KbM 3aHaTAt yact Ha MaunHaTata.
3. HatncheTe B Kpaunata Ha DoJIHaTa Yact Ha dpbXkata (C).
4. 3aBbPTeTe DpbXkata Hanpei Bbpx MaunHaTa KaKTo e noka3aHo. YBepeTe ce, Ye KaBeJInte He ca NobpeDeHn.

Kak da n3dnghe Te npkKaTa

1. (Фура 22) Итглеле долнота чаrt Ha дрьжкata (C) Na3aД, ДOKATO краицати се блOKират в работ ha позия. След това я захpenete ссс Кбoste.
2. Повдигнелу roрнату act ha дьжka ta (B)do pa60thata nO3nua Ha onepaTopa.
3. (Фиура 21) Вьрху модел с诫ун (A), застене诫ун. 6诫ун.

Kak da nojrotbnte kocaykata 3a cknaDnpaHe

PNEyPEXKDEHNE:He n3ToBaTe 6eH3nHa,doKaTO cTe BbTpe B crpaData,6n3o cTe do orbH nn DoKaTO npuHte BeH3nHOBHTe nap

MOrat Da npUHHr EKcnIO3n IJN NOxkap.

1. Μιθουτητε pe3ερBoapa 3a rρούBOTO.
2. Octabete IdbirateJIa pa6oTn, IOKaTO n3YeepnI 6eH3nHa.
   3.ИЗтуе MacNoTo OT TOnJIЯ DBuRatEn.HaNbIhete KapTepa Ha DBuRatEn C HOBO MacNo.
   4.ИЗваде ZeanJIteJIHATA CBeU O TcIINHbpa.ДоелTe eHa yHcIg MacNo B cIINHbpa.BaBHO npITeJIte PbKOxBaTKaTa Ha pHyHn CTapTep, TaKa Ye macIoTO Da 3aIHTn cIINHbpa.MOnTpauTe HOBa CBeU B cIINHbpa.
   5.Почирете Heчиротип e n OTлOMКнe OT OxlaNTeHnTe ПЛactHnИ KOKyxa HaДВИгаTeЯ.
   6.Почирете долнота ча't ha кокуха ha Кocayka-ta.
3. HanbJIno noHcTe Te KocauKaTa, 3a Da npEJa3nTe 6oTa n.
4. NocTaBaTe MaunHaTb Crpada C do6pa BENTnnaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaI
5. YbepeTe ce, ye Top6aTa 3a TpeBa e n3npa3HeHa. OctabaUaTAt TpeBa B Top6aTa NO Bpeme Ha CbXpaHHeIeЯ IOBpeDi.

Kak da nopbyame pe3epBnuntary

N3PON3BaIte cAmO OTOpn3IpaHNI OIO6peHNIOTPON3BOIDTEJIpe3epBHNuCTN.He N3PON3BaItePnCTaBKNI INPiHaJDNEXKHOCTN,KoTTO He Ca CNEUHaNHOpeOpbYaHNI 3a To3N pOdyKT.3a Da nOlyuHTePOXODAUNITE pe3epBHNuACTN Bne TPr6Ba DaPnEOCTaBNTe HOMepa Ha MoJeLa, KOToE pa3NOLOKeHBbpyΦnpMeHaTa Yka3aTeJHa TabeJKA Ha npOdyKTA.Korato nopbYBaTe, ce N3NCBAcJeDHaTa INΦopMaun:

HomepHaMoDena
- CepneH Homep
- Kataioxeh Nha YaactTa
KoJIneCTBO

Ako He CTe B CbCTOarHne Da noJyUHTe Yactnte nn yCJyraTcBflacHO OINCAHn INo-rope NaHn, CBbpxKeTe Ce C:

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

OTKpNbAHe N OTCTpaHЯBaHe Ha Hen3npaBHOCTN

Дигагелт Нама д CTapтupa.

1. YbepeTe ce, ye pe3epBoapbT 3a rOpINBOTo e HnblHeN C uNCT 6eH3uH. He n3IOn3BaJte OCTApJIO rOpINBO.
2. Ппс CTуден DBИгATEЛ, HAtИСHETe.net ПБТи 6уTOHa 3a NOДКаЧВАне Ha rOрИВО (no OПцИ рпн HЯКоN MОdELI).
3. YBepeTe Ce, Ye Ka6eIbT 3a CBeUta E CbP3aH KbM HeA.
4. PerynipaTe Kap6bpaTopa. HanpaBeTe cnpaBka B PbkOBoNDCTBOTO 3a pa60Ta C DnBraTeJI.
5. Има Тьрдмного БEHиВ BцИнДьра Ha DBИгATEЛЯ. OТстранete Ги ИЗсушete 3апалтеллара CBeI. I3terIte Hяколko ПБТи рБКoxВaTKaTа Ha pBHyHn CTapTeP. Пoctabe Te 3anaiNTeHLHATA CBeI. CBbpxKeTe KaBeJa KbM HeЯ. CTapTupaIte DBИгATEJIY.
6. Дигаел.Tудно CTapТира рп Deбета Ил Висока Трев. Ппемecтete КocaykaТа HaЧNTа cyxa NOВьхHOCT.
7. YBepete ce, Ye loctbT 3a cnipaHe Ha IBNrataTeHa ha pa60Tha nO3nua.
8. YbepeTe ce, ye KlananaHa 3a rOpBOTO e Ha nO3nIaON. HanpaBeTe cnpabKa B PbKOBoDCTBOTO 3a pa60Ta C DBrIgataJIa.

Дигагеллт He cnupa.

1. Ocbobode Te IocTa 3a cnipaHe Ha DnBraTeJIa.
2. Поверете Кабела за сиране на двигатуг. Смehete ro, akо e огьнат плповеден.

TexHnuecknte noka3aTeJn Ha dBnraTeJr ca louN.

1. Поберете Вионинота На Habсторкite 3a Косяе. NOBДИГETe Вионинота На Ксесе Ha TpeBaT, aKO ТЯ e BИСОKA.
2. Повере Te ДолнаТа CTраHA Na KOKyxa 3a HOxa. Почисте TE KOKyxa OT TpeBa NДугИ OTJOMKn.
3. Поверете Кабела на залипелна с蜱. Уверете ce, Ye e CBbp3aH KBM HeЯ.
   4.ПочиретеoxладитейнITEпл actинHaДВИгаTeЯ OT TpeBaи Дуги OTЛOMКИ.

4. Повереperateулковынту на karбураюп. HanpaBetecnpabkaВ Рьковдъно 3а pa6оТС двигаеля.

5. Повере te Искрва т мждина на С蜱цта. Perулар TEЯHA 0.76 MM (0.030 nHua).

6. Поберете КолучесьOTO на MacIoTO BДВИгATEЛЯ. Дoleйт macno,aco e Heo6xOДМо.
7. Поверете Вьздушни Фнлтbp на двогаел. Нанравete справka в Ръковомсгвоюдъото за работа с двогаел.
8. Бензиньт e HekaueCTbeH. ИЗтуе Te rи NOчNTeTe pe3epBoapa 3a ropnbOTO. HanbIhete rO c uNCT 6eH3nH.

П配电мерна Вибрацnia.

1. HoxbT He e 6aJHaHcnpaH. CbaJeTe ro n ro cMeHeTe pe3epBHe, npOn3BeDeH B 3aBOJa.
2. Поберете за пэрьнат и сунен HOX. Поврedingун HOX e onaceн И Тразбвда SFbde cmehen.
3. Пювереаадпераа за Нжа.CmeHete cUynehna adanTep.
4. Ako Bn6paunra TpOdbJnx, 3aHece Te KocuKaTa B OToPn3npaH cepBn3eH ueTbp.

TpeBaTa He e npaBnJHo pa3TObapeHa.

TpeBaTa DOpH He e OkOceHa.

1. Поберете Нстюкata на Висунота пи BCЯКО колJO. Habстюкata на Висунота Трабьда сбдени CBSA пи BCЯКО колJO.
2. YBepeTeCe,YeHOXbTeOcTbp.
3. Поберете за огнат посумен HOж. Поведен.T HOж e ONaceH n Tp6Ba da 6bde CMeHeH.
4. Поберете за сунейнадлтета наха. Смehete сунейняадлтет.
5. Ппемесе Te loCTa ha pbuHaTa ra3 (ako nma TaKbB) Ha no3nucr fast nnn start.
6. Поберете рьчна та ra3 (ako Иma Тakaba).Уверете ce, Ye рьчна та ra3 He e Ha поця CMyka.
7. Ппемесгете рьнота ra3 (akoima taKaBa) Ha lo3nua fast. Проверетe оборOTITE Ha DBIrataTeЯ CnopeД PьКOBODTBOTO 3a pa6OtaTa My.

OΓPAHnueHa ΓAPAHnY

Kopnpaunn Briggs & Stratton, rpynata 3a npon3BOcTBO ha eheprocb3daBaun npodykTu LLC, ue nonpaBn nn 3aemen 6e3nIaTHo BCnUKN) uact(ua) Ha npodykTa, KOrTO(KoITo) e(ca) c depekeTeH MaepnaI nn n3pa6OTka, nn C dBete. TpahcnOpTNHe pa3xOan 3a npodykTa, BbPrat 3a peMOHT nn 3amHaNo Ta3n rapaHn, Tp6Ba da ce noemAT OT KynbUbaa. Ta3n rapaHn e BaJInDaHa 3a u o6eKT Ha nepnoiTe u yCIOBnra, NocOeHn No-dOny. 3a rapaHOnHO bcnyBaHe ce obphte KbM hai 6bn3Kn YpbHOMoUe cEBu3eN ppeCTabNTel BB BAunr pernoh. OTHOCO rapaHOnHO TO bcnyBaHe otKpnite Hai 6bn3Kn YpbHOMoUe cEBu3eN ppeCTabNTel B Haata KaPta 3a MeCTOnOLOXeHNTo Ha npedctabNTeJIte Ha aDpec www.murray.com.

HЯma dpyra cneuajna rapaun. Nopda3bnpaunte ce rapan, BKJIOUHTeHTo Te3n 3a npodabaemocT I rohdoc T a cneuaJHa cen, ca orpaHueHn do edHa roDInHa ot daTaTa Ha KUnyBaHe nIi Do cPoka, No3BOJeH B 3aKoHa, KaTO BCNUK noDpa3bnpaun ce rapanCe n3KJIOUcBat. OTROBOPHOCT 3a clyaHn nIi NocJeDaun 3e H3KJIIOUvBA B CTeneH, NO3BOJEna OH 3aKOHa. HkON uATn nIi CTpaHn He nO3BOJRAb AT OrpaHueHn 3a BpeMeTPaeheto Ha noDpa3bnpaata ce rapan, a HAKON uATn nIi CTpaHn He nO3BOJRAb Tn3KJIOUVAHEto nIi OpaHuaBaHTo Ha cLuyaHn nIi NocJeDbauu 3eTn, Taka ye e Bb3MOXHO rOpHOTo ORpaHueHne n3KJIIOUeHne Da He e BaJIndHO 3a Bac. Ta3n rapaun Bu daBa cneuФuHn 3aKOHOBn npaba, a BVE MOKeTe Da IMATE N Dpyrnpaba, KOINTO CE n3MeHJT B EDIN nIi dpyr qat, nII B eDHa nIi dpyra CTpHa.

TAPAHUNOHN CPOKOBE

TnHa npOdykta

Kocayka c onepaTop 3aI HeI

3a noJI3BaHe 3a co6CTBEn HUxKm

2TODNH

3a noJI3BaHe 3a npOMuJleHn HxKd

90 dHn

FapauHIOOHnI TepnoID 3aOuBa O T daTAt Ha KynBaHe OT pBnI NOTpe6nteHa I dpe6HO nIOn O KpaHnI NOTpe6nte 3a npOMnJIeHN HxJdN INoDbIjXkABa 3a nepnoD, nocouen B Ta6nIaTa rope. "3a noL3BaHe 3a cO6CTBeHN HyKdN" O3NaHabA IINHNO I3NoJ3BaHe B DOMaKNHCTBOTo OT NOTpe6nteHa I dpe6HO. "3a noL3BaHe 3a npOMnJIeHN HxJdN" O3NaHabA BCNUKIN DpyrU yNtpe6B, BKJIOHTeH NO TBpOBcKa yNtpe6b, KaTO IN TAKaBA, fOpMnpaUa DOxoID nIIN O TdaBaHe IOd HAEM. CJeI KATO BeDHbX DVBraTeJIAT E bII NoJ3BaH 3a npOMnJIeHN HxJdN, ToI ue 6bJe CHTan 3a CEJIte Ha Ta3n rapaHcY, KATO pOdoyKT C TbPROBCKO nO3BaHe.

He e Heo6xOIma pernctpaun Ha rapaunHra, 3a da ce nolynr rapaunOHNO bcnyXbahe. Na3eTe KbntAHnraTo OT NOKyNkata 3a doka3aTeJCTBO. Pn nnckBaHe Ha rapaunHNO bcnyXbahe, aKO he ocInpyrnte DOKA3aTeJICTBO 3a HauHaHaTa DaTt Ha KUnBaHe, DaTATA Ha npOn3BOcTBO Ha npOkyTA ue 6bDe nI3PON3BaHa 3a onpeJeHHe Ha rapaUNOHnne nepNoD.

OTHOCHO BAWATA TAPAHUN

Hne npnbETCTbame rapaunohnpeMOHT n Ce n3BnHBaMe 3a Cb3daeHOTo Heydo6TBO.BceKu YIbHOMOeH cepBN3eH npedctabnte moKe da n3BbprBa rapaunOHn peMOHTn. IObueTe rapaunOHn peMOHTn ce npobexkDat pyTHNO, Ho NOHAKORA e Bb3MOXHO NCKAHNA 3a rapaunOHNO 06cnykBaHe da He 6bDat cboTBetCTBaUN. Hanpimep, rapaunOHNO 06cnykBaHe He CE npiNar, aKO npOBpeDATA Ha npodykTa ce e cnUHnla nopadn HnnpaBnHOTo My nON3BaHe, HnnpobExKaHe Ha OnerpaunIO pTuHHaT a NODpbXka, npEBO3BaHe, HnnpaBnHa EKCnloataa, CbXpaHEHne NIn HnnpaBnEn MOHTax. AHaONrHuO rapaunHnra OTnda, aKO cepuHnT Homep Ha npodykTa e bIN n3TpNT uIN npOdykTbT e npetbprrn npomEnu IN KOHCTpykTNBHN MoINΦnKaun.

IrapaunrTa nokpmbEeHCTBHeo Cbbp3aHnTe C npOyKta DepekTeH MaepnA I/IIIN IpOn3BOcTBeHo KaecTBo. 3a da n36erHe HeOpa3ymHe, KoETO MoKe Da Ce POBn MeJy KyuBaHa I PpOdaBau, No-doJy ca N36poEHn HrkOu OT pPunHnTe 3a NobpejDaHe Ha npOyKTA, KOINTo rapaunrTa He nOKpmba.

• HopmaHIO n3HocBaHe: 3aIbNIXBAHOTO OT MaJIbK IDbIraTeI CbOpBXeHne, KaKTO BCnUKN MExaHNUHN yCTpoiCTBa, nepIOduHc Ce HxJdae OT pe3epBHi uactu N cepBn3HO o6ClyXbaHe, 3a Ja pa6oTn do6pe. FapauHnraTa He NOKpNbapeMOHTa, KORATO HopmaHOTO n3HocBaHe e I3YeepnaJo XKnBota Ha npOdyKTA nIN HerOba Yact.
• MoNTaJx: Ta3n rapaHcIe e HeBaJIiNDHa 3a npOdyKT, KOItO e 6nil nOIoXeH Ha HEnpaBUNeH iINn Hepa3peSeH MOHTaK, ppeyCTpOJCTBO iINn KOHCTpyKtNBHa moNΦnkaCua. ToBa ce OTHacr N 3a MOHTaKn, KOITOn IpnEYrTCTBaT CTapTnpaHTo n BOJr Tdo He3aIOBOJInTeJIHa pa60Tha xapaKTepcntka Ha DnBraTeJI.
• Henpabunha noDpBkka: EKcnpoataaOnOHnHT JKBOT Ha To3n npOyKT 3aBnCn OT yCNOBnTa, npN KOtO pa60n ot rpnjKe, KONTO noJyUaba. PpenOpbYBaHnTe nHTepBaIi OT BpeMe 3a NOdpBxKa n peyUnpaHe ca fOpMynpaHn B PkoBOCTBO t3 oepaTopa. YecTo npOyKn KaTO KUYTBAToP, uJaΦ-MaunHn, POtaQIOHN KOCaKn Ce n3noBHa BA TcIgMa 3aPapSeHOCT N 3AmbpcBaHe, KOtO BOJr TO ToBA, KOeTO Ce pOraBBa KAto npedBaNTeHNo n3HocBaHe. TaKOBa n3HocBaHe, npuHHeO T 3ambpcBaHe, npax IJI npR a6pa3nBeH MaTePnaI, Bn3bl B npOyKTA nopAin HnpePABUNHa EKCpIoataaun, He ce NOKpNaB O T rapAHnTa. FapAnzraTHe NOKpBa peMOHTn, DbljkaunCe Ha np6blemn, npuHHeHn OT pe3epBn qactn, KONTO He ca opRnHaHn PON3BOdCTBO Ha npOn3BODntela.

bg

• HenpabuHno u/nn HeoctaTbUHO rOpBO uN CMa3BaHe: Ta3n rapaHnue He NOKPBA nobpea, npuHneHa OT n3I0J3BaHe Ha OCTapraNo rOpBIO uN npomeHEn 6eH3HH. Nobpea Ha DnurTaTeA uN HAKOIT O HerOBNTe EJeMeHTn KaTO rOpBnHATA KAMEPA, KJanaHnTE, JERlNaTHa KJanaHnTE, BOdAHTNE Ha KJanaHnTE, N3ROPENHAMOTKN Ha CTApTePa, pnpHneHn OT yOnTpEbaT aHa anTepHaTbHn rOpBua KaTO BteHn ra3 npoan H npipoDeH ra3, He ca rapaHcHNOH NOKpHTN, OCBeH aKO DBrAteLer T HAme cTePHKATa 3a Takaba EKcnloataCua. ChaTne, KOnto ca HaJdpaHn uN ChyNeHn, Iopadn ToBa, Ye PNOyKTbT e pa60TuN C HeoCTaTbUHO 3AmbpceHo uN C MacNo C HnpaBnHe BnCKO3HTET, KaKTo u NoBpeDeHn Yactn, nopadn LnInca Ha CMa3BaHe, He ca rapaHcuOHNO NOKpHTN.
• Henpabunha ekcnnoatau: IpaunnaTa e opymunpaHa B PkoBDCTBTO 3a onepatopa. Ipoykt, nobpeDen OT npBnneHn Oobotn, perepaBaHe nI npabota B 3aTbopeHo NOMEeHne 6e3 doctaTbHa BeHTnlaua. IpoDyKT, cyuhen OT peKOMepHa Bnpaun, pnHHeHa OT xJaab MoTAtx Ha DnraTeJ, XlaabN nn HebaanCnpaHn HoxkObe, nepKn, npBnneHn Oobotn nI nn 3KpBEN KOJAHOB BaI, npaDi yApB TBBpI npedMeT. NobpeDa nn HeN3npaBnOCTn B pe3yUntA Na HnCnDEHTN, 3NoynOpTe6a, HnpaBnHOn 0cbNyXbaHe nI nn HmPb3BaHe nI nn XmNueeCKo B3dEeCTBne, CbIo KaKTo nI PaobTa N3BbN ppeopbYBaHNTE oEBMn, KaKTo e noDyepTaHO PkoBOCDTBOtO 3a onepatopa, He ca rapaHcNOH NoKpnTu.
  -PyTHHNO peryInpaHe, n3HOceHN deTaJIIN nJIn HacTpoKn: Ta3n rapaHcHn n3HOceHN deTaJIIN KATO MaCNo, peMbci, HOXOBe, O-IPbCTeHn, cHJItpn I T. H.
• Дугун ИЗКлочен: Ремонт Или Habстори КЗа чс(T), КОНTO He ca поньдени OT Briggs & Stratton He ca nokpitno OT rapaцида. Тази rapaцида ИЗКлоча НИЗпразвости, Дьлжаше с ha БORA (прирогнite сilи) и дугун Форсмадхорни Сбintя, КОНTO ca ИЗВьн КОТРOLA на поньдени. ИЗКлочени с CBSO ИЗПОЛЗВанITE, ремонт ранichte пожкту, КAKTO И TeЗи 3a Демонстрацнонни Zeли.

Tapaunohto 06cnybahe e Docbno camo ype3 YbHOMOeHnTe cepBn3n npdeTabnteN. OtknTe BaanrHaBn3k npdeCTaBnTeB n haShaTa KaPa 3a MeCtOnoJoxHeNeTo Ha npdeCTaBnTeJIte Ha aDpec BRIGGSandSTRATTON.COM.

Obsah

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Mootor ei käivitu.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Dijagnostika kvarova

Motor se ne doit korekrenuti.

1. Provjerite je li u spremniku za gorivo Čisti benzin. Ne koristite stari benzin.
2. Na hladnom motoru pritsinite pumpicu za gorivo (opcija na nekim modelima) pet puta.
3. Pazite da je visokonaponski kabel spojen na svjecicu.
4. Podesite rasplinjač. Pogledajte Priručnik rukovatelja za motor.
5. Ima previše benzina u cilindru motora. Izvadite i osušite svjećicu. Nekoliko puta povucite konopac zaPokretanje motora. Vratite svjećicu na njeno mjesto. Spojite kabel na svjećicu. Pokretenite (startajte) motor.
6. Motor se teškoPokrece (starta) na gustoj ičvstoj ili visokoj travi. Pomaknite kosilicu na Čistu, suhu površinu.
7. Provjerite je li poluga za zaustavljanje motora u radnom položaju.
8. Provjerite je li ventil (slavina) za gorivo u položaju ON. Pogledajte Priručnik rukovatelja za motor.

Motor se nece zaustaviti.

1. Otpustite polugu za zaustavljanje motora.
2. Provjerite ispravnost sajie za zaustavljanje motora. Zamijenite sajlu ak je svinuta ili ostecena.

Motor lose radi.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Hibakeresés

A motor nem indul.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Variklis neuzsiveda.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Bojājumu novéršana

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Wykrywanie usterek

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Depanare

TAPAHINHOEOB3ATEJIbCTBO 183

Бezoinachoctb onepaTopa

Cnmbolbl npedynpeKdeneH

IpeDynpdntelbHb3nak IcNoB3yeTcI nO60HaehnIHbOpMaun 06 OAnCbHx CnTuaynx, KOTOpBle MOrYt PnBcEtn KTPaBMe. C 3nM 3hakOM cNoB3yeTcI CnHaJIbHoe CNoBO (O1ACHO, OCTOPOXHO uIN BHNMAHVE), yka3bBaIOue He BaBepoTHocTb nIOTeHuaJIbHyTO TReKeCTb TpaBmI. B DOnOIHeHMe, CmBbON OAnchoCTn MOKeT IcNoB3OBaTcB dny kKa3aHn BnDa OAnchoCTn.

ONACHO yka3bIbaeT Ha onaChyIO cHTyaCNUO, KOtOpA, ecn ee He n36EkaTb, npuBeTeK CmepTeBHOmy NcxOdy nIN cepBe3HOn TpaBMe.

OCTPOXKHO yka3bIbaet Ha onachyio cnTyaauho, KOtopaa, ecn ee He n36eXaTb, MOxet npuBecTN K CmepTeNbHomy nCxOdy nIe cepBe3HOn TpaBme.

BHUMAHNE yka3bIbAeT Ha onaChyIO cHTyaCuIO, KOtOpaI, ecn ee He n36ExKaTb, MoXeT npuBcTe N TpaBMe cpeHne HJI neKoN TAAKeCTn.

BHUMAHNE, KORda mCOnNoB3yeTc8 6e3 npedynpeiDntelHoro 3HaKa, yKa3bIbAet Ha CNTyaIIO, KOtopar MOKET npINBeCTN K NOBpeXdeHIO u3dJIIn.

HΦopMaunIaBlaJeIbua

3HaIte BO3MOXHOCTN BaWero n3dJIeN: EcIn BbO 03HaKOMITecB c n3dJIeHem m oJMeTe, KAK OHO pa6oTaet, To BbI pOnyHTe OT hEr oMaKcImaJIbHyIO OTdAUY. NOp Mepe YTeHnI HAcToIeRpyKOBoDCTBa, cpaBHnBaTe INlloCTpauCm CpeaJIbHbIM arperaTOM. N3UHTe paCnOLOXeHne I Na3NaueHene OprAHOB UynpaJIeHn. YTO6bl IckLIQUHTb BO3MOXHOCTb HeCCHaTHOrO cIyua, Co6JIHOJaTe IHCTpyKuMn PO pa6Ote I npabINa TEXHKn 6e3OanACHOCTN. CoxpaHnTe HAcToIae pyKOBoDCTBO dIra ObpaUeHN K HEmy B 6byUeM.

06raHHocTbBnaJeIbua

OCTOPOXKHO: 3Ta MaunHa c pejxumn pa6oymn opraHamn cnoc6ha amnytupobatb pykn nln Horn, a TAKKe OT6paCbIBaTb C cnloi npedmetbl.

Heco6IIOJeHHe INcHTpyKuI N IO TeXnKe 6e3OnaChocTm MoKet IprNBecTe K cepBe3HbIM TpaBMam OpeaTopa NJI Na6JIoudaTeJei.

063aHHOCtB BlaJeIbIca 3aKJIouaTcR B BblIOJIHeHm YKa3aHHbIX HNXe IHCTpyKcN.

YbpaTe NocToPOHHne IpeDMeTbI, KaK HApPIMep, KAMH, CTBOJIyNABWHx DepeBBeB IN T.I.

CneIte 3a yrJy6JIeHnAMn, KaHaBaMn nnn KOnIO6nAmn. BbICOKaTpaBA MOKeT CkpbIBaTB npEnTCTBnI.

3anpeaetcKaaunBaHne B6JIn3n CTOKOB,KaHaB INI DanM6. Onepatop moKet notepArb onOpy IINr HOr INI paBHObecne.

3anpeaaetcckaunBaHne Ha OueHb Kpytbix CKJIOhax.

3anpeuaetcKaaunBaHne Ha oueHb KpytbIX cKJIOHax (C KpyTn3HO 60nee 15 rpaDycob) nHa nnOuzaDKax, rIe NOUBA RABNETcO ueHb HEPBOH. CoJIIOdaIte MaKcMmaJIbHyIO OCTOpOXHOCTb PnI CMeHe HANPABNeHn HA cKJIOHAX.

3anpeaetcKaaunBaHnne no MOKpO TpaBe. HeycTouHBOe NOJIOXeHHe HOr MoKET CTaTb pInuHoi NODcKaIb3bIBaHnH.

III. Detn

Tparnueckn Heecuacthble clyuaan Moryt npon3oyn, ecnn onepaTop He yuHTbIaE anPncytCTBna Detei. Detien qacto npnbnekaet pa60taouaon KocinKa n npoueCC kAsWbAHn. HkoJa He npednonaraate, TTO deTn octaInCb ha TOM MeTe, rDe Bblnx buJeN B nocleDn paa.

1. He donnyckaTte npnbnxKeHnJeTei K 3OHe cKaunBaHn, n OCTabJIaIe Ix IOJ pNcMOTpOM OTBETBeHHORO B3POCJoro.
2. ByIbTe BHNMaTeJIbHbI N BBIKIOaJaTe KOCNIky npN BXOJKeHHn DeTeB pa6Ouyo 30Hy.
3. Ipeed Haayalom N BO Bpemn DnBxKeHn Ha3a, CMOTpuTe Ha3aN BHN3 B OTHOWeHn PnpCytCTBn MaJeHbKnx DeTei.
4. HnKoIa He nO3B0JIaIe DeTAM pa6oTaTb C KocNIkoI.
5. Пювлгийт ecobуо octopokhoctb npи noIxode K JIyxIM NOBOPOTAM, KcTAM, DepeBbM INIpyrIM o6beKTam, KOtOpbie MOrTy 3acIoHnTb 063Op.

IV. O6cnykBaHne

1. Co6IIOdaIte MaKcImaJIbHyIO octOpoxHocTb npn O6paueHmC 6eH3INOM I dpyrIMM TOJINBAMN. OHn JERKO BOCIIaMeHraOTcN INX napbl ABJIOTcB3pbIBOONaCHbIMN.

a. IcnoJIb3yIte TOnIbKO pa3peHEnHyIO KaHnCTpy dIa TOnJIInBa.
b. HnKOrIa He ChmMaIte KpbIuKy ToTOnIIIBHOrO 6aka IIN He DoabAInTe 6eH3nH npri pa6oTaIOUcEM DvIRaTeNe. DaITe DBNAteIIO OCTbIb NpeE d O3aPpABKO. Kypntb BOCnPeeuaTeCJ.
c. HnKOrJa He 3a npabTne MaunHy B 3akpytOM nOmeueHIn.
d. HnKOrJa He XpaHnte MaShuHy nJIn KaHnCTpy C TOnJIINBOM BHYTpN 3daHnI, rJe MOKeT HaXoDnTbCn IcTOUHnK OTKpbITOrO nIaMeHN, KaK HanpImEp, BODoHarpeBaTeJIb.
e. EcIn Heo6xOIMO ONOpOXHnTB TOnJIbHBiB 6aK, TO CInB TOnJIbBa HuxHO BblONJIHrTb HA OTKpbITOM BO3dYxe. CInTOE TOnJIbBO DOJXHO XpaHtCBsB K KaHcIpe, CneuAIBHO NpeHa3HaueHHo Dnla XpaHeHn TOnJIbBa, INN ODoJnxHO 6bITb YTNl3npoBaHO HaJIeXkaUIM 6pa3OM.
f. Ctapoe cma30Hoe MacNo I TOJINBO DOJXHbI 6bITb CInTbI B KaHnCTpbI, CneuaJIbHO PpeHa3HaueHHbIe IIN XpaHeHnCMA3OuHOro MaCna NIN TOJINBA.
g. 3aONHeHHbIe KaHnCTpbI DOJIxHbI 6bITb OCTOpOxHO TpaHCnOpTnPoBaHbI Ha c6OpHbI pyHKT dJa HaNLeKauei nepepa60TKI.

1. HnKoIa He donyckaIte pa60Tu Dnuratena BHytpn NOMEuHnI INB OOrpaHnEHHOM IpocTpaHCTBE.
2. HnKOrJa He BbIOpHЯTe peryI npOBKn InnpeMOHT npiaobTaOoIeM DbrgATEle (3NeKtpOMTope).OTcoEiINHte npOBd CBeuN 3axIraHnaN y DaJIneT e ERO OT CBeeu 3axIraHnaI dI pyeD0TbpAseHnClyuHaHO rO 3aNyCKa (BbITaUNTe KIOU 3axIraHnaI dI MaMDeIe C 3NeKtpUWeckm CTapTePOM). Bcerda Hocnte 3aunTHbIe OChk npBbIOpHeHn peryI npOBKn InnpeMOHTa.
3. Perynphno npOBepaTe KpeenKhbIe 6oNTbI DnurataTna Ha HndnEkaUyO 3aTAAkky.
4. Пдержаваite BCE raйи 60Льы 3aTЯныIM, a obopydobaaHne B ИсрпаBHOM COSTOHIM.Есл кakne-Jin6o deTaJIи 6blIи 3aMeHbI,TO npOBePBte,уTO КрЕнжHbIe 3JNeMeHTbI 3aTЯнHYtI DoJXHbIM O6pa3OM.
5. HnKoIa He BMeuBaIeTcB Ba60Ty npEdoxpaHnteNbIx yctpoiCTB.PeryIaPHO npOBepaTe Ix HaIeXaUyIO pa60Ty.
6. Пи Тхнчeckomобслжьани Ип ремог Кocилк, He NaKLOHЯТЕИ He nepeBovapuBaIte MaunHy, ecI 3TO TObKO CNEUaJIbHO He OROBOpEHO B HAcTOnIeM pyKOBoDCTBE. ПоцурblNo obcLsyЖьанIO n peMOHTY KOCINKMOrT Y BiIOJNHaTbCBA eBepTnKaJIbHom NIOJKeHN. BiIOJNHeHne HeKOTOpbIX onepaIM MOKeT b6IbO6JIerYeHO npTeM noDbemaMaunHbI Ha npINOdHryUpo paOoyUpo INaTcOpMy INI INNOCKOCTb.
7. Дя умению рпсka bo3ннковеня пожара, удягтс кослку Траву, Лсть плл друго сkonишир cop. Удяглп лролитoe macno плл торлво. Даду Кослко OCTытб петерханенем.
8. OctaHOBIne pa60Tu obOpyIOBAnHn I npOBepbTe erO nocJe yIapa O kaKo-Im6o ppeMTe. Ppi Heo6xOIMOCtN, BbIOnIHIne peMOHT nepeD IOBToPbHM 3aNyckOM.
9. Bcerda oTcoeHnHte npoBOD cBeu 3axiruaHnnepeD OCHKTOK, pemOHToM uIN peryInpOBKoN.
10. 3aPpeaaetcHmMeHb HAcTPOky peryIaTopa XoJa DBrTaTeJI NII INI PpeBbIaTb HOMHaJIbHOe YnCNo O6OpOTOB DBrTaTeJI.
11. Pn Heo6xoDmOCTn, Ounuatae nnn 3aMeHnTe hakJeKn C HCTpyKUJMaN IO TexHKn 6e3OpNaCHOCTn N KcPnyatauMn.
    13.ДЯЗИNTBIДВIraTeN O T nepeReBa, Bcerda nCNoIb3yIte copo3aIepKINBAIOUΦnIbTp DVBIraTeN I OChuaIte erO.
12. Ocmotpnte kocnilky neped xpaenHneM.
13. ИспόльзуйтToЛьКО opин haьhoe obopydoBaHne nIpa3peSeHHbIe 3aNaChbIe Yactn.
14. 3aMeHnItepejxuHnHOJOpunHaJIbHOJ3aIacHOJcaCTbIO n3rTOBHTeJIa.

Oncanme

UnpabHemaHnDyumC3aOnepaTOpOMra3OHOKocnKa npedctabJreTco6oPOTOpHyIO KOCnIky C npBODom OT DbratJI. DbratJIb BpaAaet pexyuiN HOK, KOtobip pacnoLOXKe NOD KopnycOM KOCnIK. Hox NOHMaeT Tpaby N BblONHReT ee cKaunBaHne. BbcOTy Cpe3a MoxHo peryunpoBaTb, YTObI npuDaTb rAOHy JeenaembBHeuHm BnD. Cpe3aHHa Tpaba JIn60 Co6nPaETCB INpIKpePJIeHHOM C3aDN MeWke dNl TpAbI, JIN6O, KaN dN HeKOTOpBX MOJeNe KOCnIK, MOKeT nCNoJb3OBaTbCn IOBtOPHO dNl POkOpMkn Ra3OHa. NOBtOPHoe nCNoJb3OBaHne Cpe3aHHo TpAbI NOUYINO HA3BaHne «MylbHPOBaHne». HecamoxoNDhie MOneTIpe6yIOT OT OpeaTopa ycNIIa TOJkaHnI dN I nepeMeueHn KOCnIK. CamoxoNDhie MOeHN ImeiOT cnCTEmy npBODa 3aDHnx KOleC dNl 6bnrueHn OepaunnCKaunBaHn.

IcnoJb3ObaHnne no Ha3HaueHnIO/OrpaHnueHnNo IcnoJb3ObaHnIO

UnpaBnMaHmNdyuMmC3aDnOpeaTOpomra30HOKoCNJa
PpeHa3NaHeHa DnKcAunBaHnra3OHNo TpaBbl.1IO6oe
HHOe PpimEnHe He DoynckaeTc. KocNJka He paccHTaHa
dIaCKaUNBaHn TpaBbC DInHO B6OJe 15cm NJIIN TpaBbl,
CMeuHHo C BbICOKMm CopHAKAMn. DaHHa
ra3OHOKOCNIKA PnroDnHa ToIbKO DnI INDNBnDuJbHOrO
NCnOJIb3OBaHn B PnpyCaDe6Hom CaNy. OHa He NOxOJIT
dIaCKaUNBaHn TpaBbl B O6ueCTBeHHbIX NapKaX IINI Ha
IrPOBbIX PINOaDKax.

OTdJIbHbIe y3JIbI n opraHbI ynpaBJIeHnI

(Pnc.1) CpaBnIte cneIyIOJIe y3JIbI n oprAHI ynpaBHeHnC BaWei moJenbIy. Y6eIITcB, yTO Bbl 3HaTe nxpacnoIoxKeHne I NOHMaTe Ix Ha3HaueHne.

A. Pbyar octaHOba DBnIaTeJIa
B. Bēpxhā pykɔrTaKa
C. Kpyrla pyka unn 6jloKnpoBouHbI pbUar
D. HIXKHЯ pyKoRTka
E. 3aɪnɪrɪdɪbεpɪa
F.ДВИГАТЕЛБ
G. Perynatop Bicotbl
H. PácnopTnHa Ta6nUka

I. TpaBoc6bOpHbIM MeuOK
J. RykoRTka pyuHoro cTapTepa
K. Pbyar npBODa (cAmOXoHaHa MoJeIb)
L. 3aŋnyuška dān MyjlbchupobAHna

I3o6pa3nteJIbHbIe 3HaKn

BAxHO:Ha Baam erperate nIn B noctabnemoc DaHHbIM n3deJnEM DOKyMeHTaun NCNOJIb3yIOTc CneDyUoIue n3O6pa3nteJbHbIe 3NaKn. IpeE, nHaJalom pa60tbcTm arperatOM, n3yUHte n NOnMnTe Ha3HaueHne KaKdOrO n3O6pa3nteJbHOrO 3HaKa.

PpeDynpexKdaIoUne n3o6pa3nTeJbHbIe 3HaKn (Pnc.23)

A. OCTOPOXHO
B. BAXKHO: Пеег Налов рабыс с зто машино почтinte руковдосто по заци.
C. OCTOPOXKHO: Bb6poeHbIe C cInoI ppeMeTbI. He dOnyckaIte np6JInxKeHnHa6JIIOaTeJe.IpOHTnte HNCTpyKUnI DnI IOnb3OBaTeJInepeD 3KcPnyataune 3TOJ MaunHbI.
D. OCTOPOXHO: He Дусякай сюльбоваиме доMuшины на склохс крутузног boлгem 10rpaусов.
E. OCTOPOXHO: 3anpeaetca Hactynatb Horoi.
F. OCTOPOXKHO: He npnbIgkaIte HOrn n pykn K BpaUIOeMcy HOky.
G. BHIMAHHE: OToeDInHte npoBOD OT CBeuN 3axnraHnI nepeTexHnueCKm O6CnyXnBaHnem arperata.
H. OCTOPOXHO: Onachoctb pa3daBnBaHnnaIbceB.

N3o6pa3nteHbIe 3HaKn no ynpaBHeHIO n 3Kcnpyatau (Pnc.24)

I. Slow (MeДЛЕнHo)
J. Fast (EblcTpo)
K. Motophoe maclo
L. TOnJIuBO
M.Дигагель-Пуск/Pабota/Octанов
N. Pbyar ynpaBHeH npuBOdom - BkJIouHeO/BbIKJIouHeO

C6opka

NJIIOCTpaunn n pncyHKn HaunhaIOTc co CtpaHnIb1.

COBeTbI NO cKaaUNBaHnIO

HekotopbIe MoJIEN IMeIOT DOJONJIHTeJIbHyIO 3aJIyUShKy IJIa MyJbHINPOBaHN. EcII 3aJIpyUkA,IJIa MYJbUHINPOBaHN yCTaHOBJIeHa,TO Tpaba N3MeJIbUaETcRA,IMOKeT 6bITb

IcnoJb3ObaHa NOBTOPO. NocOJIbky NiTaTeJIbHbIe BeueCTBa BO3BpaAuaOTcB INoUBy, To JyXaKe IOTpe6yeTcMeHbSe yDobpeHn.

CneIyUOuNE COBETbI yBEnuHAT Ipon3BOIDTeJIbHOCTb CkaUNBaHnI uIyUHaT BHeuHn BnI LyXaKn.

Tpaba donxha 6bIb cyxO. Ecn TpaBa MOKpa, TO OHa C TpydOM cpe3aETc, n 6yDet o6pa3OBbIBaTb TjXeIbIe KOMKn TpaBbl.
Tpaba He DoJIxHa 6bITb CINIKOM BbICOKO. MakcImaIbHaB BbICota dJa 3ΦΦeKTHBHO cKaunBaHncoCTabJIaER T9,8 CM.YCTaHOBtpepyJlTOpbl BbICOTb TaKIM O6pa3OM, YTO6bl cKaUnBaJIacb TOJIbKO BepXHr TpeTb TpaBbl.
- EcIn BBICota TpaBbI 6oJIe 9,8 cm,TO NOTpe6yETcR DaBa cKaunBaHn.ДЯпрВOrO cKaunBaHn,уCTaHOBtpepyJrTOpbl BICOTbl CBamOE BICOKOE NOLOXeHne. 3aTeM onyCTHTpe pyJrTOpbl BICOTbl DЯ BTOPOr cKaunBaHn.
HoxdOJIKeH BcERda NmEtb XOpOio 3aToUeHHoe JIe3BVE. N3HOWeHHoe JIe3BVE MoKET CTaTb PnUHHo IOnKeJTeHnK KOHNKOB TpaBnHOK.
OuHCTnTe HnXHIOU qACTb KocNJKn. EcIn B HnXHei qactn Kopnyca KocNJKn cKaJIINBaHTc OCTaTKn TpaBbl n dpyroM yCop,To ee npOn3BOJnteJIbHOCTb 6yJeT CHNXKeHa.

Дяучшенkahectba ckaunBaHЯ,NonbTaIteCb CdeJaTb CNeDyUoOee:

• yBéNiuYbTe BbICOTy cpe3a
• 60onepeyIaRHO BbIOnHnTe cKaunBaHne
  pa6oTaIe C KocnIKoN npn He6oJIbIoN cKOpOCTn nepemeeHn
• yMehbHnTE shnpHy 3axBaTa
  MeHnTe HappaBJeHne
  CKaUBAIteB DbA pInema

TexHnueckoe obcIyXnBaHne

Texnueckoe 06cnykubHne DnurTaTeJr

IJIIOCTpaunn n pncyHKn HaunhaOTc co cTpaHcbl 1.

O6paauTecb K daHHOMy pa3deNy no texHnueckomy
obcnyxnbAHIO dIaNoIepXaHnBaawero arperata B
xopoWeM pa6ooyem coCToHm. IpexJe yem Bbl 3anyctnte
dBnraTeJI, npOHTte HAcToHsE pyKOBOdCTBO, a TaKke
pyKOBOdCTBO NO 3KcnnyatauIM nDburatela. Bcra
HHOpMaunno TExHHueCKOMy o6cnyxnbAHIO dBuratela
CoDEpXNTCB BY pkoBOIDCTBE NO 3KcnnyatauIM DnBuRatela.

OCTOPOXHO:Пелед Вьл�нHeHnemпpoBepKn,peryInpOBKn ИиpeMOHTa,OTcoeINHITepnoBOd CBeuN 3axnraHnI N OTBeDInTe erO B

CTOPOHYOT CBeu3aXnraHn.

HaKJNoH DvBraTeJIa

(Pnc.14) BHIMaHHe: He donyckaetcHaKIOH DnIRaTeJIc HAnpaBHeHHoB BnI3 CBeOH 3axirAHn.

PnO6cIyKuBaHnn DnBraTeJIa, IpoBepRrTe COCTOHNHe HOXa NII OUnIaIe HNXHIOU Yactb KOpNyca KocUNK;PiN

HaKJIOHe DnIraTeJIa, BCERda KOHTpOJIpyUte, YTO CBeya 3aXnIRaHnHa nPapBNeHa BBepx. TpaHCnopTnpOBKa INI HaKJIOH DnIRaTeJIc HnPaBJIeHHoB BHN3 CBeyo3aXnIRaHn MoKeT CTaTb PnPHHO CJeDyUOeRo.

TpydnoctnC3aynyckOM
-ДыIMЛЕнUEДВИТЕТЯ
- 06pa3OBAHnHaIrapaHaCBeYe3axKurHnA
HacbIeHnMaCJOMnnTOJIINBOMBO3dyuHOrO cnIbTpa

Cma3bBaHne

1. Дли мakсимально пюзвдпьhoeч, сma3bBaHTe KOJIecaи BCE TOUKN IOBOPOTa MaUNHHbIM MacJOM uepe3 kaxdble 25 yacob pa60Tbl.
   2.Информачию NO cma3bBaHnIO DBnIaTeJIa CMOTpnteВpykoBoIDCTBE NO 3KcNlnyatauIN DBnIraTeJIa.

OCTOPOXHO: Ipeep perylnpOBKoTpocnKa npBODa, OTNcyTte pbIar OCTaHOBa DBiRaTeJI N DoXdNTecb NOJHoro OCTaHOBa

Bala Dbratela.

Ecnn CnCTema npBBOa He BkJIIOuaTcR n He BbIKIOaETcA
DOnKhbIM Obpa3OM,TO npOBepbTe npABINbHOCTb c6OpKn
y3na pyKOHTkn. Y6eDiNTecb, yTO BCE DeTaN HaxOJrTcB
XoPoHEm COCTOHN, He NOLOMaHb IIN He CoHytbl, n TTO
Bce KpeNEXKhbIe 3JIEMENTbI 3aTHytbl.
N3HOWeHHbIe Detanl MOrY T NOBNIrTB Ha
pa6OTOCNO6HOCTb CnCTembl npBBOda. KorDa Bbl
BbINOHNReTE CkaUNBaHne B BbICOKO, rGToTpaBe IIN Ha
CKJIOhAX, CNCTema npBBOda MoKeT npOByKCOBBaTb, ecnI
TPocNK npBBOda CnIshKOM pOcNa6JeH. Ecnn CnCTema
npBBOda npOByKCOBBaET, TO OTrpyUInpyte ee
CneDuOIM Obpa3OM IIN OTIPaBbTE KocNIky B
CEPTNuPBOAHbI IN3ROTOBITeLEM UeHTp TEXHueCKOTO
06CnYxNBaHnA.

1. (Puc. 19) EcIn CnCTema npuBOda npo6yKCOBBiBaet, To npoBepHnte peryJIaTOp TPOcNka (A) Ha Odn H o6opot B HnpaBJIeHN, NOKa3aHHOM Ha NJIJIIOCTpaCIN. IopabotaTe c KocNilkOи npoBepbTe CnCTEmy npuBOda.
2. EcIn CnCTeMa npBODa no-npexKHeMy npObyKcOBbIbAeT, To npOBepHnTe peryJrTOp TpOcNka eue Ha OIN H oBopOT dIy yKopauHbAHn TpOcNka. ChOba npOBepbTe pa60Ty cnCTeMbI npBODa.
3. Повторгейперауларову и поверку до Тх поспесема пивда на не у得住 повыковы вать.
   4.Перед началом сkaшиваня,провьтс,чTO сntema npINBOda BbIKJIIOUaETcДоЛЖнIM O6pa3OM,IчTO KOCNJka OCTaHaBnIBaETc.ЕсИСNTEMAnpINBOda He BbIKJIIOUaETc,TOTNpAbTeKOCNJKy B cepTnФицИрOBaHHI N3rOToBnTEJEM ueHTP TexHnueeCKOrO O6ClyjXuBaHNЯ,прждчemпpoДОЛжаТ b3KcNJyatauio KOCNJkn.

O6cIyKuBaHne HOxA (Pnc. 20)

OCTOPOXKHO:Пеледпюверковhoа(B)илпелөрхODнka Hoха(E),OTCOeHNHTe ПювODCBeЧИЗжURAнЯиУдаЛNTe EROT CBeЧИ.

EcnHox yapreTcO kaKoJ-NI6o npEmdT,TO octaHOBnTe pa6Oty dNirateJIy. OToCoeHNHTe npOBOD OT CBeu 3aXnraHn. IpoBepbTe arperat Ha OTCyTCTBnE NOBpeKdEHH.

PepnoDnueckn npOBepaTe HOK (B) Ha n3Hoc nnn
NoBPexKeHHN, KaK HanpImep, TpeuHNbI. PepnoDnueckn npOBepaTe 6oNT (A), KOTOpbK pKeiHT HOK. PnpOBepaTe HADJExkaUO 3aTAAKKy 6oNTa. Ecnn HOX ydapaeTcO kaKo-1n60 IpEaMeT, TO OCTaHOBte pa6O TY dBNrAteH. OToeDNHTE npOBoD OT CBeu 3axnraHn. PnpOBepTe npEXoDHNK HOXA (E) HA OTCyTCTBne NOBPexKeHHN. PnpOBepTe OTCyTCTBne cOrHyTORO COCTOARHn IIN NoBPexKeHHN HOXA, CNlbHOro n3HOCA HOXA nIN dpynx NoBPexKeHHN. Ppeed 3KcNPyatauNe IOBpexKeHHN. NoBPexKeHHbIe DeTaN DOnNXbI b6Itb 3aMeHeHb OPunHaJIbHbIM N3aNaChbIM uACTAMN n3ROTOBHTe. JIa 6e3OanHOpa60bI, 3aMeHnTe HOX uepe3 KaKdbIe Dba roJa. HOX dONxhen Bcerda IMeTB xopoWo 3aTOeHHoe ne3BVe. IN3HOse HHoe Je3BVe MOxET CTaTB npUnHOJ noXeJIteHHN KOHKnOB TpaBnHOK. JIra CHaTnI nn 06ClyXHBaHHN HOXA CJeDeYET DOCTaBnTb 3Ty ra3OHOKocnky yNOJHOMOeHHOMy cepBnCHOMy dInlepy.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

YcTpaHenne HencnpaBHOCTeI

TpaBa He Bbl6pacbIbaeTc DOJIIXHbIM 06pa3OM.

1. Ouchntte HnXHHIOu YaCTb KOpnyca KocNIkN.
2. Поберп Te HOK Ha CINbHbI n3HOC.CHMnTe n 3aToUHe JezBHe HOXa.ДЯ 6e3OpanCho pa60TbI, 3aMeHnTe HOK Yepe3 KaJdIe DBa rOda OprInHaJIbHOJ 3aNaCHOH YaCTbIO n3rOTOBtEnI.

Hepobhoe cpe3aHne TpaBbl.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Riešenie problemov

Motor nešartuje.

1. Uistite sa, ze v palivovej nadrži je Čistý benzín. Nepoužívajte starý benzín.
2. Na studenom motore pātkrát stlačte tlacidlo palivovej pumpy (nastrekovač) (doplnkový na niedtorych modeloch).
3. Uistite sa, ze zapalovaci kabel je nasadeny na zapalovacej sviecke.
4. Nastavte karburátor. Pozrite si námod na obsluhu motora.
5. Vo valci motora je prilis vela benzinu. Vyskrutkujte a osuste zapal'ovaciu sviechku. Niekol'kokrát potiahnite za rukovat lanka navijacieho štartéra. Zaskrutkujte zapal'ovaciu sviechku. Nasad'te zapal'ovaci kabel na zapal'ovaciu sviechku. Našartujte motor.
6. Motor sa t'za'ko startuju v t'za'kej, alebo vysokej trave. Premiestnite kosa'ku na cistú, suchu plochu.

7. Zabezpečte, aby páka pre zastavenie motora bola v pracovnej polohe.

8. Zabezpečte, aby palivový ventil bol v polohe ON (otvorený). Pozrite si námod na obsluhu motora.

Motor sa nezastavuje.

1. Uvolnite páku pre zastavenie motora.
2. Skontrolujte bovden pre zastavenie motora. Ak je bovden ohnuty, alebo poškodený, tak ho vyměnte.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Motor se ne zažene.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Ariza Tespit

Motor calismiyor.
