USER MANUAL EC370 MURRAY

WARNING! Read this manual before operating your product.

Not for Reproduct

Languages

English (Original Instructions) 3

Croatian	21
Czech
Danish	65
Dutch	87
Finish	109
French	131
German	153
Hungarian	175
Italian	197
Norwegian	219
Polish	241
Portuguese	263
Slovak	285
Slovenian		307
Spanish	329
Swedish	351

IMPORTANT INFORMATION

Details

Thank you for purchasing your Murray Electric Mower. Murray prides itself in the quality and performance of all its products.

This instruction manual will aid in the assembly, safe operation and maintenance of your product.

Please read the following warnings to ensure safety and the long life of your product.

Images shown in this manual are for illustration purposes only. Actual product may vary in appearance.

WARNING

Do not attempt to operate this product until you have read thoroughly and understood completely all instructions, safety rules, etc, contained in this manual. Failure to comply may result in accidents involving electric shock, fire, and/or serious personal injury.

INTENDED USE

This product is intended for domestic lawn mowing only. The cutting blade should rotate approximately parallel to the ground over which it is being wheeled. All four wheels should touch the ground while mowing. It is a pedestrian controlled walk behind mower.

NOTE: The mower should never be operated with the wheels off the ground, it should not be pulled or ridden on. It should not be used to cut anything other than domestic grass lawns.

Do not use the product for any task, except for that which it is intended.

General safety

Warning!

Read the directions for use before operating the machine..

Wear safety goggles and ear protection that meet safety standards.

Wear sturdy, non-slip footwear.

Wear safety gloves.

Do not use machine in wet conditions, protect the machine from rain and damp.

Be careful of objects being thrown out! Ensure bystanders are kept at least 50' (15m) away & stop the machine if approached.

Beware of electric shock hazard when operating.

Read the directions and remove plug from the mains before carrying out any maintenance work.

Wait for all components of the machine to completely stop and remove plug from the mains.

Keep hands and feet away from cutting area. Contact with the blades can amputate hands & feet.

Take care to keep the mains cable away from the blade. Always be aware of the position of the cable.

Should NOT be disposed of with house hold items.

Switch off and remove plug from the mains before adjusting, cleaning or if the cable is damaged or entangled.

Never use the mower unless the grass catcher or guard is in position.

Table of Contents

Features & Definitions

Features & Supplied Items 3

Safety & Handling

General Safety 4

Electrical Safety 5

Product Disposal 5

Assembly Procedures

Unpacking 5

Unfolding & Adjusting Handles 6

Fixing the Cable 6

Installing the Grass Catcher 7

Installing & Removing the

Mulch Plug 7

Operating Instructions

Starting & Stopping 8

Cutting Height Adjustment 9

Quick Setup Guide 10

Mowing Tips 11

Mulching Tips 11

Maintenance & Care

Emptying the Grass Catcher 12

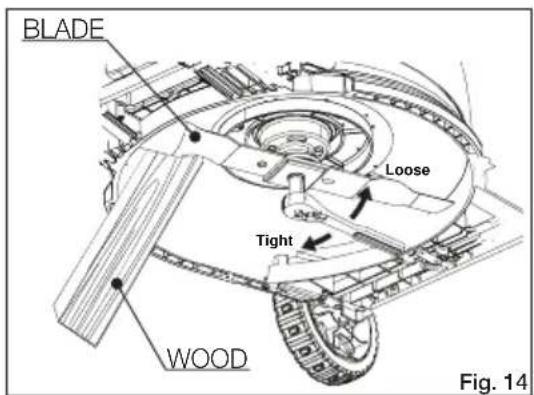

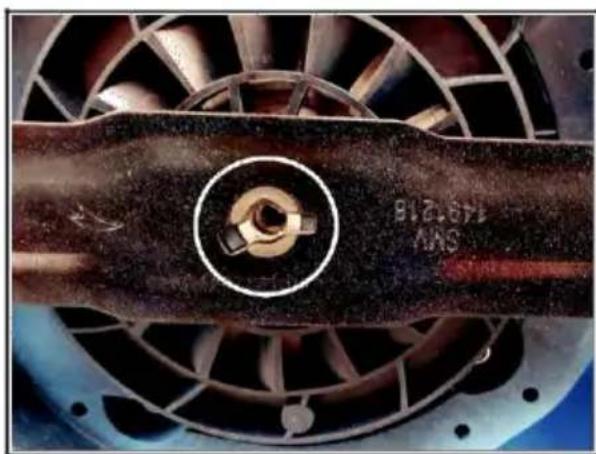

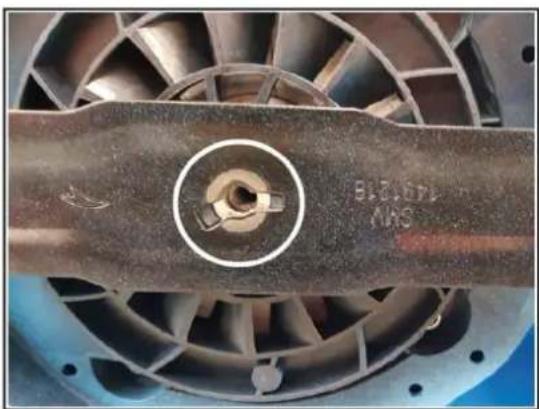

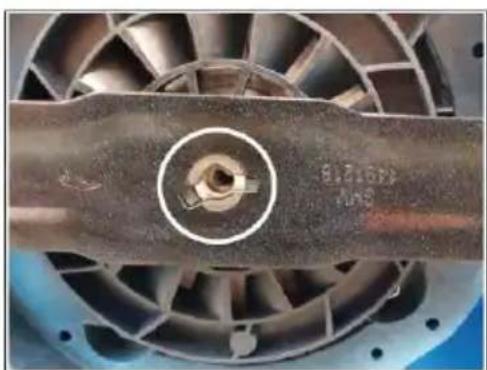

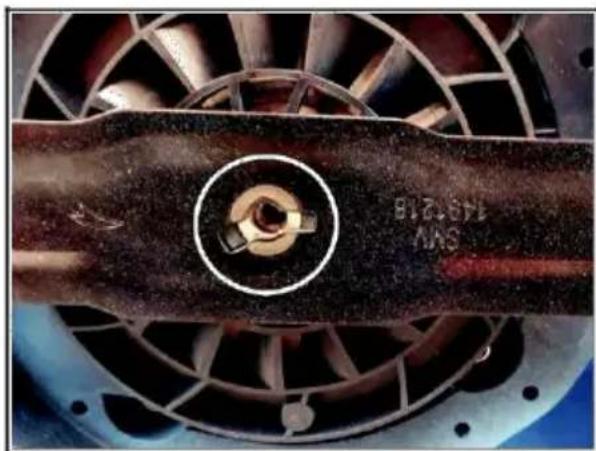

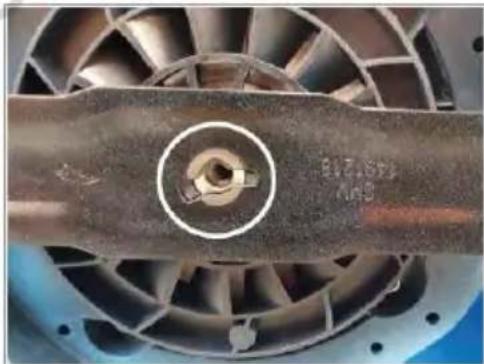

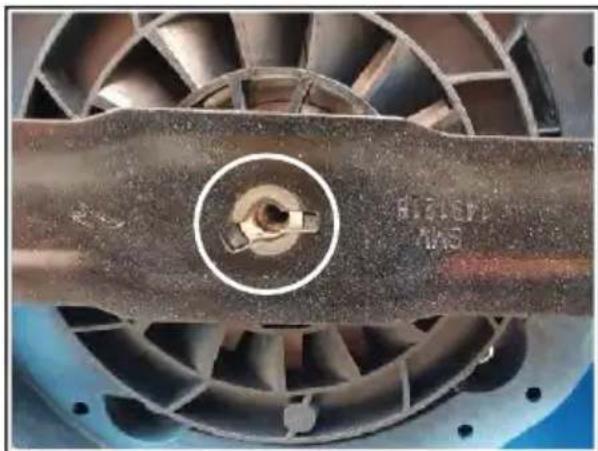

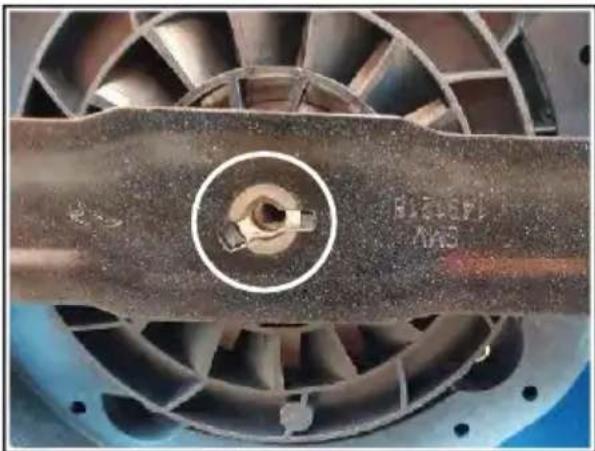

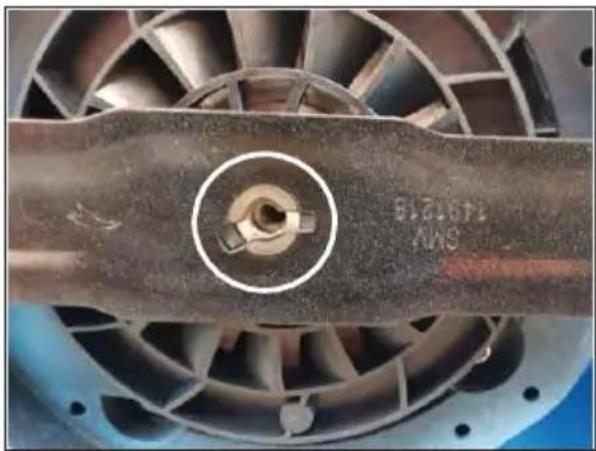

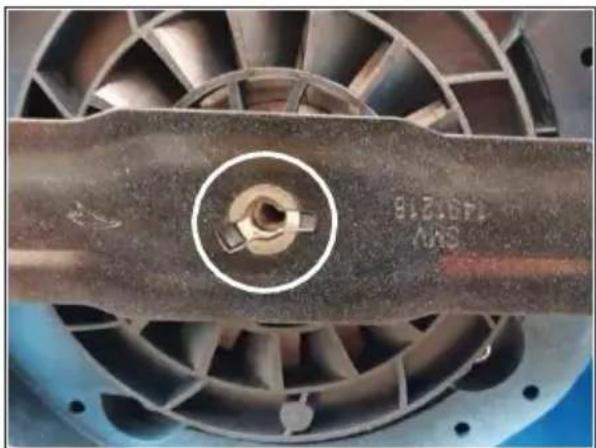

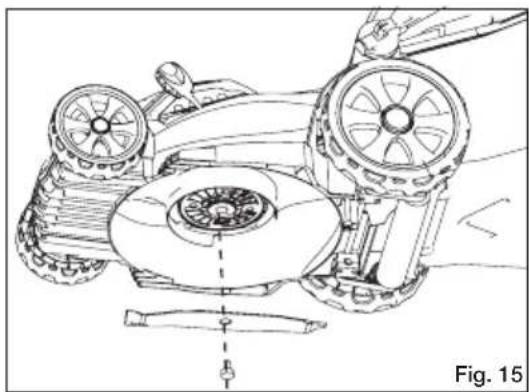

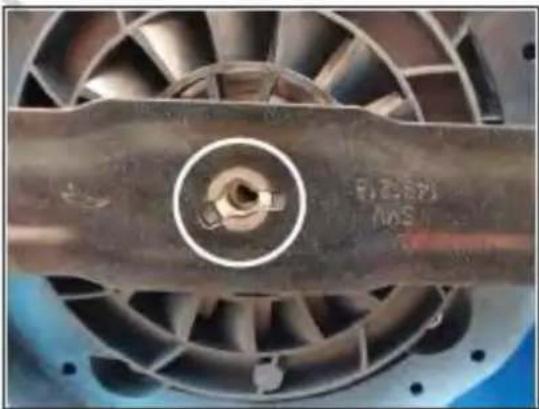

Bar Blade Replacement 13

Cleaning 14

Storing 15

Service 15

Maintenance Chart 16

Troubleshooting

Troubleshooting 17

Technical Specification

Technical Specifications 18

NOTE: WARRANTY DETAILS ARE NOT WRITTEN WITHIN THIS OPERATOR'S MANUAL. REFER TO OTHER DOCUMENTS SUPPLIED WITH THIS MACHINE FOR WARRANTY DETAILS.

NOTE: IMAGES SHOWN IN THIS MANUAL ARE FOR ILLUSTRATION PURPOSES. IT MAY DIFFER FROM ACTUAL MODEL.

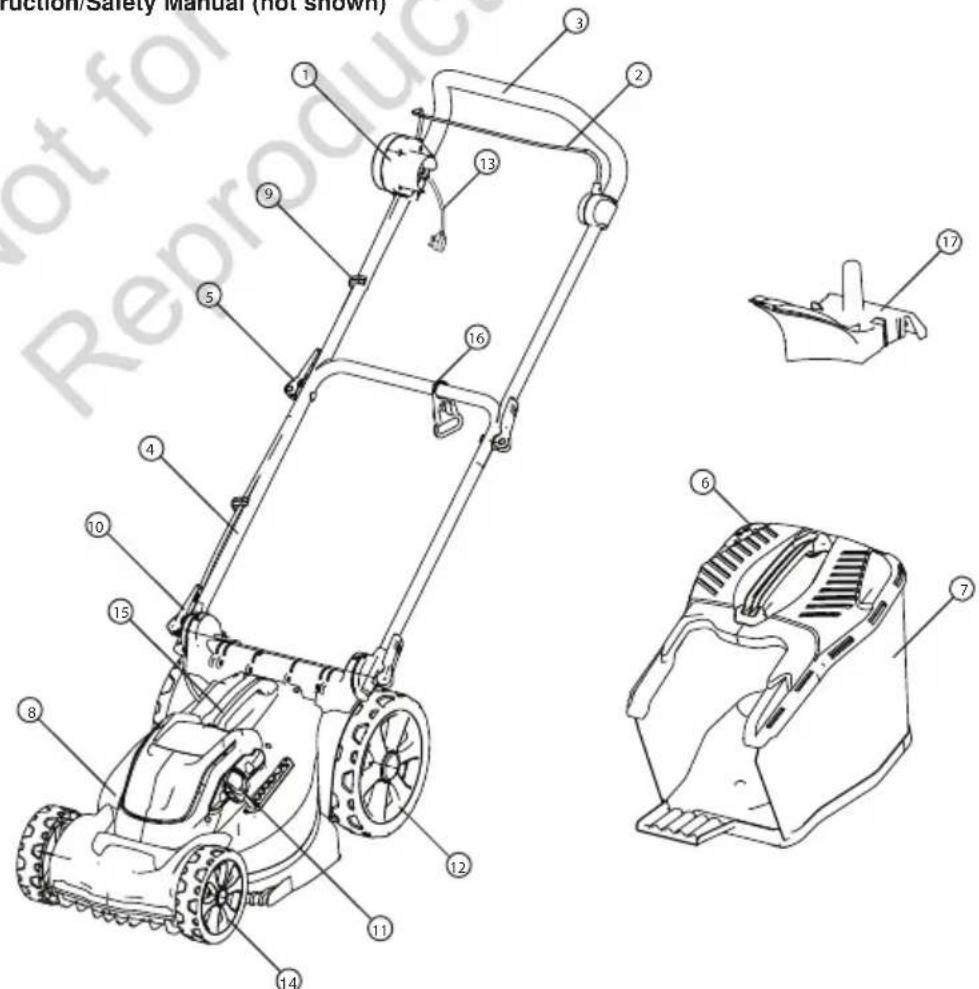

Features & Supplied Items

1 Switch Box
2 Bail
3 Upper Handle
4 Lower Handle
5 Quickly Release Clamp (Upper Handle)*
6 Full Grass Indicator
7 Grass Bag
8 Deck
9 Cable Clip
10 Clamp Assembly (Lower Handle)*
11 Height Adjustment (position may vary on different models)
12 Rear Wheel
13 Hardwired Cable
14 Front Wheel
15 Mid Handle
16 Cable Retain Hang
17 Mulch Plug (Only available in 37cm model)

- Mower Instruction/Safety Manual (not shown)

Protection/Safety Manual (Not shown) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

WARNING

Do not operate the product if any component is missing or damaged. Have any missing or damaged components repaired or replaced.

General Safety

- Carefully read all instructions on the machine and in the manual before attempting to assemble and operate the machine. Keep this manual in a safe place for future reference, and consult it regularly. Ensure other users read this manual and are aware of the product safety risks

- Take care to keep the mains cable away from the blade. Always be aware of the position of the cable. Remove the plug from the main power supply if the cable is damaged or cut.

- Become familiar with all controls and their proper operation before using the machine. Know how to stop the machine and how to disengage the power in an emergency.

- Thoroughly inspect the area where the machine is to be used. Remove all stones, sticks, wire, bones, toys, and other objects that could be tripped over or thrown by the blade. Thrown objects can cause serious personal injury.

• Always wear a face mask or a dust mask when operating the machine in a dusty environment.

- Always wear appropriate clothing & do not wear loose clothing (or jewellery etc) that can get caught in moving parts.

- Serious injury can occur as a result of the machine being pulled over the operator's foot during a fall caused by slipping or tripping.

- Do not operate this machine in bare feet, or while wearing sandals or lightweight (e.g. canvas shoes) Wear long trousers & heavy shoes.-In the event of a trip or fall, release the handle bail immediately. Do not hold onto the machine handle bail during an accident.

- When needing to reverse with the machine, only do so once the machine has come to a complete stop and always look behind for hazards before moving.

- Do not operate the machine while under the influence of alcohol or drugs.

- Stay alert & do not operate the machine when you are tired. Pay attention to what you are doing and ensure others are aware of your task intentions before commencing.

- Avoid using the machine in dangerous environments. Only use the machine in daylight or in good artificial light.

- Do not us the machine in a rush. Always walk & never run with the machine.

- Before inspecting, adjusting, servicing or cleaning the machine, always stop & remove plug from the mains.

- Stop the machine when crossing gravel driveways, walkways, or roads.

- If the machine starts to vibrate excessively, discontinue use until the machine has been inspected and assessed. Having a machine assessed for vibration problems generally reduces the risk for injury or product failure.

- Don't force the machine beyond its cutting capacity. The machine will perform better and safer if allowed to cut at the pace for which it is rated for.

- Do not use the machine indoors. Only store the machine indoors in a dry & secure location. Keep the machine out of reach of children.

• Always maintain the machine according to the maintenance section of this manual

- If machine strikes a foreign object, always inspect for damage.

- Do not allow children or impaired persons to operate the machine.

- Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your view & the path of the machine.

- Do not use the machine near hot ash, combustible materials or immerse in liquids. This may cause fire hazard, serious injury or product damage.

- Do not operate the machine in any way which will allow the blades to be exposed and only use with all 4 wheels on the ground. Do not lift or carry the machine while operating.

Electrical Safety

- This product has a rated power of 1600W (37cm Model) or 1200W (32cm Model) and input operating voltage of 220-240V, 50Hz. Do not use this product on the supply voltage other than listed, as it may result in shock.

- The appliance must always be switched off from the main power supply before disconnecting any plug and socket connector or extension cable.

- The plugs must match the outlet. Never modify the plug or the power cable in any way. Never touch the mains plug with wet hands.

- It is recommended that an RCD (Residual Current Device) with a tripping current of not more than 30mA, is used when unit is connected to main power supply.

DOUBLE INSULATION

This appliance is double insulated in accordance with EN:60335; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

USING AN EXTENSION CABLE

Always use an approved extension cable suitable for the power input of this mower (see technical data). The extension cable must be suitable for outdoor use and marked accordingly. Up to 30m of 1.5mm H05VV-F extension cable can be used without loss of product performance. Before use, inspect the extension cable for signs of damage, wear and ageing. Replace the extension cable if damaged or defective. When using a cable reel, always unwind the cable completely.

Product Disposal

CORRECT DISPOSAL OF THE PRODUCT

electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

ASSEMBLY PROCEDURES

Unpacking

This product requires assembly.

- Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. Refer to pages 3 & 4.

- Do not discard the packing material until you have carefully inspected and ensured product is in correct operating condition.

WARNING

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

Ensure the mower is switched off and unplugged from the main power supply before commencing any assembly and until assembly is complete and you are ready to operate the machine.

Unfolding & Adjusting the Handles

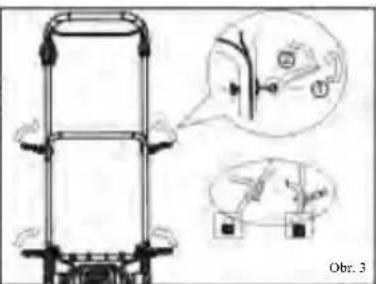

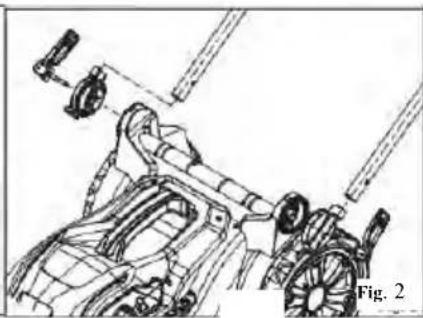

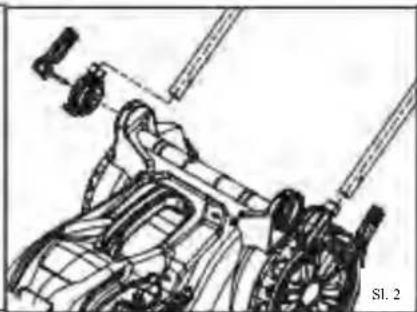

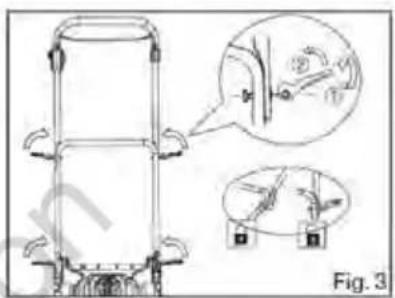

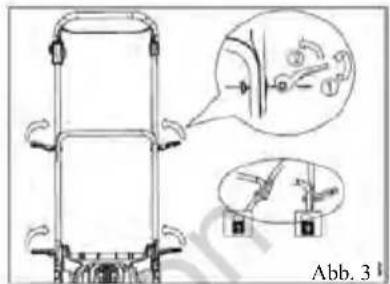

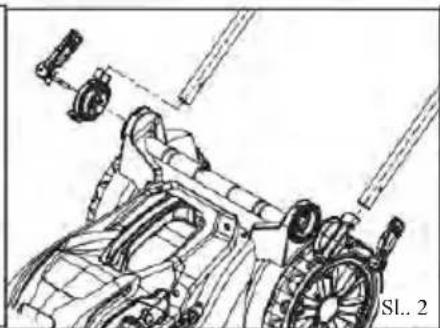

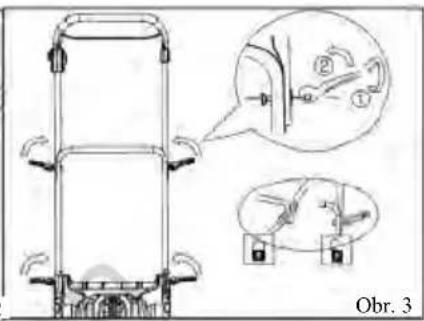

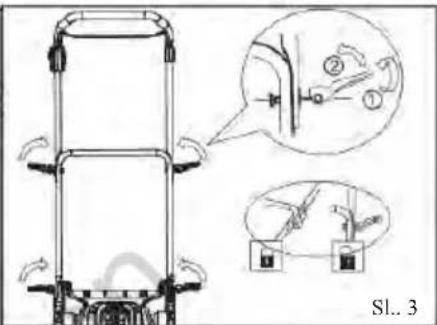

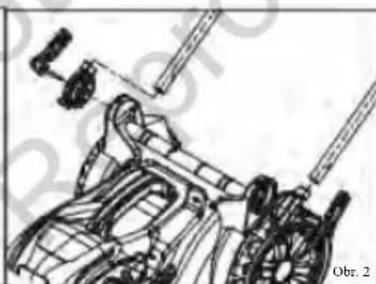

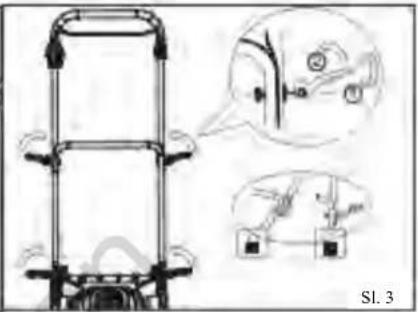

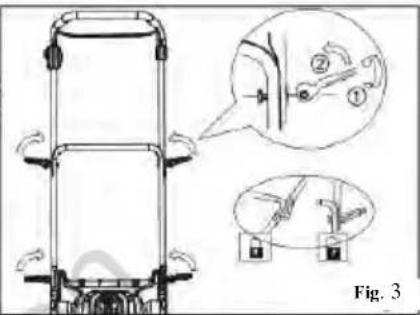

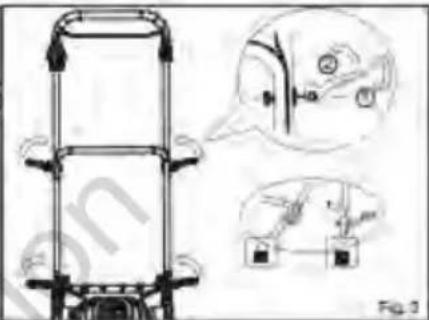

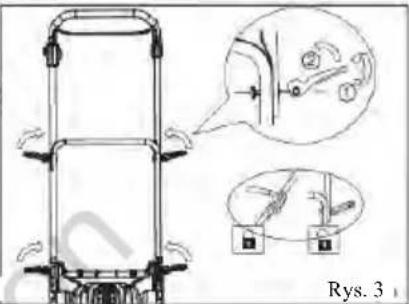

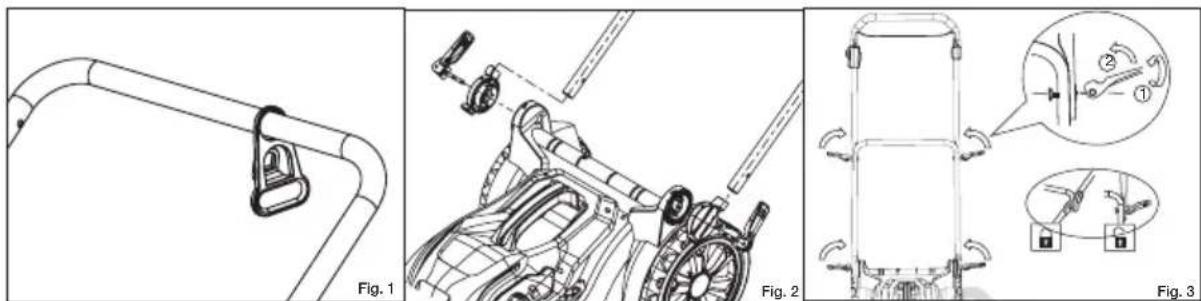

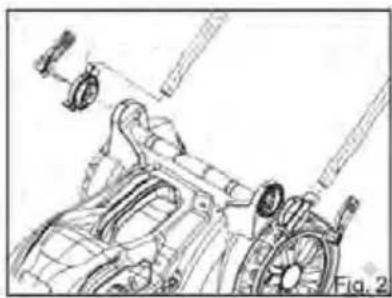

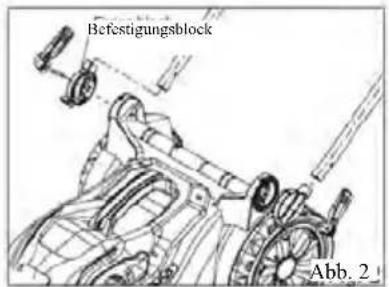

For 37cm Model, Refer to Figure 1, 2 & 3.

• Lead the lower handle through the hole in the cable retain hang and hook on it.
• Slide the two fixing blocks to the end of lower handle.
• Insert the quick release lock into the tube and handle seat. Screw the bolt in and clamp it to fix the lower handle.
• Fit the upper handle and lower handle together with quick release clamp. You can rotate release lock to adjust the tightness of lock.

Fig. 1 Fig. 2 Fig. 3

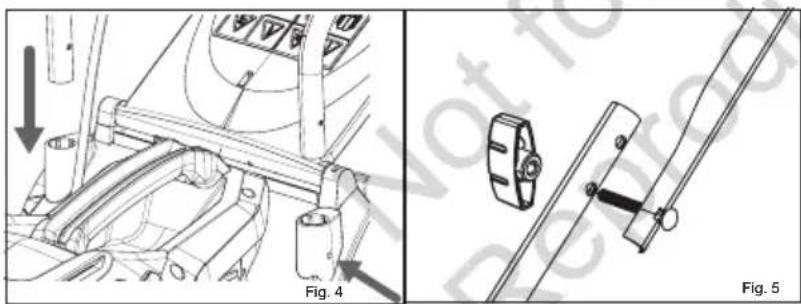

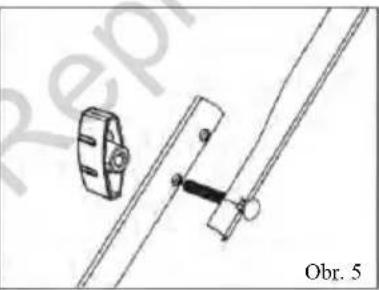

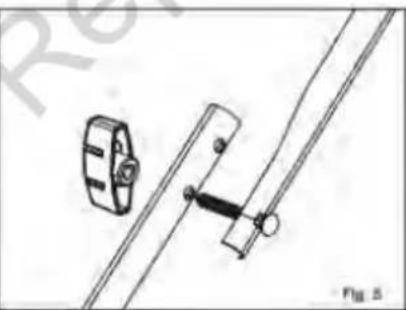

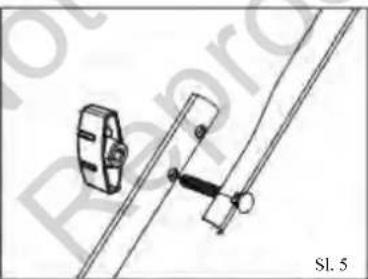

For 32cm Model, Refer to Figure 4 & 5.

• Locate the lower handle into deck as shown in Fig.- and tighten it with the screws.
• Fit the upper handle and lower handle together using the bolt and knob.

Technical diagram showing mechanical assembly with labeled components and directional arrows (no readable text or symbols)

WARNING

Do not operate if handles are incorrectly installed.

Fixing the cable

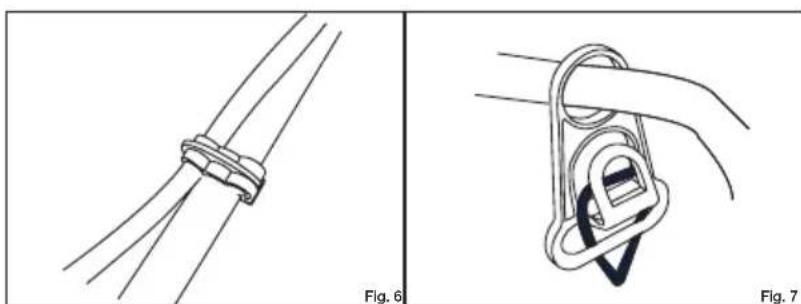

NOTE: Refer to Figure 6 & 7.

• Restraint cable clips (9) onto the cable leading from the switchbox to the motor and fix each against the lower and upper handles.
• When connecting to power supply, double the extension cord about a foot from the end and hook the loop over the cable retain hang (16).

Technical line drawings of two cable fastening techniques: one showing a clamp securing wires, the other showing a hook securing a spring (no text or symbols)

WARNING

Make sure the cable is secured using the cable clips prior to connecting the plug to the mains outlet.

Make sure to uncoil the extension cord completely before using.

Installing the Grass Catcher

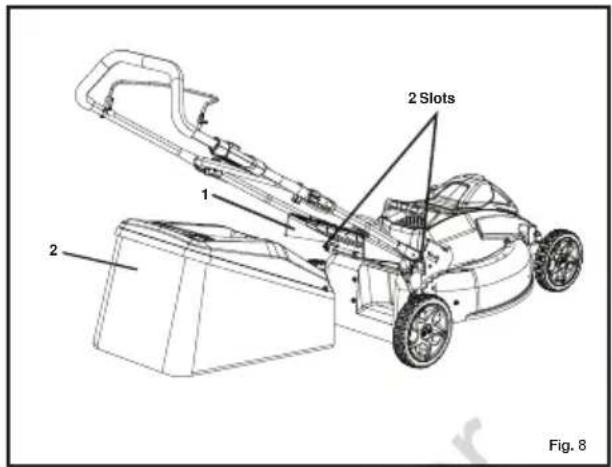

NOTE: Refer to Figure 8.

• Lift the grass catcher by its handle and place under the rear flap so that the hooks on the grass catcher frame are seated into the slots in the handle bracket.
• Release the rear flap gently.
• When installed correctly, the hooks on the grass catcher will rest securely in the slots on the handle brackets.

2 Slots 1 2 Fig. 8

WARNING

Always replace damaged or worn grass catchers.

Do not operate if catcher is incorrectly installed.

Do not hold open the flap when the machine is running.

Installing & Removing the Mulch Plug

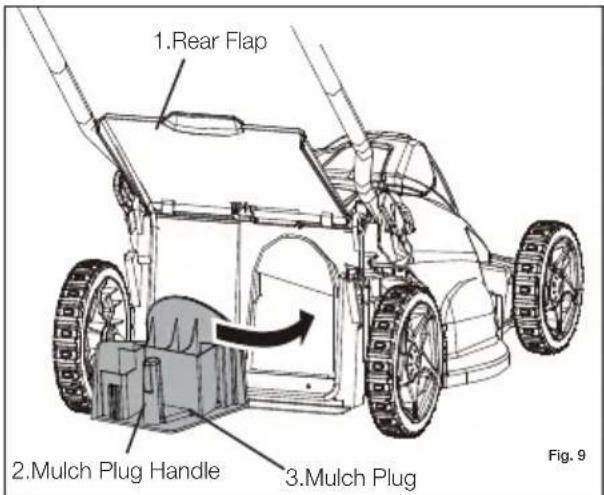

NOTE: Refer to Figure 9.

• To remove the mulching plug, lift the rear flap (1).
- Grasp the handle (2) of the mulching plug and pull the mulching plug out using the handle.
- The mulching plug (3) is inserted on an angle, so it requires some force to remove it.
- The mulching plug must be removed in order to install the grass catcher.
- The mulching plug must be re-installed when the grass catcher is removed.

1.Rear Flap 2.Mulch Plug Handle 3.Mulch Plug Fig. 9

WARNING

Do not allow the rear flap to slam closed, always close gently to avoid damage.

Always replace rear flap and mulching plug if damaged.

Starting & Stopping

For Your Safety

• Never use the mower unless the grass catcher or the guards supplied by the manufacturer are in position.
• Before starting the mower check blades and bolt for damage or wear.
• If you strike an obstruction, stop the Mower and check the blades for damage.

WARNING

Worn and damaged blades are major hazards.

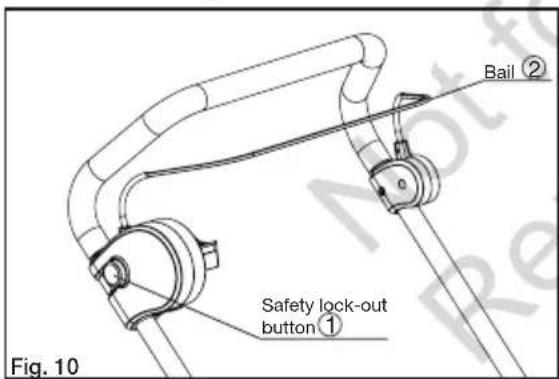

NOTE: Refer to Figure 10.

To START the Mower:

• Properly restrain the cable in the cable retain hang and plug in the main power supply.
• Press and hold the safety lock-out button (1). (See Fig. 10)
• Pull the bail (2) upward to the handle to start the mower and release the button with feet well away from blades.

Bail ② Safety lock-out button ① Fig. 10

To STOP the Mower:

• Release the bail.
• Wait for mower to completely stop, then remove the plug from the main power supply. If the mower fails to stop or in emergency, switch off and unplug from the main supply.

WARNING

Do not attempt to override the operation of the safety lock-out button or bail lever. Do not tie or lock on the bail.

Do not leave the running mower unattended.

OPERATING INSTRUCTIONS

Cutting Height Adjustment

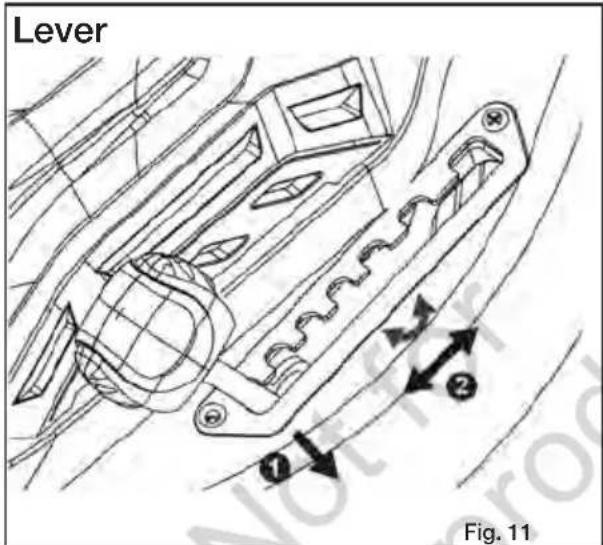

NOTE: Refer to figure 11.

NOTE: The location and appearance of the height adjustment lever may vary between different models.

Before using the mower for the first time, raise the cutting position to the height best suited for your lawn.

To adjust the blade height:

• To ADJUST the blade height, grasp the height adjustment lever and pull it outwards (1).
• To LOWER OR RAISE, move the lever forward / backward (2) and release. Before operating, make sure that the lever is properly locked at its position when released.

Lever ① ② Fig. 11

WARNING

Do not adjust the height while the mower is running.

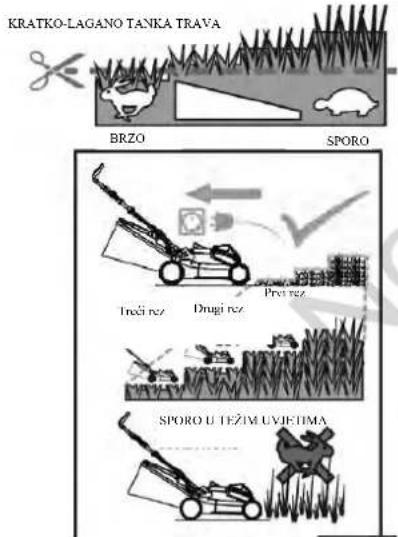

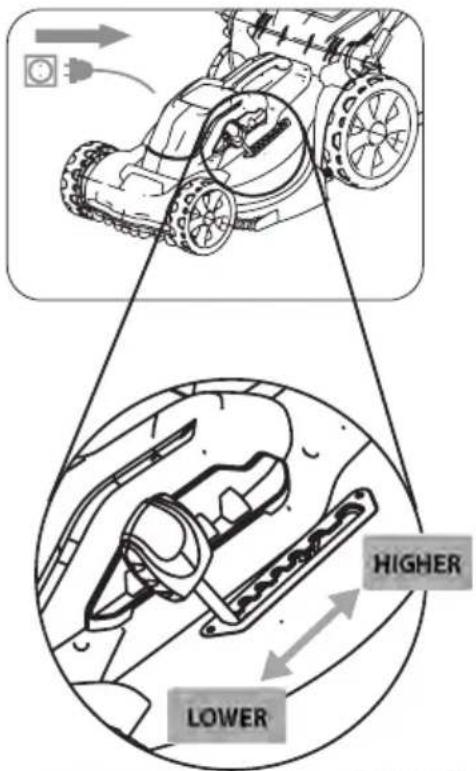

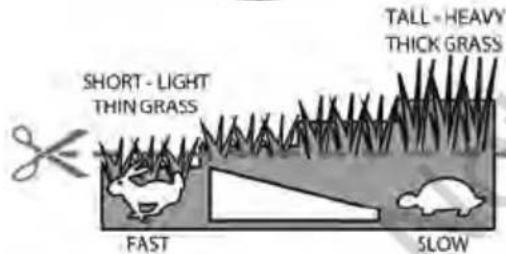

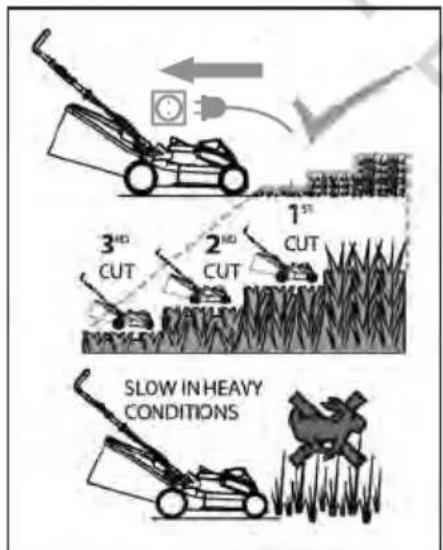

Quick Setup Guide

HIGHER LOWER

SHORT - LIGHT THIN GRASS FAST SLOW TALL - HEAVY THICK GRASS

3RD CUT 2RD CUT 1ST CUT SLOW IN HEAVY CONDITIONS

1 - READY

• Remove plug from the main power supply
• Check if the grass is tall or thick
• Check catcher & deck are empty of grass

✗ Don't adjust the mower without switching off and unplugging the device.

√ Switch off and remove the plug from the main power supply before adjusting the mower.
✗ Don't cut when catcher is full or if chute is blocked.
√ Empty catcher prior to mowing.

2 - SET

• Increase cut height in tall or heavy grass
• Clean the catcher & deck of cut grass
• Push the mower slower in heavy grass

✗ Don't cut low in long, thick or wet grass.

√ Adjust to cut higher in overgrown lawn.
× Don't force mower through thick lawn.
√ Slow down if grass becomes thicker.

3 - GO

• Insert plug in the main power supply.
• Try cutting grass at selected height
• Increase height & cut grass more frequently as required in long heavy grass
• If THERMAL PROTECTION* stops the mower, release the lever and remove the plug from the main power supply
• When mowing if catcher indicator flap is down, catcher is full.

✗ Don't continue cutting if mower frequently cuts out.

√ Avoid frequent THERMAL PROTECTION cutouts.
× Don't continue if motor over heats.
√ Allow the motor to cool if the Motor THERMAL PROTECTION is activated.

This Mower is fitted with a Motor THERMAL PROTECTION* device to protect the motor in case it shuts down during operation due to overloading or blockage.

Avoid frequently over-loading the mower as this may turn on the Motor Thermal Protection. The Motor Thermal Protection will require the machine to be rested sufficiently to cool. Clean the blockage and restart by raising cut height.

OPERATING INSTRUCTIONS

Mowing Tips

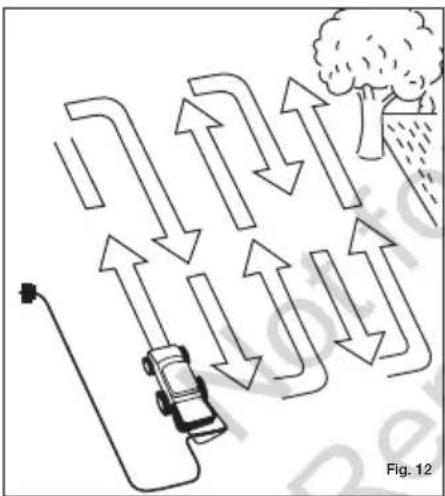

NOTE: Refer to Figure 12.

A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. Be sure to check the blade and to replace it at least once per year, as described in the Maintenance section.

• Verify that the lawn is free of stones, sticks, wires and other objects that could damage the blades or the motor. These objects could be accidentally thrown by the mower in any direction, and could cause serious personal injury to the operator and to others. In order to prevent electric shock, do not operate the mower in damp or wet conditions.
• When cutting thick grass, reduce walking speed in order to allow for a more effective cut and a proper discharge of the clippings.
• When you begin to mow, please follow the direction as shown in the Fig, to avoid twisting the power cord or the risk of cutting the cord.

WARNING

Mow across the face of slopes, never up & down. Exercise extreme caution when changing direction on slopes. Do not mow excessively steep slopes, always be sure of your footing on slopes.

Mulching Tips

- Set mower to the highest cutting height when mowing on uneven ground or in tall weeds.

- For effective mulching, do not cut wet grass, because it tends to stick to the underside of the deck, preventing proper mulching of grass clippings. New or thick grass may require a narrower cut. The ground speed should be adjusted to the condition of the lawn. If mowing has been delayed and the grass has been allowed to grow longer than 4" (10 cm), mow the lawn twice in order to reduce the grass height to a maximum of 3 1/4" (8.3 cm).

- Walk at a steady pace. Overlap the cutting rows. Do not let the grass get too tall. If the grass gets too long, start at the highest cutting position and work down to the desired cutting height.

Emptying the Grass Catcher

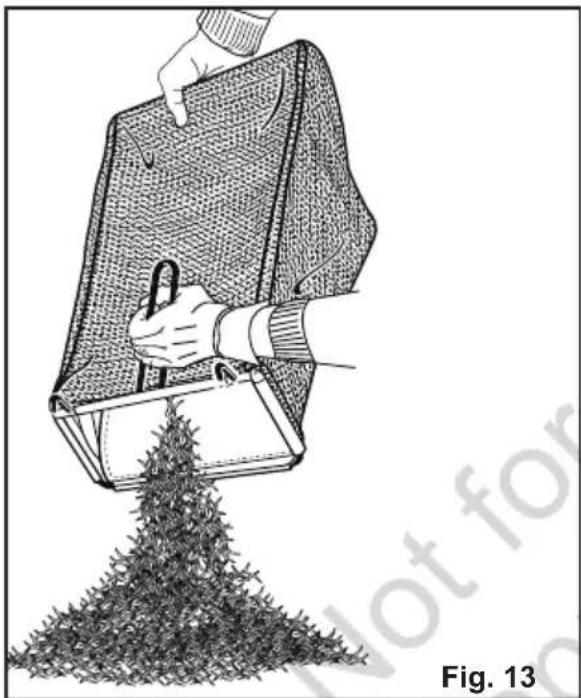

NOTE: Refer to Figure 13.

• Stop mower, allow blades to completely stop, and remove the plug from the mains.
• Lift the rear flap.
• Lift the grass catcher by its handle to remove from mower.
  • Empty grass clippings.
• Lift the rear flap and reinstall the grass catcher as described earlier in this manual.

Illustration of a hand pouring liquid into a bag with a handle, labeled 'Fig. 13' (no text or symbols on the diagram itself)

WARNING

• Check grass catcher frequently & replace if grass catcher is worn or damaged.
• Do not store grass in catcher. Always empty after use.
• Do not use the catcher for other purposes than collecting grass.
• Do not mow over or collect hot materials, ashes or remains from camp fires or smouldering materials.
• Allow grass catcher bag to dry if mower is used in wet conditions.

Bar Blade Replacement

NOTE: Refer to Fig.14, Fig.15 & Fig.16.

BLADE Loose Tight WOOD Fig. 14

Technical line drawing of a mechanical assembly with gears and a base plate (no text or symbols)

WARNING

Always protect hands by wearing heavy gloves and/or wrapping the cutting edges of the blade with rags and other material when performing blade maintenance. Contact with the blade could result in serious personal injury.

NOTE: Use only genuine replacement parts made and guaranteed by Murray. Insist on them from your parts and service dealer.

Detailed fitting instructions are printed on genuine Murray blade packs. Use of non-genuine blades may void your warranty, and could result in damage or injury.

WARNING

Never run mower without blades or with damaged blades.

WARNING

Never modify the blades or cutting system.

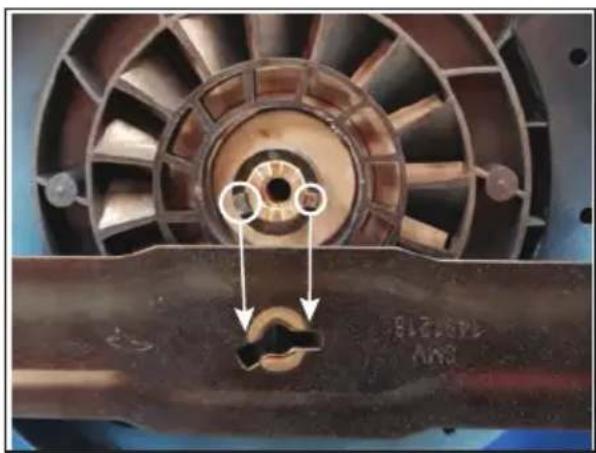

Close-up of a mechanical fan component with internal blades and a central hub, showing no visible text or symbols.

Fig. 16(a)

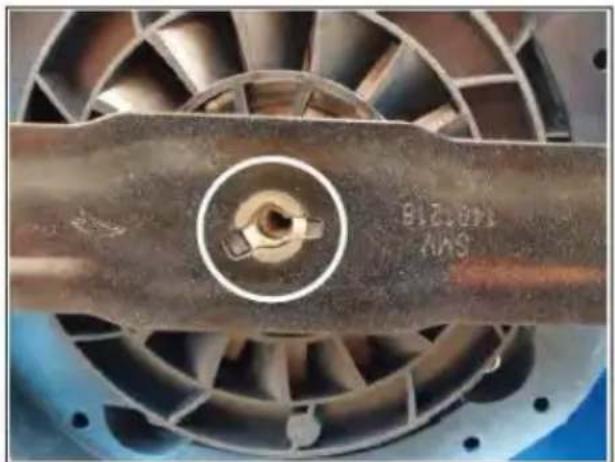

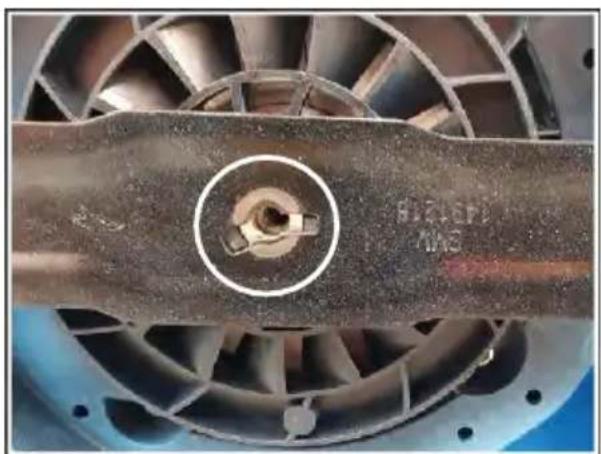

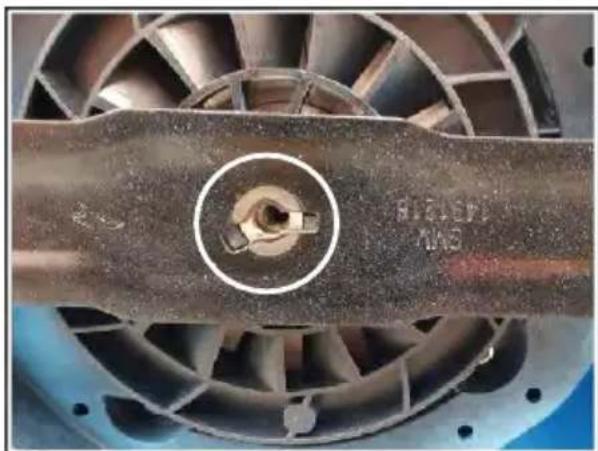

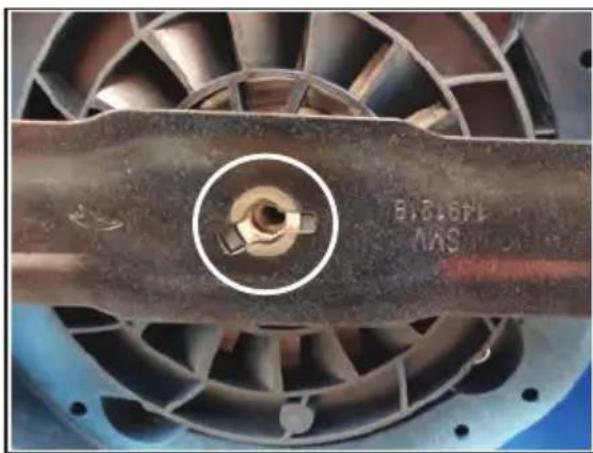

Close-up of a mechanical fan component with a circular hole and engraved text (no readable document content)

Fig. 16(b)

Blade Bar Replacement Cont'd

NOTE: Check all fasteners often, always be sure mower is in safe operating condition. Only use Murray genuine replacement blades. Replace worn or damaged blades and bolts in sets to preserve balance.

1. Stop the mower and allow the blade to come to a complete stop.
2. Remove the plug from the mains.
3. Turn the mower on its side.
4. Wedge a block of wood between the blade and mower deck to prevent the blade from turning (Refer to Fig.14).
5. Loosen the blade bolt by turning it counterclockwise (as viewed from bottom mower) using a wrench or socket (not provided).
6. Remove the blade bolt and blade (Refer to Fig.15).
7. To install the blade locate the two mounts on the shaft sleeve. These are marked in circles in Fig.16(a). Align the blade with these two mounts.
8. Install the blade on the shaft carefully. Blade must fit onto these two mounts properly. Make sure there is no gap. Refer Fig.16(b).
9. Screw the blade bold and tighten to fix the blade. Recommended torque is 12-16 Nm.

Cleaning

WARNING

To prevent serious personal injury switch off the mower and remove the plug from the mains before servicing, cleaning, or removing debris.

The underside of the mower deck should be cleaned after each use, because grass clippings, leaves, dirt, and other debris will accumulate, which will cause rust and corrosion. Remove any build-up of grass and leaves on or around the motor cover. If debris builds up on the underside of the mower during use, stop the motor, unplug from mains, and then tilt the mower forward or on its side, and scrap it clean using an appropriate tool.

• Clean the unit using a damp cloth with a mild detergent.
• Do not immerse the mower or any part of it in water.
• Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth and ensure the machine is dry before operating.
• Use a small brush or vacuum cleaner to clean the air vents on the product
• Keep the air vents free of obstructions.

Do not use solvents, strong detergents, certain aromatic oils such as pine and lemon when cleaning plastic parts. Chemicals can damage, weaken or destroy plastic component which may result in serious personal injury.

Storing

The following steps should be taken in order to prepare the machine for storage.

• Clean the machine as described in the previous section.
• Inspect the blade, and replace it or sharpen it, if required (refer to the Maintenance section).
• Store the mower in a dry, clean location. Do not store it next to corrosive materials, such as fertilizer or fuel.
• Store the mower indoors, in a cool, dry place, out of the reach of children.

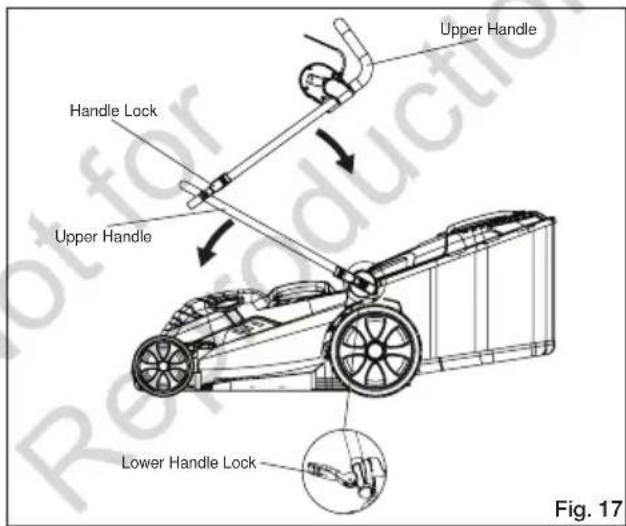

The handle may be folded away completely for storage. (See Figure 17).

Note: Option only available in 37cm model.

• Switch off the mower and disconnect the plug from the mains.
• Release the handle locks on the sides of the handle to unlock, and fold the upper handle down.
• Release the lower handle locks to unlock and disengage the cams from the mounting bracket. Fold the lower handle forward. Make sure not to bend or kink the power cord.

Upper Handle Handle Lock Upper Handle Lower Handle Lock Fig. 17

Service

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest Authorized service centre for repair. When servicing, use only genuine replacement parts.

• Keep the handles dry, clean, and free of oil and grease.
• In order to reduce the risk of fire, keep the motor free of grass, leaves, and debris build-up.
• Check the blade and motor mounting bolts for proper tightness frequently. Visually inspect blade for damage (e.g., bent, cracked, or worn).
• For best and safest performance, maintain the mower with care. Keep the mower blade sharp and clean. Mower blades are sharp, and can cut. Wrap the blades or wear gloves, and use extra caution when servicing.
• Keep all nuts, bolts, and screws tight in order to be sure that the equipment is in safe working condition.

Service Cont'd

- Never tamper with safety devices. Check them regularly for proper operation.

NOTE: Refer to warranty card supplied with this product for service contact details.

WARNING

Do not at any time let brake fluids, gasoline, petroleum based products, penetrating oils, etc, to come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which may result in serious personal injury.

WARNING

Do not lubricate any of the wheel components. Lubrication may cause the wheel components to fail during use, which could result in serious personal injury to the operator and/or mower or property damage.

Maintenance Chart

Features Requirements		Before use	After use	Weekly	Monthly	If faulty	If damaged	As required
Lawnmower	Visual inspection.	●
Power cord & plug	Check operation and for damage.	●	●
Cutting system (Blades)	Inspect and check assembly	●
	Replace					●	●
Rear flap	Inspect and check assembly	●						●
Chassis	Check for buildup of grass		●
	Clean		●
	Replace						●
All accessible fasteners	Check	●
	Retighten							●
Motor mounting bolts	Check and retighten				●
Mulching Plug (If available)	Inspect and check assembly	●						●
Grasscatcher	Check	●
	Clean		●
	Replace						●

Troubleshooting

Problem Possible Cause Correction
Does not start.	The mower is not connected to power supply.Grass is too long, wrapped around the blade.Mower housing clogged with grass and debris.	Connect to the power supply.Start on short grass or increase the cutting height.Check under the deck for clogged grass and clean discharge channel.
Loss of power.	Cutting too much grass. Increase the cutting height.Mower housing clogged with grass and debris.Cutting blade worn or rusty. Replace the cutting blades.Grass box is full. Ensure the grass box is empty.	Check under the deck for clogged grass and clean discharge channel.
The mower cuts the grass unevenly.	The lawn is rough or uneven. Check the mowing area.The cutting height is not set properly. Increase cutting height.
The mower does not mulch properly.	Wet grass clippings are sticking to the underside of the deck.The mulch plug is missing. Install the mulch plug.	Wait until the grass dries before mowing.
The mower is hard to push.	The grass is too tall, or the cutting height is too low.The rear of the mower housing and the blade are dragging in thick grass.	Raise the cutting height.Empty the grass clippings from the grass catcher.
The mower is excessively noisy and vibrates.	The motor shaft is bent. Stop the motor, and inspect for damage.The blade is unbalanced. Repair before restarting. If vibration persists, contact authorized service centre.
The mower cuts out ("stalls") when cutting grass.	The mower blade is overloaded due to mowing conditions, e.g. long, thick, moist grass or the grass type.Blades restricted by grass and dirt accumulated under the baseplate.	Stop the motor , increase the cutting height and try to cut again.Wait for the grass to dry and attempt mowing again.Check under the deck for clogged grass and clean discharge channel.
The grass catcher is not filled sufficiently.	The lawn is too wet. Wait until the grass dries before mowing.Mower housing clogged with grass and debris.Cutting blade worn or rusty. Replace the cutting blades.Grass box is full. Ensure the grass box is empty.	Check under the deck for clogged grass and clean discharge channel.

Technical Specifications

Product Specifications
Description Murray Corded Lawn Mower
Model No. 2691585/2691887 2691584	4/2691888
Deck Type Plastic Plastic
Cut Width 32cm 37cm
Input Voltage 230-240V, 50Hz 230-240V, 50Hz
Motor Type Brushed Brushed
Motor Specification 1200 Watts 1600 Watts
Motor Shaft Diameter	8.5mm	10mm
Max Motor Speed (RPM)	3500	3500
Run Motor Speed (RPM)	2700	3000
Front Wheel Size	140mm	165mm
Rear Wheel Size	165mm	250mm
Wheel Bearing	Metal Bushing	Metal Bushing
Catcher Capacity	30 L	40 L
Catcher Material	Hybrid (Fabric + Plastic)	Hybrid (Fabric + Plastic)
Push / Self Propelled	Push	Push
Mulch	N.A	Yes
Blade Type	Bar Blade	Bar Blade
Handle Type	Ergonomic	Ergonomic
Height Adjustment Position	5	7
Height Adjustment Range	20 - 60mm	25 - 75mm
Start System	Dual Engage	Dual Engage
Product Weight	8.6 Kgs	13.5 Kgs
Sound Pressure Level	Lpa: 78.5 dB(A), Kpa: 3dB	Lpa: 85 dB(A), Kpa: 3dB
Sound Power Level (Measured)	Lwa: 91.14 dB(A), Kwa: 1.55dB	Lwa: 95 dB(A)
Sound Power Level (Guaranteed)	96 dBA	96 dBA
Vibration Total Value (Max)	2.26 m/s2, K = 1.5 m/s2	1.35 m/s2, K = 1.5 m/s2

A warning:

• That the declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
• That the declared vibration total value may also be used in a preliminary assessment of exposure.
• That the vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used; and
• Of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Detalji

Hvala vam što ste kupili Murray proizvod. Murray je ponosan na kvalitetu i performanse svih svojih proizvoda.

Ovaj priručnik s uputama pomoći će u montaži, sigurnom radu i održavanju vašeg proizvoda.

Pure technical line drawing of a curved pipe or duct with a hanging clamp, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration of a vehicle chassis with an inset close-up showing a mechanical component (no text or symbols)

UPOZORENJE!

Mechanical assembly diagram showing components like gears and linkages (no text or labels)

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

UPOZORENJE

Two diagrams showing cable fastening techniques: one with a clamp, the other with a hook (no text or symbols)

UPOZORENJE

VIŠE NIŽE

VISOKO-TFŠKO DEHELA TRAVA

KRATKO-LAGANO TANKA TRAVA BRZO SPORO Treči rez Drugi rez Prst rez SPORO U TEŽIM UVJEŠIMA

1- PRIPREMA

• Uklonite utikač iz utičnice
• Provjerite je li trava visoka ili debela
• Hvatač za provjeru i paluba su bez trave

× Ne podešavajte kosilicu bez gašenja i isključivanja stroja.
√ Isključite i izvadite utičnicu iz utikača prije podešavanja kosilice.
× Nemojte rezati kada je hvatač pun ili ako je padobran blokiran.
√Ispraznite hvatač prije košnje.

2-NAMJESTITI

• Povećajte visinu rezanja u visokoj ili teškoj travi
• Očistite hvatač i palubu pokošene trave
  • Gurnite kosilicu sporije u tešku travu

UPOZORENJE!

Kosite preko obronaka, nikad gore i dolje. Budite izuzetno oprezni kada mijenjate smjer na kosinama. Nemojte kositi pretjerano strme padine, uvijek pazite na svoje oslonce na padinama.

Illustration of a person pouring liquid into a container with a handle, no text or symbols present

UPOZORENJE!

Technical line drawing of a mechanical assembly with gears and a central hub (no text or symbols)

UPOZORENJE!

Uvijek zaštitite ruke noseći teške rukavice i/ili omatanjem rubova rezača krpama i drugim materijalom prilikom održavanja noževa. Kontakt s noževom može dovesti do ozbiljnih ozljeda.

Close-up of a mechanical fan component with internal blades and a metallic handle, showing no visible text or symbols.

Close-up of a mechanical fan component with visible blades and central hub (no text or symbols)

Slika 16(a) Slika 16(b)

Line drawing of a curved pipe with a hanging clamp, labeled 'Obr. 1' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Obr. 3

VAROVÁNÍ

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical diagram showing a mechanical assembly with a bracket and a separate component, labeled 'Obr. 5' (no readable text or symbols beyond label)

VAROVÁNÍ

Obr. 6 Obr. 7

! VAROVÁNÍ

3" CUT 2" CUT 1" CUT POWOLI W TRUDNYCH WARUNKACHI

1 - PŘIPRAVEN

Technical line drawing of a mechanical assembly with gears and a central hub, labeled 'Obr. 15' (no other text or symbols)

VAROVÁNÍ

Close-up of a mechanical fan or impeller component with internal blades and mounting holes (no visible text or symbols)

Obr. 16(a) Obr. 16 (b)

Close-up of a mechanical fan component with a circular hole and engraved number '8126718' (no readable text beyond label)

Close-up of a mechanical fan component with a circular hole and engraved number '8126718' (no readable text beyond label)

ÚDRŽBA A PÉČE

Product specification

86

BEMÆRK: DETTE ER IKKE ET GARANTI BEVIS. DER HENVISES TIL DE ∅VERIGE DOKUMENTER LEVERET MED DENNE MASKIN FOR DETALJER OMKRING GARANTI BEVIS.

DISSE KAN INDEHOLDE TEKNISKE SPECIFIKATIONER, DER ER SPECIFIKKE FOR DENNE MODEL, SOM IKKE ER SPECIFICERET I DENNE BRUGSANVISNING.

VLASTNOSTI DEFINICE

Line drawing of a curved pipe with a hanging clamp, labeled Fig. 1 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Fig. 3

ADVARSEL

Mechanical assembly diagram showing mechanical components and motion direction (no text or symbols)

Technical diagram showing mechanical components and a bracket, labeled Fig. 5 (no text or symbols on the diagram itself)

ADVARSEL

Simple line drawing of a cable or clamp securing a wire, labeled 'Fig. 6' (no text or symbols on the diagram itself)

Simple line drawing of a hanging chain with a loop, labeled Fig. 7 (no text or symbols on the diagram itself)

ADVARSEL

ADVARSEL

Illustration of a person pouring liquid into a container with a handle, labeled Fig. 13 (no text or symbols on the diagram itself)

ADVARSEL

Technical line drawing of a mechanical assembly with gears and a central component (no text or symbols)

ADVARSEL

Close-up of a mechanical fan component with circular features and a metal handle, showing internal components and a hole (no text or symbols visible)

Fig. 16(a)

Close-up of a mechanical fan component with a circular hole and engraved markings (no readable text or symbols)

Fig. 16(b)

Blade Bar Replacement Cont'd

Murray Corded Lawn Mower
Description	Murray Corded Lawn Mower
Model No.	2691887/2691585	2691888/2691584
Deck Type	Plastic	Plastic
Cut Width	32cm	37cm
Input Voltage	230-240V, 50Hz	230-240V, 50Hz
Motor Type	Brushed	Brushed
Motor Specification	1200 Watts	1600 Watts
Motor Shaft Diameter	8.5mm	10mm
Max Motor Speed (RPM)	3500	3500
Run Motor Speed (RPM)	2700	3000
Front Wheel Size	140mm	165mm
Rear Wheel Size	165mm	250mm
Wheel Bearing	Metal Bushing	Metal Bushing
Catcher Capacity	30 L	40 L
Catcher Material	Hybrid (Fabric + Plastic)	Hybrid (Fabric + Plastic)
Push / Self Propelled	Push	Push
Mulch	N.A	Yes
Blade Type	Bar Blade	Bar Blade
Handle Type	Ergonomic	Ergonomic
Height Adjustment Position	5	7
Height Adjustment Range	20 - 60mm	25 - 75mm
Start System	Dual Engage	Dual Engage
Product Weight	8.3 Kg	13.5 Kg
Sound Pressure Level	Lpa: 78.5 dB(A), Kpa: 3dB	Lpa: 85 dB(A), Kpa: 3dB
Sound Power Level (Measured)	Lwa: 91.14 dB(A), Kwa: 1.55dB	Lwa: 95 dB(A)
Sound Power Level (Guaranteed)	96 dBA	96 dBA
Vibration Total Value (Max)	2.26 m/s ^2 , K = 1.5 m/s ^2	1.35 m/s ^2 , K = 1.5 m/s ^2

BELANGRIJKE INFORMATIE

Details

Simple line drawing of a curved pipe or channel with a hanging lock, labeled 'Fig. 1' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Fig. 3

WAARSCHUWING

Technical line drawings of mechanical components, showing assembly and assembly details (no text or symbols)

WAARSCHUWING

Technical line drawings of two cable fastening techniques: one showing a clamp securing wires, the other showing a hook securing a lock (no text or symbols present)

⚠ WAARSCHUWING

WAARSCHUWING

Illustration of a person holding a briefcase with a handle, standing on a tree stump (no text or symbols)

WAARSCHUWING

Technical line drawing of a mechanical assembly with gears and a central hub (no text or symbols)

WAARSCHUWING

Close-up of a mechanical component with three circular features and a labeled arrow pointing to a feature (no readable text or symbols)

Fig. 16(a)

Close-up of a mechanical fan component with a circular hole and engraved number 812697 (no readable text or symbols beyond markings)

Fig. 16(b)

ONDERHOUD EN VERZORGING

Not for Reprogs ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰

!VAROITUS

Simple line drawing of a cable or wire connector with three strands, no text or symbols present

Diagram of a rope knot securing a key (no text or symbols present)

VAROITUS

Illustration of a person handling a briefcase with a handle, pouring liquid into a pile of granular material (no text or symbols)

!VAROITUS

Technical line drawing of a robotic car with visible wheels and a central hub, no text or symbols present

! VAROITUS

Close-up of a mechanical fan component with internal blades and a cutaway view showing internal features (no text or symbols visible)

Close-up of a mechanical fan component with a circular hole and a central hole, no visible text or symbols.

Not for Repract ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

AVERTISSEMENT

ÉLIMINATION CORRECTE DU PRODUIT

Technical line drawings of mechanical components and assembly, showing exploded and assembled views (no text or symbols)

VERTISSEMENT

Technical line drawings of mechanical components, including a bracket and a rail assembly (no text or symbols)

AVERTISSEMENT

Technical illustration showing two methods of securing a cable: one with a clamp, the other with a hook (no text or symbols present)

! AVERTISSEMENT

1st COUPER COUPER COUPER 3rd COUPER 2nd COUPER LENT DANS DES CONDITIONS MAUVAISES

1 - PRÊT

Illustration of a person handling a large bag with a handle, pouring liquid into a pile of pine branches (no text or symbols)

AVERTISSEMENT

Technical line drawing of a mechanical device with gears and a base plate (no text or symbols)

AVERTISSEMENT

Close-up of a mechanical fan component with internal blades and a central hub, showing no visible text or symbols.

Close-up of a mechanical fan component with a circular hole and a central hole, showing no visible text or symbols.

Fig. 16(a) Fig. 16(b)

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Simple line drawing of a curved pipe or duct with a hanging clip, labeled 'Abb. 1' at the bottom (no text or symbols on the diagram itself)

Befestigungsblock Abb. 2

Abb. 3

WARNUNG

Mechanical assembly diagrams showing components and motion, labeled Abb. 4 and Abb. 5 (no readable text or symbols)

WARNUNG

Two technical diagrams showing cable fastening techniques: one with a clamp, the other with a hook and clasp (no text or symbols present)

WARNUNG

Illustration of a person handling a briefcase with a pile of pine branches, no text or symbols present

WARNUNG

Technical line drawing of a mechanical assembly with gears and a central hub, labeled Abb. 15 (no text or symbols on the diagram itself)

WARNING

Close-up of a mechanical fan or impeller component with internal blades and a central hub, showing no visible text or symbols.

Abb. 16(a) Abb. 16 (b)

BIZ.041 WNS

FIGYELMEZTETÉS

Technical line drawing of a mechanical assembly with gears and a central component (no text or symbols)

FIGYELMEZTETÉS

Close-up of a mechanical fan or impeller component with internal blades and a central hole, showing no visible text or symbols.

16(a). ábra

Close-up of a mechanical fan component with a circular hole and engraved text (no readable document content)

16(b). ábra

Not for Reproduce ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

NOTA:

Technical line drawings of mechanical components, showing assembly and assembly details (no text or symbols)

ATTENZIONE

Technical illustration showing two cable fastening techniques: one with a clamp, the other with a hook (no text or symbols)

ATTENZIONE

Diagram showing a car driving with multiple curved arrows indicating motion or flow, next to a tree (no text or symbols)

ATTENZIONE

Illustration of a person handling a briefcase with a pile of pine branches underneath (no text or symbols)

ATTENZIONE

Technical line drawing of a mechanical assembly with gears and a central component (no text or symbols)

ATTENZIONE

Close-up of a mechanical fan component with three circular features and a central hole, showing internal structure (no text or symbols visible)

Figura. 16 (a) Fig. 16 (b)

Close-up of a mechanical fan component with a central hub and circular hole, no visible text or symbols

MANUTENZIONE E CURA

Monterings prosedyrer

Technical line drawings of mechanical components, showing assembly and assembly details (no text or symbols)

ADVARSEL

Simple line drawing of a mechanical clamp or bracket attached to two parallel wires (no text or symbols)

Diagram of a rope knot securing a loop, labeled Fig. 7 (no text or symbols on the diagram itself)

ADVARSEL

Forsikre deg om at kabelen er festet med kabelklipsene før du kobler støpselet til stikkontakten.

3rd CUT 2nd CUT 1st CUT SLOW IN HEAVY CONDITIONS

1. KLAR

Illustration of a person handling a bag with a pile of pine trees, no text or symbols present

ADVARSEL

Technical line drawing of a mechanical assembly with gears and a central housing (no text or symbols)

ADVARSEL

Close-up of a mechanical fan component with circular features and a metal handle, showing internal structure (no text or symbols)

Fig. 16(a)

Close-up of a mechanical fan component with a circular hole and engraved number 9121034 (no readable text or symbols beyond markings)

Fig. 16(b)

Blad bjelke erstatning fortsetter

PRAWIDŁOWA UTYLIZACJA PRODUKTU

Simple line drawing of a curved pipe or duct with a hanging clamp, labeled 'Rys. 1' at the bottom (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Rys. 3

OSTRZEŻENIE

Mechanical assembly diagram showing gears and shafts with directional arrows (no text or symbols)

Mechanical assembly diagram showing a bracket and gear mechanism (no text or symbols)

OSTRZEŻENIE

Rvs. 6 Rvs. 7

OSTRZEŻENIE

3RD CIECIE 2RD CUT 1RD CIECIE SLOW IN HEAVY CONDITIONS

1 - PRZYGOTUJ

OSTRZEŻENIE

Technical line drawing of a mechanical assembly with gears and a central hub, labeled 'Rys. 15' (no readable text or symbols beyond label)

OSTRZEŻENIE

Close-up of a mechanical fan or impeller component with internal blades and a labeled mounting bracket (no readable text or symbols)

Rys. 16(a) Rys. 16(b)

Close-up of a mechanical fan component with a circular hole and engraved text (no readable document content)

KONSERWACJA I PIELEGNACJA

SEGURANÇA E MANUSEIO

Segurança geral

SEGURANÇA E MANUSEIO

Operação

SEGURANÇA E MANUSEIO

Segurança elétrica

SEGURANÇA E MANUSEIO

Desdobrar e ajustar as pegas

Technical line drawings of mechanical components and assembly (no text or symbols)

Technical diagrams showing mechanical assembly and component alignment (no text or symbols)

AVISO

Two technical diagrams showing cable fastening and hanging hook assembly (no text or symbols)

AVISO

Illustration of a person opening a box with a tree growing from a pile, no text or symbols present

AVISO

Technical line drawing of a mechanical device with gears and a central hub, no visible text or symbols

AVISO

Close-up of a mechanical fan component with internal blades and a central hole, showing no text or symbols.

Close-up of a mechanical fan component with visible internal structure and mounting holes (no text or symbols)

Img. 16(a) Img. 16(b)

Simple line drawing of a curved pipe or duct with a hanging clip, no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a ladder setup with an inset close-up of a mechanical component and its magnified view.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with a flanged component and a bracket (no text or symbols)

UPOZORNENIE

Two technical diagrams showing cable fastening and hanging hook assembly (no text or symbols)

UPOZORNENIE

Technical line drawing of a mechanical assembly with gears and a central hub, no visible text or symbols

⚠️ UPOZORNENIE

Close-up of a mechanical turbine or impeller with internal blades and a central hub, showing no visible text or symbols.

Close-up of a mechanical fan component with a circular hole and a labeled part (BIZONE MHS) in the center, showing internal structure and mounting holes.

ÚDRŽBA A STAROSTLIVOST

Výmena čela čepele

Simple line drawing of a curved pipe or conduit with a hanging clamp (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Sl.. 3

OPOZORILO

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

OPOZORILO

3RD CUT 2ND CUT 1ST CUT SLOW IN HEAVY CONDITIONS

1 - PRIPRAVLJENI

• Vč odklopite iz električne včnice.
- Preverite, ali je trava visoka oziroma gosta
- Preverite, ali sta lovilnik in dno brez trave

Illustration of a person pouring liquid into a briefcase with a handle, no text or symbols present

OPOZORILO

Technical line drawing of a mechanical assembly with gears and a base plate (no text or symbols)

OPOZORILO

Close-up of a mechanical fan component with internal blades and a central hub, showing no visible text or symbols.

Sl. 16(a)

Close-up of a mechanical fan component with a circular hole and engraved markings (no readable text or symbols)

Sl. 16(b)

Simple line drawing of a curved pipe or duct with a hanging lock, labeled Fig. 3 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows a cylindrical component, bottom shows a schematic diagram (no text or symbols)

Mechanical assembly diagram showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ADVERTENCIA

Technical diagrams showing two mechanical assembly steps: one with a clamp and cable, the other with a hook and loop (no text or symbols)

ADVERTENCIA

1st 2nd 3rd CUT SLOW IN HEAVY CONDITIONS

1 - PREPARADO

Illustration of a person handling a briefcase with a handle, pouring liquid into a pile of pine needles (no text or symbols)

ADVERTENCIA

Technical line drawing of a mechanical device with gears and a base, labeled Fig. 15 (no text or symbols on the diagram itself)

ADVERTENCIA

Close-up of a mechanical fan component with internal blades and a central hole, showing no visible text or symbols.

Close-up of a mechanical fan component with a circular hole and a central hole, no visible text or symbols.

Fig. 16(a) Fig. 16(b)

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

SÄKERHET OCH HANTERING

Allmän säkerhet

Technical line drawings of mechanical components and parts, including a bracket, gear assembly, and motor assembly (no text or symbols)

Technical line drawings of mechanical components, including a bracket assembly and a clamp mechanism (no text or symbols)

WARNING

Two technical diagrams showing cable fastening techniques: one with a clamp, the other with a loop (no text or symbols)

! WARNING

1st CUT 2nd CUT 3rd SLOW IN HEAVY CONDITIONS

1 - KLAR

WARNING

Illustration of a person handling a briefcase with a pile of pine branches underneath (no text or symbols)

WARNING

Technical line drawing of a mechanical assembly with gears and a base, labeled Fig. 15 (no text or symbols on the diagram itself)

WARNING

Close-up of a mechanical fan component with internal blades and a cutaway view showing internal structure (no text or symbols visible)

Close-up of a mechanical fan component with a circular hole and a central hole, no visible text or symbols.

Figur 16(a) Figur 16(b)

©2021 Briggs & Stratton LLC All rights reserved.

No part of this booklet may be reproduced by any means without prior written permission.

All information herein is subject to change without notice.

Murray is a registered trademark of Briggs & Stratton LLC.

WWW.MURRAY.COM

2495 B	JC JM	RELEASED 14.01.21
ECN ISS DRN CKD DESCRIPTION DATE
