USER MANUAL ERSB60 PANASONIC

Operating Instructions

(Household) AC/Rechargeable Beard Trimmer

Model No. ER-SB60/ER-SB40

English 3 Dansk 101 Cesky 197

Operating Instructions

(Household) AC/Rechargeable Beard Trimmer

Model No. ER-SB60/ER-SB40

Contents

Safety precautions. 6 Troubleshooting 16

Intended use 9 Blade life. 17

Parts identification. 10 Battery life.. 17

Preparation. 11 Removing the built-in rechargeable battery. 17

How to use 12 battery 17

Cleaning 15 Specifications 18

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

English

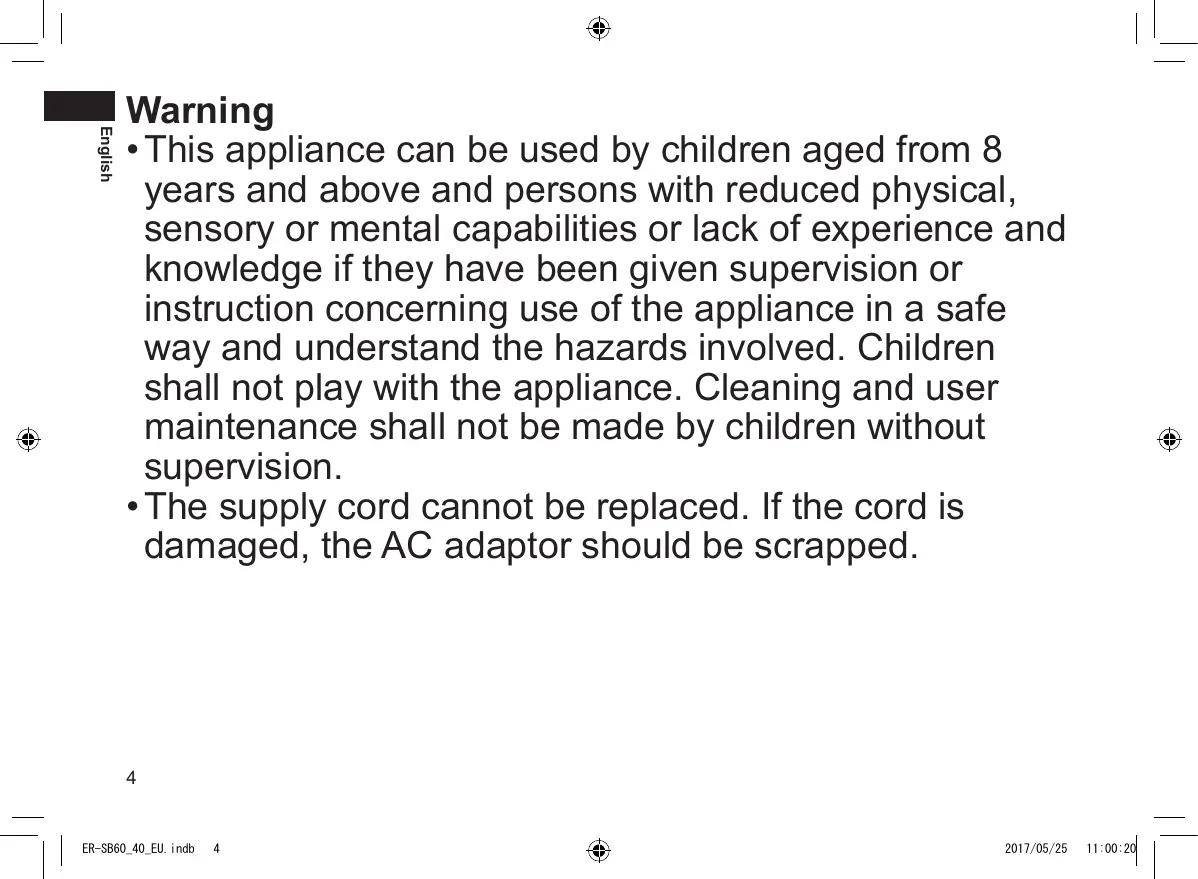

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

• The following symbol means suitable for cleaning under an open water tap.

• Do not clean with water when the AC adaptor is attached.
• Do not use anything other than the supplied AC adaptor and the charging stand for any purpose.

Also, do not use any other product with the supplied AC adaptor and the charging stand. (See page 10.)

• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.
- Doing so may cause electric shock or injury.

Do not immerse the AC adaptor and the charging stand in water or wash with water.

Do not place the AC adaptor and the charging stand over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage, modify, or forcibly bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord.

• Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.
- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor.

• Failure to do so may cause fire or electric shock.

Always unplug the adaptor from a household outlet when cleaning.
- Failure to do so may cause electric shock or injury.

WARNING

Regularly clean the power plug, the appliance plug and the charging plug to prevent dust from

accumulating.

• Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

In case of an abnormality or malfunction

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.

• The main unit, charging stand, adaptor or cord is deformed or abnormally hot.
• The main unit, charging stand, adaptor or cord smells of burning.
• There is an abnormal sound during use or charging of the main unit, charging stand, adaptor or cord.
• Immediately request inspection or repair at an authorized service centre.

This product

This product has a built-in rechargeable battery.

Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

• Doing so may cause fluid leak, overheating, or explosion.

Do not modify or repair.

• Doing so may cause fire, electric shock, or injury.

Contact an authorized service centre for repair (battery change, etc.).

Never disassemble except when disposing of the product.

• Doing so may cause fire, electric shock, or injury.

Preventing accidents

Do not place within reach of children or infants.

Do not let them use it.

• Putting parts or accessories in the mouth may cause an accident or injury.

If the oil is consumed accidentally, do not induce vomiting, drink a large amount of water, and contact

a physician.
If the oil comes into contact with eyes, immediately wash thoroughly with running water, and contact a physician.
- Failure to do so may result in physical problems.

CAUTION

Protecting the skin

Do not press the blade against your lip or the skin.

Do not use this product for any purpose other than

trimming beard.

Do not directly apply the blades on ears or rough skin (such as swellings, injuries or blemishes).

• Doing so may cause skin injury.

Check that the blades are not damaged or deformed before use.

• Failure to do so may cause skin injury.

Note the following precautions

Do not allow metal objects or trash to adhere to the power plug, the appliance plug or the charging plug

• Doing so may cause electric shock or fire due to a short circuit.

Do not drop or hit against other objects.

• Doing so may cause injury.

Do not wrap the cord around the adaptor when storing.

• Doing so may cause the wire in the cord to break with the load, and may cause fire due to short circuit.

Disconnect the adaptor from the household outlet when not using.

• Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

• Failure to do so may cause electric shock or injury.

Handling of the removed battery when disposing

DANGER

The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.

Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.
• Do not hit, disassemble, modify, or puncture with a nail.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.
• Never peel off the tube.
• Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.
- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

If the battery fluid leaks out, do not touch the battery with your bare hands.

• The battery fluid may cause blindness if it comes in contact with your eyes.
  Do not rub your eyes. Wash immediately with clean water and consult a physician.
• The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a physician.

Intended use

• Before using an attachment, check that it has been installed correctly. Failure to do so may cause hair to be cut too short.
• The appliance should not be used on animals.
• Apply the oil to the blade before and after each use. (See page 16.)

Failure to apply the oil may cause the following problems.

• The appliance has become blunt.
• Shorter operating time.
• Louder sound.
• Do not use thinner, benzine, alcohol or other chemicals. Doing so may cause failure, cracking or discoloration of the main body.

Clean the main body only with a soft cloth slightly dampened with tap water or soapy tap water.

• Store the appliance in a place with low humidity after use. Failure to do so may cause malfunction due to condensation or rust.

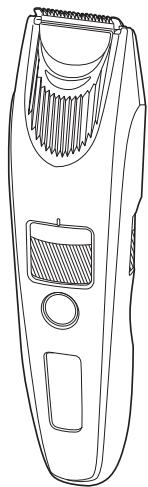

Parts identification

A

B

E

C
F

ER-SB60

D

ER-SB60

G

H

0

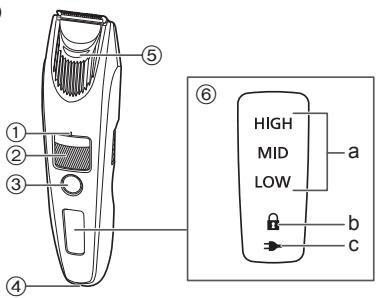

A Main body

① Trimming height indication mark
② Dial (Height adjustment control)
③ Power switch
④ Appliance socket
⑤ Water inlet
⑥ Lamp display

a. Battery capacity lamp
b. Switch lock lamp (A)
c. Charge status lamp ()

Blade

⑦ Cleaning lever
⑧ Movingblade
(9) Stationary blade
⑩ Mounting hook

Trimming height comb attachment
Detail trimming attachment ER-SB60

E AC adaptor (RE7)

(The shape of the power plug differs depending on the area.)

Adaptor
12 Power plug
13 Cord
14 Appliance plug

F Charging stand (RC9-36)

ER-SB60

⑤ Charging plug
16 Stand socket

Accessories

6 Cleaning brush
Oil
Pouch

Preparation

Charging

• Turn the appliance off.
• Wipe off any water droplets on the appliance socket and the charging stand.

1 Connect the appliance plug to the appliance socket.
2 Plug in the adaptor into a household outlet.

• Check that the charge status lamp () glows.
• Charging is completed after approx. 1 hour.

3 Disconnect the adaptor after charging is completed.

While charging

The charge status lamp () glows.

The battery capacity lamp will blink in order of "LOW", "MID", and "HIGH" while the charging progresses.

After charging is completed

The battery capacity lamp and the charge status lamp () will light up and then turn off after 5 seconds.

Notes

• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.
• The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.
• The charging time may differ when using the appliance for the first time, or if it has not been used for more than 6 months. The lamp on the appliance may not glow for several minutes when first starting charging, but will glow when continuing to charge.
• Recommended ambient temperature for charging is 10^ - 35^ . It may take longer to charge, or the charge status lamp () will blink quickly and the battery may fail to charge properly in extremely high or low temperatures.
• When the charge status lamp () is blinking rapidly (twice every second), there is a charging malfunction. Please charge the battery in the recommended ambient temperature range.
• 1 full charge will provide approximately 60 minutes of continuous operation. (Based on dry using at 20^ - 30^ ) The operating time may differ depending on the frequency of use and the operating method.
• The battery used is a lithium-ion, so charging after every use will have no effect on battery life.

Charging with the charging stand

ER-SB60

1. Insert the appliance plug into the charging stand.
2. Place the main body on the charging stand.
3. Plug in the adaptor into a household outlet.

usu6u3

How to use

• Turn the appliance off.
• Apply the oil to the blade before and after each use. (See page 16.)
• The appliance may not operate in an ambient temperature lower than approximately 5^ .
• Do not use with shaving foam applied or when the beard is wet. A wet beard may stick to the skin or bunch up, making it difficult to trim.
• Before trimming, comb your moustache with a comb.

1 Mount the desired attachment and adjust the trimming height as needed.

2 Press and trim.

• The power cannot be turned on when the switch lock lamp (θ) blinks, as the power switch is locked.

Press the power switch for more than 2 seconds to unlock. (See this page.)

Using the trimming height comb attachment

(See page 13.)

Using the detail trimming attachment

(See page 14.)

Using without the attachment

(See page 14.)

When the battery capacity is low "LOW" blinks when operating the appliance.

The appliance beeps twice after switched off.

You can trim approx. 5 minutes after "LOW" blinks.

(This will differ depending on usage.)

3 Press when finished.

12

Locking/unlocking the power switch

Locking the power switch

1. Press ① for more than 2 seconds.

2. The switch lock lamp (A) will light up for 5 seconds and turn off.

3. The appliance will stop operating.

4. Release ⑥

Unlocking the power switch

1. Press for more than 2 seconds.

2. The switch lock lamp (B) will turn off.

3. Once the appliance starts operating, release

AC operation

If you connect the AC adaptor to the appliance in the same way as for charging, and turn on the power, you can use it.

• If the remaining battery is too low, the blades may move slowly or stop, even with the AC operation. In this case, charge the battery for 1 minute or more.
• The battery will be discharged, even with the AC operation.

Removing and mounting the attachments

• Take care not to injure hands, etc., with the blade when removing or mounting the attachment.
• Turn the appliance off.

Mounting the attachment Mount the attachment to the main body until it clicks.
- If the attachment is not attached correctly, it may shift and end up cutting too much during use.

Removing the attachment

Hold the main body securely and remove the attachment from the main body.

Trimming height comb attachment

(Trimming height: approx. 1 mm to 10 mm)
Actual hair length will be a little longer than the height you set.
How to adjust the trimming height

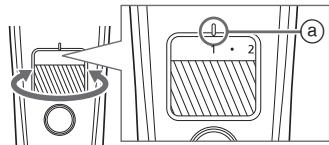

Turn the dial and adjust the trimming height indication mark (a) to the desired height.

Indicator	1	·	2	·	3	·	4	·	5	·
Trimming height (mm)(estimate)	1	1.5	2	2.5	3	3.5	4	4.5	5	5.5

Indicator	6	•	7	•	8	•	9	•	10
Trimming height (mm) (estimate)	6	6.5	7	7.5	8	8.5	9	9.5	10

Trimming to an even length

Holding the appliance with the power switch facing outwards, trim by bringing the blade in contact with the skin and moving the appliance against the flow of the beard.

• Hair trimmings may collect inside the attachment when a large volume of beard is cut, so discard hair trimmings after each use.

Detail trimming attachment ER-SB60

• The trimming height cannot be adjusted.
  How to use the detail trimming attachment

Slide the detail trimming attachment to switch the position of the blade to be exposed depending on the location to cut.

Trim the beard in tight sections or to detailed form

Move the blade along the skin to trim.

Without the attachment

(Trimming height: approx. 0.5mm )

• The appliance cannot trim hair to lengths less than 0.5 mm .

Trimming the downy hair

Holding the appliance with the power switch facing outwards, trim by bringing the blade in contact with the skin.

Design precise lines
1 Place the blade at a right angle on the edge of where you want to make a precise line.
2 Move the blade away and down from the area you want to leave, and cut the remaining beard.

Cleaning

• Clean the main body, blade and the attachment after each use. (If not cleaned, the motion will become poor and the sharpness will worsen.)
• Turn the appliance off.
• Remove the main body from the AC adaptor.

With water

Main body, blade and the attachment

To remove light dirt

1. Remove the attachment and turn the appliance on.
2. Run water down the water inlet at the front of the main body, rinse thoroughly for approximately 20 seconds, and then turn the appliance off.

• Rinse with water and shake up and down several times to remove the water.

To remove heavy dirt

1. Remove the attachment and blade.
   (See pages 13 and 16.)
2. Clean the main body, the blade and the attachments with running water.

• Rinse with water and shake up and down several times to remove the water.

• Wipe off the water with a towel and let it dry naturally.

• It will dry faster with the blade removed.
• Apply the oil to the blade after drying. (See page 16.)
• Attach the blade and attachment to the main body.

With the brush

Main body and blade

1. Remove the blade. (See page 16.)
2. Brush off any hair trimmings from the main body and from around the blade.
3. Brush off the hair trimmings from the blade edge.
4. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever (⑥) to raise the moving blade.
5. Apply the oil to the blade. (See page 16.)
6. Attach the blade and attachment to the main body.

Charging stand ER-SB60

Use the cleaning brush to clean hair trimmings and dust in the charging plug or in the hole on the bottom surface.

Lubrication

• Apply the oil to the blade before and after each use.

1 Remove the blade. (See this page.)
2 Apply a drop of the oil to each indicated point.
3 Attach the blade to the main body, turn on the power and allow to run for approximately 5 seconds.

Replacement part

Replacement part is available at your dealer or Service Centre.

Replacement part for ER-SB60/ER-SB40

Blade

WER9621

Removing and mounting the blade

Removing the blade

Hold the main body with the switch facing upward and push the blade with your thumb while catching the blade in your other hand.

Mounting the blade

Fit the mounting hook (B) into the blade mounting (A) on the main body and then push in until you hear a click.

Troubleshooting

Perform the following actions.

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Problem

The power switch does not turn ON.

The appliance has become blunt.

Operating time is short.

Appliance stopped functioning.

The appliance cannot be charged.

Action

Unlock the switch lock. (See page 12.)

Until problems are solved, please follow each procedure as follows;

1. Charge the appliance. (See page 11.)
2. Clean the blade and apply oil. (See pages 15 and 16.)
3. Replace the blade. (See page 16.)
4. Have the battery replaced by an authorized service centre.
   Insert the appliance plug into the appliance firmly.

Problem

Makes a loud sound.

Action

Apply oil. (See page 16.)
Confirm that the blade is properly attached.

Blade life

Blade life varies according to the frequency and period of use of the appliance.

For example, the blade life is approximately 3 years when using the appliance for 5 minutes 10 times a month. Replace the blades if cutting efficiency reduces substantially despite proper maintenance.

Battery life

Battery life will vary according to the frequency and length of use. If the battery is charged once a month, the service life will be approximately 3 years.

If the operating time is significantly shorter even after a full charge, the battery has reached the end of its life.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing the appliance.

Please make sure that the battery is disposed of at an officially designated location if there is one.

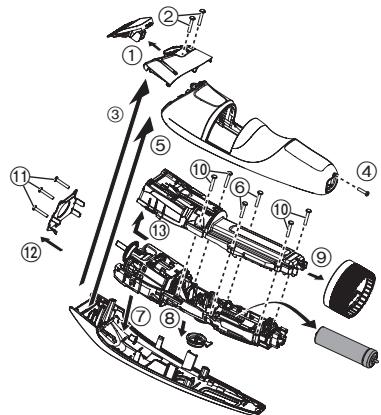

This figure must only be used when disposing the appliance, and must not be used to repair it. If you dismantle the appliance yourself, it may cause malfunction.

• Remove the appliance from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑬ and lift the battery, and then remove it.
• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

For environmental protection and recycling of materials

This appliance contains a Lithium-ion battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V---
Charging time	Approx. 1 hour
Airborne Acoustical Noise	64 (dB (A) re 1 pW)

This product is intended for household use only.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic

Bedienungsanleitung

Modelln. ER-SB60/ER-SB40

Inhalt

Model Nr. ER-SB60/ER-SB40

Inhoud

pspepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepe

2 : x^ ( x) = y^ ( x) : 2 : x^ ( x) = y^ ( x) : y = 10( x)

WAARSCHUWING

Crear lines as precisas

Modelummer ER-SB60/ER-SB40

Indhold

For at fjerne let snavs

ReserveditelER-SB60/ER-SB40 Blad WER9621

Modelln. ER-SB60/ER-SB40

Innhold

• Kontroller at lampen for Iadestatus (一 - ) lyser.
• Lading fullfores etter omtrent 1 time.

Bruke tilbehoret for fintrimming

(Se side 144.)

Reservedel for ER-SB60/ER-SB40 Blad WER9621

Modelln. ER-SB60/ER-SB40

Innehäll

Sakerhetsforeskrifter 152

For in adaptern welt.

• I annat fall kan det resultanta i brand ellerelstot.

Koppla alltid bort adaptern fran vagguttaget infor rengöring. - I annat fall kan det det resultera i elstöt aller persorskada.

WARNING

Utbytbara delar for ER-SB60/ER-SB40

Skärblad

WER9621

Mallinro ER-SB60/ER-SB40

Sisälto

Model c. ER-SB60/ER-SB40

Obsah

C. Modelu ER-SB60/ER-SB40

Obsah

Nr. Model ER-SB60/ER-SB40

Cuprins

Măsuri de siguranta 250

Model No. ER-SB60/ER-SB40

Icindekiler

• Aşaqidaki sembol, elektrikli aletin Şebekeye®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®.
• Özel bir ayrilabilir,—ç kaynámı)—unitesi,—gerektiğini,—belirtir.,—ç kaynámı)—unitesinin,—turü”—sembolün,—yananda”—belirtilir.

Güvenlik önlemleri

ER-SB60/ER-SB40 icin yedek parca Biçak WER9621

Bicagikicarma ve takma

Bicagici karma

2026, Oshinohara, Yasu-Shi, Shiga, Japan

YETKILI TEMSILCI

Ithalatci Firma:

Tesan Iletisim A.S.

Cobançese Meh. Bilge Sok. No:17

34196 Yenibosna- Istanbul

Tel: [phone] Faks: 0212 454 60 20

www.tesan.com.tr

URUNUN KULLANIM OMRU 7 YILDIR

Panasonic Corporation

http://www.panasonic.com

© Panasonic Corporation 2017

EN,GE,FR,IT,DU,SP,DA,PT,NW,SW,FI,PL,CZ,SK,HU,RO,TK

Printed in Japan

ER9710SB601E Y0617-0
