PP-60 - Hair straighteners FAGOR - Free user manual and instructions

Product type	Hair straightener
Brand	FAGOR
Model	PP-60
Power supply	220-240 V ~ 50/60 Hz
Power	120 W
Maximum temperature	200 °C
Heating time	Approximately 3 minutes
Plate type	Heating plates
Functions	Straightening, curling, shaping inward and outward
Switch	On/Off
Indicator light	Red (on)
Outer protector	Cool to the touch, removable
Usage	Dry or damp human hair
Safety instructions	Do not use on artificial hair or animals, do not immerse in water
Cleaning	Slightly damp cloth, do not use abrasive products
Maintenance	Unplug and let cool before cleaning
Recycling	Device and packaging recyclable, do not dispose of with household waste
Warranty	Refer to authorized after-sales service
Included accessories	Cool-touch outer protector
Model number	PP-60

Frequently Asked Questions - PP-60 FAGOR

How to use the FAGOR PP-60 straightener?

After plugging in the device and turning it on with the On/Off switch, wait approximately 3 minutes for it to heat up. Divide your hair into 5 cm sections, place a strand between the hot plates, press firmly and glide from roots to ends. For short hair, hold for about 10 seconds without gliding.

What is the maximum temperature reached?

The maximum temperature is 200 °C. There is no temperature setting; the device heats to this fixed value.

Can I use the straightener on wet hair?

Yes, the device can be used on dry or damp hair. However, for optimal results and to avoid damaging hair, it is recommended to dry them first with a towel or hairdryer.

How to clean the straightener?

Turn off and unplug the device, then let it cool completely. Clean the plates with a slightly damp cloth and dry with a soft cloth. Never use abrasive products or sharp utensils, and never immerse the device in water.

Does the straightener have burn protection?

Yes, it comes with a cool-touch outer protector that fits around the device to prevent accidental burns. Follow the instructions to set it up correctly.

What types of hair can I straighten?

The straightener is designed for human hair only. Do not use on artificial hair (wigs, synthetic extensions) or on animals.

How to get curls or shapes?

To curl, place a strand between the plates, glide from roots to ends, then wrap it around the plates. For shaping outward or inward, perform a half-circular motion at the tips in the desired direction.

What if the cord is damaged?

If the cord is damaged, it must be replaced by a certified technician approved by the manufacturer or by the technical support service. Do not use the device until the cord is repaired.

Can I use styling products with the straightener?

Avoid using flammable products such as hairspray, mousse, or other hair products during use, as they can cause burns upon contact with the hot plates.

How to store the straightener safely?

After use, turn off and unplug the device, let it cool completely, then store it in a dry place away from moisture. Never wrap the cord around the device.

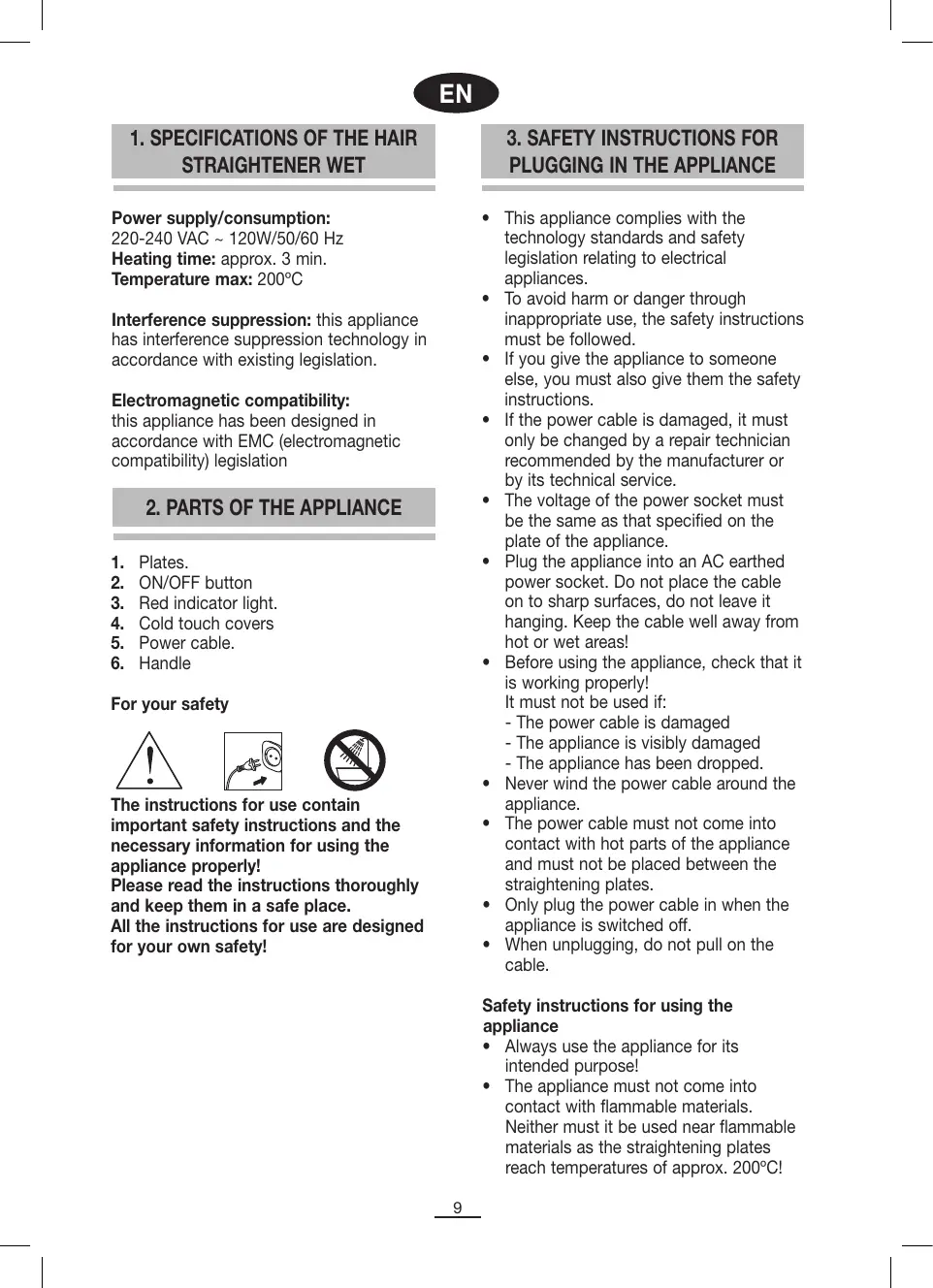

USER MANUAL PP-60 FAGOR

The manufacturer reserves the right to modify the models described in this User's Manual.

Power supply/consumption:

220-240 VAC ~ 120W/50/60 Hz

Heating time: approx. 3 min.

Temperature max: 200°C

Interference suppression: this appliance has interference suppression technology in accordance with existing legislation.

Electromagnetic compatibility:

this appliance has been designed in accordance with EMC (electromagnetic compatibility) legislation

2. PARTS OF THE APPLIANCE

1. Plates.
2. ON/OFF button
3. Red indicator light.
4. Cold touch covers
5. Power cable.
6. Handle

For your safety

The instructions for use contain important safety instructions and the necessary information for using the appliance properly!

Please read the instructions thoroughly and keep them in a safe place.

All the instructions for use are designed for your own safety!

3. SAFETY INSTRUCTIONS FOR PLUGGING IN THE APPLIANCE

• This appliance complies with the technology standards and safety legislation relating to electrical appliances.
• To avoid harm or danger through inappropriate use, the safety instructions must be followed. If you give the appliance to someone else, you must also give them the safety instructions.
• If the power cable is damaged, it must only be changed by a repair technician recommended by the manufacturer or by its technical service.
• The voltage of the power socket must be the same as that specified on the plate of the appliance.
• Plug the appliance into an AC earthed power socket. Do not place the cable on to sharp surfaces, do not leave it hanging. Keep the cable well away from hot or wet areas!
• Before using the appliance, check that it is working properly! It must not be used if:
• The power cable is damaged
• The appliance is visibly damaged
• The appliance has been dropped.
• Never wind the power cable around the appliance.
• The power cable must not come into contact with hot parts of the appliance and must not be placed between the straightening plates.
• Only plug the power cable in when the appliance is switched off.
• When unplugging, do not pull on the cable.

Safety instructions for using the appliance

Always use the appliance for its intended purpose! - The appliance must not come into contact with flammable materials. Neither must it be used near flammable materials as the straightening plates reach temperatures of approx. 200°C

• Do not cover the straightening plates with objects!
• The appliance must never be switched on with the plates closed. Make sure that the appliance is open!
• People with nervous problems must not use the appliance when they are alone in order to prevent possible danger. Children are not aware of the dangers of electrical appliances. It is therefore necessary to supervise them when they are using the appliance!
• Keep the packaging materials, e.g. plastic bags, well away from children!

Warning!

There is a risk of burning yourself with the straightening plates and the hot parts of the appliance!

Do not hold the appliance by or near the straightening plates when it is switched on. The straightening plates and the hot steam can cause burns. Avoid contact with your skin and eyes. Never carry the appliance when it is hot!

Warning!

Risk of electrocution

Do not use the appliance with wet hands, in the bath or shower, or over a full sink. If the appliance falls into the water, unplug it immediately. Under no circumstances touch the water when the appliance is still plugged in!

Warning!

Risk of electrocution

When the appliance is being used in the bathroom, unplug it after use as the proximity of water can be dangerous even when the appliance is switched off!

• Never place the appliance on cushions or carpets while in use! After use, or if there is a pause for some considerable time, unplug the appliance and leave it to cool down.
• Do not place the appliance or the power cable on to hot surfaces, e.g. cookers or similar, or anywhere near flames!

Warning!

Risk of burns from hairspray!

Do not use flammable substances, such as hairspray, mousse, etc., on your hair before using the appliance as this can cause burns when the substance comes into contact with the straightening plates!

• The appliance must only be used on dry natural hair. Do not use on artificial hair!
• The appliance is not suitable for straightening animal hair!
• The installation of a protective device against current faults with a cut-out switch provides additional safety to ensure that the 30mA of your home installation are not exceeded.
• Unplug the appliance:
• If the appliance is not working properly
• Before cleaning it
• After each use
• Do not pull on the cable and do not carry the appliance by the cable!

Safety instructions for cleaning and maintenance

Always unplug the appliance from the power socket and leave it to cool down before cleaning or repairing it, or if a fault occurs during use! - Do not use the power cable to pull the appliance out of the socket or remove the plug from the socket with wet hands!

Warning!

Risk of electrocution!

Prevent the appliance from getting wet. Never put the appliance in the dishwasher. Never put it into water!

Appropriate use

The appliance is only designed for straightening and shaping human hair.

No liability whatsoever will be accepted for damages resulting from use for other purposes, inappropriate use or repairs by non-experts.

The guarantee services are excluded in these cases.

The appliance is not designed for professional use!

4. INITIAL USE AND HAIR STRAIGHTENING

Preparing your hair

• This appliance can be used on both dry and wet hair.
• Wash your hair and dry it with a towel or dryer until you are sure that there are no remnants of dripping water on your hair.
• Comb your hair thoroughly; do not use hairspray or other flammable chemical hair care products.
• Wrap a towel around your neck to avoid burns.

Switch on the appliance

• Place the appliance on a flat and level surface, plug it in, and switch it on using the ON/OFF switch (b). Leave the straightener to heat up for approximately 3 minutes.

Straightening long hair

Work with 5 cm thick sections. Place the hair between the hot plates and press firmly. Keep it in place for a few seconds and pass it along the hair from the roots to the tips, maintaining some pressure. Repeat the process until you have acquired the desired style. Leave your hair to cool down before giving it the final touches or before combing.

Straightening short hair

Follow the instructions for long hair, but instead of pulling the straightener along your hair, keep the straightener in the same place for approximately 10 seconds.

USEFUL SHAPING TIPS

- Straight

Insert a section of hair of around 5 cm thick between the plates, then press the tongs together and slide them slowly along the hair from the roots to the tips.

- Shaping soft curls

Insert a section of hair of approx. 5cm thick between the plates, press the tongs together gently and slide the straightener along to the tips, then coil the hair around the plates.

- Shaping outwards

Insert a section of hair of around 5cm thick between the plates, then press the tongs together and slide them along the hair starting from the roots and gently shaping the tips outwards.

- Shaping inwards

Insert a section of hair of around 5cm thick between the plates, then press the tongs together and slide them slowly along the hair starting from the roots and shaping the tips inwards.

COLD TOUCH COVER

As the appliance is designed for professional use, the temperature will be very high during use. Using the cold touch cover is recommended during personal use of the appliance.

Fitting the cold touch cover

• Align the centre of the appliance with the inner part of the cover (image 1).
• Slide the cover backwards to the end (image 2).
• Pull the cover until it fits onto the body of the appliance (image 3).

Removing the cold touch cover

• Use two fingers to pull on the two buttons on the sides of the cover. (image 1). Pull on the cover from the back and remove it from the appliance by sliding it forwards.

Switching off the appliance

Switch off the appliance by using the ON/OFF switch b.

5. CLEANING AND MAINTENANCE

• Risk of electrocution! Switch the appliance off before cleaning it and unplug it.
• Risk of burns! It is essential to leave the appliance to cool down completely.
• Before cleaning the appliance, unplug it from the power socket!
• Do not put the appliance in water!
• Look after your appliance! Do not use

sharp or abrasive cleaning agents!

• You can clean your appliance with a slightly damp cloth and dry it with a soft dry cloth.
• If the straightening plates get dirty, use some drops of washing-up liquid to help to clean them. Make sure that you remove all remnants of the detergent from the straightening plates!

Protecting the environment

• The packaging materials and the appliance with its accessories are made from recyclable materials.
• Appropriate sorting and disposal of the materials helps them to be recycled.

Disposing of the appliance

This symbol on the product, the instructions for use and the packaging indicate that this product, at the end of its service life, cannot be thrown into the

normal rubbish bin. It must be disposed of at a collection centre for the recycling of electrical or electronic appliances.

The materials must be recycled in accordance with their classification. By disposing of the used appliance correctly, recycling materials and other forms of recycling are making a valuable contribution to protecting our environment.

Ask your local authority for a list of the appropriate recycling points.

6. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to

a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.

1. SPECIFICATIONS OF THE WET HAIR STRAIGHTENER

USEFUL TIPS FOR USE

Danger of electric shock!

When using the device, keep it away from contact with water. Using it near water poses a danger of electric shock. When using it, keep it away from water!

• When using, never place the device above the water surface or near it! After use, if you intend to use it for a long time, disconnect the device from the electrical outlet and leave it to cool. Do not place the device or the power cord on hot surfaces, such as stoves or similar, or near flames!

Important warning!

Danger of fire when using the device!

Do not place flammable substances, such as lacquer, resin, and similar products, near the device while using it, as this could lead to fire when the substance comes into contact with the heated parts!

• The device should only be used on natural hair that is dry. Do not use it on synthetic hair!
• The device is not intended for styling animal hair!
• Installing a protective device with a residual current device (RCD) with a rated tripping current of no more than 30 mA is recommended for the electrical installation in the home. - Disconnect from the mains:

-If the device does not work properly - Before use. - After each use

Do not pull the cord and do not disconnect the device by pulling the cord!

Instructions for safe use and maintenance

• Disconnect the device from the electrical outlet and let it cool down before cleaning or repairing it, or if problems arise during use! Do not use the cord to pull out the plug, and do not pull the plug out of the socket with wet hands!

Important warning!

Danger of electric shock!

Never place the device in water. Never use it in a humid environment. Never immerse it in water!

Intended use

The device is intended for straightening and styling only human hair.

No liability is accepted for damage resulting from use for other purposes, incorrect use or repairs not carried out by specialists.

Warranty service is not included in such cases. The device is not intended for professional use!

4. First use and straightening the hair

Preparing the device

This device can be used on both dry and damp hair. - Rinse the hair and dry it well with a towel, so as to remove the excess water from the hair and to prevent water from dripping from it. Comb the hair well and do not use any other styling products. - Place the towel around your neck to avoid burns.

Switching on the device

Place the device on a horizontal and flat surface and press the plates into contact and switch on the device with the on/off switch "b". Leave the device to heat up for about 3 minutes.

Straightening the hair

Work with sections of about 5 cm. Place the hair between the hot plates and press gently. Leave it in place for a few seconds and slide the hair from the roots to the ends, applying some pressure. Repeat the process until you achieve the desired style. Leave the hair to cool before giving it the final shape or before combing it.

Curling the hair

Follow the instructions for straightening the hair, but instead of pulling the device along the hair, hold it in one place for about 10 seconds.

Placing the non-heating cap

• Insert the appliance into the socket until it stops (Figure 1).
• Pull the appliance back to the edge (Figure 2). - Hold the appliance until it stops on the housing (Figure 3).

Connecting the unheated appliance

Hold the appliance by the two ends and remove it. (Figure 1). Hold the appliance from the back side and pull it forward, pulling the sockets.

DISCONNECTING THE APPLIANCE

Disconnect the plug from the socket for switching on/off "b."

5. CLEANING AND MAINTENANCE

• Danger of electric shock! Disconnect the appliance before cleaning and remove the plug from the socket.
• Danger of burns! It is very important to let the appliance cool down completely.
• Before cleaning, disconnect the appliance from the electrical network! Do not immerse the appliance in water!
• Keep the appliance! Do not use sharp objects or abrasive cleaners for cleaning!
• You can clean the appliance with a slightly damp cloth and then dry it with a dry cloth! If it is very dirty, use a few drops of mild detergent to clean it. Make sure to remove all detergent residues before using it again!

Environmental Protection

- The packaging of the appliance, together with its accessories, is made of materials that can be recycled. - Proper separation and disposal of materials helps their recycling.

Dispose of the appliance

The symbol on the product, packaging, and instructions for use indicates that this product must not be disposed of with regular household waste.

It must not be disposed of with ordinary household waste. It must be disposed of at a collection point for recycling of electrical and electronic appliances.

The materials must be recycled in accordance with their type. By properly disposing of a used appliance, the recycling of materials and other recycling functions contribute to the protection of our environment.

Contact your local authorities for a list of appropriate recycling points.

6. INFORMATION ON THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC HOUSEHOLD APPLIANCES

At the end of the appliance's useful life, do not throw it in the container for ordinary household waste. You can dispose of it

by taking it to the special centers for secondary raw materials at your local administration or your supplier, who are obliged to accept this waste. Separate disposal of electrical household appliances prevents negative consequences for the environment and health, arising from inadequate disposal, and also allows the recycling of the materials from which the device is made, thus achieving significant savings in raw materials and energy.

To emphasize the commitment to separate disposal of waste from every product, the product is marked with a special sign that warns you not to dispose of it in containers for ordinary household waste.

For more information, contact your local authorities or the store where you purchased the product.

1. TECHNICAL CHARACTERISTICS OF THE HAIR DRYER

Characteristics of the power source / Power consumption: 220-240 V ~ (alternating current), 120 W, 50/60 Hz. Heating time: about 3 minutes. Maximum temperature level: 200°C

Interference suppression: This product implements interference suppression technology in accordance with the applicable standard.

Electromagnetic compatibility: This product is designed in accordance with the EMC (Electromagnetic Compatibility) standard.

2. APPLIANCE COMPONENTS

1. Nozzle 2. On/Off button 3. Red indicator light 4. Cold air button 5. Power cord 6. Handle

The instruction manual contains important safety instructions, as well as information necessary for the correct operation of the device. Read all instructions carefully and keep them in a safe place. The operating instructions are primarily intended to ensure safety.

3. SAFETY INSTRUCTIONS FOR CONNECTING THE DEVICE TO THE POWER SUPPLY

This device complies with technical standards and safety regulations for electrical devices. To avoid injury and hazards associated with incorrect operation, it is necessary to strictly follow the safety instructions. - When transferring the device to another person, you should also pass on the safety instructions. In case of damage to the power cord, its replacement must be carried out by a specialist from the repair service recommended by the manufacturer or by its service department. - The voltage of the power source must correspond to the value indicated on the device's nameplate. Plug the device's plug into an AC outlet with grounding. Do not place the cord on surfaces with sharp edges and do not allow it to become tangled. Keep the cord away from hot and damp places! Before using the device, make sure it works correctly! The use of the device is prohibited in the following cases:

• if the power cord is damaged;
• if the device has visible damage;
• if the device has fallen.

It is forbidden to wrap the power cord around the device body. Make sure that the power cord does not touch the heated parts of the device and does not get into the space between the straightening plates. - The power plug can only be inserted into the socket when the device is switched off. When removing the plug from the socket, do not pull on the cord.

Safety instructions for using the device

Use the device only for its intended purpose! Make sure that the device does not come into contact with flammable substances or materials. Use the device away from flammable substances and materials, as the heating temperature of the straightening plates reaches about 200°C! Do not cover or wrap the straightening plates with foreign objects! It is strictly forbidden to turn on the device with closed plates! Before switching on, make sure that the device is open! To avoid danger, it is forbidden to use the device without supervision by persons with mental disorders. - Children do not realize the dangers associated with electrical appliances. Therefore, if a child uses the device, they must be supervised. Keep packaging materials, such as plastic bags, out of the reach of children.

Attention!

When operating this device, there is a risk of burns from the straightening plates and heated parts of the body!

The device must not be moved while it is heating up. The heating plates located close to the hair roots can cause burns. Do not allow heated plates to come into contact with skin or eyes. It is strictly forbidden to move the device while it is hot!

Attention!

Danger of burns from flammable hairspray!

Do not apply flammable substances to your hair, such as hairspray or hair gel, before using the straightener, as this can lead to burns. Flammable substances can ignite upon contact with the hot straightening plates!

This device can only be used for straightening dry, natural hair. Do not use the device for styling wigs or hairpieces! - This device is not intended for use on animal fur! - The level of safety during operation is higher if your home is equipped with a device that protects against electric shock, with a circuit breaker.

The device must be connected to a power outlet with a residual current device (RCD) with a rated tripping current of 30 mA.

• The device must be disconnected from the power supply in the following cases:
• if the device is not working properly;
• before cleaning it;
• after each use. It is forbidden to pull the power cord to move the device, hold it by the cord!

Instructions for safe use and care of the product

• Before cleaning or repairing the device, it must be disconnected from the power supply and allowed to cool down. The device must also be disconnected from the power supply if you notice any malfunction or incorrect operation during use! It is forbidden to disconnect the device from the power supply by pulling the plug, and also to connect it to the power supply with wet or damp hands!

Attention!

3 12

y

1 1

.10000000000000000000000000000000000000000000000

J 1000000000000000000000000000000000000000000000000000000

a

6
