Brand	FAGOR
Model	VCE-306
Product type	Canister vacuum cleaner
Power supply	230 V ~ 50 Hz
Maximum power	Not specified (electronic adjustment)
Filter type	HEPA, motor protection filter, air outlet filter
Tank capacity	Not specified
Cable length	Automatic rewinder, length not specified
Included accessories	Floor brush, upholstery nozzle, crevice tool, hose, telescopic tube
Main functions	Dry vacuuming, electronic power adjustment, manual adjustment on handle, two brush positions (hard floors/carpets)
Maintenance and cleaning	Emptying the tank, cleaning the HEPA filter grid, annual replacement of HEPA filter, external cleaning with damp cloth
Safety	Overload protection (automatic shut-off in case of overheating), do not vacuum liquids or hot objects, do not use without filters
Weight	Approximately 5-7 kg (estimate)
Dimensions (approx.)	Approximately 40x30x30 cm (estimate)
Spare parts and repairability	Filters available, repair by authorized service center only
General information	Domestic use, dry dust vacuuming

Frequently Asked Questions - VCE-306 FAGOR

How to connect the suction hose?

Insert the hose into the suction inlet, aligning the grooves with the tabs, then turn until locked. To remove, press the finned flaps and pull.

How to adjust the suction power?

Use the electronic power adjustment (8) on the device. Turn from Minimum (for delicate fabrics) to Maximum (for heavy dirt). You can also manually adjust the force on the handle (13) by opening or closing the window.

What to do if the power cord does not retract completely?

Unplug the appliance, press the rewinding pedal (7), and guide the cord by hand to retract straight. Never pull beyond the yellow mark.

How to change the HEPA filter?

Unplug the appliance, remove the dirt container, then the HEPA filter. Replace with a new one. It is recommended to change it at least once a year.

The vacuum cleaner stops suddenly during use, what to do?

This is the overload protection. Set the power to minimum, wait a few minutes for the motor to cool down, remove the cause of the blockage (hose, brush), then restart. If the problem persists, contact a technical service.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for vacuuming dust and dry dirt. Never vacuum liquids, as this would damage the appliance.

How to clean the dirt container?

Unplug the appliance, remove the container by pulling its handle. Empty the contents. You can clean the protective grid of the HEPA filter with a soft cloth or lukewarm water (dry thoroughly before reinstalling).

What accessories are supplied with the vacuum cleaner?

The floor brush (11), the hose (12), the telescopic tube (14), the crevice tool (17), and the upholstery nozzle (18). They can be stored on the telescopic tube.

How to store the vacuum cleaner after use?

Turn off the appliance, unplug it, wind the cord. For vertical storage, insert the hook of the telescopic tube (15) into the slots under the vacuum cleaner and at the back of the carrying handle.

Where can I find replacement filters?

Filters (HEPA, motor protection, air outlet) are available from authorized technical assistance centers or specialized retailers. Always use original parts.

USER MANUAL VCE-306 FAGOR

The manufacturer reserves the right to modify the models described in this User's Manual.

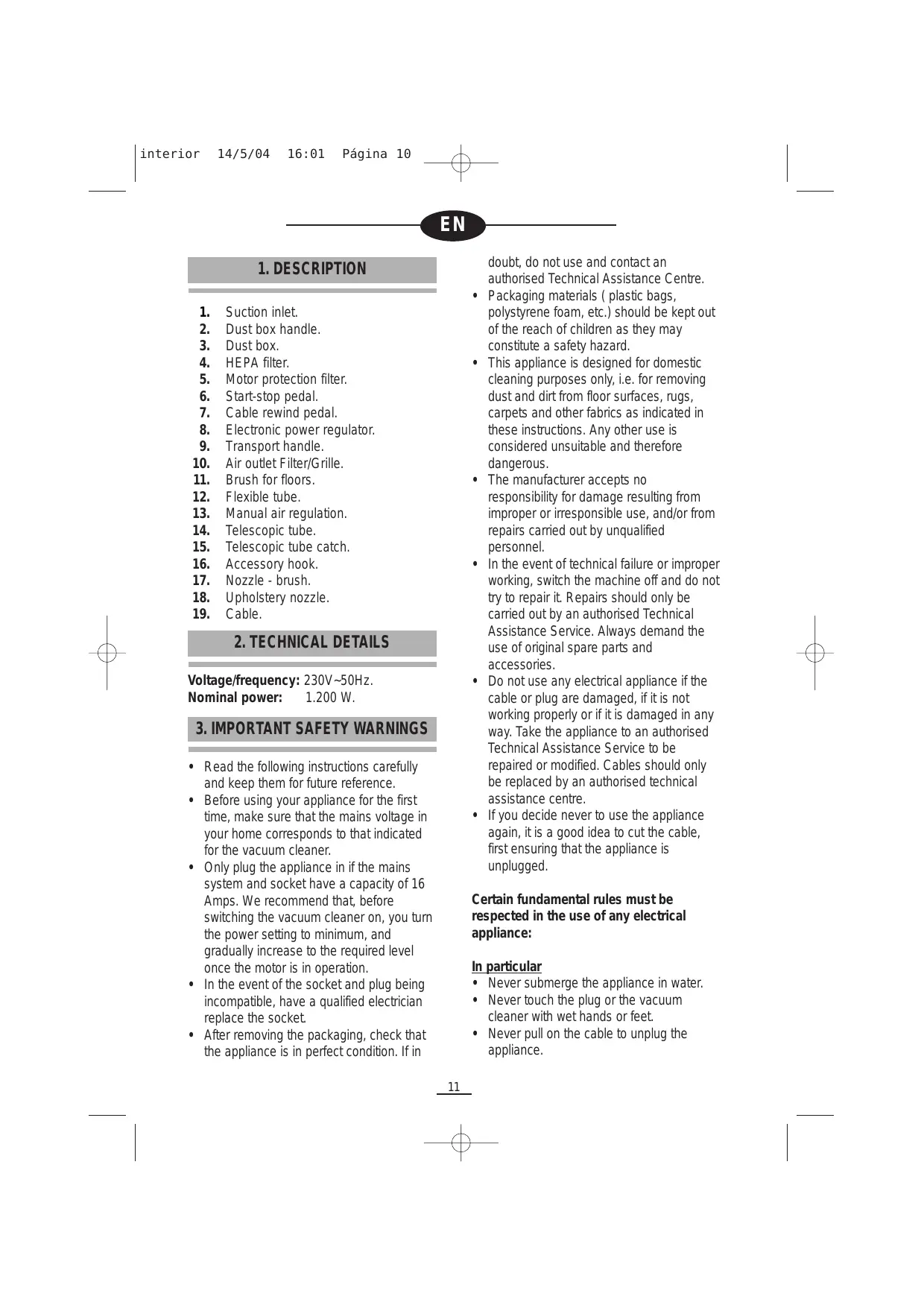

1. Suction inlet.
2. Dust box handle.
3. Dust box.
4. HEPA filter.
5. Motor protection filter.
6. Start-stop pedal.
7. Cable rewind pedal.
8. Electronic power regulator.
9. Transport handle.
10. Air outlet Filter/Grille.
11. Brush for floors.
12. Flexible tube.
13. Manual air regulation.
14. Telescopic tube.
15. Telescopic tube catch.
16. Accessory hook.
17. Nozzle - brush.
18. Upholstery nozzle.
19. Cable.

2. TECHNICAL DETAILS

Voltage/frequency: 230V 50Hz

Nominal power: 1.200 W.

3. IMPORTANT SAFETY WARNINGS

• Read the following instructions carefully and keep them for future reference.
• Before using your appliance for the first time, make sure that the mains voltage in your home corresponds to that indicated for the vacuum cleaner.
• Only plug the appliance in if the mains system and socket have a capacity of 16 Amps. We recommend that, before switching the vacuum cleaner on, you turn the power setting to minimum, and gradually increase to the required level once the motor is in operation.
• In the event of the socket and plug being incompatible, have a qualified electrician replace the socket.
  After removing the packaging, check that the appliance is in perfect condition. If in

doubt, do not use and contact an authorised Technical Assistance Centre.

• Packaging materials (plastic bags, polystyrene foam, etc.) should be kept out of the reach of children as they may constitute a safety hazard.
• This appliance is designed for domestic cleaning purposes only, i.e. for removing dust and dirt from floor surfaces, rugs, carpets and other fabrics as indicated in these instructions. Any other use is considered unsuitable and therefore dangerous.
• The manufacturer accepts no responsibility for damage resulting from improper or irresponsible use, and/or from repairs carried out by unqualified personnel.
• In the event of technical failure or improper working, switch the machine off and do not try to repair it. Repairs should only be carried out by an authorised Technical Assistance Service. Always demand the use of original spare parts and accessories.
• Do not use any electrical appliance if the cable or plug are damaged, if it is not working properly or if it is damaged in any way. Take the appliance to an authorised Technical Assistance Service to be repaired or modified. Cables should only be replaced by an authorised technical assistance centre.
• If you decide never to use the appliance again, it is a good idea to cut the cable, first ensuring that the appliance is unplugged.

Certain fundamental rules must be respected in the use of any electrical appliance:

In particular

• Never submerge the appliance in water.
• Never touch the plug or the vacuum cleaner with wet hands or feet.
• Never pull on the cable to unplug the appliance.

Always unplug the appliance before changing filters or cleaning or when you have finished using it.
- Do not use the vacuum cleaner outside or on wet surfaces. Do not vacuum wet or damp dust or dirt particles.
- Do not vacuum flammable liquids such as cleaning fluids or petrol, etc., or their fumes.
- Do not vacuum hard, sharp or oversized objects, matches, hot ashes, cigarette ends or any other such materials.
- Do not let children or the mentally disabled use the appliance.

• Do not leave the appliance near hot ovens, heaters or radiators.
• Do not move the appliance by pulling on the cable or flexible tube. Use the transport handle provided.
• Never use the vacuum cleaner without its filters.
• Change filters after vacuuming fine dust particles or cleaning new rugs or carpets.
• Do not vacuum very fine particles such as cement, fine sand or flour, etc.
• Do not use the appliance if the suction channels are obstructed in any way, since this could cause the motor to overheat.

4. ASSEMBLING AND USING FOR THE FIRST TIME

To extend the telescopic tube (14) to the length you require, push the catch forward. Next, attach the brush (11) or one of the nozzles (17) or (18) to one end of the tube and insert the flexible tube (12) into the other.

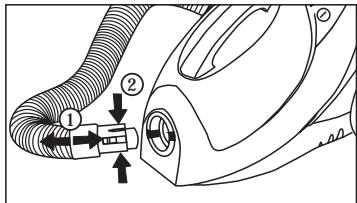

Insert the flexible tube into the suction inlet (1), making sure the grooves coincide with their corresponding ridges to ensure a secure fit. To release, simply press the fluted wings on the flexible tube and pull.

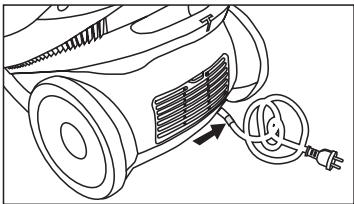

Pull the connection cable (19) to unwind it from its housing and plug into the mains.

Warning: The end of the cable is indicated by a yellow mark. Do not continue to pull on the cable after this yellow mark has appeared, as this could cause irreparable damage to the cable winding device.

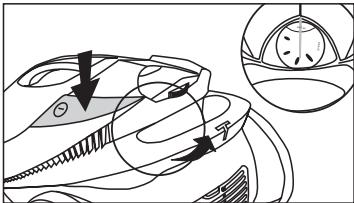

Press the start-stop pedal (6) to switch the vacuum cleaner on. To switch off, simply press the pedal once again. Before switching the vacuum cleaner on, use the electronic power regulator (8) to turn the power setting to minimum, and then gradually increase to the desired setting after the motor has started up.

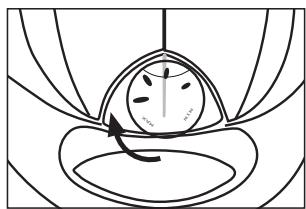

The electronic power regulator (8) enables you to adjust the suction power in accordance with the floor surface to be vacuumed. You can set the power level to anywhere between Minimum (recommended for curtains and delicate fabrics) and Maximum (recommended for high dirt concentrations and hard floor surfaces). In general, except in cases of extreme dirt or delicate fabrics, we recommend that you adjust the power setting to the energy-saving position half way between MAX and MIN.

Suction power can also be regulated manually by adjusting the shutter in the handle (13):

Shutter closed: greater suction power.

Shutter open: less suction power.

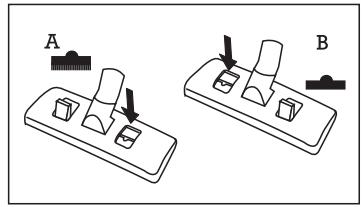

The floor brush (11) has two working positions:

A) position for vacuuming hard floor surfaces

B) position for vacuuming rugs and carpets

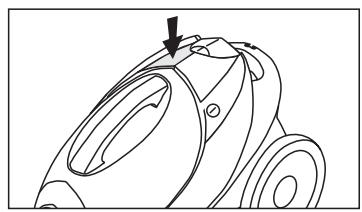

When you have finished using the vacuum cleaner, switch it off, unplug the cable and press the automatic cable rewind pedal (7). Make sure that the cable does not twist or loop when rewinding. Guide manually if necessary.

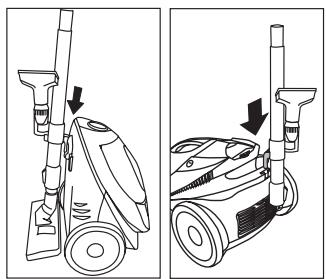

Storage: The appliance can be stored in an upright position, inserting the telescopic tube catch (15) into the housings located underneath the vacuum cleaner and at the rear of the transport handle.

Nozzles 17 and 18 can be attached to the accessory hook (16) located on the telescopic tube.

Always unplug the appliance before carrying out any cleaning operation. The vacuum cleaner and its accessories should be cleaned with a damp cloth. Never use solvents or abrasive products for cleaning purposes.

NEVER SUBMERGE THE APPLIANCE IN WATER OR ANY OTHER LIQUID.

Unplug the appliance and remove the flexible tube from the suction inlet.

Remove the dust box by pulling upwards on the handle. Important: Never use this handle to move the appliance. Remove the HEPA filter from its housing and empty and clean the box.

To extend the life of the HEPA filter, the filter is protected by a mesh that filters the bigger particles of dust. Clean the mesh often with a soft brush if necessary, taking care not to break it. It can also be washed in warm water. Make sure that it is completely dry before putting it back.

Replace the HEPA filter and then place the dust box back into position.

Unplug the appliance and remove the flexible tube from the suction inlet.

HEPA filter (4)

The filter should be changed whenever you notice a significant reduction in the suction force. We recommend that you change the HEPA filter at least once a year.

Warning: Never use the vacuum cleaner without a HEPA filter, as this may damage the motor.

Motor protection filter (5)

This filter is located opposite the HEPA filter. To access it, first remove the dust box and then pull up on the grille that holds it in place. You should change this filter whenever you change the HEPA filter.

Warning: Never use the vacuum cleaner without a motor protection filter.

Air outlet filter (10)

This element filters the air expelled from the appliance. To change the filter, simply remove the grille that holds it in place. This filter should be changed every time you change the HEPA filter.

8. SAFETY

This vacuum cleaner is equipped with an anti-overload protection device which prevents the cleaner from working if it overheats (e.g. if the tubes and/or air inlet nozzles are blocked). If the vacuum cleaner switches off when you are using it, set the power control to minimum and wait a few minutes for the motor to cool down. Remove the blockage and switch the cleaner back on.

If the vacuum cleaner does not work normally again, take it to a service centre.
