USER MANUAL VCE180C FAGOR

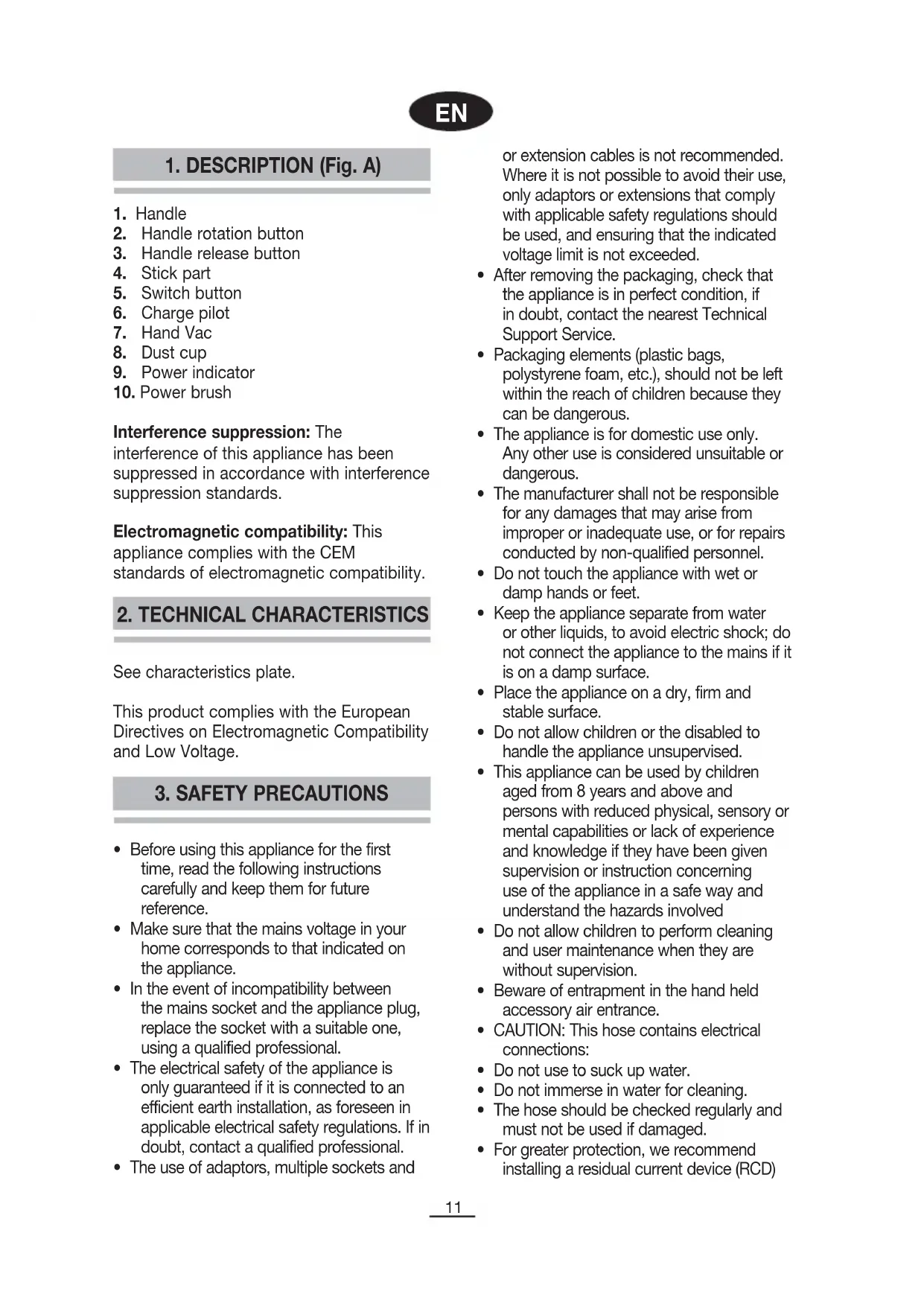

Interference suppression: The interference of this appliance has been suppressed in accordance with interference suppression standards. Electromagnetic compatibility: This appliance complies with the CEM standards of electromagnetic compatibility. or extension cables is not recommended. Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.

• After removing the packaging, check that the appliance is in perfect condition, if in doubt, contact the nearest Technical Support Service.

• Packaging elements (plastic bags, polystyrene foam, etc.), should not be left within the reach of children because they can be dangerous.

• The appliance is for domestic use only. Any other use is considered unsuitable or dangerous.

• The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use, or for repairs conducted by non-qualified personnel.

• Do not touch the appliance with wet or damp hands or feet.

• Keep the appliance separate from water or other liquids, to avoid electric shock; do not connect the appliance to the mains if it is on a damp surface.

• Place the appliance on a dry, firm and stable surface.

• Do not allow children or the disabled to handle the appliance unsupervised.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved

• Do not allow children to perform cleaning and user maintenance when they are without supervision.

• Beware of entrapment in the hand held accessory air entrance.

• CAUTION: This hose contains electrical connections:

• Do not use to suck up water.

• Do not immerse in water for cleaning.

• The hose should be checked regularly and must not be used if damaged.

• For greater protection, we recommend installing a residual current device (RCD)

• Before using this appliance for the first time, read the following instructions carefully and keep them for future reference.

• Make sure that the mains voltage in your home corresponds to that indicated on the appliance.

• In the event of incompatibility between the mains socket and the appliance plug, replace the socket with a suitable one, using a qualified professional.

• The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation, as foreseen in applicable electrical safety regulations. If in doubt, contact a qualified professional.

• The use of adaptors, multiple sockets and

See characteristics plate. This product complies with the European Directives on Electromagnetic Compatibility and Low Voltage.12 with an operational residual current not exceeding 30 mA. Ask your installer for advice.

• Do not leave the appliance unattended when it is turned on because it can be dangerous.

• When removing the plug never pull on the cable.

• Unplug the appliance before cleaning or maintenance.

• In the event of fault or malfunction where the appliance is not to be used, turn off the appliance and do not attempt to repair. If a repair is required, contact a Technical Assistance Service authorised by the manufacturer and request the use of original spare parts.

• If the cable for this appliance is damaged, contact an authorised Technical Assistance Service for it to be replaced.

• Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).

• Do not use or let any part of the appliance come into contact or near hot surfaces (kitchen gas or electric hobs or ovens).

• Do not use detergents or abrasive sponges to clean the appliance.

• Do not touch the hot surfaces. Use the handles.

• Do not let the cable come into contact with the hot parts of the appliance.

• Do not vacuum water or any other liquid.

• Make sure that the on/off switches of the vacuum cleaner and the hand-held vacuum are in the off position before charging.

• It is advisable to change the dust container filter every three to six months, depending on use, to ensure maximum performance of the appliance.

• Never use the vacuum cleaner without the container filter.

• After cleaning the container filter, make sure that it is completely dry before reinstalling it in the vacuum cleaner.

• Do not put the filter in the washing machine or dry it with a hairdryer. The filter must only be left to dry naturally.

• Do not use the appliance if the vacuum pipes are obstructed in any way, as the motor may overheat.

• This cordless vacuum cleaner is fitted with uncharged batteries. The batteries need to be charged 15-16 hours prior to using the appliance for the first time.

• The appliance is protected against overcharging. When the battery is fully charged, the indicator light (6) will turn green and the circuit will be automatically cut off, stopping the battery from charging.

• The appliance has excessive discharge protection. When the voltage of the battery falls below a certain level, the appliance will stop automatically in order to protect the battery. It must be recharged in order to use it again.

5. BEFORE USING FOR THE FIRST TIME

1. This cordless vacuum cleaner receives

energy via rechargeable batteries. Prior to using, charge at least 15-16 hours: - Place vacuum cleaner near a socket and plug in charger. - Connect charger to charge jack (fig. B). The red pilot (6) will start blinking indicating vacuum cleaner is correctly connected to charger and is being charged. - Vacuum cleaner must be charged 15-16 hours minimum. When battery is full, the pilot (6) stops blinking and battery charging stops. Should charger connector be plugged into the vacuum cleaner, it will not switch on, even though the battery is fully charged. Unplug to use the vacuum cleaner.

2. The vacuum cleaner has an average

autonomy of approx. 12-18 minutes. For optimum battery functioning, follow these guidelines: - Always fully charge battery. - Never discharge completely. (When motor noise starts weakening13

7. CLEANING THE DUST

CONTAINER FILTER Empty the dust container and clean the filter after every use in order to achieve the maximum performance of the appliance.

1. Make sure that the appliance is not

connected to the charger before cleaning the dust container.

2. Extract the hand-held vacuum (7) from

3. Remove cup as indicated in figure D.

4. Empty dust cup (8)

5. Remove cup filter as indicated in figure E.

6. Wash the filter with cold water and wait

until it is completely dry before placing it back into the container. N.B.: Do not put the filter in the washing machine or dry it with a hairdryer. The filter must only be left to dry naturally.

7. Once the filter is dry, carefully place it

back into the container (8). Never use the vacuum cleaner without the filter.

8. Insert the container (8) into the appliance

of the hand-held vacuum (7). CAREFUL: The suction hole must be open and unobstructed at all times; otherwise, the motor may overheat and become damaged. N.B.: It is advisable to change the dust container filter every three to six months, depending on use, to ensure maximum performance of the appliance.

6. INSTRUCTIONS FOR USE

VACUUM CLEANER: This vacuum cleaner has a foldable handle to facilitate storage, press handle rotation button (2) until you hear click. This handle can be moved upwards, pressing the handle rotation button (2), thereby facilitating vacuuming under sofas, beds, tables, etc. Fig F Vacuum cleaner will not function unless hand vac is correctly placed in its holder. To start the vacuum cleaner, press the on/ off button (5). To turn off press the on/off button again (5). HAND-HELD VACUUM: To extract the hand-held vacuum (7) from the appliance, press the hand-held vacuum release button (3) and pull it out as shown in figure C. Once you have extracted the hand-held vacuum, move the on/off switch (5) to the I position to start it. Move the on/off switch to the O position to stop the hand-held vacuum. To put the hand-held vacuum (7) back into the appliance, firstly place the lower part into the receptacle on the appliance and then push the hand-held vacuum towards the appliance until it clicks into place in the receptacle. likewise suction capacity, you should stop vacuuming). - Leave a one hour cooling period between use and charge.14

The hand-held vacuum is not working The powered brush is not working

1. Batteries need charging 1. Charge the appliance

1. The vibrator is blocked

1. Remove the dirt from the

vibrator. If there is any thread or string caught up, cut it away carefully with scissors.

4. The charger is connected. 4. Disconnect the charger.

3. There is no power in the

power transformer from the electricity socket.

3. Check the fuses or

3. The vacuum cleaner unit is

not properly positioned.

3. Place the vacuum cleaner

unit properly in position.

2. The contacts between the

appliance and the charger base are dirty

2. Clean the dirt off the

2. The belt is broken. 2. Call the repair centre.

PROBLEM CAUSE SOLUTION

The suction power is weak

1. The dust container is full. 1. Empty the dust container.

3. The appliance needs

3. Charge the appliance.

2. The dust container

filter needs cleaning or changing.

2. Remove the container filter

and check for any objects in the air pipe to remove them. Clean or change the filter. The dust is coming out of the vacuum cleaner The battery does not stay charged

1. The container is full. 1. Empty the dust container.

1. The battery has reached

the end of its service life.

1. Call the repair centre.

3. There are holes in the

2. The container filter is not

for installing the container filter.15

9. INFORMATION FOR THE CORRECT

DISPOSAL OF ELECTRICAL AND

ELECTRONIC APPLIANCES At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers. For further information, contact your local authority or the shop where you bought the product.16
