HANDY VACUUM CLEANER

MODEL NO.: FG762

INSTRUCTION MANUAL

Read this manual thoroughly before using and save it for future referenc

Charge adapter (AC): 100-240V, 50/60Hz

Output: 26.5V, 500mAh

Product: DC22.2V, 150W

IMPORTANT SAFETY INSTRUCTIONS

BEFORE USING THIS MACHINE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL AND ON THE MACHINE.

When using an electrical appliance, basic precautions should always be followed, including the followi ! WARNING

These warnings apply to the machine, and also where applicable, to all tools, accessories, chargers or mains adapters.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

1. This appliance can be used by children aged from 8 years and above and persons reduced physical, sensory or mental capabilities or lack of experience and knowledge they have been given supervision or instruction concerning use of the appliance in a way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Do not allow to be used as a toy. Close attention is necessary when used by or ne children. Children should be supervised to ensure that they do not play with the mac
3. Use only as described in this machine Operating Manual. Do not carry out any maintenance other than that shown in this manual.
4. Suitable for dry locations ONLY. Do not use outdoors or on wet surfaces.
5. Do not handle any part of the plug or machine with wet hands.
6. The external flexible cable or cord of the charger cannot be replaced; if the cord is damaged, the charger shall be scrapped.
7. If the machine is not working as it should, has received a sharp blow, has been dropped, damaged, left outdoors, or dropped into water, do not use and contact the Service a
8. Contact Service agent when service or repair is required. Do not disassemble the mode as incorrect reassembly may result in an electric shock or fire.
9. Do not stretch the cord or place the cord under strain. Keep the cord away from heated surfaces. Do not close a door on the cord, or pull the cord around sharp edges or corners. Arrange the cord away from traffic areas and where it will not be stepped on or trip. Do not run over the cord.
10. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord. The use of an extension cord is not recommended.
11. Do not use to pick up water.
12. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they or their vapors may be present.

13. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or ashes.

14. Keep hair, loose clothing, fingers, and all parts of the body away from openings and parts. Do not point the hose, wand or tools at your eyes or ears or put them in your

15. Do not put any object into openings. Do not use with any opening blocked; keep fr lint, hair, and anything that may reduce airflow.

16. Use only Instruction manual recommended accessories and replacement parts.

17. Do not use without the clear bin and filters in place.

18. Unplug from the outlet when not in use for extended periods and before maintenance servicing.

19. Use extra care when cleaning on stairs.

20. Do not install, charge or use this machine outdoors, in a bathroom or within 10 fee meters) of a pool. Do not use on wet surfaces and do not expose to moisture, rain

21. Use only this machine's chargers for charging this machine. Use only this machine's batteries: other types of batteries may burst, causing injury to persons and damage.

22. Do not incinerate this machine even if it is severely damaged. The battery may exp fire.

23. Always turn 'OFF' the machine by main switch before connecting or disconnecting the motorized brush roller.

24. The appliance is only to be used with the power supply unit provided with the appl

25. WARNING: For the purposes of recharging the battery, only use the detachable supp (CS13A265050FGF) provided with this appliance.

26. Take care when equipping accessories with rotating parts as this could cause entrapr

1. Read operator's manual before using.

2. This appliance contains batteries that are non-replaceable.

3. Regarding battery charging details, please refer to below paragraph.

4. The charge provided with the devise, is for indoor use only and should only be used to recharge this appliance. Do not recharge non-rechargeable batteries with the provided charger.

READ AND SAVE THESE INSTRUCTIONS

THIS MACHINE IS INTENDED FOR HOUSEHOLD USE ONLY

Simple line drawing of a fire safety net with a pencil and flame symbol (no text or labels)

Do not use near open flames.

Simple line drawing of a mechanical device with a diagonal line crossing through it, no text or symbols present.

Do not store near heat sources.

Simple line drawing of a pen writing on water with a diagonal line crossing through (no text or symbols)

Simple line drawing of a cigarette and smoking process with no text or symbols

Do not pick up water or liquids. Do not pick up burning objects.

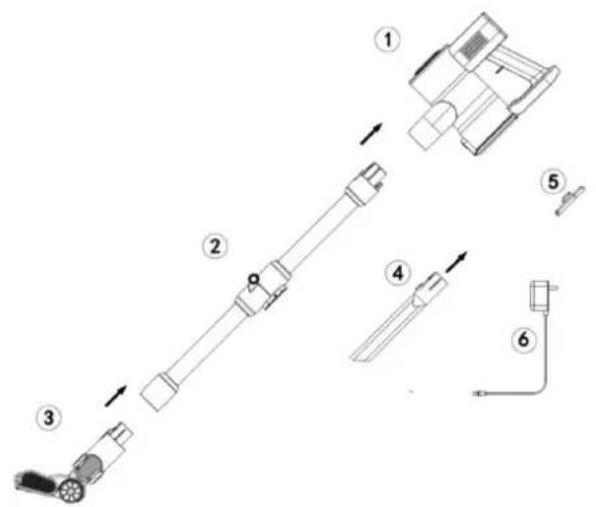

● The Product, Description of the parts:

1. Main body
2. Flexible wand
3. Power brush
4. Crevice nozzle
5. Wall mount
6. Adaptor

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or assembly steps.

Tips: Choose location near power outlet. Locate point high enough on wall to allow wand and power to hand freely. Place wall mount against wall and use pencil to mark drill holes. Drill holes( with 1) and insert drywall anchors. Insert screws through holes on mount and tighten until firmly attached.

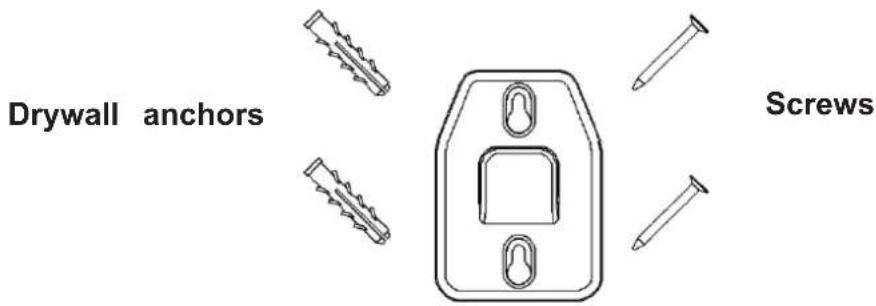

Drywall anchors Screws

Slide wand onto main body until it clicks

Push wand into power brush until it clicks

accessories can be connected with wand When cleaning high position

Product Operation

▶ Charging

The battery must be fully charged before the first usage as the product is delivered non charged.

1. Place the product on the wall mount

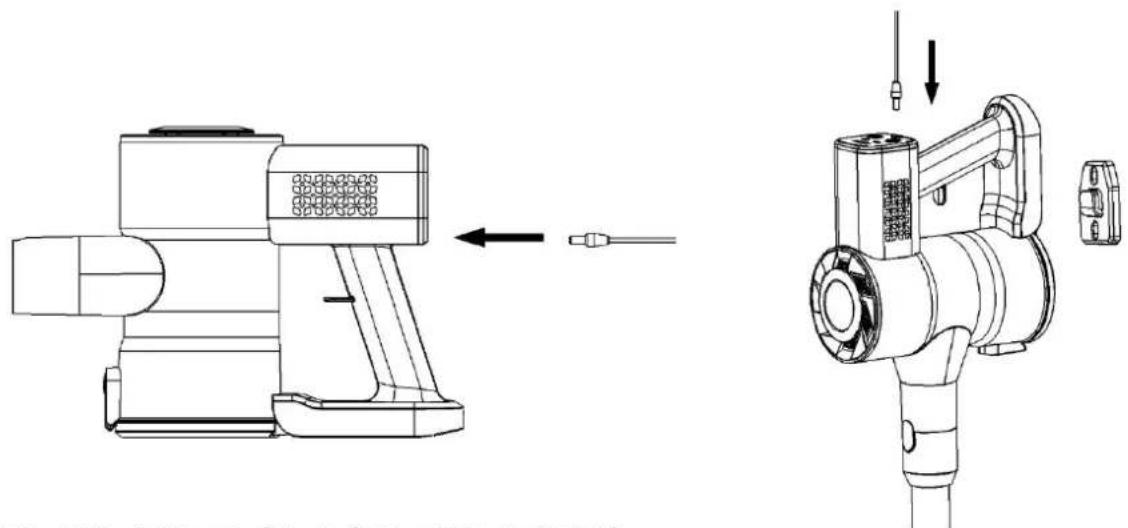

Connect socket and appliance with adaptor and cord, and power indicator flickers

Technical diagram showing the assembly of a mechanical device before and after disassembly, with Chinese annotations.

1. Place main body on flat surface when recharged

Connect socket and main body with adaptor and cord, and power indicator flickers

Tip: In case of dropping, appliance should be charged horizontally, without brush and extension tube

1. General charging time: 4-6 hours

Working time, Max mode about 15 min, Normal mode about 25 min.

Notice

1. Please do not charge if the ambient temperature is lower than 5^ C or higher than 40^ C

2. Insufficient power indicator for quantity of electricity flickers when you get an insufficient power in operation process.

Cleaning

In prevent obstructions, large pieces (for example big paper scraps, packaging film) shall be removed in advance

1. Click "Power button" for cleaning

2. Press "MAX" to switch between intense cleaning and energy savings suction modes (according to user's

3. Click "Power button" to stop cleaning

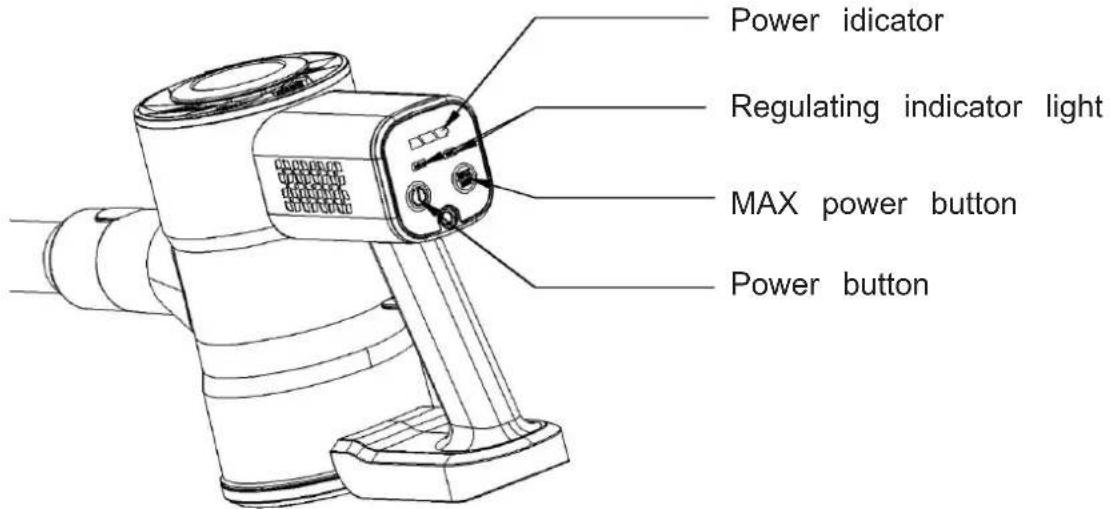

Power idicator Regulating indicator light MAX power button Power button

Notice

1. Please do not use it with plug connected
2. Remove the battery before dispose the vacuum cleaner
3. The vacuum cleaner must be serviced or repaired by a specialized technician

Battery recycling/disposal: Batteries consume important quantities of natural resources, thus they should be recycled. Before discarding the vacuum cleaner, the battery must be removed, disposed of according government regulations and sent to a battery recycling facility.

Product Store

Place the product on the wall mount. Connect socket and appliance with adaptor and cord.

Product Maintenance

Appliance Cleaning: Please remove the dust regularly, to ensure constant suction

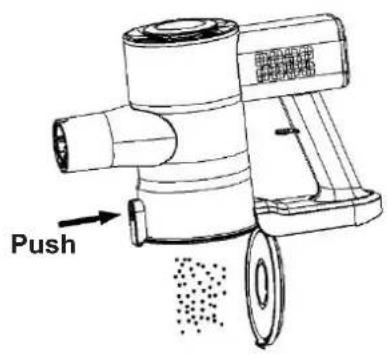

1. Hold cleaner over waste basket. Press lever to release bottom lid of dust cup to empty the dust cup

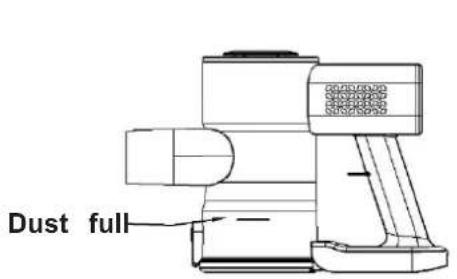

Dust full

Push

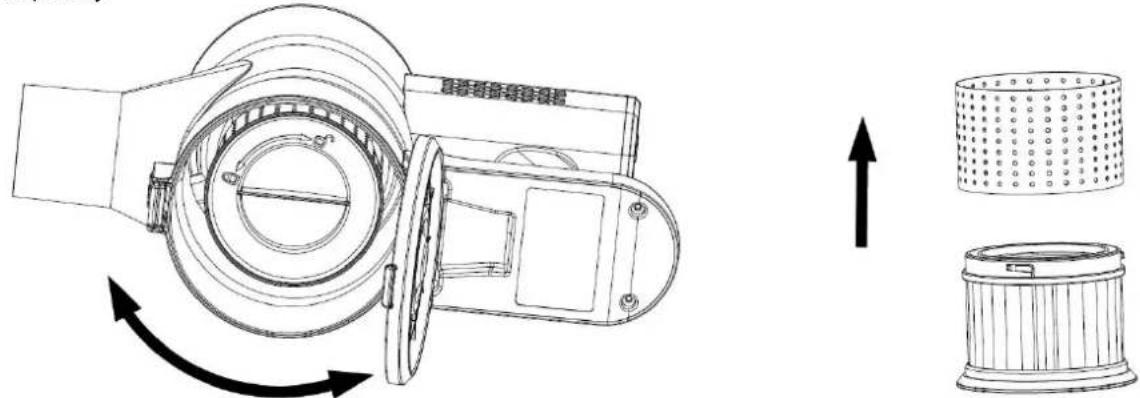

1. Twist filter screen and remove. Lift out foam filter. Rinse and dry THOROUGHLY. Assemble after each dried completely

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Tip: Aboved steps are suggested after each dustbin empty

Caution

To prevent injuries, please handle with the care of

1. Do not wash the mechanical part of the dust collector
2. Ensure each part dried completely before next usage
3. Do not scrub the filter or apply undue force
4. Ensure filter is correctly secured during assembly
5. Change filter if damaged or if cleaning does not return it to its pristine state

Power Brush Cleaning

Please clean the brush when the brush roll or the wheel is entangle by hair.

1. Disassemble the power brush

Push

1. Using flathead screwdriver or coin, turn screw to the 'unlock' position. Disassemble brush roll for cleaning and reassemble after all parts are completely dried

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Tip: The brush roll and its cover are washable; Ensure they are completely dried before use

Caution

1. When the dust blocks the air flow of the floor brush, please clean it with a stick
2. Except for the brush roll and its cover, all others can not be washed with water
3. Do not apply oil to both ends of the brush roll
4. Do not touch the working brush roll part and stay away from the air outlet when in operation
5. Do not use when wheels or scrubber's nylon loop are damaged

EROUBLESHOOTING

In case of mini-function, please refer to the following table

Problem	Possible causes	Solution
3 lamps for power indicator flicker	The rolling bar is wrappedTemperature is too high or low	Cleaning the rolling barMover the vacuum to suitable temperature
power brush does n work	Brush is trapped by hair or large debris	Ensure that no hair or other thread is trapped the brush and check brush area for larger deb
Running time shortened	Battery needs to be replacedAmbient temperature is too high too lowBattery is no fully changed	Contact the shop or after sales service to repla battery fat the user's own costYour vacuum should only be operated in suitab ambient temperatureThe battery needs charging
The vacuum has no suction power	The dust cup is fullThe filter is blockedSuction inlet of brush or other accessory is blockedParts of the appliance is not fu dried after cleaning	Clean the dust cup after use to prevent buildRemove any dust or debris from the filterCheck for blockages at brush and other attachr pointsEnsure that all components are properly dried a washing
MAX indicator flickers	The filter or duct are blocked	Clean the dust filter,dust cup and air duct
No charging	Ambient temperature when charging is too low or too high	Charge the machine under the right temperature environment(5°C-40°C)
