USER MANUAL Quasar-E 500 FELLOWES

Exterior view of a Fellowes Quasar 21500 printer with metal pins and paper specifications (no readable text beyond branding)

Please read these instructions before use. Do not discard: keep for future reference.

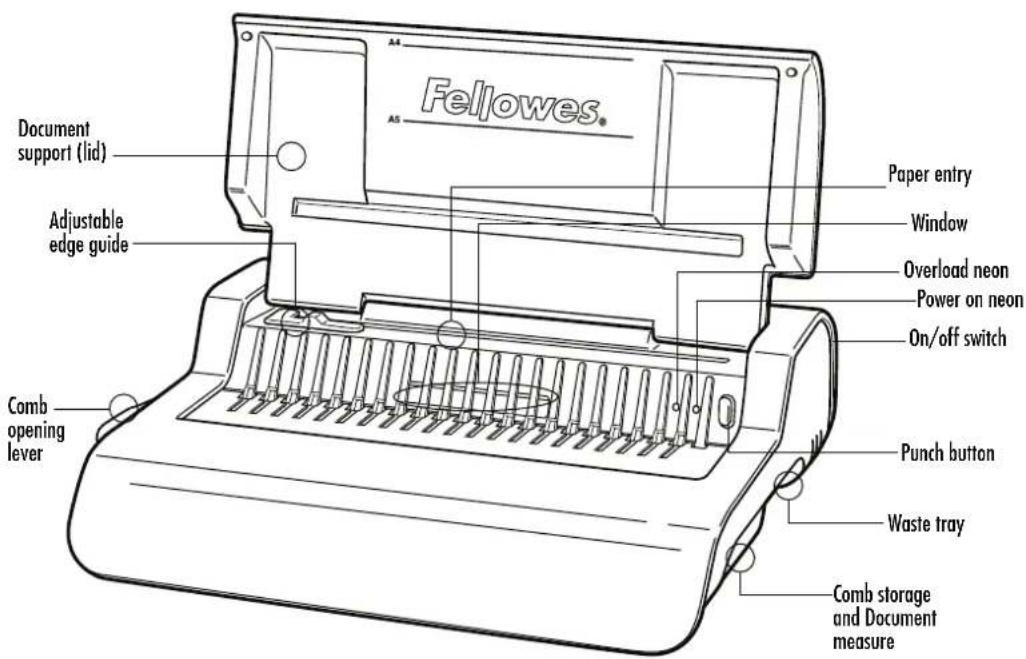

Comb storage and Document measure

CAPABILITIES
Punching Capacity

Paper sheets

80g / 20lb 25 sheet

Transparent covers

100-200 micron / 4-8 mil 3 sheet

200+ micron / 8+ mil 2 sheet

Other standard covers

160-270g / 40-60 lb 3 sheet

270+g / 60+ lb 2 sheet

Voltage: 220-240V AC 50/60Hz

Current: 1.5A

Duty Cycle: 30 Minutes On / 30 Minutes Off

Binding Capacity

Max comb size 50mm/2"
Max document (80g / 20lb) 500 sheet
Technical Data
Paper dimensions A4
Punching slots 21
Slot pitch 14.28mm / 9/16"
Adjustable edge guide yes
Waste tray capacity approx. 1500 sheets
Motor wattage	345
Net weight	9.6 kg / 21.21 lb
Dimensions (HxWxD)	130 x 428 x 390mm / 5.1" x 16.9" x 15.4"

IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!

Please keep for future reference

When punching;

• always ensure the machine is on a stable surface
• test punch scrap sheets and set the machine before punching final documents
• remove staples and other metal articles prior to punching
• never exceed the machines quoted performance
  Keep the machine away from heat and water sources.

Never attempt to open or otherwise repair the machine.

Plug the machine into an easily accessible socket.

Turn off the machine after each use

Unplug the machine when not in use for an extended period.

Note — this machine features a thermal cut-out device which activates when the machine is overheated during use. It will automatically reset when the machine is safe to operate.

COMB DIAMETER & DOCUMENT SIZES

Comb diameter sizes

mm inch number of pages
6mm	1/4"	2-20
8mm	5/16"	21-40
10mm	3/8"	41-55
12mm	1/2"	56-90
16mm	5/8"	91-120
18mm	1 1/16"	121-150
22mm	7/8"	151-180
25mm	1"	181-200
32mm	1 1/4"	201-240
38mm	1 1/2"	241-340
45mm	1 3/4"	341-410
51mm	2"	411-500

Need Help?

Customer Service.... www.fellowes.com Let our experts help you with a solution. Always call Fellowes before contacting your place of purchase.

SET UP

Line drawing of a closed book with a flat cover, placed on a two-tiered surface (no text or symbols)

1. Ensure the machine is on a stable surface.

Diagram of a container filled with granular material, labeled with numbers 21, 3, and 4 (no text or symbols on the container itself)

1. Check waste tray is empty and correctly fitted.

Line drawing of a car interior showing a mounted panel with a door and seat (no text or symbols)

1. The machine is supplied with loose power leads. Select the correct lead for the appropriate power supply.

Technical line drawing of a mechanical component with a triangular feature and a bracket (no text or symbols)

1. Fit the lead to the machine (the socket is at the rear of the machine).

Line drawing of a book on a desk with a small label and arrow (no text or symbols)

1. Plug the machine into an easily accessible mains socket. Switch the mains supply on.

1. Switch the machine on (located at the rear of the machine)

Line drawing of a computer keyboard with a magnified inset showing internal components (no text or symbols)

1. Lift the lid. Check the green power neon is on.

Line drawing of a mechanical component with no visible text or symbols

1. Ensure the comb-opening lever is pushed backwards.

ENGLISH

BEFORE YOU BIND

Diagram of a computer motherboard showing internal components and a magnified view of the internal structure (no text or symbols)

1. Check the green power neon is on. 2. Select the correct comb diameter using the comb storage tray.

Line drawing of an abacus with beads and a handle (no text or symbols)

Line drawing of a mechanical component with slots and a handle (no text or symbols)

1. Insert the plastic comb into the opening mechanism.

Illustration of hands inserting a spring into a grid notebook (no text or symbols visible)

1. Pull comb-opening lever forward to open the comb.

Line drawing of a computer monitor with an inset showing a hand inserting a slot into the screen (no text or symbols present)

1. Test punch scrap sheets to check edge guide setting.

STEPS TO BIND

1. Ensure edge guide is set to the proper document size. Punch front and back covers first.

1. Punch sheets in small batches that do not overload the machine or the user. Adjust edge guide, if necessary.

Technical line drawing of a mechanical component with no visible text or symbols

1. Load punched sheets directly onto the opened comb. Starting with the front of the document.

Illustration of a hand inserting a spring into a mechanical component (no text or symbols)

1. When all punched sheets are loaded onto the comb, push the comb lever backwards to close the comb and remove the bound document.

CORRECTING A BOUND DOCUMENT

Additional sheets may be include or removed at any time by opening and then closing the comb as previously described.

REMOVAL OF WASTE CLIPPINGS

The waste tray is located under the machine and is accessed from the right side. For best results empty the tray regularly.

STORAGE

Switch off the machine. Lower the lid. The Quasar-E comb binder is designed to be stored horizontally on the desk.

TROUBLESHOOTING

Problem	Cause	Solution
No Green power neon	Machine is not switched on	Switch on machine at rear next to plug inlet and at the socket.
Red standby neon	Machine is overloaded when punching	Press the punch button. The machine will withdraw the punches and re-set itself. Continue this process until the punch cycle is complete
Punched holes are not central	Edge guide not set	Adjust edge guide to correct paper or cover size.
Machine will not punch	Blockage	Check waste tray is empty. Check for blockage to paper entry.
Punch holes are not parallel to edge.	Debris is stuck below dies.	Take stiff cardboard and slide into the paper entry. Move the cardboard sideways to release any stray clippings into the waste tray.
Partial holes	Sheets not correctly aligned to punch pattern.	Adjust edge guide and test punch scrap sheets until correct
Damaged hole edges	Possibly overloading the machine	Punch plastic covers with paper sheets. Reduce number of sheets being punched.
Waste tray leaks	Waste tray is not correctly inserted or ‘burst feature’ has activated	Check waste tray is empty and ‘burst feature’ is closed.

WARRANTY

Fellowes warrants all parts of the binder to be free of defects in material and workmanship for 2 years from the date of purchase by the original consumer. If any part is found to be defective during warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling or unauthorised repair. Any implied warranty, including that of merchantability or fitness for particular purpose, is hereby limited in

duration to the appropriate warranty period set forth above. In no event shall Fellowes be liable for any consequential damages attributable to this product. This warranty gives you specific legal rights. You may have other legal rights that vary from this warranty. The duration, terms and conditions of this warranty are valid worldwide, except where different limitations, restrictions or conditions may be required by local law. For more details or to obtain services under this warranty, please contact Fellowes or your dealer.

Australia Residents Only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits under Fellowes' Warranty are in addition to other rights and remedies under a law in relation to the machine.
