USER MANUAL TRANSAT I-FEEL ROSE CHICCO

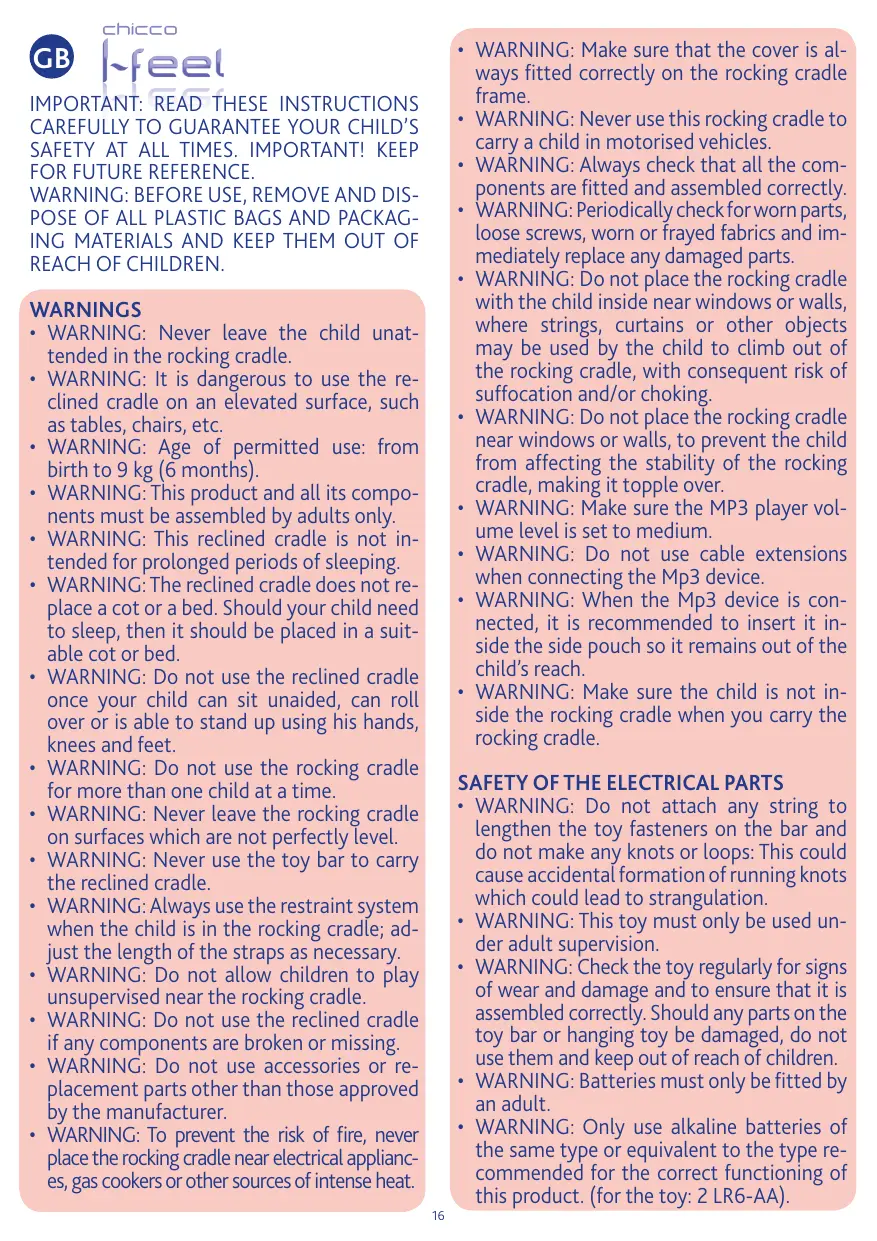

IMPORTANT: KEEP FOR FUTURE

• WARNING: Make sure that the cover is always fitted correctly on the rocking cradle frame.
• WARNING: Never use this rocking cradle to carry a child in motorised vehicles.
• WARNING: Always check that all the components are fitted and assembled correctly.
• WARNING: Periodically check for worn parts, loose screws, worn or frayed fabrics and immediately replace any damaged parts.
• WARNING: Do not place the rocking cradle with the child inside near windows or walls, where strings, curtains or other objects may be used by the child to climb out of the rocking cradle, with consequent risk of suffocation and/or choking.
• WARNING: Do not place the rocking cradle near windows or walls, to prevent the child from affecting the stability of the rocking cradle, making it topple over.
• WARNING: Make sure the MP3 player volume level is set to medium.
• WARNING: Do not use cable extensions when connecting the Mp3 device.
• WARNING: When the Mp3 device is connected, it is recommended to insert it inside the side pouch so it remains out of the child’s reach.
• WARNING: Make sure the child is not inside the rocking cradle when you carry the rocking cradle.

SAFETY AT ALL TIMES. IMPORTANT! KEEP

FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF

REACH OF CHILDREN. WARNINGS

• WARNING: Never leave the child unattended in the rocking cradle.
• WARNING: It is dangerous to use the reclined cradle on an elevated surface, such as tables, chairs, etc.
• WARNING: Age of permitted use: from birth to 9 kg (6 months).
• WARNING: This product and all its components must be assembled by adults only.
• WARNING: This reclined cradle is not intended for prolonged periods of sleeping.
• WARNING: The reclined cradle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
• WARNING: Do not use the reclined cradle once your child can sit unaided, can roll over or is able to stand up using his hands, knees and feet.
• WARNING: Do not use the rocking cradle for more than one child at a time.
• WARNING: Never leave the rocking cradle on surfaces which are not perfectly level.
• WARNING: Never use the toy bar to carry the reclined cradle.
• WARNING: Always use the restraint system when the child is in the rocking cradle; adjust the length of the straps as necessary.
• WARNING: Do not allow children to play unsupervised near the rocking cradle.
• WARNING: Do not use the reclined cradle if any components are broken or missing.
• WARNING: Do not use accessories or replacement parts other than those approved by the manufacturer.
• WARNING: To prevent the risk of fire, never place the rocking cradle near electrical appliances, gas cookers or other sources of intense heat.

SAFETY OF THE ELECTRICAL PARTS

• WARNING: Do not attach any string to lengthen the toy fasteners on the bar and do not make any knots or loops: This could cause accidental formation of running knots which could lead to strangulation.
• WARNING: This toy must only be used under adult supervision.
• WARNING: Check the toy regularly for signs of wear and damage and to ensure that it is assembled correctly. Should any parts on the toy bar or hanging toy be damaged, do not use them and keep out of reach of children.
• WARNING: Batteries must only be fitted by an adult.
• WARNING: Only use alkaline batteries of the same type or equivalent to the type recommended for the correct functioning of this product. (for the toy: 2 LR6-AA).

• WARNING: Make sure the batteries are fitted with their poles in the right direction.
• WARNING: Never mix new and old or different types of batteries.
• WARNING: Always keep batteries and tools out of the reach of children.
• WARNING: Do not short-circuit the battery terminals.
• WARNING: Always remove spent batteries from the toy to avoid the danger of leakage from the battery damaging the product.
• WARNING: Always remove the batteries if the product will not be used for a long period of time.
• WARNING: Remove the batteries from the toy bar before disposing of the product.
• WARNING: Do not burn or dispose of old batteries into the environment. Dispose of them at an appropriate differentiated collection point.
• WARNING: If the batteries happen to leak liquid, replace them immediately, making sure you clean the compartment beforehand; wash your hands thoroughly if you come into contact with any such liquid.
• WARNING: Always dispose of leaking batteries immediately: they can cause burns or other types of injuries.
• WARNING: Do not attempt to recharge nonrechargeable batteries: they might explode.
• WARNING: The use of rechargeable batteries is not recommended as the toy panel may stop working properly.
• WARNING: If using rechargeable batteries, remove them from the toy before recharging them.
• WARNING: Do not leave the product out in the rain; water infiltrations will damage the electronic circuit.
• WARNING: Using the MP3 device will have an effect on how long the toy batteries last.
• WARNING: The choice of music and volume are controlled from the connected MP3 player.
• WARNING: Artsana S.p.A declines all responsibility for any faults or malfunctions of the MP3 device.
• WARNING: Rechargeable batteries are only to be charged under adult supervision.

CARE AND MAINTENANCE

FABRIC COMPOSITION LINING: All new materials. Outer cover: 100% polyester, Padding: 100% polyester BOOSTER CUSHION: All new materials. Outer cover: 100% polyester, Padding: 100% polyester. TOY: All new materials. Outer cover: 100% polyester, Padding: 100% polyester.

• WARNING: This product requires periodic maintenance.
• WARNING: The cleaning and maintenance operations must only be carried out by an adult.
• WARNING: Periodically inspect the rocking cradle to check for broken, torn or missing parts: if this is the case, do not use it.
• Please refer to the care label for instructions on how to wash the fabric parts. Hand wash in cold water Do not bleach Do not use a dryer Do not iron Do not dry clean
• Check that the fabric and stitching are in good condition each time you wash it.
• Prolonged exposure to direct sunlight can cause the fabric to fade. Maintenance Only use water and a soft damp cloth to clean the toy bar and the vibration block. (GB) This product complies with EU Directive 2002/96/EC. The crossed bin symbol on the appliance indicates that the product, at the end of its life, must be disposed of separately from domestic waste, either by taking it to a separate waste disposal site for electric and electronic appliances or by returning it to your dealer when you buy another similar appliance. The user is responsible for taking the appliance to a special waste disposal site at the end of its life. If the disused appliance is collected correctly as separate waste, it can be recycled, treated and disposed of ecologically; this avoids a negative impact on both the environment and health, and contributes towards the recycling of the product’s materials. For further information regarding the waste disposal services available, contact your local waste disposal agency or the shop where you bought the appliance. Parts a) Seat b) Back rest tube c) Booster cushion d) Crotch strap e) Safety harness f) Structure g) Wooden base h) Adjuster handle

Assembly and User Instructions

1. Open the rocking cradle frame by holding onto the tube, as seen

in diag. 1. Take hold of the backrest tube B and insert it in the end of the frame tube, as seen in diag. 2 until you hear it click into place.

WARNING: Always check that the safety harness straps are inser-

ted in the backrest tube before assembling the rocking cradle.

2. It is important to remember to always secure the fabric seat A

to all fastener points on the frame: fasten the buttons on both sides of the fabric to the frame, as seen in diag. 3 and 3A, until you hear them click into place. Fasten the fabric to tube K (see diag. 3B) using the zip, making sure it is always closed correctly.

WARNING: Always fasten the fabric onto the frame when using the

product. If the zip is not correctly fastened onto the frame tube, the seat will not be able to withstand the weight of the baby. 3. The rocking cradle seat is fitted with a removable booster cushion (c) for use when babies are very small. Place the booster cushion on the rocker seat, inserting the crotch strap through the slot on the booster cushion, and the clasps through the side slots on the cushion, as shown in diag. 4 and 4A. Slot the toothed ends of the safety harness into the clasps and check they are tight enough and in the right position (diagram 5). To release the safety harness, press the toothed ends and extract them from the clasp. 12. To open the rocking cradle again, simply pull the backrest upwards to the position required. The closure lever will automatically lock into place.

WARNING: this last position is not a user position and must never

be used when the baby is in the rocking cradle.

FIXED OR ROCKING MODE

13. The rocking cradle has a “fixed and a “rocking” position. To select the rocking position, simply rotate feet J backward, following the directions of the arrow (diag.16). When you want to use the rocking cradle in a fixed mode again, turn the handle in the opposite direction (diagram 16A). REMOVABLE COVERS

14. It is possible to remove the seat cover and the booster cushion

to wash them: undo the harness belts and remove the booster cushion from the crotch strap (diag. 17).

15. Slide the harness straps through the side slots in the fabric,

open the zip (diag. 18) and buttons on the sides (diag. 19). Press the metal push pins, as seen in diag. 20, to release the backrest tube. When the tube has been released the fabric cover can then be removed. Toy bar

4. Fasten the toy bar onto the side joint until you hear it click into

5. The toy bar can be used in three different positions by rotating

6. To remove the toy bay simply turn the ring on the joint in the

direction indicated by the arrow, as seen in Diag, 8, and pull it upwards. 7. The toy bar is fitted with a sounds and lights panel that is activated by pressing the buttons on the upper section (Diag 9):

• Music button: it plays soothing and relaxing tunes (5 different tunes)
• Sound button: to play New Age music (5 tunes and 3 nature sounds)
• Mp3 function button: this activates the function to listen to tunes on your own media device (not Included); the mp3 device must be connected to the toy bar by using the cable on the outer side of the bar (diag. 10), and stored in its own practical side pocket when in use.

WARNING: The toy will switch off automatically after 15 minutes

of inactivity, if no buttons on the panel are pressed. Simply press the centre button to restart it.

• Volume adjustment button The light panel is enabled when any of the sound modes is activated.

8. The toy bar also has a removable fabric toy. When it is hooked

onto the bar, it activates relaxing sounds when pulled.

WARNING: when the fabric cover is replaced on the frame, make

sure that the tube is slotted through the opening at the inner top section of the backrest (diag. 21).

REPLACING THE BATTERIES

To replace batteries: loosen the screw on the battery compartment cover with a screwdriver and open the cover. Then remove the spent batteries and fit new ones, paying attention that the poles are in the right direction (as shown on the product), close the battery cover and tighten the screw. This toy runs on 2 x 1.5 Volt “AA” batteries. RECLINING THE BACKREST AND CLOSING THE ROCKING CRADLE

9. Handle H is used to recline the backrest to three different positions (diag. 11).

10. To adjust the backrest. proceed as follows: get hold of the handle and press the release button (diag. 12) pulling it forwards to the desired position. There are 3 different reclining positions, when you hear the tube click into place it means it is fitted correctly (diag. 13). The handle is used to recline the backrest in a lower position. To raise the level simply lift the backrest upwards as shown in diag.

WARNING: it is highly recommended to adjust the backrest without the baby in the rocking cradle.

11. To close the product, pull the closure lever Q outwards (as seen

in diag. 15) and press the release button pulling the handle forwards until it reaches the last position (diag. 15A).

FOR FURTHER INFORMATION: ARTSANA UK Ltd. Prospect Close - Lowmoor Road Industrial Estate - Kirby in Ashfield Nottingham NG 17/7 LF - England U.K. Tel. +44 1623 750870 (office hours) www.chicco.com
