USER MANUAL TL-3497 AudioSonic

Music PhonicEditor Galaxy Camera MoviePlay FileBrowser Browser Search Sound Rec. Weather Calculation Downloads Settings Email

Tablet 9,7 inch

Quad Core-8GB

TL-3497

AudioSonic

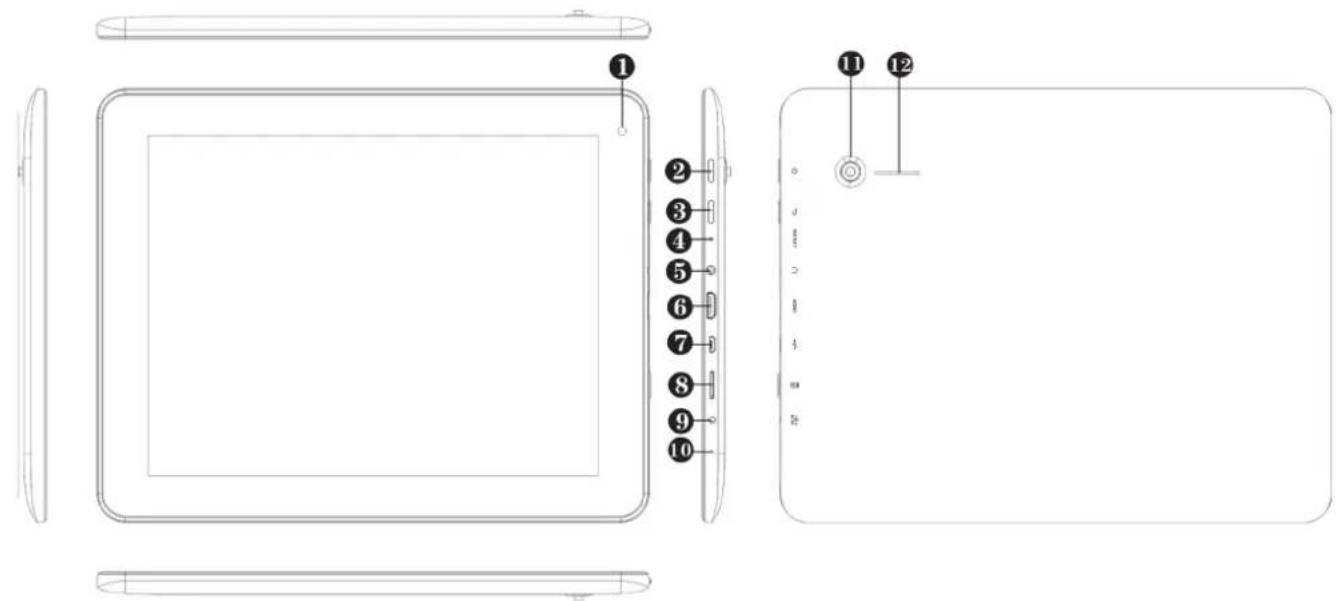

OUTLOOK DESCRIPTION

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

1. Front-facing Camera
2. Power
3. Back key
4. Reset
5. Headphone

6. HDMI Interface

7. USB Interface

8. SD Card Interface

9. DC Interface

10. MIC

11. Rear Camera

12. Speaker

AudioSonic

Instruction Manual

POWER BUTTON USAGE

Turn On:

Press and hold the power button for 3 seconds.

Turn Off:

Press and hold the power button for 3 seconds, → tap Power off → tap OK.

Screen lock and Unlock:

Press the power button quickly to lock or unlock the screen.

Force Shutdown:

When the device isn't responding, press and hold the power button for 7 seconds. (Note: If it is not necessary, we don't suggest to use Force Shutdown. You should follow the Turn Off steps to perform the shutdown. (Force shutdown may lead to unpredictable system errors)

RESET:

Press the Reset key to reset the device. Pressing reset will make the device reboot, which effect is equivalent to a force shutdown.

The touch-screen allows for a quick, easy and convenient navigation experience. You can use the touch-screen as followed:

Tap:

Quick tap & release on an item on the screen.

Finger slide:

Touch & slide your finger across the screen and then release.

Touch & hold:

Touch and hold your finger in one place for approximately 2 seconds, then release the screen to display an options window.

- To avoid scratching or crushing, do not place objects on top of the touch screen surface.

USING MICRO SD CARD

• The device supports micro SD card's with a maximum capacity of 32GB.
• Insert your micro SD card into the micro SD card slot until it clicks into place.

Removing micro SD Card:

Close all applications and files that have been opened from the SD card. Tap Settings → Storage → Uninstall SD card. Slightly press down on the SD card; it will partially ejected, allowing you to pull the SD card out.

- Don't insert and remove the SD card repeatedly in a short time, as this may cause damage to the card.

• We recommend using major brands of memory cards to avoid incompatibility.

GETTING STARTED

Charging the device

• You can charge the battery by using the included adapter.
• You can also charge the device by connecting the supplied USB cable to a power supply.
• You can use the device while the battery is charging, although the charging time will increase when you're operating and charging at the same time.
• Plug the AC adapter into an power outlet and connect the other end to the devices DC interface to charge the battery. ( Fully charged in about 5 hours).

Turn the device on:

Press and hold the power button for 3 seconds.

Wi-Fi Network Setup:

Since many features and applications require a Wi-Fi connection, we recommend you to configure a Wi-Fi connection at this point.

Tap → Settings, → Wireless & network.

1. If Wi-Fi is turned "off", tap "on" to turn Wi-Fi on.

2. The device automatically scans and displays all locally detected Wi-Fi Networks.

A 🔒 indicates a secure network, that requires a login name and password to connect.

1. Tap the network to which you want to connect, → if applicable, enter the login

name and password, → tap Connect.

1. When a Wi-Fi connection is established successfully, the Wi-Fi connection symbol

ill appear in the top-right corner of the screen.

1. Tap icon to return to the Desktop screen.

Ethernet connection settings\*:

1. Connect the micro USB cable to the tablet and connect the cable's other end to the Ethernet adapter.
2. Tap → Setting → Ethernet.
3. If Ethernet is turned "off", tap "on" to turn Ethernet on.
4. Tap "Ethernet Configuration" and choose "DHCP" as connection type, if the network you're connected to automatically assigns IP addresses. If the network you're connected to doesn't support DHCP select "Static IP" as your connection type and manually enter the IP address, subnet mask, default gateway and DNS server information.
5. When an Ethernet connection is successfully established, the Ethernet connection symbol will appear in the top-right corner of the screen.

3G network settings\*:

1. Connect the micro USB cable to the tablet's and connect the other end to the 3G dongle + sim card.
2. The system will automatically detect 3G networks. If the 3G network connection is established successfully, the 3G connection symbol "■" will appear in the top right corner of the screen.

* Only available when the separately available adapter is connected (not included).

DESKTOP

08:02 WED, MAY 1

1. Volume "-"
2. Recently used applications
3. Screenshot icon
4. Return to Desktop
5. Taptoviewtheapplicationsscreen

6. Back icon

7. Volume "+"

8. Current Time
9. Battery charge status
10. Voice Search
11. Google Search

AudioSonic

Instruction Manual

Applications and Widgets:

Touch the applications button (5) and then touch the "Apps" or "widgets" tab to get an overview of all the available applications and widgets.

My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer MY Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My computer

Smart home screen interface displaying time, battery, and app icons with timestamps and status bar

• Tap on any application or widget icon to launch it.
• Touch, hold and then slide the icon to any position on the desktop to create a short cut.
• Touch, hold and slide an icon onto "×" to remove it from the Desktop screen.

CLOCK

Tap the clock application icon to display the current time, date and alarms.

Alarm:

You can use your device as an alarm clock with the possibility to set multiple alarms.

- The clock icon 📋 played at the top right corner of the screen indicates that one or more alarms are set and active.

Add Alarm

1. Tap and tap add an alarm.
2. Set up the alarm as desired.
3. Tap OK to confirm the set alarm.

Edit Alarm

1. Enter the alarm list and tap on the alarm you want to edit.
2. After editing the alarm, tap OK.

Delete Alarm

Enter the alarm list and drag the alarm you want to delete from left to right to remove it.

APP MARKET

The App Market has many applications that you can quickly and easily download and install onto your Tablet.

Download Applications

Follow these steps to add an existing Google Account to your device or create a new Google Account to add to your device.

From your application screen, touch the Google Play Store app.

The first time, you are prompted for your App Market login information. If you have not yet registered a google account, tap Register. Otherwise, tap Login, enter your login information and tap login again.

• Once logged-in you can select different applications from the various tabs, pre selected categories or search for apps by name.
• Tap on a application to see more detailed information and if desired touch the install button after which you can follow the instructions on the device, which will guide you through the installation process.
• Upon completion a notification will pop up on the bottom right corner and a short cut to launch the Application will be placed on your desktop.
  • The installation is now completed and the application is ready for use.

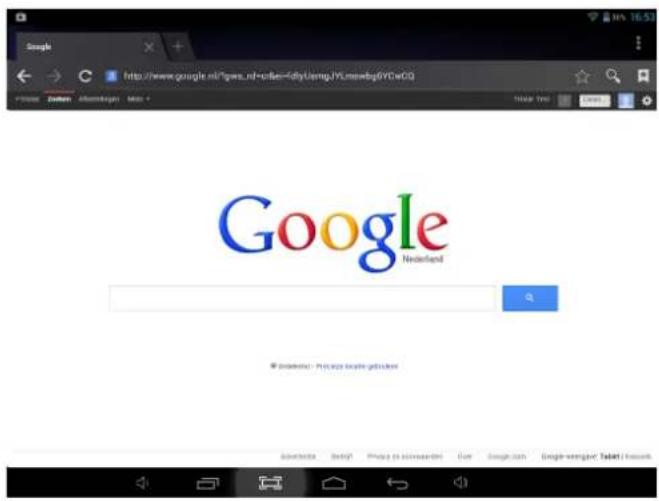

BROWSER

Users can connect to the Internet through an internet browser. Click the browser icon on the Desktop and the Web browser will open.

Google http://www.google.nl?gwz.nl=ctban=fdlyUsingJYLmswbgJYCaCG Google Nederland

preview - Privacy update enables

CALENDAR

Tap the Calendar application icon.

When your tablet isn't connected to a Google account, you need to add an Exchange account before you can use the calendar. Enter your email address and password, tap Next and follow the prompts on the screen to complete the account configuration. Then you can use the Calendar (Note: we generally recommend to use a Gmail account. Google's exchange server address is: m.google.com)

Add Event

1. On the Calendar screen, tap and hold the date on which you want to add an event.
2. Tap on new event, → Fill in the desired fields with the event information.
3. Tap Done and the event will be added to your calendar.

CAMERA

Tap the camera application icon.

Take Pictures

1. In Camera → tap take the picture.
2. The picture will be saved.
3. Tap the picture thumbnail in the bottom right corner to see an overview of your photo's and video's.
4. Tap and slide from left to right to select different photo's or video's.
5. Tap return to the Camera.
6. Tap gain to exit the Camera and return to the Desktop.

Take Videos

1. In Camera slide the icon to switch to video mode.
2. Tap icon to start recording and tap icon again to stop recording.
3. The video will be saved automatically.
4. Tap the video thumbnail in the bottom right corner to see an overview of your photo's and video's.
5. Tap and slide from left to right to select different photo's or video's.
6. When a video is selected, tap on to playback the selected video.
7. Tap return to the camera's video mode.
8. Slide icon again to switch back to camera mode.
9. Tap ← exit the (Video)Camera and return to the Desktop.

Note:

1. You can tap to switch between the front and rear camera.
2. You can tap to switch between snapshot modes.
3. You can tap to select different photo effects.
4. You can tap to enter the camera settings menu.

AudioSonic

Instruction Manual

RECORDER

1. Tap the recorder icon.
   2.Tapthe record icon to start recording.
2. Tap the stop icon to stop recording.
3. Tap the play button to playback the recording.

E-MAIL

• POP3, SMTP and IMAP accounts are supported.
• In order to setup your E-mail you need to have access to a network / internet connection.
• Tap the mail application icon 📞 enter the 'E-mail' client. The first time it's required to configure your e-mail using account information from the e-mail address you want to setup.
• For your e-mail's most current server address and settings, we advise you to contact your e-mail service provider. They can provide you with the necessary information to setup your e-mail account.

FILE MANAGER

Tap the File Manager application icon to enter the file manager interface. Tap the desired storage device (Internal memory, SD card or USB device) to open their root directory folders, from where you can navigate between the different files and folders.

By tapping on these different tab icons you can browse through the available storage devices and options of the file manager:

Copying files between a computer and your tablet

You can use the File Browser to copy files from your tablet to a computer or from a computer to your tablet. To copy files directly to or from a computer, you need to connect your tablet with an USB cable to a computer.

Copying files between external memory cards

The following instructions are for copying files from or onto a SD card or USB storage device.

1. Tap the 📄 to display the contents of your storage device.
2. Tap and hold the file or folder you want to copy, → tap Copy.
3. Tap on the Internal Memory icon, → tap on the folder where you want to copy the file or folder, → tap Paste.

Delete files:

Tap and hold on the file or folder you want to delete, → tap Delete → tap OK to confirm the deletion.

MUSIC

Audio file formats supported:

MP3, WMA, MP2, OGG, AAC, M4A, MA4, FLAC, APE, 3GP, WAV.

Tab the music player icon enter the music player. When there are no music files loaded in the playlist, the system will automatically search for music files from a micro SD card and then will load them automatically in the playlist. You can also copy audio files using the file manager or download audio files from a local network or the internet.

Unknown profile Newpage Accounting: 01.2007-01.2008

Unknown artist Knowledge 100%

Tap on the desired tab icon, to arrange the music files by "Artist", "album" or "songs". Tab the song to start playback.

GALLERY

Video file formats supported:

Mpeg1, Mpeg2, Mpeg4 SP/ASP GMC, XVID, H.263, H.264 BP/MP/HP, WMV7/8, VP6/8, AVS.

Picture file formats supported:

JPG, JPEG, GIF, BMP, PNG

View Photo's and video's

Tap on the Gallery 📂 on to open the photo and video gallery. An overview of all video and photo files on all available storage locations will be displayed.

AudioSonic Easily place your tablet in the holder

Tap on a video file to load the video player interface and press "Play" to start the video playback. You can "fast forward" or "rewind", by touching and sliding the progress bar on the bottom of the screen from left to right or right to left.

SETTINGS

Wireless & networks	• Wi-Fi• Bluetooth• Data usage• more	• Tum On / Off Wi-Fi.• Turn On / Off Bluetooth.• A current overview of internal memory usage.• Airplane mode, Ethernet, VPN, Tethering & portable hotspot, mobile networks, 3G Support Information.
Sound • Volumes	• Default notification sound• Touch sounds• Screen lock sounds• Vibrate on touch	• To adjust the Media, Notifications and Alarm volume.• You can select the default notification of your preference.• Enable or disable the playback of sounds when touching the screen.• Enable or disable the playback of sound when locking and unlocking the screen.• Enable or disable the vibrate on touch option
Display	• Brightness• Wallpaper• Sleep• Font size• Gravity calibration utility• HDMI Settings	• Tap & slide the slider to adjust the screen brightness as desired.• You can select different kind of wallpapers.• Selected the desired time of inactivity before the tablet has to enter sleep mode.• Select the desired font size• Recalibrate the Gyro sensor.• Set the default HDMI output standard
Storage	• Total space, Available space• Unmount SD card• Erase SD Card	• Gives you an overview of the available space on the internal storage memory and if inserted, the external SD card.• When the Micro SD card is inserted, tap it to safety remove it.• Erase all data on SD card
Battery	• (Dis)charging• On battery	• Shows the actual percentage of battery power.• Shows how long your battery has lasted and which items are responsible for draining it.
Apps	DownloadedOn SD cardRunningAll	Display and manage all the applications that you've downloaded and installed on the internal memory.Display and manage all the applications that you've downloaded and installed on an external SD card.Displays all the applications that are currently active.Display and manage all the applications that you've downloaded and installed.
Location access	Access to my locationWi-Fi & mobile network location	Allow apps to use your location informationAllow Google to collect anonymous location data to improve your search results.
Security	Screen lockOwner infoMake password visibleDevice administratorsUnknown sourcesTrusted credentialsInstall from SD card	Allow Google to use your location to improve your search results.Show owner info on lock screen.Choose to make your passwords visible or not.View or deactivate device administrators.Allow installation of apps from unknown sources.Display trusted CA certificates.Install certificates from SD card.
Language & Input	LanguageSpell checkerPersonal dictionaryAndroid keyboardVoice SearchText-to-speech outputPointer speed	Select your desired language.Enable or disable the spelling checker.You can add words, that may not be included in the standard dictionary, into a personal dictionary.Onscreen keyboard settingsSet up the desired language for voice searches.Select the desired Text to speech engine.Adjust the pointer speed.
Backup & reset	Back up my dataFactory data resetRecovery mode	Select to automatically or manually back up your data.Select to erase ALL DATA and restore the device to its initial factory state.Reboot into the system recovery mode
Google	Accounts·View the current registered Google account.
Add account· Add an account · Add a second or several other accounts to your device.
Date & time	Automatic Date & timeSet dateSelect time zoneSet timeUse 24-hour formatChoose date format	Use the by the network provided time.Set the date.Select the time zone.Set the time.Choose to use between the 24-hour or 12-hour format.You can select the date format.
Accessibility	TalkBackLarge TextAuto-rotate screenSpeak passwordsText-to-speech outputTouch & hold delayEnhance web accessibility	Enable or disable talk back function.Enable or disable large text.Enable or disable auto rotation of the display.Enable or disable spoken passwords.Select the desired Text to speech engine.Set the desired touch and hold delay.Enable or disable apps to install scripts from Google to make their web content more accessible.
Developer Options	On/Off· Only enable development options if you are an experienced user and know what you are downing.
About tablet	System UpdatesStatusLegal informationModel numberAndroid versionKernel versionBuild number	Search for and/or update your device with the latest firmware.Shows you the actual device status.Shows the open source legal information.Displays your devices model number.Displays the current Android version.Displays the current kernel version.Displays the current firmware build number

FREQUENTLY ASKED QUESTIONS

Android

Q: What Android OS version is on my Device?

A: 4.2.2

Basic Device Functionary

Q: Do I have to charge the battery before use?

A: You should charge the battery for at least 4 hours, but you can use the device while it's charging. Use the include power adapter or an USB cable, that's connected to a power supply, to charge

E-mail

Q: Can I use any of my personal e-mail addresses to send/receive e-mail?

A: The device supports POP3, SMTP and IMAP accounts. Some free e-mail accounts are not supported on mobile devices. Check with your e-mail provider to see if you account is supported.

Media Cards

Q: Which media cards are compatible with my Device?

A: Micro SD cards with a maximum capacity of 32GB.

Music

Q: How do I add music files to my device?

A: Copy the music files from your computer onto a SD card or USB storage device and then use the File Browser application to copy the files onto the device.

Photos

Q: How do I add photo files to my device?

A: Copy the photo files from your computer onto a SD card or USB storage device and then use the File Browser application to copy the files onto the device.

Video

Q: Can I play YouTube videos on my device?

A: Yes. You can tap the YouTube application icon to quick access videos.

Q: How do I add video files to my device?

A: Copy the video files from your computer onto a SD card or USB storage device and then use the File Browser application to copy the files onto the device.

Wi-Fi

Q: Do I need a Wi-Fi adapter to connect to the Internet?

A: No. The Wi-Fi adapter is built-in to the device.

BATTERY MANAGEMENT

The battery is not fully charged out of the box, so it is recommended that you charge the battery for at least 4 hours before you start to use the device for the first time. The rechargeable battery is designed and manufactured to be recharged frequently.

As with all batteries, the capacity of the battery is slightly reduced each time it is charged/depleted. You can try to prolong the battery's lifetime by following the below suggestions:

- Use your Tablet frequently, at least once a week.

- Charge the battery regularly and fully.

- Never leave the battery fully discharged for a long period of time.

• Always keep the device and the battery away from heat.

- Don't place the device in a hot environment. The maximum operating temperature is 37^ .

- Do not use the product above an altitude of 2000 meters.

- Do not use the product in tropical conditions.

IMPORTANT SAFETY PRECAUTIONS

Always follow these basic safety precautions when using your Tablet. This reduces the risk of fire, electric shock and injury.

• Do not expose this product to rain or moisture.
• Keep the device out of direct sunlight and heat sources.
• Protect the power cord. Route power cords so that they are not likely to be stepped on or pinched by items placed on or against them. Pay particular attention to the point where the cord attaches to the device.
• Only use the AC adapter included with the device. Using any other power adapter voids your warranty.
• Do not remove the cover. There are no user-serviceable parts inside.

CLEAN YOUR DEVICE

Treat the screen gently. To remove fingerprints or dust from the screen we recommend using a soft non-abrasive cloth.

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

08:02 WED, MAY 1

GPS My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer My Computer

Smart home screen interface displaying app icons and timecode, including clock, battery, and timer

Unknown artist Knowledge ecoding the CD (CD/CD) Unknown artist e-mail Knowledge e-mail

JPG, JPEG, GIF, BMP, PNG

AudioSonic Easily place your tablet in the holder

UW APPARAAT SCHOONMAKEN

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

Screenshot of a smartphone home screen displaying app icons and status bar with time, battery, and calendar.

MARCHÉ DES APPLICATIONS

Unknown artist Knowledge Knowledge 011.2007.08.2015 Unknown artist Knowledge Knowledge

JPG, JPEG, GIF, BMP, PNG

AudioSonic Easily place your tablet in the holder

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

Screenshot of a macOS home screen displaying app icons and timecode display showing 10:08.

Unknown effect Trackings Tracking (10:00) 48.365 Unknown effect Trackings Tracking Unknown effect Trackings

JPG, JPEG, GIF, BMP, PNG

AudioSonic Easily place your tablet in the holder

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

08:02 WED, MAY 1

Screenshot of a macOS desktop with application icons and status bar showing 'OK', 'Cancel', and 'Help'

Smart home screen interface displaying app icons and timecode, including clock, battery, and status bar

Google Nederland

downloads - 100% for more people

Awards: Google Privacy to Microsoft Live Design with Google version: Text image

CALENDARIO

unknown audio Soundings recording 20 L8001-45 VHD Unknown audio Audio Soundings 20 VHD

JPG, JPEG, GIF, BMP, PNG

Ver fotos y vídeos

AudioSonic Easily place your tablet in the holder

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

08:02 WED, MAY 1

Smart home screen interface displaying clock, time, and app icons with Chinese text labels

Screenshot of a mobile app interface showing audio and sound media controls with file names and playback controls

JPG, JPEG, GIF, BMP, PNG

AudioSonic Easily place your tablet in the holder

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

API Microsoft Teams NEW My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer My Home My Computer

Smart home screen interface displaying app clock, status bar, and time display with timestamps and icons

Unknown effect Houndings Houndings (01:00:01 49:00:03) Unknown area Houndings Houndings

JPG, JPEG, GIF, BMP, PNG

AudioSonic Easily place your tablet in the holder

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

08:02 WED, MAY 1

Screenshot of a mobile app home screen showing app icons and status bar with Chinese text

Smart home screen interface displaying app icons and timecode, including clock, battery, and status bar

JPG, JPEG, GIF, BMP, PNG

AudioSonic Easily place your tablet in the holder

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

08:02 WED, MAY 1

Screenshot of a macOS home screen displaying app icons and status bar with time, battery, and calendar.

JPG, JPEG, GIF, BMP, PNG

AudioSonic Easily place your tablet in the holder

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

08:02 WED, MAY 1

Screenshot of a mobile app home screen showing two identical desktop views with app icons and status bar indicators.

unknown effects soundings scanning 50/100/100 dB unknown area soundings scanning

JPG, JPEG, GIF, BMP, PNG

AudioSonic Easily place your tablet in the holder

Technical diagram of a tablet device with numbered components and labeled parts in Chinese

1. Predná kamera
2. Tlačidlo napájania
3. Tlačidlo Späf
4. Tlačidlo Resetovat
5. Slúchadlá

6. Konektor HDMI

7. Konektor USB

8. Konektor karta SD

9. Konektor DC

10. MIC

11. Zadný fotoaparát

12. Reproduktor

POUŽÍVANIE TLAČIDLA NAPÁJANIA

Zapnutie:

Stlačte tlačidlo napájania a podržte ho stlačené 3 sekundy.

Vypnutie:

Stlačte tlačidlo napájania a podržte ho stlačené 3 sekundy, → tuknite na Vypnúť → fuknite na OK.

08:02 WED, MAY 1

Screenshot of a macOS desktop with application icons and status bar showing 'Open' and 'Cancel' buttons

Smart home screen interface displaying app icons and timecode, including clock, battery, and status bar

Screenshot of a mobile app interface showing audio recording and sound effect controls with Chinese labels.

JPG, JPEG, GIF, BMP, PNG

Zobrazit fotografie a videá

AudioSonic Easily place your tablet in the holder
