USER MANUAL TL3491 AudioSonic

2. Headphone connector

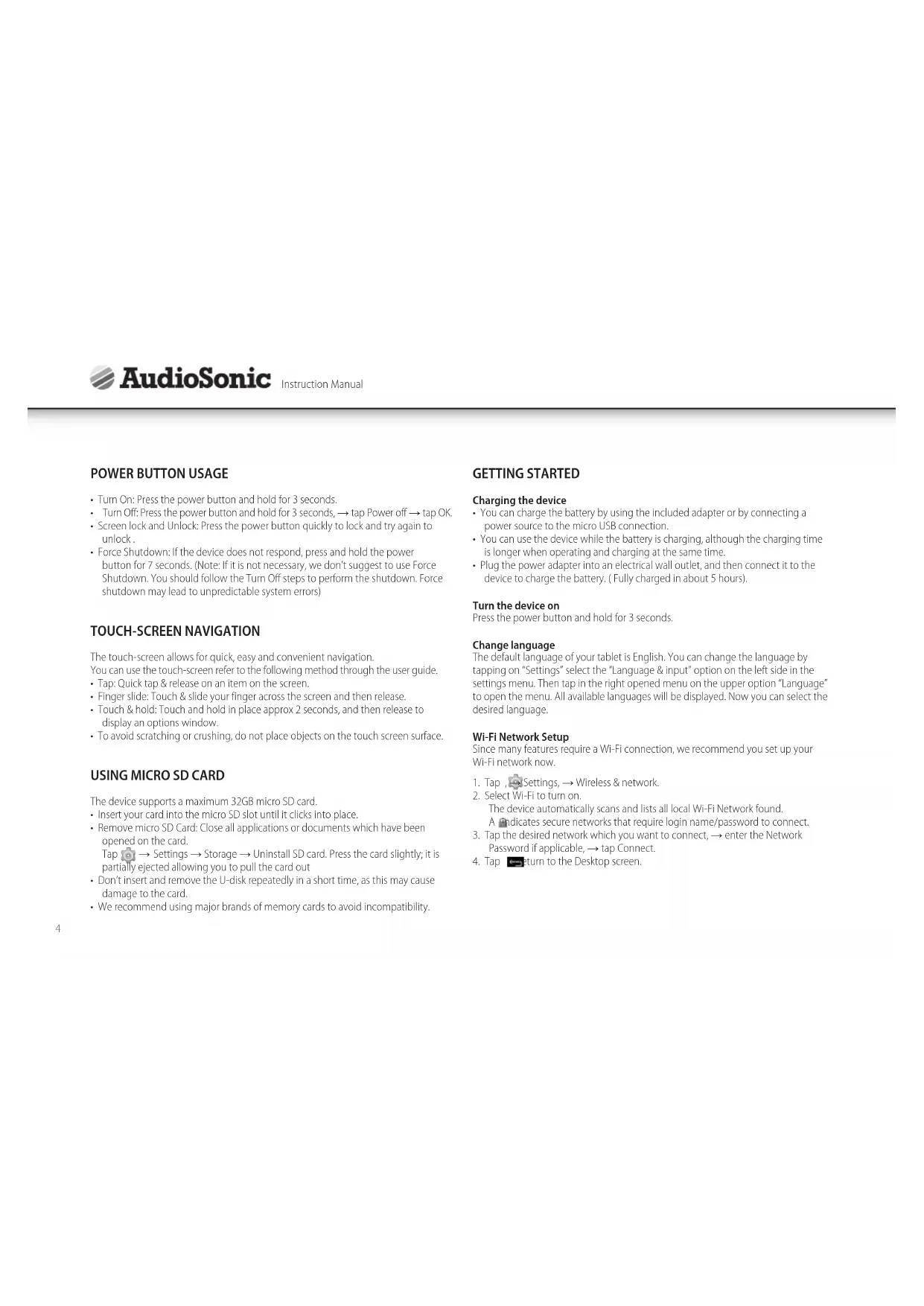

• Turn On: Press the power button and hold for 3 seconds.

• Turn Off: Press the power button and hold for 3 seconds, → tap Power off → tap OK.

• Screen lock and Unlock: Press the power button quickly to lock and try again to unlock .

• Force Shutdown: If the device does not respond, press and hold the power button for 7 seconds. (Note: If it is not necessary, we don’t suggest to use Force Shutdown. You should follow the Turn Off steps to perform the shutdown. Force shutdown may lead to unpredictable system errors) TOUCH-SCREEN NAVIGATION The touch-screen allows for quick, easy and convenient navigation. You can use the touch-screen refer to the following method through the user guide.

• Tap: Quick tap & release on an item on the screen.

• Finger slide: Touch & slide your finger across the screen and then release.

• Touch & hold: Touch and hold in place approx 2 seconds, and then release to display an options window.

• To avoid scratching or crushing, do not place objects on the touch screen surface.

The device supports a maximum 32GB micro SD card.

• Insert your card into the micro SD slot until it clicks into place.

• Remove micro SD Card: Close all applications or documents which have been opened on the card. Tap → Settings → Storage → Uninstall SD card. Press the card slightly; it is partially ejected allowing you to pull the card out

• Don’t insert and remove the U-disk repeatedly in a short time, as this may cause damage to the card.

• We recommend using major brands of memory cards to avoid incompatibility. GETTING STARTED Charging the device

• You can charge the battery by using the included adapter or by connecting a power source to the micro USB connection.

• You can use the device while the battery is charging, although the charging time is longer when operating and charging at the same time.

• Plug the power adapter into an electrical wall outlet, and then connect it to the device to charge the battery. ( Fully charged in about 5 hours). Turn the device on Press the power button and hold for 3 seconds. Change language The default language of your tablet is English. You can change the language by tapping on “Settings” select the “Language & input” option on the left side in the settings menu. Then tap in the right opened menu on the upper option “Language” to open the menu. All available languages will be displayed. Now you can select the desired language. Wi-Fi Network Setup Since many features require a Wi-Fi connection, we recommend you set up your Wi-Fi network now.

1. Tap , → Settings, → Wireless & network.

2. Select Wi-Fi to turn on.

The device automatically scans and lists all local Wi-Fi Network found. A indicates secure networks that require login name/password to connect.

3. Tap the desired network which you want to connect, → enter the Network

Password if applicable, → tap Connect.

4. Tap to return to the Desktop screen.5

4. Return to Desktop from other apps

5. Recently used applications

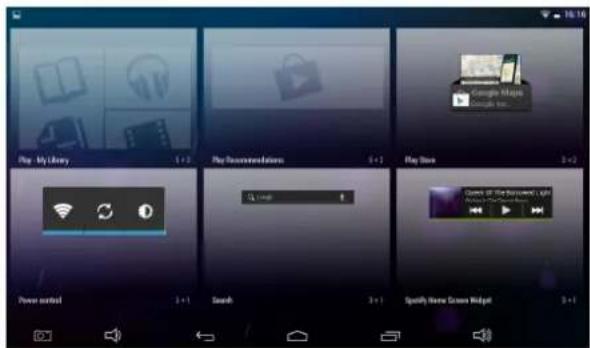

Widget Touch and hold on empty place on the desktop for +/- 2 seconds and then touch the "widgets" tab to get to the available application widgets. From here you can select icons that can be placed as shortcut on the home page, so you can quickly start the program.

• Tap on any application or widget icon to launch it.

• Touch, hold and then slide the icon to any position on the desktop to create a short cut.

• Touch, hold and slide an icon onto “× ” to remove it from the desktop screen.

Instruction Manual APP MARKET The App Market has many applications that you can quickly and easily download and install onto your tablet. Download Applications Follow these steps to add an existing Google Account to your device or create a new Google Account to add to your device. From your application screen, touch the Google Play Store app.

• If you haven't added an email account to your device, you'll be asked to add a Google Account

• If you've already added a Google Account to your device and want to add another, touch Menu > Settings > Accounts > Add account > OK.

• Choose whether to add an existing account or create a new one.

• Follow the instructions on the device, which will walk you through signing in to an existing Google Account or creating a new Google Account.

• Once logged-in you can select different applications from the various tabs, pre selected categories or search for apps by name.

• Tap on a application to see more detailed information and if desired touch the install button after which you can follow the instructions on the device, which will guide you through the installation process.

• Upon completion a notification will pop up on the bottom right corner and a short cut to launch the Application will be placed on your desktop.

• The installation is now completed and the application is ready for use. BROWSER Users can connect to the Internet through an internet browser. Click the browser icon on the Desktop , and the Web browser will open. CALENDAR Tap the Calendar application icon. When your tablet is not yet connected to a Google account, you need to add an Exchange account in order to use the calendar. Enter the desired accounts email address and password. Click Next and follow the prompts to complete the account configuration. Now you can use the Calendar (Note: we generally recommend to use a Gmail account. Google’s exchange server address is: m.google.com) Add Event 1 On the Calendar screen, tap and hold the date on which you want to add an event. 2 Tap on new event, → Fill in the desired fields with event information. 3 Tap Done and the event will be added to your calendar.7

Instruction Manual CAMERA Tap the Camera application icon. 1 In Camera → tap to take the picture. 2 The picture will be saved. Take Videos 1 In Camera tap to switch to video mode. 2 Tap icon to start recording and tap icon again to stop recording. 3 The video will be saved automatically. FILE BROWSER Tap the Explorer icon to enter the file Management Interface, tap【SD Card】, 【Internal Memory】or【USB】to open their root directory folders. From here you can navigate between the different files and folders. MUSIC

• Audio file formats supported: mp3, aac, wma, rm, flac, Ogg

• Tap the music player icon to enter the music player. When there are no music files loaded in the playlist, the system will automatically search for music files from a micro SD card and then will load them automatically in the playlist.8 Instruction Manual

• You can also load audio files by synchronizing the tablet with a computer or laptop trough USB. You can also download audio files directly on the tablet from a local network or the internet.

• Select the desired tab icon, to arrange the music files by "Artist", "album" or "songs". Tap the desired song to start playback. VIDEO

• Video file formats supported: MKV, WMV, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM, JPG

• Picture file formats supported: JPG, JPEG, BMP, GIF, PNG Play Video

• Tap the video player icon to enter the “Video” interface.

• Tap the desired video file to load it in the video player and start playback. You can choose “Pause”, "Play", "Stop," "fast forward", "rewind", "progress bar" and several other keys to control the playback progress.9

Instruction Manual SETTINGS Wireless & networks

• A current overview of internal memory usage.

• Airplane mode VPN, Tethering & portable hotspot, Ethernet, Mobile networks. Bluetooth tethering, Proxy settings. Sound

• You can select the default notification of your preference.

• Enable or disable the playback of sounds when touching the screen.

• Enable or disable the playback of sound when locking and unlocking the screen. Display

• Tap & slide the slider to adjust the screen brightness as desired.

• You can choose a photo from the gallery, a live wallpaper and standard wallpapers.

• Selected the desired time of inactivity before the tablet has to enter sleep mode.

• Here you can activate and set the screensaver option.

• Show the screenshot button

• Enables you to set an delay time for the screenshot option.

• Choose the location where the screenshots will be stored automatically.

• Enables you to activate or deactivate the screenshot button in the status bar. Storage

• Total space, Available space

• Gives you an overview of the available space on the internal storage memory and if inserted, the external SD card.

• When the Micro SD card is inserted, tap it to safety remove it.

• Erase all data on SD card Battery

• Shows the actual percentage of battery power.

• Shows how long your battery has lasted and which items are responsible for draining it. Apps

• Display and manage all the applications that you’ve downloaded and installed on the internal memory.

• Display and manage all the applications that you’ve downloaded and installed on an external SD card.

• Displays all the applications that are currently active.

• Display and manage all the applications that you’ve downloaded and installed. Location access

• Access to my location

• Wi-Fi & mobile network location

• Allow apps to use your location information.

• Let apps use Google’s location service to estimate your location faster.10 Instruction Manual Security

• Install from SD card

• Select if you want the lock screen to use a Pattern lock, PIN code, Face lock or no lock at all.

• Show owner info on lock screen,

• Choose to make your passwords visible or not.

• View or deactivate device administrators.

• Allow installation of apps from unknown sources.

• Disallow or warn before installation of apps that may cause harm.

• Display trusted CA certificates.

• Install certificates from SD card. Language & Input

• Select your desired language.

• Enable or disable the spelling checker.

• You can add words, that may not be included in the standard dictionary, into a personal dictionary.

• Onscreen keyboard settings

• Set up the desired language for voice searches.

• Select the desired Text to speech engine.

• Adjust the pointer speed. Back up and reset

• Select to automatic or manual back up your data.

• Select to erase ALL DATA and restore the device to its initial factory state. Google

• Accounts • View the current registered Google account. Add account

• Add an account • Add a second or several other accounts to your device. Date & time

• Use the by the network provided time.

• Use network-provided time zone.

• Select the time zone.

• Choose to use between the 24-hour or 12-hour format.

• Enable or disable talk back function.

• Turn on to zoom in by triple-tapping the screen.

• Enable or disable large text.

• Enable or disable auto rotation of the display.

• Enable or disable spoken passwords.

• When this feature is turned on, you can quickly enable accessibility features in two steps.

• Select the desired Text to speech engine.

• Set the desired touch and hold delay.

• Enable or disable apps to install scripts from Google to make their web content more accessible. Developer Options

• On/Off • Only enable development options if you are an experienced user and know what you are doing. About tablet

• Search for and/or update your device with the latest firmware.

• Shows you the actual device status.

• Shows the open source legal information.

• Displays your devices model number.

• Displays the current Android version.

• Displays the current kernel version.

• Displays the current firmware buildnumber12 Instruction Manual

FREQUENTLY ASKED QUESTIONS

Resetting Q: How do I reset my device when the screen is frozen or it doesn’t react to any input? A: You can reset the device by pushing the RESET button on the back with a paperclip. Play store Q: Where can I find the App store? A: You can find the Google Play store App in the applications overview screen. E-mail Q: Internal memory is full. A: For quick and easy access the Android operating system stores the apps that you download from the Google Play Store to the internal flash memory. Because the capacity of the internal memory is limited to 1 GB, it can easily become full if you download too much or too big apps. Basic Devise Usage Q: The touch control is not working properly. A: Did you remove the protective plastic film from the screen when before using the tablet for the first time? Q: There are scratches on my screen. A: Did you remove the protective plastic film from the screen when before using the tablet for the first time? Media Q: Which media cards are compatible with my tablet? A: All Micro SD cards with a maximum capacity of 32GB are compatible. BATTERY MANAGEMENT The battery is not fully charged out of the box, so it is recommended that you charge the battery for at least 4 hours before you start to use the device for the first time. The rechargeable battery is designed and manufactured to be recharged frequently. As with all batteries, the capacity of the battery reduces each time it is charged/ depleted. However, you can try to prolong the battery’s lifetime by following the suggestions below:

• Use your tablet frequently, at least once a week.

• Charge the battery regularly and fully.

• Never leave the battery fully discharged for a long period of time.

• Always keep the device and the battery away from heat.

• Don’t place the device in a hot environment. The highest operating temperature is 37°C.

• Only use the product below the altitude of 2000 meters.

• Do not use the product in tropical conditions.13

Always follow these basic safety precautions when using your tablet. This reduces the risk of fire, electric shock and injury.

• Do not expose this product to rain or moisture.

• Keep the device out of direct sunlight and heat sources.

• Protect the power cord. Route power cords so that they are not likely to be stepped on or pinched by items placed on or against them. Pay particular attention to the point where the cord attaches to the device.

• Only use the AC adapter included with the device. Using any other power adapter voids your warranty.

• Do not remove the cover. There are no user-serviceable parts inside. Clean your device Treat the screen gently. To clean fingerprints or dust from the screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth.14
