USER MANUAL CD-1589 AudioSonic
STEREO RADIO WITH USB
& SD/MMC CARD READER
CD-1589

AudioSonic
WARNING
- WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.
- WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
- WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
- WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
- Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.
- Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
- No naked flame sources, such as lighted candles, should be placed on the apparatus.
- Attention should be drawn to environmental aspects of battery disposal.
- Use of the apparatus in moderate climates.
- The rating and marking information are located at the bottom of the unit.
- Excessive sound pressure from earphone and headphones can cause hearing loss.
- The mains plug of unit should be obstructed or should be easily accessed during intended use.
- To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.
CAUTION
- Danger of explosion if battery is incorrectly replaced.
- Replace only with the same or equivalent type
WARNING
TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

LIGHTNING FLASH WITH ARROWHEAD SYMBOL - within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

EXCLAMATION POINT - within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason.
The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS 1 LASER PRODUCT LABEL -
This label is attached to the place as illustrated to inform that the apparatus contains a laser component.

WARNING LABEL INFORMING OF RADIATION -
This label is placed inside the unit. As shown in the illustration. To warn against further measures on the unit. The equipment contains a laser radiating laser rays according to the limit of laser product of class 1.
SAFETY INSTRUCTIONS
- READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
- RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
- HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
- FOLLOW INSTRUCTIONS - All operating instructions should be followed.
- WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, kitchen sink, laundrytub, swimming pool or in a wet basement.
- VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
- HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
- POWER SOURCE - The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
- POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
- POWER LINES - An outdoor antenna should be located away from power lines.
- OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
- ESD WARNING - The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds.
-
DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:
a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally. -
SERVICING - The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.
Notes:
a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD.
b. If an error display or malfunction occurs, disconnect the AC cord and remove all the batteries. Then turn the power back on.
BEFORE OPERATION
Notes: CONCERNING COMPACT DISCS.
Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:
a. Usable compact discs. Use only compact disc with the mark shown below.
b. CD compact disc only with digital audio signals.
POWER SOURCES

AC POWER
You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.

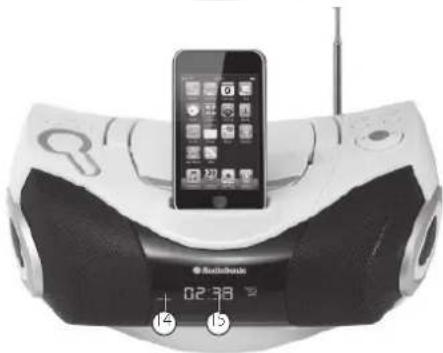

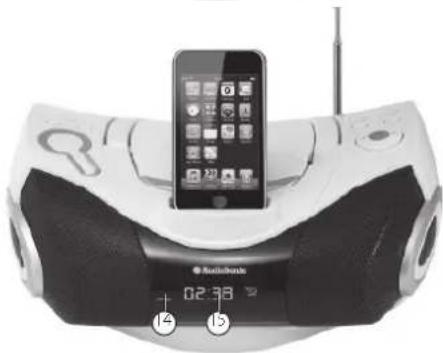

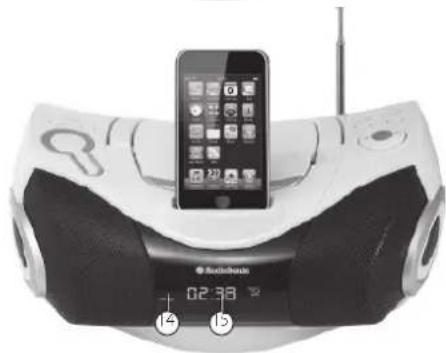

LOCATION OF CONTROL
- FM ANTENNA
- VOLUME
- VOLUME "+"
- CD DOOR
- IPOD DOCKING
- OPEN/CLOSE
- STANDBY
- FUNCTION
- SKIP "-"
- CLOCK
- STOP
- SKIP "+"
- PLAY/PAUSE
- STANDBY INDICATOR
- LCD DISPLAY

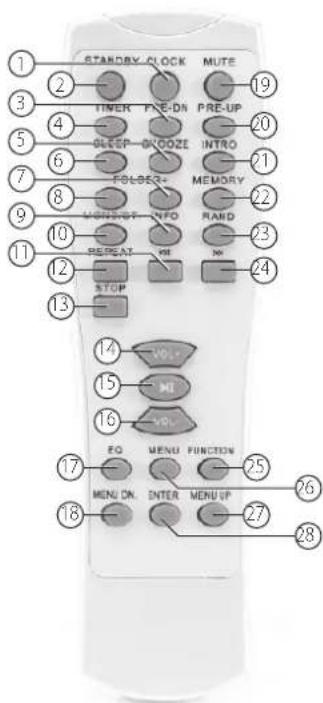

REMOTE CONTROL
- CLOCK
- STANDBY
- PRE-DN
- TIMER
- SNOOZE
- SLEEP
- FOLDER +
- FOLDER-
- INFO
- MONO / ST.
- SKIP-
- REPEAT
- STOP
- VOLUME +
- PLAY/PAUSE
- VOLUME -
- EQ
- MENU DN
- MUTE
- PRE-UP
- INTRO
- MEMORY
- RANDOM
- SKIP +
- FUNCTION
- MENU
- MENU UP
- ENTER

BATTERY POWER
Insert 8 x "C" size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.
Notes:
- Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the AC power cord from it.
BATTERY INSTALLATION
Insert 2 x "AAA" size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the remote control. Always remove the batteries when the remote control will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.
Notes:
- Use batteries of the same type. Never use different types of batteries together.
- If the distance required between the remote control and the appliance decreases, the batteries are exhausted. In this case replace the batteries with new one.
SENSOR WINDOW OF THE RECEIVER
- Even if the remote control is operated within the effective range, its operation may be impossible if there are any obstacles between the appliance and the remote control.
- If the remote control is operated near other appliances which generate infrared rays, or if other remote control devices using infrared rays are used near the appliance, it may operate incorrectly.
RADIO OPERATION
AUTOMATIC TUNING
- Press the "FUNCTION" button to select "TUNER" mode.
- Press and hold the "SKIP +" or "SKIP -" button over 3 seconds to start automatic tuning process.
- When a station is tuned in the tuning process, it will stop automatically and you can listen to your desired station.
MANUAL TUNING
It is for selecting stations, which cannot be tuned automatically. (manual selection) To tune a channel manually.
- Skip step 3 in the above procedures.
- In step 2, each time the "SKIP+" or "SKIP-" button is pressed momentarily (0.5 second or less), the frequency changes by a fixed step: FM: 0.1 MHz steps.
MEMORY PRESET
- Repeat step 1 to 3 in the AUTOMATIC TUNING procedures.
- Press the "MEMORY" button on the remote to start the preset process.
- Display will show the memory sequence number and a flashing "01".
- Press the "FOLDER+" or "FOLDER-" button on the remote to determine the preset station number.
- Press again the "MEMORY" button on the remote to preset your desired station.
- Once all the stations were preset, press the "FOLDER +" or "FOLDER -" button on the remote to listen to your desired station.
Notes:
FM can be stored up to 30 stations.
MONO / STEREO
- Press the "MONO / ST." button to achieve the best frequency.
CD / MP3 OPERATION
GENERAL OPERATION
PLAY/PAUSE
Press to start playing CD / MP3 disc.
Press again to stop playing CD / MP3 operation temporarily.
Press again to resume playback.

Press to go to the next track or back to the previous track.
SKIP -
Press and hold while playing until you find the point you want to play.
OP
Press to stop all CD / MP3 operation.
PLAYBACK
- Open the CD door and place a CD / MP3 disc with the label up in the CD compartment.
- Close the CD door.
- Press the "FUNCTION" button to select "CD / MP3" mode.
- Focus search is performed if disc is inside. Playback will start automatically from the first track.
- Adjust the "VOLUME" control to the desired level.
- Press the "PLAY / PAUSE" button when you want to stop playback temporarily.
- Press the "STOP" button when finished.
FOLDER SELECT
Press the "FOLDER +" or "FOLDER -" button to select folder. (Folder select function can only operate if disc store with at least 2 directories / files.)
CD / MP3 OPERATION
PROGRAM
Be sure to press the "STOP" button before use.
- For CD disc, press the "MEMORY" button, the display will show "00 P-01". For MP3 disc, press the "MEMORY" button, the display will show "F00 P-01".
- Select desired track by using the "SKIP +" or "SKIP -" button. (For MP3, select a desired album by pressing "FOLDER+" or "FOLDER -" button. And press "MEMORY" button to confirm folder number. Too will appear to select desired track by using the "SKIP+" or "SKIP -" button.)
- Press the "MEMORY" button again to confirm desired track into the program memory.
- Repeat step 2 and 3 to enter additional tracks into the program memory.
- When all the desired tracks have been programmed, press the "PLAY / PAUSE" button to play the disc in the order you have programmed.
- Press the "STOP" button twice to terminate programmed playback.
REPEAT
Press the "REPEAT" key of remote control during playing CD / MP3 disc, each press switches the repeat function as follows:
- REPEAT 1
- REPEAT ALBUM (*MP3 ONLY)
- REPEAT ALL
- NORMAL PLAYBACK
IPOD DOCK
GENERAL OPERATION
PLAY/PAUSE
Press to start playing tracks from the iPod.
Press again to stop playing iPod operation temporarily.
Press again to resume playback.
5
Press to go to the next track or back to the previous track.
SKIP -
Press and hold while playing until you find the point you want to play.
OP
Press to stop all iPod operation.
PLAYBACK
- Press the "FUNCTION" button to select "IPOD" mode.
- When iPod is docked, the system will initialize the communication with iPod.
• Power On command is sent to the iPod to wake up it. - Play command is sent afterward to auto play the iPod.
- Corresponding command is sent to iPod when key is pressed.
- Playback starts automatically. You can select available features (such as paly/pause, skip track, fast forward/backward, menu selection) during playback.

AudioSonic
Instruction Manual
CHARGING
Charging iPod battery using the dock.
• In any mode, directly dock your iPod portable player on the cradle for charging.
* Charging IPOD / IPHONE only can work when AC power supply. When the host use battery power, do not charging for IPOD / IPHONE.
OTHER FEATURES
EQ
Press the "EQ" button on remote control, each press switch the EQ function as follows:
- CLASSIC
- ROCK
- POP
- JAZZ
- FLAT (NORMAL)
Notes:
- The player not responsible for playability of MP3 in any case. Due to recording condition such as PC performance, writing software, media ability or etc.
- For CD-RW, CD-R, it may not be played according to the type of this disc.
ID3 TAG (FOR MP3 ONLY)
- Press once "INFO" button, LCD display shows "ID3 ON" and ID3 text will show on display.
- Press again, the LCD display shows "ID3 OFF" and terminate ID3 mode.
Notes:
Due to various solutions, ID3 text function may not be played.
INTRO
- Press the "INTRO" button during play disc to play each song for 10 seconds.
- Press the "INTRO" button again to resume normal playback.
- Not available on memory playback.
- Press the "MUTE" button to stop the sound during playing disc.
- Press the "MUTE" button again to resume the sound.
MUTE
OTHER FEATURES
RANDOM
- Press the "RANDOM" button on remote control during playing disc, the appliance will select and play a track randomly.
- Press the "RANDOM" button again to terminate random mode.
- The function is not available on program playback.
SLEEP
- Press the "SLEEP" button on remote control, display will show "SLEEP 90". That means, after 90 minutes, appliance will automatically turn to standby mode.
- Press the "SLEEP" button again to select the automatically turn off time, from 90, 80, 70, 60, 50, 40, 30, 20, 10 minutes.
- Press the "SLEEP" button to "SLEEP 00" to canel sleep function.
AUX IN
Select AUX mode to listen to external audio devices connected through the 3.5mm Auxiliary Stereo Line-In jack. Press FUNCTION to select AUX mode.
- Use a 3.5mm Male-to-Male Stereo cable to connect any external audio device with a 3.5mm Headphone or Line-Out jack to the AUX IN jack on the front panel of the appliance.
- Start playabck on the external audio device. Adjust the volume on the audio device (do not set the volume too high to avoid distortion). You may also adjust the volume on the appliance.
- To control playback function, use the controls provided by the external audio device.
OTHER FEATURES
CLOCK SETTING
- Press the "STANDBY" button to switch unit at standby mode.
- Press the "CLOCK" button and hold for few seconds to entry clock set mode. The display will show "24H" and flashing.
- Adjust time format (12H/24H) by pressing the "SKIP+" or "SKIP-" button.
- Press the "CLOCK" button to confirm time format, display will show "AM 12:00" or "PM 12:00" if 12H format is set or "00:00" if 24H set.
- Adjust hour by pressing the "SKIP +" or "SKIP -" button, press the "CLOCK" button to confirm.
- Adjust minute by pressing the "SKIP+" or "SKIP-" button, press the "CLOCK" button to confirm.
Notes:
Because clock setting is at standby mode, the display is dim.
TIMER SETTING
Timer setting must be after completed clock setting.
- Press the "STANDBY" button to switch unit at standby mode.
- Press the "TIMER" button to entry timer set mode.
- The display will show "TIMER ON", and AM 12:00 or PM 12:00 if 12H format is set or 00:00 if 24H is set.
- Adjust hour by pressing the "SKIP+" or "SKIP-" button, press the "TIMER" button to confirm.
- Adjust minute by pressing the "SKIP+" or "SKIP-" button, press the "TIMER" button to confirm.
- The display will show "TIMER OFF", and AM 12:00 or PM 12:00 if 12H format is set or 00:00 if 24H is set.
- Adjust hour by pressing the "SKIP+" or "SKIP-" button, press the "TIMER" button to confirm.
-
Adjust minute by pressing the "SKIP+" or "SKIP-" button, press the "TIMER" button to confirm.
-
The display show input source by pressing "SKIP+" or "SKIP-" (Chose CD, i-Pod or Tuner). Chose the input and press "TIMER" button to confirm the selection.
- The display show volume level pressing "SKIP+" or "SKIP-" to adjust the volume level and press "TIMER" button to confirm the selection.
- After confirmation the unit display show "TIMER ON TIME", "TIMER OFF TIME", "INPUT SOURCE" and "VOLUME LEVEL" and unit go to standby mode.
- Press the "TIMER" button to activate timer on / off function.
- If you want to adjust the timer, press and hold "TIMER" button for 2 sec. It go to timer setting mode. Follow steps from 4.
- Press and hold the "PLAY/PAUSE" button over 5 sec. to cancel all timer setting. Follow steps from 4.
OTHER FEATURES
SNOOZE
- SNOOZE must be after completed timer setting.
- When the timer is triggered. You may press the "SNOOZE" button on the remote control to delay the alarm for another 9 minutes.
MENU / ENTER / MENU DN / MENU UP
MENU / ENTRE / MENU DN / MENU UP button is only for iPod / iPhone.
- When playing iPod / iPhone, press the "MENU" button to back to previous menu.
- Press the "ENTER" button to menu selection.
- Press the "MENU DN" or "MENU UP" to select next menu.
- Press the "ENTER" button again to select a desired menu or track.
- When All the desired tracks have been selected, pree the "ENTER" button to play.
WAARSCHUWING
PLAATS VAN DE BEDIENINGSELEMENTEN
- FW-ANTENNE
- VOLUME
- VOLUME " + "
- CD-DEUR
- IPOD DOCKING
- OPENEN / SLUITEN
- STAND-BY
- FUNCTIE
- OVERSLAAN "-"
- CLOCK
- STOP
- OVERSLAAN "+"
- AFSPELEN / SLUITEN
- STAND-BY-INDICATOR
- LCD-DISPLAY
- KLOK
- STAND-BY
- VOORINSTELLING - OMLAAG
- TIMER
- SLUIMEREN
- SLAPEN
- MAP "+"
- MAP ^n-n
- MONO / ST.
- INFO
- OVERSLAAN "-"
- HERHALEN
- MENU
- VOLUME "+"
- AFSPELEN / PAUZE
- VOLUME "-"
17.EQ - MENU OMLAAG
- GELUID UITSCHAKELEN
- VOORINSTELLING - OMHOOG
- INTRO
- GEHEUGEN
- WILLEKEURIG
- OVERSLAAN "+"
- FUNCTIE
- MENU
- MENU OMHOOG
- ENTER

WISSELSPANNING
EMPLACEMENT DES TOUCHES
- ANTENNE FM
- VOLUME
- VOLUME " + "
- PORTE CD
- STATION POUR IPOD
- OUVERTURE
/ FERMETURE
- MISE EN VEILLE
- FONCTION
- PRÉCEDENT
- HORLOGE
- ARRET
- SUIVANTI
- LECTURE/PAUSE
- INDICATEUR DE VEILLE
- ÉCRAN LCD
- HORLOGE
- MISE EN VEILLE
- PRÉ.
- MINUTEUR
- RAPPEL D'ALARME
- MISE EN VEILLE
- DOSSIER +
- DOSSIER -
- MONO/ST.
- INI
- PRÉCÉDENT
- RÉPÉTER
- ARREI
- VOLUME +
- LECTURE/PAUSE
- VOLUME -
- EG
- MENU
- SOURDINE
- PRE.+
- INTROS
- MÉMOIRE
- ALÉATOIRE
- SUIVANT
- FONCTION
- MENU
- MENU +
- ENTRÉE

ALIMENTATION CA
ANORDNUNG DER BEDIENELEMENTE
- RELÓGIO
- ESPERA
- PRE-DN
- DESPERTADOR
- REPETICÃO DO ALARME
- TEMPORIZADOR DE DESACTIVAÇÃO
- PASTA +
- PASTA-
- MONO / EST.
- INFO
- SALTAR -
- REPETIR
- PARAR
- VOLUME +
- REPRODUZIR/PAUSA
- VOLUME -
- EQ
- DN MENU
- SILÊNCIO
- PRE-CIMA
- INTRO
- MEMÓRIA
- ALEATÓRIO
- SALTAR +
- FUNÇÃO
- MENU
- MENU PARA CIMA
- CONFIRMAR

Alimentação AC
-
ZEGAR
-
TRYB GOTOWOŚCI
-
STACJA - W DÓŁ
-
TIMER
-
DRZEMKA
-
USPIENIE
-
FOLDER +
-
FOLDER -
-
MONO / STEREO
-
INFORMACJE
-
POMÍN -
-
POWTÓRZ
-
ZATRZYMAJ
-
GŁOSNOŚĆ +
-
ODTWÓRZ / PAUZA
-
GŁOSNOŚĆ -
-
EQUALIZER
-
MENU W DÓŁ
-
WYCISZ
-
STACJA-W GÓRE
-
INTRO
-
PAMIEC
-
LOSOWO
-
POMIN +
-
FUNKCJA
-
MENU
-
MENU W GÓRE
-
PRZEJDZ

ZASILANIE PRADEM ZMIENNYM

AudioSonic
PLACERING AV REGLAGE
- FM-ANTENN
- VOLYM
- VOLYM +
- CD-LUCKA
- iPod-DOCKNING
- ÖPPNA / STÄNG
- STANDBY
- FUNKTION
- SÖk-
- kLOCKA
- STOPP
- SÖk+
- SPELA UPP / PAUS
- STANDBY-INDIKATOR
- LCD-DISPLAY
- kLOCKA
- STANDBY
- FÖRINST-NED
- TIMER
- SNOOZE
- INSOMNING
- MAPP +
- MAPP
- MONO/ST.
- INFO
- SÖk-
- REPETERA
- VOLYM +
- SPELA UPP / PAUS
- VOLYM -
- MENY
- EQ
- MENY NED
- ENTER
- TYST
- FÖRINST - UPP
- INTRO
- MINNE
- SLUMP
- SÖk+
- FUNKTION
- MENY UPP
- STOPP
