USER MANUAL CP81B-MK PIONEER

Register your product at: http://www.pioneerelectronics.com (US) http://www.pioneerelectronics.ca (Canada)

Thank you for buying this Pioneer product.

Please read through these operating instructions for proper assembly and use. After you have finished reading the instructions, put them away in a safe place for future reference.

This speaker stand can be used only with the following Pioneer speaker systems: S-81B-LR-K, S-81B-LR-QL, or S-81B-LR-W.

Before you start

Before setting up your speaker system, we recommend reading the operating instructions for your system thoroughly.

Caution

• Only use the screws supplied when fixing the speaker to the speaker stand.
• Do not place the stand on an unstable and/or sloping surface. The stand and speaker may fall and cause injury.
• Do not use with any speaker system other than the one for which the unit was designed. The stand may collapse and be damaged and/or the speaker may fall and cause injury.
• When moving the speaker and stand, first remove the speaker from the stand, and then move the stand, holding it by the stems.
• Place the stand on a stable, level surface; placing the stand on an unstable surface can be dangerous.

Important

• Pioneer assumes no liability whatsoever for damages resulting from assembly, improper mounting, insufficient reinforcement, misuse of the product, acts of nature, etc.

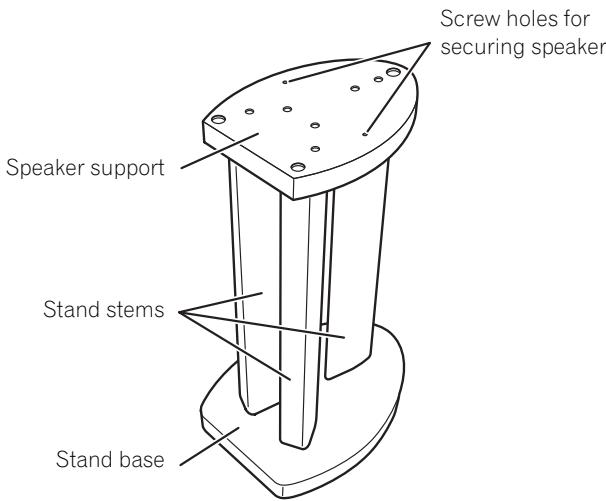

Names of Parts

Attaching speakers to the stands

A medium Phillips screwdriver is required for assembling the speaker stand and for attaching the speaker.

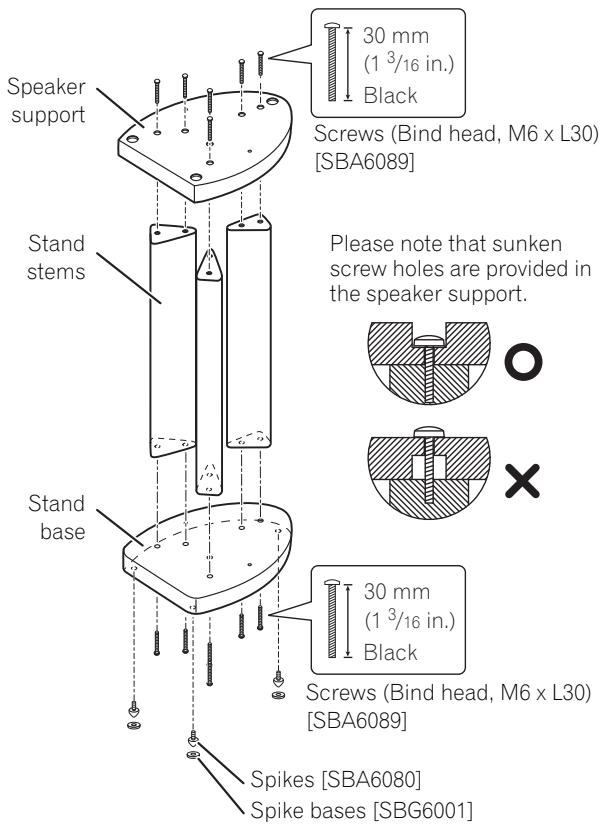

Assembling the speaker stands

Assemble the speaker stands as illustrated below.

Align the screw holes on the stand base and speaker support with the screw holes in the three stems, then insert the screws and tighten.

Caution

• Make sure you assemble the stand on a flat surface that is relatively soft (such as a carpet).
• Make sure the screws are inserted in the screw holes as shown above (with the screw head hidden) when securing the speaker. Improper setup could result in damage or injury if the speaker falls from the stand.

When using the spikes

This speaker stand includes spikes that you can use to isolate the speaker from the floor. Spikes are recommended when placing the stand on a thick carpet (for added stability), or for better sound when placing the stand on a hard reverberant surface (such as a concrete or wood floor). Use the supplied spike bases to avoid scratching the floor or other surface where the stand is placed.

1 Twist the spikes into the threaded metal inserts embedded in the bottom of the stand base.
2 Set the spike bases in the positions where the points of the three spikes will strike when the speaker stand is set down.

3 Set the speaker stand on the spike bases and check to confirm the speaker stand does not rock.

Caution

• Note that these spikes are sharp metal and can cause damage to flooring. Make sure to lay down a cloth or suitable base before setting up.
• Always use the spike bases as shown, with the indented surface facing up to receive the spike point.

If you do not use the spike bases when placing the speakers, the spikes may cause damage to the floor. If you plan on using the spikes we highly recommend to use the spike bases.

When using the non-skid pads

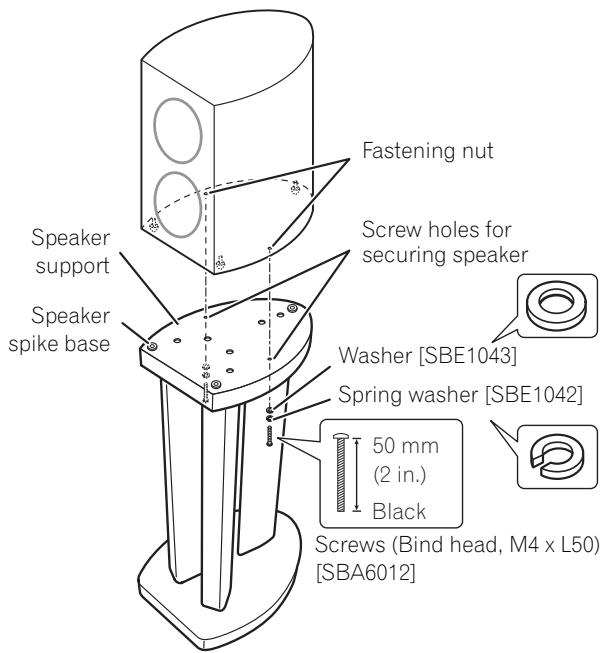

When using speaker spikes:

To avoid accident or injury, please use screws to secure the speaker to the speaker stands. Note that there are fastening nuts provided on the speaker base (see below).

Secure the speaker to the speaker support using the washer, spring washer and the 50~mm (2 in.) screws as shown below.

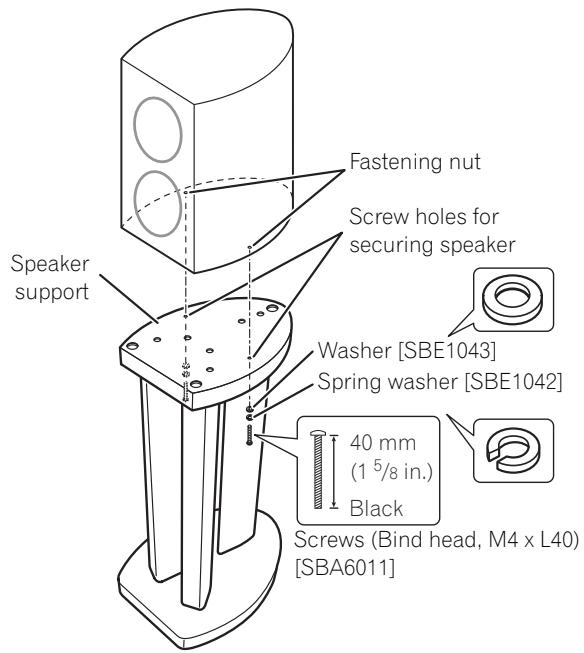

When not using speaker spikes:

To avoid accident or injury, please use screws to secure the speaker to the speaker stands. Note that there are fastening nuts provided on the speaker base (see below).

Secure the speaker to the speaker support using the washer, spring washer and the 40mm ( 1^5/8 in.) screws as shown below.

Stand maintenance

• Use a polishing cloth or dry cloth to wipe off dust and dirt.
• If the stand is very dirty, use a soft cloth dipped in some neutral cleanser diluted five or six times with water. Finally, wipe again using a dry cloth. Do not use furniture wax or cleaners.
• Never use thinners, benzine, insecticide sprays and other chemicals on or near the stand, since these will corrode the surfaces.

Specifications

External dimensions . . . . . . 310 (W) mm x 604 (H) mm x 404 (D) mm

12^1 / 4 (W) in. × 23^13 / 16 (H) in. × 15^15 / 16 (D) in.

Weight 6.5 kg/14 lbs. 6 oz.

Supplied accessories

Stand base. 2
Speaker support 2
Stand stems 6
Spikes [SBA6080] 6
Spike bases [SBG6001] 6
Non-skid pads [FREC067] 8
Screws (Bind head, M6 x L30) [SBA6089] 24
Screws (Bind head, M4 x L40) [SBA6011] 4
Screws (Bind head, M4 x L50) [SBA6012] 4
Spring washers [SBE1042] 4
Washers [SBE1043] 4
Operating instructions [FRRD-235] 1

Note

• Specifications and design subject to possible modification without notice, due to improvements.
• The product number are listed above in square brackets.

Replacement part numbers

Part name

• Protector (top) SHA6182
• Protector (middle) SHA6184
• Protector (bottom) SHA6183
• Protector (stand base) SHA6188
• Protector (speaker support) SHA6185
• Packing case (CP-81B-K only) SHG6402
• Packing case (CP-81B-MK only) SHG6403
• Polyethylene bag (stand base) SHL6092
• Polyethylene bag (speaker support) SHL6038
• Polyethylene bag (stand stems)
  Protection sheet (stand base) SHC6087
  Protection sheet (speaker support) SHC6015
  Protection sheet (stand stems) SHC6088

Published by Pioneer Corporation.

Copyright © 2008 Pioneer Corporation.

All rights reserved.

Publication de Pioneer Corporation.

© 2008 Pioneer Corporation.

Copyright © 2008 Pioneer Corporation.

Copyright © 2008 Pioneer Corporation.

"Copyright" © 2008 Pioneer Corporation.

Copyright © 2008 Pioneer Corporation.

Kopiering forbjuden.

Published by Pioneer Corporation.

Copyright © 2008 Pioneer Corporation.

Opphavsett © 2008 Pioneer Corporation.

Allerettigheterreservert.

Copyright-oikeudet © 2008 : Pioneer Corporation.

PnHcNoJIb3OBAHNuINIOB DnHaMnKa:

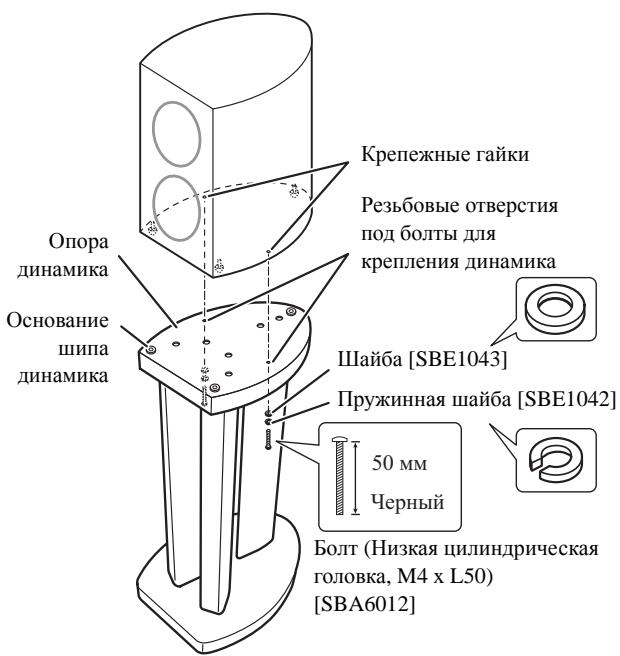

B IIeJIaX IIpeIOTbPaIeHnH HeCuaCTHO rJyAa HJIH TpaBMbI,HaJIeKHO IIpHKpeIIJaIte IINHaMHK K CTOHKe IIOI DInHaMHK C IIOMOIIbIO 6OJIToB. O6paHTHe BHHMaHHe Ha To, YTO B IHHIe IINHaMHKa IIpeIycMoTpeHbI KpeIIeKHbIe RaIKN (CM. HIXKe).

ПикpenITE nHnAMNK K OIope DnHAMNka, HcIOJIb3yraIIaIb6I, npJxHHHbIe IIaIb6Ib I 50 MM 6OJIbIb, KaK 3TO IOKa3aHO HInKe.

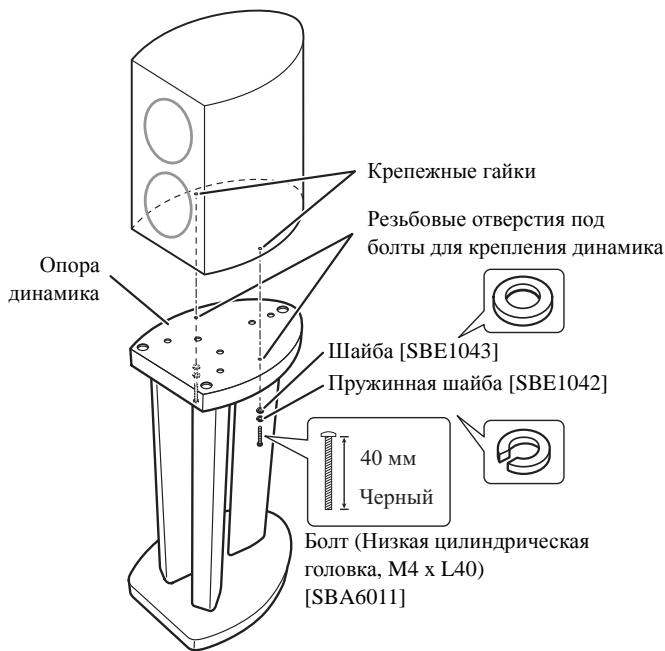

Korda uinnbI dHnAmka He nCNoB3yOTc:

BueJxIpeIOTbpaIeHHHeNcuaCTHOrO CJIyAaHII TpaBMbl,HaJeKHO IIpHKpeIIJIte DnHAMNK K CToKe IIOI DnHAMNK C IOMOIIbIO 60JIToB. O6paHTte BHNMaHHe Ha To, YTO B DnHIe DnHAMNKa IpeIycMOTpeHbI KpeIeKHbIe raiKn (CM.HNKe).

ПинкpenHTeДИнhamNKКОпоpeДИнhamNKa,ИСПОЛьзУЯШаБы,пужHHHьешьИ 40 MM6OJTbI,ΚАЗТОПOKa3aHo HnKke.

YxOД 3a CToIkoI

• IIpoTHpaIte IIbIb I 3aIrp83HeHnIe IIOIIpOBOuHOn IIN dpyroI cyXoI TkaHbI.
• EcJH cToiKa cHJIbHO 3aIg3HeHa, IIOJIb3yIITcB MrgKo TKaHbIO, CMOeHHO B HeItpaJIbHOM MOIOIIeM cpeICTBE, pa3BeDEHHOM B IINTn HIN IIECTN qACTx BObl. IIO 3aBepIeHHN UcHTKN CHOBA IpOTpIte CyXOH TKAHbIO. He IIOJIb3yIITcB BOCOM IIN MOIOIIHM cpeICTBaMH IIN Me6JIH.
  HnKoTJa He IIOJIb3yIteCb paCTBOpHTeJIMH, 6eH3HHOM, HNcEKTINHNHbIMn paIIbIJIHTeJIMH IN dpyTHM XHMHueCKHMn BeIeCTBaMH Ha cToIke HINH pIaOM c HeH, IIOCKOJIbKY 3TO BbI3OBET Kopp03HIO IOBepXHOCTH.

TexHnueckne xapaKtepNCTnKn

Габашные размeper. 310 (III) MM x 604 (B) MM x 404 (Γ) MM Bec. 6,5 KI

IoctabnlaembIe B KOMnIeKeTepnHaIeXHOCTH

OchOBaHne cToiKn 2
Onopa nnHaMaKa 2
HoxkncstoKn 6
IIINIIb [SBA6080] 6
OchOBaHHa IIINIOB [SBG6001] 6
IpeOxpaHHTeJIbHbIe HeCKoJIb3KHe IIOJkJaIKn [FREC067] 8
BoTT (Hn3Ka unHHnpuecka roIOBka, M6 x L30) [SBA6089] . 24
BoJIT (Hn3ka IIJIHHIpyuecka I0IOBka, M4 x L40) [SBA6011] . . . 4
BoTT (Hn3KaI nJIInH,prHuecka rOJIOBka,M4xL50)[SBA6012].....4
IpyKHHbIe Iaai6bI [SBE1042] 4
IIaIb [SBE1043] 4
Hnctpykunno 10 KcIIyataunn [FRRD-235] 1

3ameyane

• TexHHueckne XapaKTepeHCTKNI KOHcTpkyKIIHA MOryT MeHrTbc8 6e3 IpeBapHTeJIbHOro yBeIOMJIeHN, B CBy3N C BHOCHMbIMN yCOBepIeHCTBOBAHHaMn.
• Homepa H3JeJH II pIbVeHeBb BBePxy KBAJaPaTHbIX cKo6kax.

Homepa qacteien 3aMeHbI

HaMeHOBaHHe Yactn No yactn

• IpioteKTop (Bbepxy) SHA6182
  -Пютектopsceпячась) SHA6184
• IIpoTeKTop (BHH3y) SHA6183
• IIpoTeKTop (OchOBaHne cToiKN) SHA6188
• IIpoTeKTop (OnopaДинамнka) SHA6185
• YIIaKOBOuHna Kopo6ka (ToJIbko SHG6402 ДЯ CP-81B-K)
• YIIaKOBoUHЯ Kopo6ka (ToJIbko SHG6403 ДЯ CP-81B-MK)
  -ПОЛТИЛЕHOBьI ПАКET SHL6092(OchOBaHHe cToiKN)
  ПОЛИЗТИЛЕНБУЙ ПАКЕТ (Опopa SHL6038ДИНHAМнКа)
  -ПОЛИЗТЕНJOHEBOBиIЯКET（HOJKNSHL6093 cToiKn)
• 3aIIHTHnaIJIeHka (OcHOBaHne SHC6087 cToiKN)
  3aIHTHa IJIeHka (Onopa SHC6015 HnHaMnKa)
• 3aunTHaJIeHka (HoKKn cToiKN)
