Product type	Direct-drive turntable
Brand	Pioneer
Model	PLX-500
Maximum dimensions (W × H × D)	450 mm × 158.5 mm × 367.5 mm
Weight	10.7 kg
Power supply	AC 110–120 V or 220–240 V, 50/60 Hz
Power consumption	11 W
Rotation speeds	33 1/3, 45, 78 rpm
Pitch adjustment range	±8%
Motor type	Three-phase brushless DC motor
Starting torque	1.6 kg·cm or more
Start time	1 second or less (at 33 1/3 rpm)
Tonearm type	S-shaped tonearm, gimbal support, static balance
Stylus pressure	0 to 4.0 g (0.1 g increments)
Compatible cartridge type	VM (MM) – not MC
Output voltage (PHONO)	2.5 mV/1 kHz
Output voltage (LINE)	150 mV/1 kHz
Outputs	PHONO/LINE (switchable), USB-B
Digital recording	Via USB to PC/Mac with rekordbox
Dust cover	With record jacket support
Cleaning	Stylus: soft brush; cover: soft cloth
Replaceable parts	Cartridge, stylus, counterweight, cartridge holder
Operating temperature	+5 °C to +35 °C
Operating humidity	5% to 85% (no condensation)
Warranty	Warranty included for European region

Frequently Asked Questions - PLX500 PIONEER

How to adjust the stylus pressure?

After balancing the tonearm, turn the adjustment ring to bring the "0" to the center line, then rotate the counterweight to reach the recommended value (3.0–4.0 g for the supplied cartridge).

Why is my platter not spinning?

Check that the power cord is plugged in and the POWER switch is set to ON. Make sure to press the START/STOP button.

How to record a vinyl to my computer?

Connect the turntable via USB to your PC/Mac, install rekordbox (free), then use the built-in recording function to digitize your records.

What type of cartridge can I use?

This device is compatible with VM (or MM) cartridges. MC cartridges are not supported.

How to adjust anti-skating?

Turn the ANTI SKATING dial to align the mark with the same value as the stylus pressure. For scratching, slightly increase the value.

What to do if the sound is weak or distorted?

Check the position of the PHONO/LINE switch: set to LINE for powered speakers, to PHONO for a phono preamp. Also ensure cables are properly connected.

How to clean the stylus?

Remove the cartridge holder (cartridge included) and use a small soft brush or paintbrush to gently remove dust from the tip of the stylus. Avoid touching it with your fingers.

The turntable produces a hum, what to do?

Move the audio cable away from power cords and electrical devices (fluorescent lamps). Also check that connections are clean and firmly inserted.

Can I use 78 rpm records?

Yes, press the 33 and 45 buttons simultaneously to select 78 rpm speed. Use an appropriate cartridge if needed.

How to transport the turntable safely?

Remove the platter and felt mat, take off the cartridge holder and counterweight, secure the tonearm with the tonearm clip and tape, then pack in a box with padding.

USER MANUAL PLX500 PIONEER

The Pioneer DJ site shown above offers FAQs, information on software, and various other types of information and services to allow you to use your product in greater comfort.

Operating Instructions

Mode d'emploi

Bedienungsanleitung

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

K058b_A1_En

CAUTION

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

D3-4-2-1-1_B1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a A1 En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F): less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light).

D3-4-2-1-7c*_A2_En

CAUTION

The POWER switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

Voltage selector

You can find the voltage selector switch on the top panel of multi-voltage models.

The factory setting for the voltage selector is 220-240 V. Please set it to the correct voltage for your country or region.

Before changing the voltage, disconnect the AC power cord. Use a medium size screwdriver to change the voltage selector switch.

D3-4-2-1-5*_A2_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest service center or your dealer for a replacement. S002*_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 15 cm at top, 5 cm at rear, and 5 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_A1_En

Information to User

Alterations or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

D8-10-2_A1_En

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product Name: TURNTABLE

Model Number: PLX-500-K, PLX-500-W

Responsible Party Name: AlphaTheta Music Americas, Inc. OPERATIONS DIVISION

Address: 2050 W. 190th Street, Suite 109, Torrance, CA 90504, U.S.A.

Phone: [phone]

URL: pioneerdj.com

D8-10-4*_C1_En

Contents

How to read this manual

• Thank you for buying this Pioneer DJ product.
  Be sure to read this booklet, which includes important information that you must understand before using this product.
  After you have finished reading the instructions, put them away in a safe place for future reference.
• In this booklet, the names of the buttons and terminals of the main unit appear in square brackets ([]).
  Examples:
  Press the [START/STOP] button.

01 Before start

Features 5

What's in the box....5

02 Before you start

Installing rekordbox (Mac/Windows)....6

Assembly 6

03 Part names and functions

Top panel 8

Rear panel 9

04 Adjustment

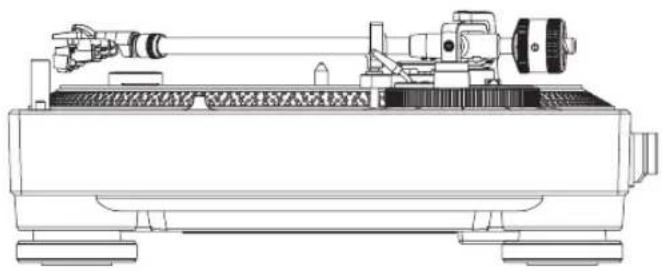

Adjusting the tone arm balance....10

Adjusting the stylus pressure....10

Adjusting anti-skating 11

Adjusting the arm lifter height 11

Adjusting the arm height....11

05 Connections

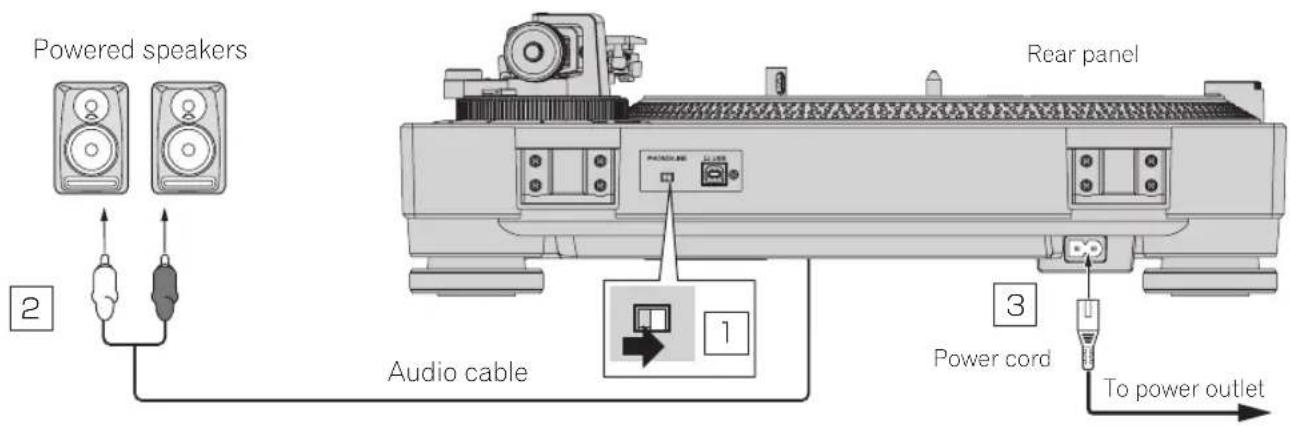

Connecting to powered speakers.... 12

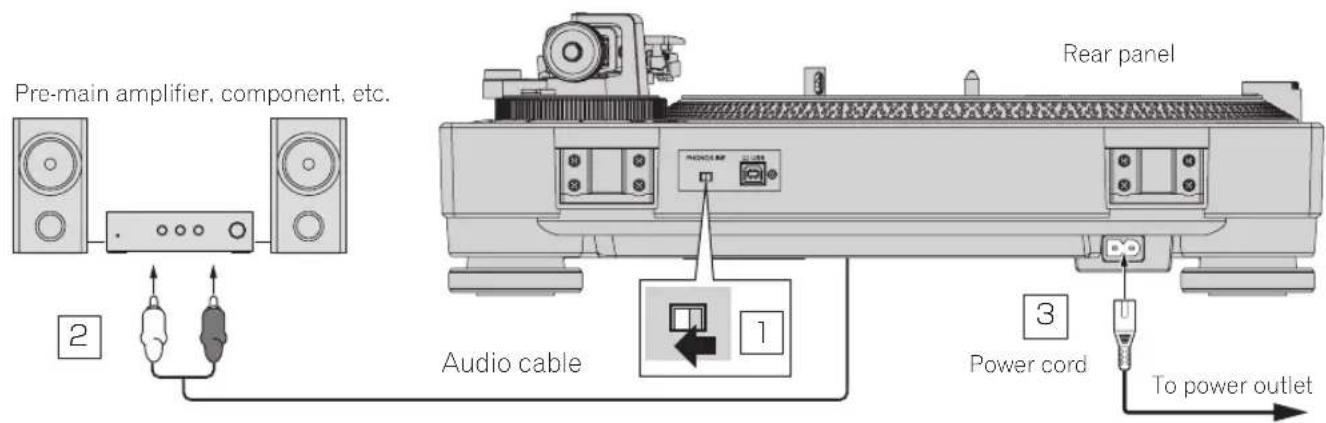

Connecting to a pre-main amplifier and component.... 12

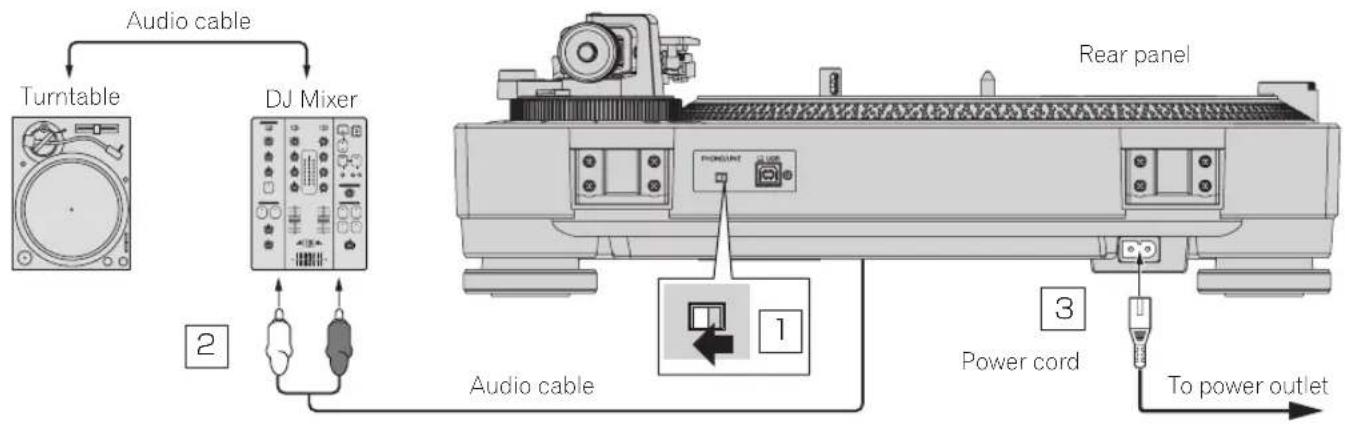

Connecting to a DJ mixer....13

Connecting with a computer.... 13

Place of installation 13

Adjusting the height of the main unit.... 13

06 Operation

Turning the power on 14

Turning the power off 14

Playback 14

Pausing playback....14

Finishing playback....14

Adjusting the pitch 14

Displaying a record jacket 14

To play a standard EP record....15

Illuminating the stylus tip 15

Recording 15

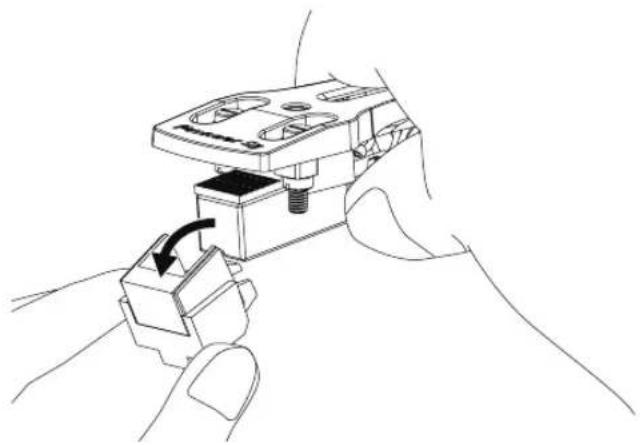

Replacing the stylus 15

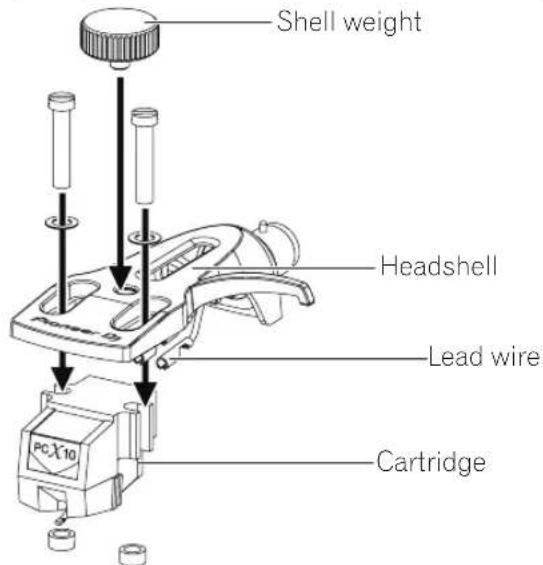

Changing the cartridge....15

07 Additional information

Troubleshooting....16

Cautions on use 16

Maintenance of each part....16

About trademarks and registered trademarks 17

Specifications.... 17

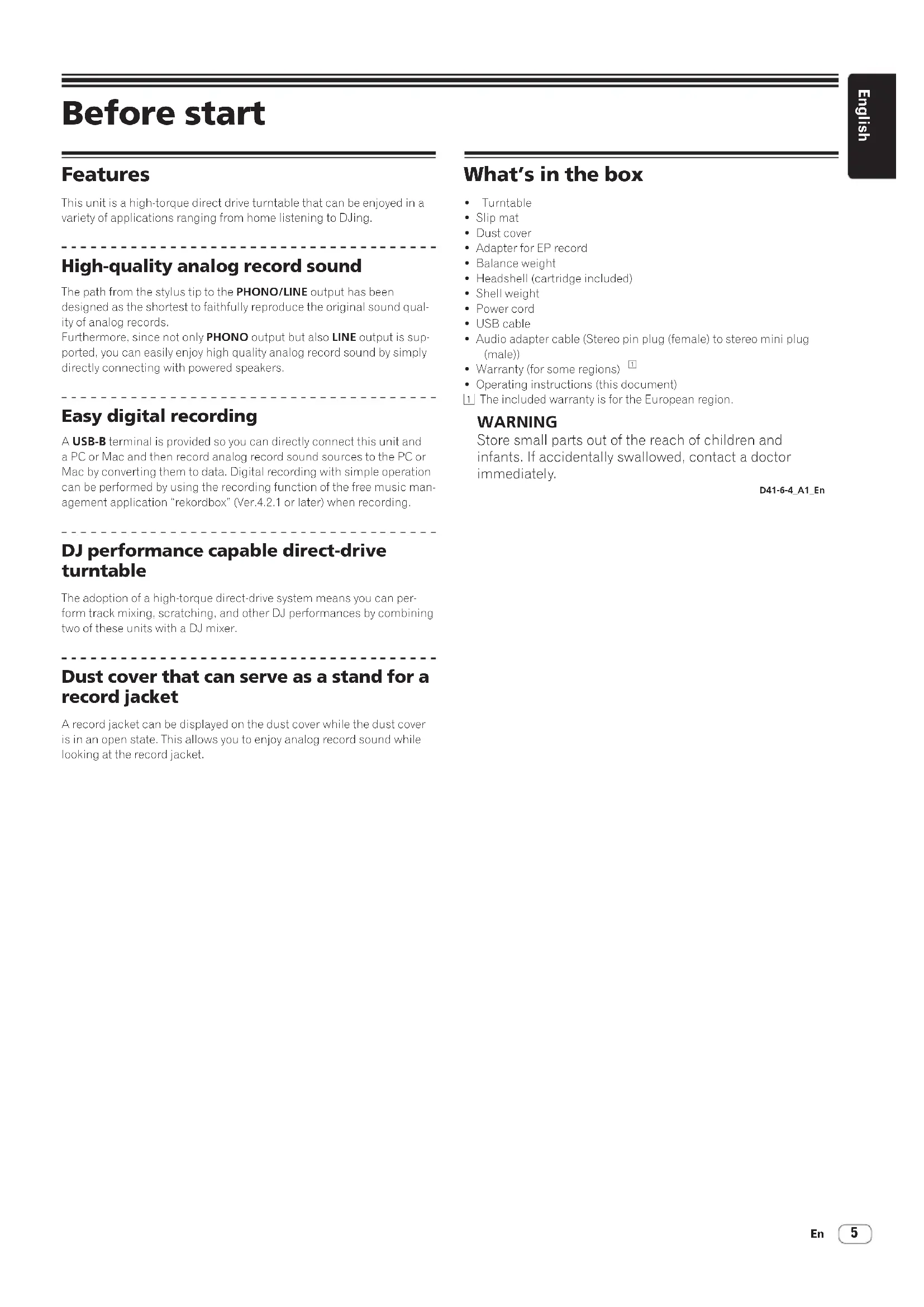

Before start

Features

This unit is a high-torque direct drive turntable that can be enjoyed in a variety of applications ranging from home listening to DJing.

High-quality analog record sound

The path from the stylus tip to the PHONO/LINE output has been designed as the shortest to faithfully reproduce the original sound quality of analog records.

Furthermore, since not only PHONO output but also LINE output is supported, you can easily enjoy high quality analog record sound by simply directly connecting with powered speakers.

Easy digital recording

A USB-B terminal is provided so you can directly connect this unit and a PC or Mac and then record analog record sound sources to the PC or Mac by converting them to data. Digital recording with simple operation can be performed by using the recording function of the free music management application "rekordbox" (Ver.4.2.1 or later) when recording.

DJ performance capable direct-drive turntable

The adoption of a high-torque direct-drive system means you can perform track mixing, scratching, and other DJ performances by combining two of these units with a DJ mixer.

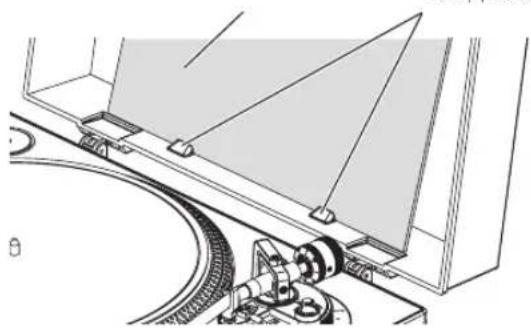

Dust cover that can serve as a stand for a record jacket

A record jacket can be displayed on the dust cover while the dust cover is in an open state. This allows you to enjoy analog record sound while looking at the record jacket.

What's in the box

• Turntable
• Slip mat
• Dust cover
• Adapter for EP record
  • Balance weight
  • Headshell (cartridge included)
• Shell weight
• Power cord
• USB cable
  • Audio adapter cable (Stereo pin plug (female) to stereo mini plug (male))
  • Warranty (for some regions) 1
• Operating instructions (this document)
  ① The included warranty is for the European region.

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

D41-6-4 A1 En

Before you start

Installing rekordbox (Mac/Windows)

1 Access rekordbox.com.

https://rekordbox.com/en/store/

• The page content is subject to change without notice.

2 Check the Get Started guide and then click [Free to Download].

3 Carefully read the Software End User License Agreement and select the [Agree] check box if you agree.

When you select the check box, [Download] becomes clickable.

4 Click [Download].

Downloading of rekordbox (Mac/Windows) starts.

5 Double-click the downloaded file to unzip it.

6 Double-click the unzipped file to launch the installer.

7 Carefully read the Software End User License Agreement, and continue with the installation according to the instructions on the screen if you agree.

- If you do not agree to the contents of the Software End User License Agreement, cancel the installation.

8 When the installation completion screen appears, follow the instructions on the screen to close the installer.

The installation is now complete.

- To use rekordbox dj, rekordbox dvs, and rekordbox video, activation (license authentication) is required. For details, see the rekordbox Operating Instructions. https://rekordbox.com/en/support/manual.php

Assembly

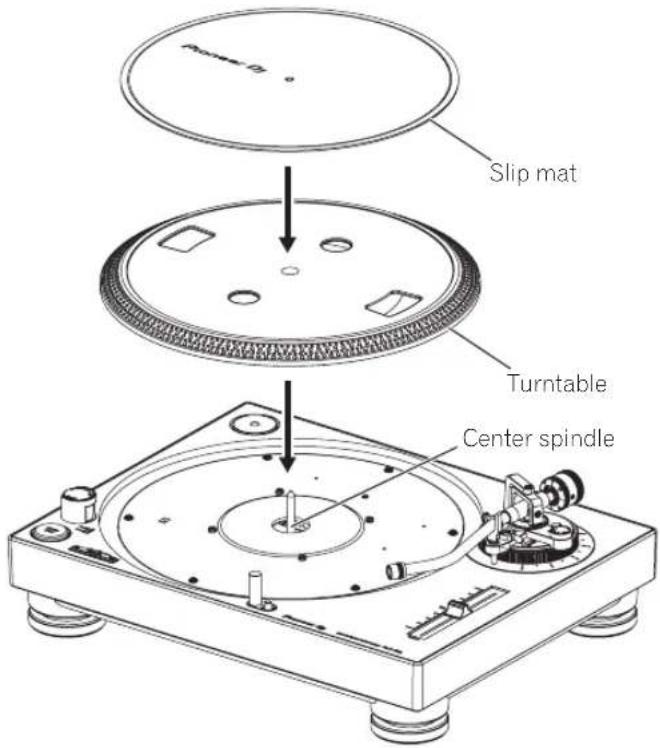

1 Attach the turntable and slip mat.

Set the turntable on the center spindle and place the slip mat on top of the turntable.

- Be careful not to hit the turntable on the main unit or drop it.

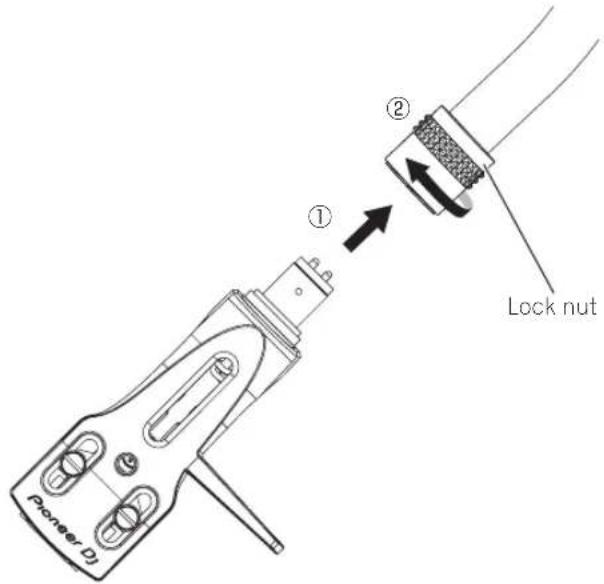

2 Attach the headshell.

Insert the headshell with attached cartridge into the tone arm. Next, while keeping the headshell horizontal, tighten the lock nut.

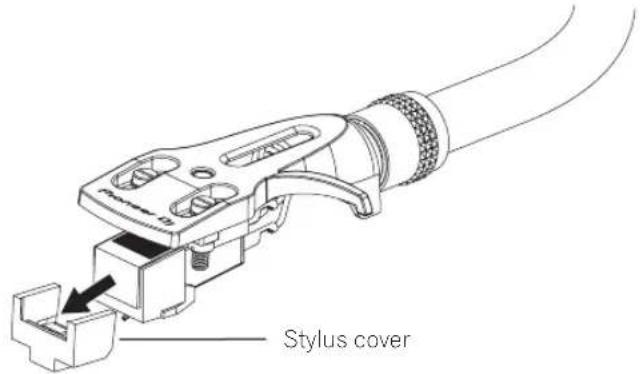

- Before use, remove the stylus cover without touching the stylus tip.

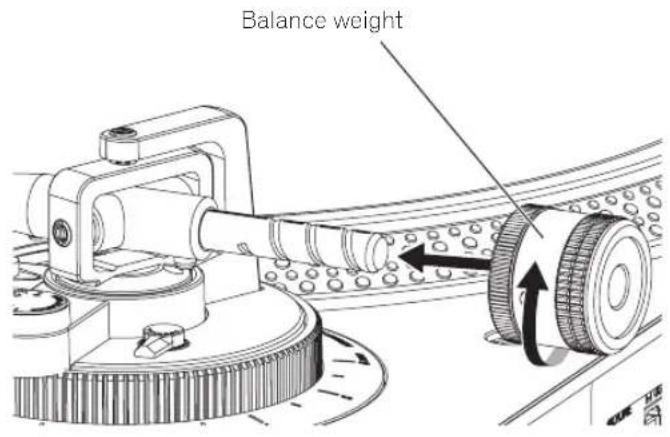

3 Attach the balance weight.

Attach the balance weight to the rear shaft of the tone arm.

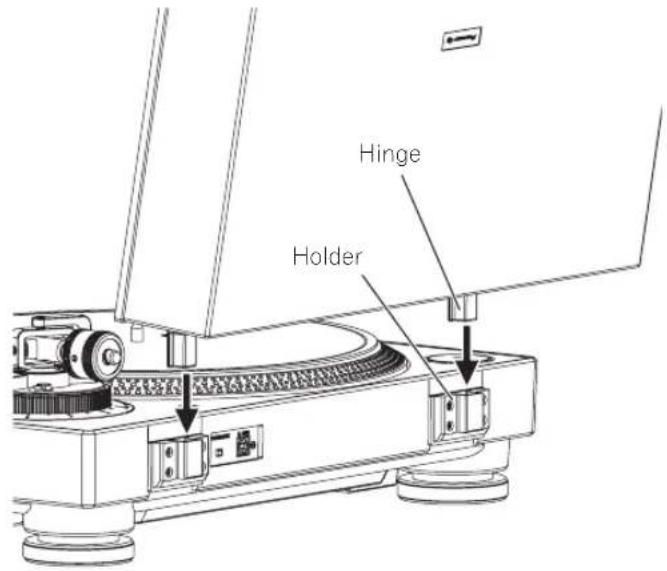

Attach the dust cover.

Insert the hinges of the dust cover into the holders at the rear panel of this unit.

When removing the dust cover, pull the hinges up outward while the dust cover is in an open state.

Part names and functions

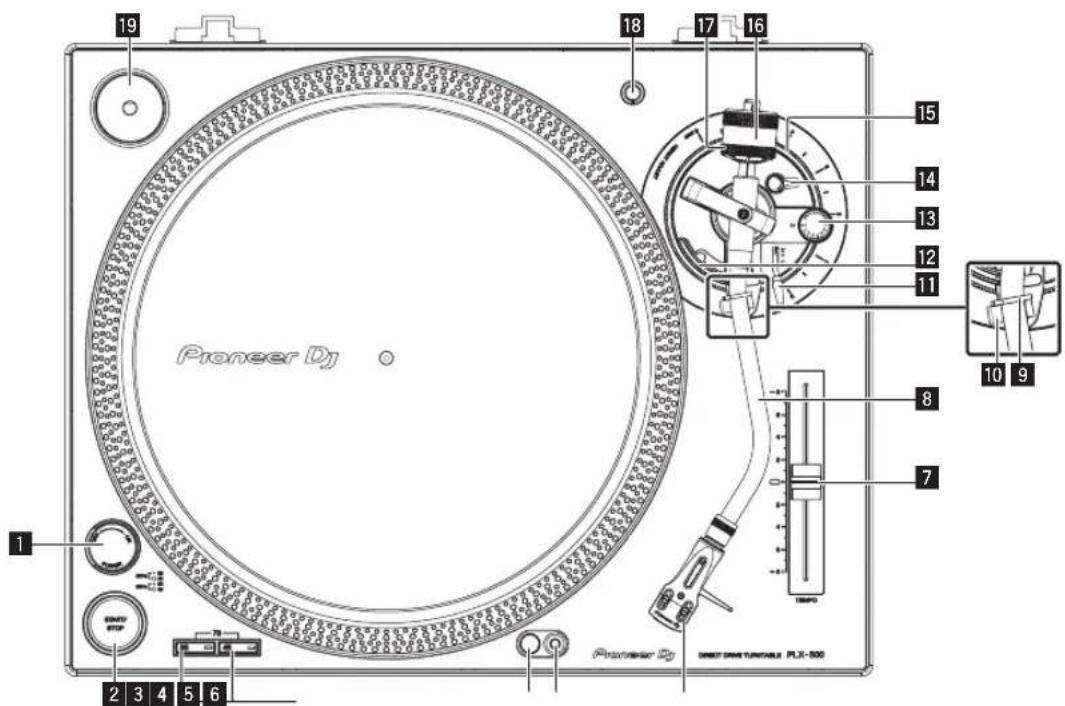

Top panel

1 POWER switch

When turning the switch to the [ON] side, the power is turned on and the strobe illuminator on the side lights.

→ Turning the power on(p.14)

Turning the power off(p.14)

2 START/STOP button

Pressing the button starts or stops rotation of the turntable.

→ Playback(p.14)

3 Speed change button

Changes the speed according to the record to be played.

- For a 33 1/3 rpm record, press the [33] button.

- For a 45 rpm record, press the [45] button.

- For a 78 rpm record, press the [33] button and [45] button at the same time.

- Playback(p.14)

4 Stylus illuminator

Lights to illuminate the stylus tip.

- Illuminating the stylus tip (p.15)

5 Stylus illuminator switch

The stylus illuminator lights in white and ascends to the position at which the stylus tip is illuminated.

- Illuminating the stylus tip (p.15)

6 Headshell

7 TEMPO slider

You can slide back and forth to perform fine adjustment of the rotation speed.

Adjusting the pitch(p.14)

8 Tone arm

Adjustment(p.10)

9 Arm clamper

Clamps the tone arm.

10 Arm rest

Serves as the support base for the tone arm.

11 Lifter lever

The tone arm goes up when the lever is pulled up. The tone arm goes down when the lever is pushed down.

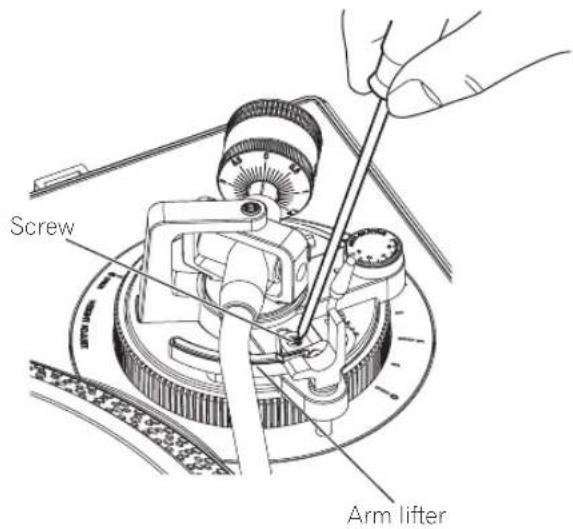

12 Arm lifter

This device is used to move the tone arm up and down. It is operated by the lifter lever.

13 ANTI SKATING dial

When a record is played, there is power to pull the stylus tip toward the inner perimeter. By matching this dial to the stylus pressure value, that power is eliminated.

Adjusting anti-skating (p.11)

Locks the adjusted height of the arm.

Adjusting the arm height (p.11)

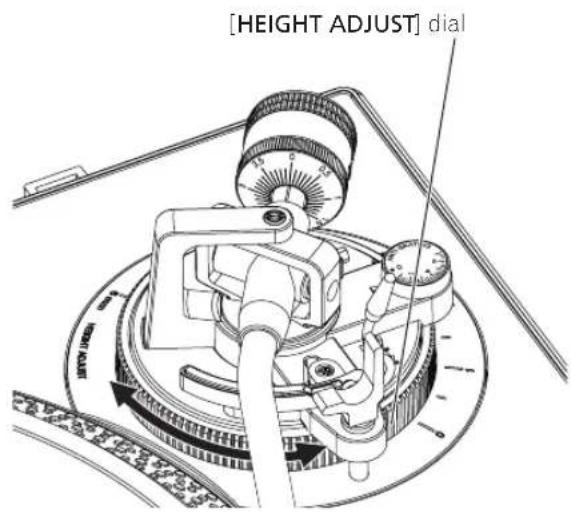

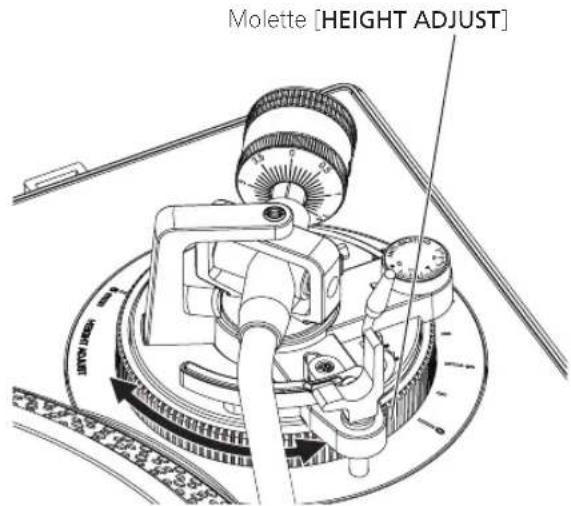

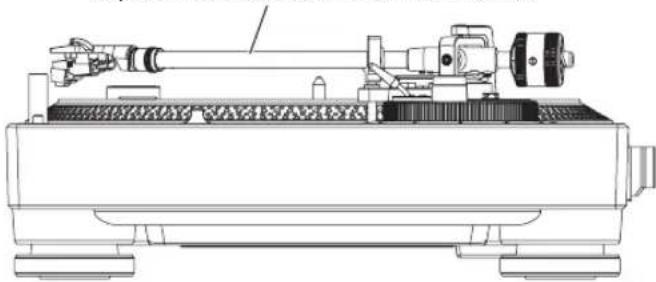

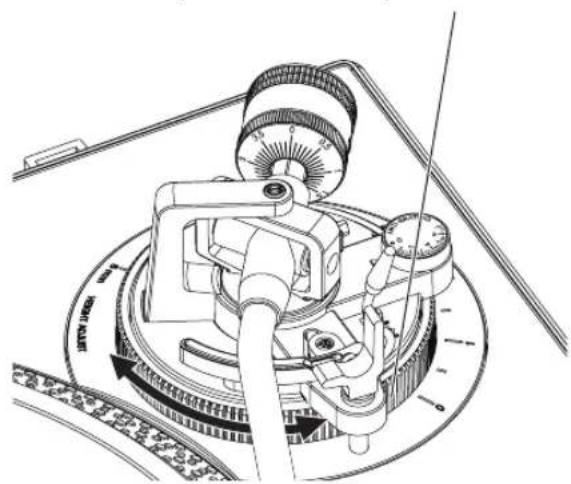

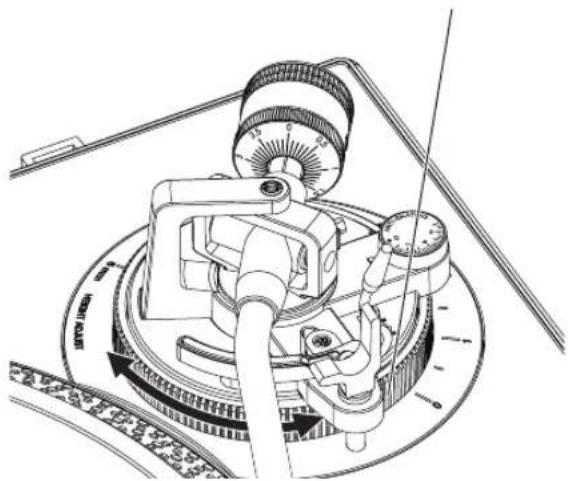

Used to adjust the height of the tone arm.

Adjusting the arm height (p.11)

16 Balance weight

Used to balance the tone arm and adjust the stylus pressure.

Adjustment(p.10)

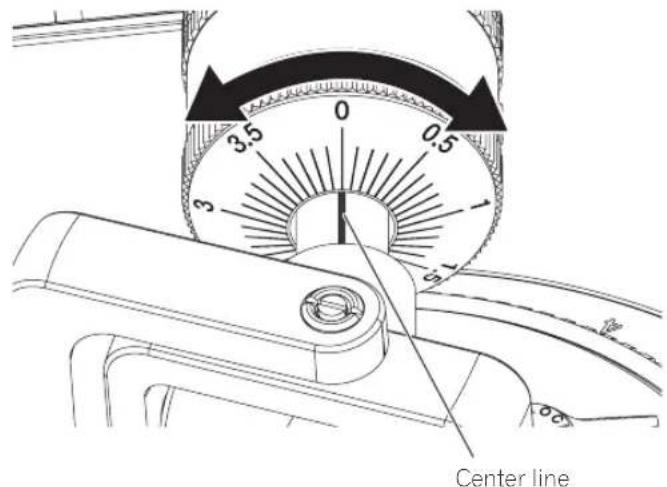

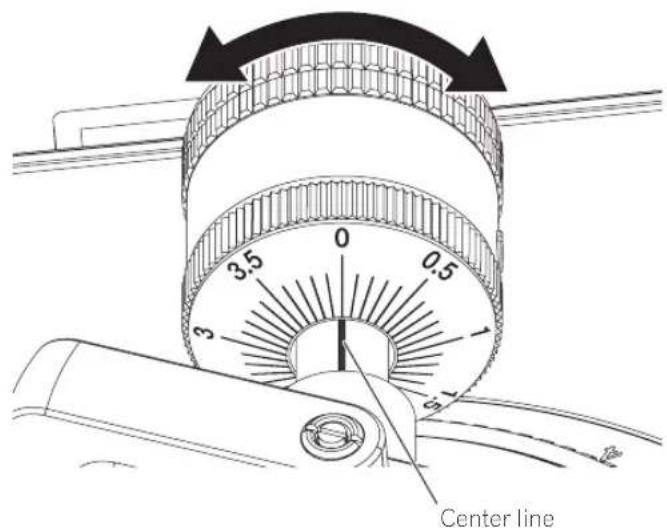

17 Stylus pressure adjustment ring

Used to match to the appropriate stylus pressure of the cartridge.

Adjusting the stylus pressure (p.10)

18 Headshell stand

Used to stand the headshell up.

19 Adapter for EP record

Used to play standard EP records.

To play a standard EP record(p.15)

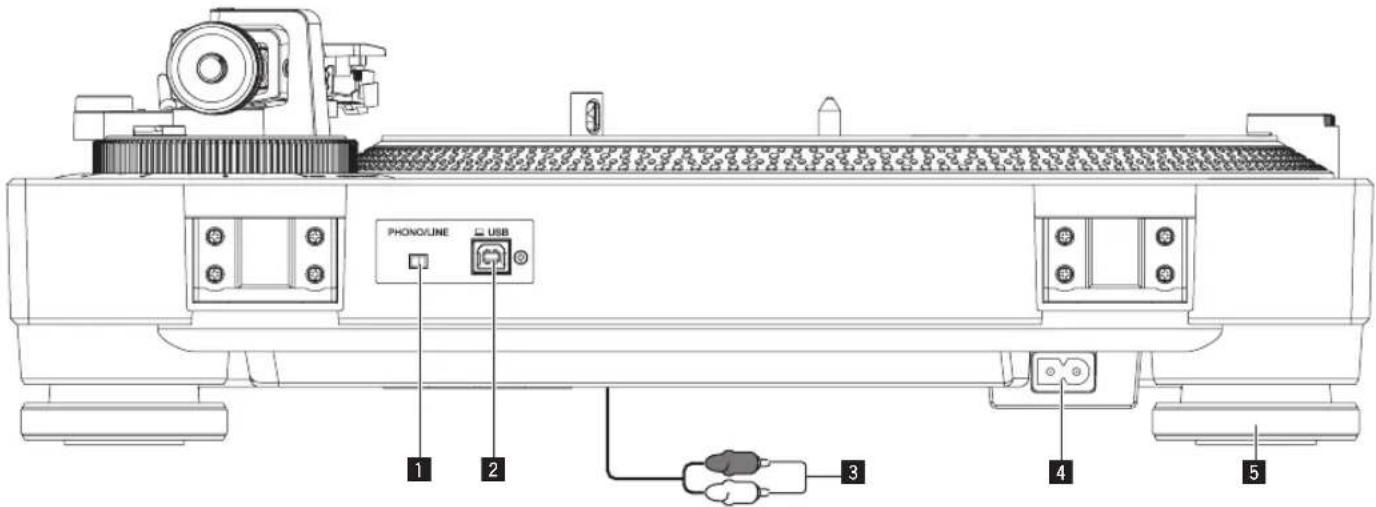

Rear panel

1 PHONO/LINE switch

Switches the level of the sound output from the unit.

— [PHONO]: Select this when the unit is connected with a device that supports phono level input, such as a pre-main amplifier or component.
— [LINE]: Select this when the unit is connected with a device that supports line level input, such as a powered speakers.

CAUTION

Do not connect the unit with a device that supports phono level input while the PHONO/LINE switch is in the [LINE] state.

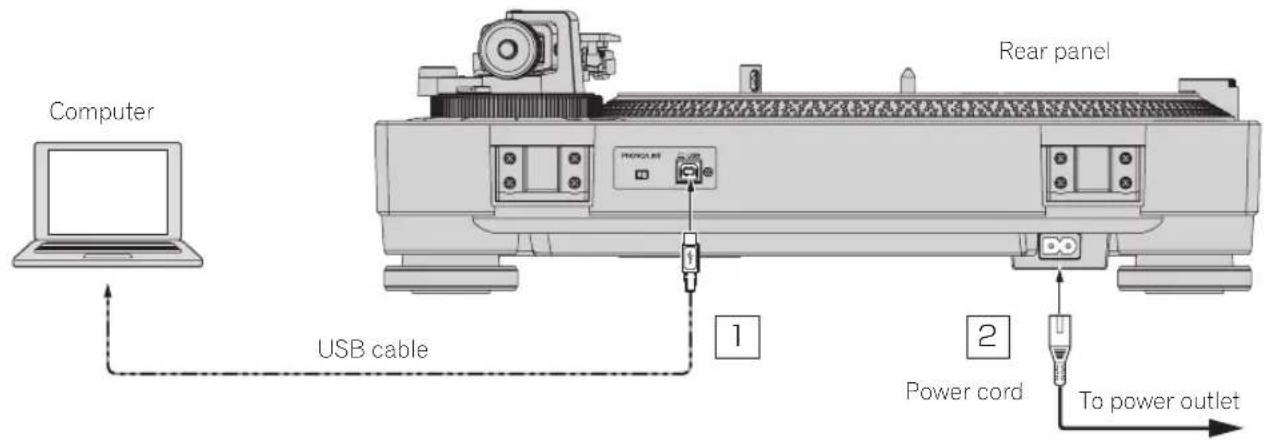

2 USB terminal

Connect the USB cable (included) here.

Connecting with a computer (p.13)

3 Audio cable

- Connections(p.12)

4 AC IN

Connects to a power outlet using the included power cord. Wait until all connections between the equipment are completed before connecting the power cord.

- Be sure to use the included power cord.

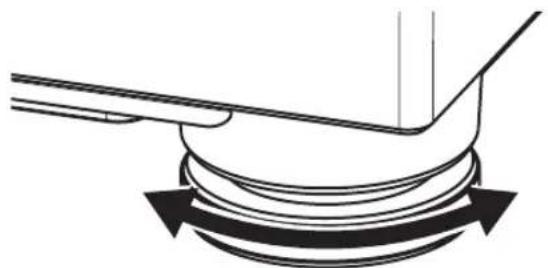

5 Insulator

Suppresses the effect of outside vibration. Turning the insulator adjusts the turntable height.

Adjusting the height of the main unit (p.13)

Adjustment

Adjusting the tone arm balance

Because the cartridge and headshell weights differ depending on the product, the balance of the tone arm is adjusted.

Prepare as follows.

• Remove the stylus cover and arm clamper while paying attention not to touch the stylus tip.
• Push down the lifter lever.
• Set the [ANTI SKATING] dial to "0".

Keep the tone arm from the arm rest and adjust the balance so it is horizontal.

Turn the balance weight until the tone arm becomes almost horizontal.
- When moving the tone arm, make sure that the stylus tip does not directly touch the turntable and the like.

Technical line drawing of a mechanical device with no visible text or symbols

Adjusting the stylus pressure

To prevent stylus jumping or sound distortion, the stylus pressure is adjusted to the appropriate stylus pressure value determined for each cartridge.

The appropriate stylus pressure value for the included cartridge is from 3.0 g to 4.0 g.

Prepare as follows.

- Return the tone arm to the arm rest and secure with the arm clamp.

1 Match the "0" on the stylus pressure adjustment ring to the center line of the arm rear shaft.

While using your finger to hold the balance weight to keep it from moving, turn only the stylus pressure adjustment ring so that the number "0" comes to the black center line of the tone arm rear shaft.

2 Adjust the stylus pressure.

Turn the balance weight to adjust to the appropriate stylus pressure value for your cartridge.

- When turning the balance weight, the stylus pressure adjustment ring turns together. While observing the adjustment ring, adjust the stylus pressure to the appropriate value.

Adjusting anti-skating

This adjustment is made to prevent stylus jumping.

Match to the same scale position as the stylus pressure value.

Turn the [ANTI SKATING] dial to match the reference line to the same value as the cartridge stylus pressure value.

When scratch play is performed

To prevent stylus jumping, adjust the scale position to match the play action.

Adjusting the arm lifter height

When using other than the included cartridge, adjust this to match the cartridge to be used.

Prepare as follows.

• A record is placed on a slip mat.
- Remove the stylus cover and arm clamper while paying attention not to touch the stylus tip.
- Pull up the lifter lever and move the tone arm onto the record.

Adjust the height by turning the screw while the arm lifter is pushed down.

— Turing clockwise narrows the distance between the record and stylus.
— Turing counterclockwise widens the distance between the record and stylus.

- The arm lifter height (the distance between the record and stylus when the lifter lever is pulled up) is factory-adjusted in a range between approximately 8 mm and 13 mm.

Adjusting the arm height

When using the included cartridge, the "0" position is appropriate. When using other than the included cartridge, adjust this to match the cartridge to be used.

1 Turn the [HEIGHT ADJUST] lock to unlock the lock.

2 Push down the lifter lever and place the stylus on the record, then adjust the [HEIGHT ADJUST] dial to make the tone arm and record parallel.

Adjust so that the tone arm becomes horizontal.

Technical line drawing of a mechanical device with no visible text or symbols

3 Turn the [HEIGHT ADJUST] lock to fix the height of the arm.

After adjusting height of the arm, always turn the [HEIGHT ADJUST] lock to fix the arm.

Connections

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
  • Refer to the operating instructions for the component to be connected.
• Connect the power cord after all the connections between devices have been completed.

Connecting to powered speakers

1 Set the [PHONO/LINE] switch to [LINE].

2 Connect the audio cable to the [LINE] input terminal of the powered speakers, etc.

- If necessary, use the included audio adapter cable.

3 Connect the power cord.

Connects to a power outlet using the included power cord. Wait until all connections between the equipment are completed before connecting the power cord.

Connecting to a pre-main amplifier and component

1 Set the [PHONO/LINE] switch to [PHONO].

2 Connect the audio cable to the [PHONO] input terminal of the pre-main amplifier or other component.

- If this product is connected to a pre-main amplifier or component that does not have a [PHONO] terminal, sufficient volume and sound quality cannot be obtained. In that case, set the [PHONO/LINE] switch of this unit to [LINE] and then connect this unit to the [LINE] input terminal of the pre-main amplifier or component or use a phono equalizer.

3 Connect the power cord.

Connects to a power outlet using the included power cord. Wait until all connections between the equipment are completed before connecting the power cord.

Connecting to a DJ mixer

1 Set the [PHONO/LINE] switch to [PHONO].
2 Connect the audio cable to the [PHONO] input terminal of the DJ mixer.

- If this product is connected to a DJ mixer that does not have a [PHONO] input terminal, sufficient volume and sound quality cannot be obtained. In that case, set the [PHONO/LINE] switch of this unit to [LINE] and then connect the unit to the [LINE] input terminal of the DJ mixer.

3 Connect the power cord.

Connects to a power outlet using the included power cord. Wait until all connections between the equipment are completed before connecting the power cord.

Connecting with a computer

USB driver software is not required for this unit.

Recording(p.15)

1 Connect the USB cable to a USB port on the computer.

2 Connect the power cord.

Connects to a power outlet using the included power cord. Wait until all connections between the equipment are completed before connecting the power cord.

Place of installation

Place the unit on a level surface that is free of external vibration.

• To the extent possible, keep the unit away from the speaker system.
• When the unit is very close to a radio (AM/FM broadcasting), the radio could generate noise. Keep the distance as far away from the unit as possible.

Adjusting the height of the main unit

Adjust the height by turning the insulator in a way that the main unit is horizontal.

Pure mechanical diagram showing a curved component with rotational arrows, no text or symbols present

Operation

Turning the power on

1 Make all the connections, then plug the power cord into a power outlet.

Connections(p.12)

2 Change the [POWER] switch to the [ON] side to turn on the power of the unit.

This unit's indicators light and the power turns on.

Turning the power off

Change the [POWER] switch to the [OFF] side to turn off the power of the unit.

This unit's power turns off.

Playback

Prepare as follows.

• Place a record on the turntable.
• Remove the stylus cover and arm clamper.

1 Change the [POWER] switch to the [ON] side to turn on the power of the unit.
2 Select the rotation speed to match the record to be played by pressing a speed change button.
3 Press the [START/STOP] button.

The turntable rotates.

4 Pull up the lifter lever and move the tone arm onto the record.
5 Push down the lifter lever.

The tone arm slowly descends and playback begins.

Pausing playback

Pull up the lifter lever.

The stylus of the cartridge lifts away from the record.

• To resume playback, push down the lifter lever.

Finishing playback

1 Pull up the lifter lever to return the tone arm to the arm rest and then push down the lifter lever.
2 Press the [START/STOP] button.

The turntable stops smoothly.

3 Change the [POWER] switch to the [OFF] side to turn off the power of the unit.

Use the arm clamper to secure the tone arm.

To protect the stylus tip, attach the stylus cover.

Close the dust cover.

Adjusting the pitch

Move the [TEMPO] slider forward or backward.

Moving the slider forward increases the rotation speed and moving it backward decreases the rotation speed.

• When the [TEMPO] slider is at the center, the indicator lights in yellow-green and the rotation speed becomes the specified rpm (33 1/3 rpm, 45 rpm, or 78 rpm).
• The scale of the [TEMPO] slider is a rough value. Please use it as a guide.
• You can confirm that the rotation speed has become the specified rpm by looking at the four rows of strobe patterns inscribed around the turntable.

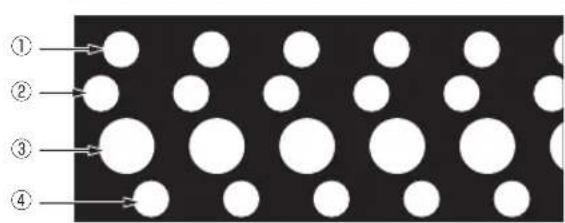

Strobe pattern

① When the strobe pattern appears stopped, 33 1/3 rpm (50 Hz power supply)
② When the strobe pattern appears stopped, 45 rpm (50 Hz power supply)
③ When the strobe pattern appears stopped, 33 1/3 rpm (60 Hz power supply)
④ When the strobe pattern appears stopped, 45 rpm (60 Hz power supply)
- A strobe illuminator (red LED light) is used to illuminate the strobe pattern of this unit. When checking the pitch, always use the strobe illuminator light.

Displaying a record jacket

Place the record jacket behind the stoppers attached to the dust cover as shown in the figure.

StoppersRecord jacket

Technical line drawing of a mechanical assembly with rollers and a triangular component (no text or symbols)

• Do not place anything other than a record jacket.
• Place the record jacket secured behind the stoppers properly.
• When using this feature during playback, be careful that the record jacket does not fall. The record or stylus may be damaged.
• Be careful not to close the dust cover while a record jacket is placed on it.

To play a standard EP record

Attach the EP record adapter to the center spindle and press the [45] button.

Illuminating the stylus tip

When the stylus illuminator switch is pressed, the stylus illuminator lights in white and ascends to the position at which the stylus tip is illuminated.

• If it is not needed, press the stylus illuminator switch to lower it. The stylus illuminator switch goes off.
• Do not look directly at the light while the stylus illuminator is lit.

Recording

Analog records can be digitally recorded by connecting with a computer that has the music management software "rekordbox" installed. For details, access the rekordbox product site below and see the rekordbox Operating Instructions in [Support]. https://rekordbox.com/en/store/

Replacing the stylus

Check that the power is not on before performing the following procedure.

1 Hold the cartridge with one hand.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

2 Remove the cartridge in the direction of the arrow while holding the stylus holder part with your other hand.

Line drawing of a hand holding a mechanical component with a black arrow indicating rotation (no text or symbols)

Changing the cartridge

This unit is not compatible with MC cartridges. Use a VM cartridge or an MM cartridge.

Removing the cartridge

1 Remove the screws, nuts, and washers attached to the headshell.
2 Disconnect the lead wires connected to the cartridge.

Attaching the cartridge

1 Connect the cartridge while matching the colors of the lead wires of the headshell and the symbols on the cartridge terminals.

Match the colors of the lead wires of the headshell and the symbols on the cartridge terminals as follows.

When looking from the front, the top left is L+: white, the bottom left is L-: blue, the top right is R+: red, and the bottom right is R-: green.

- Connect the lead wires securely using tweezers or the like.

2 Attach the cartridge to the headshell using the screws, nuts, and washers included with the cartridge.

• When attaching the cartridge to the headshell, attach it properly.
• When using a cartridge between 5 g or less, use the supplied shell weight.

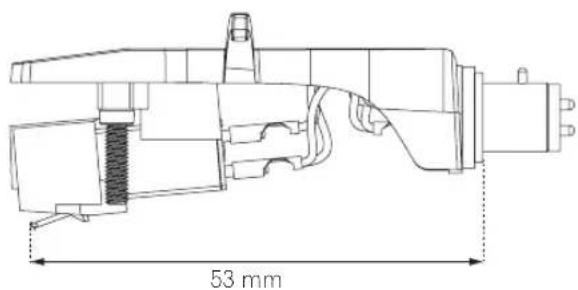

Adjusting the overhang

Use the following overhang adjustment scale to adjust the position using the cartridge attaching screw so that the stylus tip comes to a position 53 mm from the tone arm attachment part.

Overhang adjustment scale

Additional information

Troubleshooting

• Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points below and the [FAQ] for the [PLX-500] on the Pioneer DJ support site. pioneerdj.com/support/ Sometimes the problem may lie in another component. Inspect the other components and electrical appliances being used. If the problem cannot be rectified, ask your nearest service center or your dealer to carry out repair work.
• This unit may not operate properly due to static electricity or other external influences. In this case, proper operation may be restored by turning the power off, waiting 1 minute, then turning the power back on.

Problem Check Remedy

The power is not turned on.	Is the power cord properly connected?	Properly connect the included power cord to a power outlet.
	Is the [POWER] switch for power supply set to [ON]?	Set the [POWER] switch for power supply to [ON].
No sound or small sound. Are the audio cables properly connected? Connect the audio cables properly.
			Are the terminals and plugs dirty? Clean the terminals and plugs before making connections.
			Is the headshell attached properly? Attach the headshell property.
The left and right sound are reversed. Are the left and right connections for each piece of equipment reversed?		Correctly connect the audio cable and the lead wires of headshell part.
There is a low hum sound (humming or buzzing sound) during playback.	Is there an electric device such as a fluorescent lamp or its power cord near the connection cord?	Place the power cord of the fluorescent lamp or other device as far away as possible.
The stylus tip does not come down on the record.	Is the stylus pressure adjusted property? Match the balance weight to the appropriate stylus pressure value for your cartridge.
	Is the arm horizontally balanced? Turn the balance weight until the tone arm becomes horizontal state.
Stylus jumping occurs.	Is the stylus pressure adjusted property?	Match the balance weight to the appropriate stylus pressure value for your cartridge.
	Is the record warped or does it have scratches? Check the condition of the record.
	Does the stylus tip have a lot of dust on it?	Remove the shell with cartridge and use a soft tip brush or writing brush to carefully remove dust, etc. from the stylus tip.
	Is anti-skating adjusted correctly? Adjust anti-skating correctly.
	Is the arm height adjusted correctly?	Adjust the arm height correctly.
The arm stops along the way and does not go ahead.	Does the record have scratches?	Check the condition of the record.
	Is the arm coming into contact with something?	Check around the arm. If there is an obstacle, remove it.
Sound volume is low or loud (distorted).	Is the connection to the amplifier appropriate for the cartridge type (output)?	Connect the connection cables properly.
	Is the setting of the [PHONO/LINE] switch correct?	Set the [PHONO/LINE] switch correctly according to the input terminal of the connected device.
The rotating turntable shakes a lot.	Dirt, etc. is adhered to the attachment parts of the turntable and center spindle.	Remove the dirt.

Cautions on use

About condensation

Water droplets (condensation) may form inside the unit (on operating parts and lenses) in the winter, for example, if the unit is moved from a cold place into a warm room or if the temperature in the room in which the unit is installed rises suddenly (through heating, etc.). The unit will not operate properly and will not be playable with condensation inside. Let the unit stand for 1 to 2 hours at room temperature (though this time depends on the conditions of the condensation) without turning on the power. The water droplets will evaporate and the unit will become playable. Condensation can occur in the summer as well if the unit is exposed to the direct wind from an air-conditioner, etc. If this happens, move the unit to a different location.

When transporting the unit to another location

Use the original packing materials to pack the unit.

If the original packing materials are not available, be sure to perform the following.

• Detach the slip mat and turntable before packing.
• Detach the headshell and balance weight from the arm and pack carefully.
• Use the arm clamper to secure the tone arm and use tape to secure it so that it does not move.
• Wrap the main unit in a blanket or soft paper so that it will not be damaged.
• Pack so that a force will not be applied to the tone arm.

Maintenance of each part

When attaching and detaching the headshell, turn off the power of the amplifier.

If you attempt to do so while the volume is loud, the speaker could be damaged.

• Remove the shell with cartridge and use a soft tip brush or writing brush to carefully remove dust, etc. from the stylus tip.
• Use a good quality record cleaner to clean records.
• Use a soft cloth or something similar to clean the headshell terminal and then reattach it to the tone arm.

Cleaning the dust cover, etc.

Use a soft cloth to clean the dust cover and cabinet

- Do not clean the dust cover while playing. Static electricity could cause the tone arm to be pulled by the dust cover.

About trademarks and registered trademarks

• "Pioneer DJ" is a trademark of PIONEER CORPORATION, and is used under license.
• rekordbox™ is a trademark or registered trademark of the AlphaTheta Corporation.
  The names of companies and products mentioned herein are trademarks or registered trademarks of their respective owners.

Specifications

Power requirements .....AC 110 V to 120 V or 220 V to 240 V, 50 Hz/60 Hz Power consumption .....11 W Main unit weight .....10.7 kg Max. external dimensions ...450 mm (W) × 158.5 mm (H) × 367.5 mm (D) Tolerable operating temperature .....+5 °C to +35 °C Tolerable operating humidity .....5 % to 85 % (no condensation)

Turntable part

Drive method....Servo type direct drive Motor....3-phase brushless DC motor Braking system....Electronic brake Rotation speed....33 1/3 rpm, 45 rpm, 78 rpm Rotation speed adjustment range....±8 % Wow and flutter....0.15 % or less WRMS S/N ratio....50 dB or higher Turntable....Aluminum die-casting Diameter: 332 mm Starting torque....1.6 kg·cm or more Starting time....1 second or less (at 33 1/3 rpm)

Tone arm part

Arm type .... Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type Effective length.... 230.5 mm Overhang.... 16 mm Tracking error.... Within 3° Arm height adjustment range.... 6 mm Stylus pressure variable range.... 0 g to 4.0 g (1 scale 0.1 g) Proper cartridge weight.... 9.5 g or less (single cartridge) Cartridge type.... VM

Output voltage

PHONO....2.5 mV/1 kHz LINE....150 mV/1 kHz — The specifications and design of this product are subject to change without notice. • © 2016 AlphaTheta Corporation. All rights reserved.

Technical line drawing of a mechanical assembly with gears and a shaft, showing motion direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure mechanical diagram showing a curved component with rotational arrows, no text or symbols present

Fonctionnement

Mise sous tension

Technical line drawing of a mechanical assembly with rollers and a triangular component (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand holding a mechanical component with a black arrow indicating rotation (no text or symbols)

https://rekordbox.com/en/store/

Anti-Skating-Anpassung (S.11)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

[HEIGHT ADJUST]-Drehrad

Technical line drawing of a mechanical device with no visible text or symbols

Pure mechanical diagram showing a curved component with rotational arrows, no text or symbols present

Bedienung

Technical line drawing of a mechanical assembly with rollers and a curved component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a mechanical component with a black arrow indicating rotation (no text or symbols)

LINE....150 mV/1 kHz

https://rekordbox.com/it/store/

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Manopola [HEIGHT ADJUST]

Technical line drawing of a mechanical device with no visible text or symbols

Pure mechanical diagram showing a curved component with rotational arrows, no text or symbols present

Impiego

Accensione

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a mechanical component with a black arrow indicating rotation (no text or symbols)

WAARSCHUWING NETSNOER

Specifications....17

Alvorens te beginnen

Kenmerken

https://rekordbox.com/en/store/

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Instelknop [HEIGHT ADJUST]

Technical line drawing of a mechanical device with no visible text or symbols

3 Draai de vergrendelknop [HEIGHT ADJUST] vast om de arm op de ingestelde hoogte te vergrendelen.

Pure mechanical diagram showing a curved component with rotational arrows, no text or symbols present

Bediening

https://rekordbox.com/en/store/

De naald vervangen

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a mechanical component with a black arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Dial [HEIGHT ADJUST]

Technical line drawing of a mechanical device with no visible text or symbols

Pure mechanical diagram showing a curved component with rotational arrows, no text or symbols present

Operación

Technical line drawing of a mechanical assembly with rollers and a curved track (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a small mechanical component with a black arrow indicating rotation (no text or symbols)

Cambio del cartucho

LINE....150 mV/1 kHz

https://rekordbox.com/en/store/

https://rekordbox.com/en/support/manual.php

Montagem

Regular o anti-skating (pág.11)

14 Lingueta de bloqueio de HEIGHT ADJUST

Technical line drawing of a mechanical device with no visible text or symbols

Regular o anti-skating

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Pure mechanical diagram showing a curved component with rotational arrows, no text or symbols present

Funcionamento

Ligar a alimentação

https://rekordbox.com/en/store/

Substituir a agulha

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a mechanical component with a screw and arrow indicating rotation (no text or symbols)

Mudar a célula

https://rekordbox.com/en/store/

Technical line drawing of a mechanical device with no visible text or symbols

Центральная шкала

Центральная шкала

Technical line drawing of a mechanical device with no visible text or symbols

Положение ручки [HEIGHT ADJUST]

Technical line drawing of a mechanical device with rotating components and a dial indicator (no text or symbols)

Pure mechanical diagram showing a rotating component with arrows indicating rotational motion (no text or symbols)

Управление

Включение питания

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand holding a mechanical device with a black arrow indicating rotation (no text or symbols)

Замена картриджа

© 2016 AlphaTheta Corporation. All rights reserved.

AlphaTheta EMEA Limited

Artemis Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QE, U.K. TEL: [phone]

AlphaTheta Music Americas, Inc.

2050 W. 190th Street, Suite 109, Torrance, CA 90504, U.S.A. TEL: [phone]

AT_001_all_01
