USER MANUAL URC-6420 ONE FOR ALL

URC-6420 Instruction Manual Code List Select your region Deutsch Português All oTHER couNTRIES Great Britain / Ireland

WWW.ONEFORALL.COM

Is your device brand listed? (see page 4). Deutsch English

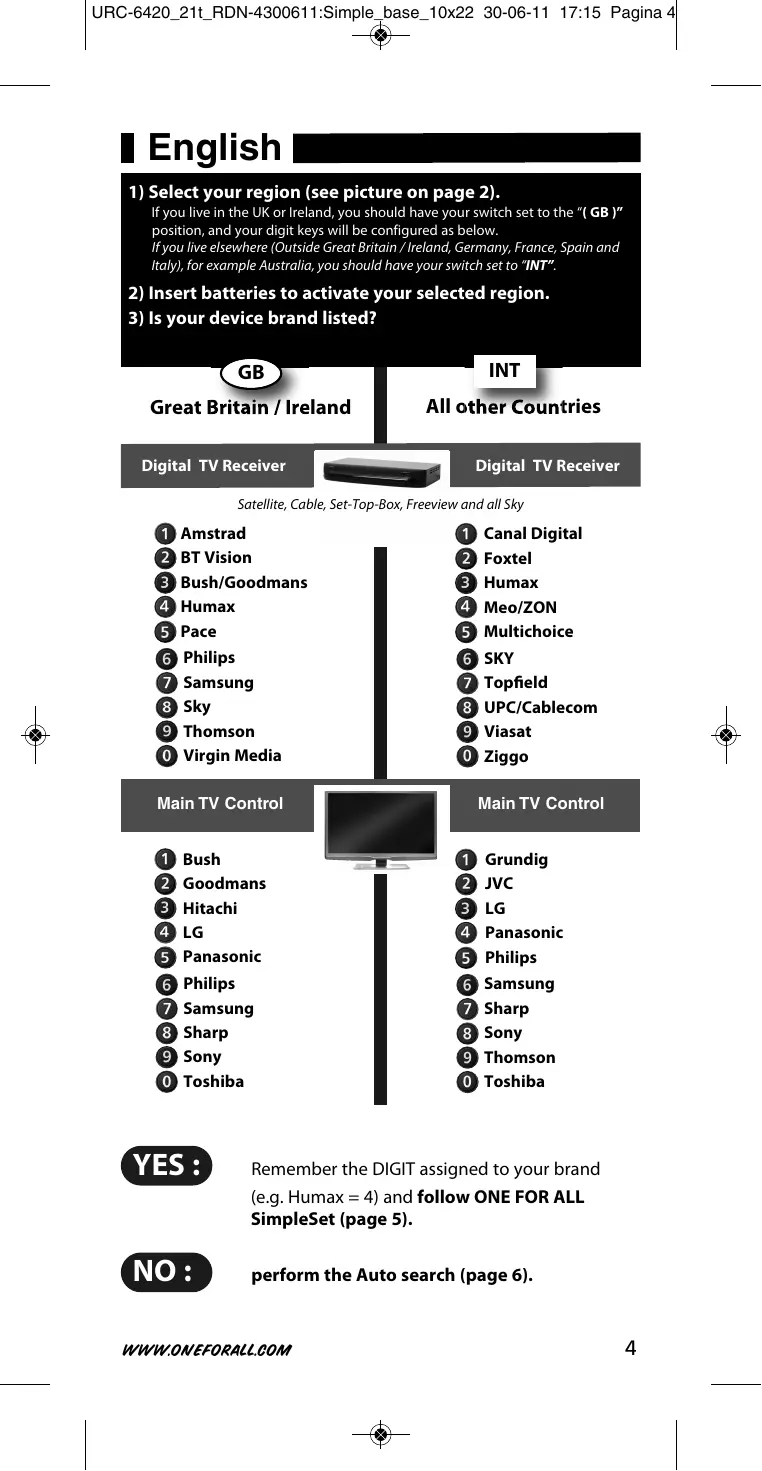

1) Select your region (see picture on page 2).

If you live in the UK or Ireland, you should have your switch set to the “( GB )” position, and your digit keys will be configured as below. If you live elsewhere (Outside Great Britain / Ireland, Germany, France, Spain and Italy), for example Australia, you should have your switch set to “INT”.

2) Insert batteries to activate your selected region.

3) Is your device brand listed?

Great Britain / Ireland Digital TV Receiver INT All other countries Digital TV Receiver Satellite, Cable, Set-Top-Box, Freeview and all Sky Main TV Control Main TV Control Remember the DIGIT assigned to your brand (e.g. Humax = 4) and follow oNE FoR All SimpleSet (page 5). No : perform the Auto search (page 6).

WWW.ONEFORALL.COM

Digital TV Receiver oNE FoR All SimpleSet Satellite, Cable, Set-Top-Box, Freeview and all Sky Allows you to set up most popular device brands within a few minutes. Simply find the DIGIT KEY assigned to your brand (page 4) and follow steps A-B.

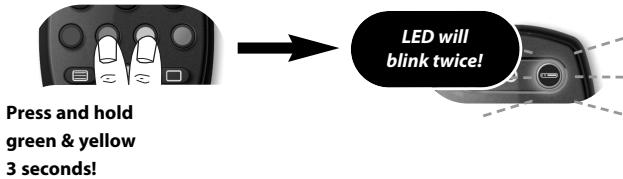

LED will blink twice! Press and hold green & yellow 3 seconds!

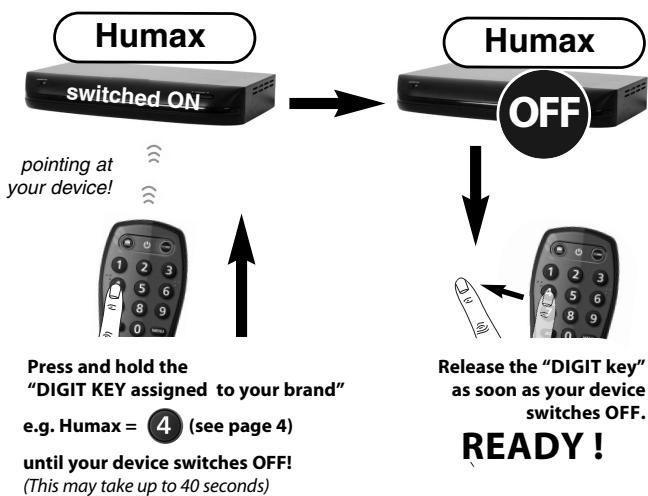

Make sure your device is switched ON (not on standby). Humax switched ON Humax Acer Acer oFF Acer pointing at your device! Acer Press and hold the “DIGIT KEY assigned to your brand” e.g. Humax = (see page 4) until your device switches oFF! (This may take up to 40 seconds) Release the “DIGIT key” as soon as your device switches oFF. READY ! Your particular device does NoT switch oFF? Follow the Auto search procedure on page 6. Your particular device does NoT switch back oN? Switch your device back ON manually (or using the original remote) and repeat SimpleSet making sure to release the “DIGIT KEY assigned to your brand” as soon as your device switches OFF. Your oNE FoR All is not working properly? There may be a better configuration for your device brand. Please repeat SimpleSet. If still not successful please follow the Auto search procedure.

WWW.ONEFORALL.COM

Digital TV Receiver Auto search Satellite, Cable, Set-Top-Box, Freeview and all Sky Is the way to set up all brands not covered by SimpleSet

LED will blink twice! Press and hold green & yellow 3 seconds!

LED will blink twice! Press and release oK !

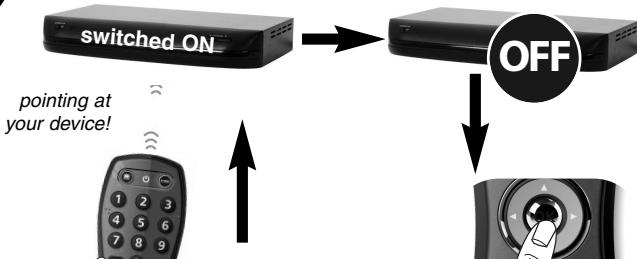

Make sure your device is switched ON (not on standby). Acer switched ON oFF Acer pointing at your device! Acer Acer NOW, Press and release oK as soon as your device switches oFF (within 3 seconds)! the remote will send a different POWER signal (AUTOMATICALLY EvERY 3 sECONDs) going through all the brands stored in the memory! READY ! Your device switched OFF but it does not switch back ON? You may have pressed the OK key (to save your settings) too late.

1) Switch your device back ON manually (or using the original remote).

Press and hold “green & yellow” for 3 seconds. LED will blink twice (Main TV Control = press and hold red & blue for 3 sec.).

Point the ONE FOR ALL at your device and press cH(repeatedly) until your device switches OFF.

Press and release oK as soon as your device switches OFF. If this is not successful you may want to repeat Auto Search and make sure to press OK as soon as your device switches OFF to save your settings! Your ONE FOR ALL is not working properly? There may be a better configuration for your device brand. Please repeat the Auto Search procedure! Auto search not successful? Perform the COPY feature.

WWW.ONEFORALL.COM

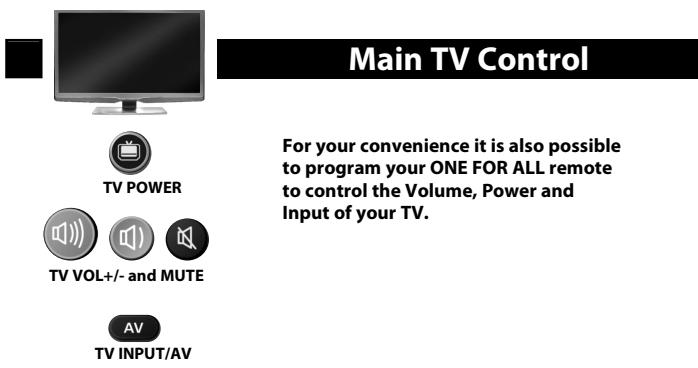

Main TV control For your convenience it is also possible to program your oNE FoR All remote to control the Volume, Power and Input of your TV. TV PoWER TV Vol+/- and MuTE TV INPuT/AV If your TV brand is listed for your region (see page 4) please follow the same steps (A - B from SimpleSet on page 5), except;

• during step A press and hold red & blue for 3 seconds.

• During step B press and hold the “DIGIT KEY assigned to your TV brand” (e.g. 1 for Bush) If your TV brand is NoT listed for your region (see page 4) please follow the same steps (A - c from Auto search on page 6), except;

• during step A press and hold red & blue for 3 seconds. learning (coPY) The learning feature allows you to learn (copy) one or more functions from your (working) original TV and/or Digital TV Receiver remote control onto your oNE FoR All remote. Example: How to learn (copy) the “I/II (mono/stereo)“ function from your original remote onto the “red key” on your ONE FOR ALL remote control.

2 - 5 cm

Align both remotes also in height Place both remote controls on a flat surface. Make sure that the ends you normally point at your device are facing each other.

WWW.ONEFORALL.COM

Both LED’s will blink twice! Press and hold COPY 3 seconds!

First; Press the ”red” key.

2 - 5 cm

Acer Both LED’s will flash rapidly! then; Press & briefly hold the “I/II (mono/streo)” key. Both LED’s will light up twice to confirm successful COPYING.

• If you want to copy other functions, simply repeat step C for each key you want to copy.
• If you get a long blink, please repeat step C.
• You can COPY onto every key except the COPY key.

Press and hold COPY 3 seconds to exit the COPY feature ! Both LED’s will blink twice! READY ! Delete a coPIED function:

1) Press and hold COPY for 3 seconds until both LED’s blink twice.

2) Press the corresponding key (e.g. red key) you wish to delete for 3 seconds

until both LED’s blink twice.

3) Press and hold COPY for 3 seconds. Both LED’s will blink twice.

WWW.ONEFORALL.COM

Digital TV Receiver Digital TV Receiver TV Vol+/- and MuTE TV INPuT/AV Align both remotes also in height canalSat/canal+ cGV Freebox Metronic Numericable Blue Sky Panasonic Philips Pioneer Digital TV Receiver Digital TV Receiver TV Vol+/- and MuTE TV INPuT/AV Axil Best Buy Digital+ lauson Metronic TV Vol+/- and MuTE TV INPuT/AV ADB/i-cAN DigiQuest Dream Multimedia Humax Pace TV Vol+/- e MuTE INGRESSo TV/AV TV Vol+/- and MuTE TV INPuT/AV TV Vol+/- and MuTE TV INPuT/AV INT Česká republika Digital TV Receiver Satellite, Cable, Set-Top-Box, Freeview and all Sky Digital TV-mottaker

Lampen blinker to ganger. Digital TV-mottaker lampen blinker to ganger. lampen blinker to ganger. Begge lampene blinker to ganger. Begge lampene blinker to ganger. INT Sverige Digital tv-mottagare Satellite, Cable, Set-Top-Box, Freeview and all Sky INT Suomi Digital TV Receiver Satellite, Cable, Set-Top-Box, Freeview and all Sky TV SES +/- ve SESSİZ

TV GİRİŞ/AV

Receptor TV digital Receptor TV digital canal Digital ZAPNUTÉ canal Digital Acer Acer VYP. Acer New Zealand FAX: 06 878 2760 South Africa 011 417 3074 / FAX: 011 417 3275 / support@oneforall.co.za Slovenská/Slovakia +420 571 114 299 oneforall@solidczech.cz Ykpaïha/ukraine www.oneforall.com Ελληνική/Hellas/ Greece FAX: 2410 579092 info@oneforall.gr www.digitech.gr India

• Toll Free number (Airtel/BSNL/Tata Indicom/BPL subscribers only): 1800-102-3299
• Other subscribers: 080-40351700 support@oneforall.co.in Although all customer service information is updated before printing it may happen that during the time of use changes have occurred. Please check our website (www.oneforall.com) for our latest customer service information.

WWW.ONEFORALL.COM

India UEI Electronics Private Ltd offers you, the customer, oNE YEAR WARRANTY for your Remote. The Remote is warranted against manufacturing defects arising from faulty design, poor workmanship and materials for a period of one year (“the period”) from the date of its original purchase by you, on the following terms and conditions. To obtain warranty service, please call us at the numbers applicable to your local area mentioned on the Customer Service Page of the User Manual or available on www.oneforall.co.in This warranty will be valid only when the original invoice/ purchase receipt (indicating date of purchase, product description, dealer’s name etc.) is presented with the defective Remote. Universal reserves the right to refuse free-of-charge warranty replacement if the above document cannot be presented or if the information contained in it is incomplete, illegible or incorrect. This Warranty does not apply if the type, serial number on the Remote has been altered, deleted, removed or otherwise made illegible. Universal’s liability, under this warranty, shall be strictly limited to the first/original sale by the dealer/retailer to you (the first user), and will not apply or extend to any secondary or subsequent sale/transfer of the Remote by you. You shall be liable for all expenses incurred in delivering the defective Remote to us at the applicable addresses, however, we shall bear the cost of delivery to you for the replacement Remote. While Universal shall make all efforts to replace the defective Remote at the earliest, it is made expressly clear that Universal is under no obligation to do so in a specified period of time. Universal reserves the right to retain the defective Remote, at its own discretion. Please note that the replacement of the Remote, shall not extend the warranty period beyond one year from the original purchase. No fresh warranty shall apply to the replacement Remote. This Warranty covers only manufacturing defects in the Remote which occur under conditions of normal operation of the Remote and in consonance with their proper and prescribed use. This Warranty does not cover the damage resulting from adaptations, adjustments, modifications made to the Remote or normal wear and tear, misuse, reckless use, damages caused due to natural disasters, Acts of God. This Warranty does not extend to accessories or products used with the Remote, batteries, broken or marred cabinets, cartons, carrying cases or any other item used in connection with the Remote. This Warranty does not apply if the Remote has been tampered with, altered, serviced by any agency, person not authorized by Universal. It is your responsibility to check and verify from Universal, the authenticity of the authorization, which any servicing agency may represent to you. This Warranty is in lieu of all implied conditions and warranties under applicable law and is confined to replacement of the defective Remote and does not cover any special, consequential, incidental or resulting liability, damage, loss arising from such defects. This warranty, in no event, shall extend to the payment of any monetary consideration or compensation whatsoever. This Warranty does not affect your statutory rights under applicable Indian laws. This Warranty is valid only within the territory of India. In the event of a dispute arising in relation to or connected with this Warranty, the decision of Universal shall be final and binding. For more information, write to: uEI Electronics Private ltd 5th Floor, East Wing Khanija Bhavan # 49 Race course Road Bangalore 560 001 Universal Electronics BV Europe & International P.O. Box 3332 7500 DH, Enschede The Netherlands Universal Electronics BV Europe & International P.O. Box 3332 7500 DH, Enschede The Netherlands URC-6420 RDN-4300611 Direct Code Set Up

• If SimpleSet or Auto Search was not succesfull you may succeed using Direct Code Set Up. Main TV Control Digital TV Receiver

Satellite, Cable, Set-Top-Box, Freeview and all Sky e.g. Humax e.g. Goodmans

Gooding Goodmans TV VOL+/- and MUTE

TV INPUT/AV

LED will blink twice! LED will blink twice! Press and hold red & blue 3 seconds! Press and hold green & yellow 3 seconds!

Enter the code (4-digits) for your device.

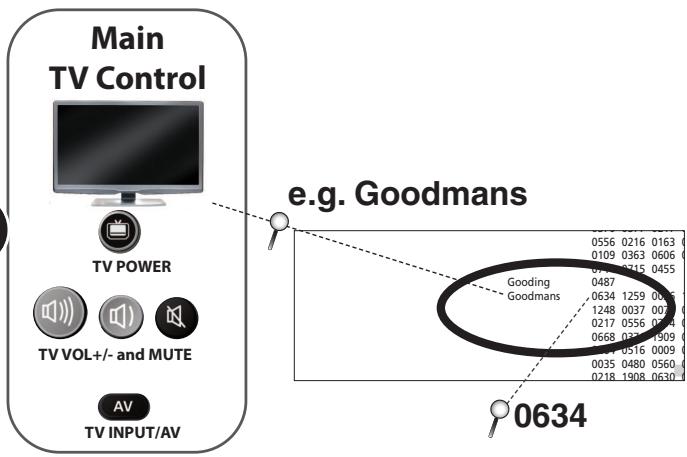

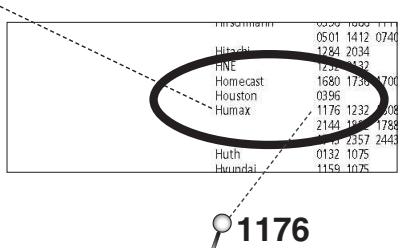

Find the code (4-digits) for your device (e.g. Goodmans TV) in the following pages. Codes are listed by device type and brand name. The most popular code is listed first. Make sure your device is switched on (not on standby). Find the code (4-digits) for your device (e.g. Humax Digital TV Receiver) in the following pages. Codes are listed by device type and brand name. The most popular code is listed first. Make sure your device is switched on (not on standby).

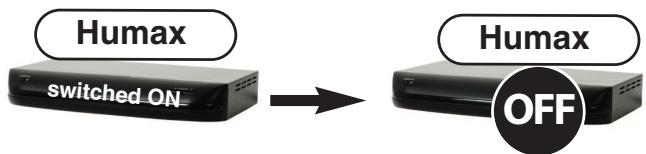

Enter the code (4-digits) for your device. Make sure your device is switched ON (not on standby). Humax switched ON

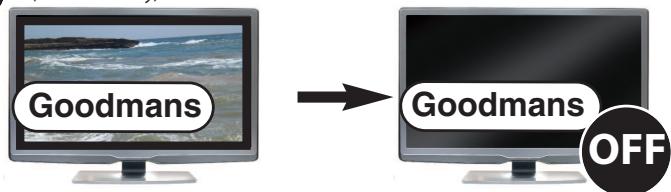

Make sure your device is switched ON (not on standby). Humax Goodmans OFF Pressing POWER should switch OFF your device. Goodmans OFF OFF ready OFF ready IF not all keys are working properly If your device does NOT switch OFF? --> Please repeat steps A - D trying the next code for your brand. Pressing POWER should switch OFF your device.

TV POWER IF not all keys are working properly If your device does NOT switch OFF? --> Please repeat steps A - D trying the next code for your brand.

A.R. Systems Accent Accusound Acer Acoustic Solutions Acura Adcom Addison ADL Admiral Advent AEA AEG Aftron Agashi Aiko Aim Anam Anam National Andersson Anglo Anitech Ansonic

Caihong Caishi Cameron Camper

Carad Carena Carrefour Carver

Cascade Casio CAT Cathay CCE Celestial

cello Centrex Centrum Centurion CGE

Changcheng Changfei Changfeng Changhai Changhong Chengdu

Chimei Ching Tai Chun Yun Chunfeng Chung Hsin ChungFeng Chunsun Cimline Cinetec Cinex City Clarity Clarivox Clatronic

Clayton Cobolt Combitech Concorde Condor

Conrac Conrad Conrowa Contec Continental Edison 0109 Cosmel CPTEC Crosley Crown

CS Electronics Curtis Mathes CWN CWR-Tech Cyberpix Cybertron Cytronix D.Boss Daewoo

Dainichi Danichi Dansai

DMTECH Domeos Dongda Donghai Dream Vision DSE DTS Dual

Desmet Dew DGM Diamant Diamond DiBoss Dick Smith Electronics Digatron Digihome Digiline DigiLogic Digimate Digital Device Digitek Digitex Digitor Digivision DigiX DiK Dikom Dixi

bogo Boigle Boman Boots Bork Bosch BPL

e-motion Enzer Erisson Erres ESC Essentials Estèle Ether Etron Eurofeel EuroLine Euroman Europa Europhon Evesham Evotel Excel Excello

Hua Tun Huafa Huanghaimei Huanghe Huanglong Huangshan Huanyu Huaqiang Huari Hugoson Humax HYD Hyper Hypersonic Hypson Hyundai Expert Exquisit Fagor Family Life Feilang Feilu Feiyan Feiyue Fenner Ferguson Fintec Firstar Firstline Fisher Flint Foehn & Hirsch Force Formenti Fortress Fraba Freesat Friac Frontech Fuchsware Fujicom Fujimaro Fujimaru Fujitsu Fujitsu General Fujitsu Siemens Funai Furi Furichi Futronic Future Gaba Galaxi Galaxis Galeria Garza GBC Geant Casino GEC Geloso General General Electric General Technic Genesis Genexxa Gericom G-Hanz Giant Godrej Gold Goldfunk GoldStar Gooding Goodmans

Innova Innovation Innowert Inotech Inspira Interactive

Internal Intervision Ipure Irradio

ITT Nokia ITV JDV Jean JEC JGC Jialicai Jinfeng Jinque Jinta Jinxing JMB

Kolin Kolster Kongque Konichi

Kontakt Korpel Korting

Kosmos Kotron Koyoda

Kross Kuaile Kuba Kuba Electronic

Kulun Kunlun Kyoshu Kyoto

L&S Electronic LaSAT

Lavis Leader Lecson Legend Lemair

Lenco Lenoir Lentec Levis Austria

Liesenkötter Lifetec

Linetech Linsar Lloyd's Local Calcutta TV 0208 Local Chennai TV 1413 Local Delhi TV Lodos Loewe

Logix Longjiang Luker Luma Lumatron Lumenio Lux May Luxor

LXI Madison Magnadyne Magnavox

Mandor Manesth Manhattan Maqma Marantz Mark Marks and Spencer 1846 Mascom Mastec Master's Masuda Matsui

Matsushita Matsuviama

JNC Jocel JTV Jubilee Juhua JVC

MegaDrive Megas Megatron MEI Meile Melectronic Memorex Memory Memphis Mercury Mermaid Merritt Metronic Metz MGA Micromaxx Microspot Microstar MicroTEK Mikomi Minato Minerva Ministry of Sound Minoka Mirai Mirror Mitsai Mitsubishi Mitsuri General Mivar Mogen Monaco Moree Morgan's Moserbaer Motorola MTC MTlogic Mudan Multitec Multitech Murphy Musikland Mx Onda MyCom Myryad NAD Naiko Nakimura Nanbao Nansheng Naonis Narita NAT National NEC Neckermann

NEI NEO Neon Neovia Nesco Nesx Netsat Neufunk New Tech New World Newave Nikkai Nikkei Nikko Nintaus Nogamatic Nokia Nordmende

Norfolk Normerel Novak Novatronic Novex Novita Nurnberg NU-TEC O.K.Line Oceanic

Orline Ormond Orson Osaki

Phocus Phoenix Phonola Pilot Pioneer

Pionier Plantron Playsonic Polar Polaroid Policom Poppy Portland Powerpoint Prandoni-Prince Premier President Prestigio Prima PrimeView Princess Prinston Prinz Profex Profi Profilo Profitronic Proline

Proton Proview Provision

PVision Pye Pymi Qingdao Quadral Quadro

Render Reoc Revox Rex RFT Ricoh Rinex R-Line Roadstar Sanyuan Save Saville SBR ScanSonic Schaub Lorenz Schneider Packard Bell Palladium Palsonic

Shen Ying Shencai Sheng Chai Sheng Chia Shenyang Sherwood Shinelco Shintoshi Shivaki Show Siarem Siemens Siera

Siesta Silva Silva Schneider Silver SilverCrest Simz Singer Sinotec Sinudyne Skantic Sky Skymaster Skysonic Skyworth Sliding SLX Smaragd S-Media Soemtron Sogo Solavox Sonawa Songba Sonic Soniko Soniq Sonitron Sonix Sonneclair Sonoko Sonolor Sontec Sontech Sony Sound & Vision Soundesign Soundwave Sowa Soyea Soyo Spectra Ssangyong Staksonic Standard Starion Starlite Stenway Stern Stevison Strato Strong Sungoo Sunic Line Sunkai Sunny Sunstar Sunstech Sunwatt Sunwood Supersonic SuperTech Supervision Supra Supratech Susumu Sutron SVA Svasa Swedx Sweex Swisstec

White Westinghouse Wilson Windsor Windy Sam Wintel World-of-Vision

Teiron Tek TELE System Teleavia Telecor Telefunken

Telefusion Telegazi Telemeister Telesonic Telestar Teletech Teleton Televideon Teleview Telstar Tempest Tennessee Tensai Tenson Tesla Tevion

Dantax Darty Box D-box Deltasat Denver DGStation DGTEC SAT @sat @Sky 27M Technologies ABsat Access Media Acoustic Solutions ADB

Akai Akira Akura Alba

Allsat Allsonic Alltech Allvision Alpha Amitronica Ampere Amstrad

Anglo Ankaro Ansonic Antares Apollo Apro Arcom Arcon Arena Arion Armstrong Arnion ASA Asat ASCI ASLF AssCom Aston Astra Astratec Astrell Astro

Atlanta Atlantic Telephone 1333 Atom Audiola Audioline Aurora Austar Auvisio Avalon Avanit AWA Axil Axis Axitronic aZbox B.net B@ytronic Balmet Base Bauckhage

Bodner & Mann Boshmann Boston Boxer Brainwave British Sky Broadcasting Broco BSkyB Bubu Sat Bush

Dick Smith Electronics Dicra Digenius Digi Digi Raum Electronics Digi1 Digiality DigiFusion Digihome DigiLogic DigiMax DigiQuest

Fagor FaVal Fenner Ferguson

Fidelity Finepass Finlandia Finlux FinnSat Flair Mate FMD FoneStar Force Fortec Star Foxtel FPE Fracarro France Telecom Fransat Free Wave Technology Freecom Freesat Freesat+ FTEmaximal Fuba

Huth Hyundai i-Box i-CAN Icecrypt ID Digital ID Sat IDTE i-Joy ILLUSION sat Image Imperial iNETBOX Ingelen Inno Hit InOutTV International Interstar Intervision

Inverto Inves inVion iotronic IP Vision Irradio ITT ITT Nokia Jadeworld Jaeger Jepssen KabelBW

Metz MiCO Micro Micro electronic Micro Technology Micromaxx Microsat Microstar Microtec Mitsubishi Morgan's Moserbaer Motorola mp man Multichoice Multitec Mustek Mx Onda Myryad Mysat MySky NanoXX NEC Neom Neotion Netgem Neuf TV Neuhaus Neuling Neusat Neveling Nevir Newton Next NextWave Nichimen Nikko Nilox Noda Electronic Nokia Noos Nordmende Nova NPG Numericable NU-TEC Octagon OctalTV Oggle OKI Olin Omni Onn Openbox Opensat Opentech Opentel Optex

SmartVision Sogecable Sogo Soniq Sony SOVOS Star Sat Star View Starbox Starcom Starland Stream Stream System Strong

Sumin Sun Direct Sunny Sunny Sound Sunsat Sunstar Sunstech SuperMax SupportPlus Supratech Systec Sytech S-ZWO Tahnon Tantec TATA Sky Tatung TBoston

Teletech Televes Telewire Telsey TelSKY Tesla Tevion Thomson
