Product Type	Network Switch
Brand	TP-Link
Model	JetStream T1500G-10MPS
Dimensions (W x D x H)	268 x 162 x 44 mm
Weight	1.2 kg
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	135 W (maximum with PoE)
Number of Ports	10 Gigabit ports (8 PoE+, 2 SFP)
PoE	8 PoE+ ports (802.3at/af), 124 W budget
Management Type	Smart Managed (Web, CLI)
Management Protocols	SNMP, RMON, VLAN, QoS, IGMP
Security	ACL, 802.1X, Storm control, Port security
Cooling	Internal fan
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% RH (non-condensing)
Mounting	Desktop or rack mount (brackets included)
Maintenance and Cleaning	Unplug the device, clean with a dry, lint-free cloth
Electrical Safety	Unplug before cleaning; do not expose to water
Spare Parts and Repairability	No user-serviceable parts; contact TP-Link support
Limited Warranty	Limited manufacturer warranty (see manual)
Box Contents	Switch, power cord, rack mount brackets, screw kit, rubber feet, installation guide

Frequently Asked Questions - JetStream T1500G-10MPS TP-LINK

How to access the switch's web configuration interface?

Connect the switch to your network and set your computer's IP address in the 192.168.0.x subnet (mask 255.255.255.0). Open a browser and enter http://192.168.0.1. Log in with the default username and password: admin (lowercase).

How to reset the switch to factory defaults?

Press and hold the Reset button on the front of the switch for about 10 seconds, then release. The switch will reboot with default settings.

What types of cables are supported by the Ethernet ports?

The RJ45 ports support Cat5e, Cat6, and Cat6a cables for speeds up to 1 Gbps.

How to use the SFP ports?

The SFP ports accept standard SFP modules (1000BASE-SX, LX, etc.). Insert the SFP module into the slot until it clicks. To remove, gently pull the metal tab.

What is the total PoE budget of the switch?

The switch provides a total PoE budget of 124 W, distributed across the 8 PoE+ ports (30 W max per port per 802.3at standard).

How to secure the switch against unauthorized access?

Enable security features such as ACL, 802.1X, and Port Security in the management interface. Immediately change the default admin password.

Can the switch be rack-mounted?

Yes, rack mount brackets are included. Attach the brackets to each side of the switch using the included screws, then screw the switch onto the rack rails with suitable bolts (not included).

How to update the switch firmware?

Download the latest firmware from the TP-Link website. Log in to the web interface, go to System Tools > Firmware Upgrade, select the file and click Upgrade. Do not power off during the update.

What to do if the switch does not power on?

Check that the power cord is securely connected at both ends. Test the electrical outlet with another device. If no lights come on, contact TP-Link support.

How to clean the switch?

Before cleaning, unplug the switch from the power outlet. Use a dry, lint-free cloth to wipe the surface. Do not use liquids or sprays.

USER MANUAL JetStream T1500G-10MPS TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch....01

English....06

Español....11

Ελληνικά....16

Français....21

Italiano....26

Português....31

Suomi....36

Nederlands....41

Svenska....46

Norsk....51

Dansk....56

Türkçe....61

Installation

- Tischmontage

- SFP-Port

- Einschalten

Konfiguration

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

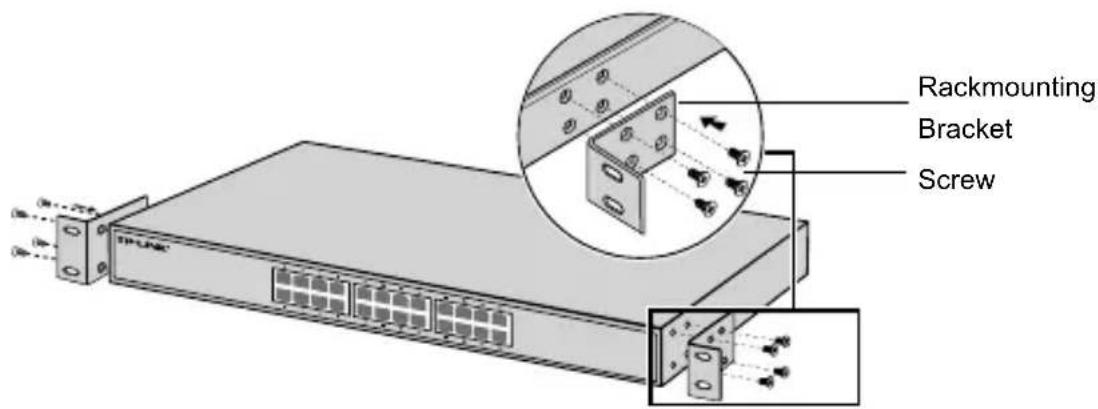

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

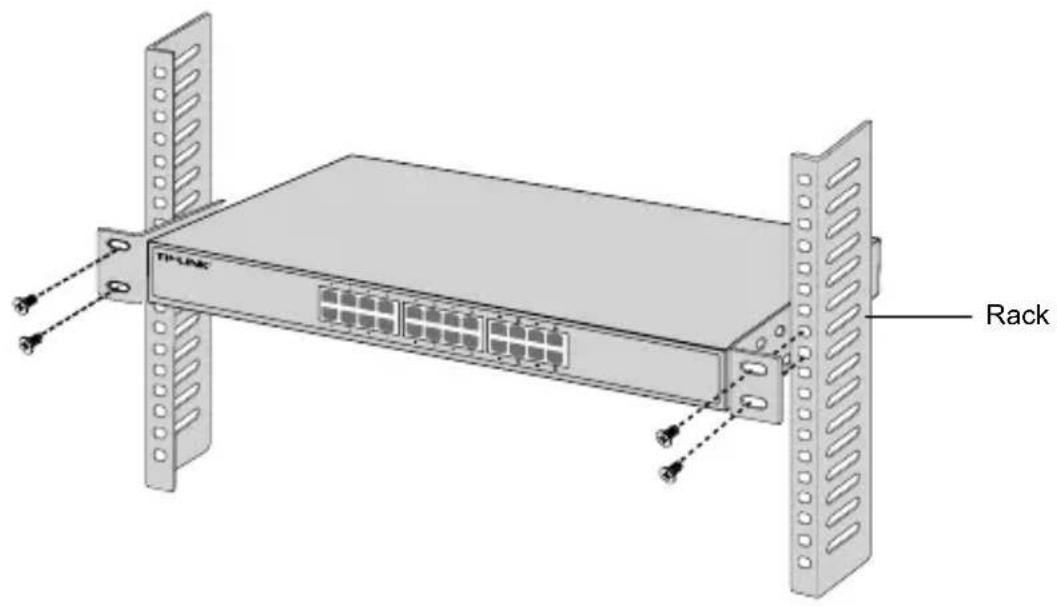

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

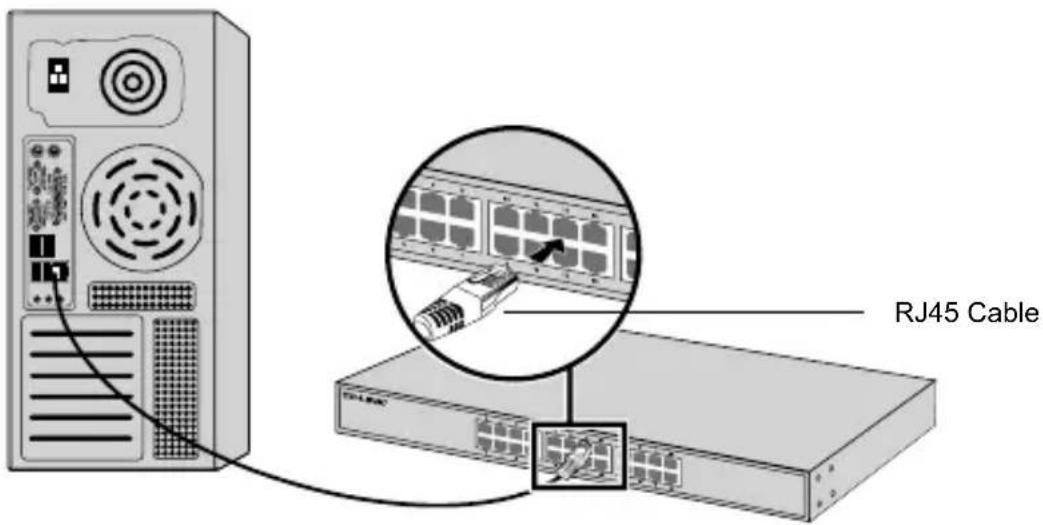

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- SFP Port

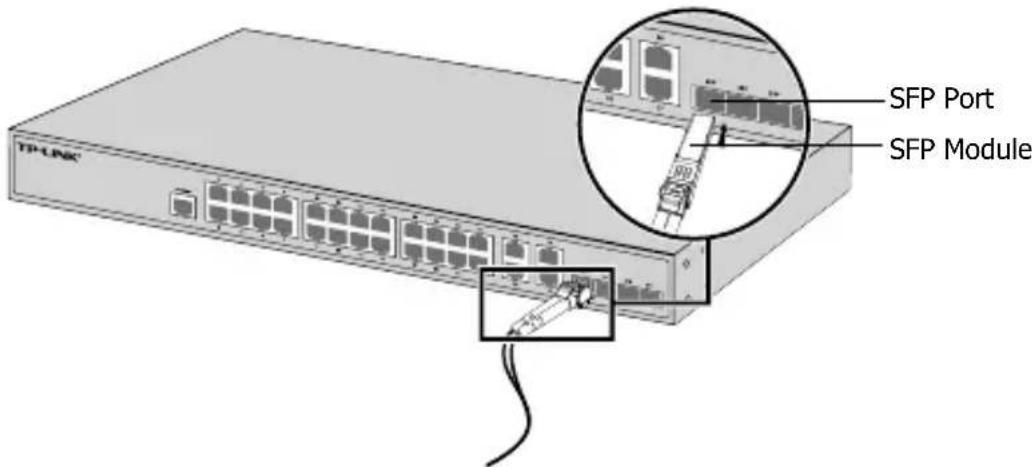

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

- Console Port

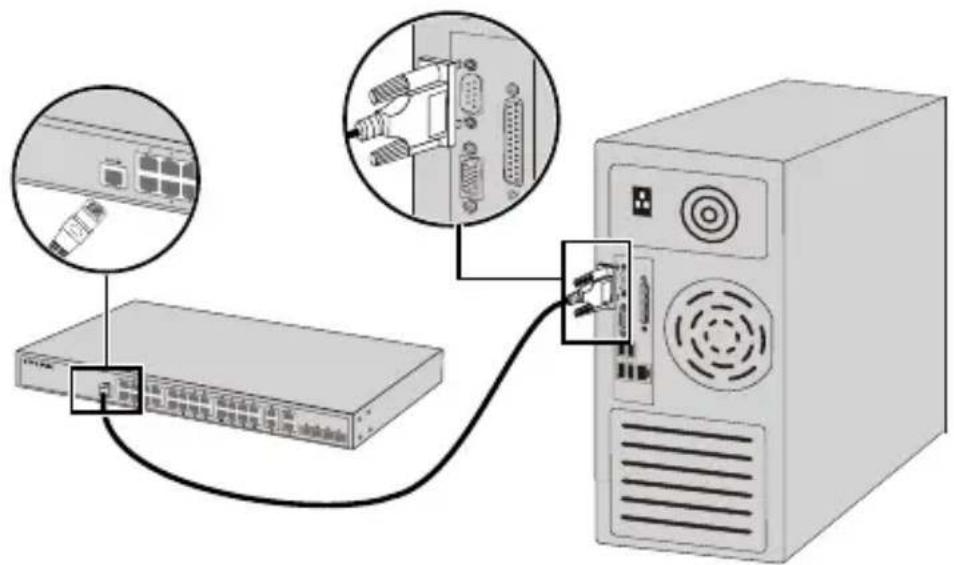

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

- Power On

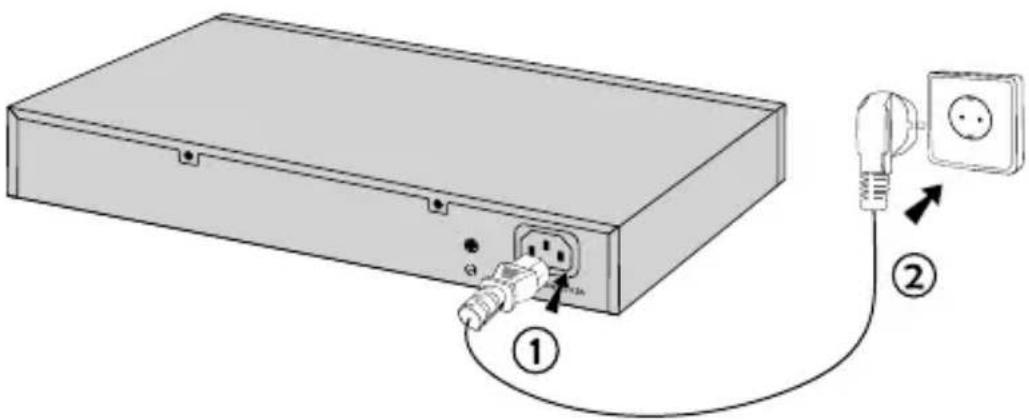

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Puerto SFP

- Encender

Configuración

- Θúpa Console

- Ενεργοποιήστε

Ρύθμιση

Configuration

- Configurer le switch via son interface graphique

- Accensione

Configurazione

- Configure lo Switch usando la GUI

- Ligar

Configuração

- Configurar o Switch via Interface gráfica

- Virta päällä

Konfigurointi

- Konfiguroi kytkin GUI:lla

- Inschakelen

Configuratie

- Desktop-installation

Anslutning

- Ethernet-port

- Ström på

Konfiguration

- For å slå på

Konfigurasjon

- Tændt

Konfiguration

- Cihazı Çalıştırma

Yapılandırma

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

Robert-Bosch-Straße 9, 65719 Hofheim am Taunus, Germany

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
