JetStream T1600G-52PS - Network switch TP-LINK - Free user manual and instructions

Product Type	Managed Gigabit Network Switch
Model	JetStream T1600G-52PS (TL-SG3452P)
Brand	TP-Link
Number of Ports	48 RJ45 10/100/1000 Mbps PoE+ ports + 4 SFP slots
Power Supply	Internal, 100-240 V AC, 50/60 Hz
Power Consumption	Up to 470 W (with max PoE load)
Dimensions (W x D x H)	440 x 260 x 44 mm (1U)
Weight	Approximately 4.8 kg
Key Features	PoE+ (384 W budget), VLAN, QoS, Link Aggregation, Security, SNMP Management, Web and CLI interface
Installation	Desktop (rubber feet included) or rack-mount (mounting brackets included)
Maintenance and Cleaning	Unplug before cleaning, use a dry, lint-free cloth
Safety	Do not disassemble, do not expose to water, unplug during storms
Initial Setup	Network and power connection, access via http://192.168.0.1 (default admin/admin)
Spare Parts and Repairability	No user-serviceable parts; contact TP-Link support for repairs
Warranty	Limited manufacturer warranty (see manual for duration)
Operating Temperature	0 °C to 45 °C
Operating Humidity	10% to 90% RH non-condensing
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af/at, etc.

Frequently Asked Questions - JetStream T1600G-52PS TP-LINK

How to connect the switch to my network?

Connect an Ethernet cable from a router or another switch to one of the RJ45 ports on the T1600G-52PS. You can also use the SFP ports with compatible modules for a fiber optic link.

What is the default IP address of the switch and how to access it?

The default IP address is 192.168.0.1. Configure your computer in the same subnet (e.g., 192.168.0.x) and open a browser to that address. The default credentials are admin (username and password).

How to reset the switch to factory defaults?

Press and hold the RESET button for about 10 seconds until the System port LEDs blink. Release, the switch will reboot with factory defaults.

Does the switch support PoE and what is the total budget?

Yes, the 48 RJ45 ports support Power over Ethernet (PoE+) with a total budget of 384 watts according to IEEE 802.3af/at. Each port can provide up to 30 watts.

How to mount the switch in a rack?

Use the included mounting brackets and screw them onto the sides of the switch. Then secure the assembly in the rack with bolts (not included). Ensure the rack is stable and grounded.

Can I use non-TP-Link SFP modules?

It is recommended to use TP-Link modules to ensure compatibility. However, some standard SFP (Gigabit) modules may work, but TP-Link does not guarantee their proper functioning.

How to configure VLAN on the switch?

Access the web interface, go to the VLAN section. You can create port-based VLANs or with 802.1Q tagging. By default, all ports are in VLAN 1.

What to do if the LED indicators do not light up?

Check the power cord and electrical outlet. If the problem persists, the switch may be defective. Contact TP-Link support. Do not attempt to open the device.

Does the switch support Link Aggregation (LACP)?

Yes, it supports LACP (IEEE 802.3ad) as well as manual aggregation. You can group up to 8 ports into one logical group from the Web interface under Link Aggregation.

How to update the switch firmware?

Download the latest firmware from the TP-Link website. In the web interface, go to Maintenance > Firmware Update, select the file and click Update. Do not power off during the operation.

USER MANUAL JetStream T1600G-52PS TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch....01

English....06

Español....11

Ελληνικά......16

Français....21

Italiano....26

Português....31

Suomi....36

Nederlands....41

Svenska....46

Norsk....51

Dansk....56

Türkçe....61

Installation

- Tischmontage

- SFP-Port

- Einschalten

Konfiguration

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

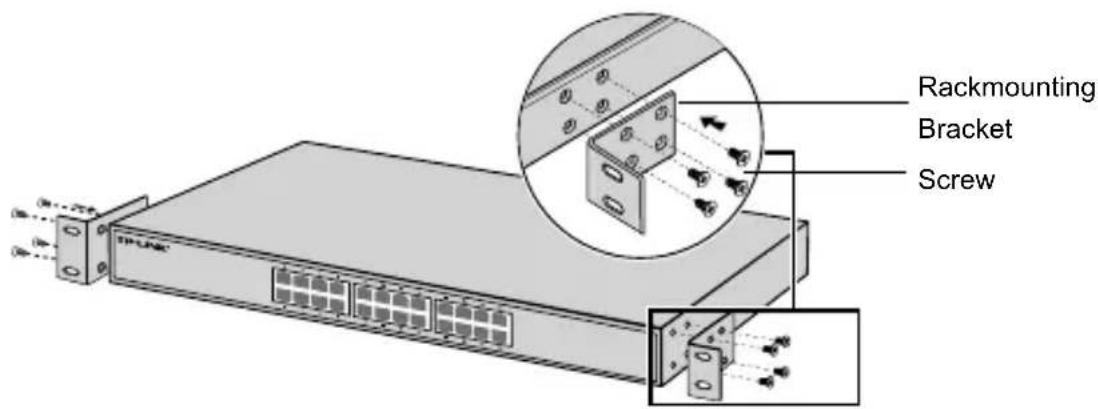

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

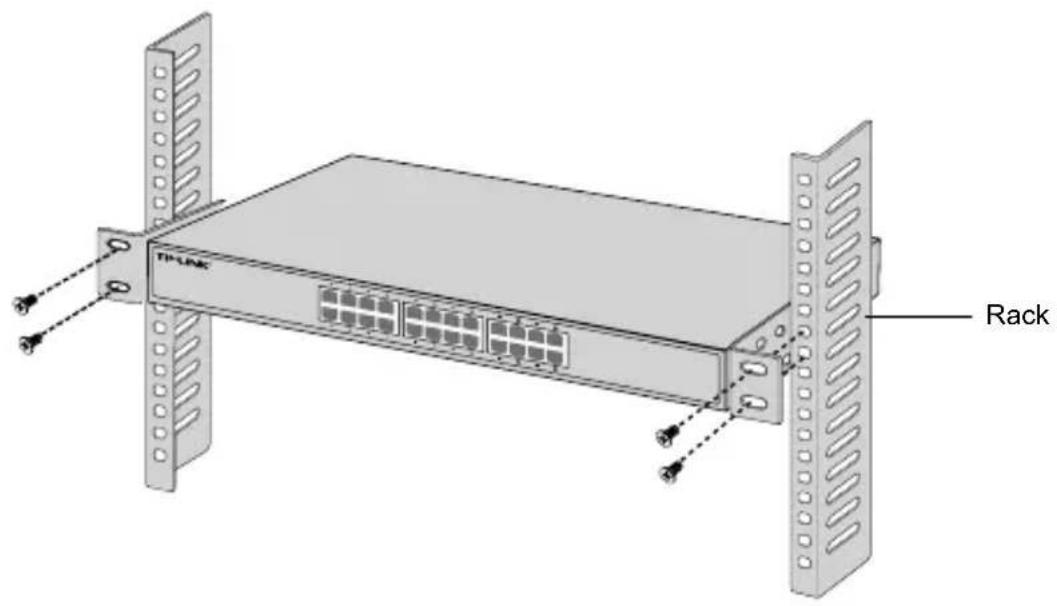

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

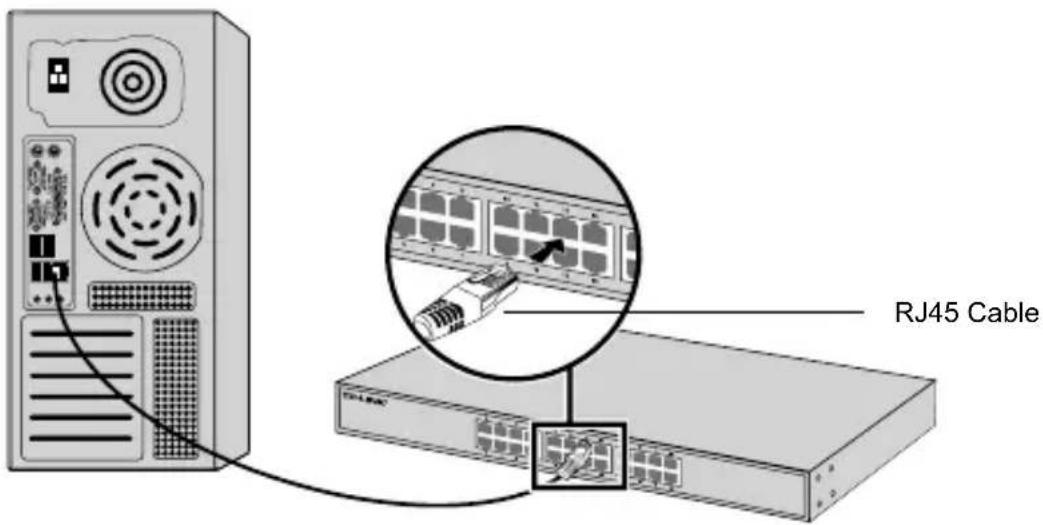

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- SFP Port

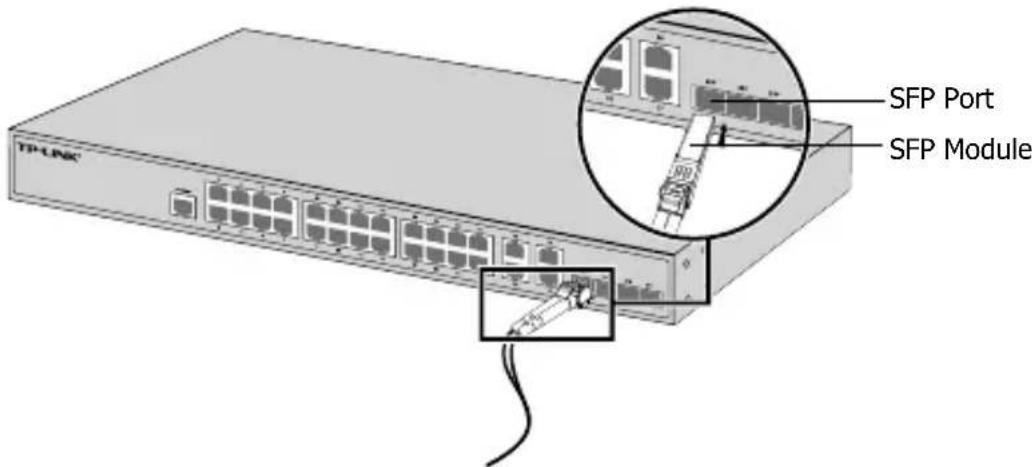

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

- Console Port

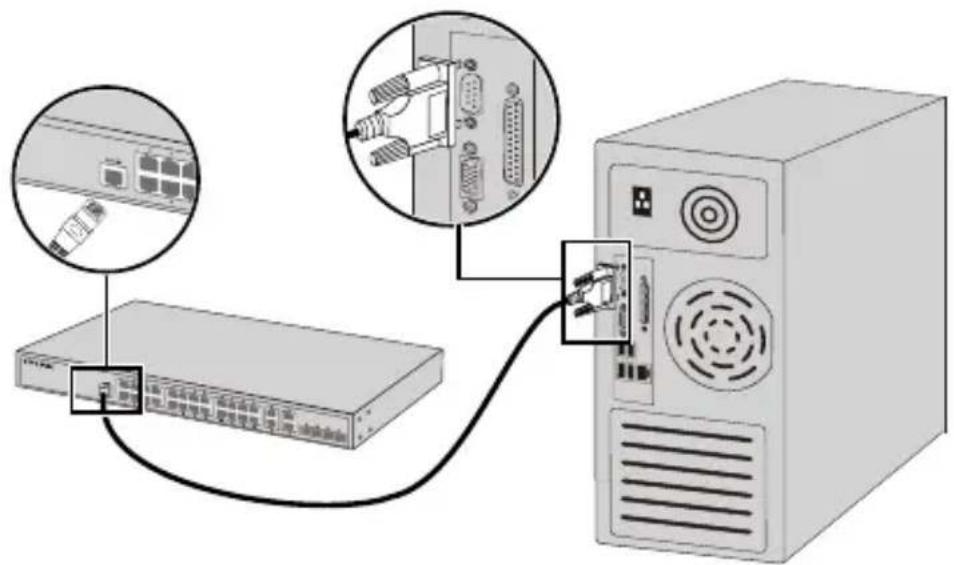

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

- Power On

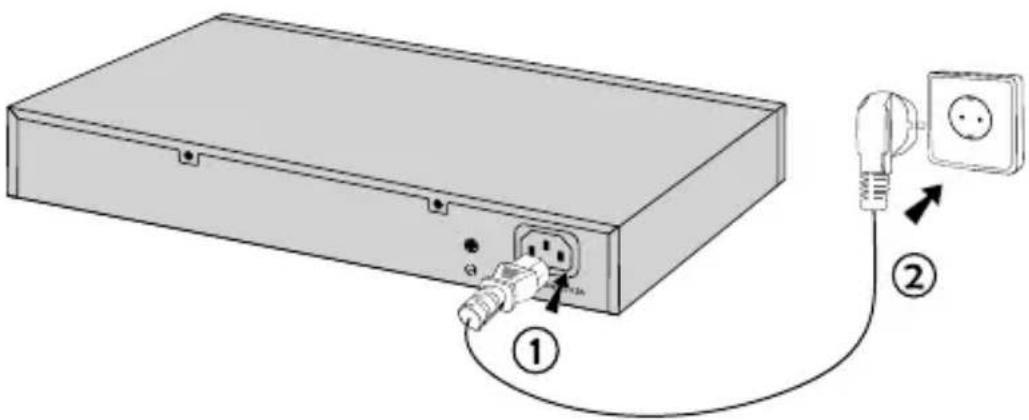

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Puerto SFP

- Encender

Configuración

- Θύρα SFP

- Θúpa Console

- Ενεργοποιήστε

Ρύθμιση

Configuration

- Configurer le switch via son interface graphique

- Accensione

Configurazione

- Configure lo Switch usando la GUI

- Ligar

Configuração

- Configurar o Switch via Interface gráfica

- Virta päällä

Konfigurointi

- Konfiguroi kytkin GUI:lla

- Inschakelen

Configuratie

- Desktop-installation

- Ström på

Konfiguration

- For å slå på

Konfigurasjon

- Tændt

Konfiguration

- Cihazı Çalıştırma

Yapılandırma

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.
