Product type	Oscillating multi-tool
Brand	Ferm
Model	OTM1003
Rated voltage	230 V ~ 50 Hz
Power consumption	300 W
No-load speed	11,000 - 20,000 osc/min
Oscillation angle	3.2° (left/right)
Weight	1.5 kg
Dimensions (L x W x H)	280 x 80 x 90 mm
Power supply	Mains (2 m power cable)
Main functions	Sawing, sanding, scraping, flush cutting
Accessory change	Tool-free, quick clamping system
Handle	Ergonomic with rubber coating
Sound pressure level (LpA)	80 dB(A)
Sound power level (LwA)	91 dB(A)
Vibration (typical value)	< 2.5 m/s²
Protection class	II (double insulation)
Maintenance and cleaning	Disconnect before cleaning; use a dry cloth; do not immerse; lubricate moving parts periodically
Safety	Wear safety goggles and gloves recommended; avoid contact with hidden electrical cables
Spare parts and repairability	Universal OIS compatible accessories; spare parts available via Ferm customer service
Warranty	2 years
Package contents	Multi-tool, 3 saw blades, 1 sanding plate, 3 abrasives, hex key, instruction manual

Frequently Asked Questions - OTM1003 Ferm

How to change the accessory on the Ferm OTM1003?

The Ferm OTM1003 is equipped with a tool-free quick clamping system. To change the accessory, turn the locking lever, remove the old accessory, insert the new one, and release the lever. Make sure the accessory is securely attached before use.

What accessories are compatible with the OTM1003?

The tool accepts universal OIS (Oscillating Interface System) accessories in triangular, saw segment, plunge cut, etc. shapes. Preferably use Ferm-brand or OIS-compatible accessories.

How to adjust the speed on the Ferm OTM1003?

The speed is adjusted via the electronic speed control dial located on the handle. Turn the dial to increase or decrease the oscillation frequency (from 11,000 to 20,000 osc/min). Adapt the speed to the material: slow for plastic, fast for wood.

Is the OTM1003 suitable for cutting metal?

Yes, with a metal cutting saw blade, you can cut soft metals like aluminium or copper. For steel, it is advisable to use a fine-toothed blade and work at reduced speed.

How to clean the tool after use?

Unplug the tool. Clean the housing with a slightly damp cloth and mild soap. Never immerse the tool in water. Use a brush to remove dust from the ventilation slots. Accessories can be cleaned separately.

What is the maximum cutting depth?

The cutting depth depends on the accessory used. Generally, with a segment blade, you can cut up to 50 mm in softwood and up to 30 mm in hardwood. Consult the manual for exact values.

Is the Ferm OTM1003 noisy?

The sound pressure level is approximately 80 dB(A), and the sound power level is 91 dB(A). It is recommended to wear hearing protection during prolonged use.

How to store the multi-tool?

Store the tool in a dry, frost-free place, preferably in the original carrying case. Remove accessories and clean them before storing. Avoid humidity to prevent corrosion.

Where to find spare parts for the OTM1003?

Spare parts (accessories, carbon brushes, etc.) are available from Ferm customer service or on their website. Use the model number OTM1003 to identify compatible parts.

Can I use a battery with the OTM1003?

No, the Ferm OTM1003 is a corded tool operating on 230 V mains. There is no cordless version of this model. If greater mobility is required, consider a battery-powered model from the same range.

USER MANUAL OTM1003 Ferm

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

SAFETY WARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and the instructions.

Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury.

Keep the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Risk of flying objects. Keep bystanders away from the work area.

Wear safety goggles. Wear hearing protection.

Wear a dust mask.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for multitools

Contact with or inhalation of dust coming free during use (e.g. lead-painted surfaces, wood and metal) can endanger your health and the health of bystanders. Always wear appropriate protective equipment, such as a dust mask. Always use proper dust extraction during use.

• Do not work materials containing asbestos. Asbestos is considered carcinogenic.
• Do not work metal with a magnesium content of more than 80%.
• Be very careful when working painted surfaces.
• Do not use accessories which are not specifically designed and recommended by the manufacturer. Risk of personal injury.
• Inspect the machine and the accessories before each use. Do not use accessories which are bent, cracked, or otherwise damaged. If the machine or one of the accessories is dropped, inspect the machine or the accessory for damage. If necessary, replace the accessory.
• Only use accessories that are recommended by the manufacturer.
• Only use accessories that are suitable for the application.
• Only use accessories with the correct dimensions.
• Do not use accessories that require liquid coolants. Risk of electric shock.
• Make sure that the accessories are properly mounted. Do not use adapters or other aids to mount accessories with another spindle diameter.
• Make sure that the maximum speed for the accessory is larger than or the same as the maximum speed of the machine. Refer to the rating plate on the machine.
• Let the machine run at no load in a safe area after mounting the accessories. If the machine vibrates strongly, immediately switch off the machine, remove the mains plug from the mains, and try to solve the problem.

• Make sure that the workpiece is properly supported or fixed.

• Wear safety goggles. Wear hearing protection. Wear a dust mask. If necessary, use other protective means, such as safety gloves, safety shoes, etc. Risk of personal injury.

• Keep bystanders away from the work area. Make sure that all persons in the work area wear protective equipment. Risk of personal injury.
• Keep the mains cable away from the rotating accessory. If the mains cable touches the rotating accessory, your hands or arms may come in contact with the accessory. Risk of personal injury.
• Hold the machine by the insulated gripping surfaces where the accessory may contact hidden wiring or the mains cable. If the accessory contacts a ,live' wire, the exposed metal parts of the machine can also become ,live'. Risk of electric shock.
• Do not use the machine while carrying it at your side. Risk of personal injury.
• Do not use the machine near flammable materials. Risk of fire.
• Beware that the accessory continues to rotate for a short period after switching off the machine. Do not attempt to bring the accessory to a standstill yourself.
• Never put the machine down on a table or a workbench before it has been switched off.
• Regularly clean the ventilation slots. Risk of electric shock.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm^2 . If you use an extension cable reel, always fully unroll the cable.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/3A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are coloured in accordance with the following code: blue neutral brown live

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

TECHNICAL DATA

OTM1003
Mains voltage V~ 230
Mains frequency Hz 50
Power input W 180
No-load speed min	-1 21,000
Weight kg 1.35

NOISE AND VIBRATION

OTM1003
Sound pressure (Lpa) dB(A) 89.6
Acoustic power (Lwa) dB(A) 100.6
Uncertainty (K) dB(A) 3
Vibration	m/s2 3.52
Uncertainty (K) m/s	2 1.5

Wear hearing protection.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

DESCRIPTION (FIG. A)

Your multitool has been designed for light sanding, sawing and scraping applications.

1. On/off switch
2. Mounting point for accessories
3. Grip

ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Mounting and removing the sanding pad and the sanding paper (fig. B)

The sanding pad and the sanding paper must be used for sanding applications.

Mounting

• Place the machine on a table with the mounting point (3) facing upwards.
• Loosen the Allen screw (4) using the Allen key (5).
• Mount the sanding pad (7) to the mounting point (3).
• Tighten the Allen screw (4) using the Allen key (5).
• Mount sanding paper (8) with the required grain size onto the sanding pad (7). Make sure that the perforation in the sanding paper (8) corresponds with the perforation on the sanding pad (7).
• Use coarse sanding paper (grain 50) for sanding rough, uneven surfaces.
• Use medium sanding paper (grain 80) for removing the remaining scratches from the coarse sanding paper.
• Use fine sanding paper (grain 120) for finishing surfaces.

Removing

• Place the machine on a table with the mounting point (3) facing upwards.
• Remove the sanding paper (8) from the sanding pad (7).
• Loosen the Allen screw (4) using the Allen key (5).
• Remove the sanding pad (7) from the mounting point (3).
• Tighten the Allen screw (4) using the Allen key (5).

Mounting and removing the saw blade (fig. B)

The saw blade must be used for sawing applications.

Mounting

• Place the machine on a table with the mounting point (3) facing upwards.
• Loosen the Allen screw (4) using the Allen key (5).
• Remove the spacer (7).
• Mount the saw blade (9) to the mounting point (3).
• Mount the spacer (7).
• Tighten the Allen screw (4) using the Allen key (5).

Removing

• Place the machine on a table with the mounting point (3) facing upwards.
• Loosen the Allen screw (4) using the Allen key (5).
• Remove the spacer (7).
• Remove the saw blade (9) from the mounting point (3).
• Mount the spacer (7).
• Tighten the Allen screw (4) using the Allen key (5).

Mounting and removing the scraping knife (fig. B)

The scraping knife must be used for scraping applications.

Mounting

• Place the machine on a table with the mounting point (3) facing upwards.
• Loosen the Allen screw (4) using the Allen key (5).
• Remove the spacer (7).
• Mount the scraping knife (10) to the mounting point (3).
• Mount the spacer (7).
• Tighten the Allen screw (4) using the Allen key (5).

Removing

• Place the machine on a table with the mounting point (3) facing upwards.
• Loosen the Allen screw (4) using the Allen key (5).
• Remove the spacer (7).
• Remove the scraping knife (10) from the mounting point (3).
• Mount the spacer (7).
• Tighten the Allen screw (4) using the Allen key (5).

USE

Switching on and off (fig. A)

• To switch on the machine, slide the on/off switch (1) to the front.
• To switch off the machine, slide the on/off switch (1) to the rear.

Hints for optimum use

• Clamp the workpiece. Use a clamping device for small workpieces.
• Draw a line to define the direction in which to guide the accessory.
• Firmly hold the machine by the grip.
• Switch on the machine.
• Wait until the machine has reached full speed.
• Place the accessory on the workpiece.
• Slowly move the machine along the pre-drawn line, firmly pressing the accessory against the workpiece.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

ENVIRONMENT

Disposal

The product, the accessories, and the packaging must be sorted for environmentally friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

• Regularly clean the housing with a soft cloth.
• Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.

Replacing the accessories (fig. B)

Worn or damaged accessories must be replaced immediately.

Only use sharp and undamaged accessories.

• To remove the accessory, proceed as described in the corresponding section.
• To mount the accessory, proceed as described in the corresponding section.

WARRANTY

Consult the enclosed warranty terms.

MULTITOOL OTM1003

BESCHRIJVING (FIG. A)

DECLARATION OF CONFORMITY

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijk heid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(SV) Vi garanterar på eget ansvar att denna produkt upp fyller och följer följande standarder och bestämmelser:
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(ET) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornoLsu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам:
(EL) Δηλώνουμε υπεύθυνα ότι προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμο ύς και πρότυπα:
(BG) Ние заявяваме, по своя собствена отговорност, че този продукт отговаря на следните стандарти и директиви

EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-4, EN 61000-3-2, EN 61000-3-3

2006/42/EC, 2006/95/EC, 2004/108/EC, 2002/96/EC, 2002/95/EC

Zwolle, 01-01-2010

J.A. Bakker-vanlagen

CEO Ferm BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

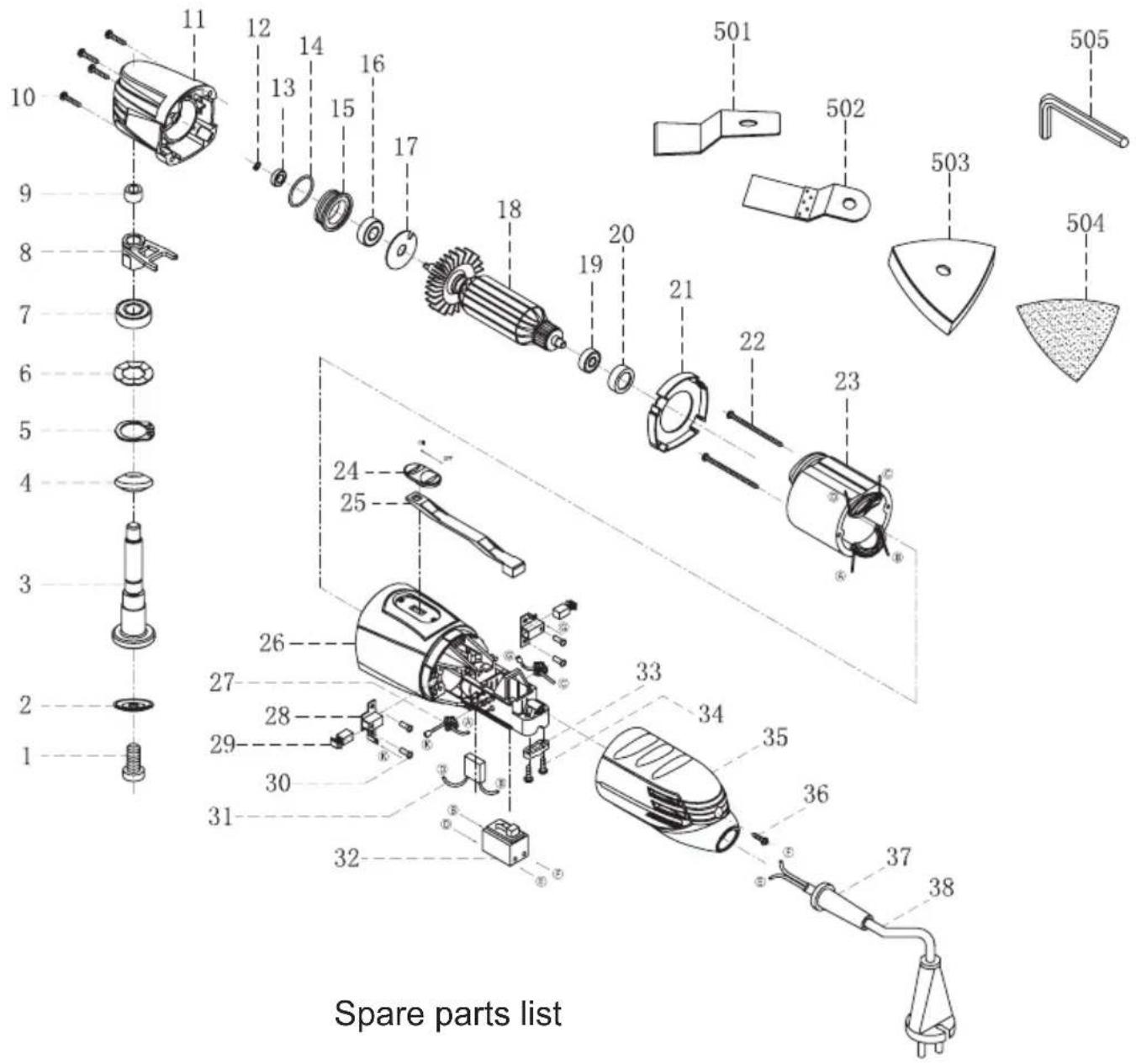

Position	Description	No.
1 + 2	Ring + Screw	702809
7	Bearing	806000
16	Bearing	800608
18	Rotor	7 0
19	Bearing	800607
23	Stator	7 0
24 + 25	S witch cover + bar	702812
28	Carbon brush holder	7
29	Carbon brush set	702814
32	Switch	702815
