Product type	Multi-function tool
Brand	Ferm
Model	OTM1007
Mains voltage	220-240 V~
Frequency	50 Hz
Power	300 W
No-load speed	0 - 23 000 min⁻¹
Weight	1.21 kg
Sound pressure level (Lpa)	85 dB(A)
Sound power level (Lwa)	96 dB(A)
Acoustic uncertainty	3 dB(A)
Vibration (steel cutting)	7.28 m/s²
Vibration uncertainty	1.5 m/s²
Applications	Light sanding, sawing, and scraping
Required protective equipment	Goggles, hearing protection, dust mask
Accessory change system	Quick-change lever
Included accessories	Sanding pad, sandpaper
Maintenance	Regular cleaning of ventilation slots, replacement of carbon brushes
Warranty	According to provided conditions
Compliance	European directives (CE)

Frequently Asked Questions - OTM1007 Ferm

How to change the accessory on the Ferm OTM1007?

Unlock the quick-change lever (5), slide the accessory forward to remove it, then insert the new accessory and close the lever.

How to adjust the speed of the multi-function tool?

Use the speed adjustment wheel (2) to choose from 6 positions. Never adjust the speed while the tool is operating.

What protective equipment should I wear?

Always wear safety goggles, hearing protection, and a dust mask. Safety gloves are also recommended.

What are the recommended applications for the Ferm OTM1007?

This multi-function tool is designed for light sanding, sawing, and scraping applications.

How to clean and maintain the tool?

Before any cleaning, unplug the tool. Clean the housing with a soft cloth and regularly remove dust from the ventilation slots.

When and how to replace the carbon brushes?

If the tool runs irregularly, check the carbon brushes. Remove the cover (6), take out the brush holders (7) with a screwdriver, clean or replace both brushes simultaneously, then let it run idle for 15 minutes.

What is the power and maximum speed of the tool?

The power is 300 W and the no-load speed reaches 23 000 min⁻¹.

What sound level and vibrations should I expect?

The sound pressure level is 85 dB(A) and the vibrations (steel cutting) are 7.28 m/s². Wear hearing protection.

Can I use the tool on materials containing asbestos?

No, never work on materials containing asbestos, as it is carcinogenic.

How to start and stop the tool?

To start, slide the on/off button (1) forward. To stop, slide it back. Wait for complete standstill before putting the tool down.

USER MANUAL OTM1007 Ferm

Ferm tool with blue handle and multiple red-handled triangular blades, displayed against black background (no text or symbols on main objects)

OTM1007

EN Original instructions 04
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 07
FR Traduction de la notice originale 11
LT Originalios instrukcijos vertimas 14
LV Instrukciju tulkojums no oriğinälvalodas 18
AR دَيْلِصَأَلَا تَامِيلَعَتُلَا نَمْجِرِك

Close-up of hands using a power tool to adjust a small component, labeled with number 5 (no text or symbols on the device itself)

Interior view of a device showing internal components and a labeled part (7), with no readable text or symbols beyond the label.

MULTITOOL OTM1007

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers.

All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

SAFETY WARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and the instructions.

Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury.

Keep the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Risk of flying objects. Keep bystanders away from the work area.

Wear safety goggles.

Wear hearing protection.

Wear a dust mask.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for multitools

Contact with or inhalation of dust coming free during use (e.g. lead-painted surfaces, wood and metal) can endanger your health and the health of bystanders. Always wear appropriate protective equipment, such as a dust mask. Always use proper dust extraction during use.

• Do not work materials containing asbestos. Asbestos is considered carcinogenic.
• Do not work metal with a magnesium content of more than 80%.
• Be very careful when working painted surfaces.
• Do not use accessories which are not specifically designed and recommended by the manufacturer. Risk of personal injury.
• Inspect the machine and the accessories before each use. Do not use accessories which are bent, cracked, or otherwise damaged. If the machine or one of the accessories is dropped, inspect the machine or the accessory for damage. If necessary, replace the accessory.
• Only use accessories that are recommended by the manufacturer.
• Only use accessories that are suitable for the application.
• Only use accessories with the correct dimensions.
• Do not use accessories that require liquid coolants. Risk of electric shock.
• Make sure that the accessories are properly mounted. Do not use adapters or other aids to mount accessories with another spindle diameter.

• Make sure that the maximum speed for the accessory is larger than or the same as the maximum speed of the machine. Refer to the rating plate on the machine.

• Let the machine run at no load in a safe area after mounting the accessories. If the machine vibrates strongly, immediately switch off the machine, remove the mains plug from the mains, and try to solve the problem.

• Make sure that the workpiece is properly supported or fixed.
• Wear safety goggles. Wear hearing protection. Wear a dust mask. If necessary, use other protective means, such as safety gloves, safety shoes, etc. Risk of personal injury.
• Keep bystanders away from the work area. Make sure that all persons in the work area wear protective equipment. Risk of personal injury.
• Keep the mains cable away from the rotating accessory. If the mains cable touches the rotating accessory, your hands or arms may come in contact with the accessory. Risk of personal injury.
• Hold the machine by the insulated gripping surfaces where the accessory may contact hidden wiring or the mains cable. If the accessory contacts a ‘live’ wire, the exposed metal parts of the machine can also become ‘live’. Risk of electric shock.
• Do not use the machine while carrying it at your side. Risk of personal injury.
• Do not use the machine near flammable materials. Risk of fire.
• Beware that the accessory continues to rotate for a short period after switching off the machine. Do not attempt to bring the accessory to a standstill yourself.
• Never put the machine down on a table or a workbench before it has been switched off.
• Regularly clean the ventilation slots. Risk of electric shock.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm^2 . If you use a extension cable reel, always fully unroll the cable.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/3A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are coloured in accordance with the following code:

blueneutral

brownlive

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Technical data

OTM1007

MainsvoltageV\~220-240

MainsfrequencyHz50

PowerinputW300

No-loadspeedmin-10-23.000

Weightkg1.21

Noise and vibration

OTM1007

Soundpressure(Lpa) dB(A)85

Acousticpower(Lwa) dB(A)96

Uncertainty(K) dB(A)3

Vibration (sawing in steel) m/s ^2 7.28

Uncertainty(K) m/s ^2 1.5

Wear hearing protection.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

- the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

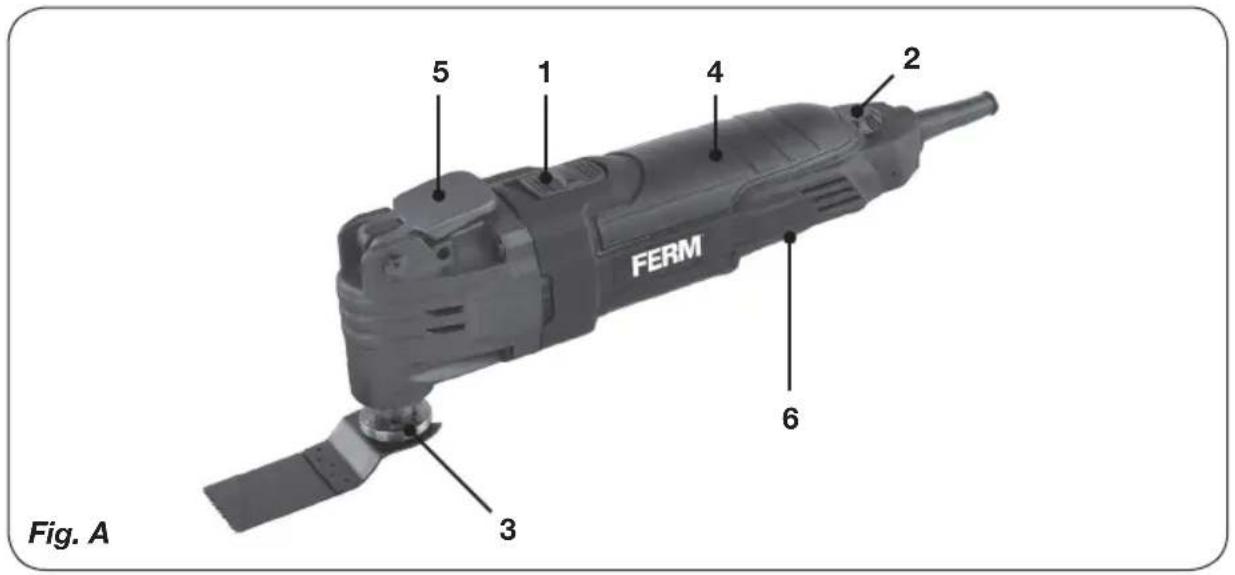

DESCRIPTION (FIG. A)

Your multitool has been designed for light sanding, sawing and scraping applications.

1. On/offswitch
2. Speed adjustment wheel
3. Mounting point for accessories
   4.Grip
4. Quick change lever
5. Carbon brush cover
6. Carbon brush holder

ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

The sanding pad and the sanding paper must be used for sanding applications.

Removing and mouting accessories (fig. B)

• Release the quick change lever (5) and slide the accessory forward to remove from the holder.
• Slide the accessory in the holder and fasten the quick change lever (5).

USE

Switching on and off (fig. A)

• To switch on the machine, slide the on/off switch (1) to the front.
• To switch off the machine, slide the on/off switch (1) to the rear.

Setting the speed (fig. A)

The speed adjustment wheel is used for setting the speed. The speed adjustment wheel can be set to 6 positions.

The ideal speed depends on the application and on the material to be worked.

Do not set the speed during use.

- Turn the speed adjustment wheel (2) to the required position.

Hints for optimum use

• Clamp the workpiece. Use a clamping device for small workpieces.
• Draw a line to define the direction in which to guide the accessory.
• Firmly hold the machine by the grip.
• Switch on the machine.
• Wait until the machine has reached full speed.
• Place the accessory on the workpiece.
• Slowly move the machine along the pre-drawn line, firmly pressing the accessory against the workpiece.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

• Regularly clean the housing with a soft cloth.
• Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.

Replacing the accessories (fig. B)

Worn or damaged accessories must be replaced immediately.

Only use sharp and undamaged accessories.

• To remove the accessory, proceed as described in the corresponding section.
• To mount the accessory, proceed as described in the corresponding section.

Checking and replacing the carbon brushes Fig. A + C

The carbon brushes must be checked regularly. If the carbon brushes are worn, the machine will start to run unevenly.

Only use the correct type of carbon brushes.

• Remove the carbon brush cover (6)
• Remove the carbon brush holders (7) using a screwdriver.
• Clean the carbon brushes.
• In case of wear, replace both carbon brushes at the same time.
• Mount the carbon brush holders (7) using a screwdriver.
• After mounting the new carbon brushes, let the machine run at no load for 15 minutes.

WARRANTY

Consult the enclosed warranty terms.

ENVIRONMENT

Disposal

The product, the accessories, and the packaging must be sorted for environmentally friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

MULTITOOL OTM1007

BESCHRIJVING (FIG. A)

CE

DECLARATION OF CONFORMITY

OTM1007 - MULTI TOOL

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht, den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilidade-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnící 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi: Je v súlade s normou 2011/65/EÚ Eu rópskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/UE Par lamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželo 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikru pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornol,šu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Евролейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляємо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα όπι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότιπα: συμμορφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβώνιλου και του Συμβουλίου γιες Ιουνίου 2011 για τον περιορισμό της χρήσης ορισμένων επικίνδυνων συσιών σε ηλεκτρικό και ηλεκτρανικό εξοπιλισμό.
(BG) Ние декларираме на наша отговорност, че този продукт отговаря на съответствие с Директива 2011/65/ЕС на Европейския парламент и на Съвета от 8 юни 2011 г. относно ограничението на употребата на определени опасни вещества в електрическото и електронното оборудване, в съответствие с следните стандарти и наредби

EN 55014-1, EN 55014-2, EN 62841-1, EN 62841-2-4, EK9-BE-88,

EN ISO 12100, EN 61000-3-2, EN 61000-3-3

2006/42/EC, 2014/30/EU, 2012/19/EU, 2011/65/EU

Zwolle,01-07-2019H.G.FRosberg

CEO FERM

FERM - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands
