USER MANUAL DS 1010 ECG

English

1. Disinfectant sprayer
2. On/Off switch
3. Hanging attachment
4. LED indicator
5. USB-CConnector
6. Disinfectant container
7. Foam stick

Deutsch

Read carefully and save for future use!

The device may only be used as described in this manual. Save the manual for future reference. If you pass the device to another person, please add this manual.

1. A disinfectant is not included in the packaging of this product. We recommend using a product with a 75% alcohol content.
2. The dispenser is intended exclusively for spraying disinfectant in the liquid state. Under no circumstances pour oily liquids into the appliance to prevent clogging of the sprayer.
3. When using the dispenser, do not smoke and avoid handling an open flame. It could ignite alcohol and cause burns.
4. Children shall not play with the appliance. Take extra care with children handling the device to prevent the internal use of liquid added to the device (e.g. contact with eyes or mouth). In this case, rinse the affected area with water and contact a doctor to make sure. Children may not play with the packaging material. Do not

let the children play with plastic bags. Risk of suffocation.

1. Never place the appliance on hot surfaces (e.g. hobs) or near heat sources or open flames. Do not leave it in direct sunlight.
2. The batteries are built -in - do not attempt to disassemble or replace them.
3. The device is intended exclusively for spraying disinfectant. The device is designed for home use and must not be used for commercial purposes. The device may be used only indoors.
4. Charge the device using only the original power supply.

PACKAGE CONTENTS

• Disinfection dispenser
• Charging cable with USB -C connector
• Operating manual

CHARGING OF THE DISPENSER

If the device is switched on and the indicator is flashing, the battery is almost empty and needs to be charged.

1. Connect the USB -C connector of the supplied cable to the USB -C connector on the dispenser ⑤.
2. Plug the other end of the cable into the charger or USB computer port.
3. When the indicator lights up continuously, charging is complete.

Note: You can use the dispenser while charging. It takes approximately 3 hours to charge a fully discharged battery.

USE

1. Grasp the disinfection container by both sides and remove it.
2. Unscrew the inner glass vial by turning it counterclockwise and pull the foam stick out of it.
3. Fill the glass vial with disinfectant.

4. Insert the foam stick into the vial and screw it back in by turning it clockwise. Put the disinfection container back on the body of the dispenser.

5. Press the power button ②. The dispenser turns on.

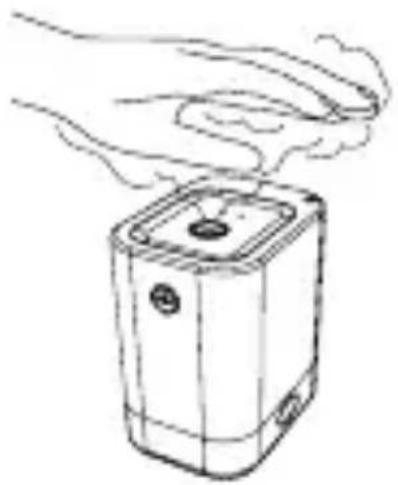

6. Place your hands over the spray opening ①. The device automatically sprays the disinfection using an atomizer.

7. Press the power button twice to turn off the dispenser.

Line drawing of a hand pressing down on a small electronic device with smoke (no text or symbols)

Note: If you know that you will not be using the dispenser for more than 24 hours, always turn it off.

TECHNICAL SPECIFICATIONS

Input voltage / current: DC 5 V / 1 A

Operating frequency: 108 ± 3 kHz

Operating current: 300 mA

Spraying volume: 45 ml / h

Battery capacity: 1800 mA

Charging time: 3–4 hours

Detection distance: max. 12 cm

Volume of the container: 45 ml

Alcohol content: 75%

Automatic shutoff: after 24 hours

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated cardboard - hand in for paper garbage collection. Wrapping foil, PE bags, plastic parts – to plastics collection containers.

PRODUCT DISPOSAL AFTER END OF LIFE

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

08/05

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more detailed information about recycling of this product, please contact your local city hall, your household waste disposal service or the store where you purchased the product.

DISINFECTION DISPENSER English

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating manual is available at www.ecg-electro.eu.

Changes of text and technical parameters reserved.
