Brand	ECG
Model	LD 174203
Product Type	Tilting LED TV Wall Mount
Compatible TV Sizes	17" to 42"
Maximum TV Weight	25 kg
VESA Compatibility	VESA 200×200
Tilt Range	-5° to +10°
Minimum Distance from Wall	48 mm
Mounting Surfaces	Wooden crossbars, solid concrete walls
Installation Holes (Concrete)	3 holes, 10.5 mm diameter, 60 mm deep
Installation Holes (Wooden Stud)	3 holes, 3.5 mm diameter, 60 mm deep
Included Screws for TV Adapter	M4×12 mm, M5×12 mm, M6×12 mm, M8×16 mm (4 each), plus 4 washers
Included Wall Fixings	3 long bolts, 3 dowels, 3 washers
Material	Steel (typical for wall mounts)
Safety Features	Security bolt, anti-tilt design, regular inspection every 2 months
Cleaning & Maintenance	Wipe with a dry or slightly damp cloth; do not use harsh chemicals
Spare Parts Availability	Contact manufacturer or distributor for missing or defective components
Disposal	Recycle metal parts and packaging according to local regulations

Frequently Asked Questions - LD 174203 ECG

What is the maximum TV weight this mount can hold?

The maximum TV weight is 25 kg including cables. Never exceed this limit to avoid failure.

Which TV sizes are compatible with the LD 174203 mount?

This mount is designed for TV sizes from 17 inches to 42 inches diagonal.

What VESA patterns does the mount support?

It supports VESA patterns up to 200×200 mm. The included screws fit various hole sizes.

Can I install this mount on a concrete wall?

Yes, for concrete walls use the 10.5 mm drill bit and the included wall plugs (dowels). Ensure holes are 60 mm deep.

Is this mount suitable for wooden stud walls?

Yes, for wooden posts drill 3.5 mm pilot holes and secure with the long bolts and washers directly into the wood.

What tools do I need for installation?

You will need a drill, appropriate drill bits (10.5 mm for concrete, 3.5 mm for wood), a level, a screwdriver, and a socket wrench for the bolts.

How far from the wall will the TV sit?

The minimum distance from the wall is 48 mm when the mount is fully retracted.

What is the tilt range of this mount?

It offers a forward/backward tilt of -5° to +10° for optimal viewing angle.

Are spare parts available if something is missing or damaged?

Yes, contact your vendor or the manufacturer (K+B Progres, a.s. at [e-mail]) to report missing or defective parts. Do not use damaged components.

How often should I inspect the mount after installation?

Inspect the mount every 2 months to ensure all bolts are tight and the mount remains secure.

USER MANUAL LD 174203 ECG

TILTING LED TV WALL MOUNT

INSTRUCTION MANUAL

DÖNTHETÖ LED TV TARTÓ

HASZNÁLATI ÚTMUTATÓ

UCHYLNY UCHWYT NA TELEWIZOR LED

INSTRUKCJA OBSŁUGI

SUPPORT DE PERETE PENTRU TELEVIZOR CU LED CU ÎNCLINARE

INSTRUCTIUNI DE UTILIZARE

NAKLÁPACÍ DRŽIAK LED TV

NÁVOD NA OBSLUHU

ZLOŽLJIV TV LED NOSILEC

NAVODILA

SAGIBLJIVI DRŽAČ ZA LED TELEVIZOR

UPUTSTVO ZA UPOTREBU

Read carefully and save for future use!

Please refer to a qualified professional to install the wall mount properly. Prior to the wall mount installation, check the contents of the assembly set and inform your vendor in case you discover any components are missing or are defective. Do not use defective components!! Use the wall mount solely for the purpose intended by the manufacturer. Make sure the wall is capable of supporting (especially in terms of weight) the wall mount prior to installing. Also make sure no power, water, gas or other lines are located behind the wall in the installation area. Keep the specified distance between the TV and wall (depends on the TV model). Install the wall mount to a safe location, which does not present a risk to anyone. Once the wall mount and flat screen TV are mounted, ensure that the stability and safety are sufficient. This inspection shall be repeated on a regular basis, every 2 months.

The equipment is intended to be installed on wooden crossbars or solid concrete walls. Prior to the installation, make sure the assembly surface has he necessary loading capacity to carry the total weight of the TV and mount. Never exceed the maximum capacity of the holder 25 kg including cables.

This product is designed for household use only. Using the product outdoors can result in product failure or injury.

The manufacturer is not liable for damages to the equipment and health caused by improper installation of the wall mount.

1. Read all instructions and make sure you understand them prior to the installation. If you are not sure about any part of the installation process, contact a professional technician for support.
2. The wall or surface on which the mount will be anchored to shall be capable of carrying the entire weight of the wall mount and TV. Reinforcement will be required otherwise.

3. The installation requires the cooperation of at least two people and the use of a mechanical security mechanism and suitable tools. Otherwise it could result in damage to property or serious injury or fatal injury.

4. Follow all instructions and recommendations concerning adequate ventilation and selecting a suitable location for anchoring the TV. See the your TV user's manual for more information.

5. The product contains smaller pieces, which upon being inhaled or swallowed can lead to choking. Keep these pieces away from children!

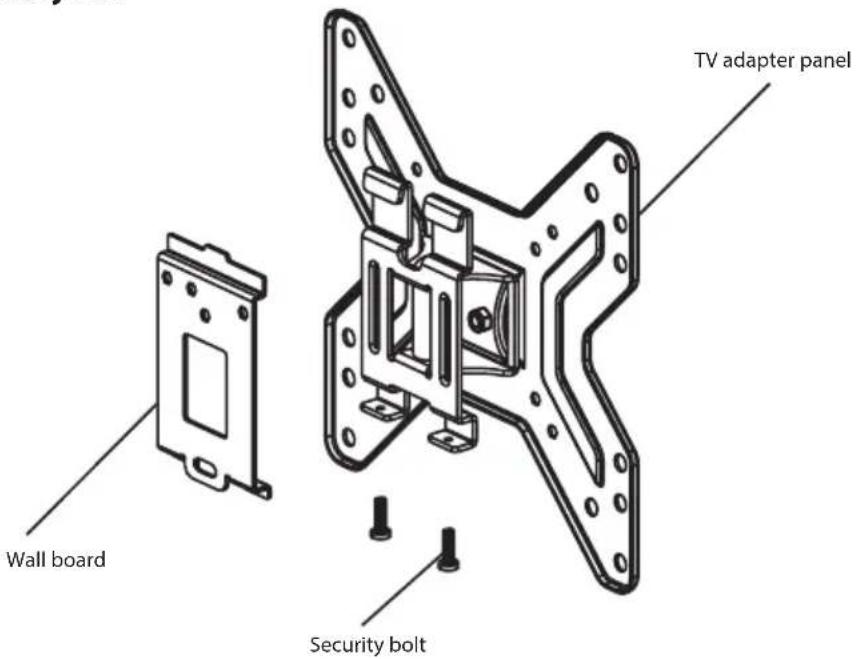

DESCRIPTION

Assembly set

A1 A2 A3 A4 A5

B1 B2

B3

Identification Unit(s) Description
A1 4 Bolt M4 × 12 mm
A2 4 Bolt M5 × 12 mm
A3 4 Bolt M6 × 12 mm
A4 4 Bolt M8 × 16 mm
A5 4 Washer for short bolt
B1 3 Long bolt
B2 3 Dowel
B3 3 Washer for long bolt

ASSEMBLY

1A – Concrete wall assembly

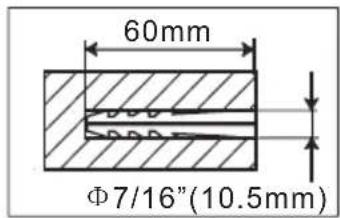

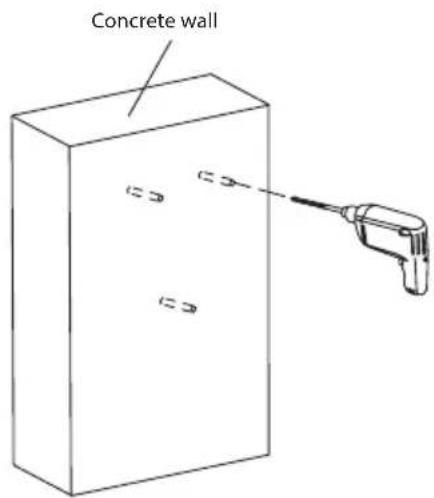

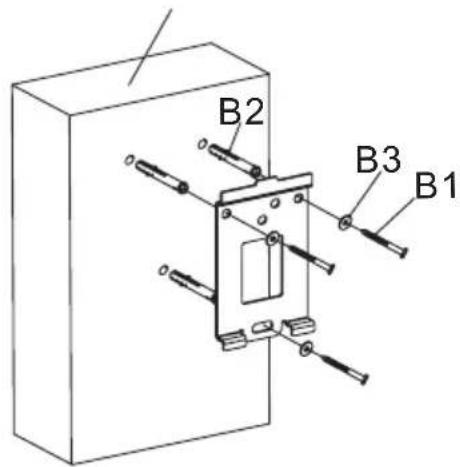

Apply the wall board to the wall, align into a level position and use it as a template to mark three holes. Drill three holes 10.5 mm in diameter and 60 mm deep. Insert three dowels (B2) into the holes and fixate the wall board to the wall using long screws (B1) and washers (B3). Tighten the bolts firmly, but not too much.

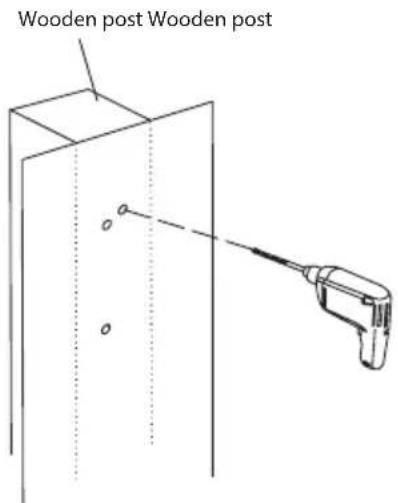

1B – Wooden crossbar assembly

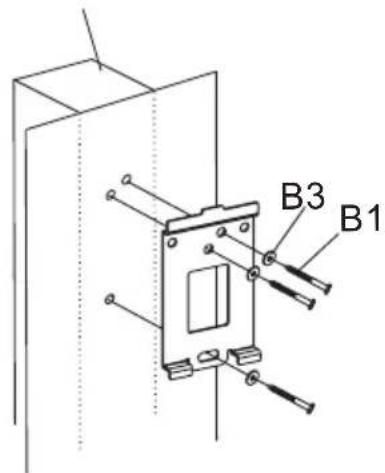

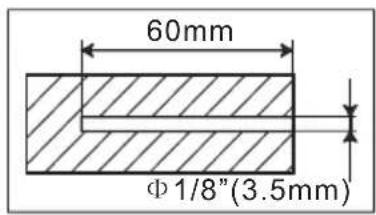

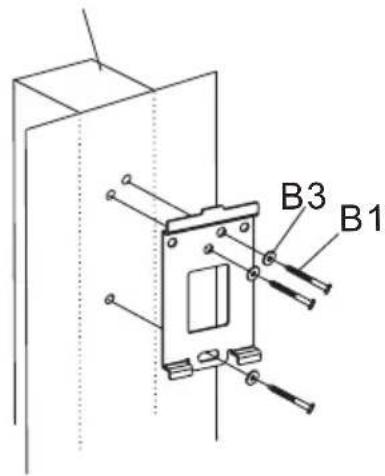

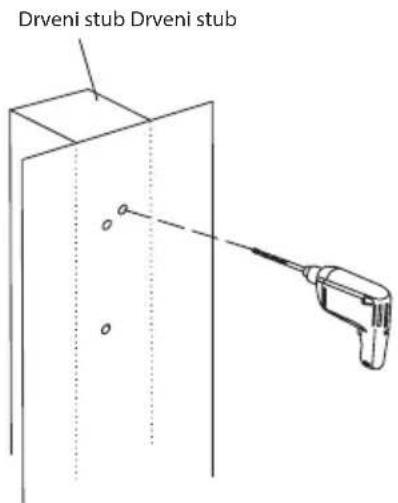

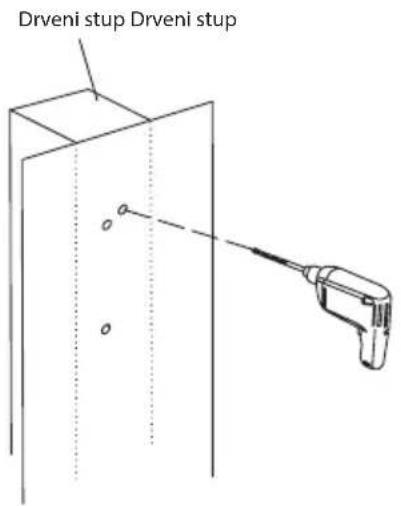

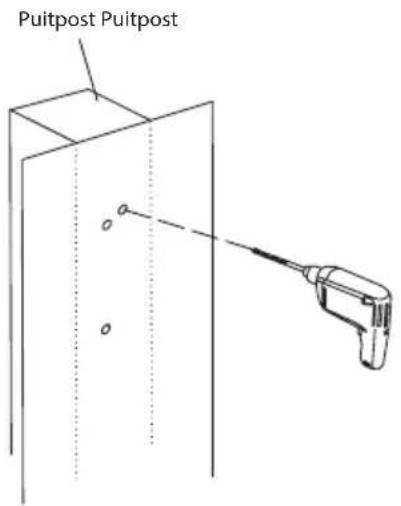

Use the wall board as a template. Make sure that it is level, mark three mounting holes into the wooden post. Drill three holes 3.5 mm in diameter and 60 mm deep. Apply the wall board horizontally and fixate to the wall using three long bolts (B1) and washers (B3). Tighten the bolts firmly, but not too much.

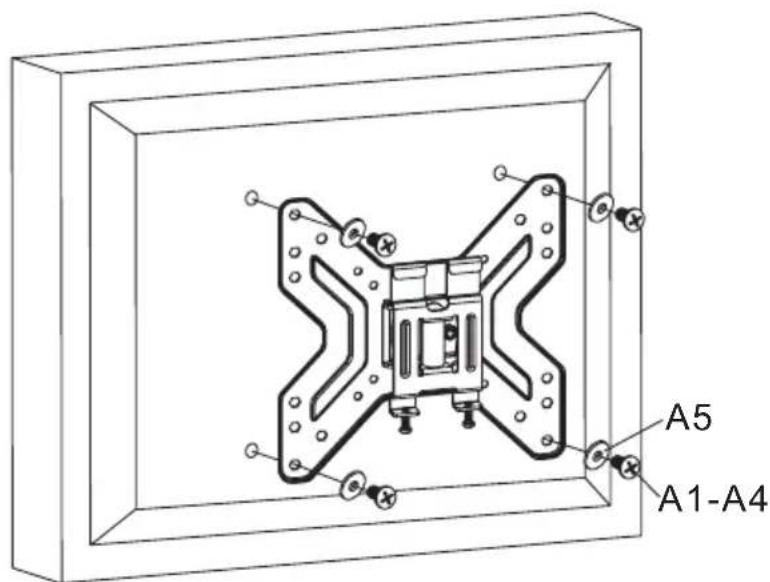

2 - Mounting the TV adapter panel to the TV

Check to see how the mounting holes are arranged on the back side of your television set. Select the proper bolts for your TV. Remove the TV adapter plate from the wall plate and attach it to the TV with the four screws (A1–A4) and washer (A5). If the threads in the TV mount are too shallow, we recommend using spacers. Tighten the bolts firmly, but not too much.

Warning: If the holes on the back of your TV are too shallow and none of the included screws fit into them, use the appropriate screws of your choice.

3 – Installing the adapter panel to the wall board

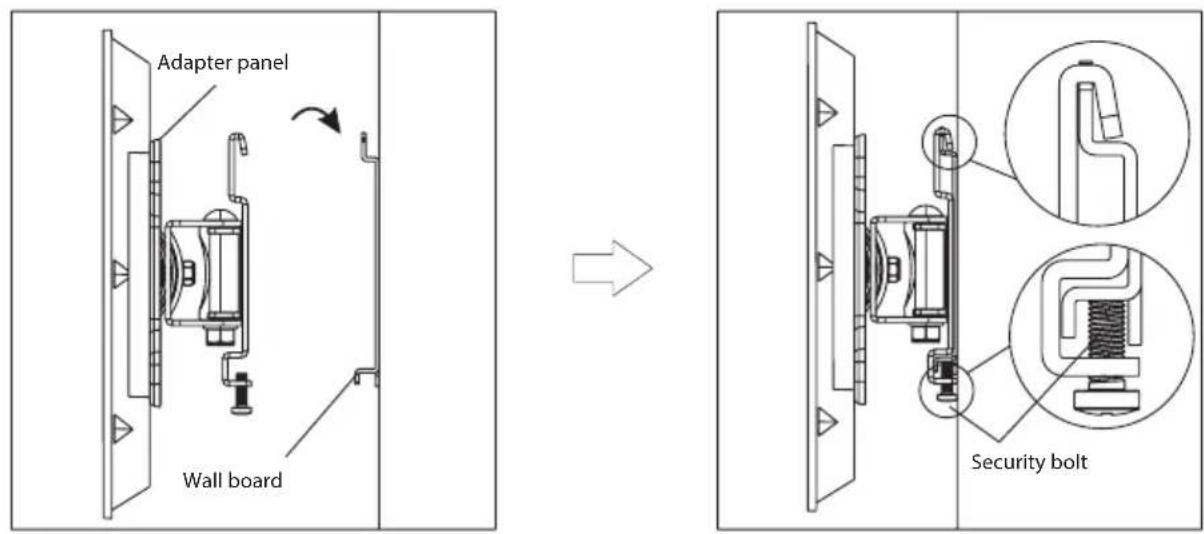

Mount the adapter panel to the wall board so that the adapter flange is placed on the wall board rails. Tighten the security bolt on the wall board rails. Tighten the bolt firmly, but not too much.

TECHNICAL SPECIFICATIONS

Panel size: 17" to 42"

Maximum TV weight: 25 kg

Compatibility: VESA 200×200

forward/back tilt: -5^ to +10^

Minimum distance from the wall: 48 mm

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

The operating manual is available on internet at www.ecg-electro.eu.

Changes of text and technical parameters are reserved.

08/05

SICHERHEITSHINWEISE

2 - Teleriadapteri paneeli kinnitamine teleri külge

2 – Spajanje ploče adaptera i TV uređaja

Pogledajte raspored pričvrsnih rupa na stražnjoj strani TV uređaja. Izaberite vijke koji odgovaraju vašem TV uređaju. Uklonite ploču TV adaptera sa zidne ploče i pričvrstite je za televizor pomoću četiri vijka (A1–A4) i podloške (A6). Ako su navoji u nosaču TV-a previše plitki, preporučujemo upotrebu podloški. Stegnite vijke čvrsto, ali ne pretežite.

Upozorenje: Ako su rupe na stražnjoj strani televizora previše plitke i nijedan od priloženih vijaka ne stane, upotrijebite odgovarajuće vijke po vašem izboru.

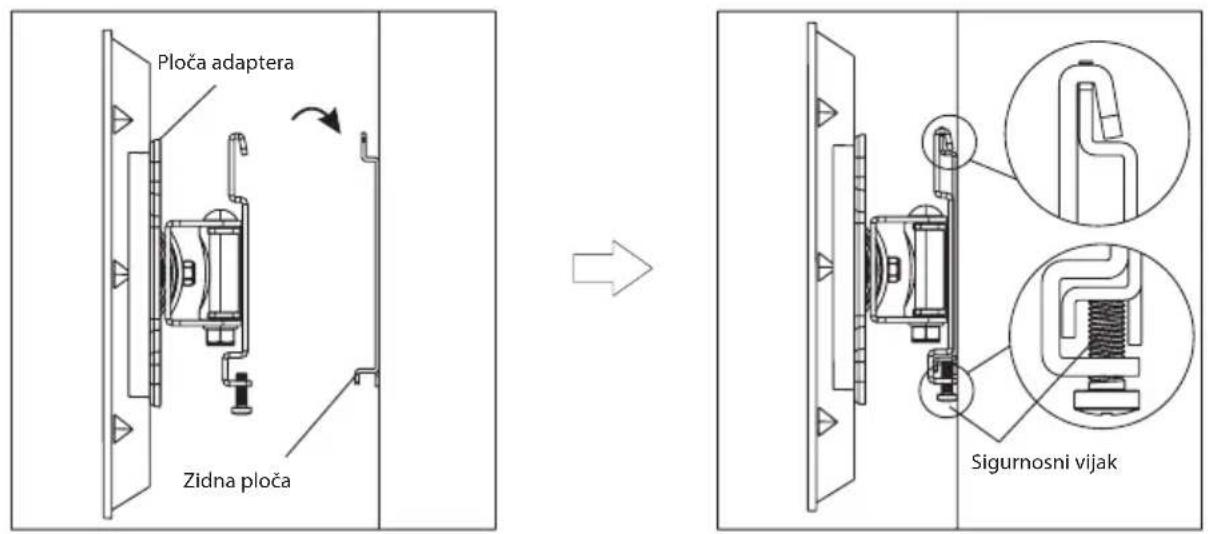

3 - Pričvršćivanje ploče adaptera na zidnu ploču

Pričvrstite ploču adaptera na zidnu ploču gurnuvši prirubnicu adaptera u vodilice zidne ploče. Pritegnite vijak osigurača na vodilici zidne ploče. Stegnite čvrsto, ali ne pretežite.

TEHNIČKI PODACI

Dijagonala zaslona: 17" do 42"

Najveća nosivost: 25 kg

Panela lielums: 17–42 collas

Maksimālais televizora svars: 25 kg

Saderiba: VESA 200 × 200

BEZBEDNOSNA UPUTSTVA

2 – Spajanje table adaptera i TV uređaja

Pogledajte raspored montažnih rupa na zadnjoj strani TV uređaja. Izaberite zavrtnje koji odgovaraju vašem TV uređaju. Uklonite tablu TV adaptera sa zidne table i pričvrstite je za televizor pomoću četiri vijka (A1–A4) i podloške (A6). Ako su navoji u nosaču TV-a previše plitki, preporučamo upotrebu podloški. Stegnite zavrtnje čvrsto, ali ne stežite prejako.

Pažnja: Ako su rupe na zadnjoj strani televizora previše plitke i nijedan od priloženih vijaka ne stane, upotrebite odgovarajuće vijke po vašem izboru.

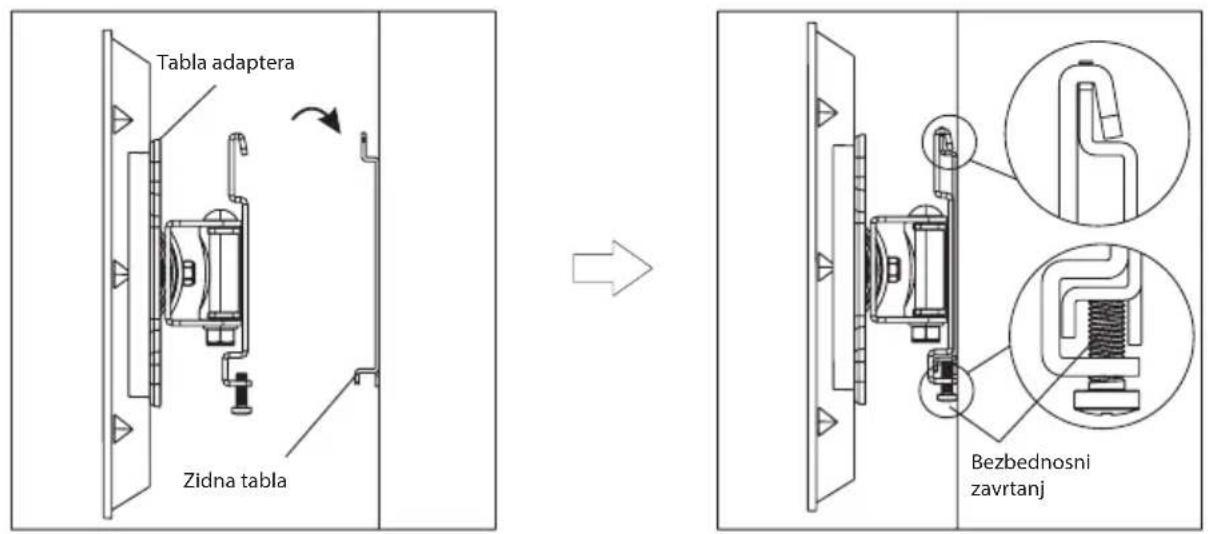

3 - Pričvršćivanje table adaptera na zidnu tablu

Pričvrstite tablu adaptera na zidnu tablu gurnuvši prirubnicu adaptera u vođice zidne table. Pritegnite vijak osigurača na vođici zidne table. Stegnite čvrsto, ali ne stežite prejako.

TEHNIČKI PODACI

Dijagonala ekrana: 17" do 42"

Najveća nosivost: 25 kg
