USER MANUAL YT-82550 Yato
- paint container
- trigger/switch
- air nozzles
- spray nozzle
- nozzle's ring
- capacity control
- electric cord with plug
- viscometer
D
Read the operating instruction
Wear protective goggles
Wear hearing protectors
Second class of insulation
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
PRODUCT CHARACTERISTICS
Electric painting gun is an electric device of II insulation class designed for coating of surface with coating material or paint. Thanks to integrated compressor the gun does not need any external compressed air supply. Capacious paint container combined with high performance ensures the efficient operation. Correct, reliable and safe operation of the product depends on proper operation, therefore:
Before starting the work with this appliance, please read this manual and keep it properly.
The supplier does not assume any liability for damages resulting from failure to follow safety regulations and recommendations specified in this manual.
EQUIPMENT
The packaging should include a spray gun, paint container and viscometer.
TECHNICAL PARAMETERS
| Parameter Measuring unit Value | ||
| Catalogue number YT-82550 | ||
| Mains voltage [V] ~230 | ||
| Mains frequency [Hz] 50 | ||
| Rated power [W] 500 | ||
| Electrical protection class II | ||
| Weight [kg] 1.4 | ||
| Container capacity | [l] | 1 |
| Rated capacity | [l/min] | 0.4 |
| Nozzle diameter | [mm] | 1.8 |
| Noise level | ||
| pressure L_pA | [dB(A)] | 102.0 ± 3.0 |
| power L_WA | [dB(A)] | 113.0 ± 3.0 |
| Vibration level a_h | [m/s2] | 2.12 ± 1.5 |
| Protection class | IPX0 |
Caution! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used.
Caution! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.
GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS
Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury.
Keep all warnings and instructions for future reference.
The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.
Workplace safety
Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.
Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.
Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.
Electrical safety
The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.
Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock. Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.
Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.
EN
Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.
In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.
When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.
Personal safety
Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.
Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.
Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.
Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.
Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.
Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.
If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.
Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules. Carefree action can cause serious injuries in a fraction of a second.
Use and care of the power tool
Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.
Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.
Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.
Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.
Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.
Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.
Repairs
Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.
ADDITIONAL SAFETY INSTRUCTIONS
When using the machine, always observe safety rules attached in user manual as well as other OH&S instructions.
It is forbidden to use spray guns by children and persons untrained in operation of spray guns.
Never point the device towards people or animals.
Spray guns must not be used for fl ammable materials.
Spray guns should not be cleaned with fl ammable solvents.
Avoid any hazards caused by sprayed material and check designation on the container or information attached to it by a manufacturer on material sprayed, along with requirements regarding the use of personal protection materials.
Do not spray any materials that may cause unknown hazards.
EN
Note! A high pressure stream can cause severe skin damage. Never allow any part of the body to come into contact with the stream.
Protective clothing does not provide sufficient protection against injuries in the form of an injection.
If case of an injection of high pressure stream under the skin, contact your physician immediately. A physician should be informed about the type of substance being sprayed.
Do not eat, drink or smoke within working area.
Always wear a respiratory mask that provides protection against inhalation of harmful vapour.
Provide proper ventilation to prevent accumulation of flammable vapour in the air within working space.
Appropriate measures must be taken to prevent hazards resulting from substance being sprayed. Observe the instructions indicated on the packaging or formulated by the spraying substance manufacturer.
Do not spray any substances that are prohibited in this manual.
Do not spray materials of unknown composition.
Do not use the tool without the nozzle cover installed.
Never use the tool if any safety devices or covers have been damaged.
Use only original spare parts, carry out any repairs at an authorized repair facility.
Before removing any problems with the device, its service, and when it is not being used, disconnect it from the power supply.
Always check if the existing mains voltage corresponds to the voltage indicated on the machine's rating plate.
PREPARATION TO WORK
NOTE! Installation of accessories may be carried out only with the supply voltage disconnected. Pull out the plug of power cable from the mains socket!

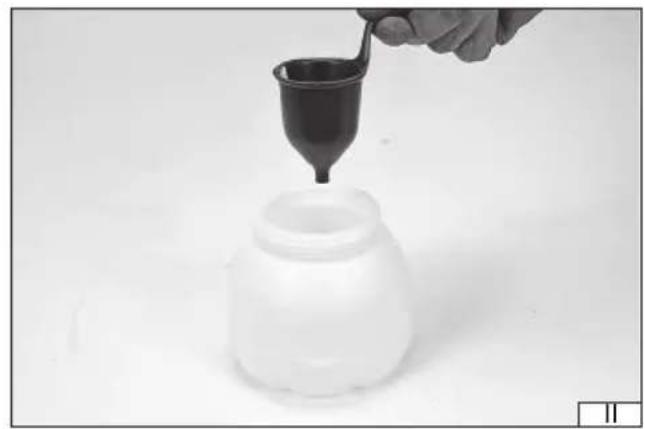

Determination of coating material viscosity (II)
The product accessories include a viscometer that allows determining if the viscosity (density) of paint is correct for the gun.
Mix the coating material to be sprayed thoroughly. Mixing is aimed at avoiding uneven distribution of density of the coating material.
Dip the viscometer until it submerges under the surface of liquid.
Lift the viscometer above the liquid surface and measure the time needed to empty the viscometer.
Depending on the type of liquid, the viscometer should be emptied within 18 s ± 2 s.
Density of coating material can be decreased using the thinner specified in the documentation attached to coating material.
Filling and assembly of a paint container
Unscrew the paint container.
Firmly push the suction tube into the mounting hole. The end of the suction tube is bent back, which is to assist in more accurate emptying of the container while holding the gun at an angle, e.g. when painting floors or ceiling. Point the bent-back end of the tube in the opposite direction of intended inclination of a gun.
Fill the container with paint of suitable viscosity. Do not exceed the upper mark of the paint container capacity.
Carefully screw the container to the gun, tighten the container to seal the connection
GUN OPERATION
The gun is not intended for spraying the following type of paint:
High density paints.
Paints containing abrasive agents such as red lead monoxide.
Coarse-grained paints.
Caustic and alkaline paints.
All operations connected with spray adjustment must be performed with the mains supply switched off. To do this, unplug the power cord from the mains socket.
Spray adjustment

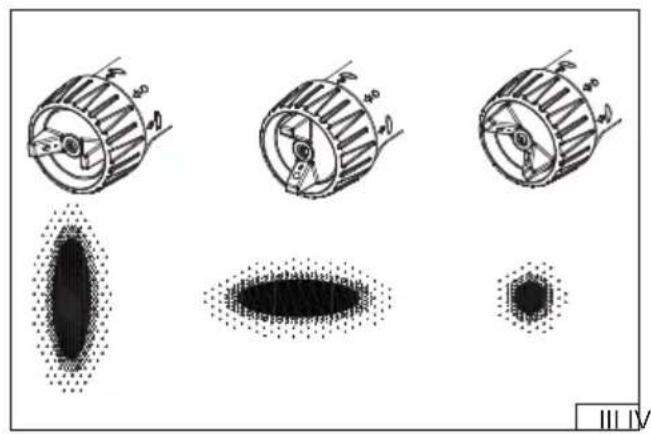

Gun's nozzle allows obtaining three shapes of the stream of coating material. The shape can be changed by changing the position of air nozzles.
Loosen slightly the nozzle retaining ring, set one of settings shown in figure (III), and then lock the position of nozzles by tightening the ring. Do not set the nozzles in other positions than those described in this manual.
Symbols indicating the shape of stream of coating material are shown on the gun's housing.
NOTE! Do not press the gun trigger button while adjusting the air nozzles.

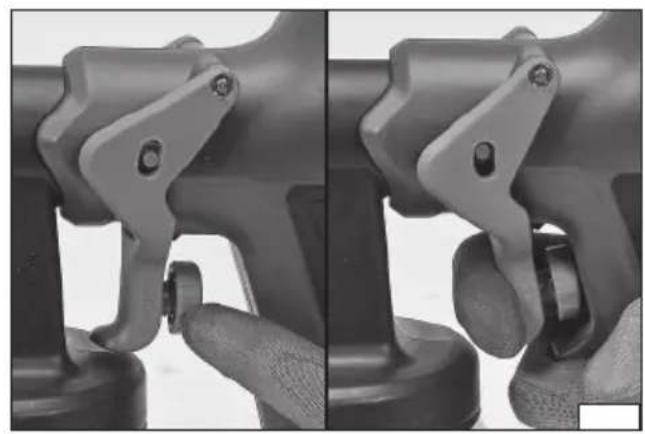

Adjustment of quantity of coating material sprayed (IV)
Behind the trigger/switch there is an adjustment knob that limits the depth of the trigger pull. The deeper the trigger is pressed, the more spray material comes out of the gun nozzle.
EN
Turning the knob in a clockwise direction increases the quantity of coating material, turning in the opposite direction decreases it. A marking on the trigger facilitates the adjustment.
Switching in and switching off
Fill the container with coating material as per the procedure described above.
Ensure that the voltage on the rating plate corresponds with the mains voltage.
Make sure the gun trigger is not pressed.
Connect the power cord plug into the mains socket.
Switch on the device with the switch, point the gun towards a safe place and press the trigger button. If necessary, adjust the quantity of material to be sprayed as per the adjustment procedure.
Switching off the gun is done by releasing the trigger.
Painting
First trials of spraying the coating material are recommended to be carried out on the test surface. This will allow avoiding any damage to working surface.
Make sure that all surfaces that are not to be coated are thoroughly covered. Make sure that the surface to be coated is clean, dry, degreased and free of dust.

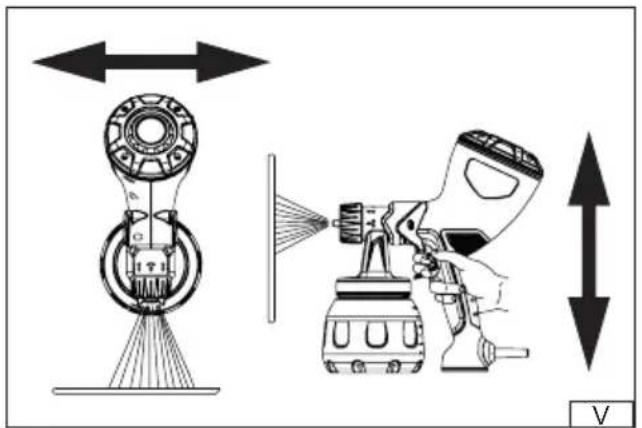

Hold the device straight in a vertical position so that the nozzle outlet stays approximately 20 cm away from the surface being sprayed.

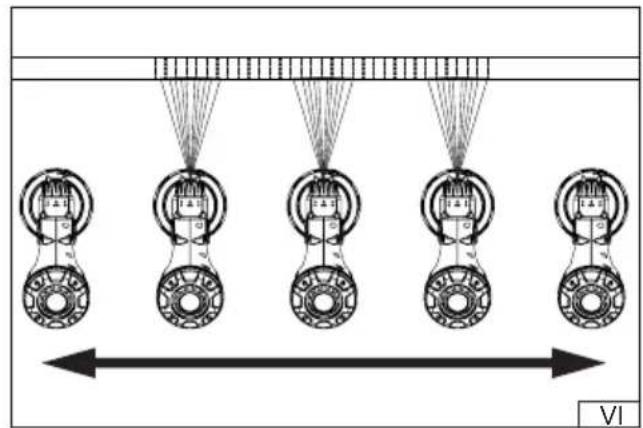

Displace the gun from side to side or up and down so that it always stays at a constant distance from the surface being sprayed (V). Begin displacing the gun, then press the trigger in its course. Release the trigger before completing the gun movement (VI).
Displace the gun in a monotonous motion, changes in pace or stopping the gun while spraying will result in an uneven distribution of coating material.

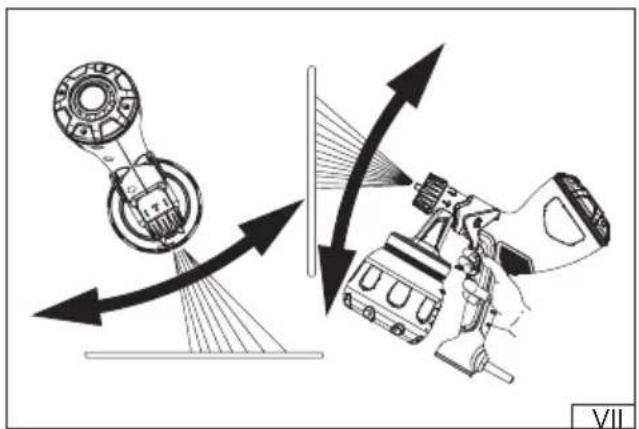

Avoid tilting the gun both horizontally and vertically (VII). This will result in an uneven distribution of coating material.
Apply a few thin layers of coating material instead of one thick layer.
Before applying the next coat, leave the previous one to be slightly dried, follow the instructions provided with the sprayed agent.
CLEANING AND MAINTENANCE
Warning! Do not use flammable materials for cleaning and maintenance.
Immediately after the end of spraying the coating material, unscrew the container and clean it inside and the outside of suction tube with a thinner intended for a given coating material. Then fill the tank with the thinner intended for a given coating material and start spraying it onto the test surface. Spraying should be stopped as soon as a clean thinner is coming out of the nozzle.
Stop spraying, unplug the power cord from the mains socket, and then disassemble the container, empty the residues of thinner and dry it.
Unscrew the nozzle fixing nut and thoroughly clean the spray nozzle and piston, using a soft cloth and a thinner intended for a given coating material.
Leaving the gun without cleaning will cause the coating material to dry inside the product. This may lead to irreversible gun damage.
Clean the outside parts of the product with a soft, damp cloth and then wipe them dry.
Note! It is forbidden to clean the gun by directing a stream against it or submerging it in water, thinner or other liquid.
It is forbidden to use sharp objects and/or abrasive cleaning agents used for cleaning the gun.
GERÄTEBESCHREIBUNG
CARACTERISTIQUES DU PRODUIT
DECLARATION OF CONFORMITY
0725/YT-82550/EC/2025
We declare and guarantee with full responsibility that the following products:
Electric spray gun 230 V\~; 50 Hz; 500 W; 0,4 l/ min; item no. YT-82550
meet requirements of the following European Standards / Technical Specifications:
EN 50580:2012 + A1:2013
EN 62841-1:2015 + A11:2022
EN 62233:2008
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
and fulfill requirements of the following European Directives:
2006/42/EC Machinery and safety elements
2014/30/EU Electromagnetic compatibility (EMC) Directive
2011/65/UE Restriction of the Use of Certain Hazardous Substances
Serial number: concern all serials numbers of item(s) mentioned in this declaration
The person authorized to compile the technical file:
Agnieszka Rędziak
(Place and date of issue)
V-CE PREZES ZARZADU
JAN SZMIDT
(Name and signature of authorized person)
TOYA S.A.
