USER MANUAL 492970 PRINCESS

Exterior view of a PRINCESS vacuum cleaner with packaged salmon and lemon slices (no text or symbols visible)

Vacuum Sealer 01.492970.01.001

EN User manual 3
NL Gebruikshandleiding 8
FR Mode d'emploi 14
DE Benutzerhandbuch 20
ES Manual del usuario 27
PT Manual do utilizador 33

A 1 2 3 4 5 6 vac seal vac seal

B 7 10 11 12 14 8 9

User manual

Vacuum Sealer

Function buttons (see image A)

① Vacuum and seal button
2 Indicator light Vacuum and Seal

3 Vacuum button
4 Indicator light Vacuum
5 Seal button

6 Indicator light Seal

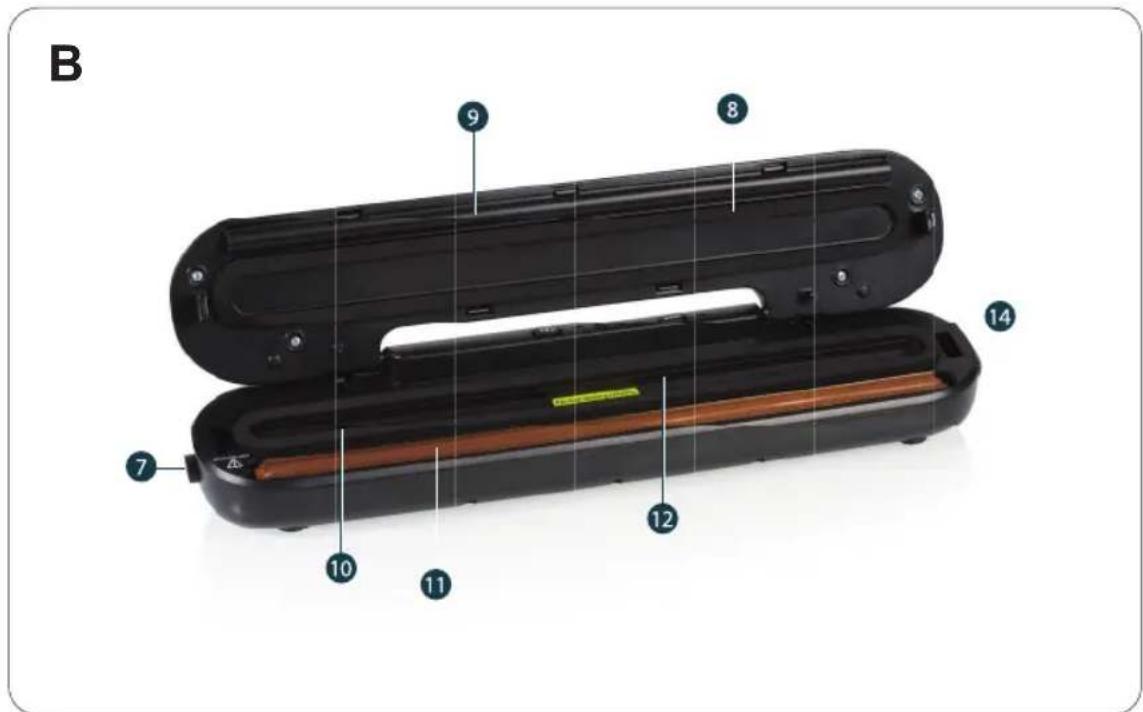

Main parts (see image B)

7 Lid lock/release button
8 Sealing foam
9 Rubber bar

10 Air suction hole
11 Heating wire
12 Vacuum chamber

13 Small bag opener

SAFETY

Safety symbols

Symbol Description

Indication for a hot surface. Contact may cause burns. Do not touch.

Safety precautions

WARNING

• Only use the appliance as described in this user manual.
• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
• The appliance must be placed on stable, dry and level surface.
• The user must not leave the appliance unattended while it is connected to the supply.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• Children shall not play with the appliance.
- This appliance is not intended to be operated by means of an external timer or separate remote-control system. To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.
- This product is intended for household use only. Do not use this appliance for anything other than its intended use. Do not use outdoors.
- Before using your appliance, check if the voltage indicated on the appliance matches the mains supply voltage.
- To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Do not expose to rain or moisture.
• Surface is liable to get hot during use.
- Never use the appliance if there are visible signs of damage or defects. Always replace a damaged or defective appliance immediately.
- If abnormal noise, smell, smoke or any other failure or breakage is found during the operation, you should unplug the appliance.
- Keep the appliance and cord away from heat, direct sunlight, water, moisture, sharp edges etc.
- Never use the appliance in the immediate surroundings of a bath, a shower or a swimming pool.
- Never open the appliance. The appliance may only be opened for maintenance by an authorised technician.

FOREWORD

About this document

This user manual contains all the information for correct, safe, and efficient use of the appliance.

Ensure you have fully read and understood the instructions in this user manual before you use the appliance.

Always store this user manual in a safe place near the appliance for future reference.

This manual is originally written in English. All other languages are translated documents.

General symbols

Symbol Description
CE	This product complies with conformity requirements of the applicable European regulations or directives.
	This symbol is used for marking materials intended to come into contact with food in the European Union as defined in regulation (EC) No 1935/2004.The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.
	The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.
	Applicable in France:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.
[BT6C]	Applicable in Italy:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.
	In a double-insulated appliance, two insulation systems are provided instead of an earth wire. No earthing means is provided on a double-insulated appliance, nor should a means for earthing be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should only be done by qualified service personnel. The replacement parts for a doubleinsulated appliance must be identical to the parts they replace. A double-insulated appliance is labelled with the words 'CLASS II' or 'DOUBLE INSULATED". It can also be identified with the double insulation symbol.

APPLIANCE DESCRIPTION

About this appliance

The Princess 01.492970.01.001 is a vacuum sealer designed to preserve food by removing air from bags, helping to extend freshness and prevent freezer burn.

Intended use

This appliance is intended for indoor use only.

This appliance is intended exclusively for domestic, non-commercial use.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farmhouses;
• by clients in hotels, motels, and other residential type environments;
• bed and breakfast type environments.

Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty.

Technical specifications

Appliance name Vacuum Sealer
Article number 01.492970.01.001
Power supply 220-240V~50/60Hz
Power consumption in use 100 W
Power consumption in off-mode (W) 5 W
Power consumption in standby mode (W) 100 W
Time needed for the equipment to reach the applicable low power mode (min)	0,13 min

BEFORE FIRST USE

- Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.

- Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.

USE

1. Fill the vacuum bag with the food you want to seal, leaving enough space between the contents and the top edge of the bag.
2. Open the lid (make sure to release the lid by pressing B⑦) and place the open end of the bag into the vacuum chamber B⑫. Make sure the entire bag opening is positioned inside the vacuum chamber B⑫.
3. Press the lid firmly on both sides at the same time until you hear a click on both sides, indicating that the vacuum sealer is fully locked.
4. Connect the power supply, then select the function desired A1/A3/A5 based on the type of food. The corresponding indicator light will turn on. If pressing the vacuum and seal button, the vacuum sealer will begin removing air and sealing the bag automatically. When the process is complete, the white indicator light will turn off.
5. Press both release buttons B7 to open the lid and remove the vacuum-sealed bag.

- SmallBagOpenerB ⑬: Remove the small bag opener from the back of the machine and prepare the sealed bag you want to open. Use the opener to cut open the sealed bag.

Notice:

• This vacuum sealer is not designed for sealing liquid foods.
- The vacuum bag or pouch must not exceed a width of 30 cm (300 mm).
- For proper vacuuming, use vacuum-sealing bags, bags with folded sides, or textured/embossed bags.
- Standard smooth bags can be sealed, but they will not vacuum properly.
• Always use a clean, unused vacuum bag.
- Allow the vacuum sealer to cool for 30–40 seconds after each use.
- Ensure that the vacuum bag does not cover the air-suction hole.

SETTINGS:

• VacuumandsealingbuttonA ①: For dry or hard foods such as meat, nuts and similar items. The vacuum sealer starts the vacuum process automatically. Once finished, it stops and seals the bag, and the white indicator turns off.
• VacuumbuttonA ③: For fragile food, such as bread and chips. The vacuum sealer starts vacuuming when the 'Vac' button is pressed. Vacuuming continues while the button is held and stops when it is released. To seal the bag, press the 'Seal' button.
• SealbuttonA 5: press to start sealing. The white indicator lights up and turns off automatically after about 11 seconds when sealing is complete.

GENERAL SAFETY RULES FOR FOOD:

• Once you heat perishable food, you should eat it as soon as possible.
  • The best way to thaw food is to let it defrost slowly in the fridge, not in hot water or by heating it.
• It can be dangerous to eat seasoned food that has been vacuum-sealed or kept in low-oxygen conditions at room temperature for a few hours.
• If you want to freeze food quickly, lay the sealed bag flat in the freezer.

SHELF LIFE:

Refrigerator (approx. 5°C) Normal packaging Vacuum packaging
Beef, pork and lamb 3-4 days 8-9 days
Poultry 2-3 days 6-8 days
Fish 1-3 days 4-5 days
Meat (sliced)	4-6 days 20-25 days

Sausage 7 days 25 days
Vegetables 1-3 days 7-10 days
Fruit 5-7 days 14-20 days
Pasta and rice 2-3 days 6-8 days

Freezer (approx. -18 °C) Normal packaging Vacuum packaging
Meat 4-6 months 15-20 months
Fish 3-4 months 10-12 months
Vegetables 8-10 months 18-24 months

Room temperature (approx. 21 °C)	Normal packaging Vacuum packaging
Fresh bread 1-3 days 8-10 days
Biscuits 4-6 months 12 months
Pasta and rice 5-6 months 12 months
Flour	4-5 months 12 months
Nuts	3-4 months 12 months
Ground coffee	2-3 months 12 months

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.
• Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof.
• Never immerse the power cord of the device with the heating line under water.
• During vacuuming, small amounts of liquid or food crumbs may be drawn into the vacuum channel. Clean the channel after each use with a cloth or paper towel.
• After every use, place the paper stand between the upper and lower lids to prevent the sealing foam from becoming compressed.

TROUBLESHOOTING

Problem	Possible solution
Vacuum sealer does not work.	Ensure the vacuum sealer is properly plugged in and the power outlet is functioning.Check that both the power cord and the vacuum sealer are not damaged. For safety reasons, do not operate the device if any part appears defective.
Vacuum pump is running, but the bag cannot be fully vacuumed or sealed.	Reposition the bag and try again, making sure the open end is fully inserted into the vacuum channel.Check whether the sealing foam is loose or damaged. Remove, clean, and reinsert it if necessary.Inspect the sealing area and heating strip for any food debris. Clean thoroughly and ensure the heating strip is correctly installed.Verify that the lid is locked securely during operation.Confirm that the open end of the bag is lying flat and properly sealed.
After vacuuming, air enters the bag again.	Inspect the seal. Wrinkles along the seal may allow air to re-enter. Smooth the bag's opening and reseal it.Moisture or food particles (e.g., juices, crumbs, powders) on the sealing area can prevent proper sealing. Open the bag, clean and dry it, then reseal.Check the food itself. If moisture or liquid has leaked from the contents, cut the bag open and reseal, or transfer the food to a new bag.For foods with high moisture content, it is recommended to freeze them briefly before vacuum sealing.
Bag cannot be sealed properly. An overheated heating strip may melt the bag. Lift the lid and allow the strip to cool for a few minutes.Wrinkles or moisture on the sealing area can prevent a proper seal.Allow 30–40 seconds of cooling time between consecutive sealing cycles.

DISPOSAL

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.princesshome.eu!
