USER MANUAL 492971 PRINCESS

Exterior view of a silver rectangular spray machine with lemon slices and a packaged salmon dish (no text or symbols visible)

Vacuum Sealer

01.492971.01.001

EN User manual 4
NL Gebruikshandleiding 8
FR Mode d'emploi 14
DE Benutzerhandbuch 19
ES Manual del usuario 24
PT Manual do utilizador 29

IT Manuale d'uso 35
sv Bruksanvisning 40
PL Instrukcja obsługi 44
cs Uživatelská příručka 50
SK Používatel'ská príručka 54

A 1 2 3 4 5 6 7 8 9 10

B 11 12 13 14 15 16 17 18

C

Technical line drawing of a printer or printer with paper sheet (no text or symbols)

D

Line drawing of hands operating a toaster with buttons and paper (no text or symbols)

E

Line drawing of a hand pressing down on a printer's front panel (no text or symbols)

User manual

Vacuum Sealer

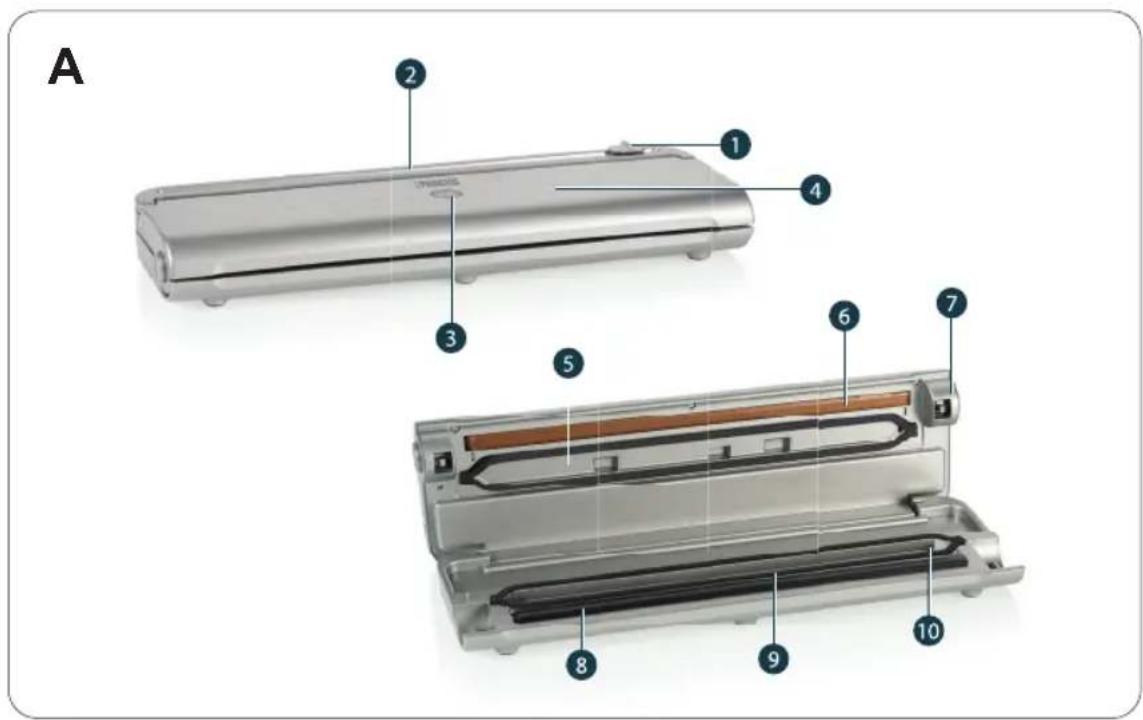

Main parts (see image A)

1 Cutter
2 Cutter holder
3 Display
4 Function buttons

5 Vacuum chamber
6 Heating line
7 Release button
8 Sealing stripe

9 Sealing sponge
10 Block

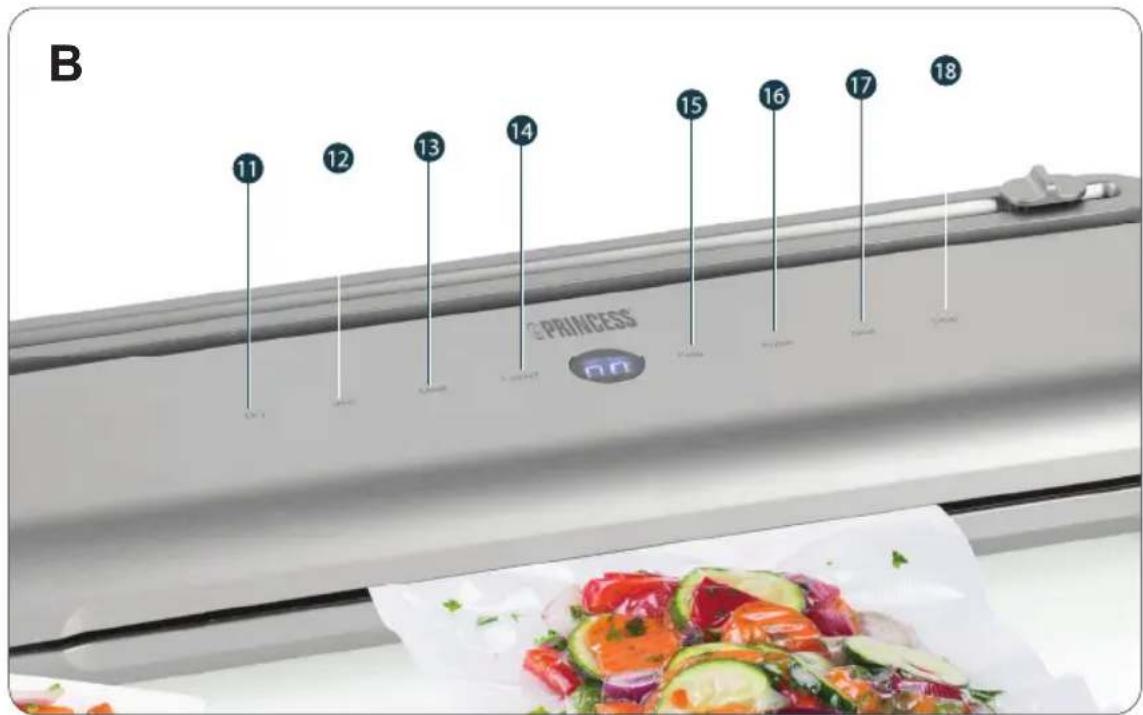

Function buttons (see image B)

11 Dry function
12 Wet function
13 Meat function

14 Liquid function
15 Crispy function
16 Pulse function

17 Seal function
18 Stop button

SAFETY

Safety symbols

Symbol Description

Indication for a hot surface. Contact may cause burns. Do not touch.

Safety precautions

WARNING

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
• The appliance must be placed on stable, dry and level surface.
• The user must not leave the appliance unattended while it is connected to the supply.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged

less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• Children shall not play with the appliance.
- This appliance is not intended to be operated by means of an external timer or separate remote-control system. To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.
- This product is intended for household use only. Do not use this appliance for anything other than its intended use. Do not use outdoors.
- Before using your appliance, check if the voltage indicated on the appliance matches the mains supply voltage.
- To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Do not expose to rain or moisture.
• Surface is liable to get hot during use.
- Only use the appliance as described in this user manual.
- Never use the appliance if there are visible signs of damage or defects. Always replace a damaged or defective appliance immediately.
- If abnormal noise, smell, smoke or any other failure or breakage is found during the operation, you should unplug the appliance.
- Keep the appliance and cord away from heat, direct sunlight, water, moisture, sharp edges, etc.
- Never use the appliance in the immediate surroundings of a bath, a shower or a swimming pool.
- Never open the appliance. The appliance may only be opened for maintenance by an authorised technician.

FOREWORD

About this document

This user manual contains all the information for correct, safe, and efficient use of the appliance. Ensure you have fully read and understood the instructions in this user manual before you use the appliance.

Always store this user manual in a safe place near the appliance for future reference.

This manual is originally written in English. All other languages are translated documents.

General symbols

Symbol Description
	This product complies with conformity requirements of the applicable European regulations or directives.
	This symbol is used for marking materials intended to come into contact with food in the European Union as defined in regulation (EC) No 1935/2004.
	The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.
	The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.
	Applicable in France:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.
	Applicable in Italy:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.
	In a double-insulated appliance, two insulation systems are provided instead of an earth wire. No earthing means is provided on a double-insulated appliance, nor should a means for earthing be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should only be done by qualified service personnel. The replacement parts for a doubleinsulated appliance must be identical to the parts they replace. A double-insulated appliance is labelled with the words 'CLASS II' or 'DOUBLE INSULATED". It can also be identified with the double insulation symbol.

APPLIANCE DESCRIPTION

About this appliance

The Princess 01.492971.01.001 is a vacuum sealer designed to preserve food by removing air from bags, helping to extend freshness and prevent freezer burn.

Intended use

This appliance is intended for indoor use only.

This appliance is intended exclusively for domestic, non-commercial use.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels, and other residential type environments;
• bed and breakfast type environments.

Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty.

Technical specifications

Appliance name Vacuum Sealer
Article number 01.492971.01.001
Power supply 220-240V~ 50/60Hz
Power consumption in use 135 W
Power consumption in off-mode (W) 5 W
Power consumption in standby mode (W) 135 W
Time needed for the equipment to reach the applicable low power mode (min)	0,22 min

BEFORE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.

USE

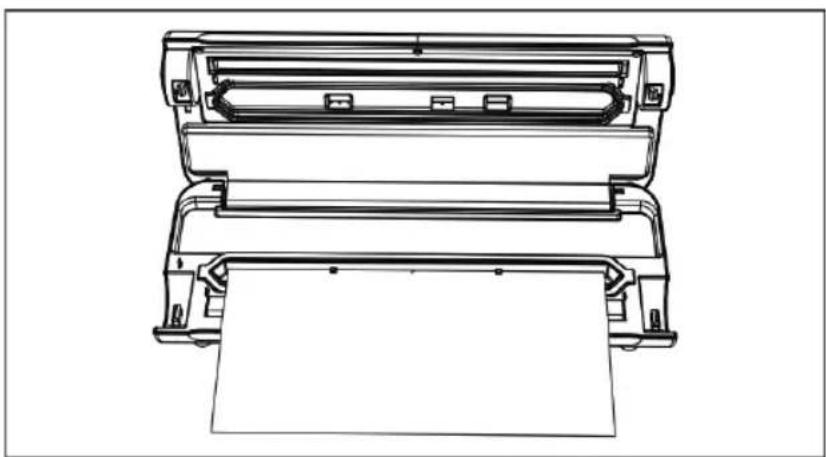

• Plug in the machine, then place the open end of the vacuum bag flat inside the vacuum chamber A5, ensuring it does not go beyond the limit block A10 (see image C).

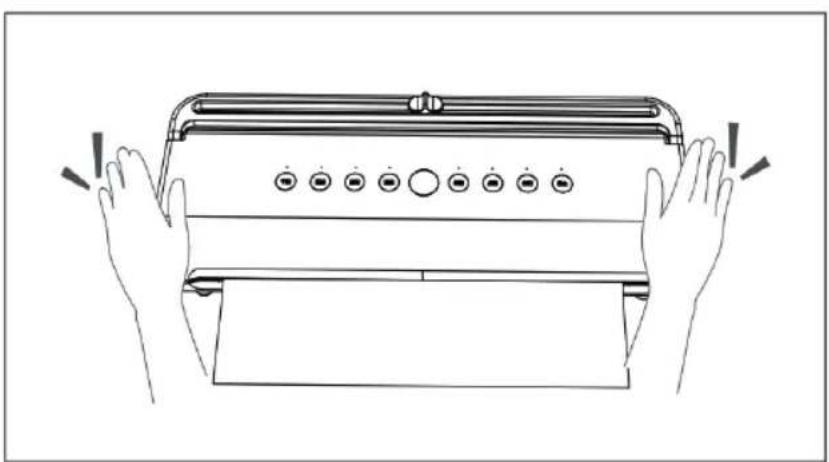

• Close the top cover and press both ends down until you hear a click. This means the cover is locked (see image D).

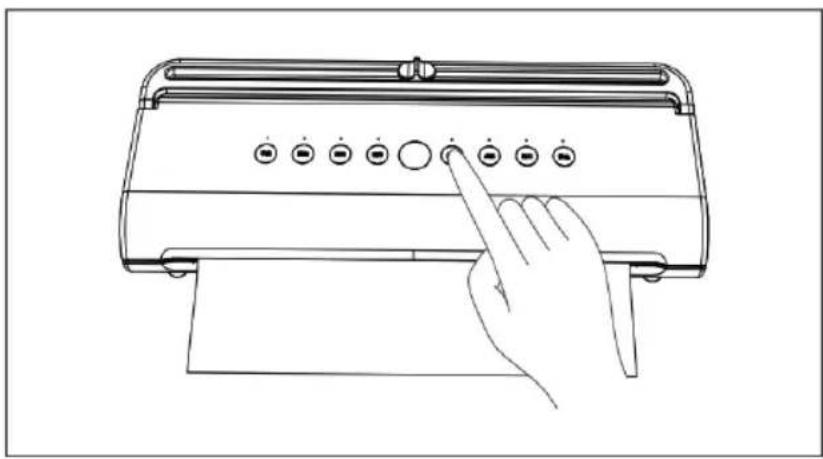

• Press the button for the function you want. The machine will start working automatically. When the light on the button turns off, the process is finished. Press the release buttons A7 on both ends, open the top cover, and take out the vacuum bag (see image E).

Functions instruction

• Dry function B 11: This is for dry items. It can vacuum and seal automatically, and the vacuum level can reach -55 to -60 kPa.
• Wet function B 12: This is for items with liquid. It can vacuum and seal automatically, and the vacuum level can reach -10 to -30 kPa.
• Meat function B ⑬: This is for fresh meat. It can vacuum and seal automatically, and the vacuum level can reach -55 to -60 kPa.
• Liquid function B 14: This is for pure liquids or ingredients with a lot of liquid. It can vacuum and seal automatically.
• Crispy function B 15: This is for fragile or crispy foods like biscuits and nuts. It uses gentle vacuuming to avoid crushing the food while sealing, keeping it crisp and fresh. The vacuum level can reach -10 to -30 kPa.
• Pulse function B 16: This only vacuums, not seals. Hold the pulse button to start vacuuming and release it to stop. You control the vacuum level yourself, up to -60 kPa. Note: After vacuuming, press the 'Seal' button to seal the bag.
• Seal function B ⑰: This is for sealing plastic bags only. Note: Bags that are too thick or too thin are not suitable.
• Stop B 18: This interrupts the current task. If you want to continue, choose the function button again.

Precautions

• When you use the sealing function many times in a row, wait 20 seconds between each use to stop it from overheating.
• After 30 sealing operations in a row, wait 5 minutes before continuing to stop the machine from overheating.
• For vacuum sealing, use bags with folds or a textured surface. Smooth bags can only be used for sealing, not for vacuuming.
• Promptly empty the wastewater from block A 10, located at the bottom of the vacuum sealer. Clean it thoroughly before reinstalling it again onto the electric top part of the machine to prevent overflow into the main unit.
• Do not use the product upside down to prevent debris or liquids from entering the product.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.
• Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof.
• The bottom of the device is detachable and can be cleaned under the sink. Never immerse the power cord and top part of the device with the heating line under water.

TROUBLESHOOTING

Problem Possible solution
The machine is not working. Check the power connection and ensure the power plug is not loose.
Unable to vacuum or seal. Make sure the open end of the vacuum bag is fully inside the vacuum chamber.Check if the sealing foam is loose or blocked by something.Check if the air hole in the vacuum chamber is blocked.Make sure the top cover is locked on both ends.Check if the vacuum bag is leaking air.
Poor vacuum or sealing Check if there is oil or liquid inside the vacuum bag and clean it before use.Check if the items are wet or leaking liquid. It is better to freeze them before packing.Wait 20 seconds between each sealing. If you work without a break, the heating part can get too hot and melt the bag.

DISPOSAL

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.princesshome.eu!
