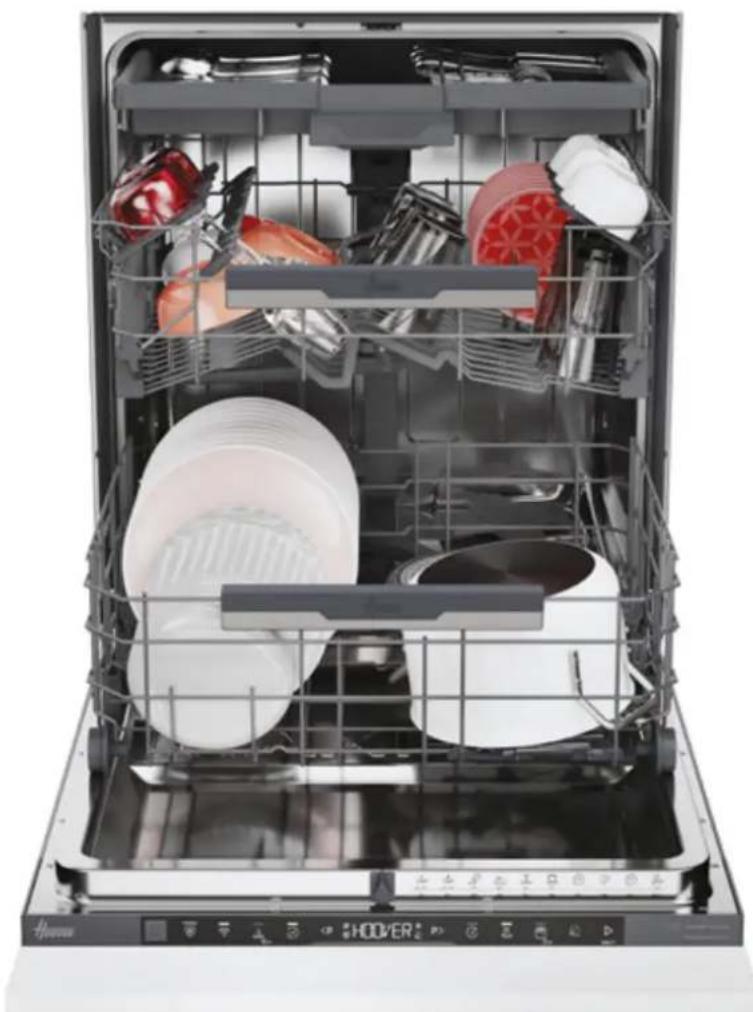

Product Type	Built-in Dishwasher
Brand	Hoover
Model	HI 6A2S3PSTA-80
Dimensions (H x W x D)	818 - 898 mm (adjustable) x 600 mm x 570 mm
Weight	Approximately 45 kg
Power Supply	220-240 V, 50/60 Hz
Water Pressure	0.08 - 1 MPa
Safety System	Anti-overflow with automatic shut-off
Height Adjustment	Adjustable front and rear feet
Installation	Built-in, requires a kitchen panel
Anti-steam strip	Included, to be installed under the worktop
Noise Level	Approximately 44 dB (estimate)
Capacity	12-14 place settings (estimate)
Water Consumption	Approximately 10 L per cycle (estimate)
Energy Consumption	Approximately 1 kWh per cycle (estimate)
Programs	Eco, Intensive, Quick, etc. (estimate)
Special Functions	Drying, delayed start (estimate)
Included Accessories	Fixing screws, anti-steam strip, drilling template
Fixing Bracket	Support for fixing to the worktop

Frequently Asked Questions - HI 6A2S3PSTA-80 HOOVER

What are the dimensions of the Hoover HI 6A2S3PSTA-80 dishwasher?

The dimensions are: adjustable height from 818 to 898 mm, standard width of 600 mm and depth of about 570 mm. For correct installation, the kitchen panel must not weigh more than 9 kg.

What is the required water pressure?

The water pressure must be between 0.08 MPa and 1 MPa. Check your installation before connecting the dishwasher.

How to install the anti-steam strip?

Apply the supplied anti-steam strip under the worktop and on the sides of adjacent cabinets. This protects surfaces from moisture during use.

Can I use this dishwasher without building it in?

No, this model is designed exclusively for built-in installation. Used free-standing, it could cause injuries or burns.

How to adjust the height of the dishwasher?

Tilt the appliance by lifting the rear about 10 cm, then adjust the rear foot from the front. Then adjust the front feet directly. The dishwasher must be level for the door to close properly.

What is the anti-overflow safety system?

The dishwasher is equipped with a device that automatically stops the water supply or drains the excess if the normal level is exceeded, thus preventing flooding.

How to fix the kitchen panel?

Measure the distance between the top edge of adjacent doors, transfer it to the panel, use the provided drilling template, then fix the panel to the dishwasher with the screws. Ensure the panel is fully inserted before tightening.

What to do in case of a water leak?

The anti-overflow system activates automatically. If a leak occurs nonetheless, shut off the water supply and unplug the appliance, then contact customer support.

Can I install this dishwasher under a hob?

No, it is forbidden to install the dishwasher under a hob. Keep it away from heat sources such as radiators or stoves.

Where to find spare parts for this model?

Contact Hoover customer service or an authorized center. The manual mentions that some repairs may require the serial number. Keep this number.

USER MANUAL HI 6A2S3PSTA-80 HOOVER

DOUBLE MOVEMENT HINGES

PERFORMANCE THAT LASTS

EN|IT|FR|DE|ES|GR|NL|PT|SK|PL|CZ|RO|HU

SL|SR|LT|EE|LV|BG|HR|DA|FI|NO|SV|UA|TR

WELCOME

This installation manual is intended for kitchen manufacturers who will accommodate these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future reference. Before proceeding with installation, note the serial number, as it may be needed in case of repairs. Check for any damage during transport and consult a technician if in doubt before use. Always keep all packaging materials out of reach of children.

NOTE: The features and images contained in this document are for reference only and may change without notice.

Index

1 Safety notices for installation 2 Where to install the dishwasher p.3 3 Dishwasher dimensions p.4-5 4 Step-by-step installation video p.6 5 Installation tools p.6 6 Built-in dimensions p.7 7 Instructions for dishwasher installation p.8-17 7.1 Installation of the anti-steam strip 7.2 Height adjustment 7.3 Adjustment of the rear foot 7.4 Adjustment of the front feet height 7.5 Tilt adjustment 7.6 Insertion into the built-in compartment 7.7 Fixing the front feet 7.8 Preparation of the panel 7.9 Installation of the panel 7.10 Fixing the machine to the kitchen 8 Connection to water and electrical network p.18-19 8.1 Connection diagram 8.2 Safety devices 9 Delivery to the user p.19 10 Dishwasher disassembly p.19

Safety warnings for installation

Observe these directions before beginning the installation of the product. Your safety is very important to us. Please read this information carefully before using the product.

• The installation must be carried out by a qualified technician who must be aware of and comply with the laws in force in the country of installation and the manufacturer's instructions;
• If manufacturer service is required to eliminate faults resulting from improper installation, such service is not covered by the fix;
• Remove the packaging material before operating the appliance;
• After unpacking the product, check that it is not damaged and, in case of problems, contact the service center before proceeding with installation and do not connect it to the power supply;
• A damaged product can cause a short circuit, electric shock, fire hazard, and other dangers;
• Check the packaging for accessories or accompanying materials (envelopes with screws, documents, brochures, etc.) and, if so, remove and store them;
• Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury;
• Safe use is only guaranteed if installation has been carried out properly according to these instructions. In case of damage due to improper installation, the responsibility lies with the person who installed the product;
• During installation, the appliance must not be connected to the power supply;
• It is recommended to wear protective gloves during installation to avoid cut injuries;
• In case of incorrect installation, tampering with the device and improper connection, the validity of the product warranty will expire;
• Make sure that when the product's power supply cable is completed, it is not accessible;
• After assembly, the power cord must not come into contact with moving parts of kitchen components (such as a drawer) and must not be exposed to mechanical stresses;
• When delivering the product to the end user, the technician must ensure that it has been installed correctly;
• Do not connect the product to the electrical network until the front panel has been fully installed. Otherwise, there may be an electrical hazard;
• Take care during transport, the product is heavy;
• Before starting the installation, check all the dimensions of the built-in compartment by comparing them with the instructions contained in this manual. Note that it is possible to align the door with the doors of other furniture, even if it exceeds the control panel in height;
• Make sure the installation area is stable and solid;
• Apply the protective film, supplied in the installation kit, under the worktop and on surrounding furniture. This film protects the furniture from humidity;
• Be careful when opening and closing the product;
• Incorrect installation can cause the product to tip over;
• The product must be level to function correctly, otherwise the door will not close properly, leading to the escape of hot steam.

Where to install the dishwasher

2

• Install and use this product in a closed, covered, dry, and well-ventilated environment;
• Do not install the product in open environments exposed to atmospheric agents;
• Install the product near an electrical outlet;
• Use the product only when placed in a recessed compartment, otherwise you risk injury and burns;
• Do not install the dishwasher under a cooktop;
• Do not install the product near heat sources (radiators, stoves, etc.).
• Do not place the product on carpets or similar surfaces;
• Place the product on a clean, level, and stable surface.

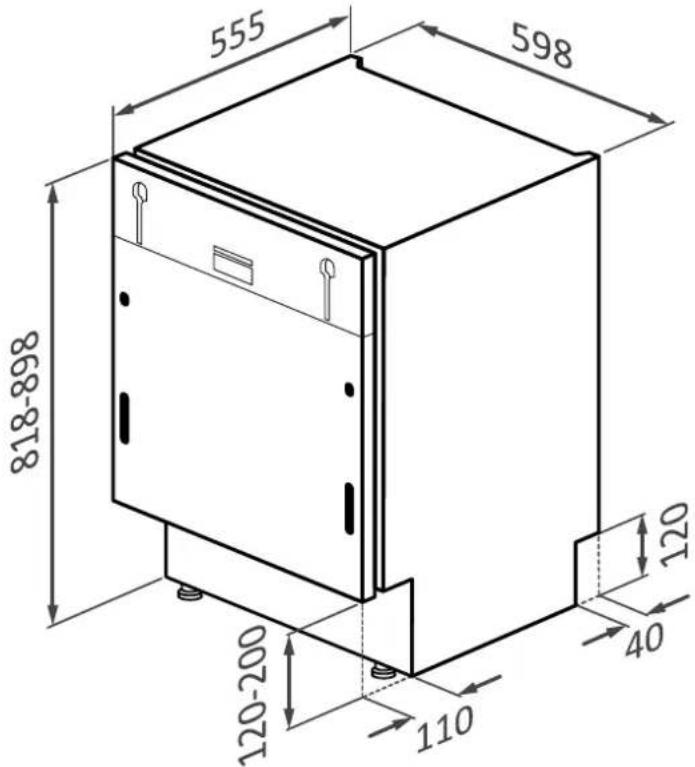

3 Dishwasher dimensions

Dimensions in mm

Front axonometric view of the product

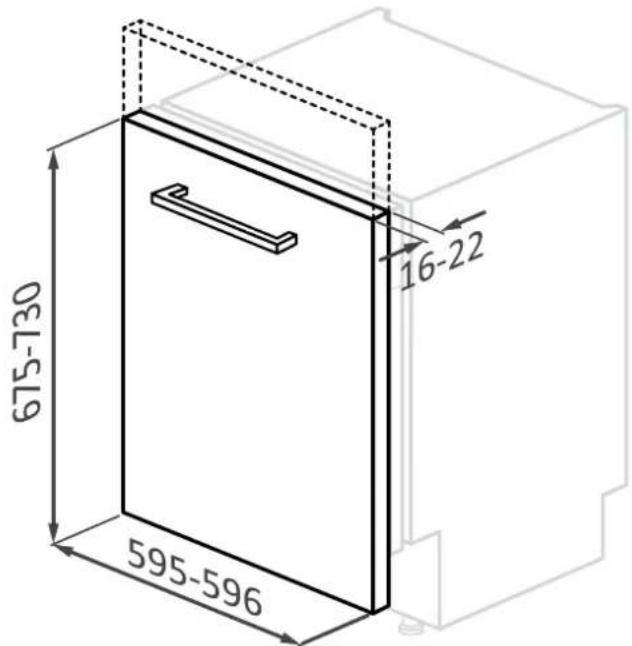

Front axonometric view with kitchen door

WARNING: if the kitchen panel weighs more than 9 kg, contact customer service.

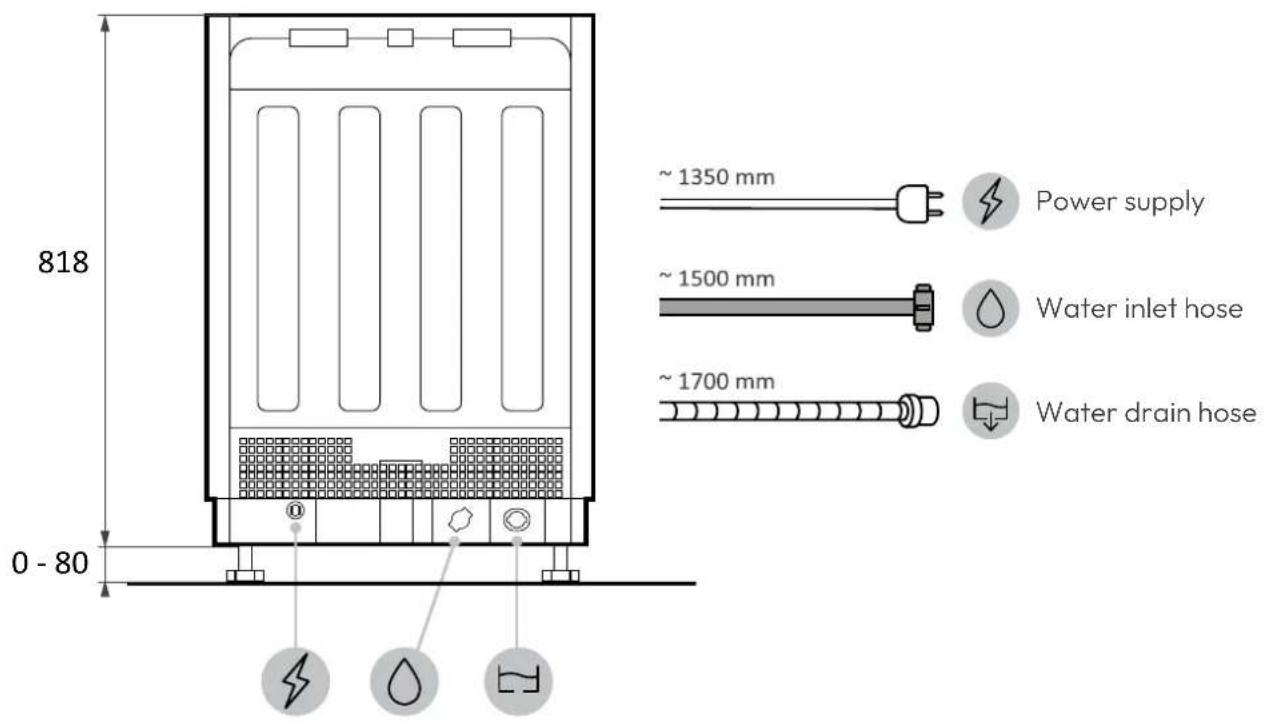

Dimensions in mm

Back view

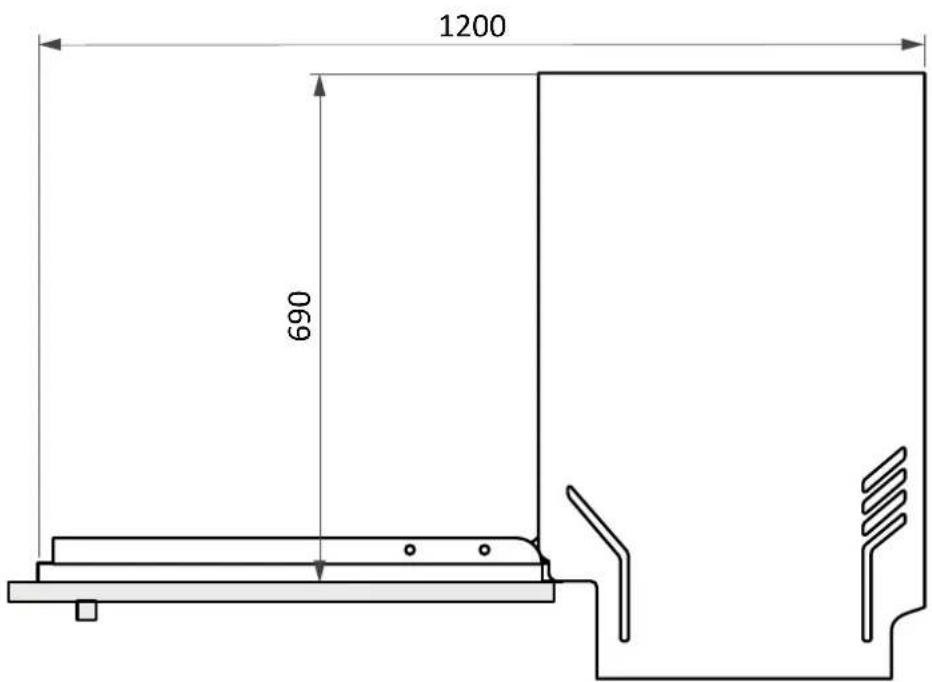

Side view

4 Step-by-step installation video

You can watch the product installation video by scanning the QR Code:

or by clicking this

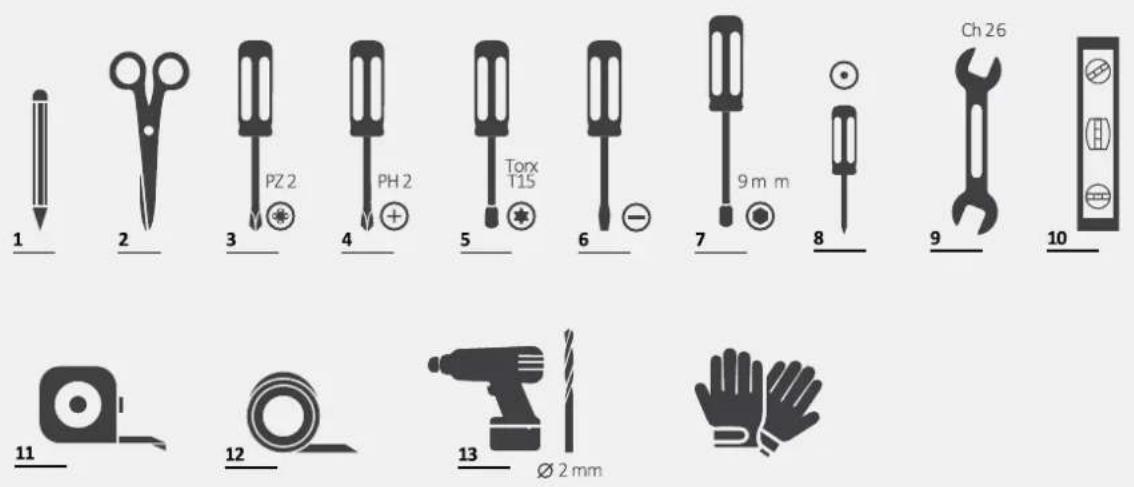

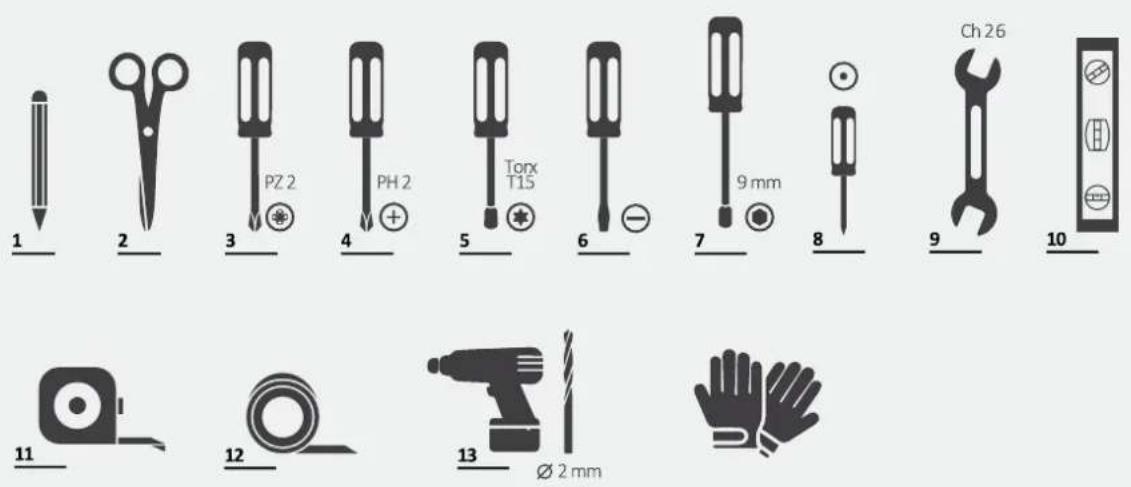

5 Installation tools

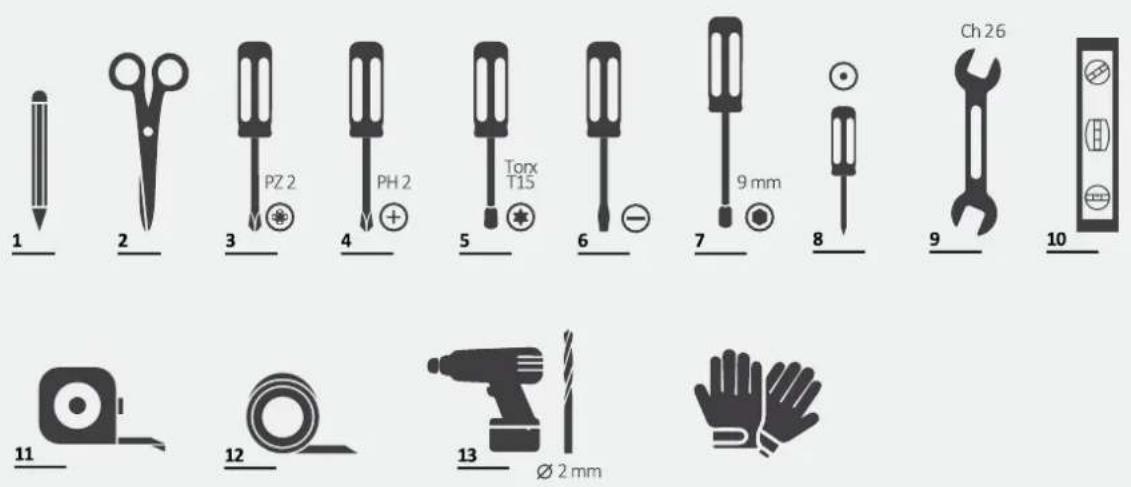

Required tools

Tools provided with the product A 03.9X38

B 04X13

C 4X15

D 03,5X16

F

G

H

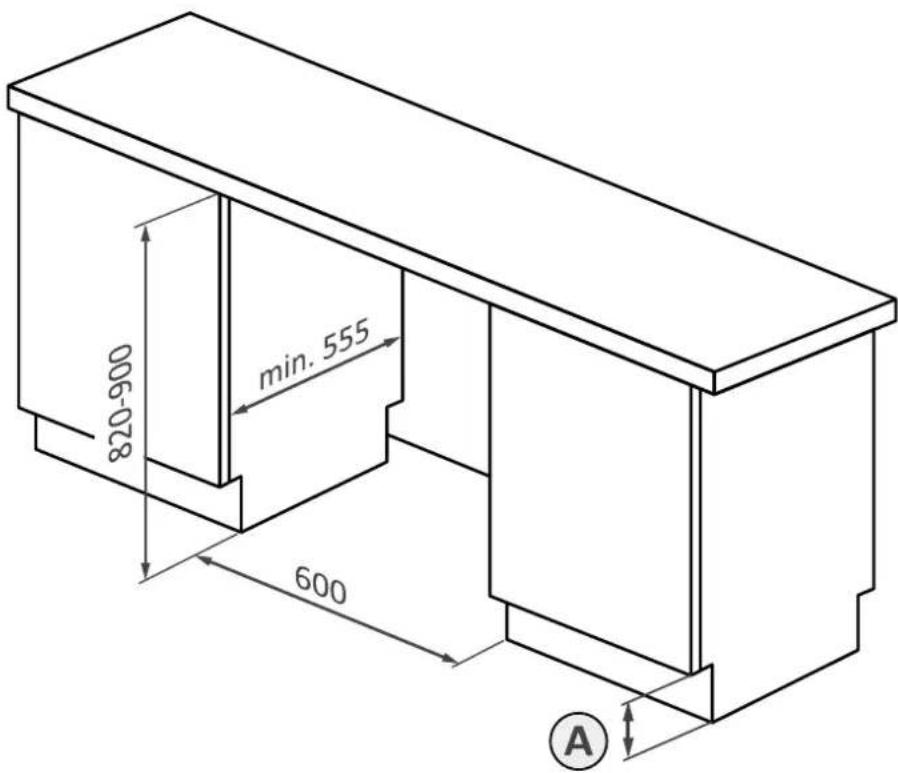

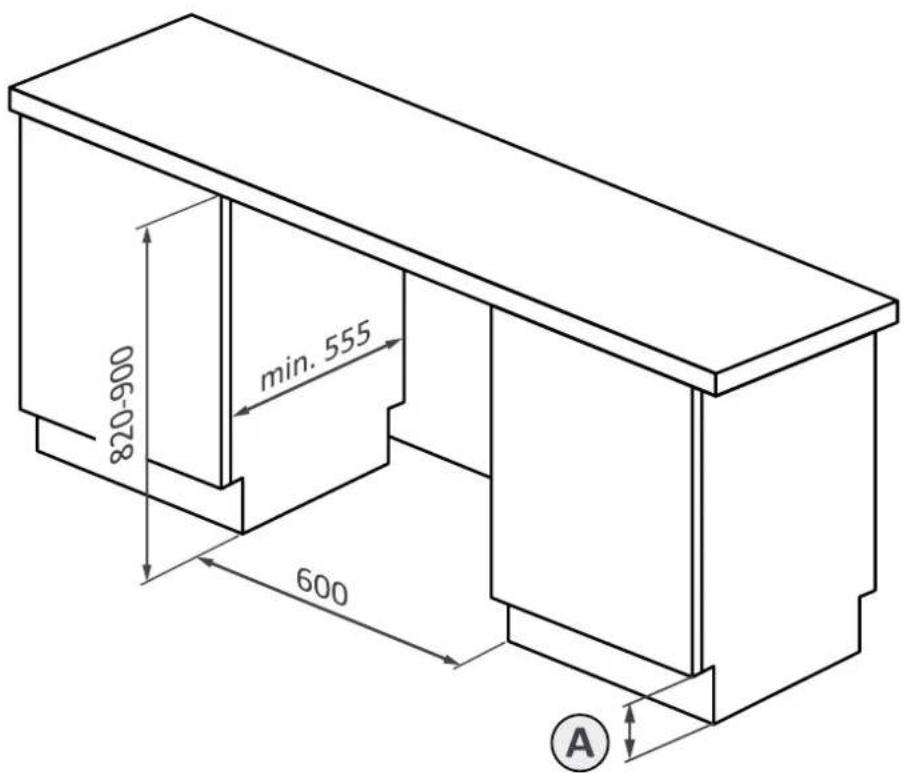

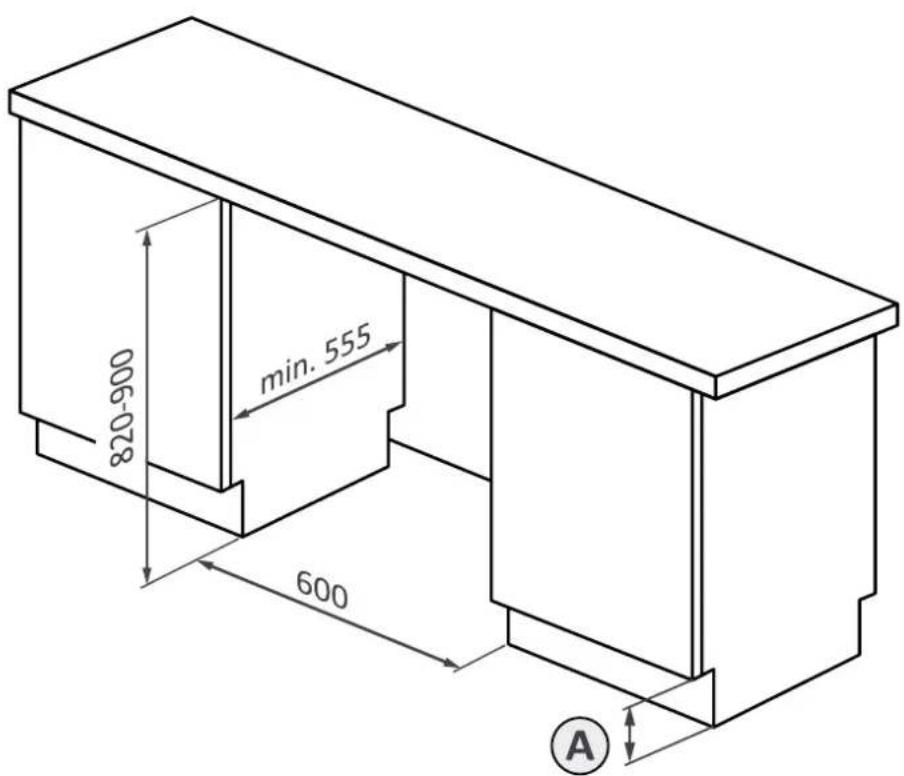

Dimensions in mm

Axonometric view

A

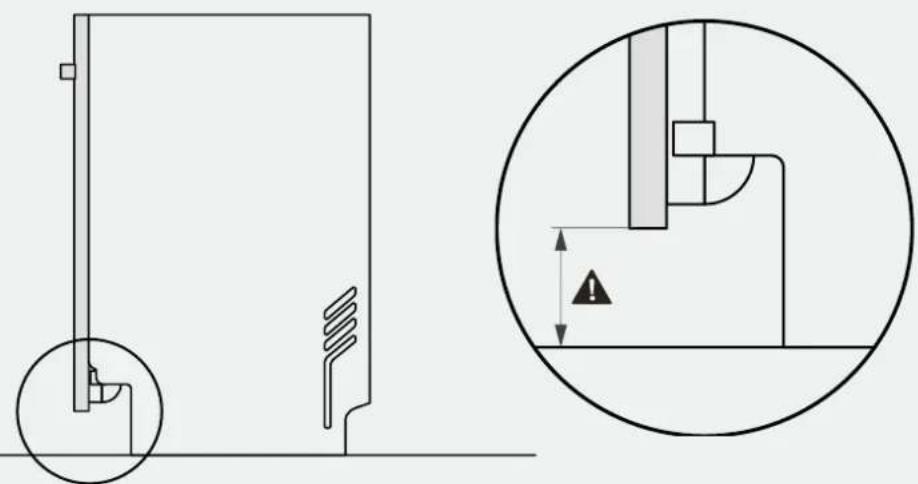

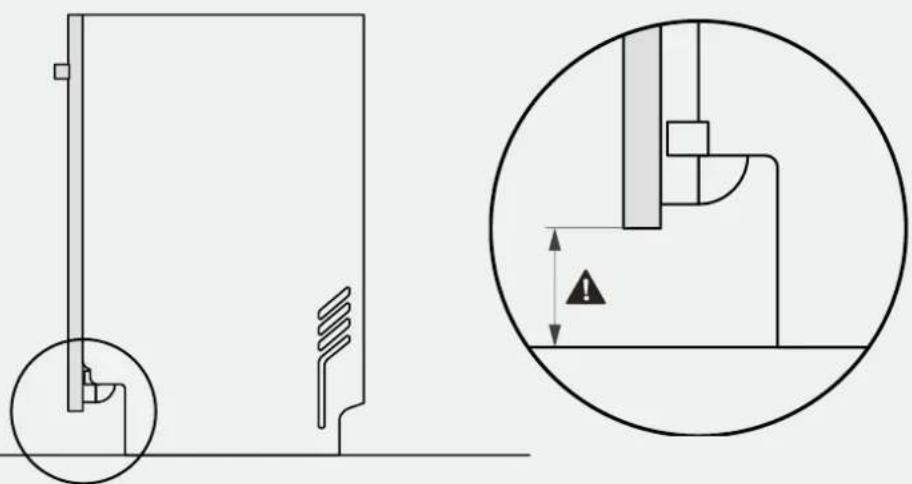

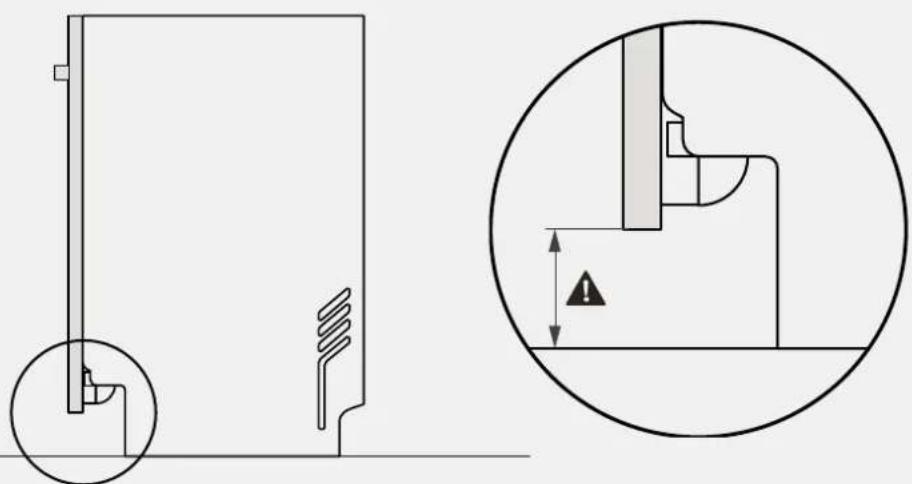

WARNING: The minimum height of the dishwasher is 818 mm; in this case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the door-to-floor distance must also increase proportionally, up to a maximum between 170 and 200 mm.

7 Instructions for dishwasher installation

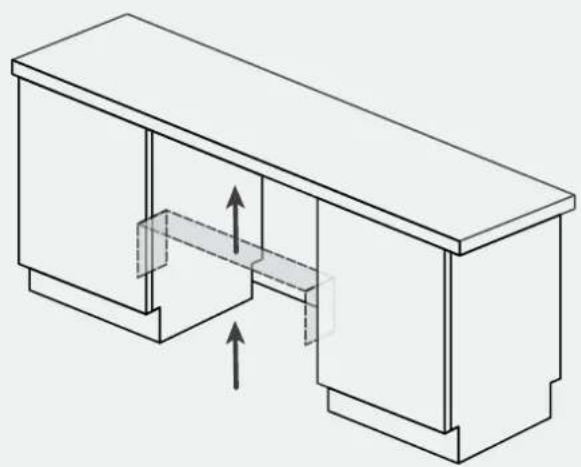

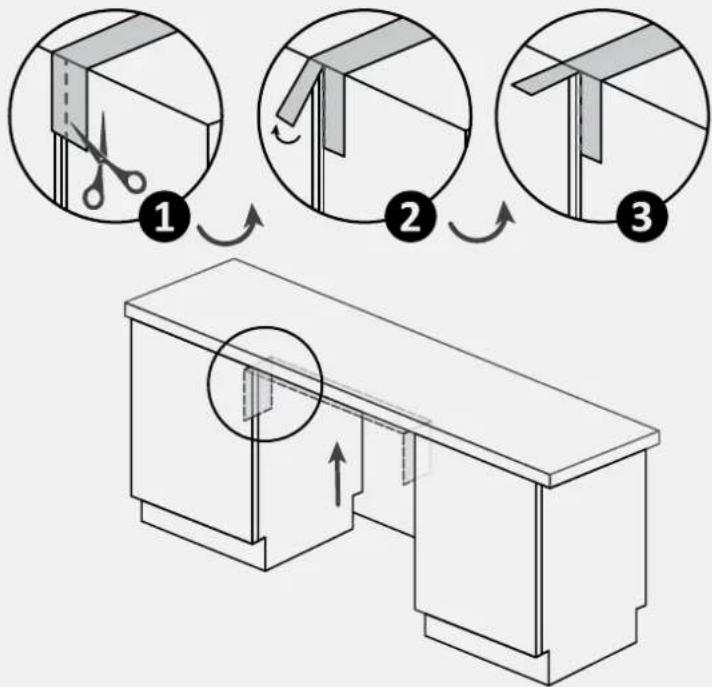

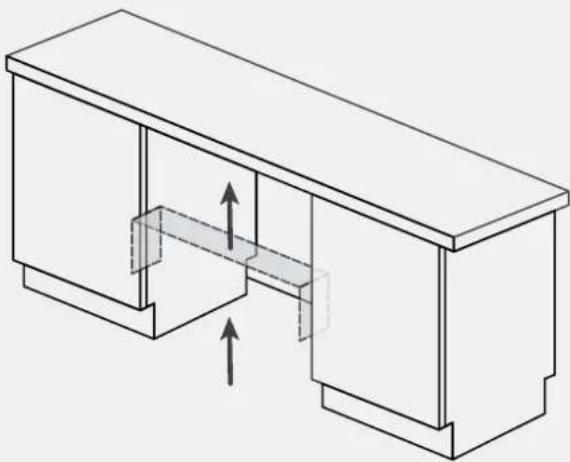

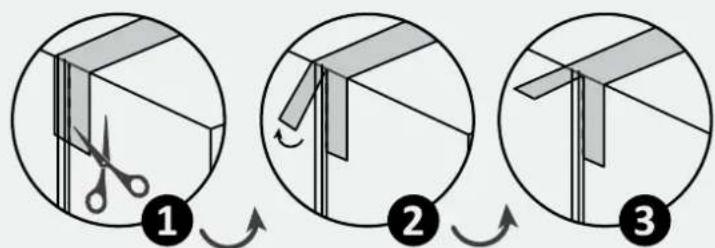

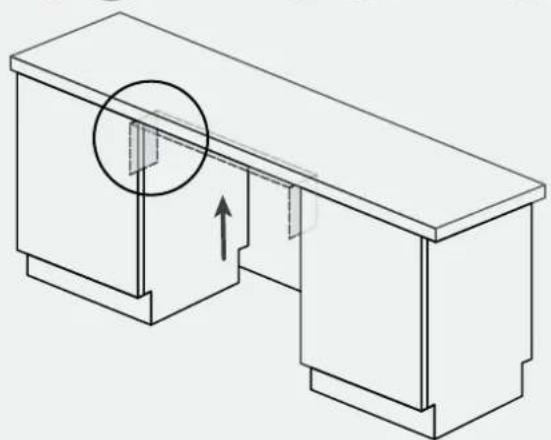

7.1 Steam band installation

Apply the sticker band under the worktop and to the sides of the adjacent furniture;

1.

2.

3.

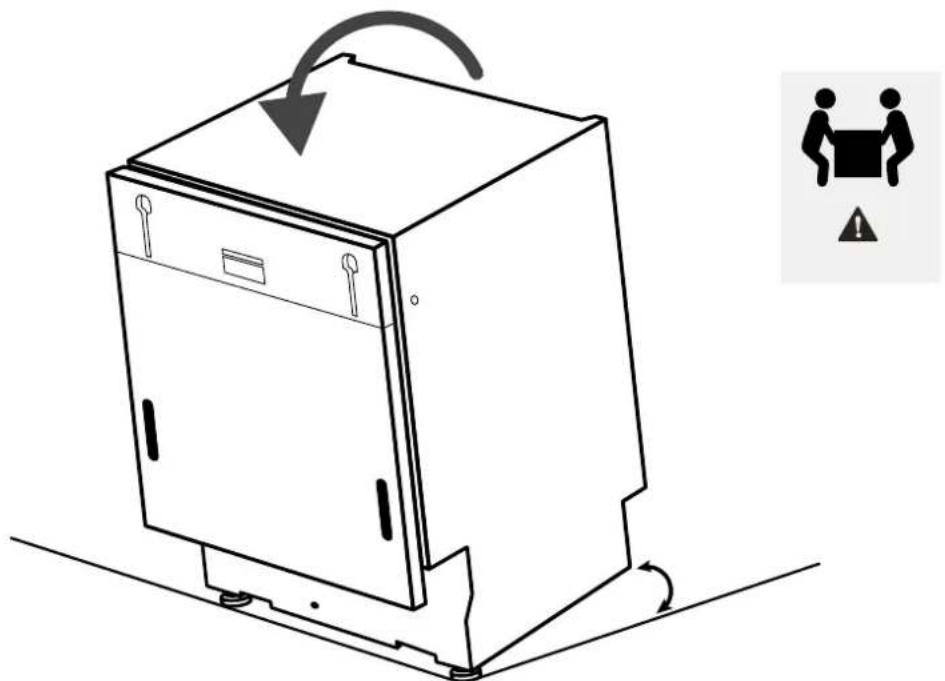

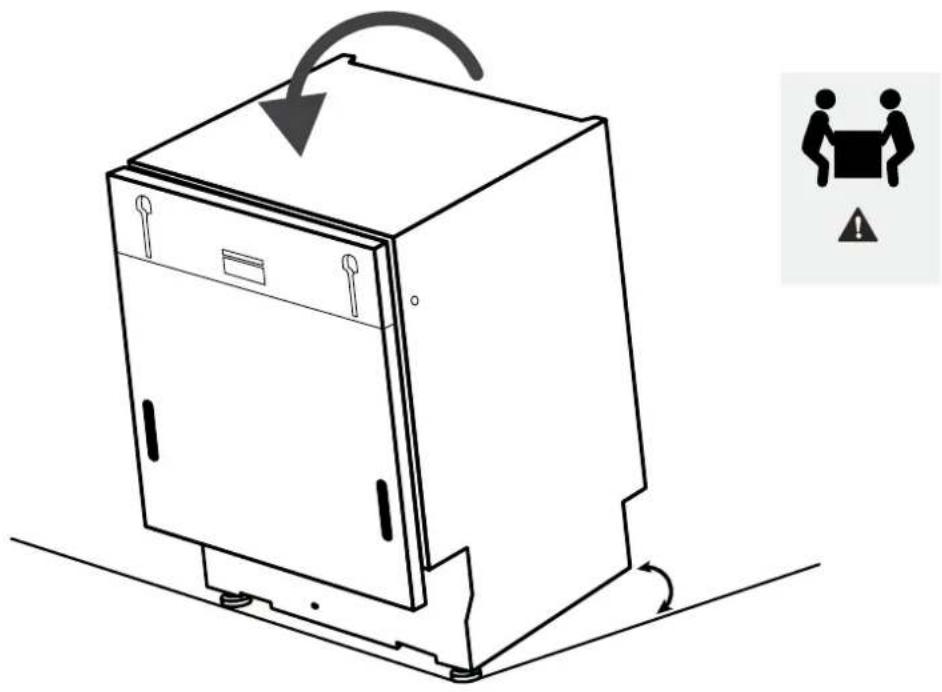

7.2 Height adjustment

Incline the dishwasher by raising the back about 10 cm.

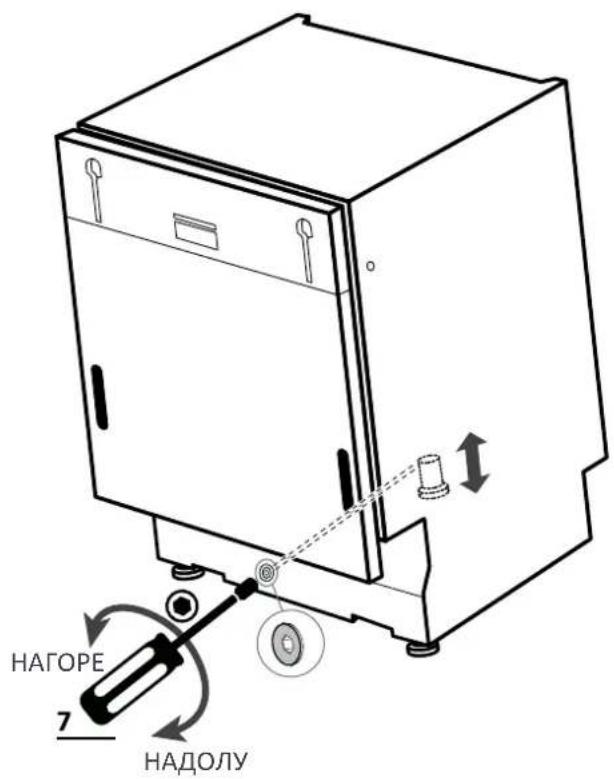

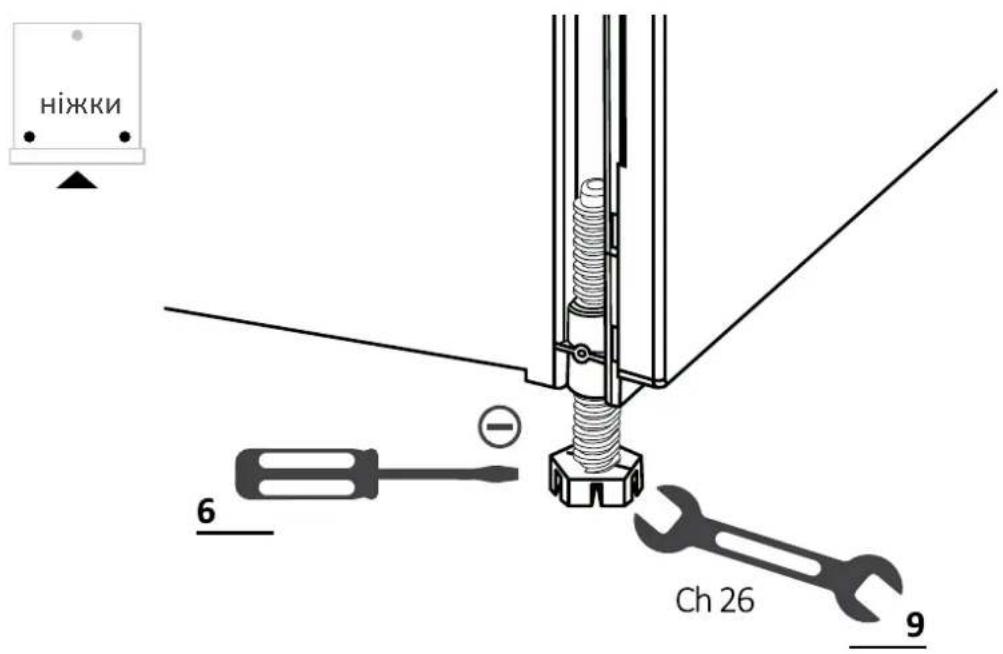

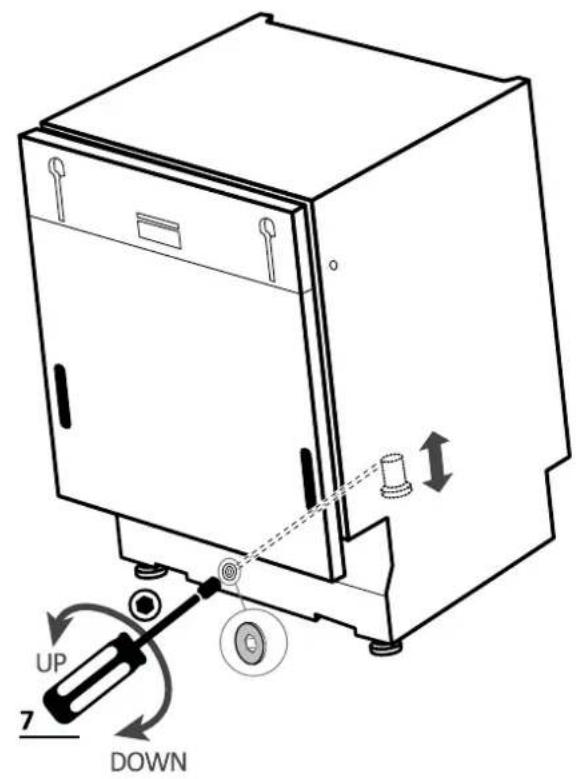

7.3 Rear foot adjustment

Adjust the rear foot height by operating from the front of the machine as indicated below.

7 Instructions for dishwasher installation

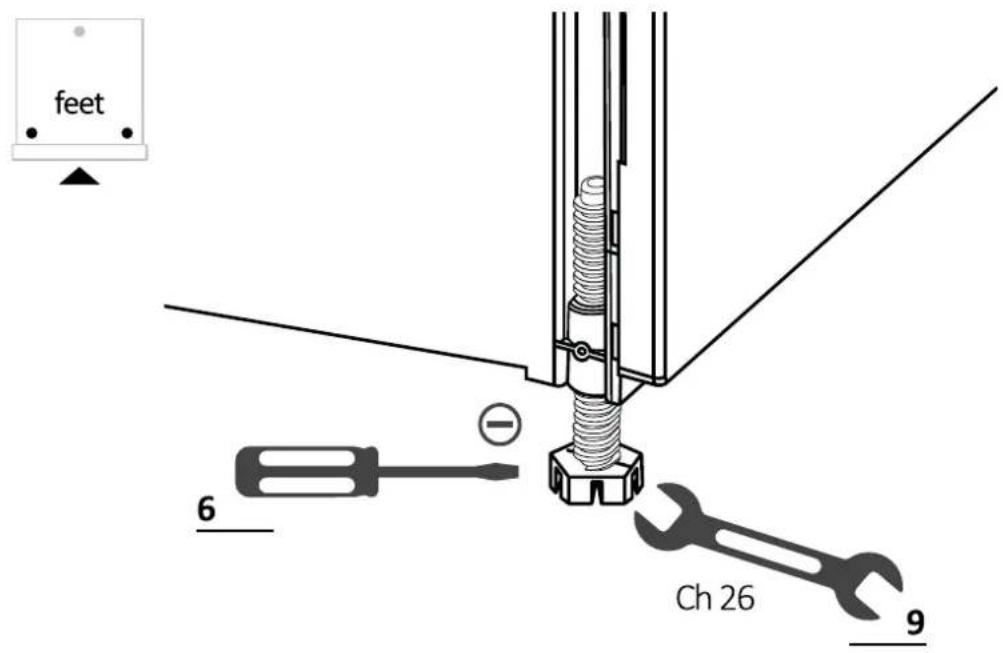

7.4 Front feet adjustment

Adjust the front feet directly. If necessary, lift the dishwasher slightly.

7.5 Tilt adjustment

Level the dishwasher by the vertical and horizontal planes.

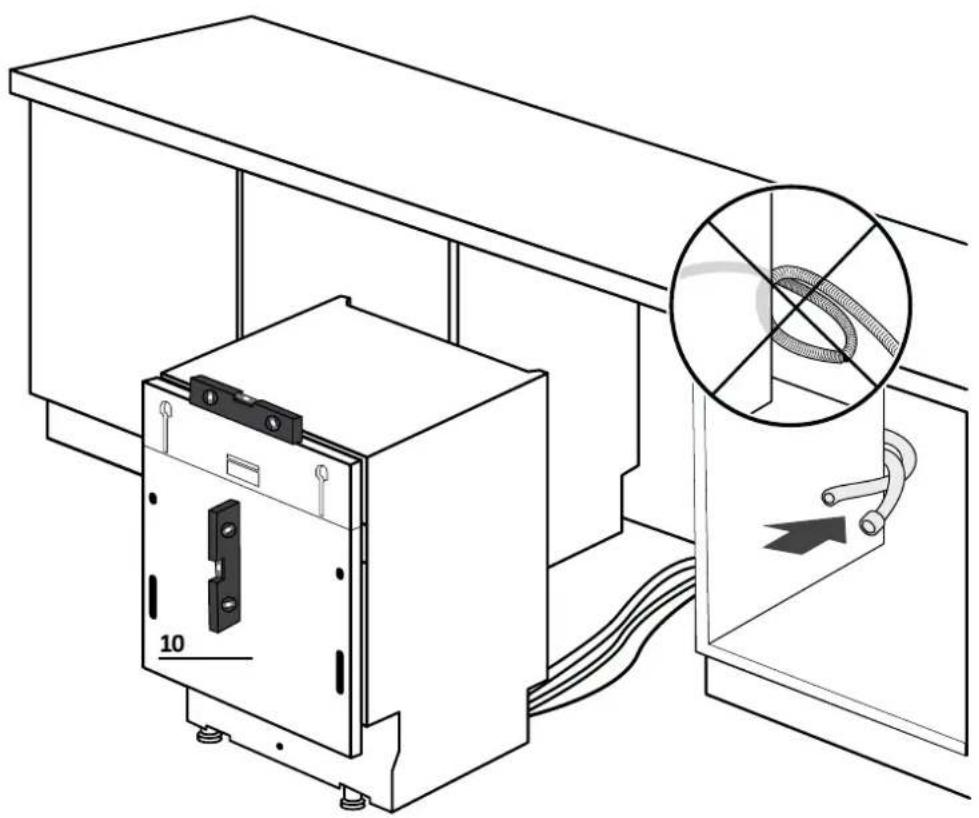

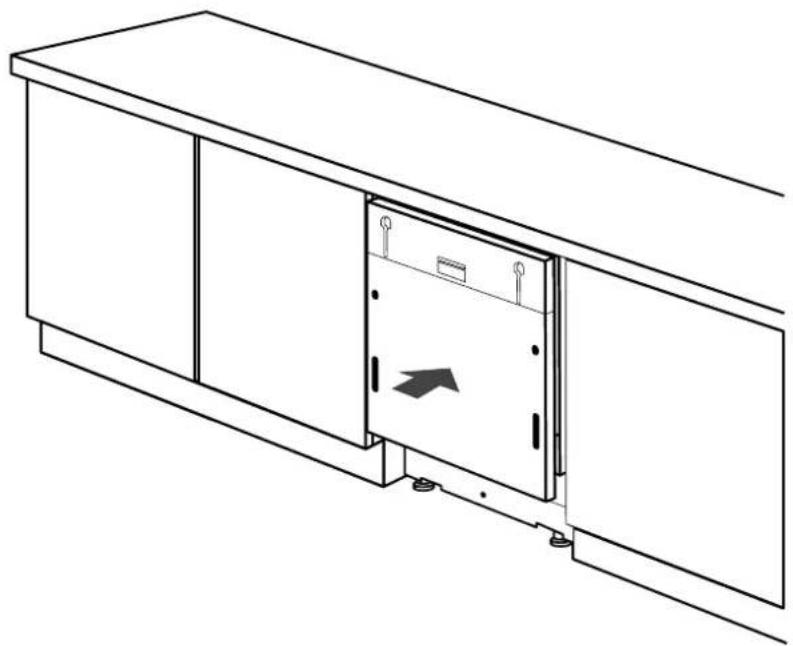

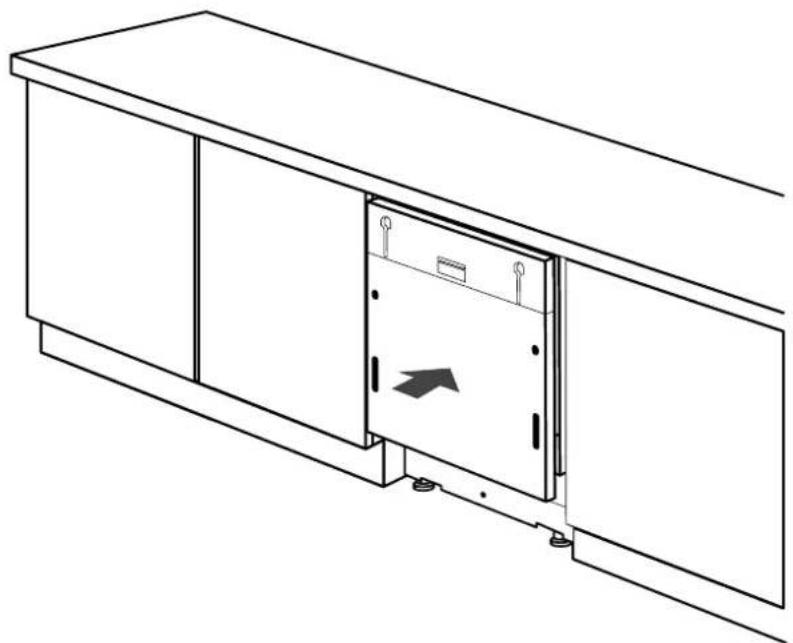

7.6 Insertion into the built-in compartment

Insert the dishwasher into the built-in compartment and check measurements and tolerances.

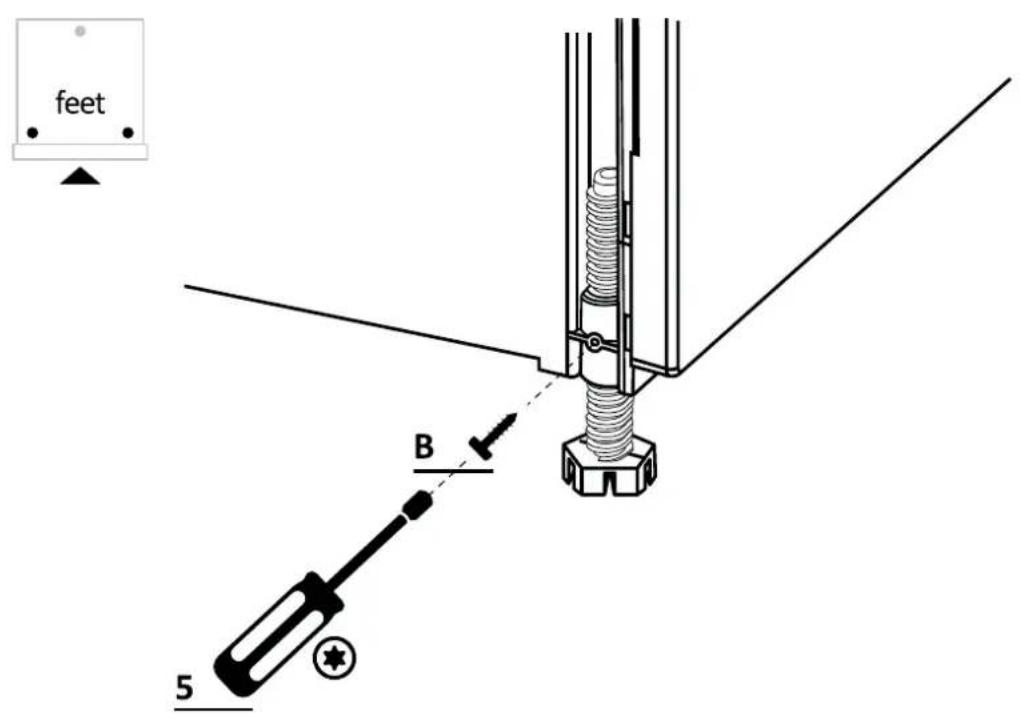

7.7 Fixing the front feet

After checking all measurements, permanently fix the front feet to prevent them from loosening over time. This operation can also be done after installing the kitchen panel.

7 Instructions for dishwasher installation

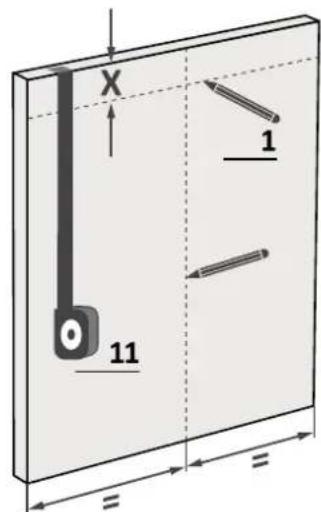

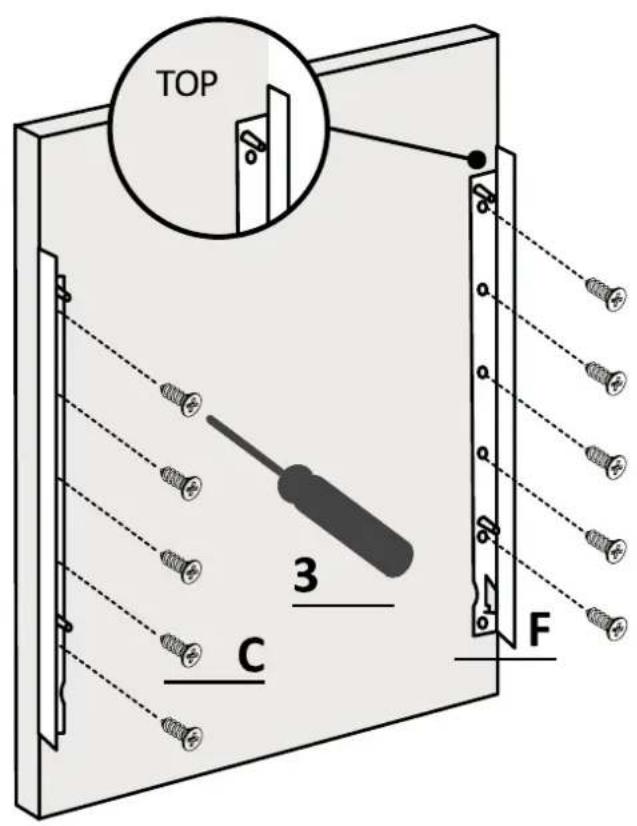

7.8 Panel preparation

1.

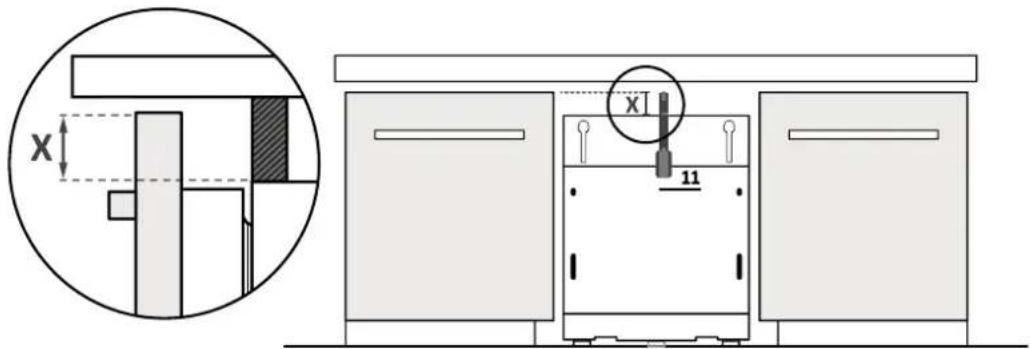

Measure the distance between the top edge of the adjacent doors and the dishwasher;

2.

Transfer the measurement onto the kitchen panel and locate the center;

3.

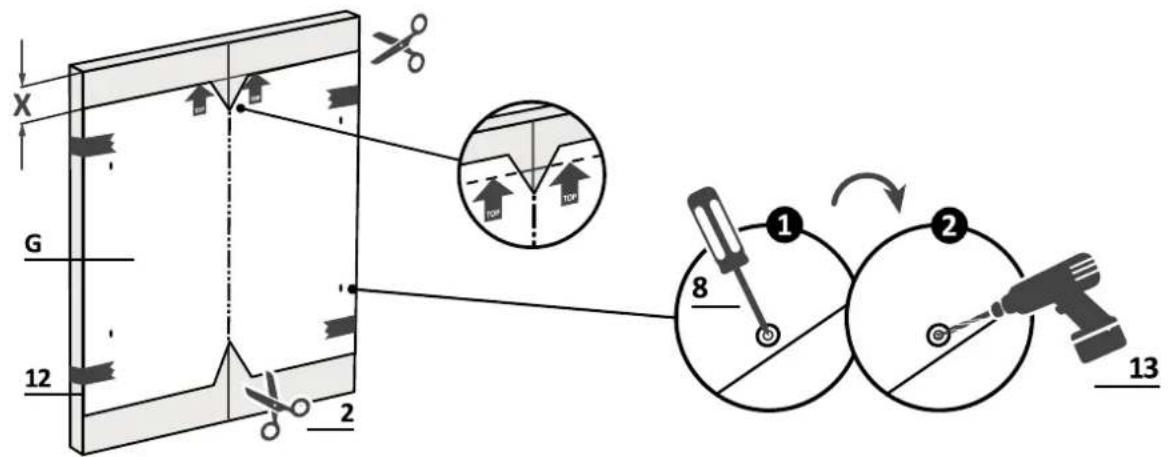

Apply the drilling template and follow the instructions provided.

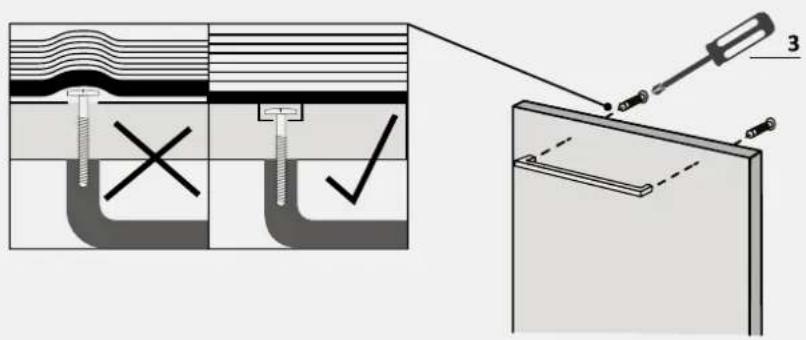

7.8 Panel preparation

4.

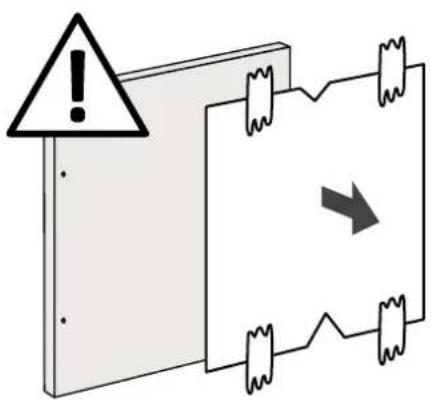

Remove the drilling template and apply the accessories.

WARNING: Ensure screw heads don't protrude from the panel's rear surface, especially if you install the handle.

7 Instructions for dishwasher installation

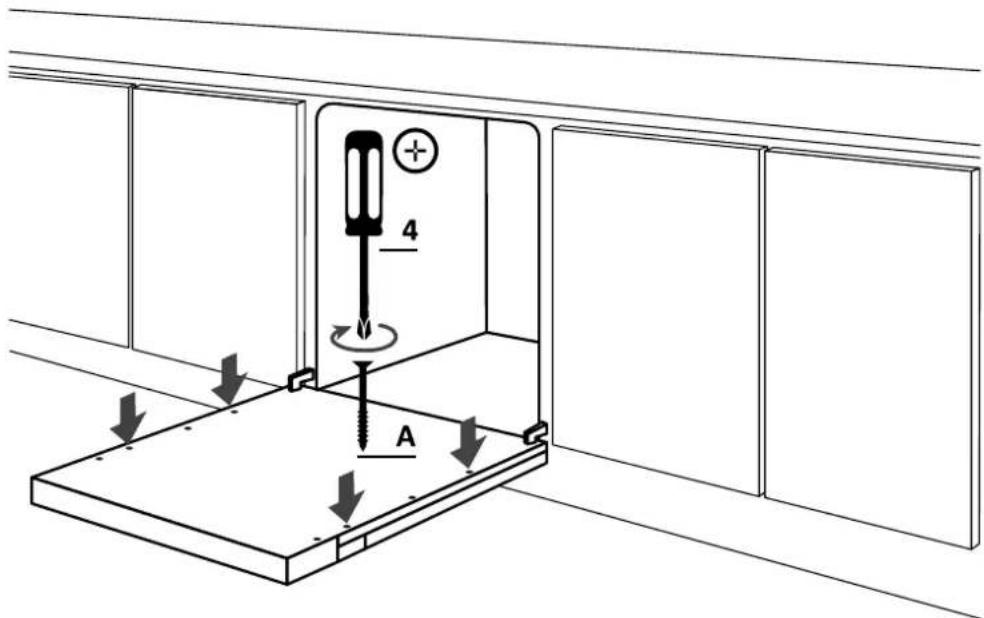

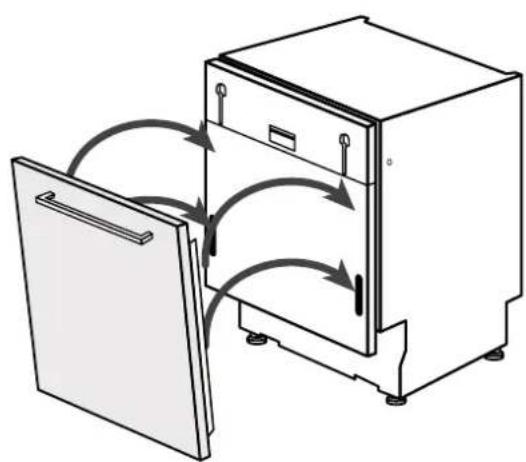

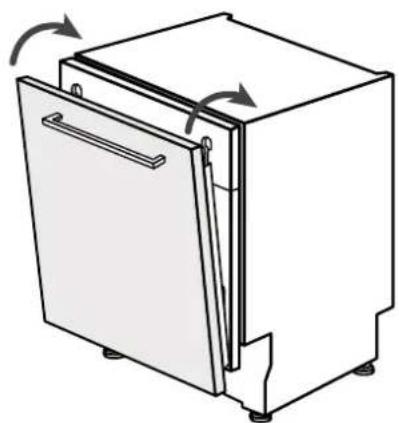

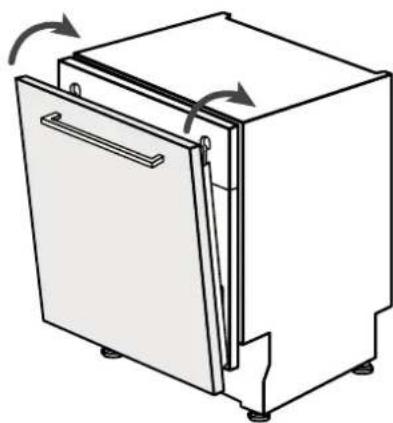

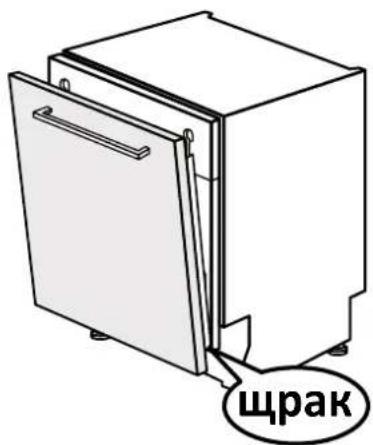

Installation of the panel 7.9

1.

Attach the panel to the dishwasher;

2.

Fix the panel to the lower part of the dishwasher;

3.

Fix the panel to the upper part of the dishwasher;

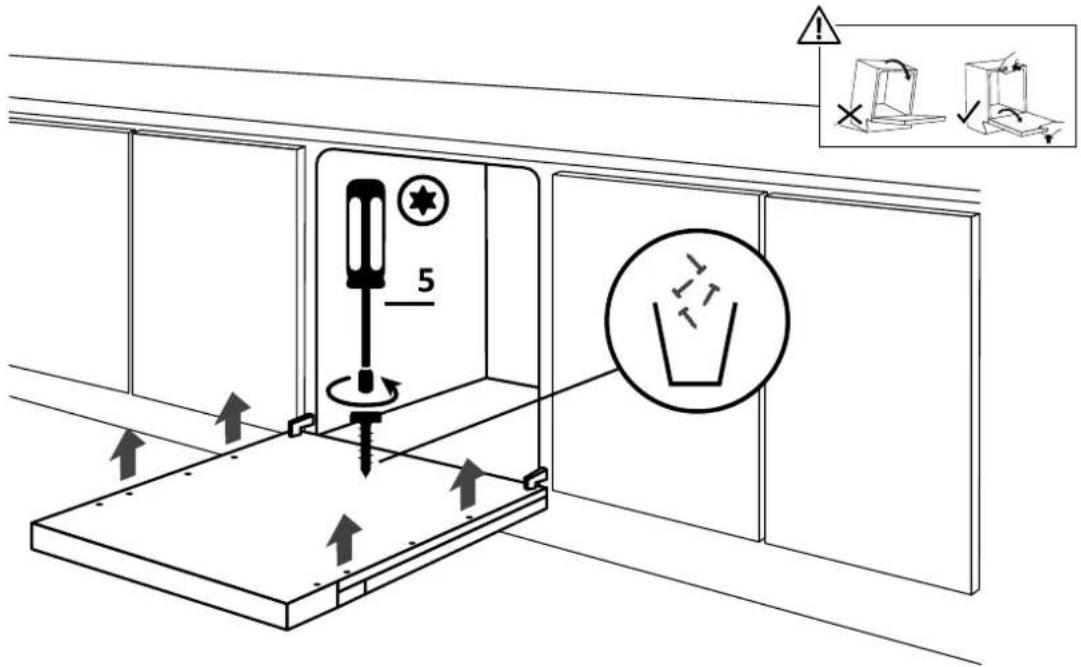

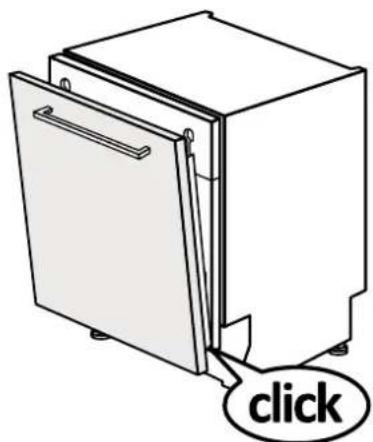

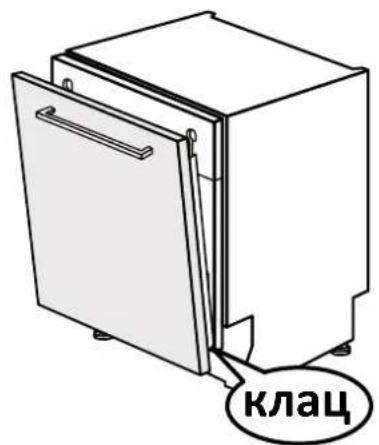

7.9 Installation of the panel

4.

Open the dishwasher door while holding the lower part of the kitchen panel, then unscrew the lower screws;

5.

Make sure the panel is fully inserted; fix the kitchen panel to the dishwasher using the supplied screws.

7 Instructions for dishwasher installation

WARNING: Connect the dishwasher now to the water and electrical network, following the instructions in chapter 8.

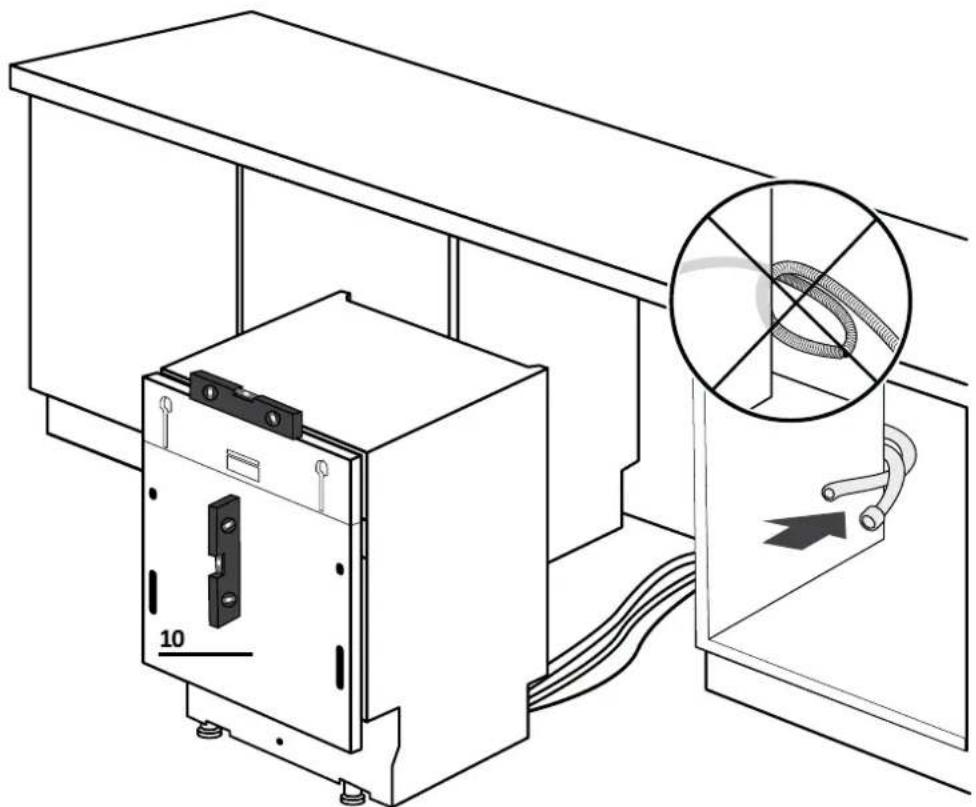

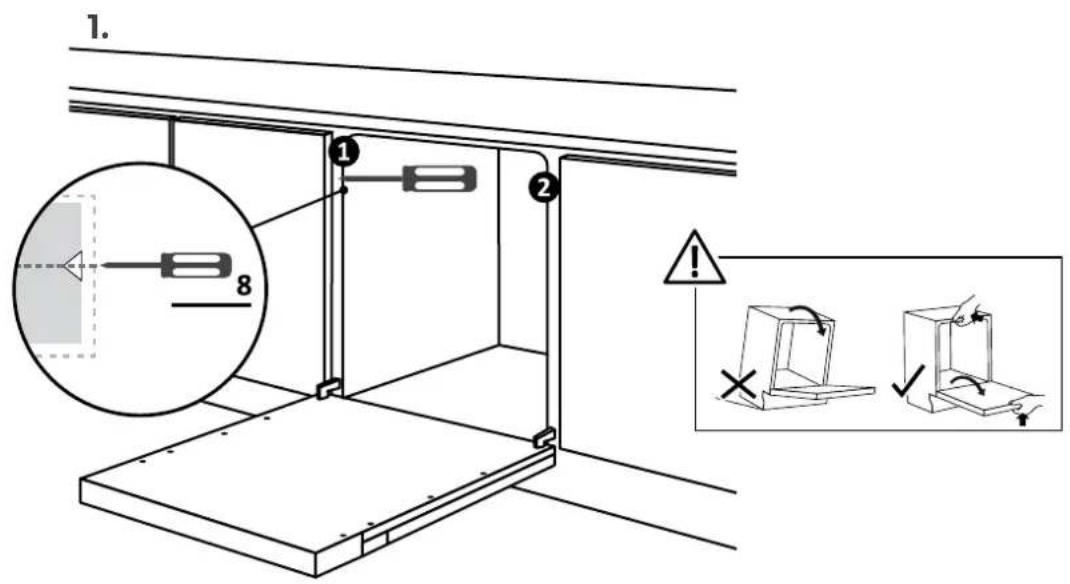

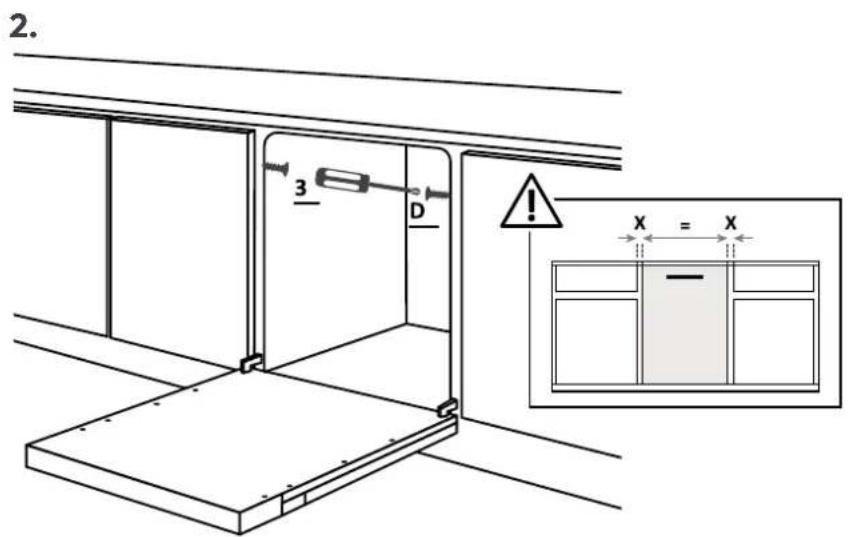

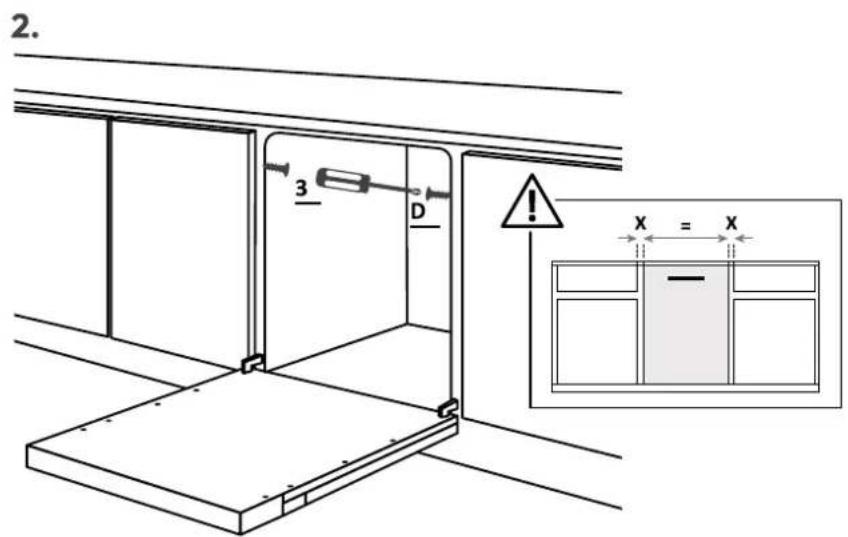

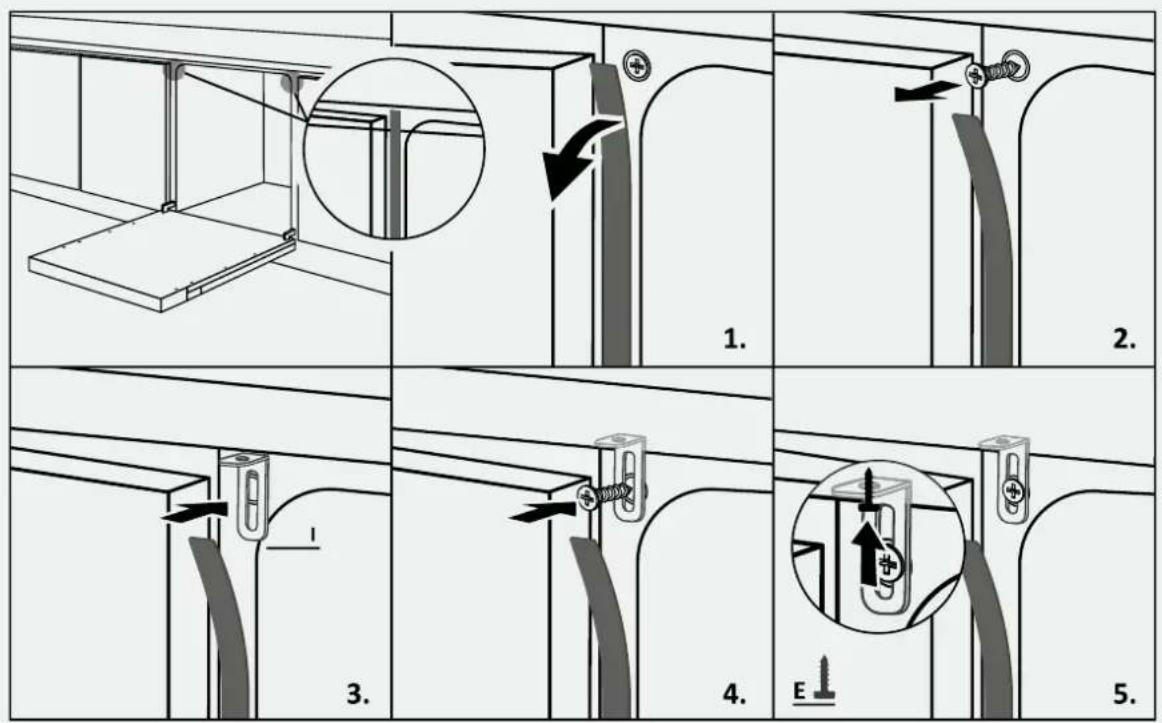

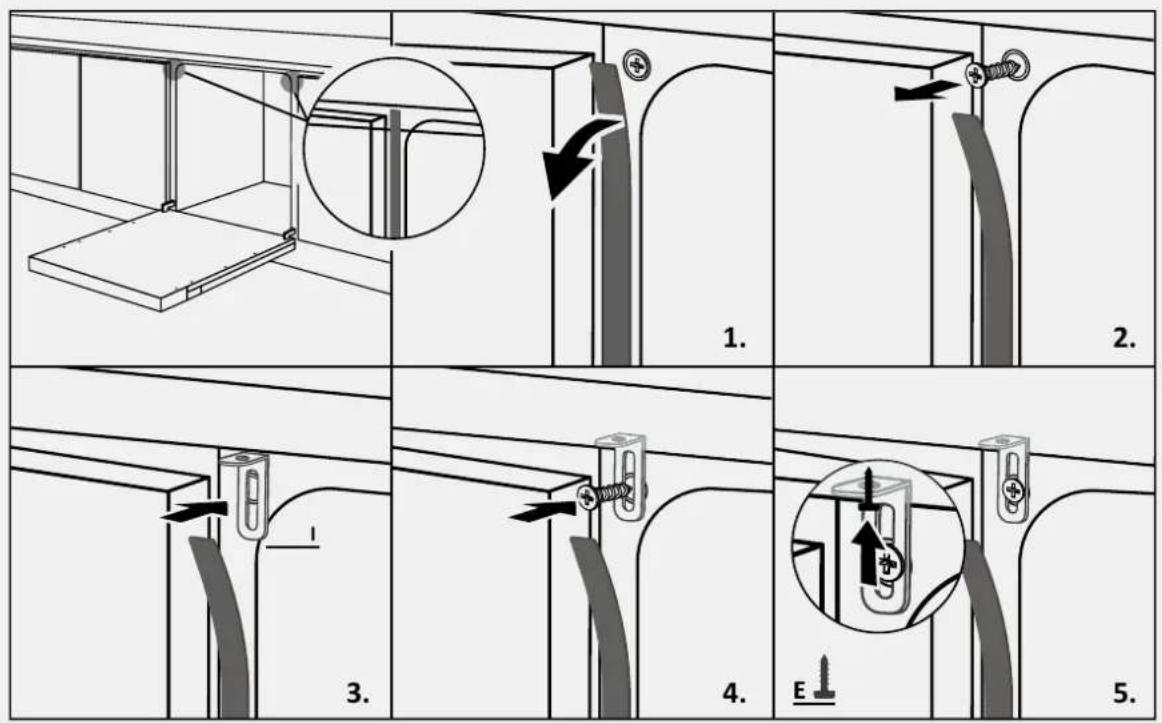

7.10 Fixing the machine to the kitchen

Instructions for fixing the dishwasher laterally to the adjacent cabinets.

WARNING: If it is not possible to fix the dishwasher laterally, use the supplied brackets and fix it to the worktop; pay attention if the latter is not made of wood.

8 Drain water and electricity connection

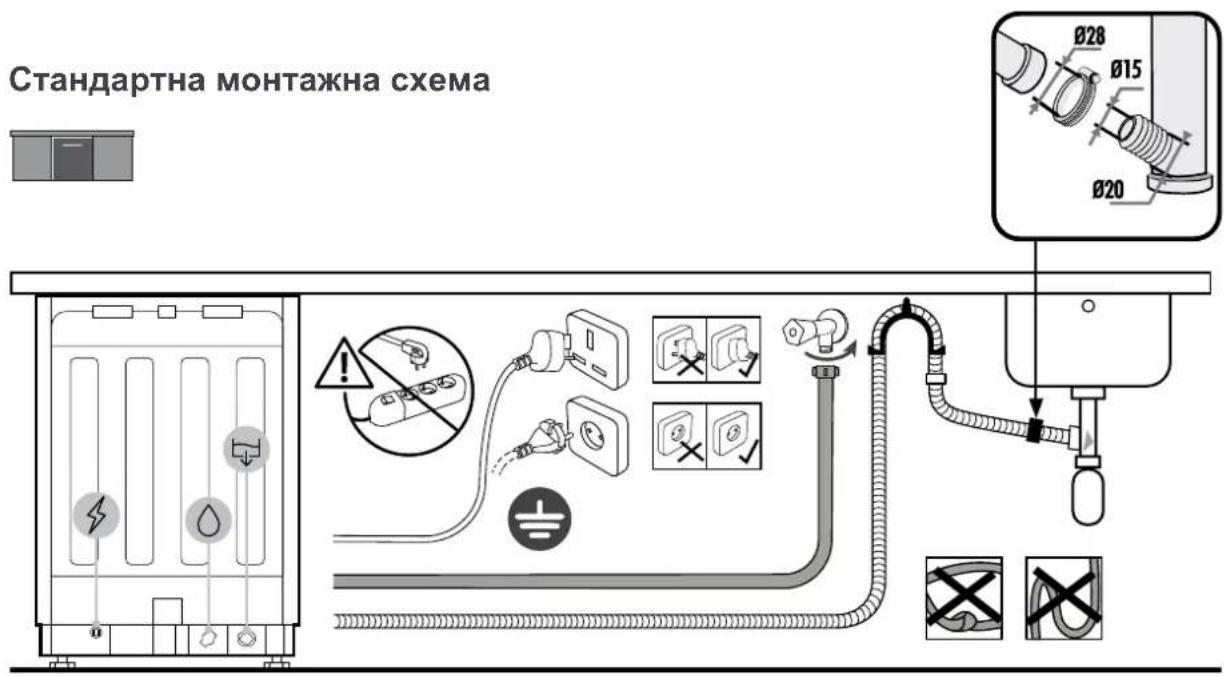

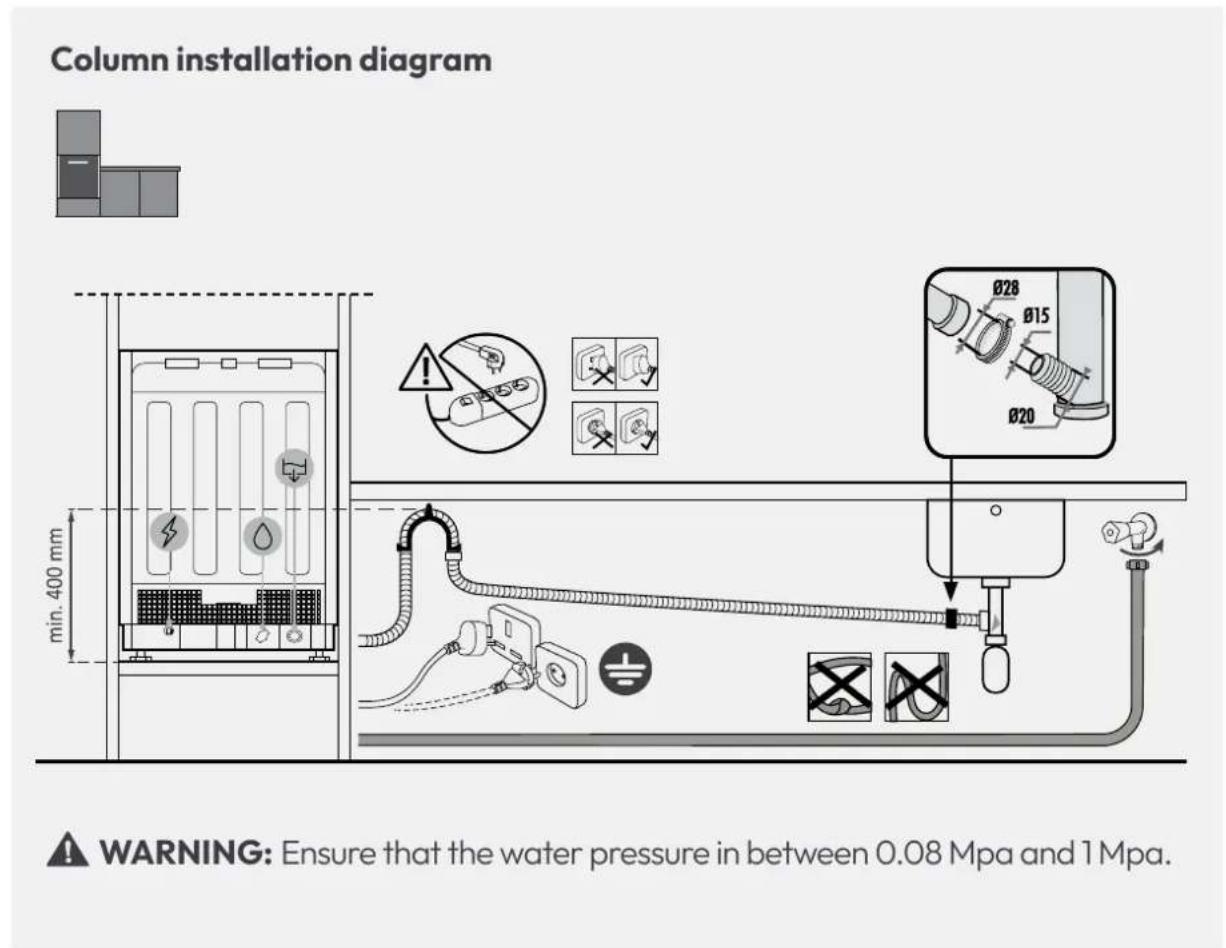

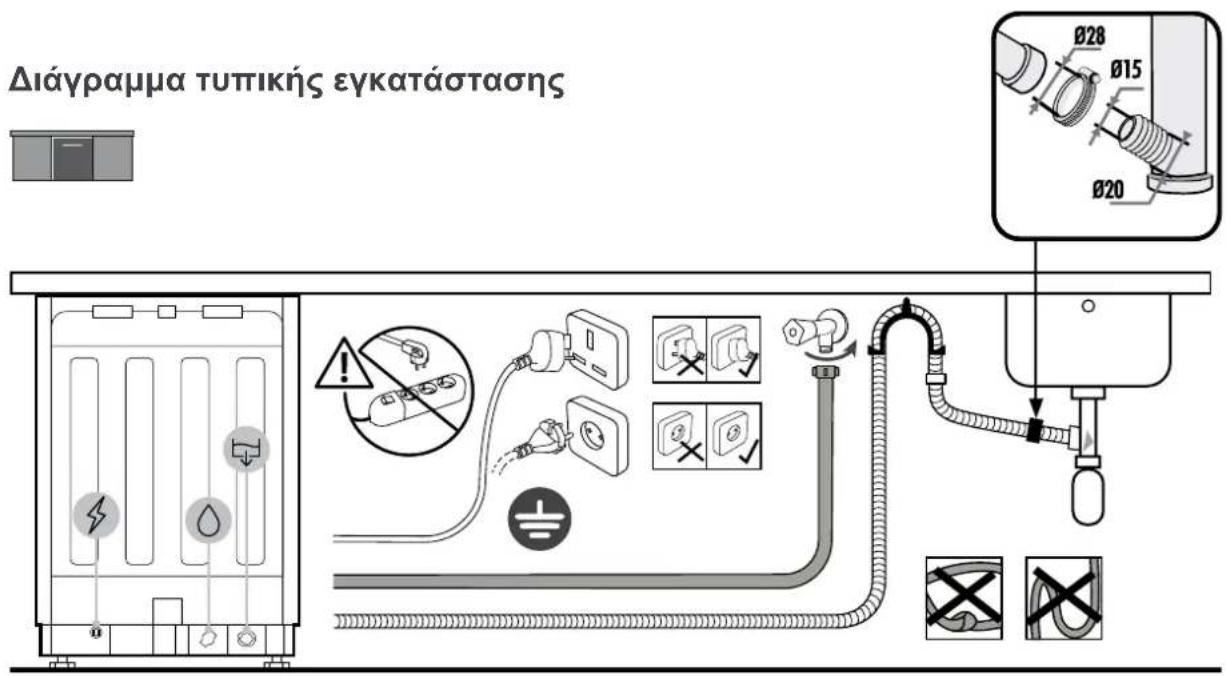

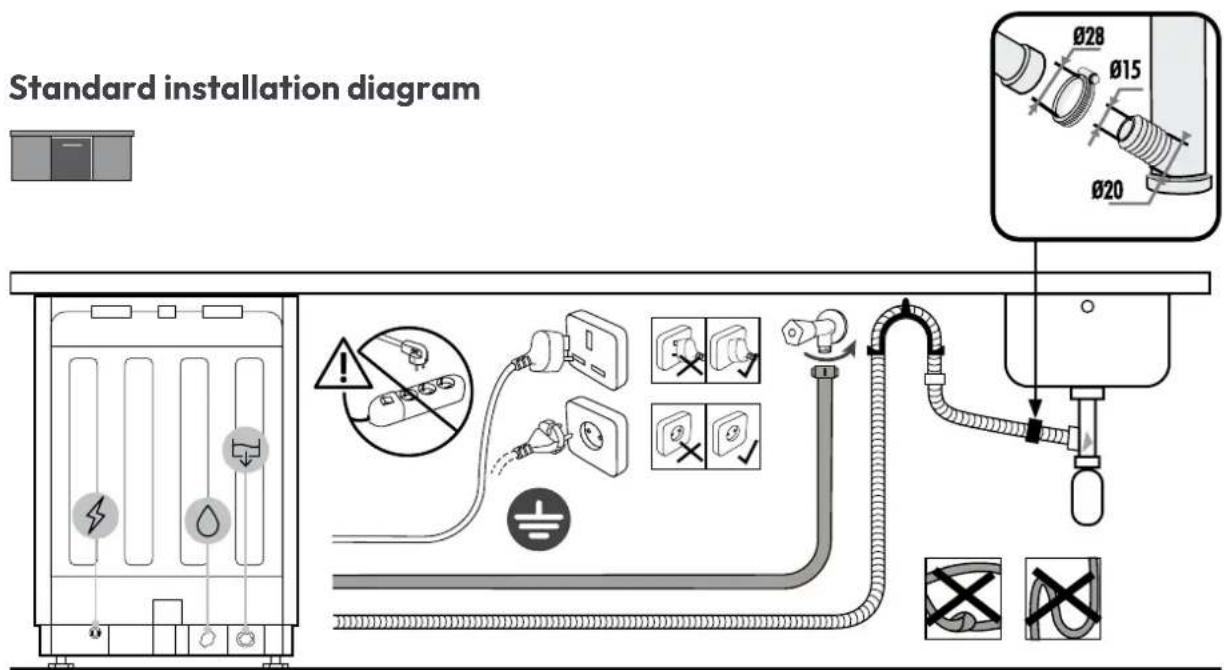

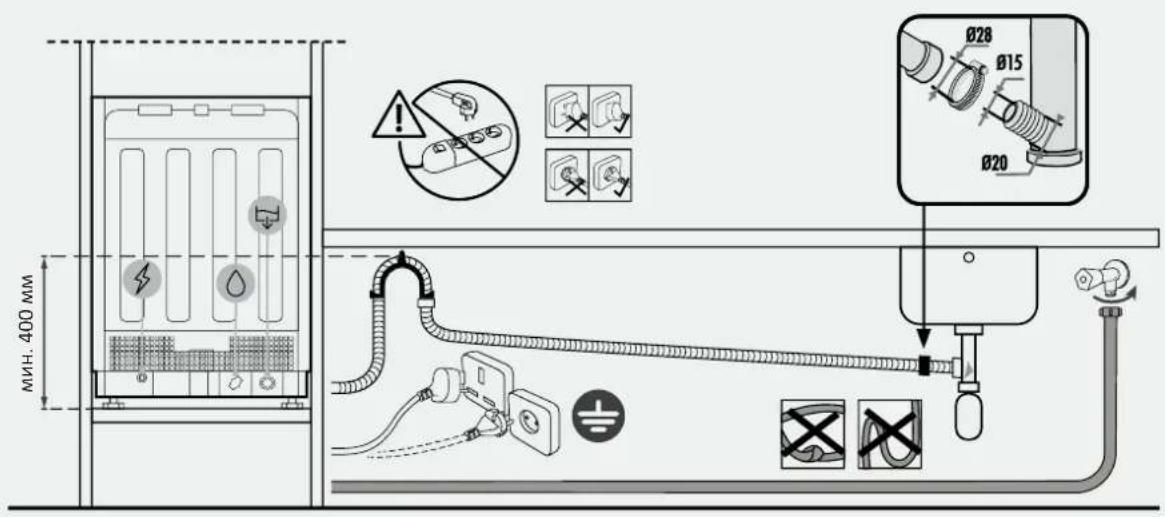

8.1 Connection diagram

8.2 Safety devices

All dishwashers are equipped with an anti-overflow safety device which, in the event that the water exceeds the normal level due to a malfunction, automatically blocks the water flow and/or drains the excess water.

See the User Manual for more details.

Delivery to the user

9

At the end of installation:

• Inform the user about essential functions;
• Inform the user about all aspects relevant to safe use and handling;
• Deliver accessories and instructions for use and assembly to the user to be kept with care.

After installation is complete, remove the protective film, tape, and all other packing materials and remove the supplied accessories from inside the product.

NOTE: The actual appearance of the product depends on the model chosen.

Dishwasher disassembly

10

• Disconnect the product from the electrical and water supply;
• Unscrew the fastening screws;
• Slightly lift the product and pull it out completely;
• This product does not damage the furniture, which can also be used with a new appliance.

5 Installation tools

Necessary tools

Read these instructions carefully before installing the product. Your safety is very important to us. Please read these instructions carefully before using the product.

Installation instructions for the product, scan the QR code:

Or click on this

link

5 Installation tools

Necessary tools

Tools provided with the product

The product is provided.

A

03.9X38

B

04X13

C

04X15

D

03.5X16

F

G

H

Dimensions in millimeters

Isometric view

A

NOTE: The minimum height of the assembly is 818 mm; in this case, the distance between the lower hinge and the floor must be between 90 and 120 mm. If the assembly height is increased (max. 898 mm), the distance from the floor to the hinge must be increased proportionally, up to a maximum between 170 and 200 mm.

7 Installation instructions for the self-propelled machine

7.1 Installing the belt against condensation

Place the self-adhesive belt on the working surface of the corresponding furniture;

1.

2.

3.

7.2 Adjusting the height

Tilt the self-propelled machine by lifting the rear part about 10 cm.

Adjust the height of the rear wheels by operating from the front part of the machine, as shown in the figure.

7 Installation instructions for the self-propelled machine

7.4 Adjusting the front wheels

Adjust the front wheels directly. If necessary, lift the self-propelled machine.

7.5 Adjusting the tilt

Level the self-propelled machine on a horizontal surface.

7.6 Placing in the storage compartment

Installation of the self-propelled machine for welding and checking the dimensions and permissible deviations.

WARNING: Make sure that the screw heads do not protrude from the surface of the panel, especially when mounting the panel.

7 Installation instructions for the self-propelled machine

7.9 Mounting the panel

1.

Attach the panel to the self-propelled machine;

2.

Fix the panel to the lower part of the self-propelled machine;

3.

Fix the panel to the upper part of the self-propelled machine;

7.9 Mounting the panel

4.

Open the gate of the self-propelled machine by holding the lower part of the hinge panel, then tighten the screws;

5.

Make sure the panel is fully installed; secure the hinge panel to the self-propelled machine with the provided screws.

WARNING: Connect the washing machine to the water supply and the electrical supply, following the instructions in chapter 8.

7.10 Mounting the machine and the door

Instructions for securely fixing the washing machine to the adjacent cabinets.

A WARNING: If it is not possible to fix the washing machine securely, use the provided brackets and attach them to the worktop; pay attention if the latter is not made of the first material.

8 Connecting to the drainage system and the electrical supply

8.1 Connection diagram

Diagram for mounting the column

WARNING: Make sure the water pressure is between 0.08 MPa and 1 MPa.

8.2 Anti-flooding device

All washing machines are equipped with a device to protect against overflow, which in case of water above the normal level or malfunction, automatically blocks the water flow and/or stops the water inlet.

See the user manual for more details.

Delivery to the consumer

9

At the installation site:

• Inform the consumer about the main functions;
• Inform the user about all aspects related to safe use and maintenance.
• Provide the user with the accessories and the instruction manual for use, which must be kept carefully.

Disassembly of the installation: remove the protective film from the product. All parts of the same material must be disposed of in accordance with the accessories provided with the product.

NOTE: The actual appearance of the product depends on the chosen model.

Disposal of the washing machine

10

• Disconnect the product from the power supply and water supply; loosen the fixing screws;
• Lift the product and remove it carefully; this product does not damage furniture that may be used for new purposes.

WELCOME

This installation manual is intended for kitchen manufacturers who will integrate these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future reference. Before proceeding with the installation, note the serial number as it may be needed for repairs. Check for damage during transport and, in case of doubt, consult a technician before use. Always keep all packaging material out of reach of children.

7.8 Preparation of the panel

4.

7.9 Installation of the panel

1.

Attach the panel to the dishwasher;

2.

Attach the panel to the lower part of the dishwasher;

3.

7.9 Installation of the panel

4.

1 Safety warnings for installation

After unpacking the product,

scanning the QR code,

or subscribing to the

channel

5 Tools for installation

Required tools

Tools supplied with the product

A

03,9X38

B

04X13

c

04X15

D

03,5X16

F

G

H

Dimensions (mm)

Aconometric view

A

A NOTICE. Minimum height of the dishwasher 818 mm; adjust the height between the legs and the floor from 90 to 120 mm. If the dishwasher is higher (max. 898 mm), the distance from the door to the floor will also increase proportionally, up to a maximum of 170-200 mm.

7 Installation instructions for the dishwasher

7.1 Installation of the dishwasher

Place the appliance on a stable surface and on the sides of adjacent furniture.

1.

2.

3.

7.2 Height adjustment

Tilt the dishwasher, lifting the rear part by about 10 cm.

7.3 Adjustment of the feet

Adjust the height of the rear feet by turning them from the front part of the machine, as shown below.

7 Installation instructions for the dishwasher

7.4 Adjustment of the front feet

Adjust the front feet directly. If necessary, slightly lift the dishwasher.

7.5 Leveling

Level the dishwasher in both vertical and horizontal planes.

7.6 Installation of the built-in appliance

Install the dishwasher in a dry place and check the dimensions and tolerances.

7 Installation Instructions for the Dishwasher

7 Installation Instructions for the Dishwasher

7.9 Installing the Panel

1.

Open the panel to the dishwasher.

2.

Open the panel to the lower part of the dishwasher.

3.

Open the panel to the upper part of the dishwasher.

7.9 Installing the Panel

4.

Open the dishwasher door, holding the lower part of the curved panel, and then unscrew the lower screws.

5.

Make sure the panel is fully inserted; close the curved panel to the dishwasher using the screws included in the kit.

WARNING. Before connecting the dishwasher to the water supply and electrical network, read the instructions in section 8.

7.10 Securing the machine in the kitchen

Instructions for securing the dishwasher to the side of adjacent cabinets.

WARNING. If you cannot secure the dishwasher on the side, use the supplied brackets to secure it to the work surface; be careful that the work surface material is not wood.

8 Connection to the sewage system and electrical network
