USER MANUAL SBSB3.7B2 SILVERCREST

Three identical black hairpin clips arranged horizontally on a white background (no text or symbols)

SINGLE-BLADE-BARTSCHNEIDER/SINGLE-BLADE BEARD TRIMMER/TONDEUSE À BARBE À LAME UNIQUE SBSB 3.7 B2

DE AT CH

SINGLE-BLADE-BARTSCHNEIDER

Operation and safety notes

Translation of the original instructions

NL BE

SINGLE-BLADEBAARDTRIMMER

GB / IE Operation and safety notes Page 31

Technical diagram of a hairbrush with numbered component labels for identification and assembly reference.

B ✓ × 1

C

D 1 2 E 13 1 1

Intended use ......Page 33

Parts description......Page 33

Technical data Page 34

Scope of delivery....Page 34

Safety notes ...... Page 34

Safety instructions for batteries/rechargeable batteries......Page 40

Charging the product......Page 42

Operation......Page 44

Transport lock Page 44

Shaving Page 45

Dry shaving (cordless use) Page 45

Wet shaving (cordless use only)......Page 45

Using the comb attachment Page 46

Changing the blade attachment....Page 46

Cleaning and care......Page 47

Storage Page 48

Troubleshooting......Page 48

Warranty claim procedure Page 51

Service......Page 52

EU Declaration of conformity ...... Page 53

List of pictograms used
	Read the instruction manual!
	Observe the warnings and safety information!
	Volt
	Direct current/voltage
	Protection class III
	Housing protected against powerful water jets (IPX7)
	On/Off switch
	Use indoors
	USB type C connector
[7x87]	Safety informationInstructions for use
[BDDX]	CE mark indicates conformity with relevant EU directives applicable for this product.

Single-blade beard trimmer

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is exclusively intended for cutting human hair. This product is only intended for private household use and must not be used for commercial purposes. The product may only be used indoors.

Partsdescription

1 Blade
2 Blade attachment
3 ON/OFF button
4 Side grip
5 Battery indicator
6 Plug symbol
7 Lock symbol
8 USB Type C socket

9 USB Type C connector

10 USB Type A to C cable

11 Cleaning brush

12 Storage bag

13 Comb attachment 5

14 Comb attachment 3

15 Comb attachment 1

16 Blade cover

- Technicaldata

Beard trimmer: HG06656A

Input: 5 V

$$ = 1 \mathrm{A} $$

Battery: 1 x 3.7 V Li-ion, 800 mAh

Operating temperature: -10 °C to +40 °C

Protection type: IPX7 (Housing protected against

powerful water jets)

Protection class: III/

Emissions sound pressure level: <70 dB(A), K=3 dB

- Scope of delivery

Remove all parts of this product from the packaging and remove all packaging materials. Before use, verify that the package contents are complete and undamaged! If you notice any damages or missing parts, please contact the retailer from whom you purchased this product.

1 Beard trimmer

1 Storage bag

1 USB Type A to C cable

1 Blade cover

3 Comb attachments

1 Set of instructions for use

1 Cleaning brush

Safety notes

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS

FOR INFANTS AND CHILDREN! Never

leave children unattended with the packaging material or the product. There is a danger of suffocation.

WARNING!

The product must not be operated with the mains adapter (not included in delivery) connected.

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.

⚠️DANGER! This symbol indicates

the product can be cleaned under running water. First disconnect the product from the USB type C connector 8. Only use the included original USB Type A to C cable 10 and only use a power adapter that is in protection class II (not included in delivery) and that is approved for use with household appliances,

SELV output: DC 5 V, max. 1 A, for battery recharging.

- Detach the hard-held part

from the USB Type A to C cable 10 before cleaning it in water.

- Clean the product (see "Clean ing and Care").

Avoid the risk of fatal injury from electric shock

WARNING! Keep the product dry. WARNING! Do not use this product near bathtubs, showers, basins or other vessels containing water.

WARNING! If the product falls into the water, immediately remove the USB Type A to C cable 10 from the power supply (not included) before you reach into the water.

WARNING! Never touch the USB Type A to C cable 10 with moist or wet hands, especially when you plug it into the power supply or pull it out of it.

WARNING! Never submerge the product or the USB Type A to C cable 10 in water or any other liquid and never rinse this/these under running water.

WARNING! Do not use the product while bathing.

For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
■ Remove the USB Type A to C cable ^10 from the power supply

• if a malfunction occurs,
• before you clean the product,
• if you have not used the product for a long time,

- during a thunderstorm and

- after each use.

When doing so, remove the power supply directly from the socket and do not pull it out using the USB Type A to C cable 10.

Avoid risk of injury

• Do not change the accessories while the product is switched on.
• Do not use the product if you detect any kind of visible, external damage. Never use a damaged product.
  If liquid gets into the product, check before using the product once more.
  If you notice that the USB Type A to C cable 10, housing or another part has become damaged, the product can no longer be used.
  ■ Repairs should only be carried out by a specialist. Improper repairs may result in considerable danger to the user. This will also make any warranty claims void.
• Do not use defective attachments with the product as these could have sharp corners.
  ■ Defective components must always be replaced with original spare parts. Only by using original spare parts can you ensure that safety requirements are met.

For loading connect the USB Type A to C cable 10 to a power supply which is well within reach.
- Never use the product unsupervised and only use it in accordance with the information stated on the type plate.
■ Connect the USB Type A to C cable ^10 to the product before inserting it into the power supply.
The tips of the attachments are sharp.
- Switch off the product before attaching or switching the attachments, as well as before cleaning.
- Lay the USB Type A to C cable 10 so nobody will step on or trip over it.
- Do not use the product if you have an open wound, cut, sunburn or blister.

Avoid the danger of damage to property

- Electrical products may pose a hazard to animals. Animals can also damage the product. Always keep animals away from electrical products.

■ Protect the product from moisture, drops of water and splashing water when connected to a mains power adapter (not included).
- Ensure that the USB Type A to C cable 10 does not get stuck in cupboard doors and that it is not pulled over hot surfaces. This could damage the USB Type A to C cable's 10 insulation.
■ Use the original accessories only.
- Do not place the product on hot surfaces, near hot surfaces or near an open fire.
■ To prevent impermissible heating do not cover the mains power adaptor and the product during use and charging.
- Do not use any corrosive or abrasive cleaning agents.

Safety instructions for batteries/rechargeable batteries

For the purpose of re- charging the batteries, only use protection

class II power supply (not provided) approved for use with household products. SELV output: DC 5 V, max. 1 A

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge non-rechargeable batteries.

Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries/rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of leakage of batteries/rechargeable batteries

- Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.

If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries/ rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

This product has a built-in rechargeable battery which cannot be replaced by the user. This product contains a battery which is non-replaceable. When disposing of the product, it should be noted that this product contains a rechargeable battery.

- Charging the product

Note: Charge the product for 60 minutes before using it for the first time and subsequent charging.

The display shows the battery status as following table:

Battery charging status
under charging	White bars of the battery indicator 5 light on in sequence and the plug symbol 6 lights up red continuously.
fully charging	Red plug symbol 6 light off, 4 white bars of the battery indicator 5 continuously turn on.

Note: The plug symbol 6 lights up continuously when the battery is nearly drained. Cordless use of the product can then only continue for a short time.

Note: A quick charge for one shave takes about 5 minutes.

Note: A fully charged battery provides approx. 100 minutes of cordless use.

Note: In order to lengthen the service life of the rechargeable battery, it is recommended that

• the product is used regularly and without long storage periods
• the rechargeable battery is emptied before it is charged.

☐ Switch off the product using the ON/OFF button 3.

Connect the USB Type C connector 9 to the USB type C socket 8 on the product.
Connect the USB Type A connector of the USB Type A to C cable ^10 to a suitable USB Type A socket of a protection class II power supply (not provided) approved for use with household products and has SELV output DC 5 V, max. 1 A.
□ Connect the power adapter (not provided) to mains socket.
☐ The product will show the battery status during the product turn on (please refer to the below table), please charge the product when low battery indicator is applied.

Battery level status
Low battery	1 white bar of the battery indicator 5 and red plug symbol 6 flash.
Medium battery	2 bars of the battery indicator 5 continuously turn on.
Charged battery	3 bars of the battery indicator 5 continuously turn on.
Fully charged battery	4 white bars of the battery indicator 5 light continuously turn on.

Operation

WARNING! DANGER OF ELECTRIC SHOCK! The product and the USB Type A to C cable 10 are not waterproof and are not recommend to be used in the bathtub/shower.

■ The product must not be charged in the bathtub/shower.
■ Please do not use the product if you have an open wound, cut, sunburn or blister.
The product is only intended for use on dry hair in dry, indoor spaces.
■ The product can be used cordless only.

Note: Before first use, please press and hold the ON/OFF button 3 for approx. 3 seconds to deactivate the transport lock.

Note: In order to lengthen the service life of the rechargeable battery, it is recommended that the product is used regularly and without long storage periods.

●Transportlock

If the transport lock is activated, the lock symbol 7 lights up for a few seconds when a button is pressed.

☐ Press and hold the ON/OFF button 3 for approx. 3 seconds to activate/deactivate the transport lock. The lock symbol 7 will flash three times.

Shaving

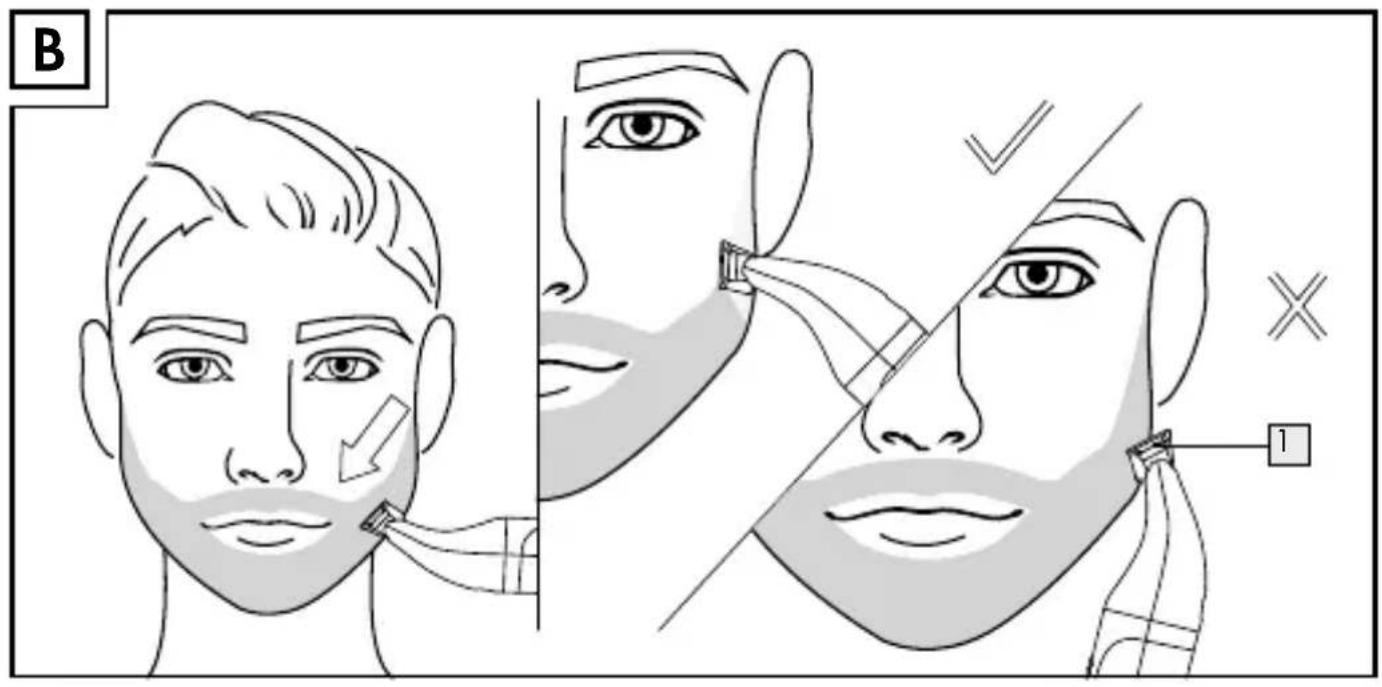

■ Make sure that the blade 1 is in full contact with the skin by lying it flat against the skin.
■ The shaver can be used cordless (dry and wet shave).

Tip: Trimming is easier if the skin and hair are clean and dry.

• Dry shaving (cordless use)

☐ Lay the blade 1 against the skin and move the product upwards (against the direction of beard growth). Make sure that the surface of the blade 1 is lying flat against your skin (see Fig. B).
☐ In difficult areas, e.g. the chin, tauten the skin for better results.

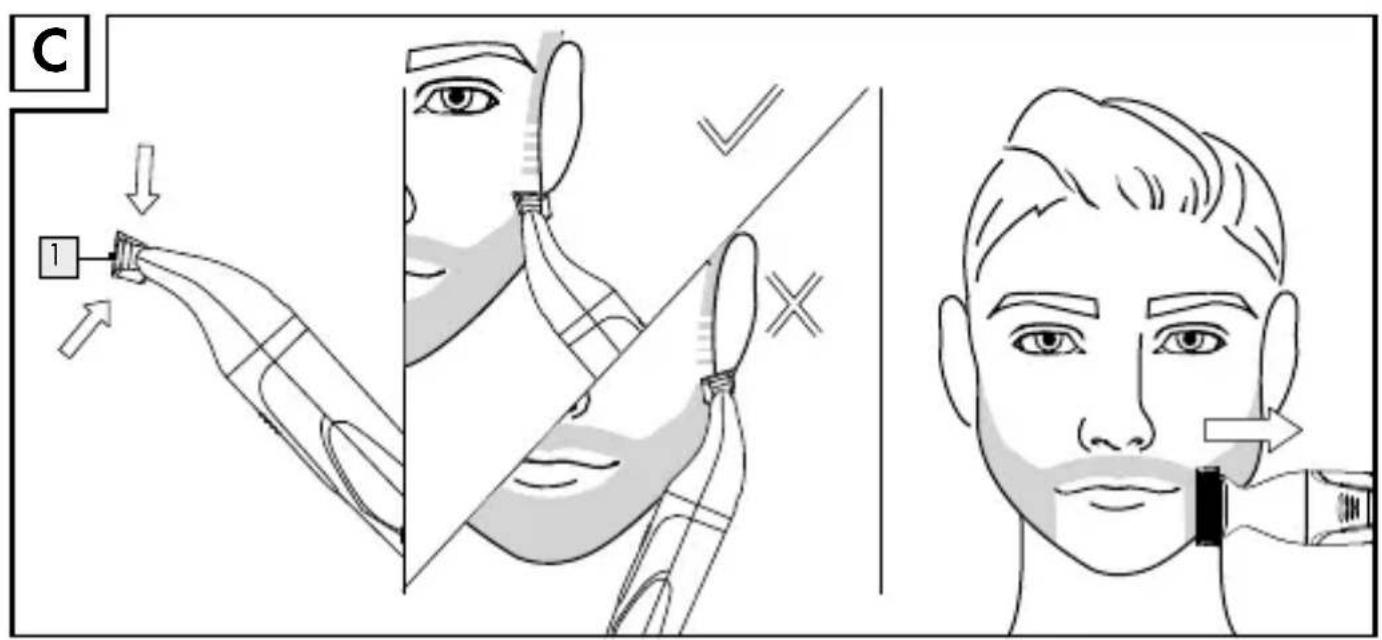

To create sharp edges and lines with the blade 1, use one of the blade's edges 1 (see Fig. C).
After every use, switch the product off using the ON/OFF button 3 and clean it (see chapter "Cleaning and care").

- Wet shaving (cordless use only)

WARNING! RISK OF PROPERTY DAMAGE! When wet saving, only use shaving foam or soap lather! Never use shaving gel or shaving cream.

■ Make sure that the battery is charged and the product is disconnected from the mains power supply.

□ Apply a thin layer of shaving foam or soap lather to the skin before shaving.
Take off the blade cover 16.
☐ Switch the product on using the ON/OFF button 3.
☐ Shave your face as described in the chapter "Dry shaving (cordless use)".

• Using the comb attachment

☐ The settings on the comb attachment correspond to the remaining hair length after trimming. You can select a length desired comb attachment 13, 14, 15 to fit it on the blade with Audibly sound.

☐ Make sure that the flat part of the comb attachment 13, 14, 15 is in full contact with the skin in order to achieve an even result (see Fig. B).

□ Always move the product against the direction of beard growth. Since the hair grows in various directions, you can try out another trimming position.

Tip: Trimming is easier if the skin and hair are clean and dry.

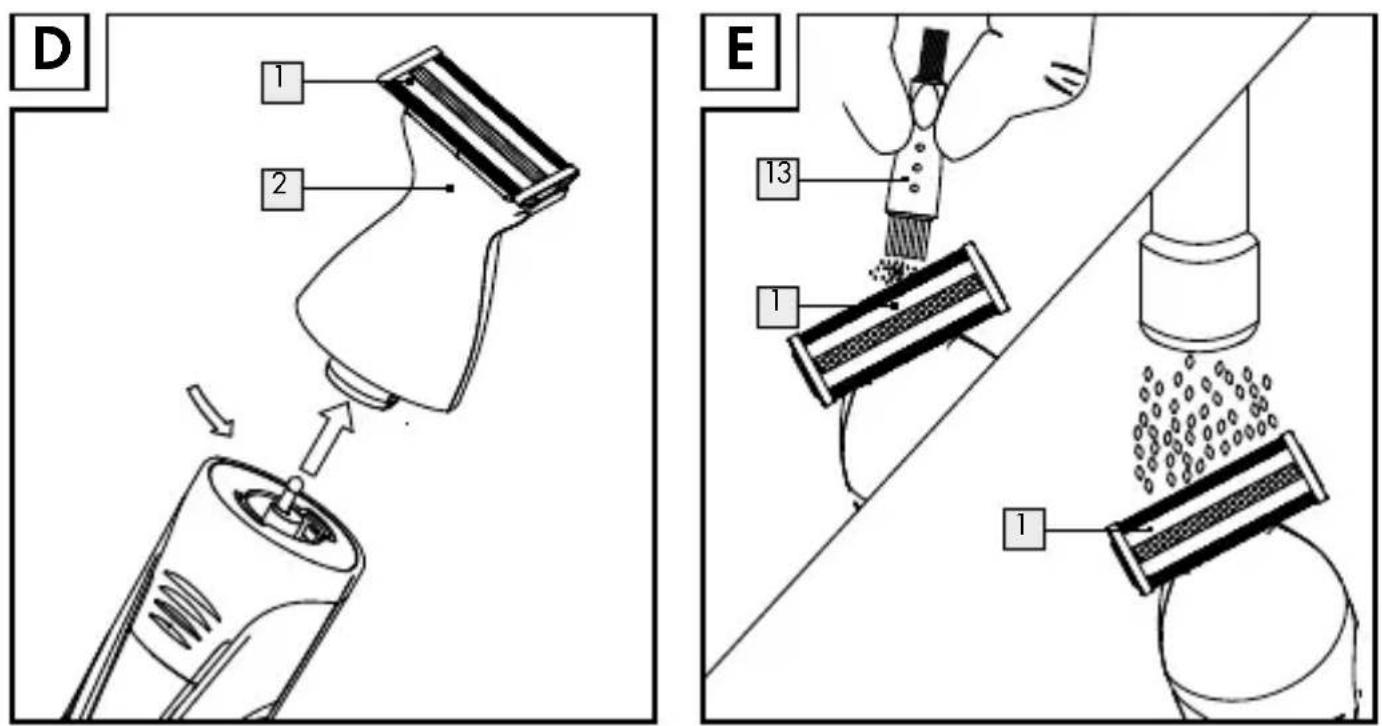

- Changing the blade attachment

Note: You can place a repeat order online for the blade attachment 2 with the blade 1 under the item number 472382_2407 on the website www.optimex-shop.com.

WARNING! RISK OF INJURY! Do not use this product if the

blade 1 is damaged. If

• you notice any damages,
• your skin hurts when shaving,
• you do not get a clean shave,

then the blade attachment 2 with the blade 1 must be replaced. The amount of wear and tear depends on the usage intensity, but in general the components must be replaced after approximately one year.

■ Switch the product off using the ON/OFF button 3 before replacing the blade attachment 2.
☐ Hold the product tightly and turn the blade attachment 2 anticlockwise slightly to remove it from the product (see Fig. D).
☐ Put a new blade attachment 2 on the product and turn it clockwise slightly to attach it in place.

- Cleaning and care

WARNING! DANGER OF ELECTRIC SHOCK! The product must be disconnected from the mains power supply before cleaning.

WARNING! DANGER OF INJURY! Always switch the product off before cleaning.

Note: Clean the product after each use.

■Theblade 1 and the blade attachment 2 can be cleaned with water. Do not use any other liquids.

■ Do not use aggressive or abrasive cleaning agents.
□ Clean the blade 1 with the included cleaning brush 11 after every use (see Fig. E).
☐ If the blade 1 and the blade attachment 2 are particularly dirty, e.g. after a wet shave, rinse them under running water (see Fig. E).
□ Clean the product (without the blade 1) with a slightly damp cloth if necessary.
☐ Remove the comb attachment 13, 14, 15 and remove any remaining hair with the cleaning brush 11. Wash the comb attachment 13, 14, 15 with water if necessary (see Fig. E).

□ Allow all parts to dry thoroughly.
☐ Put the blade cover 16 on the blade 1 when storing the product (see Fig. D).

Storage

CAUTION! RISK OF PROPERTY DAMAGE!

Never store the product in the storage bag 12 whilst the product is charging. Risk of overheating!

Store the clean and dry product and its accessories in the storage bag 12 provided.
Store everything in a clean, dust-free and dry place.

Note: Do not expose the product to direct sunshine or heat when storing. The ideal ambient temperature is between -10 and +60 °C. Extreme low or high temperature may damage the battery or the product.

Note: Charge the product for at least 60 minutes if you want to store it for longer than 6 months.

●Troubleshooting

Faults Cause Solution
The product does not work.	The battery may not be charged.	Recharge the product.
Faults Cause Solution
The cutting performance is deteriorating.	Hair may be stuck inside the blade 1.	Clean the product, the blade 1, the blade attachment 2 and the comb attachment 13, 14, 15.
The rechargeable battery cannot be charged or the battery performance is very poor.	The rechargeable battery has reached the end of its service life.	The product with the built-in rechargeable battery must be properly disposed of.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

The product incl. accessories, manual and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

Faulty or used batteries/rechargeable batteries must be recycled. Return the batteries/rechargeable batteries and the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

For this product, the rechargeable battery is also covered by its warranty period.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 472382_2407) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

EU DECLARATION OF CONFORMITY (No IAN 472382_2407)

IAN:	472382_2407
Product identification:	"SilverCrest" SINGLE-BLADE BEARD TRIMMER
Model Number:	HG06656A

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 60335-1:2012/A16:2023

EN 60335-2-8:2015/A12:2022

EN 62233:2008

EN ISO 12100:2010

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm	14.11.2024	ppa. Stefao HaenselAuthorised Signatory	ppa. Budneic
Place	Date		ppa. Jeps BuchheimAuthorised Signatory

●Transportbeveiliging

NOSTE OCHRANNÉ RUKAVICE!

NOSTE OCHRANNÉ RUKAVICE!

Barbering....Side 215

Tørbarbering (batteridrift) ......Side 215

Vådbarbering (kun ved batteridrift)......Side 215

Anvend kamopsats....Side 216

ADVARSEL! ADVARSEL!

ADVARSEL!

ADVARSEL!
