STK 1400 A1 - Toaster SILVERCREST - Free user manual and instructions

USER MANUAL STK 1400 A1 SILVERCREST

PDF ONLINE www.lidl-service.com

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG13598

Version: 09/2025

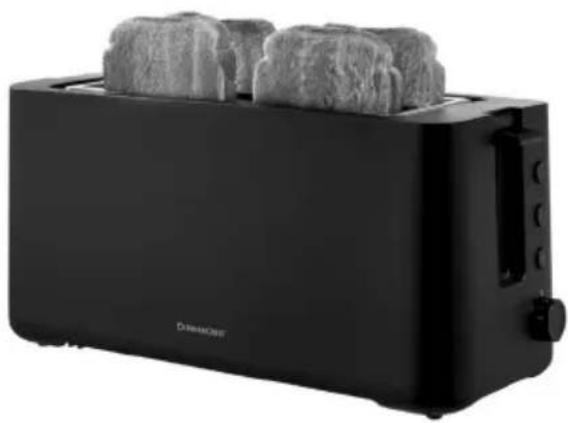

Black DMHONET toaster with two flat-topped slices (no visible text or symbols)

DOPPELLANGSCHLITZ-TOASTER / 4 SLICE LONG SLOT TOASTER / GRILLE-PAIN À 2 FENTES LONGUES STK 1400 A1

DE AT BE CH

DOPPELLANGSCHLITZ-TOASTER

Operation and safety notes

FR BE

GRILLE-PAIN À 2 FENTES LONGUES

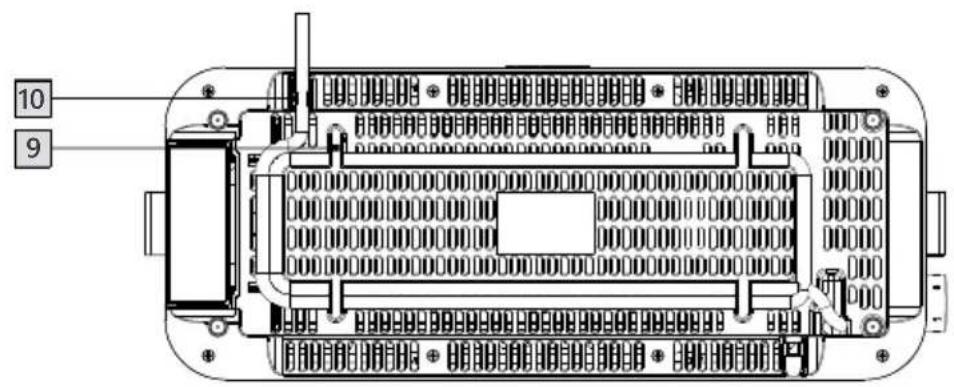

Technical diagram of a toaster with numbered parts and labeled buttons for function callouts

10 9

Warnings and symbols used Page 6

Introduction Page 6

Intended use.... Page 7

Scope of delivery.... Page 7

Description of parts ...... Page 7

Technical data Page 7

Safety instructions.... Page 7

Before first use Page 10

Operation.... Page 10

Toasting bread Page 10

Toast frozen bread.... Page 11

Warming up bread Page 11

Baking bread rolls Page 11

Cancel toasting Page 11

Cleaning and care Page 11

Storage Page 12

Troubleshooting Page 12

Disposal Page 12

Warranty Page 13

Warranty claim procedure.... Page 13

Service Page 13

Warnings and symbols usedThe following warnings are used in the user manual, short manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Alternating current/voltage
			Hertz (supply frequency)
			Watts
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		NOTE: This symbol in combination with “Note” provides additional useful information.
			Use the product in dry indoor spaces only.
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Danger - risk of electric shock!
			Warning - hot surface!
	Symbol for protective earth		Food safe.This product has no adverse effect on taste or smell.
[00AX0]	CE mark indicates conformity with relevant EU directives applicable for this product.	[80SK]	Safety informationInstructions for use

4 SLICE LONG SLOT TOASTER

● Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

PDF ONLINE www.lidl-service.com

You can download and view this and numerous other manuals at www.lidl-service.com. By scanning this QR code, you will be taken straight to the Lidl service website (www.lidl-service.com) where you can open your instruction manual by entering the article number (IAN) 525180_2504.

Intended use

This product is designed for making toast. Do not use the product for any other purpose.

This product is only intended for private household use, not for commercial purposes.

The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1x 4 Slice Long Slot Toaster

1x Instruction manual

● Description of parts

1 Toasting slots
2 (Reheat button with indicator light)
3 Defrost button with indicator light)
4 (Stop button with indicator light)
5 Control dial (for browning level adjustment)
6 Bread roll warmer
7 Power cord with plug
8 Feet
9 Cord rewind
10 Cord clamp
11 Crumb tray
12 Fold-out lever (for the bread roll warmer)
13 Lever

- Technical data

Input voltage: 220-240 V\~, 50-60 Hz

Power consumption: 1400 W

Protection class: I

Power consumption at off

mode: 0 W

Certification: GS (TÜV SÜD)

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ Children shall not play with the product.
- Cleaning and user maintenance shall not be made by children without supervision.
- Keep the product and its cord out of reach of children less than 8 years.

Intended use

⚠ WARNING! Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

■ This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -farm houses;
  -by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Electrical safety

⚠️ DANGER! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

DANGER! Risk of burns!

During use the product gets hot. Do not touch the product while in use nor immediately after use.

⚠️ DANGER! Risk of burns if non-standard toast is used.

Due to the smaller size or shape, there is a risk of touching hot parts when removing the toasted toast or bread.

⚠ WARNING! Risk of electric shock! Do not immerse the product in water or other liquids. Never hold the product under running water.

⚠ WARNING! Risk of electric shock! Never use a damaged product. Disconnect the product from the power supply and contact your retailer if it is damaged.

■ The product is not to be used if it has been dropped, if there are visible signs of damage.

The bread may burn, therefore not use the toaster near or below combustible material, such as curtains.

The product is powered at all times while it is connected to the power supply.

Before connecting the product to the power supply, check that the voltage and current rating corresponds with the power supply details shown on the product's rating label.

■ Regularly check the power plug and the power cord for damages. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the power cord away from hot surfaces and open flames.

Operation

■ The product must not be left unattended while it is connected to the supply mains.

- Do not move the product while it in operation.

Do not place the product on hot plates (gas, electric, coal cooking range etc.). Operate the product on a level, stable, clean, heat-resistant and dry surface.

- Do not cover the product while it in use or shortly after use, when it is still hot.

The use of extension cords is not recommended. If the use of an extension cord is necessary, it must be designed for a current flow of at least 10 A.

■ Lay cords in such a way that they may not be tripped over or otherwise damaged.

The product is not intended to be operated by means of an external timer or separate remote control system.

Cleaning and storage

⚠ WARNING! Risk of injury!

Disconnect the product from the power supply before cleaning work and when not in use.

• Do not store the hot product in a cupboard or in the packaging.
• Do not pull the power plug out of the electrical outlet by the power cord.
  ■ Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.
  ■ Store the product in a cool, dry place, protected from moisture and out of the reach of children.
  ■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.
  ■ Always clean the product especially the crumb tray 11 after use (Refer to “Cleaning and cares” for details).

Before first use

1. Remove the packaging material.
2. Clean the product (see "Cleaning and care").

i NOTES:

☐ The first few times the product is heated up, a faint odour may be present. Ensure sufficient ventilation in the area.
☐ Operate the toaster empty by setting the browning level to 6 and pull down the lever of 13. Wait until the operation complete and lever moved upwards.
☐ Discard the first set of toasted bread slices.

Operation

1. Unwind the power cord 7 from the cord rewind 9 before use.
2. Connect the power plug 7 to a suitable socket-outlet.

Off mode

☐ The product enters off mode once you connect the mains plug 7 to a mains socket while the lever 13 remains in its initial position (up).
☐ The product remains in off mode until you press down the lever 13.
☐ When the toasting process is finished, the lever 13 moves upwards automatically. The product returns to off mode.

- Toasting bread

i NOTES:

☐ The toasting result depends, among other things, on the type, moisture, and freshness of the bread.
□ Dry or white bread browns quicker than fresh or dark bread.
□ Browning level 6 causes a very strong browning. Thick bread slices may cause smoke to form. In this case, stop the toasting process: Press △ 4.
☐ If you only want to toast a single slice of bread, use a lower browning level than for toasting 2 slices of bread.
☐ The toaster got long slot design. You can toast maximum 4 slice of bread at the same time (2 slices per toasting slot).

1. Insert one or two slice of bread into each toasting slot 1.

Do not use bread slices that are too thick.

The bread must not be jammed in the toast slot.

1. Set the browning level: Set the control dial 5 to one of the browning levels, from 1 to 6.

1 = very light toasting/light browning

6 = very strong toasting/very strong browning

1. Press down the lever 13 until it clicks into place. The bread is lowered. The product switches on. 4 light up.

NOTE: The lever 13 only engages when the power plug 7 is connected to a socket-outlet.

1. When the toasting process is finished, the bread is lifted up. The lever 13 moves upwards. △ 4 goes off.

2. Remove the bread from the toasting slot 1.

Toast frozen bread

NOTE: Frozen bread is gently defrosted by the product and then toasted. It is not necessary to change the browning level.

1. Press down the lever 13 until it clicks into place. Press ✕ 3. ✕ 3 and △ 4 light up.

2. When the toasting process is finished, the bread is lifted up. The lever 13 moves upwards. 3 and 4 go off.

3. Remove the bread from the toasting slot 1.

● Warming up bread

NOTE: Bread that has already been toasted can be reheated by the product.

1. Press down the lever 13 until it clicks into place. Press ⏻ 2. ⏻ 2 and △ 4 light up.

2. When the toasting process is finished, the bread is lifted up. The lever 13 moves upwards. ⚙ 2 and △ 4 go off.

3. Remove the bread from the toasting slot 1.

Baking bread rolls

1. Press down the fold-out lever 12. The bread roll warmer 6 folds out.
2. Place the rolls on the bread roll warmer 6.
3. Set the browning level: Set the control dial 5 to the desired browning level.

i NOTES:

☐ The toasting result depends, among other things, on the type and freshness of the bread rolls.
☐ Toast the bread roll from both sides to ensure an even browning.

1. Press down the lever 13 until it clicks into place. The product switches on. △ 4 light up.

2. When the toasting process of one side of the bread roll is finished, the lever 13 moves upwards. △4 goes off.

3. Turn the rolls over.

4. Press down the lever 13 until it clicks into place. The product switches on. △ 4 light up.

5. When the toasting process of the other side of the bread roll is finished, the lever 13 moves upwards. △4 goes off.

6. After the bread rolls are baked: Push the fold-out lever 12 upwards. The bread roll warmer 6 folds in.

- Cancel toasting

1. When the product is in toasting, you can press △ 4 early to stop operation.
2. Press 4. The lever 13 moves upwards. 4 goes off.

● Cleaning and care

⚠️ DANGER! Risk of electric shock! Before cleaning: Always disconnect the product from the power supply.

DANGER! Risk of burns! Do not clean the product right after operation. Let the product cool first.

⚠ WARNING! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

Part Cleaning	method
□ Housing	□ Wipe down the housing with a slightly damp cloth.□ Do not let any water or other liquids enter the product interior.
□ Bread roll warmer 6	□ Press down the fold-out lever 12. The bread roll warmer 6 folds out.□ Hold the product upside dow and remove the crumbs from the recess of the bread roll warmer 6.□ Wipe the recess and the bread roll warmer 6 with a slightly moistened cloth.
□ Crumb tray 11	□ Pull out the crumb tray 11.□ Remove the crumbs. Wipe out the crumb tray 11 with a damp cloth.□ Reinsert the crumb tray 11.

Storage

DANGER! Risk of burns! Do not store the product right after operation. Let the product cool first.

□ Clean the product before storage.

☐ Wind the power cord 7 around the cord rewind 9 and attach it to the cord clamp 10.
☐ Store the product in the original packaging when it is not in use.
☐ Store the product at a dry location out of the reach of children.

● Troubleshooting

Problem Possible cause/Solution
Bread too strongly browned.	Use the control dial5to set a lower browning level.
Bread gets stuck in the product.	Disconnect the power plug7. Let the product cool. Use a wooden spatula to remove the bread from the toasting slot1. Do not touch the heating elements.
Heavy smoke	The crumb tray11may be full.Disconnect the power plug7. Let the product cool. Clean the crumb tray.

● Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product incl. accessories, manual and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your wornout product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 525180_2504) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]
