USER MANUAL PETPS 1100 A1 PARKSIDE

Black and silver outdoor water purifier with attached sensor and control panel (no visible text or symbols)

PDF ONLINE parkside-diy.com

Translation of the original instructions

NL BE

Vuil waterdompelpomp

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Scope of delivery/accessories....20

Overview.... 20

Description of functions...... 20

Technical data.... 20

Performance data....21

Safety information...... 21

Meaning of the safety information.... 21

Pictograms and symbols......21

Safe initial start-up of the pump.... 21

Preparation......24

Connecting the pressure line..... 24

Adjusting the float switch.....25

Check float switch.....26

Setting up the pump...... 26

Operation......26

Working instructions...... 26

Switching on and off...... 26

Transport...... 27

Cleaning, maintenance and storage....27

Cleaning.... 27

Maintenance....27

Storage....27

Troubleshooting......28

Disposal/environmental protection....28

Service....29

Guarantee....29

Repair service....30

Service Centre....31

Importer....31

Spare parts and accessories......31

Translation of the original EU declaration of conformity....32

Exploded view....165

Introduction

Congratulations on purchasing your new submersible sewage pump (hereafter referred to as device or power tool).

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device. In some cases, residual amounts of water may be present on or in the device or in hose lines. This is not a flaw or a defect and is no cause for concern.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

This device is only intended for the following use:

- Drainage and pumping of the following liquids:

Dirty water with a maximum particle size of 35 mm

• Typical applications:

- Pumping and draining basins and containers

- Draining flooded cellars

- Removing water from wells and shafts

• Water temperature ≤35 °C

Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation.

Scope of delivery/accessories

Unpack the device and check that everything is present.

Dispose of the packaging material properly.

• Submersible Dirty Water Pump
• Connection bracket
• Quick-connect adapter
• Reducer piece
• Pull rope (8 m)
  • Translation of the original instructions

Overview

The illustrations for the device can be found on the front fold-out page.

1 Carrying handle
2 Power cord
3 Line (Float switch)
4 Holder (Float switch)
5 Height adjustment (Float switch)
6 Float switch
7 Pump foot
8 Water outlet
9 Housing

10 Pull rope (Nylon, 8 m)
11 Connection bracket
12 Quick-connect adapter
13 Reducer piece

Description of functions

The device has a stainless steel housing, a stable suction foot and a stainless motor shaft. The pump is equipped with a float switch that automatically switches the device on or off depending on the water level. Please refer to the descriptions below for information on how the operating elements work.

Technical data

Submersible Dirty Water Pump PETPS 1100 A1

Rated voltage U .....230 V\~, 50 Hz

Rated input power P ..... 1100 W

Protection class ....

Protection type ......IPX8

Length Power cord ....10 m

Weight 5.0 kg

Suspended matter size ∅ ..... ≤35 mm

Operating depth .... ≤7 m

Flow rate Q ....≤20000 l/h

Discharge head H .... ≤9 m

Minimum water level, Initial start-up 90 mm

Residual water level 43 mm

Water temperature .... ≤35 °C

Water outlet ......G1 ^1/2 "

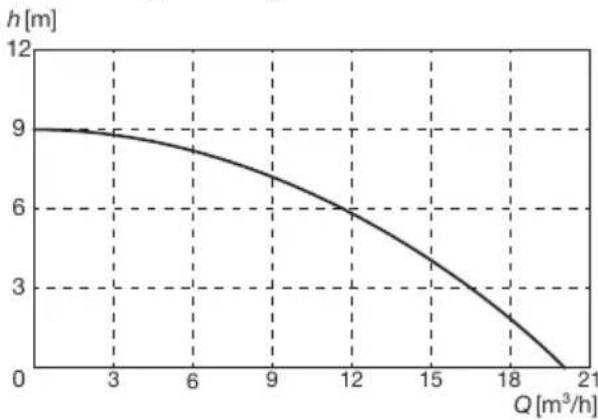

Performance data

↑Discharge head; →Flow rate The maximum performance data is measured under optimal conditions (e.g. straight, direct outlet).

Tighter hoses can reduce the output.

Safety information

This section deals with the basic safety instructions for using the device.

Meaning of the safety information

⚠️ DANGER! If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.

⚠ WARNING! If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

⚠️ CAUTION! If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury. NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols Symbols on the device

Attention!

Read the instruction manual

Maximum operating depth

Caution! Hot surfaces, burn risk!

Pull out the mains plug before maintenance work or if the power cord is damage

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

Symbols used in the instruction manual

Attention!

Safe initial start-up of the pump

General Information

- Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. - The device must not be used by children. Children must be supervised to ensure that they do not play with the device. The device can be operated by individuals with reduced physical, sens-

ory or mental abilities or a lack of experience and knowledge if they are su- pervised or have been in- structed in the safe use of the device and under- stand the resulting haz- ards.

Cleaning and user maintenance must not be carried out by children.

• People who are not familiar with the instruction manual may not use the device.

- The machine must not be used at altitudes over 2000 m.

- Do not use for water with abrasive particles such as sand. The pumping of aggressive, abrasive, caustic, flammable (e.g. engine fuels) or explosive liquids, salt water, detergents and foods is not allowed. The temperature of the pumped liquid must not exceed 35°C.

• Never operate the device with people in the water.

- Escaping lubricant could contaminate the liquid.

- Do not work with a damaged or incomplete

device or one which has been converted without the permission of the manufacturer. Before initial start-up, have a specialist check whether the required electrical protective measures are in place.

Preparation

- Ensure that the mains voltage and mains frequency match the specifications on the rating plate. - Prior to use, always check the power cord and extension cord for signs of damage or wear and tear. If the cord is damaged during use, it must be disconnected from the supply network immediately. DO NOT TOUCH THE CABLE BEFORE IT HAS BEEN DISCONNECTED FROM THE POWER SUPPLY. Do not use the device if the cord is damaged or worn.

- Only connect the device to a power outlet with a residual current device (RCD) with a rated resid-

ual current no more than 30 mA.

- Connect the appliance to an outlet with a fuse of at least 6 A.

- Do not work with a damaged or incomplete device or one which has been converted without the permission of the manufacturer.

- Before use, check the electrical safety. If you are not sure, ask a qualified specialist.

- Earthing, zeroing and residual current device comply with the safety regulations of the power supply companies and function perfectly.

• The electrical connections are protected against moisture.

- The plug connections are installed in a flood-proof area.

- If the power cord of this device is damaged, it must be replaced by the manufacturer, their customer service or by a similarly qualified person in order to avoid haz-

ards. contact the service centre.

- When operating the device, the mains plug must be freely accessible.

- Do not use the power cord to pull the plug out of the outlet. Protect the power cord from heat, oil and sharp edges.

- Remove the plug from the outlet before carrying out work on the device, during work breaks and when not in use.

- Use only approved extension cables of type H07RN-F that are not more than 75 m long and are designed for outdoor use. The wire cross section of the extension cable must be at least 2,5 mm ^2 . Always roll out the cable drum completely before use. Check the extension cable for damage.

- Do not carry or attach the device by the power cord or hose.

Operation

• Do not use the device near flammable liquids or gases. There is a risk of fire or explosion if this advice is not heeded.
• Wear sturdy shoes to protect against electric shock.
• The pump must not be left outside in frosty weather. Store the device protected from frost.
• Monitor the device during operation to detect in adequate time if the pump running dry.

Cleaning, maintenance and storage

• Take heed to all information in the following section: Cleaning, maintenance and storage, p. 27
All other measures, and opening the device in particular, must be carried out by a qualified electrician. Always contact our service centre in the case of repairs.

- Switch the drive off, disconnect the device from the power supply and al-

low the device to cool off if you want to clean, adjust, store the device or to exchange an accessory part.

• Replace worn or damaged parts in the interests of safety. Use only original spare parts and accessories. Using externally produced parts results in the immediate loss of any warranty claim.
• Store the device in a dry place and out of reach of children.

Preparation

⚠ WARNING! Risk of injury due to unintentional start-up. Do not insert the plug into the outlet until the device is fully prepared for use.

Connecting the pressure line

Notes

• The described connection is a recommendation with the supplied accessories.
• As a pressure line, you can use a hose or a fixed pipeline.
• Use a non-return valve for fixed installations.
• Thanks to the quick-connect adapter, you can easily remove the pump without removing the pressure line.

- NOTICE! Risk of blockage! The narrowest part of the pressure line determines the maximum particle size.

Procedure

1. Attach the connection bracket (11) to the water outlet (8; G1½").

2. Attach a hose to the quick-connect adapter (12) or to the reducer piece (13).

3. Quick-connect adapter: e.g. Hose connector with G1½" internal thread

4. Reducer piece ①: Hose 1" (25.4 mm) with suitable hose clamp
5. Reducer piece ②: e.g. Hose connector with G1" internal thread; disconnect the connection ①

6. Reducer piece ③: Hose 1 14 (31.8 mm) with suitable hose clamp; disconnect connections ② and ①

7. Pressure line attached to the reducer piece: Attach the reducer piece (13) to the quick-connect adapter (12).

8. Attach the quick-connect adapter (12) to the connection bracket (11).

9. Press and hold the red button on the quick-connect adapter (12).

10. Slide the quick-connect adapter (12) onto the connection bracket (11).
11. Let go of the button.

Adjusting the float switch

Notes

• On delivery, the float switch is set so that immediate initial start-up is possible.
  • Permanently installed pump: Check the function of the float

switch regularly, at least every 3 months.

• Make sure there is enough distance between the float switch and the height adjustment. If there is not enough distance, the float switch may not work as intended.
• Set the float switch when the carry handle is extended, especially when you are hanging the pump from the pull rope.
• Set the float switch so that it switches the pump off before it touches the base.

Procedure

During normal operation, the float switch (6) should hang in the holder (4).

1. Set the middle level: Squeeze the holder (4).
2. Move the holder (4) to the desired position within the height adjustment (5).

3. Set the difference between the highest and lowest level:

4. Increase level difference: Lengthen the part of the line (3) between the holder (4) and the float switch (6).

5. Decrease level difference: Shorten the part of the line (3) between the holder (4) and the float switch (6).

6. Check the function of the float switch (6).

Manual operation (Fig. A)

The float switch can be set so that the pump is always on whenever it is supplied with power.

- Attach the float switch (6) without any distance to the holder (4) vertically upwards on the height adjustment (5).

Check float switch

1. Place the pump with removed connection bracket (11) in a vessel with water. During pumping, the water should flow back into the vessel.

2. Plug the plug into an outlet.

3. Raise and lower the float switch (6) by hand. Observe the position where the pump switches on/off.

If you are not satisfied with the result, adjust the pump.

Setting up the pump

Notes

• Never use the power cord or the pressure hose to hold or hang up the device.

• If you use the float switch:

• Make sure that the float switch can move freely.

• The pump sump should have at least the following dimensions: 40 cm × 40 cm × 50 cm

- When immersing the pump, allow as much air as possible escape from the pump foot. Hold the pump at an angle.

• Observe the maximum operating depth ( ≤ 7 m) and the maximum discharge head ( ≤ 9 m).
• Do not place the device directly on a muddy surface. Hang up the device or use a brick, for example, as a base.

• You can use the supplied pull rope for the following purposes:

• Lowering and lifting device in a shaft

• Hanging the device in water

Attaching the pull rope (Fig. B)

1. Attach the pull rope (10) to the carrying handle (1) with a loop and knot.

2. Before lowering the device in a shaft: Make sure that the pull rope is securely attached to the carrying handle.

Operation

Working instructions

• Ensure that the mains voltage and mains frequency match the specifications on the rating plate.
• Connect the appliance to an outlet with a fuse of at least 6 A.
• Only connect the device to a power outlet with a residual current device (RCD) with a rated residual current no more than 30 mA.
• ⚠ANGER! Danger of electric shock! Make sure that moisture or water can never get into the mains connection.
• The device is not suitable for connection to the drinking water supply.
• To convey the maximum suspended matter size ( 35 mm), you need a hose of the following size: 38 mm ( 112 ). The actual maximum size of pumpable suspended matter must be smaller than the thin-nest point of the pressure line.

Manual operation

• Monitor the pump so it does not run dry.
• Minimum water level, Initial start-up: 90 mm
  • Residual water level: 43 mm

Switching on and off

Notes

- NOTICE! Not suitable for continuous operation! The optimum interval of use is 30 minutes pumping, 5 minutes break.

- Overload protection: In case of overload, a built-in temperature monitor automatically switches the device off. The device automatically switches back on after it has cooled down.

Switching on

1. Connect the power cord (2) to the power supply. The motor starts. After a suction period the pump begins to extract.

Switching off

- Disconnect the device from the power supply.

Transport

Notes

• Pull out the mains plug.
• Always carry the device by the extended handle (1).

Cleaning, maintenance and storage

⚠ WARNING! Electric shock! Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work. Switch off the device and disconnect the mains plug from the socket. You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

NOTICE! Risk of damage. Chemical substances may attack the plastic parts of the machine. Do not use any cleaning agents or solvents.

• Non-stationary devices: Clean the pump with clean water after each use.
- Stationary devices: Check the function of the float switch (6) regularly (at least every three months).
- Remove any fluff and fibrous particles that may have become trapped in the pump housing with a water jet.
- Remove dirt on the bottom of the pump with a water jet.
- Remove deposits on the float switch with clear water.
- Regularly free the shaft base of mud and clean the shaft walls as well.
- If you have not used the pump for a longer period of time: Clean the pump thoroughly after the last use and before new use. Deposits and residues can result in start-up difficulties.

Maintenance

The device is maintenance free.

Storage

Always store the device and accessories:

• clean
  • dry
  • protected against dust
  • protected against frost
  • out of the reach of children
• Deposits and residues can result in start-up difficulties. Before longer storage periods (e.g. Winter storage)

- Clean the pump.

- Empty the pump.

Troubleshooting

The following table will assist you in fixing faults:

Problem Possible Cause Remedy
Device does not start	No mains power supply Check the socket, mains connection cable, plug and fuse and have them repaired by a qualified electrician if necessary.
	Float switch does not switch	Adjusting the float switch, p. 25
Pump does not switch off	Float switch cannot drop	Position the float switch so it can move freely
Pumps has no discharge	Reduced pump performance, through severely contaminated water and additions in the water which produce a grinding effect	Clean pumps and replace wear parts
	Pump or line clogged Clean pump and line
Pump switches off after a short period	Motor contactor disconnects the pumps because of water pollution that is too severe.	Clean the pump as well as shaft
	Water temperature too high, motor contactor breaks	Note maximum water temperature of 35 °C!

Disposal/ environmental protection

The device, accessories and packaging should be properly recycled.

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

The symbol of the crossed-out wheeled bin means that this product must not be disposed of as unsorted municipal waste at the end of its useful life.

Directive 2012/19/EU on waste electrical and electronic equipment:

Consumers are legally obliged to recycle electrical and electronic equipment in an environmentally sound manner at the end of its life. In this

way, environmentally friendly and re-source-saving recycling is ensured. Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an official collection point,
• Return to the manufacturer/distributor.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Service

Guarantee

Dear Customer,

This product is provided with a 3 year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The guarantee period begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective product and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on re-pair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The product has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. Pre-filter, Sealing ring) or to cover damage to breakable parts.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and product number (IAN 466613_2404) ready as proof of purchase for all enquiries.
• Please refer for the product number to the type plate on the product, an engraving on the product, the title page of the operating instructions (bottom left) or the sticker on the back or underside of the product.
• Should functional errors or other defects occur, please initially contact the service centre specified below by telephone or use the contact form available on parkside-diy.com in the category Service.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the appliance inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

PDF ONLINE parkside-diy.com

You can view and download these and many other manuals on parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and search for the operating instructions via the search mask. You can open your operating instructions by entering the article number (IAN) 466613_2404.

Repair service

For repairs that are not covered by warranty, contact the service centre. They will gladly create a cost estimate for you.

• We can only work on devices which are sent in properly packed and with postage paid.
  Note: Please send your device cleaned and with an indication of the defect to the address named for the service centre.
• The following are not accepted: devices sent in without prepaid postage, sent as bulky goods, sent as an Express shipment, or devices sent as any other form of special freight.
• We will dispose of defective devices you ship to us free of charge.

Service Centre

Service Great Britain

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 466613_2404

Service Malta

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 466613_2404

Importer

Please note that the address below is not a service address. Contact the service centre named above first.

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact: Service Centre, p. 31

Pos. nr.

1

Name Order No.

10 — Pull rope (Nylon, 8 m) 79300311

11, 12, 13 42–49 Connection bracket set (Connection

91110114

bracket, Quick-connect adapter, Reducer piece)

^1 Exploded view, p. 165

Translation of the original EU declaration of conformity

Product: Submersible Dirty Water Pump

Model: PETPS 1100 A1

Serial number: 000001-080000

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2006/42/EC • 2014/30/EU • 2000/14/EC & 2005/88/EC

• 2011/65/EU & (EU) 2015/863

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

To ensure conformity, the following harmonised standards and national standards and regulations have been applied:

EN 60335-1:2012/A16:2023 • EN IEC 60335-2-41:2021/A11:2021

EN 62233:2008 • EN ISO 12100:2010

EN IEC 55014-1:2021 • EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021 • EN IEC 63000:2018

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Authorised representative of documentation

Sommaire

Introduction......33

Garantie (France)......45

Reparationsservice......163

Service-Center 163

Importør......163

FSC www.fsc.org RECYCLED Aus Recycingmaterial FSC® C156867

FSC® www.fsc.org RECYCLED Made from recycled materia1 FSC® C156867
