1. Parts and components 24

2. Before use 24

3. Installation 24

4. Laundry preparation 27

5. Operation 28

6. Cleaning and maintenance 35

7. Troubleshooting 36

8. Technical specifications 37

9. Technical data 39

10. Copyright 40

11. Simplified EU Declaration of Conformity 40

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

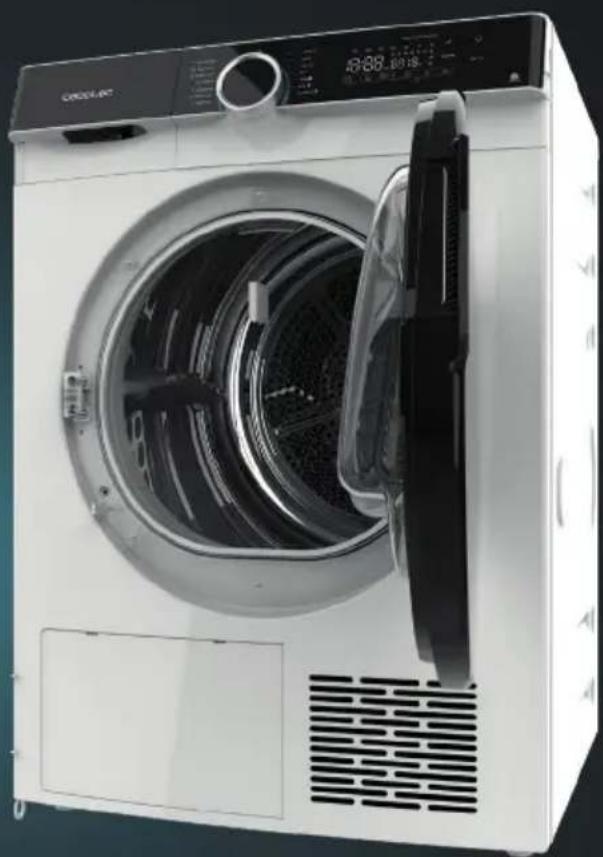

1. Power cord
2. Top part
3. Condensation water tank
4. Drum
5. Lint filter
6. Control panel
7. Door

8. Ventilation grille

9. Maintenance cover (access to heat exchanger)

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the machine when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Dryer
• Instruction manual

- Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. INSTALLATION

- Before installation, check that the tumble dryer has not been visibly damaged during transportation. Do not operate the dryer if it is damaged. If any malfunction is detected,

please contact Cecotec.

• During transport, the maximum tilt angle of the tumble dryer must not exceed 30^ . In case it tips over, place it in an upright position for 2 hours before putting it into operation.
• The dryer must be installed in a dry and ventilated place. Avoid installing it in areas with high humidity, where it can get wet or be affected by steam build-up, such as the bathroom or an uncovered balcony. Avoid installing the tumble dryer in a place where it may be exposed to direct sunlight or the weather.
• Make sure not to install the dryer next to other heat-generating appliances such as cookers, gas appliances, etc. to avoid accidents.
• It is recommended to install the tumble dryer next to or near the washing machine to facilitate drying of the laundry after washing.
• Avoid installing the tumble dryer in a place where dust tends to accumulate, as excess dirt may block the ventilation grilles of the appliance.
• Remove all packaging from the tumble dryer and then place it on a flat, stable surface. Do not place it on carpets, rugs, supports, etc.
• During installation, adjust the feet of the tumble dryer until it is firm.
• Leave a minimum space of 5 cm between the dryer and the wall or other furniture.

Drain hose connection

1. Remove the drain hose from the back of the dryer. Fig. 2

Figure 2 key

a. Water supply hose
b. Drain hose

1. Connect the drain hose to the drain or sink (be sure not to kink it). Fig. 3

2. Place the hose bracket on the basin or sink. Fig. 4

Warning:

• Make sure that the hose seal is securely fitted to prevent it from disconnecting.
• Once the connection has been made, the distance between the water outlet and the floor must not exceed 1 metre. If the hose is too long, you can cut it.
• When disconnecting the hose from the tumble dryer, be sure to do so by pulling on the connector. If it is necessary to restore the original drainage system, reinsert the connector back into place.

Transport

• When lifting or moving the dryer, hold it by the top or bottom, never by the door.
• During transport, the maximum angle of inclination of the dryer must not exceed 30^ .
• Be careful when moving it, as you could hurt yourself.
• The dryer is heavy. Do not lift or transport the appliance on your own, always lift or

ENGLISH

transport it with the help of another person.

• Open the doors and remove any objects that may get in the way during transport and installation.
• Remove all packaging material before putting the appliance into operation.
• Check that the dryer has not been visibly damaged during transportation. Do not install or operate the dryer if it is damaged.
• Avoid installing the dryer in rooms with a risk of freezing.
• Residual water accumulated inside the dryer may freeze and cause damage.
• After transporting the appliance, it is recommended that it is left to stand for 2 hours before being put into operation.

Suitable location for installation

• To avoid hazards, installation must be carried out by a qualified technician.
• Do not install the appliance behind a door, as this may block the opening of the dryer door or prevent it from opening fully.
• Do not place objects that may reduce the space between the dryer and the floor, such as carpets or wood, as heat build-up may affect the proper operation of the appliance.
• For convenience, it is recommended to install the dryer next to or near the washing machine.
• In case you want to place the dryer on top of the washing machine, use a suitable support.
• Do not install the dryer in places where dust tends to accumulate. Excessive dirt can impede air circulation. Make sure that the ventilation grilles are not obstructed or blocked.
• To ensure that the appliance does not make too much noise or vibrate during operation, place it on a flat, level surface.
• Do not remove the feet.

Levelling

Once installed, check that the dryer is completely level with the help of a spirit level. If not, adjust the feet until they rest firmly on the floor. Turn the feet clockwise or counterclockwise to raise or lower them until the appliance is fully stable on the floor.

Mains connection

Before connecting the appliance, check the following:

• The mains voltage complies with the required parameters.
• The plug of the tumble dryer is compatible with the socket.
• The socket can withstand the maximum power of the tumble dryer. The socket must be securely earthed.

4. LAUNDRY PREPARATION

Practical tips on drying clothes

1. Spin the laundry well in the washing machine before putting it in the dryer. A higher spinning speed shortens the drying cycle time and reduces energy consumption.
2. For uniform drying, sort the laundry according to the type of fabric and select a suitable drying programme.
3. Close zips, fasten brackets and hooks, fasten buttons on shirts, tie fabric belts, etc.
4. Remove all objects from pockets, such as coins, keys, lighters, etc.
5. Sew or remove the underwires from bras.
6. Close the covers of blankets and pillows to prevent smaller items of clothing from getting rolled up inside them.
7. Do not over-dry clothes, as this will cause more creases to form.
8. Do not tumble dry garments with elastic bands or similar elastic materials.
9. Keep the area where the dryer is located clean. Accumulation of dust and dirt can clog the ventilation grilles and cause an explosion.
10. When the drying cycle is finished, open the loading door fully to let the steam out. Be careful not to burn yourself with the drum.
11. Clean the lint filter and empty the condensation water tank after each drying cycle. A dirty filter will increase drying time and energy consumption.
12. Check if the garments are suitable for tumble drying. To do so, refer to the care labels on the garment:

Suitable for tumble drying.

Drying at normal temperature: It can be tumble dried at a normal cycle length and temperature (up to 80 °C).

Drying at low temperature: It can be tumble dried on a short cycle at reduced temperature.

Do not tumble dry: Avoid tumble-drying.

ENGLISH

5. OPERATION

Control panel

Fig. 5.

1. Power icon. Press this icon to switch on/off the appliance.
2. Start/Pause icon. Press this icon to start or pause the washing cycle.
3. Functions. These icons allow you to configure additional functions.
4. Display. Shows the settings, the display with the estimated remaining time of the drying programme and the error codes of the dryer.
5. Programme knob. The programme knob allows you to select the drying programme according to the user's needs and the type of laundry to be dried.

Display

	KidLock function
	Drying time/Error codes display
	Drying cycle phase indicator lights
	Filter cleaning warning indicator light
	Condensation water tank full warning indicator light
	Drying level
	Interior light
	Silence function
	Comfort Mode (ultra-quiet mode)
	UV Care function (high-temperature sterilisation)
	Easy Iron function (anti-crease)
	UV Care function (UV light sterilisation)

Before drying

Before using the dryer, make sure that it is correctly installed and clean the inside of the drum:

1. Put some clean rags in the drum.
2. Plug the appliance into a mains socket and press the power icon to start it.
3. Select the Refresh programme, then press the Start/Pause icon to start the drying cycle.
4. When the programme is finished, follow the instructions in the "Cleaning and maintenance" section to clean the lint filter.

Drying

1. Press the power icon to switch on the appliance.
2. Select a programme.
3. Select a function.
4. Press the Start/Pause icon to start the drying cycle.

After drying

1. When the drying programme is finished, the dryer will beep, and "END" will appear on the display.
2. Then, open the door and take out the laundry.
3. Remove the condensation water tank.
4. Empty the waste water from the tank.
5. Clean the lint filter.
6. Unplug the dryer.

Functions

- Easy ironing function (anti-crease)

If you do not remove the laundry at the end of the drying cycle, the dryer will activate the Anti-crease function for 60 minutes by default. If desired, you can activate the function manually and set it from 30 to 90 minutes by pressing the

This function prevents creasing. The laundry can be removed during the anti-crease cycle. This function is compatible with all drying programmes except Wool and Refresh.

- Delay Start

This function allows you to delay the start time of the drying programme for up to 12 hours. When this function is activated, the start time will be shown on the display.

1. Load the laundry into the drum and make sure that the tumble dryer door is closed.

2. Press the power icon to switch on the dryer and then select the desired drying programme with the programme knob.

3. Once the programme has been selected, press the icon.

ENGLISH

1. Press the icon repeatedly to set the time you want the drying cycle to start.
2. Then, press the Start/Pause icon to confirm the settings. When the countdown ends, the selected programme will be executed automatically.
3. Press the Start/Pause icon again to pause the countdown.
4. To cancel this function, press the power icon.

- Comfort mode (ultra-quiet mode)

The spin speed of the drum will decrease to reduce the noise level of the dryer to a quieter mode, but the drying time will increase.

Press the icon to activate this function.

- Drying level

This function allows you to adjust the drying level of the laundry:

Super Dry

Standard

Light Dry

The drying level can only be changed before the drying cycle starts.

To adjust it, press the icon repeatedly.

This function is compatible with all drying programmes except Wool, Time Dry and Refresh.

- Drying time

This function allows you to set the duration of the Time Dry (customisable drying time) and Refresh programmes. Each time you press the icon, this corresponds to a 10-minute increase.

- Interior light

By pressing the 🔍 icon, the drum light will turn on for 1 minute. It will also light up when the door is opened.

- Beeping

Press the icon to activate or deactivate the acoustic signal. The beeping is activated by default. If the beeping is activated:

o When a function is selected, the dryer will beep to confirm the setting.
o If you turn the programme knob during a drying cycle, the dryer will beep to indicate that the operation is invalid.
o The dryer will beep at the end of the drying programme.

- UV Care (UV light and high-temperature sterilisation)

This function sterilises the laundry during the drying cycle, eliminating bacteria. Use it for delicate or light garments. The process consists of two phases: first, UV light sterilisation, then heat sterilisation at 60^ C (approx.) for 20-30 minutes.

Press the icon to activate this function. The and icons will light up during the process. Press this icon again to deactivate the function.

The UV Care function is not available for the following programmes: Cotton Iron, Wool, Time Dry (Customisable drying time) and My Fav.

- KidLock

This function allows you to lock the control panel to prevent children from interrupting the drying cycle or tampering with the appliance accidentally.
When the drying cycle is running, press and hold the icon and the icon at the same time for 3 seconds to activate the safety child lock.
o When the Child Lock function is activated, the display will show the icon and all icons will be locked (except the power icon and interior light icon).
To deactivate the KidLock function, press and hold the icon and the icon at the same time for 3 seconds.

Programmes

- Programme knob

1. When the display lights up, turn the programme knob to select the desired programme.
2. Select a function.
3. Press the Start/Pause icon to start the drying cycle.
4. When the drying programme is finished, press the power icon to switch off the dryer.

- Starting a programme

The drum will start rotating once the drying programme has started. The corresponding drying cycle phase indicator light will light up on the display and the remaining time of the drying programme will be shown on the display.

- End of programme

1. The drum will stop rotating when the drying programme is finished. In addition, the display will show "End" and the corresponding indicator light will light up. If you do not remove the laundry at the end of the drying cycle, the dryer will activate the Anti-crease function automatically.
2. Remove the laundry from the drum, then press the power icon to switch off the dryer. Finally, unplug the appliance.

Drying programmes table

Programme		Maxi-mum load	Description	Delay Start	Drying time
Cotton	Extra 10 kg		For drying single or multi-layer cotton garments. This function dries the laundry so that it can be stored directly in the wardrobe after the cycle.	Yes No
	Iron 10 kg		For drying single-layer cotton garments. This function leaves the laundry slightly damp for easy ironing.	Yes No
	ECO 10 kg		For single or multi-layer cotton garments that must be completely dry for immediate use.	Yes No
Mix 4 kg			For drying mixed cotton and synthetic fabrics.	Yes No
Synthetics	Extra 4 kg		For thick fibre or synthetic multi-layer fabrics.	Yes No
	Cupboard 4 kg		For fine synthetic fabrics that do not require ironing, such as shirts, baby clothes or socks.	Yes No
Wool 1 kg			For machine washable woollen garments. The moisture content of the laundry will depend on the weight of the load and the degree of residual moisture after spinning.	Yes No
My Fav -			Allows you to define and save your favourite programmes for quick access.	Yes	-
Bed Linen 5 kg			For bed linen, sheets or other bulky items.	Yes No
Baby Care 1 kg For baby clothes		Yes No
Shirts 1 kg			For easy-care garments such as shirts and blouses. It features the anti-crease function to make ironing easier. Do not overload the dryer. When the drying cycle is finished, remove the garments quickly and hang them on a hanger.	Yes No
Outdoor (Sportswear) 3 kg			For sportswear and fine polyester fabrics that do not require ironing.	Yes No
Time (Drying time)	Time Dry (Customisable drying time)	3 kg	For loose garments or to complete the drying process of multi-layered fabrics such as jackets, pillows or bulky garments. Adjustable from 10 to 150 minutes (in 10-minute intervals).	Yes	Yes
	Refresh 1 kg		For refreshing the laundry or eliminating unpleasant smells. Adjustable from 20 to 180 minutes (in 10-minute intervals).	Yes Yes

- ECO programme according to Regulation 2534/2023/EU for energy labelling, measured in accordance with EN 61121 and suitable for drying normal cotton laundry at rated load capacity.

- The ECO programme is suitable for drying normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for cotton.

WARNING:

- The programmes above are only recommendations for use. Users can select the drying programmes that best suit their needs.

- The actual drying time of the programme may vary depending on the room temperature and humidity, the type of fabric, the weight of the load and the degree of residual moisture of the laundry after the spinning phase.

- Before putting the laundry in the dryer, check if the laundry is suitable for tumble drying as indicated on the laundry label.

- If you need to dry small loads of laundry, it is recommended to select a timed programme which allows you to adjust the drying time.

- If the laundry has not been dried completely, you can select a timed programme to continue drying the laundry. Please note that when selecting a timed programme, the moisture sensors will not detect the remaining humidity of the load automatically.

- When drying large fabrics, such as sheets and curtains, it is possible that they may pile up during the drying process. Pause the programme, shake the laundry and put it back into the dryer to finish drying. Some thicker and heavier garments (jeans, large towels, etc.) are more difficult to dry due to the characteristics of the fabric.

- Before putting down-filled jackets or coats in the tumble dryer, be sure to turn them inside out.

Consumption data

Programme Capacity		Final moisture content	Drying time (h:min)	Energy consumption	Noise level
ECO	10 kg 0% 3:50 1.75 kWh 65 dB
	5 kg 0% 2:30 0.95 kWh -
Cotton Extra	10 kg -3% 4:20 2.00 kWh -
	5 kg -3% 2:50 1.30 kWh -
Cotton Iron	10 kg 12% 3:20 1.60 kWh -
	5 kg 12% 2:00 0.90 kWh -
Synthetics Extra 4	kg 0% 1:50	0.85 kWh	-
Synthetics Cupboard	4 kg	2%	1:40	0.70 kWh	-
Wool	1 kg	6%	3:00	1.80 kWh	-

Note:
- It is more difficult to dry thick or multi-layered fabrics, such as jackets, etc.
- As it is difficult to dry uneven, thick and multi-layered fabrics, it is better to choose the right drying time to dry them if certain parts of the garments are always damp at the end of the programme.
- The actual consumption may differ from the values indicated in the table, depending on the laundry load, type of fabric, residual moisture and selected additional functions.
- Loading the tumble dryer to the maximum capacity indicated for the respective programmes will help to save energy.
- All data are measured in accordance with EN 61121.
- The actual consumption may differ from the values indicated in the table, depending on the laundry load, type of fabric, residual moisture and selected additional functions.

6. CLEANING AND MAINTENANCE

Emptying the condensation water tank

1. Remove the condensation water tank.
2. Once the tank has been removed, be sure to keep it in a horizontal position to prevent water spillage.
3. Empty the condensed water and put the tank back in place.

WARNING

- After each drying cycle, it is recommended to empty the condensation water tank. When the tank is full, the drying programme will stop and the condensation water tank full warning indicator light will light up. After emptying the tank, the dryer can be restarted by pressing the Start/Pause icon.

- Condensed water should not be drunk or used for food preparation.

Cleaning the lint filter. Fig. 6.

This tumble dryer has a lint filter in the door. Make sure to clean it after each drying cycle to avoid higher energy consumption and longer drying cycle time.

1. Open the door.
2. Remove the filter from the compartment.
3. Open the filter housing and clean the lint with a cloth, remove the larger ones using your hand.
4. Dispose of the lint in the waste bin and not down the drain to prevent microplastics from entering the water system.

Note: To install the filter, make sure that both ends are aligned correctly.

Cleaning the heat exchanger

• Open the maintenance cover that gives access to the heat exchanger, located on the lower front side. To open it, press the two retaining tabs at the same time.
• Clean lint from the heat exchanger using a vacuum cleaner with brush once every 3 months to remove dust. Fig. 7
• Avoid applying too much force. Otherwise, it could get damaged. The dryer will not work properly if the exchanger grilles are damaged or bent.

Warning: Do not touch the heat exchanger, as you may burn yourself.

Cleaning the dryer

• Be sure to unplug the appliance before cleaning.
• Wipe the outer surface of the dryer with a slightly damp cloth.

ENGLISH

• Do not use solvents, abrasive cleaning agents, glass cleaners or multi-purpose cleaning products.
• Clean the door, especially the inside of the viewing window.
• Clean the door gasket.
• Clean the moisture sensor in the drum.
• Remove the filters, clean the inside of the gasket and the ventilation grilles.
• Before starting the dryer, dry all parts with a soft cloth.

7. TROUBLESHOOTING

Most of the problems are due to daily use and can be easily solved without calling a technician. Before contacting the official Cecotec Technical Support Service, please refer to the following troubleshooting tables and check whether you can solve the problem yourself.

Problem Solution
The display does not switch on C	Check that there has not been a power failure.
	Check that the power cable is properly connected.
	Select a suitable drying programme.
	Make sure you have pressed the power icon.
Condensation water tank full warning indicator light [icon] has lit up	Check the condensation water tank. If it is full, empty the accumulated waste water and restart the dryer.If it is not, restart the appliance.If the indicator light is still on after the first two steps, please contact the official Cecotec Technical Support Service.
Filter cleaning warning indicator light has lit up	Clean the lint filter.
The dryer does not start Plug the	appliance to the mains.Switch on the dryer.Make sure the door is properly closed.Make sure that you have selected a drying programme.Make sure that you have pressed the Start/Pause icon.

The laundry is still damp, or the drying programme takes too long	Clean the lint filter and the heat exchanger. Empty the condensation water tank. Check the drain hose. Check that the installation place is appropriate. Make sure that the ventilation grille is not obstructed. Set a higher drying level or a customisable time programme.
The dryer makes noises The compressor is running. All these sounds or noises are normal and do not indicate a fault.
The dryer switches off at the end of the programme	The dryer switches off automatically to save energy. This is normal.

Error codes:

Display Cause Solution
	Full condensation water tank.	Empty the condensation water tank.
	Drain pump failure or water level sensor failure.	Contact the official Cecotec Technical Support Service.
E33 Temperature sensor failure.
E64 Motor communication failure.
E82	Electronic control board communication failure.

Warning:
- Any repair work must be carried out by an authorised professional technician.
- If any other error code appears on the display and the dryer does not work, please contact the official Cecotec Technical Support Service.
- User or non-professional repair may pose a safety hazard and void the warranty.

8. TECHNICAL SPECIFICATIONS

Reference EU01_111270	EU01_111271
Model Bolero Dresscode	Dry 10505Inverter	Bolero Dresscode Dry 10505Inverter Steel

ENGLISH

QR code
Maximum load capacity	10.0 kg 10.0 kg
Voltage 220 - 240 V 220 - 240 V
Frequency 50 Hz 50 Hz
Rated input power 750 W 750 W
Approximate net weight	48 kg 48 kg
Approximate gross weight (kg)	52 kg 52 kg
Approx. product size (595 x 675 x 845) mm (595 x 675 x 845) mm
Approx. package size (675 x 705 x 885) mm (675 x 705 x 885) mm
Refrigerant type R290 R290
Refrigerant load 130 g 130 g
Protection rating IPX4	IPX4
Energy Efficiency Class	Class C	Class C
Room temperature	+2 °C a +35 °C	+2 °C a +35 °C

IMPORTANT: The values stated have been obtained in a laboratory environment in accordance with the relevant regulations. These values may vary depending on the environmental conditions and the use of the dryer.

ATTENTION:

(This information is subject to regulatory changes).

1. Refrigerant: risk of fire/risk of poisoning/risk of damage to property and equipment. The appliance contains refrigerant which, although environmentally friendly, is flammable R290. If not disposed of properly, it may cause fire or poisoning. Dispose of the appliance

correctly and do not damage the cooling circuit pipes.

• Refrigerant type: R290
• Amount of gas: 130 g
• ODP (ozone depletion potential): 0

• GWP (global warming potential): 3

• Risk of explosion or fire. Remove lighters and matches from pockets.

• Do not place the dryer near open fires or fire ignition sources.

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

9. TECHNICAL DATA

	SETTING VALUE	UNIT
Rated capacity 10 Kg
Energy consumption at full load E	dry	1.75 kWh	/drying cycle
Energy consumption at partial load E	dry _1/2	0.95 kWh	/drying cycle
Energy consumption in off mode P	o	0.50 W
Delay Start mode power consumption P	ds	4.00	W
Weighted running time of the ECO programme	T_t	169	min
Running time of the ECO programme at full load	T_dry	230	min
Running time of the normal cotton programme at half load	T_dry1/2	150	min
Weighted condensation efficiency of the ECO programme	C_t	82	%
Average condensation efficiency of the ECO programme at full load	C_dry	82	%

ENGLISH

Average condensation efficiency of the ECO programme at half load	C_dry1/2	82 %
Sound power level L	wA	65 dB (A)
Energy Efficiency Index (EEIW) EEI 58.2
Weighted energy consumption of the ECO programme at full and half load	E_tc	1.14 kWh

Information related to energy efficiency can be found in the European Commission's public database EPREL:

1. Open the EPREL database homepage.

https://eprel.ec.europa.eu/screen/product/tumbledriers

1. Search by model reference

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of applicable European Union regulations. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found

on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

- Easy Iron (Anti-kreukels)

7. PROBLEEMOPLOSSING

https://cecotec.es/es/information/declaration-of-conformity

es/es/information/declaration-of-conformity

MAGYAR

٤. manufacturers الملايس

ت Connectivity Management

- قبل التنظيف.
