PETROL HEDGE TRIMMER PBHS 650 A1 BENZIN-HECKENSCHERE PBHS 650 A1 TAILLE-HAIES THERMIQUE PBHS 650 A1

GBENICYMT

PETROL HEDGE TRIMMER

Operating and Safety Instructions

Translation of Original Operating Manual

FR BE CH

TAILLE-HAIES THERMIQUE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AI CH

GB / IE / NI / CY / MT Operating and Safety Instructions Page 01

Table of contents: Page:

1. Explanation of the symbols on the device....2
2. Introduction......4
3. Device description (Fig. 1-9)....4
4. Scope of delivery 4
5. Proper use....4
6. Safety information....5
7. Working instructions....7
8. Technical data....8
9. Before commissioning....9
10. Operation....10
11. Working instructions....11
12. Transport....11
13. Cleaning and maintenance....11
14. Storage....13
15. Disposal and recycling 13
16. Troubleshooting....14
17. Warranty certificate....15
18. Exploded view....257
19. Declaration of conformity....260

1. Explanation of the symbols on the device

Read the operating and safety instructions before start-up and follow them!

Wearing safety shoes is recommended!

Use hearing protection!

Use safety goggles!

Wear work gloves!

Attention! Keep bystanders away from the work area!

Observe warnings and safety instructions!

Attention! There is a risk of fire and explosion.

Attention: Risk of injury!

Never have your hands near the blades. Never touch a blade when switching on or working with the device.

Warning - Hot surfaces!

+ △ 40:1

Do not operate the device in rain or in humid conditions. Danger of electric shock!

Attention: flammable substances. Fire, naked flames and smoking prohibited!

Mixing ratio: 40 parts petrol to 1 part oil

Turn the choke lever. "Warm start and work" and "Cold start"

Specification of the guaranteed sound power level L_WA in dB.

Press the "Primer" fuel pump 7x

Attention! Risk of suffocation!

The exhaust gases are toxic. Do not operate the engine in areas that are not ventilated.

Before maintenance work switch off the device and pull off the spark plug connector!

The product complies with the applicable European directives.

2. Introduction

MANUFACTURER:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

DEAR CUSTOMER,

We hope your new tool brings you much enjoyment and success.

NOTE:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
• Failure to comply with the operating instructions.
  • Repairs carried out by third parties, unauthorised specialists.
  • Installing and replacing non-original spare parts,
  • Application other than specified,

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

3. Device description (Fig. 1-9)

1. Cutting device
2. Hand guard
3. Front handle
4. Cold start lever (choke)
5. Fuel pump primer
6. On/Off button
7. Throttle interlock
8. Rear handle
9. Throttle
10. Interlocking handle
11. Tank cover
12. Start pull cord
13. Silencer
    13.1 Silencer outlet opening
    13.2 Silencer screws
14. Spark plug connector
    14.1 Spark plug
15. Wing screw
16. Air filter cover
17. Air filter
18. Lubrication port

4. Scope of delivery

• Petrol hedge trimmer
  • Oil-petrol mixing bottle (A)
• Spark plug wrench (B)
• Allen key, 4 mm (C)
• Blade guard (E) (pre-fitted)
• Operating manual

5. Proper use

The machine complies with the applicable EC machinery directive.

Before starting any work, all protective and safety devices must be in place.

These petrol hedge trimmers are intended to cut soft, newly grown hedge material. It is not suitable for the cutting of branches, solid wood or other cutting material.

The machine has been designed to be operated by one person.

The operator is responsible for third parties in the area of operations.

Observe all safety information and danger notices on the machine.

Ensure that all of the safety information and danger notices on the machine are complete and in legible condition.

Only use the machine when in a technically faultless condition, appropriately and in compliance with the operating manual and with full knowledge of safety and hazards!

In particular, rectify malfunctions that could impair safety immediately (or commission rectification works accordingly)!

The manufacturer's safety, operating and maintenance specifications as well as the dimensions given in the technical data must be observed.

Relevant accident prevention regulations and other generally recognized safety and technical rules must also be observed.

The machine may only be used, maintained or repaired by trained persons who are familiar with it and have been informed of the dangers. Any liability of the manufacturer for damages resulting from arbitrary changes to the machine is excluded.

The machine is intended for use only with original accessories and original tools from the manufacturer.

Any use beyond this is improper use. The manufacturer is not responsible for the resultant damages, the user bears this risk alone.

The petrol hedge trimmer may only be used for cutting hedges, bushes and shrubs. Any other use not specified in these usage instructions may damage the trimmer or cause severe injuries to the user and is therefore explicitly prohibited from the list of possible uses.

The device must not be used for commercial, craft or industrial purposes.

If you are not sure whether working conditions are safe or unsafe, do not work with the machine.

WARNING! For your own safety, please thoroughly read this manual and the general safety instructions before turning the machine on. If you give the machine to third parties, always include these instructions.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

6. Safety information

6.1 Safe work

THIS PETROL HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES!

Read the instructions for correct handling, preparation, maintenance, starting and shutting down the hedge trimmer carefully. Familiarise yourself with all actuators and with using the petrol hedge trimmer properly.

Read and observe the following instructions and the safety instructions valid in the respective country before commissioning these products in order to protect yourself and others from possible injuries.

Always store these safety instructions (operating manual) together with the petrol hedge trimmer.

The petrol hedge trimmer may only be operated by persons with sufficient experience.

Children are never permitted to use the petrol hedge trimmer.

Only give or lend the petrol hedge trimmer to persons who are familiar with the petrol hedge trimmer and its handling. Always provide the operating manual.

Repairs to the device must be done by the manufacturer or companies named by them.

6.2 First time users

Anyone working with the petrol hedge trimmer for the first time must receive practical instruction in the use of the petrol hedge trimmer and the personnel protective equipment from an experienced operator.

• Remain attentive. Pay attention to what you are doing. Remain sensible when working. Do not use the device while tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Familiarise yourself with the device with the help of the operating manual before use. Inadequately informed operators can endanger themselves and others through improper use.
• Do not use the device for purposes for which it is not intended (see "5. Proper use").
• Avoid abnormal posture. Make sure that you have secure footing and always maintain your balance. This is especially true when using a stepladder or ladder.

• Wear suitable work clothing:

• Do not wear loose clothing or jewellery, which can become entangled in moving parts

• Sturdy gloves and non-slip footwear
• Wear a hair net if you have long hair

- Wear personal protective equipment:

• Hearing protection
• Safety goggles or face protection
• Work gloves
• Safety shoes

• Safety helmet approved in situations where head injuries are to be expected.

• We recommend wearing leg protection and a safety jacket.

• Keep the work area orderly! Disorder can lead to accidents.
  • Take environmental influences into account:

• Do not expose the petrol hedge trimmer to rain.

• Do not use the petrol hedge trimmer in a damp or wet environment.
• Reschedule work in the event of adverse weather (rain, snow, ice, wind), increased risk of accidents!
• Ensure good lighting.

• Do not use the petrol hedge trimmer in the vicinity of combustible fluids or gases.

• Familiarise yourself with your environment and pay attention to possible hazards that you may not hear due to the noise from the motor.
  • Beware of overhead power lines

• Never leave the petrol hedge trimmer running unattended.
• When taking a break, the petrol hedge trimmer must be set down in such a way that no one is endangered. Secure the petrol hedge trimmer from unauthorised access.
• Persons under the age of 18 may not operate the device.

• Keep other persons away.

• The user is responsible for all accidents and hazards that occur to other people and their property.

• The operator is responsible for third parties in the area of operations.
• Keep away from children.
• Do not allow other persons, especially children, to touch the tool or the motor. Keep them away from your work area.
• Always ensure that the petrol hedge trimmer is properly in one of the prescribed working positions before starting the engine.
• Ensure that all handles and safety equipment are installed when using the petrol hedge trimmer. Never attempt to use an incomplete petrol hedge trimmer or one with an impermissible modification.
• Do not use blunt, cracked or damaged cutting devices.
• Only start cutting when the cutting device is running.
• Do not overload the machine! They work better and more safely in the specified output range.
• Only operate the device with the protective devices fully and correctly attached and do not change anything on the machine that could affect safety.
• Do not modify the device or parts of the device.
• Do not use any cutting device which does not correspond to the characteristics specified in this user manual. The use of other tools and other accessories may result in a danger of injury.

• Switch the machine off and remove the spark plug connector from the spark plug:

• In the event the petrol hedge trimmer makes contact with soil, stones, nails or other foreign objects, check whether the device is damaged.

• Adjusting the working position of the cutting unit
• Inspection, maintenance or work on the hedge trimmer.
• Repair work
• Maintenance and cleaning work
• Rectification of faults (this also includes blocking of the cutting device)
• Transport and storage
• Leaving the petrol hedge trimmer (even with brief interruptions)

• Take care of your petrol hedge trimmer:

• Keep tools sharp and clean in order to be able to work better and more safely.
• Keep the handle dry and free of oil and grease.
• Follow the maintenance instructions.

- Check the machine for potential damage:

• Protective devices must be carefully inspected to ensure that they are fault-free and function as intended prior to continued use of the machine.
• Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the petrol hedge trimmer.
• Damaged protective devices and parts must be repaired properly or replaced by a recognised specialist workshop unless otherwise specified in the usage instructions.

• Damaged or illegible safety stickers must be replaced.

• Do not leave a tool key inserted! Before switching on, always make sure that keys and adjusting tools are removed.

• Store unused devices in a dry, locked place and out of reach of children.
• Store the petrol hedge trimmer where fuel vapours cannot come into contact with open fire or sparks. Allow the petrol hedge trimmer to cool down before storing it.
• When transporting or storing the petrol hedge trimmer, always cover the cutting device with the cutting device protector.
• Do not carry out any repairs on the machine unless you are trained to do so. Do not carry out any repairs to the machine other than those described in the chapter "13. Cleaning and maintenance", contact the manufacturer or the responsible customer service directly.
• Avoid using the petrol hedge trimmer if people, and especially children, are in the vicinity.

• If the cutting device touches a foreign object, the operating noises get louder or the petrol hedge trimmer vibrates unusually excessively, stop the engine and allow the petrol hedge trimmer to come to a standstill. Disconnect the spark plug connector from the spark plug and take the following measures:

• check for damage;

• check for loose parts and fasten all parts;
• replace damaged parts with equivalent parts or have them repaired.

- Do not use the petrol hedge trimmer with a faulty or heavily worn cutting device.

• To reduce the risk of fire, make sure that the engine and silencer are free of debris, leaves or leaking lubricant.
• Always use both hands when the petrol hedge trimmer is equipped with two handles.
- If the petrol hedge trimmer is shut down for maintenance, inspection or storage, turn off the engine, disconnect the spark plug connector from the spark plug and ensure that all rotating parts have stopped. Allow the machine to cool down before checking, adjusting, etc.

Repairs to the other parts of the machine must be done by the manufacturer or their customer service centre.

Only use original spare parts. The use of other spare parts and accessories may result in accidents for the user. The manufacturer is not responsible for damage resulting from this.

6.3 Safe use of fuels

Handle fuel with care! Fuels and fuel vapours are flammable and can cause serious damage if they are inhaled or come into contact with the skin.

Caution is therefore advised when using fuel and ensure good ventilation.

• Switch off the engine and allow the device to cool before refuelling the petrol hedge trimmer.
• Do not smoke and avoid naked flames when refuelling.
• Wear gloves when refuelling.

- Do not refuel in enclosed spaces (risk of explosion).

- Only refuel outdoors.

- Ensure that you do not spill fuel or oil. Clean the petrol hedge trimmer immediately if you spill fuel or oil. Change your clothes immediately if you spill fuel or oil on them.

• Make sure that no fuel gets into the soil.

- Carefully seal the tank plug immediately after refuelling and ensure that it does not become loose during operation.

- Ensure that the tank cover and fuel lines are tight. If the event of leaks, the device must not be operated.

- Only transport and store fuels in approved and labelled containers.

- Keep children away from fuels.

- Do not transport and store fuels in the vicinity of flammable or easily flammable substances as well as sparks or naked flames.

- Move at least three meters away from the refuelling area before starting the device.

- If the tank is emptied, this should be done outdoors.

- Never store the petrol hedge trimmer or fuel tank in a room where there is an open flame, such as in a water heater.

• To reduce the risk of fire, keep the engine and silencer free of cutting waste, leaves and lubricants!

- Never remove the fuel filler cap or top up with petrol when the engine is running or hot.

- Allow the engine and exhaust parts to cool before refilling.

- If petrol has overflowed try not to start the engine but remove the machine from the petrol contaminated surface before starting.

6.4 Residual risks

Even when used as intended, there may still be residual risks due to the design determined by the intended use, despite compliance with all relevant safety regulations. Residual risks can be minimised if the "6. Safety Instructions" and the "5. Intended Use" together with the operating manual as a whole are observed. Consideration and caution lower the risk of personal injuries and damage.

Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain:

• Injury due to ejected parts.
• Breakage and ejection of blade pieces.
• Danger of carbon monoxide poisoning when using the device in enclosed or poorly ventilated spaces.
• Danger of burning if hot components are touched.
• Impairment of hearing in the event of prolonged work without hearing protection.

7. Working instructions

Before commissioning and regularly while working with the petrol hedge trimmer, carry out the following checks:

• Is the petrol hedge trimmer fully and properly assembled? Ensure that all nuts and screws are tightened.
• Is the petrol hedge trimmer in a good and safe condition?
• Are all safety functions working?
  • Is the fuel tank filled?
  • Is the cutting device undamaged and sharpened?
• Are the motor and silencer free of deposits, leaves or escaping lubricant?
• Is the handle clean and dry, free of oil, grease and resin?
  • Is the workplace free of trip hazards?
• Are you wearing the required protective equipment?
• Have you read and understood all the safety instructions?
• Is the throttle easy to access and functional?
  • Is the on/off button functional?
• Does the cutting device always remain still when idling?

If the cutting device moves when idling, the idle speed must be reduced (see "13.2 Setting the idle speed").

- Make sure that the transmission is sufficiently lubricated (see "13. Cleaning and maintenance").

7.1 General behaviour when working with the hedge trimmer

• Do not work alone. Someone should be within reach for emergencies.
• Keep children, persons and animals away from your work area (at least 15 m).
• Do not work on snow, ice or other slippery surfaces, risk of slipping.
• Do not work when the light conditions are insufficient (e.g. fog, rain, driving snow or twilight).
• Shoo animals away from the hedge before cutting so they are not injured.

- Make sure that you have a safe and tidy workplace. Remove objects which could be ejected from the work area.

- Avoid abnormal posture. Keep your balance at all times. Do not work with your upper body bent over.

- Only operate the petrol hedge trimmer with firm footing.

- Switch the petrol hedge trimmer off when changing location.

- Keep hands and feet away from the cutting device if it is moving.

- Hold the petrol hedge trimmer so that no exhaust gases can be breathed in. Do not work in enclosed spaces.

- Do not use the petrol hedge trimmer to lift or shovel away pieces of wood or other objects.

- Make sure to remove any foreign objects from the hedges (e.g. wire), since they may damage the cutting device of the petrol hedge trimmer.

- Always hold the petrol hedge trimmer tightly with both hands, left hand on the front handle and the right hand on the rear handle. Never work with only one hand.

- If the throttle is released, the cutting device continues to run for a short time (freewheel effect).

- Start cutting with the cutting device running.

- Never touch the cutting device with your hands during operation.

- Never work

• with your arms stretched
• in hard to reach places

• leaning too far forward

• Never work with the petrol hedge trimmer above shoulder height.

• Never touch wire fences or the floor with the running cutting device.

• Switch the motor off and pull out the spark plug

• If there are any noticeable changes in the behaviour of the device

• To eliminate jammed material to be cut
• To check the cutting device if you hit any stones, nails, or other hard objects with it.
• To eliminate faults
• With breaks in work

• Before leaving the hedge trimmer

• Do not place the hedge trimmer which is hot directly onto dry grass or other flammable objects.
  • Before starting work, make sure that:

• There are no other persons or animals in the work area.

• An obstacle free path to the rear is available for you.
• The floor is free from all foreign bodies, brushwood and branches.
• You have firm footing.

If people with blood circulation disorders are exposed to vibrations too often, damage to the nervous system or blood vessels can occur.

7.2 You can reduce the vibrations:

• With strong, warm work gloves.
• Shortening the work time (take several long breaks).

See a doctor if your fingers swell up, you feel unwell or your fingers go numb.

7.3 Working with the hedge trimmer

Hold the petrol hedge trimmer at a safe distance away from your body with two hands.

• The maximal diameter to cut depends on the wood's type, age, moisture and hardness.
• Therefore cut very thick branches using branch shears to your desired length before trimming the hedge.
• Thanks to the its double-sided blade, the petrol hedge trimmer can be moved forward and backward or from one side to the other swinging it back and forth.
• Cut the sides of the hedges first and then the top edge.
• Cut the hedges from bottom to the top.
• Cut the hedges in trapezium shape. This prevents the lower hedge area from becoming bare due to insufficient light.
• Stretch a guide over the complete length of the hedge when you want to shorten the upper edge of the hedge evenly.
• Trim in several passes if you have to cut down a large portion of the hedge.

7.4 The right time to cut:

• Leaf hedge: June and October
• Conifer hedge: April and August
- fast growing hedge: around every 6 weeks from May

Pay attention to nesting birds in the hedge. Delay the hedge cut or leave this area out if this is the case.

Always observe all safety instructions.

7.5 Behaviour in case of malfunctions or accidents

In case of malfunctions or accidents, stop the petrol hedge trimmer immediately with the on/off button (6).

7.6 First aid

A first-aid kit according to DIN 13164 should always be available at the workplace in the event of an accident. Immediately refill removed material.

When you request assistance, provide the following information:

• Where it happened?
  • What happened?
  • How many injured?
  • What type of injury?
  • Who is reporting?

8. Technical data

Type of engine .......Two-stroke engine - air-cooled

Displacement cm ^3 22.5

Engine output in kW 0.65

Idle speed n _o /rpm.... 3000 +/- 300

Max. engine speed rpm....10500

Tank contents L....0.28

Mixture ratio (fuel/two-stroke oil) 40:1

Cutting length mm 560

Max. cutting thickness mm....27

Dimensions L x W x H mm 1100 x 245 x 200

Blade length mm....700

Spark plug....L8RTC

Weight kg 5.2

Technical changes reserved!

Noise

Information about noise level measured in accordance with applicable standards:

Sound pressure level L_nA 97.8 dB

Uncertainty K_pA 3 dB

Sound power level L_WA 1073 dB

Uncertainty K_WA 2.53 dB

Wear hearing protection.

Excessive noise can result in a loss of hearing.

Vibration

Vibration (rear handle) A _by 4.838 m/s ^2

Measurement uncertainty K_hv 1.5 m/s ^2

Vibration (front handle) A_nv .....5.389 m/s ^2

Keep the noise level and vibration to a minimum!

• Only use devices which are free of defects.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.

• Have the device checked if necessary.

• Switch the device off if it is not in use.

• Wear gloves.

WARNING

Avoid the risks associated with vibration, e.g. the risk of white finger syndrome (circulatory disorders) by taking frequent breaks from work where you rub your palms together, for example.

• Always wear protective gloves and make sure your hands are warm.
• Take regular breaks from work.

9. Before commissioning

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.

ATTENTION

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Replacement parts can be obtained from your dealer.
• When ordering please provide our article number as well as type and year of manufacture for your equipment.

The petrol hedge trimmer is not filled with the fuel mixture when delivered.

The device is operated with a mixture of petrol (unleaded) and two-stroke motor oil.

Pay extra attention when handling petrol. Smoking and naked flames are not permitted (risk of explosion).

Before each commissioning, check the device for the following:
- Check the fuel system for leakage.
- Faultless condition and completeness of the guards and the cutting device.
- Tight fit of all screw connections.
- Smooth running of all moving parts.

Fuel and oil

• Recommended fuels
• Use only a mixture of unleaded petrol and special 2-stroke engine oil. Mix the fuel mixture as per the fuel mixing table.
• Do not use E10 fuel.

Attention:

Do not use a fuel mixture that has been stored for more than 90 days.

Attention:

Do not use 2-stroke oil that recommends a mixing ratio of 100:1. The engine guarantee of the manufacturer becomes invalid in the event of damage to the engine due to insufficient lubrication.

Attention:

Use only designated and approved vessels for the transport and storage of fuel. Put the correct amount of petrol and 2-stroke oil into the enclosed oil-petrol mixing bottle (A). Then shake the vessel well.

Never use oil for 4-stroke engines or water-cooled 2-stroke engines. This can cause the spark plug to become fouled, the exhaust part to become blocked or the piston ring to become stuck. Fuel mixtures that have not been used for one month or longer can clog the carburettor or impair engine operation. Put unused fuel in an airtight vessel and store it in a dark, cool room.

Fuel mixing table

Mixing procedure: 40 parts petrol to 1 part oil

Example:

1 | petrol: 0.025 | 2-stroke oil

5 | petrol: 0.125 | 2-stroke oil

Warning! Pay attention to the exhaust gases.

Always switch off the engine before refuelling.

Never add petrol to the device while the engine is running or it is hot. There is a risk of fire!

Only fuel the unit outdoors or in well-ventilated rooms. Make sure that no fuel gets into the soil (environmental protection). Use a suitable surface. Only use bio chain oil.

Fuels only have a limited shelf life as they age. Expired fuels and fuel mixtures can result in start problems. Therefore only mix as much fuel as required for one months use. Only store fuels in approved and labelled containers. Store the fuel container in a dry and safe place.

Make sure that the fuel container cannot be reached by children when stored.

Attention! Before commissioning, find out how to take the device out of operation in an emergency!

9.1 Refuelling the petrol hedge trimmer

• Switch off the engine and allow it to cool!
• Wear safety gloves!
• Avoid skin and eye contact!

• Always observe, "Safe use of fuels", see 6.3.

• Only refuel the petrol hedge trimmer outdoors or in sufficiently ventilated rooms.

• Clean the area surrounding the filling area. Impurities in the tank lead to operational faults.

• Shake the oil-petrol mixture bottle (A) with the fuel mixture again before filling it into the tank.

• Carefully open the tank cover (11) of the fuel tank so that any possible overpressure can be relieved.
• Carefully fill the petrol mixture up to the lower edge of the filler neck. Use a funnel or a filling aid (not included in the scope of delivery) to avoid spilling of the fuel.
• Close the tank cover (11) again. Ensure that the tank cover (11) is tightly sealed.
• Clean the tank cap (11) and the surroundings.
• Check the tank and fuel lines for leaks.
• Press the "Primer" fuel pump (5) if necessary.
• Move at least three meters away from the refuelling area before starting the engine.

9.2 Drain the fuel

Only empty the fuel tank outdoors or in well-ventilated rooms. Make sure that no fuel gets into the soil (environmental protection). Use a suitable base.

1. Hold a collection container under the fuel tank.
2. Unscrew and remove the tank cover (11) of the fuel tank.
3. Drain the petrol/oil mixture completely.
4. Screw the tank filler cap (11) back on by hand.

10. Operation

10.1 Adjusting the rear handle (8) (Fig. 2)

The rear handle (8) can be adjusted in 3 working positions in order to guide the petrol hedge trimmer easier.

- While adjusting, the throttle (9) cannot be actuated.

1. Use the left hand to hold the petrol hedge trimmer tight by the front handle (3).
2. Push the locking handle (10) backwards and turn the handle to the desired position.
3. Release the interlocking handle (10). Ensure that the interlocking handle re-engages and the handle is affixed securely.

10.2 Starting the device

⚠️ Risk of injury!

Only start the petrol hedge trimmer when the cutting device is fitted! Remove the corresponding transport protection and inspect the device to ensure that its operating status is good.

Never use a cutting device that is damaged, poorly adjusted or maintained, or not fully mounted and secured.

Check before use!

Check that the device is in a safe condition:

• Ensure that the On/Off switch (6), the throttle interlock (7), and the throttle (9) are functioning properly.
• Check the device for leaks.
• Check the device for visible damage.
• Check that all parts of the device are securely attached.
• Check that all safety devices are in good condition and functional.

10.2.1 Starting with a cold engine (Fig. 1, 3, 4)

Support the petrol hedge trimmer when starting it and hold it firmly. Ensure that the cutting device is free.

1. Remove the blade guard (E) from the cutting device (1).
2. Set the petrol hedge trimmer down on a firm and level surface. The cutting device (1) must not come into contact with the floor.
3. Press the fuel pump primer (5) 7x.
4. Turn the cold start lever (choke) (4) to "Cold start".
5. Hold the petrol hedge trimmer firmly by the front handle (3) and pull the start pull cord (12) out slowly until you feel the first resistance.
6. Now pull the start pull cord (12) and the engine should start. If the engine does not start, repeat the process. As long as the cold start lever (choke) (4) is set to "Cold start", the engine will run for only a short time and then stop.
7. As soon as the engine has stopped, actuate the throttle interlock (7) and the throttle (9) together. The (choke) lever (4) will automatically spring back to the "warm start" operating position.
8. Now pull the start pull cord (12) again and the engine should start.
9. After actuating the throttle lever (9) once, the engine runs at idle speed.
10. Allow the engine to warm up briefly.

If the engine does not start even after several attempts, read the "Troubleshooting" chapter.

Attention

Always pull the start pull cord (12) out straight. If it is pulled out at an angle, friction will occur on the lug. This friction causes the cord to wear through and wear out faster. Hold the handle of the start pull cord (12) firmly when the pull cord (12) winds back in.

Never allow the start pull cord (12) to spin back. This can result in damage.

Note:

With high outside temperatures, it may be necessary to start the engine without the cold start lever (choke) (4) even when the engine is cold.

Note:

If the cutting device (1) moves at idle or the engine stops on its own when the throttle is released, a carburettor adjustment must be made (see chapter "13.2 Setting the idle speed").

10.2.2 Starting the engine when warm

1. The cold start lever (choke) does not have to be set to "Warm start" to start a warm engine.
2. Hold the petrol hedge trimmer firmly by the front handle (3) and pull the start pull cord (12) out slowly until you feel the first resistance.
3. Now pull the start pull cord (12) quickly. The device should start after 1-2 pulls. If the device has still not started after 6 pulls, repeat the procedure described under "Starting the engine when cold".

10.3 Operation of the hedge trimmer (Fig. 1)

1. Hold the petrol hedge trimmer's front handle (3) with your left hand.
2. Use the right hand to hold the rear handle (8) firmly. The heel of the hand rests on the throttle interlock (7) and the index finger operates the throttle (9).
3. Press the throttle (9).
4. The cutting device starts running.
   If the throttle (9) is released, the cutting device stops and the engine idles.

Contact the manufacturer if the cutting device still continues to run with the motor at idle.

Do not work with the petrol hedge trimmer again under any circumstances!

10.4 Blocking the cutting device (Fig. 1)

If the cutting device (1) becomes blocked during operation, switch off the petrol hedge trimmer with the on/off switch (6) and remove the spark plug connector (14).

Then remove the material that causing the blockage and check the cutting device (1) for possible damage.

10.5 Shutting the engine off

1. Press the ON/OFF button (6) and keep it depressed.
2. Wait until the engine has come to a standstill before setting the device down.
3. Release the on/off button (6).

11. Working instructions

11.1 Working with the hedge trimmer

- The hedge trimmer is suitable for cutting hedges, bushes and shrubs.

- Hold the hedge trimmer at a safe distance away from your body with two hands.

- The maximal diameter to cut depends on the wood's type, age, moisture and hardness.

- Therefore cut very thick branches using branch shears to your desired length before trimming the hedge.

- Thanks to the its double-sided cutting unit, the hedge trimmer can be moved forward and backward or from one side to the other swinging it back and forth.

- Cut the sides of the hedges first and then the top edge.

- Cut hedges from bottom to the top.

- Cut the hedges in trapezium shape. This prevents the lower hedge area from becoming bare due to insufficient light.

- Stretch a guide over the complete length of the hedge when you want to shorten the upper edge of the hedge evenly.

- Trim in several passes if you have to cut down a large portion of the hedge.

- Make sure to remove any foreign objects from the hedges (e.g. wire), since they may damage the blade of the hedge trimmer.

- Attention! The blades are still running! Do not stop the blades with your hand.

The right time to cut:

• Leaf hedge: June and October
• Conifer hedge: April and August
- Fast growing hedge: around every 6 weeks from May

Pay attention to nesting birds in the hedge. Delay the hedge cut or leave this area out if this is the case.

12. Transport

To transport the device, switch the engine off, wait until the cutting device has come to a standstill and attach the blade guard (E) (Fig. 4).

Carry the device by the front handle (3). Hold the cutting device (1) backwards and keep the hot silencer (13) away from your body.

Only transport the device in the boot of the car or on a separate transport surface.

Secure the petrol hedge trimmer against tipping, damage and from fuel leaking.

13. Cleaning and maintenance

Before any maintenance and cleaning work

• Shut off engine
• Wait until the cutting device is at a standstill
• Remove the spark plug connector (except for idling adjustments)
• Leave the device to cool down

Note

The device should be thoroughly cleaned after each use. Only carry out cleaning and maintenance work to the extent specified in this operating manual.

Further maintenance and cleaning work, as described in this chapter, may only be carried out by customer service.

Do not carry out maintenance work in the vicinity of naked flames. Risk of fire!

Safety devices removed for maintenance and cleaning must always be properly reattached and checked.

Only use original parts. Other parts can lead to unpredictable damage and injuries.

Wear gloves in order to prevent potential injuries.

In order to ensure reliable use of the petrol hedge trimmer for a long time, carry out the following maintenance work on a regular basis.

Check the petrol hedge trimmer for obvious defects such as

• loose fastenings
• worn or damaged components
• bent, broken or damaged cutting device
  • Tank plug and fuel lines for leaks

Check the petrol hedge trimmer after every use

• Wear, especially sliding clearance of the cutting device.
• Covers or protective devices correctly mounted and intact.

Necessary repairs or maintenance work is carried out before using the petrol hedge trimmer.

13.1 Lubricating the transmission (Fig. 5)

Lubricate the drive every 10 to 20 operating hours.

1. Using the 4 mm Allen key (C) supplied, open the screw of the lubrication hole (18) on the underside of the hedge trimmer.
2. Place the grease gun on the lubrication hole (18).
3. Squeeze some grease into it.
4. Screw the screw of the lubrication hole (18) back in.

Attention! Top up with only a little grease. Under no circumstances overfill.

13.2 Setting the idle speed

If the cutting device (1) moves at idle or the engine stops by itself when the throttle is released, a carburettor adjustment must be made.

Note:

Have carburettor adjustments (e.g. idle speed) carried out only by qualified specialists to avoid engine damage.

13.3 Cleaning or replacing the air filter (Fig. 6)

Fouled air filters diminish the engine output due to reduced air supply to the carburettor. Dust and pollen clog the pores of the foam insert. Regular inspection is therefore essential.

Clean the air filter (17) approx. every 15 operating hours, more often in particularly dusty conditions.

1. Set the cold start lever (choke) (4) to "Cold start" so that no particles of dirt get into the carburettor.
2. Remove the air filter cover (16). To do this, loosen the wing screw (15).
3. Remove the air filter (17) from the foam.
4. Wash the air filter (17) in lukewarm soapy water. Do not blow out the particles of dirt, there is a danger of eye injuries!
5. Clean the inside of the air filter with a brush.
6. Allow the air filter (17) to dry and reinsert it again.
7. Attach the air filter cover (16) again.

Attention:

Never clean the air filter with petrol or inflammable cleaning agents.

In order to prolong the service life of the engine, a damaged air filter must be replaced immediately.

⚠ Warning!

Never leave the engine running if the air filter element is not inserted.

13.4 Clean or replace the fuel filter

Check the fuel filter if necessary. A contaminated fuel filter hinders the fuel supply.

Open the tank cover (11) and pull the fuel filter through the opening using a wire hook (not included in the scope of delivery).

• In the event of light contamination:
- Remove the fuel filter from the fuel line and clean the filter in cleaning solvent.

• In the event of heavy contamination:

- Replace the fuel filter.

1. To remove the fuel filter from the fuel line, squeeze the hose clamp and slide it down.
2. Now the fuel filter can be removed from the fuel line.

13.5 Check, clean or replace spark plug (Fig. 7/8) Attention

Do not touch the spark plug (14.1) or the spark plug connector (14) while the engine is running. High voltage!

Danger of burning if motor is hot. Wear safety gloves!

Check the spark plug and the gap of the electrodes regularly.

13.5.1 Checking the spark plug

1. Remove the spark plug connector (14) from the spark plug (14.1).
2. Unscrew the spark plug (14.1) with the supplied spark plug wrench (B).
3. Check the electrode gap. This must be 0.6 to 0.7mm.

13.5.2 Cleaning the spark plug

Check the spark plug for dirt and grime after 10 operating hours and if necessary, clean it with a copper wire brush.

Then service the spark plug every 50 operating hours.

Replace the spark plug:

• Once a month in the event of regularly use
• If the insulating body is damaged
  • In the event of heavy electrode erosion
  • In the event of heavily contaminated or oily electrodes

13.5.3 Checking the ignition spark

1. Remove the spark plug connector (14) from the spark plug (14.1).
2. Unscrew the spark plug (14.1) with the supplied spark plug wrench (B).
3. Insert the spark plug connector (14) firmly.
4. Push the spark plug (14.1) against the engine housing using insulated tongs (not in the vicinity of the spark plug hole).
5. Pull firmly on the start pull cord (12).
6. A spark must be visible between the electrodes when functioning properly.

13.6 Silencer / outlet opening (Fig. 9)

Do not retighten the silencer screws if the motor is still hot.

1. Regularly check whether the screws (13.2) of the silencer (13) have come loose or not. Use the 4 mm Allen key (C) to tighten any loose screws.
2. Clean the outlet opening (13.1) regularly.

13.7 Cleaning

Clean the petrol hedge trimmer carefully after each use so that it keeps functioning properly.

Wear protective gloves when cleaning the cutting device!

• Clean the housing with a soft brush or a dry cloth. Water, cleaning agents and polish must not be used.

• Ensure that the ventilation slots for cooling the motor are free (danger of overheating).

• Clean the cutting device regularly with a brush or a cloth. Never clean the cutting device with water (danger of corrosion!)

• Clean and oil all moving parts regularly.

• Never use grease!

• Use environmentally friendly oil.

13.8 Maintenance schedule

Device part Action		Before starting work	Weekly	In the event of malfunctions	In the event of damage	If necessary
Cutting device (1) C	check and pay attention to the state of sharpness	X
	Check the sliding clearance of the cutting device	X
	Sharpen					X
Motor Tighten silencer screws						X
		Clean / replace the fuel filter				X
		Clean / replace the air filter				every 15 operating hours, more often in dusty conditions
		Lubricate transmission				every 20 operating hours, at least once a year

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*:

Cutting blades (set) (5910402011)

Spark plug (3904801048)

Air filter

* may not be included in the scope of supply!

14. Storage

Store unused devices with the blade guard pushed on in a dry, locked place and out of reach of children.

Clean and maintain the device before storing it.

Caution:

Never stow the device for longer than 30 days without carrying out the following steps:

Stowing the device for more than 30 days

If you stow the device for longer than 30 days, it must be prepared ahead of time. Otherwise, the remaining fuel in the carburettor will evaporate and leave a rubbery sediment behind. This could make it difficult to start and result in expensive repair work.

• Drain the fuel (see 9.2.)
• Start the engine and let it run until it stops in order to remove the fuel from the carburettor.

• Allow the engine to cool down (approx. 5 minutes).

• Remove the spark plug (see 13.5.).

• Add 1 teaspoon of clean 2-stroke oil to the combustion chamber.
• Pull the starter cord slowly several times to coat the internal components.
  • Re-insert the spark plug (see 13.5).

(39104Note)

Store the device in a dry location, far away from potential sources of ignition, such as furnaces, hot water boilers with gas, gas dryers, etc.

15. Disposal and recycling

Information on packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out electrical devices.

Fuels and oils

• Before disposing of the unit, the fuel tank and the engine oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

16. Troubleshooting

Fault Possible cause Remedy
Hedge trimmer does not run	Engine, no fuelFault in the fuel lineFuel filter cloggedSpark plug defectiveCarburettor defectiveInternal fault	Check the fuel quantityCheck the fuel line for kinks or damageClean or replace the fuel filter.Replace spark plugContact the manufacturer or the responsible customer service centreContact the manufacturer or the responsible customer service centre
Hedge trimmer cuts with interruptions	Internal faultOn/off switch defective	Contact the manufacturer or the responsible customer service centreContact the manufacturer or the responsible customer service centre
Motor runs, cutting device remains stationary	Cutting device blockedInternal faultClutch defective	Remove objectContact the manufacturer or the responsible customer service centreContact the manufacturer or the responsible customer service centre
Cutting device gets hot No lubrication → frictionCutting device is blunt		Oiling the cutting deviceHave the cutting device sharpened

17. Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
• Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

- The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

- In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Service-Hotline (GB): Service-Hotline (IE): Service-Hotline (NI)

00800 4003 4003 00800 4003 4003 00800 4003 4003

(0,00 EUR/Min.) (0,00 EUR/Min.) (0,00 EUR/Min.)

Service-Email (GB): Service-Email (IE): Service-Email (NI):

[e-mail]

[e-mail]

[e-mail]

Service Address (GB): Service Address (IE): Service Address (NI):

Forest Park & Garden LetMeRepair

Forest Park & Garden

Coed Court, Taffsmead Road

1 Langlands Court / Kelvin South Business Park

Coed Court, Taffsmead Road

Treforest, Ind. Estate, Pontypridd CF375SW CF375SW

East Kilbride G75 0YB

Treforest, Ind. Estate, Pontypridd

Service-Hotline (CY):

[e-mail]

Service Address (CY):

GEORGE C SOLOMONIDES & SON LTD

PO.BOX 56236 / 169, LEONTIOS A'

GR - 3305 LIMASSOL/CYPRUS

At www.lidl-service.com you can download this and many more manuals, product videos plus installation software. The QR code takes you directly to the Lidl service page (www.lidl-service.com) and you can open your operating manual by entering the article number (IAN) 403505_2204.

Inhalt:

Seite:

Günzburger Straße 69

D-89335 Ichenhausen

VEREHRTER KUNDE,

Vibration (hinterer Handgriff) A_fw .....4,838 m/s²

Vibration (vorderer Handgriff) A_fw 5,389 m/s²

[e-mail]

[e-mail]

Service Adresse (DE): Service Adresse (AT):

Scheppach GmbH Gausch Hubert

Günzburger Str. 69

DE - 89335 Ichenhausen

Service Adresse (CH):

Klaus-Häberling AG

Günzburger Straße 69

D-89335 Ichenhausen

CHER CLIENT,

Service-hotline (BE):

00800 4003 4003

(0,00 €/Min.)

Service-Hotline (CH):

00800 4003 4003

(0,00 €/Min.)

Email du service (FR):

[e-mail]

E-mailadres (BE):

[e-mail]

Service-Email (CH):

[e-mail]

Scheppach France Strassburg

2, Impasse Jean Millot

FR - 6700 Strasbourg

Serviceadres (BE):

Service Center Bruyninckx

Guldendelle 30

BE - 1930 Zventem (Nossegem)

Günzburger Straße 69

D-89335 Ichenhausen

GEACHTE KLANT,

Service-hotline (BE):

00800 4003 4003

(0,00 €/Min.)

E-mailadres / Email du service (NL):

[e-mail]

E-mailadres (BE):

[e-mail]

Serviceadres / Adresse du service (NL):

Günzburger Straße 69

D-89335 Ichenhausen

VÁŽENÝ ZÁKAZNÍKU,

Günzburger Straße 69

D-89335 Ichenhausen

SZANOWNY KLIENCIE,

Günzburger Straße 69

D-89335 Ichenhausen

VÁŽENÝ ZÁKAZNÍK,

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

KÆRE KUNDE

Günzburger Straße 69

89335 Ichenhausen, Germania

GENTILE CLIENTE,

[e-mail]

Service-Email (CH):

[e-mail]

Günzburger Straße 69

D-89335 Ichenhausen

KEDVES ÜGYFELÜNK!

Günzburger Straße 69

D-89335 Ichenhausen

SPOŠTOVANI KUPEC,

želimo vam veliko veselja in uspeha pri delu z vašo novo napravo.

NAPOTEK:

Negotovost K_WA 2,53 dB

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

CIJENJENI KUPČE,

[e-mail]

Usluga-Adresa (HR):

Microtec sistemi d.o.o

Ilirska 33

HR - 10000 Zagreb / Croatia

PDF ONLINE www.idi-service.com

Na stranici www.lidl-service.com možete preuzeti ovaj i mnogo drugih priručnika, filmova o proizvodima i instalacijski softver.

S pomoću QR koda izravno prelazite na stranicu Lidl Service (www.lidl-service.com) i unošenjem broja artikla (IAN) 403505_2204 možete otvoriti svoj priručnik za uporabu.

Cuprins: Pagină:

Günzburger Straße 69

D-89335 Ichenhausen

STIMATE CLIENT,

Hotline serviciu (RO):

00800 4003 4003

(0,00 EUR/Min.)

Serviciu de e-mail (RO):

[e-mail]

Adresa serviciu (RO):

Machine House S.R.L.

Günzburger Straße 69

D-89335 Ichenhausen, Германия

УВАЖАЕМИ КЛИЕНТИ,

Günzburger Straße 69

D-89335 Ichenhausen

ΑΞΙΟΤΙΜΕ ΠΕΛΑΤΗ,

[e-mail]

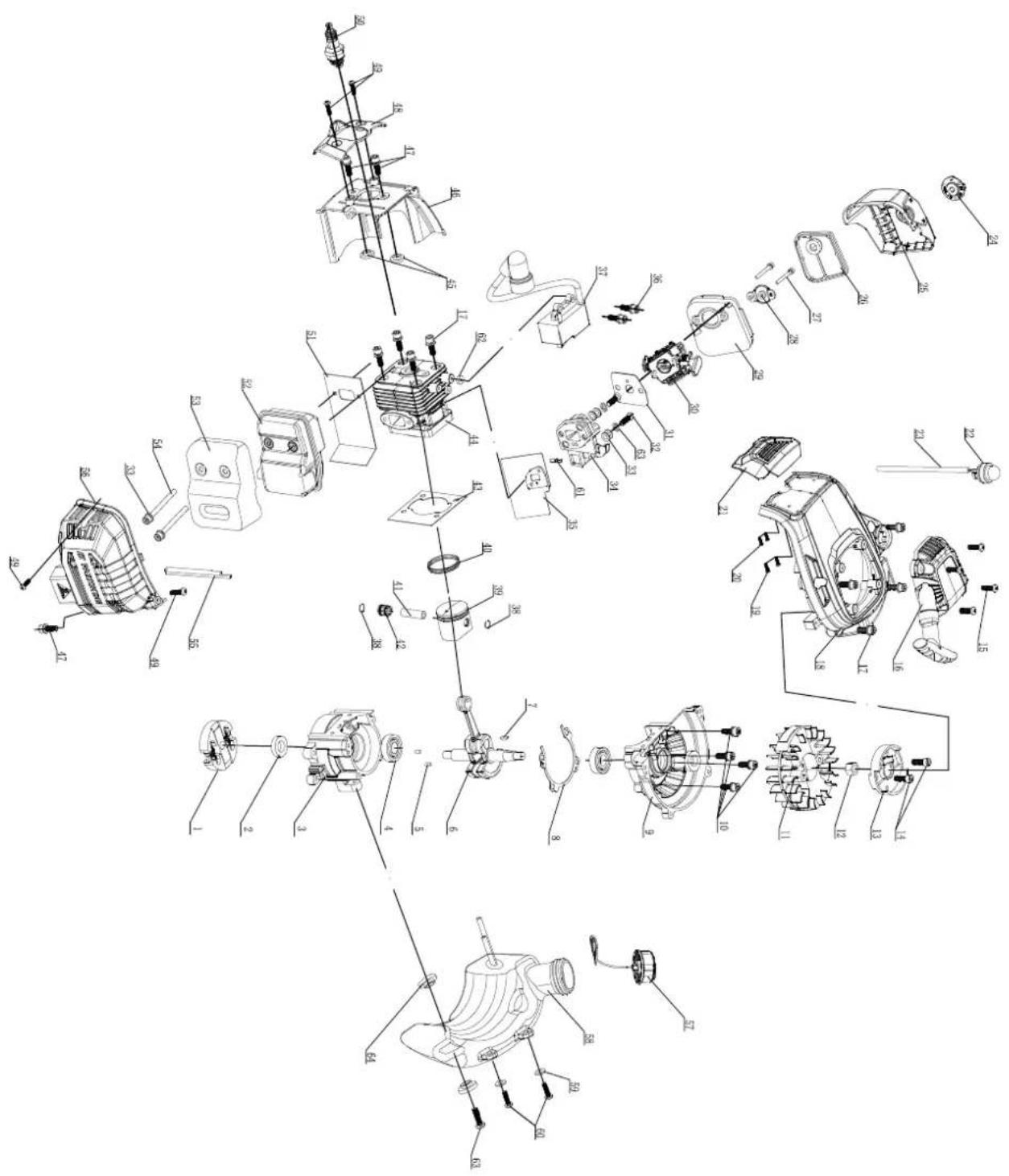

Technical schematic diagram of a mechanical assembly with numbered components and exploded views

Exploded view diagram of an automotive transmission system with labeled components and assembly lines

EC Declaration of Conformity

Translation of the original EC declaration of conformity

Standard references:

EN 10517:2019; EN 14982:2009

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Subject to change without notice

Documents registrar: Thomas Schuster

Günzburger Str. 69, D-89335 Ichenhausen

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen

FSC

www.fsc.org

MIX

Paper from responsible sources

C144507

FSC

www.fsc.org

MIXTE
