USER MANUAL WP9604B Vevor

Affordable. Reliable. Home Improvement.

Pipe Inspection System

Model: WP9604B

VEVOR

Affordable. Reliable. Home Improvement.

Pipe Inspection System Instruction Manual

Exterior view of a portable oil lamp with yellow hose and black frame (no text or symbols visible)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Please read this manual carefully before use!

Attentions

1. Please read the manual carefully before using it.
2. Handle it carefully during operation, avoid throwing down or pressing it he

3. If the users disassemble or deliberately damage the machine, it will beyond warranty.

4. Please keep distance from the system when charging

5. After being used, turn off the display and pull out all the connection joint
6. Due to the version upgrades, if mentioned in this manual content does not accord with your machine, please refer to our machine.

Description

1. Color TFT LCD Screen.
2. High resolution camera, clear picture,
3. Night vision.
4. High quality special cable, waterproof and anti-corrosion/cold/tensile.
5. 5V8500MA lithium battery.
6. With sun-visor for bright environment outside
7. Range of Application: Water-supply pipe. Air-conditioner pipe. Cable pipe. Pipeline vacuum system. PLUNBIN pipe. Buildings. Sunken pipe

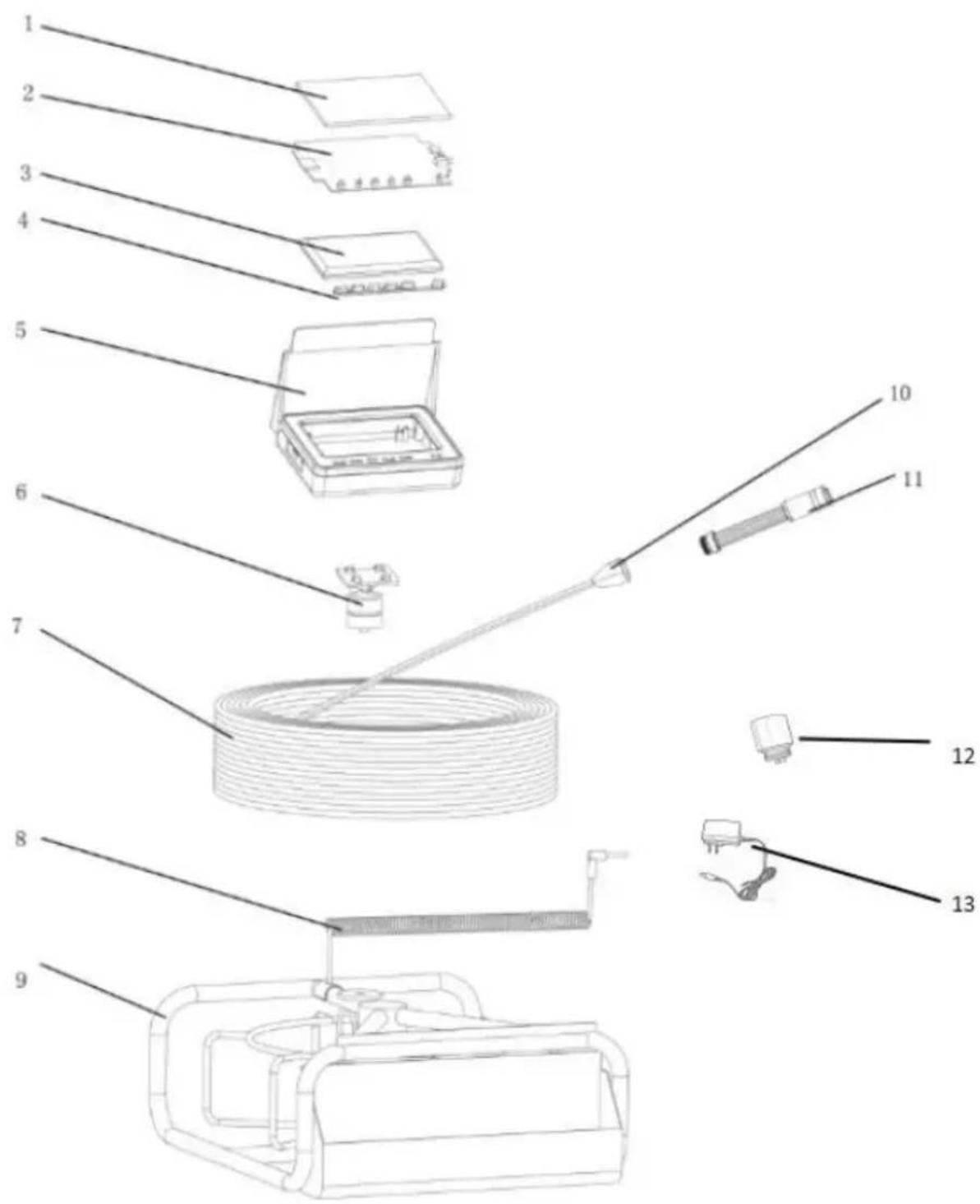

exploded view of the finished product

Exploded diagram of a scientific instrument with numbered parts for identification

NO.	accessory name
1	Screen
2	Screen motherboard
3	Battery
4	Button board
5	Display case
6	Display stand
7	Push rod cable
8	Signal connection line
9	Cable rack
10	Bullet case + gold-plated PCB
11	Camera
12	Lens Adapter
13	Charger

Product Specification

Charger:	AC100-240V DC5V 2000MA
Battery:	Lithium battery
Continuous use time for battery:	6h-8h
Investigation depth:	10m( selectable line length)
Material:	Fiber tube with /high intensity
Camera light source:	With high while light
Camera material:	Stainless steel
Menu languages:	Multi-language
Camera picture:	Color
Operating temperature:	-20-60°
Storage temperature:	-50-60°

Instruction for Product

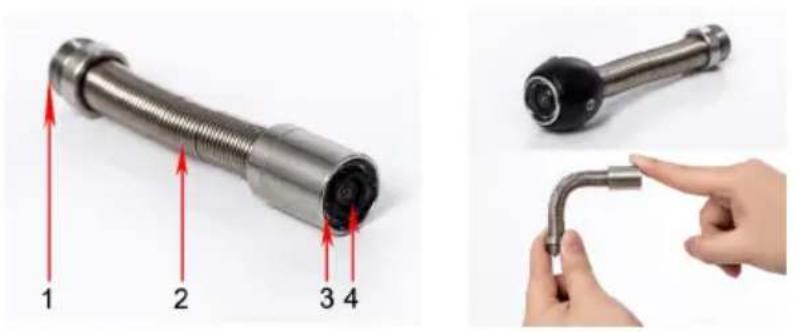

Camera

1. metal contact chip
2. spring
3. highlight white LED
4. camera lens

1 2 3 4

Product Specification

Camera diameter:	Φ17mm
With the tube diameter:	>Φ18mm
Camera light source:	6 LED with high while light(adjustable)
Camera working voltage:	3.7V
Lights working voltage:	5V
Water proof:	IP68
Camera material:	Stainless steel
Camera size:	100mm*17mm
Camera protective cover parts mater	Plastic-steel
Camera protective cover parts size	20mm* 25mm

Monitor (Recording Type)

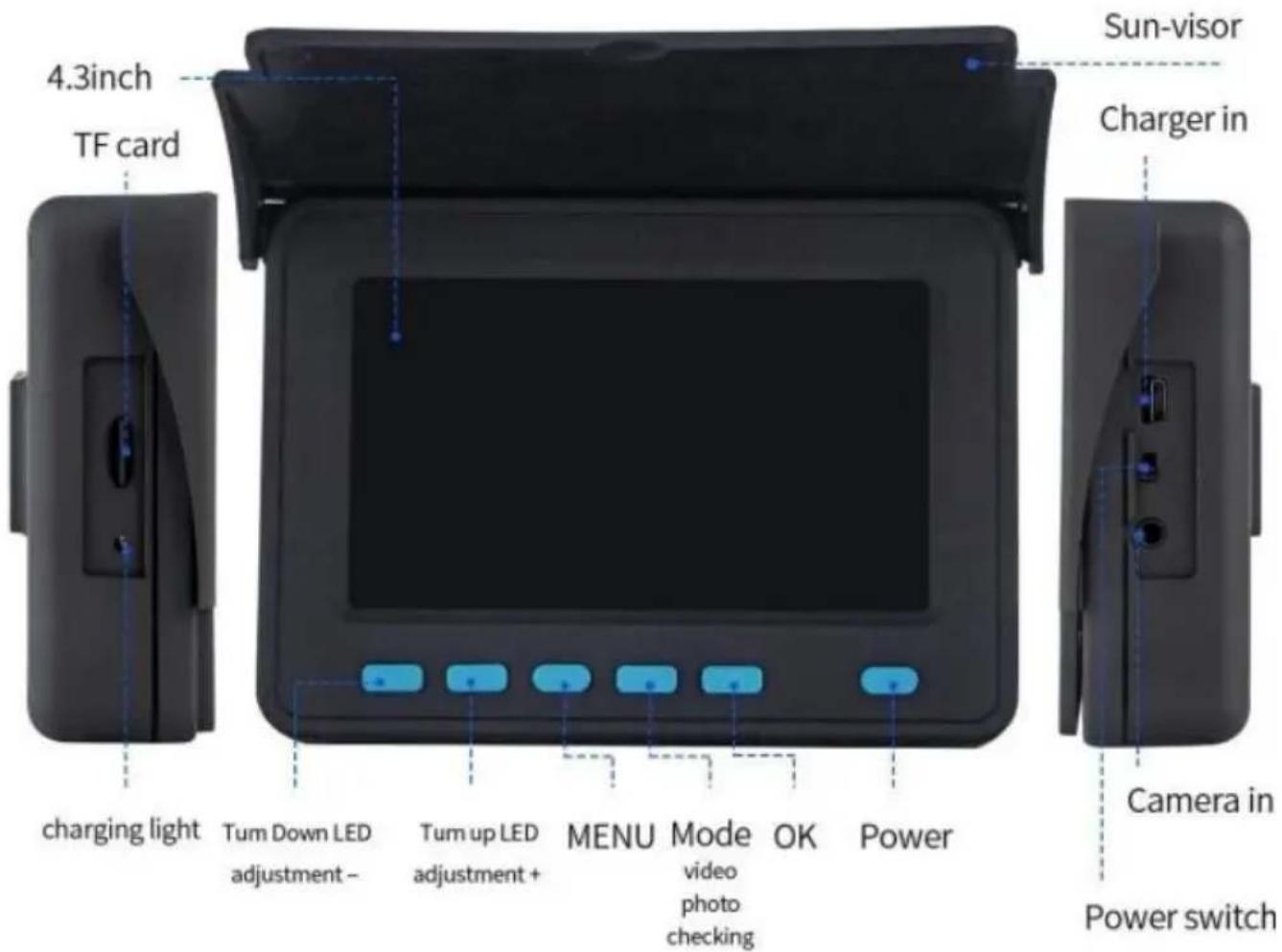

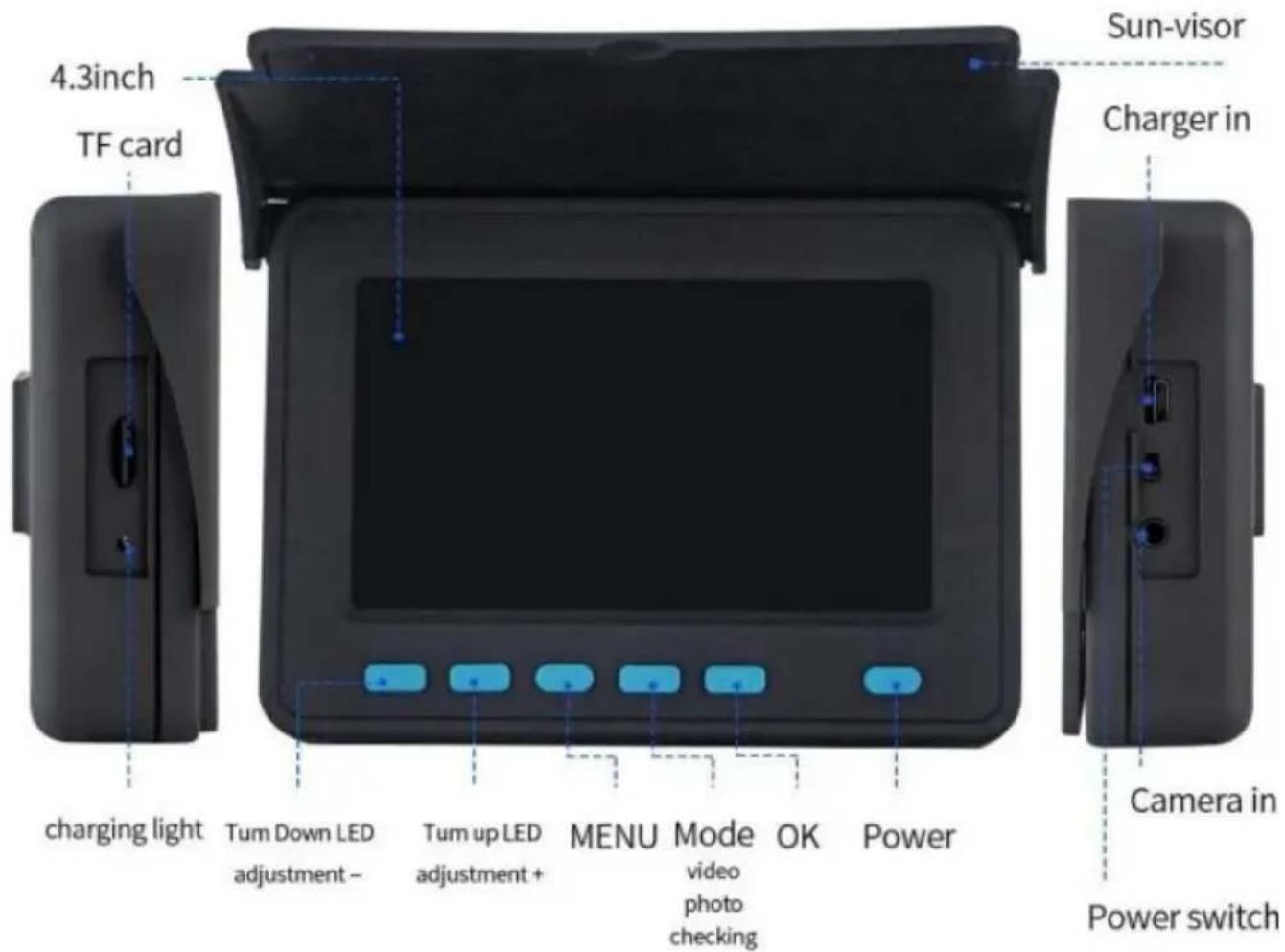

HD 4.3inch LCD display with DVR Recording Function

Sun-visor 4.3inch Charger in TF card charging light Tum Down LED adjustment - Turn up LED adjustment + MENU Mode video photo checking OK Power Camera in Power switch

How to operate the Monitor

1. Power On Plug in the camera, then turn on the monitor

2. Menu Setting

A: Press the MENU button into the Menu setting in the photo or record stat B: It has format、language Settings、default Settings and date Settings.

1. MODEP ho to、Record and file browsing mode can be converted each other when press MODE button.

2. OK Button

A: Press OK button to take the photo in the photo state.

B: In Record state, press OK button one time to start the recording, press O button again to stop the recording and saving.

1. UP Button

A: Tum up LED
B: Press UP button one time to forward a picture or an video in filebrowsin
C: Press UP button one time to forward in menu setting mode.

1. Down Button

A: Tum down LED

B: Press Down button one time to downward a picture or an video in filebr mode.

C: Press Down button one time to downward in menu setting mode.

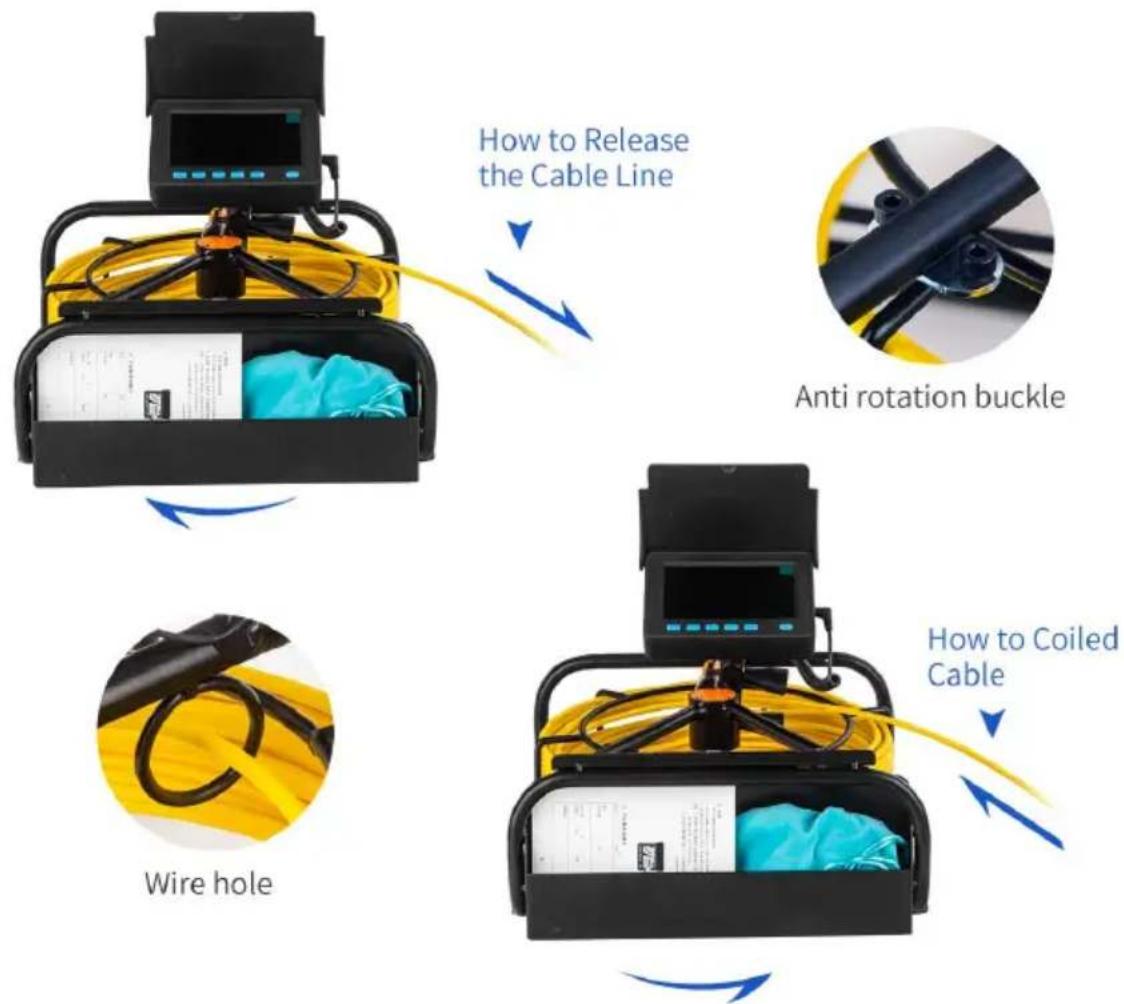

Coil

Install the monitor

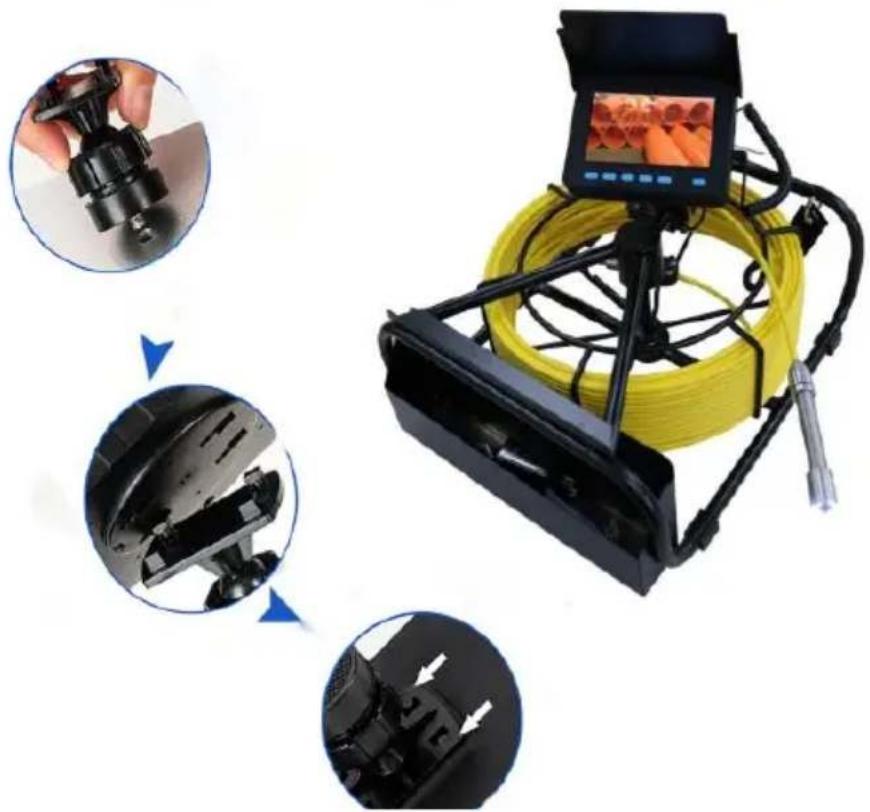

INSTALLING THE MONITOR

Medical device with yellow cable and monitor, showing close-up views of mechanical components (no text or symbols visible)

1. Fixing bracket
2. Fixing the monitor on the bracket

System Installation

1. Vital: turn off the power switch, connect the video camera and the monitor the video camera and the monitor may be damaged.
2. Connect camera -coil -monitor
3. Turn on the power switch in the power box, the switchboard starts.
4. Install the video camera with the protective cover slightly and put it into a rotate coil to proper depth.
5. Adjust LED light degree adjuster to proper light degree.
6. After utilization, mover the camera from the pipe carefully, take clean, soft dry cloth to clear up it and put it back.

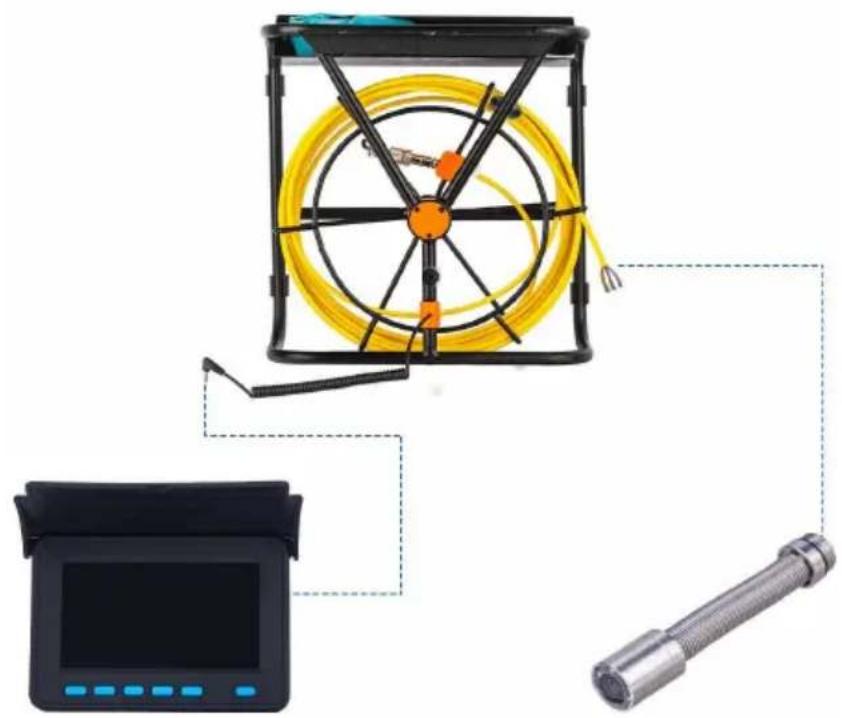

PRODUCT CONNECTION

Diagram of a scientific instrument setup with a yellow cable, sensor, and control panel (no text or symbols)

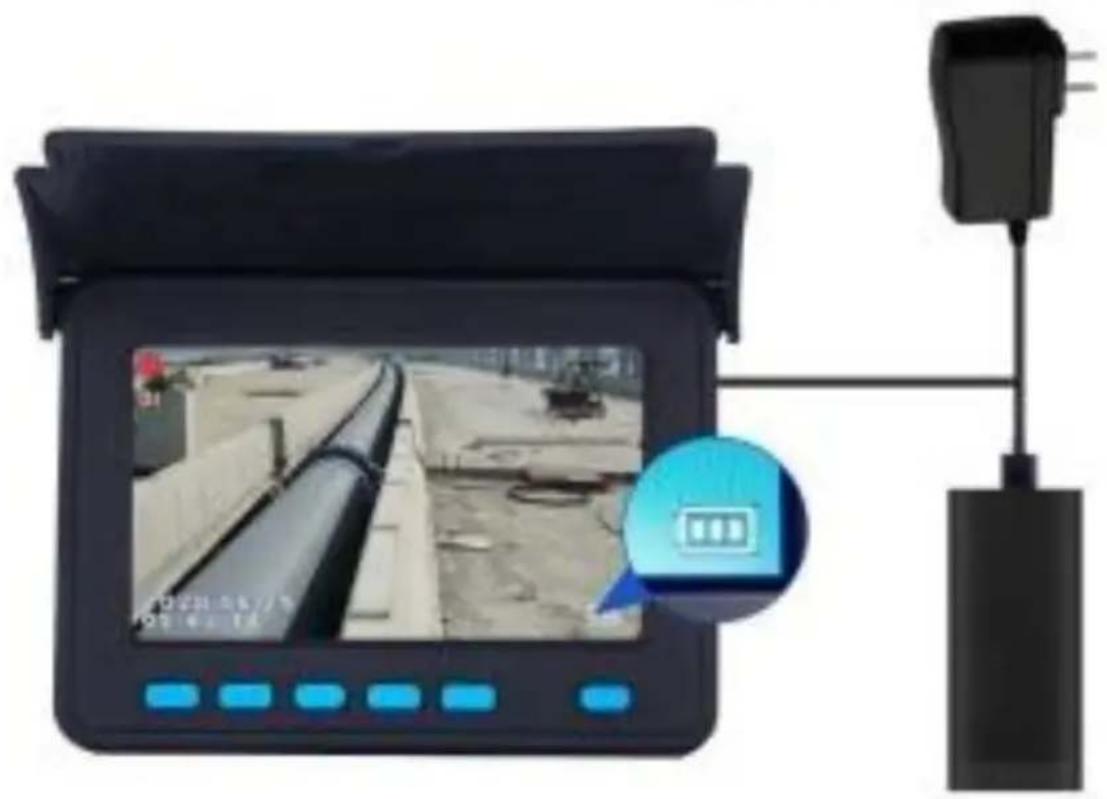

Charging

When the battery power is low, it needs charging, and the method is as be

1. Take out the battery and charger from the box.
2. Connect the charger to the battery.
3. Connect the charger to the alternating current of 100-240v. The red indica means charging.
4. The green indicator means finishing charging.

Notes: to make sure the battery using age longer, please recharge it timely; otherwise, it will make it can not recharged.

5V power adapter or 5V power bank to charge

*With a dedicated charger, please charge the machine with it

Security camera display showing surveillance camera with red LED indicator and control panel attached to a device

*The power bank are not included. We only provide the power cable.

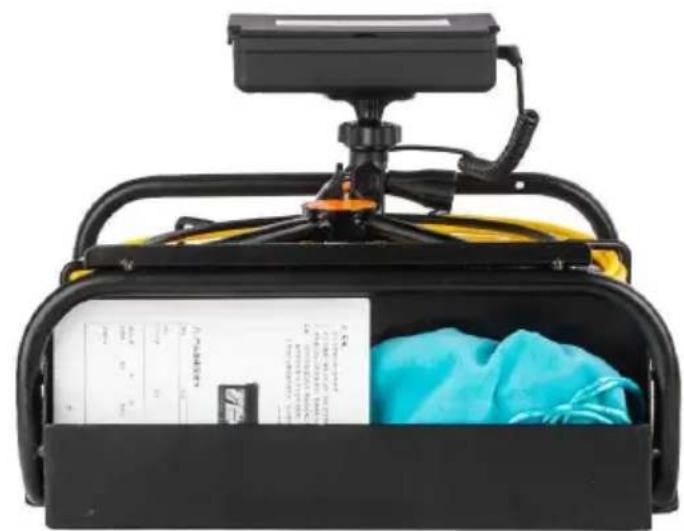

Produet components and accessories

Black and yellow portable device with a camera mount, open lid, and blue fabric inside (no visible text or symbols)

Camera

TFT LCD Screen

detection cable

Coil

protector

Charger

USB line

Bracket

Screwdriver

Pipe Failure Analysis

① Check whether the camera is loose, and tighten the camera.
② Check whether the camera video cable is in full contact with the battery
③ Check whether the video cable of the display screen and the power cable complete contact.

1. During use, pay attention to charging in time when the battery power light the last grid of power to prevent the battery from being lost and unable to charged.

2. The cable should not be knotted when used, and the cable should not be less than 90^ .

3. Do not drop the product violently to prevent the cable from being broken!

4. Please turn off the power before removing and inserting the memory card

Failure analysis	Fault reasons and precautions
Blue screen	1. Check if camera connector is loose, and if camera is caused poor contact.2. Check if cable and power supply connected loose.3. Check if monitor is connected with power supply norm4. Check if cable is broken.5. Check if there is water leak to the front of the cam camera is damaged.6. When using the camera, put on the protective cover protect camera not to collide with hard objects and dam cause unable to display images
LED light no on	1. Read the manual to get the correct way to turn on2. check if there is water in the camera, the water will the camera LED.
No Power	1. Check if battery is fully charged.2. Check if display screen is damaged.3. check the power box and screen connecting, to be s right.
Cannot format	1. The memory card is damaged. Replace the memory c
Unable to charge	1. Check if charging port is with foreign matters or defo2. Check whether the charger is damaged.3. If the power is too low, it should be charged in time the battery loss and unable to charge
Photo/video cannot be saved	1. Check if memory card is damaged. Replace the mem card,.2. Check if memory card slot with foreign objects or de
Broken cable	1. It is recommended to use the cable on pipes with a ≥ 60mm. Pay attention to the force of pushing the cable breaking cable.2. This product is only used for pipeline detection and inspection, and cannot be used for other purposes.
Cable knotting	1. When retracting and releasing cables, the cables can crossed and knotted, and the bending arc of cables should be less than 90 degrees2. When retracting the cable, pay attention to the orderly with the rotating iron frame, and do not use it violently
Equipment cleaning	1. When cleaning the equipment, turn off the power before cleaning to avoid damage to the equipment.
Note	If the fault cannot be solved, do not disassemble it by Please contact the after-sales service team.

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are desprovide reasonable protection against harmful interference in a residential

installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Disposal information:

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection pair recycling electrical and electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
