Pipe Inspection System Instruction Manual

Two scientific equipment setups: a red handheld device with a digital display and a yellow coiled cable with a camera case containing a spiral-patterned screen (no visible text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Please read this manual carefully before use!

Attentions

1. Please read the manual carefully before using it.
2. Handle it carefully during operation, avoid throwing down or pressing it heat
3. If the users disassemble or deliberately damage the machine, it will beyond warranty.
4. Please keep distance from the system when charging
5. After being used, turn off the display and pull out all the connection joint
6. Due to the version upgrades, if mentioned in this manual content does not accord with your machine, please refer to our machine.

Description

1. 9" Color TFT LCD Screen.
2. High resolution camera, clear picture
3. Video taking and photo function
4. Cable with length markings
5. One-button start
6. Super bright white LED adjustable
7. Waterproof durable suitcase
8. High quality special cable, waterproof and anti-corrosion/cold/tensile.
9. 12V4500MA lithium battery.
10. The lights can on/off.night lights adjustable.
11. Range of Application: Water-supply pipe/ Air-conditioner pipe/ Cable pipe/Pipeline vacuum system/ PLUNBIN pipe/ Buildings/ Sunken pipe
12. Cable diameter: 5mm
13. Camera: 512Hz Self-Leveling

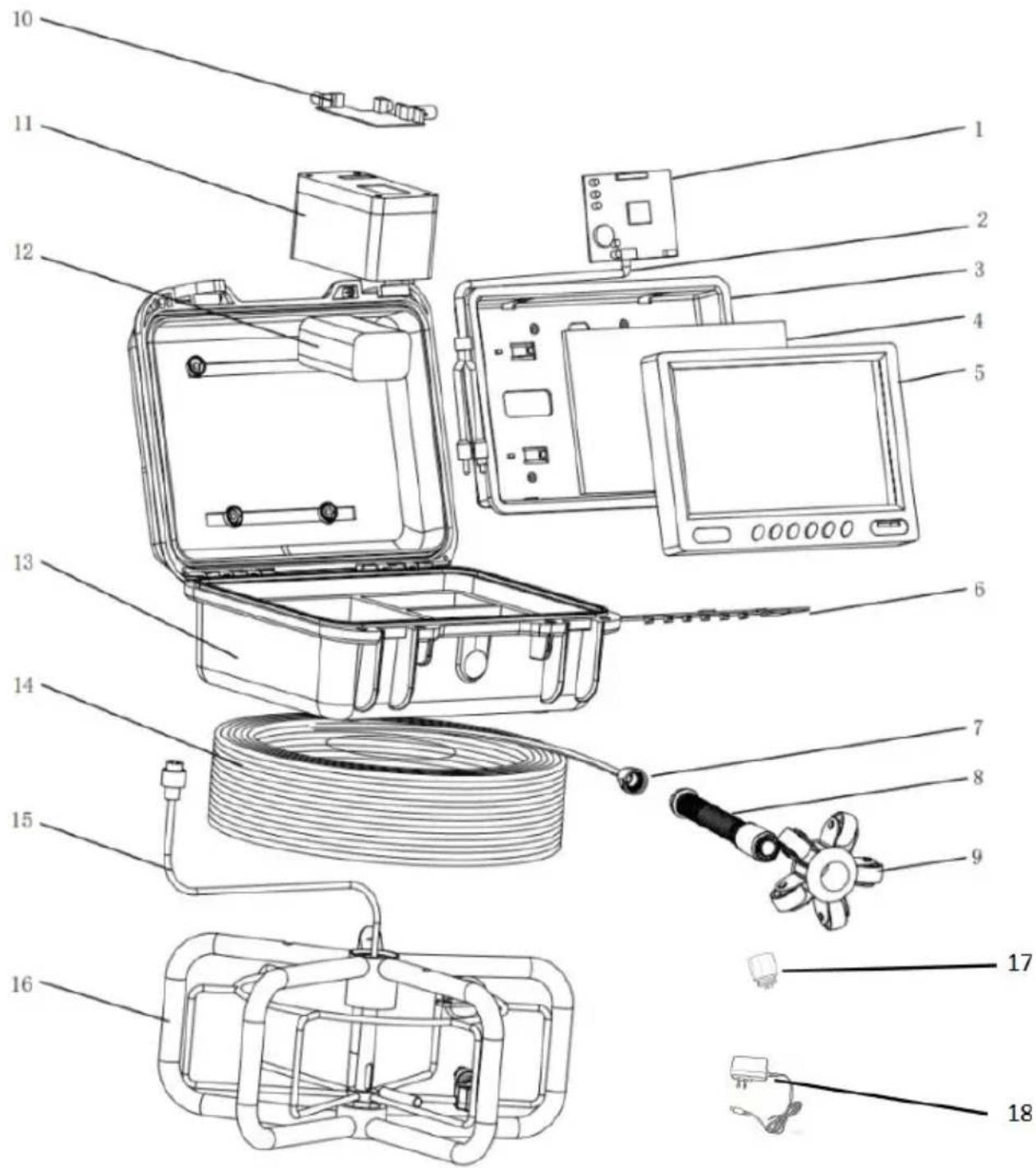

exploded view of the finished product

Exploded view diagram of an electrical testing device with numbered parts for identification

NO.	accessory name
1	Screen Main Board
2	Screen Cable
3	Central Frame
4	Screen Panel
5	Display Enclosure
6	Keyboard
7	Bullet Tip & Gold-plated Plate
8	Camera Module
9	Guide Wheel
10	Power Board
11	Power Box Enclosure
12	Battery
13	Silicone Enclosure
14	Push Rod Cable
15	Signal Connector
16	Wire Tensioner
17	Lens Adapter
18	Charger

Product Specification

Item:	parameter
Charger:	AC100-240V DC12.6V 1000MA
Battery:	Lithium battery 12V4500MA
Continuous use time for batter	Approximate 6h
Investigation depth:	30m. 50m( selectable line length)
Material:	Fiber tube with /high intensity
Camera light source:	With high while light
Camera material:	Stainless steel
Menu languages	Multi-language
Camera picture:	Color

Instruction for Product

Camera

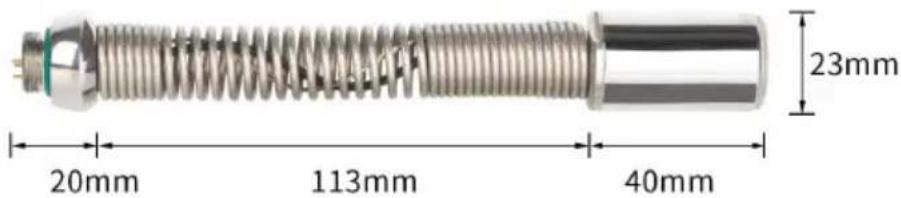

20mm 113mm 40mm 23mm

Close-up of a metallic threaded pipe fitting (no text or symbols visible)

23mm

Close-up of a metallic cylindrical tool with black and white ends (no visible text or symbols)

38mm

Close-up of a mechanical component with a cylindrical shaft and flanged base (no visible text or symbols)

90mm

Product Specification

Item:	parameter
Camera diameter:	23mm
With the tube diameter:	>25mm
Camera light source:	12 LED with high while light (adjustable)
Camera working voltage:	5V
Lights working voltage:	12V
Camera assist function:	self-balancing
Camera assist function:	512Hz
Water proof:	IP68
Camera material:	stainless steel
Camera size:	23mm
Camera protective cover parts materi	plastic-steel
Camera protective cover parts size	29mm* 40mm
Camera protective cover parts size	40mm* 90mm

Monitor

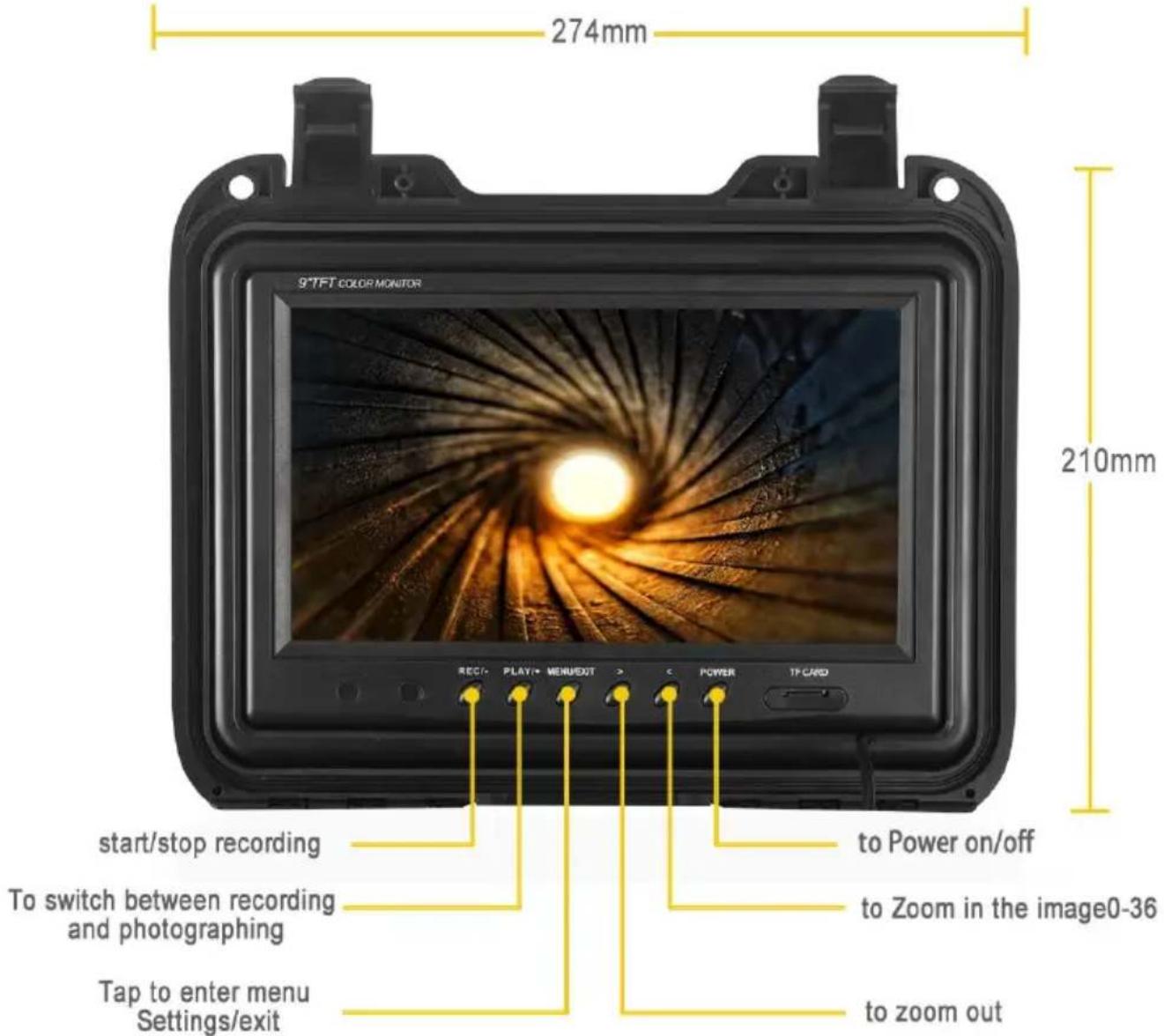

274mm 9 TFT COLOR MONITOR REC: PLAY+ MEN/OUT > POWER TP CARD start/stop recording To switch between recording and photographing Tap to enter menu Settings/exit to Power on/off to Zoom in the image0-36 to zoom out

Coil

High quality fiberglass detection cable

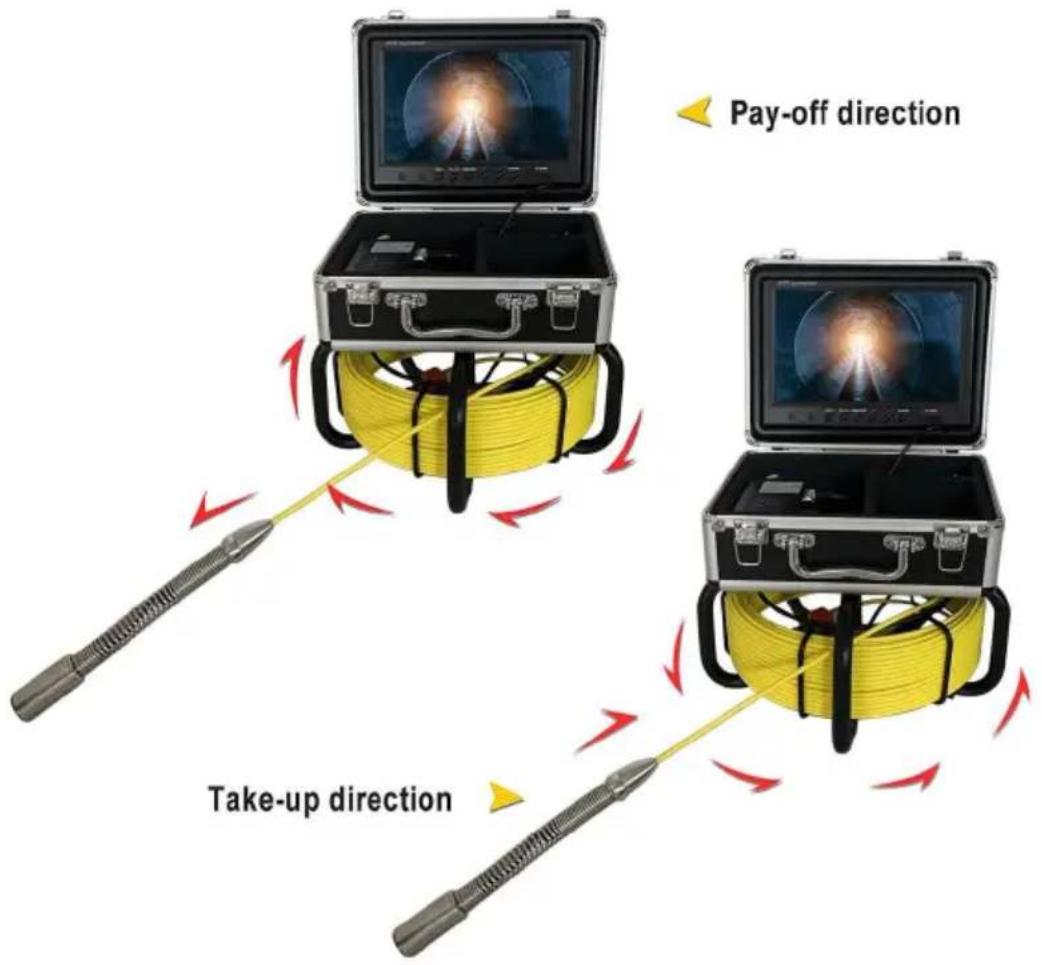

Pay-off direction Take-up direction

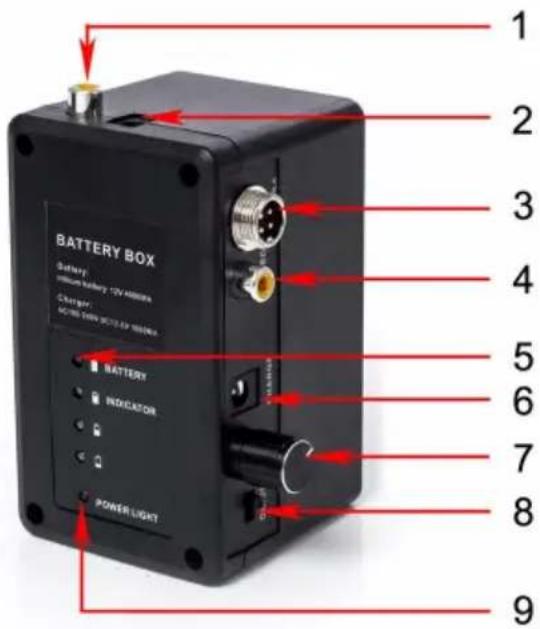

Cell box

1. Monitor video
2. Power of monitor
3. Adjacent coil plug
4. AV output
5. Battery indicator
6. Power input for charger
7. Light-degree adjustment
   for white light LED
8. Power switch
9. Power light

BATTERY BOX D:\MNT\mmbuon battery-12V ABS/INS C:\BNT\mmbuon battery-12V ABS/INS BATTERY INDICATOR POWER LIGHT 1 2 3 4 5 6 7 8 9

System Installation

1. Vital: turn off the power switch, connect the video camera and the monitor the video camera and the monitor may be damaged.

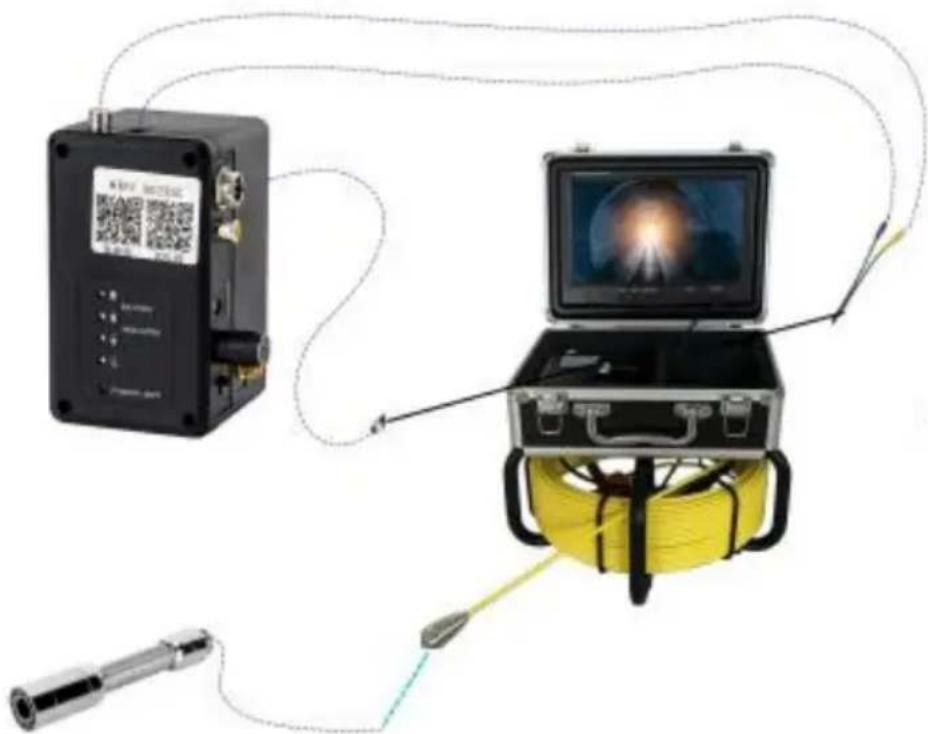

2. Connect camera -coil -cell box -monitor (Pic)

3. Turn on the power switch in the power box, the indicator light on the moon, the switchboard starts.

4. Install the video camera with the protective cover slightly and put it into a rotate coil to proper depth.

5. Adjust LED light degree adjuster to proper light degree.

6. For videotape, refer to the DVR operation details (display operation: Recording Type)

7. Switch video to another large screen through video line.

8. After utilization, mover the camera from the pipe carefully, take clean, soft dry cloth to clear up it and put it back.

Experimental setup with a sensor device connected to a yellow cylindrical device via wires, no visible text or symbols

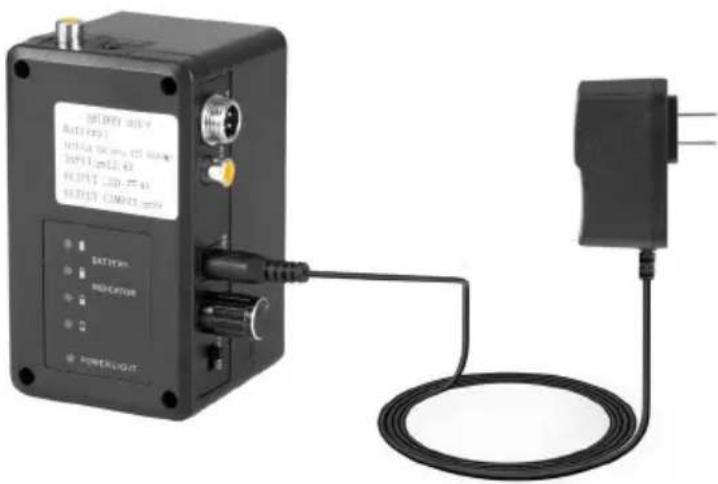

Charging

When the battery power is low, it needs charging, and the method is as be

1. Take out the battery and charger from the box.

2. Connect the charger to the battery.

3. Connect the charger to the alternating current of 100-240v. The red indica means charging.

4. The green indicator means finishing charging.

Notes: to make sure the battery using age longer, please recharge it timely; otherwise, it will make it can not recharged.

BATTERY RECHARGE

12V 4500mah Super Hiht Capacity battery

BEETRY 30V BUTY-201 BUTY-30V CD-50A BUTY-1.5±12.0 BEETRY LED-745 BEETRY CMV-21=9 BUTY-1 REDUCOR POWERLIGHT

The red indicator means charging. The green indicator means finishing charging

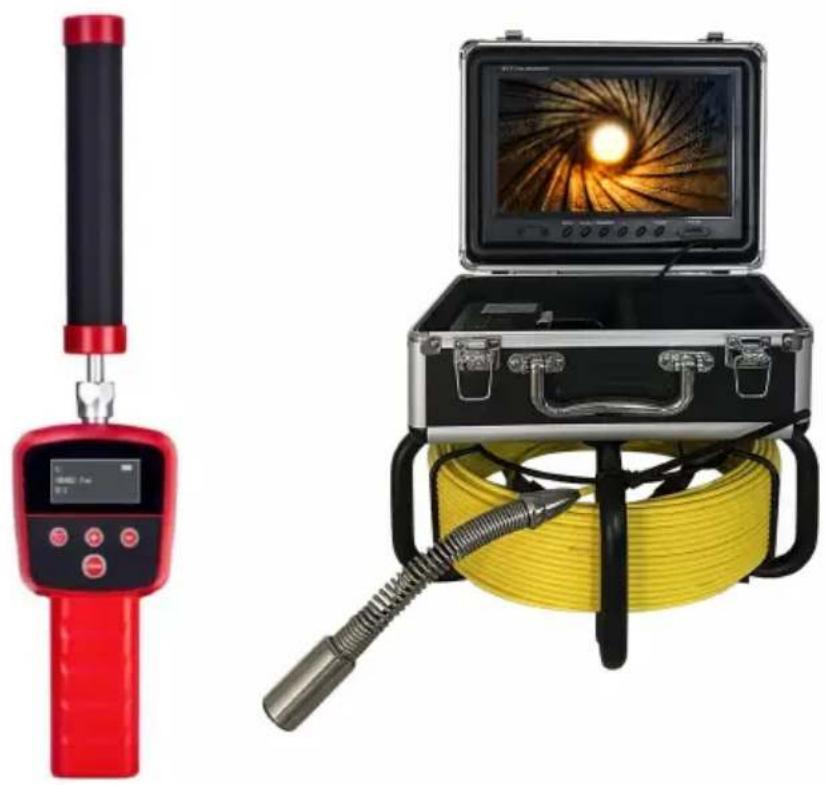

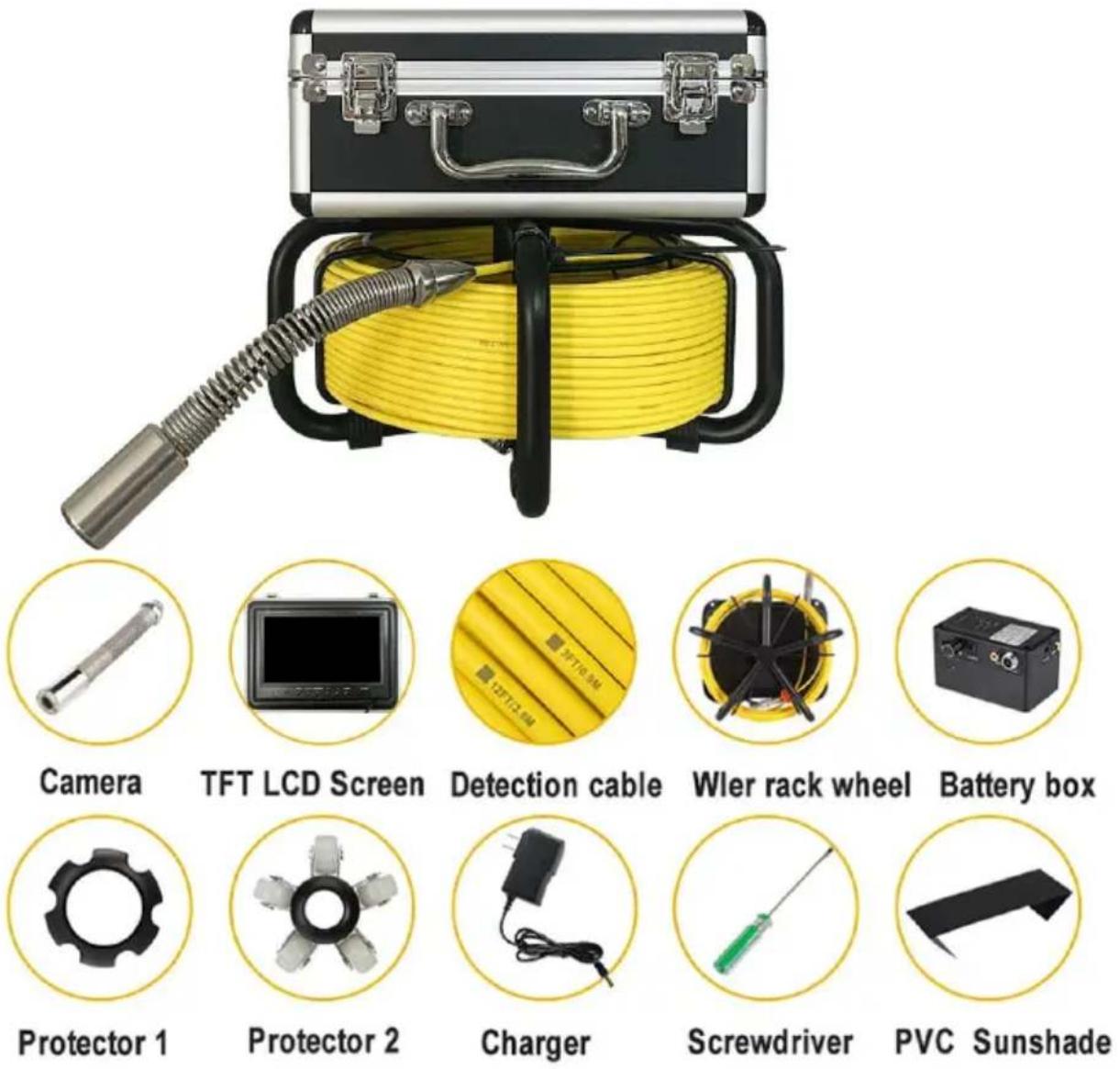

Product components and accessories

PRODUCT COMPONENTS

VEVOR 512 Hz PIPE LOCATOR USER MANUAL

Red handheld scientific instrument with a black cylindrical body and digital display (no visible text or symbols)

Thank you for your purchase. Please read this manual for the correct usage of the protection of your machine. After reading, please put this manual in an accessible place for your future reference.

exploded view of the finished product

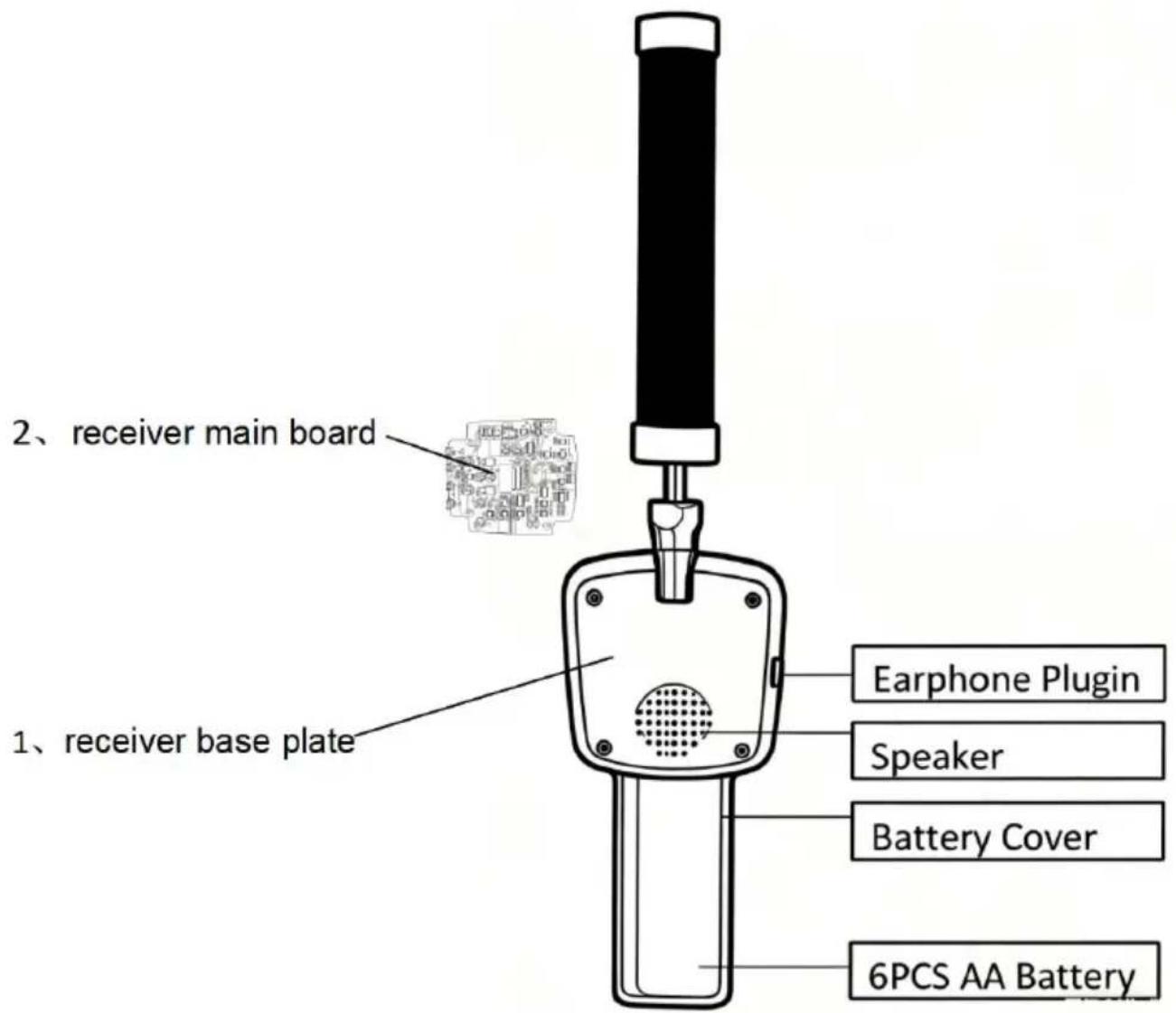

1. receiver base plate 2. receiver main board 3. Earphone Plugin Speaker Battery Cover 6PCS AA Battery

1. Safety Information

1.	Please review the appearance and function of the machine within the working days after receiving it. If any damage or parts missing, please us with photos for customer service.
2.	Use 6pcs AA 1.5V batteries. There is risk of explosion if using wro Please get rid of the used battery according to the instruction.
3.	Working environment for locator: -10°C ~ 50°C (14°F ~ 122°F) ≤95% Storage condition: -20°C~70°C (-4°F~158°F) ≤95%RH.
4.	The warranty doesn't apply under such circumstances, physical damaforce majeure, the user dismantling the system without authorizationconnecting to non-original parts.
5.	Please only use original fitting accessories to avoid the possible dar health and property.
6.	Please don't drop, beat or shake the inspection system. Improper us the locator may damage its inner circuit board.
7.	Please put the locator and its accessories, especially small parts like or battery in a place inaccessible to infants, kids and children.
8.	Under few circumstances, if conductive materials like jewelry, keys, o necklace connect exposed end of lithium ion battery, the battery ma As the materials complete a loop and become hot. Be careful when with the battery, especially when you put the battery into your pock other containers with metal items. In this case, it may lead to loss of properties. Don't discard the battery into fire, as it will cause the

Caution: If any issue you can't solve, don't disassemble the machine by yourself. Please contact customer service team.

2. Specifications

Frequency:	512Hz
Modulation	None
Max Distance Capability	6m/20ft
Battery:	6-pcs AA Alkaline batteries
Audio Output:	50 – 1000 Hz determined by signal ster
Weight:	1.8 lbs
Working Temperature:	-4°F to 140°F (-20°C to 60°C)
Output:	Loud-speaker, earphone and target alarmin
Sensors	548mmx65mmx50mm

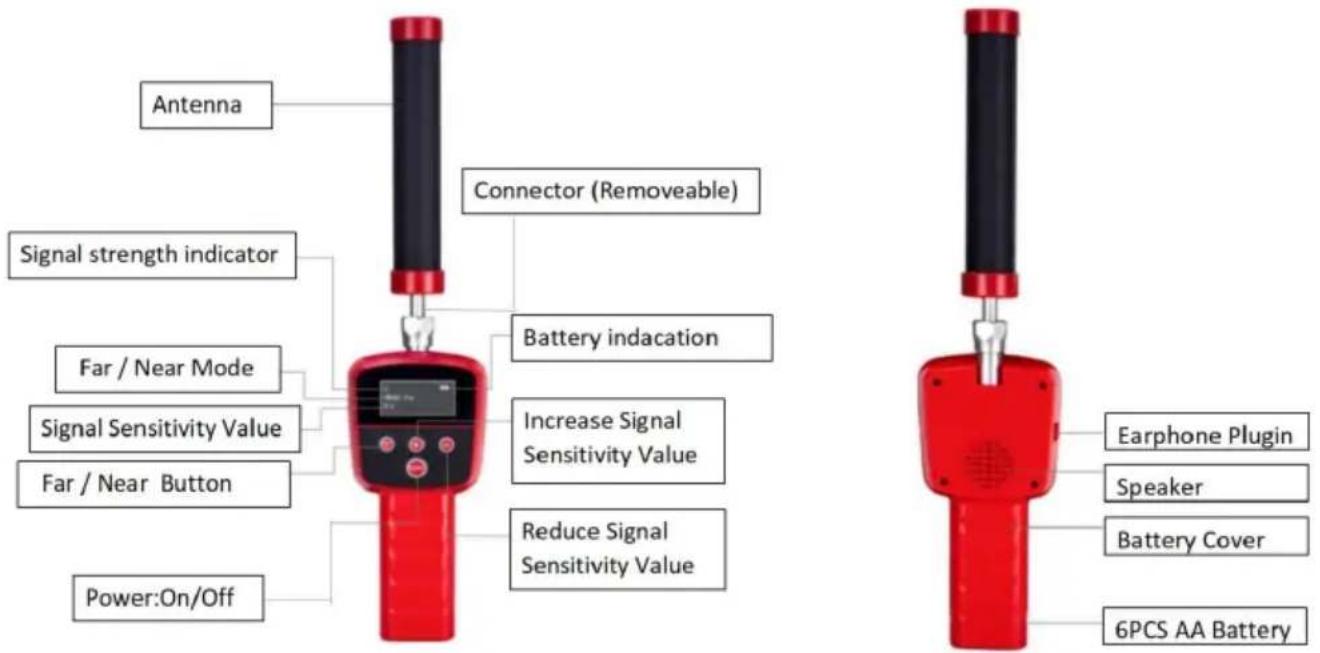

3. Antenna: receive signal.

Indicator: when the signal becomes strong, the indicator will move to right. W

the signal becomes weak, the indicator will move to left.

Switch and signal adjustment: when the button is on the leftmost, the machir powers off. When the button turns to right, the machine powers on. When continuing to turn right, the machine becomes more sensitive to the signal.

Far: gear far. Near: gear near

Horn: when the receiver gets the signal, the horn sounds. The closer the receiver gets to the radiator, the stronger the signal will be. And more loudly the horn sounds.

Earphone: another way of audio output besides horn.

Antenna Signal strength indicator Far / Near Mode Signal Sensitivity Value Far / Near Button Power:On/Off Connector (Removable) Battery indacation Increase Signal Sensitivity Value Reduce Signal Sensitivity Value 6PCS AA Battery Earphone Plugin Speaker Battery Cover

The Procedure to Use

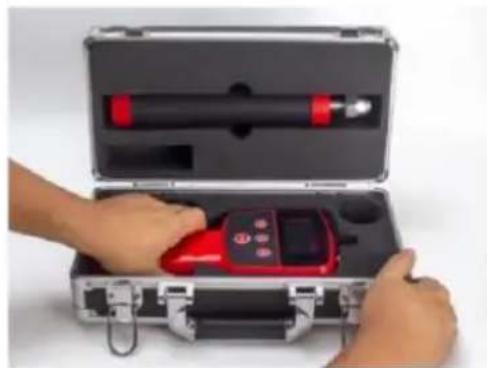

Step1. Take out the equipment. When you open the package, please place i described in the picture. Open it carefully and slowly with a knife, to prevent equipment from damage.

Step 2. Move up the lock catch on both sides to unlock the outer box.

Step 3. Take out the antenna and the receiver separately. One hand holds cover of the box, the other hand takes out the antenna from the groove. No right hand holds the box. The left hand holds the receiver and pulls it.

Person holding a red handheld device inside an open metal toolbox (no visible text or symbols)

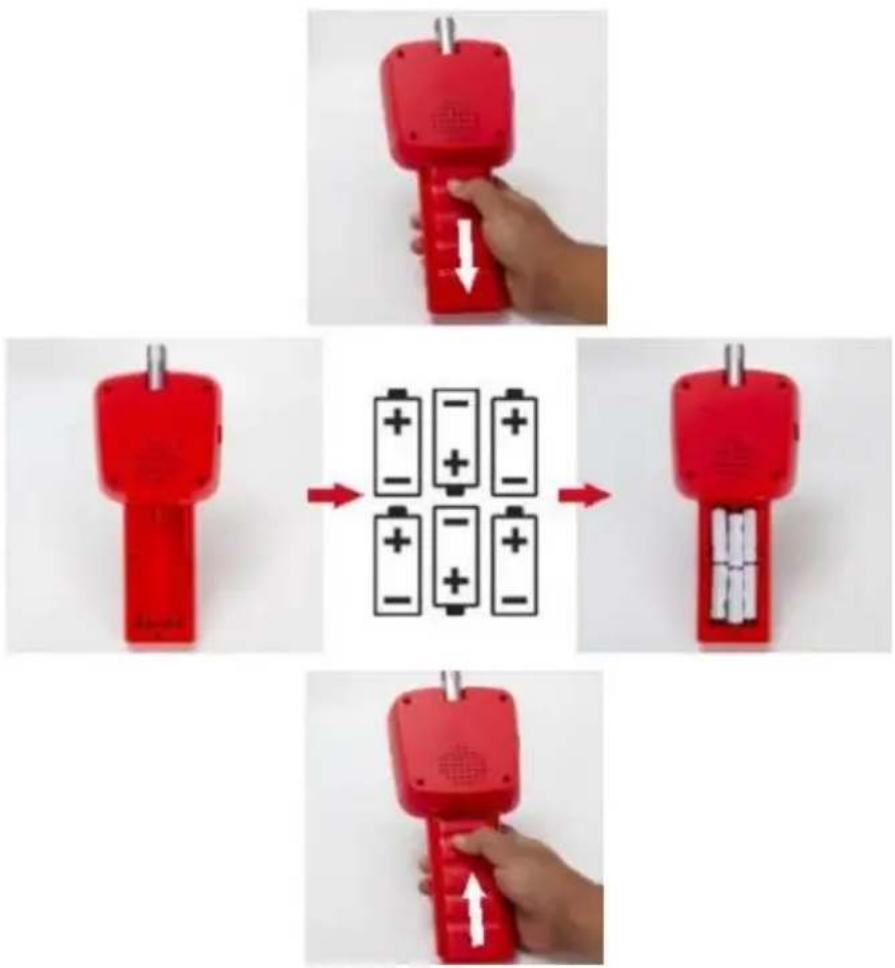

Step 4. Install the battery. Please prepare 6 pcs AA batteries. In the back of receiver, please hold the machine and slide down the battery cover and take away. Put in 6 pcs AA batteries. Pay attention to the positive end and negative of each battery when you put them in. Move the battery cover back to its or place. Finish the battery installation.

Diagram illustrating the process of battery charging and discharging using a red handheld device, showing step-by-step states and battery arrangement.

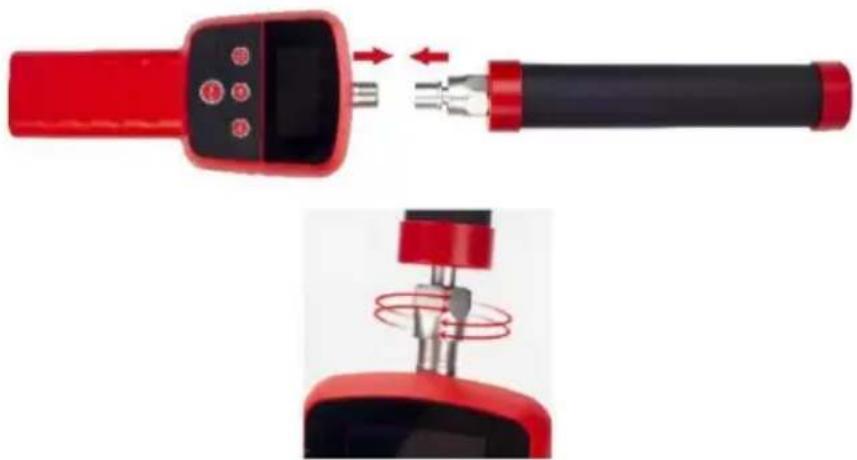

step 5. Install the antenna. Align the connection between the machine and it antenna. Fasten the antenna clockwise and tighten the nut. Remove the antenna twist the nut count-clockwise and pull the antenna.

Red handheld electronic device with a screwdriver and mechanical components, shown from two different angles (no text or symbols visible)

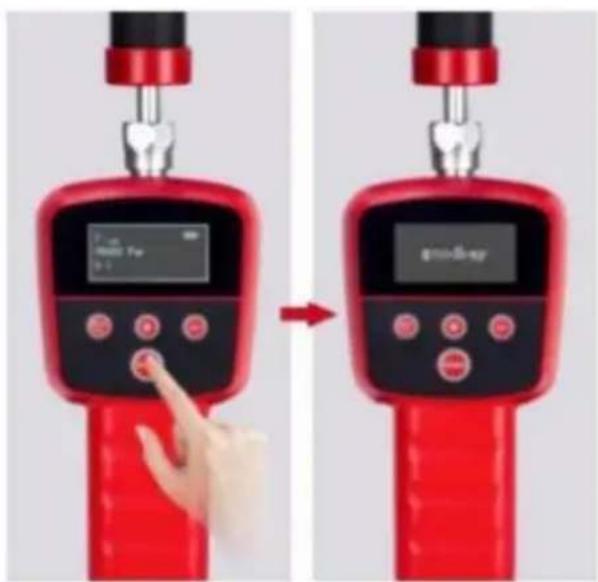

Step 6. Power On/Off. Press the power button for three seconds. The screen shows as below. The horn sounds. The machine powers on. To power off, the power button again for two seconds. The screen shows 'GOODBYE'.

Caution: If the machine cannot power on, please check if the battery is installed correctly or if the battery is charged

Read For good-bay

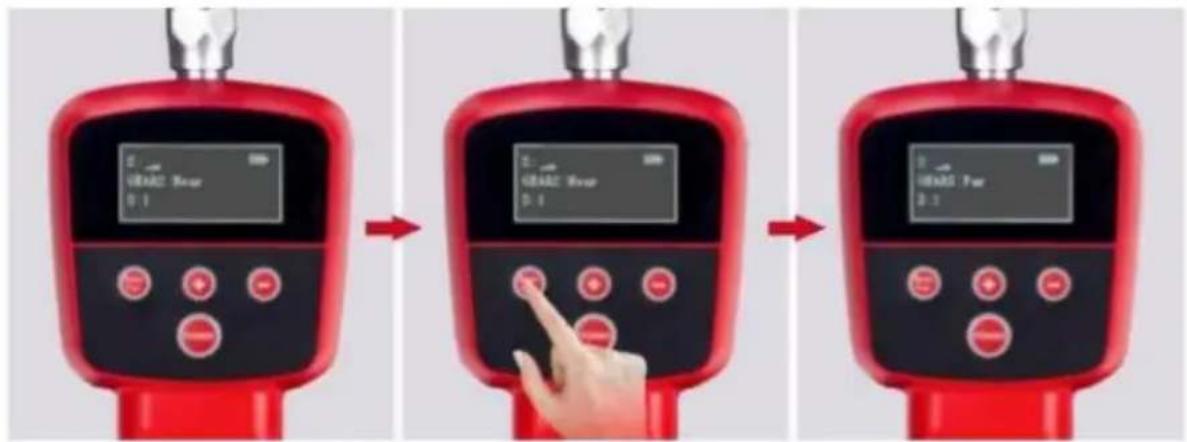

Step 7: Switch the gear. You can press the ‘Near/Far’ button to change the Press the ‘Near/Far’ button, the screen shows ‘Near’. Press the button again, screen shows ‘Far’. You can change the gear this way.

Caution: Please change the gear according to the environment.

U8A2 Rear 0.1 U8A2 Rear 0.1 U8A2 For 0.1

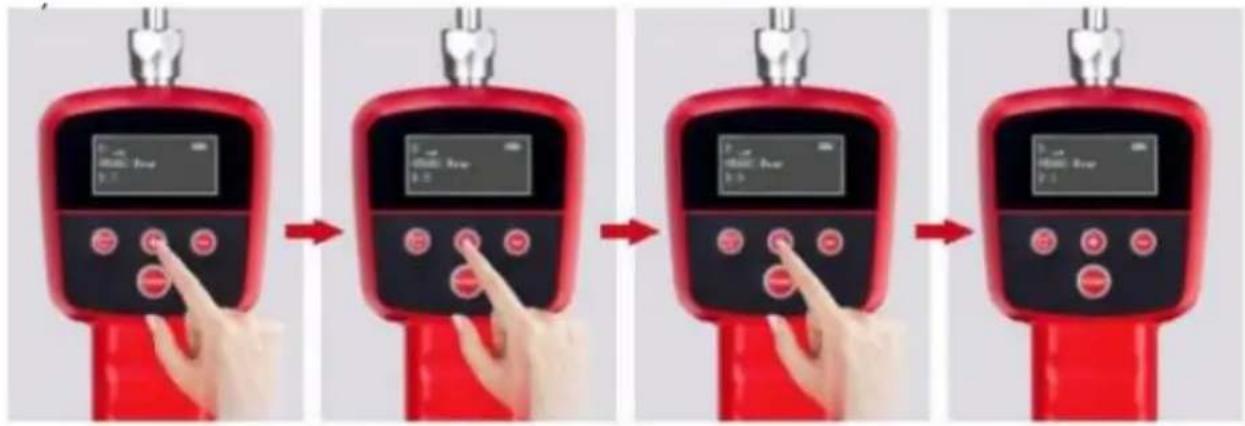

Step 8. Adjust the signal received. Press “+”button, the signal will increase. Highest level is 9. When the signal reaches 9, press “+”button, the signal will restart from level 1. Press “-”button, the signal will decrease, the lowest level

Four-step diagram showing a hand interacting with a red digital blood glucose meter, displaying control buttons and display screen.

Step 9. Signal indication. The signal indicator is on the top position of left screen shown on the screen. If the receiver receives no 512 Hz signal, the signal will show 4 grids and the horn will buzz. When the indicator shows more ground sound will become continuous ‘du du du’. If the receiver is closer to 512 Hz, the sound of the signal will become louder. When the receiver moves away, signal will become weak and the sound will decrease

$0.9 GEARS: Rear $ 0.9 GEARS: Rear $ 0.9

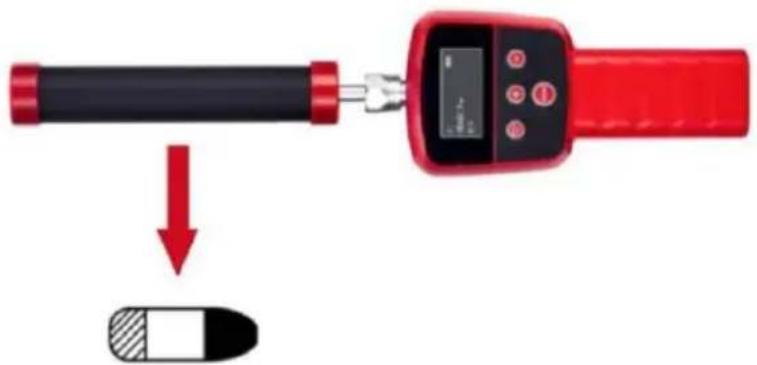

Step 10. how to get the transmitter signal

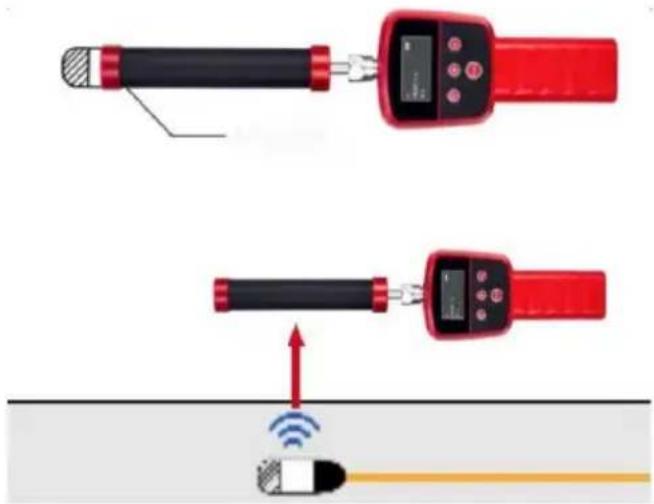

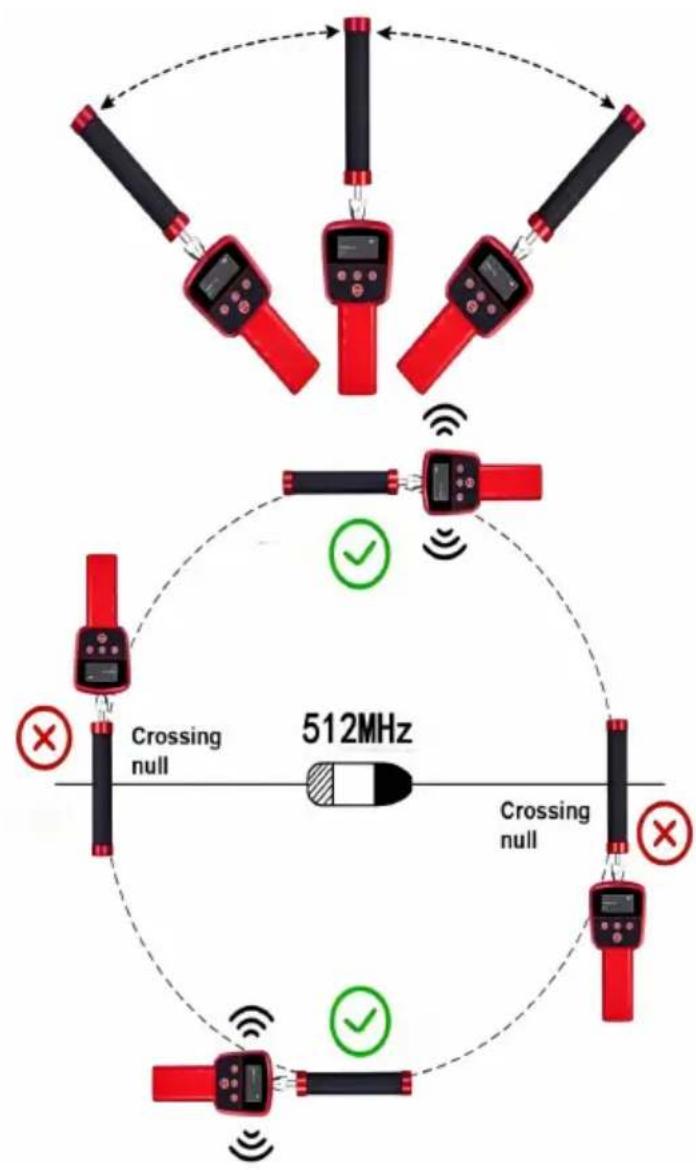

1. Move the receiver from left to right to look for the best position receiving signal. The best position for receiver to receive signal is parallel to the radia shown in below picture

1. Move the receiver in the direction parallel to the radiator and in the direct when the signal indicator shows more grids and the sound becomes louder.

Diagram showing a red handheld device connected to a black-and-white segmented device, with a red arrow indicating the process.

1. The indicator turns to rightmost. The gear switches to 'Near'. Press '-' but

reduce the strength of signals received. Reduce the sensitivity of the sound. Search in small scale. According to the sound the signal indicator, find the p receiving the strongest signal in the parallel direction to the sensor. Stay in place. Move the receiver forward and backward until find the place receiving the strongest signal. The sensor is right below the receiver.

Diagram showing two red handheld devices connected to a sensor or probe, with a sensor signal icon and directional arrow indicating signal flow.

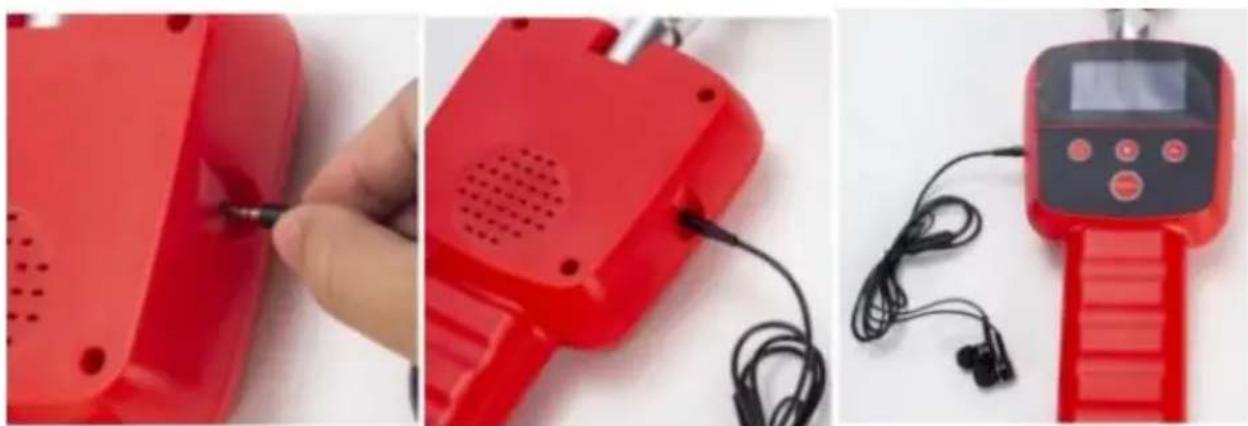

Step 11. Earphone connection and usage. When the environment is noisy, you can use earphone to hear the signal of the receiver. First take out the earp from the box, connect the earphone with the receiver as shown in the picture. After connection, you can use the earphone to see if it works. If you hear please check if the earphone is plugged in correctly. If the earphone is conr but still no sound, please change to a new earphone.

Three red handheld devices: a hand pin on a small component, a gas stove with ventilation vent, and a digital pressure meter (no visible text or symbols)

5. Common questions

1. The receiver shows four grids of signal.

When the receiver is on, the default signal indication is four grids and the h

buzzes. This shows it is ready to work. When receiving the signal, the receiver sound in constant 'du du du'. When the receiver moves close to the sensor, sound becomes loud. When the receiver moves away from the sensor, the s becomes low.

2. Have difficulties in using the positioner.

Please refer to the instruction of using the receiver. Please follow the steps 4 The Procedure to Use, from Item 6 to Item 12.

3. The machine cannot power on.

Please check if the battery is fully charged and if the battery is installed could. Please check if the screen can work.

4. The machine cannot receive the signal. Or the signal is weak.

Check if the antenna is installed correctly. Remove the antenna and reinstall Check the battery indication on the right of the screen if the receiver is fully charged. When the battery is under charged, the receiver is weak to receive signal.

5. Clean the equipment

When cleaning the equipment, please power off first.

6. The list of equipment in a whole set

1. Aluminum box (EVA cotton)
2. Receiver
3. Receiver antenna
4. Earphone

Pipe Failure Analysis

1. Ensure that each interface is properly connected during installation.
2. During the installation process, when a blue screen appears, it means that camera, battery box and display screen are not connected successfully

①Check whether the camera is loose, and tighten the camera.
②Check whether the camera video cable is in full contact with the battery b
③ Check whether the video cable of the display screen and the power cable complete contact.

1. During use, pay attention to charging in time when the battery power light the last grid of power to prevent the battery from being lost and unable to charged.
2. The cable should not be knotted when used, and the cable should not be less than 90^ .
3. Do not drop the product violently to prevent the cable from being broken!
4. Please turn off the power before removing and inserting the memory card

Failure analysis	Fault reasons and precautions
Blue screen	1. Check if camera connector is loose, and if came loose, caused poor contact.2. Check if cable and power supply connected loose3. Check if monitor is connected with power supply normally.4. Check if cable is broken.5. Check if there is water leak to the front of the if camera is damaged.6. When using the camera, put on the protective co protect camera not to collide with hard objects and damage, cause unable to display images
LED light not on	1. Read the manual to get the correct way to turn light.2. check if there is water in the camera, the water damage the camera LED.
No Power	1. Check if battery is fully charged.2. Check if display screen is damaged.3. check the power box and screen connecting, to it is right.
Cannot format	1. The memory card is damaged. Replace the mem card.
Unable to charge	1. Check if charging port is with foreign matters or deformation.2. Check whether the charger is damaged.3. If the power is too low, it should be charged in prevent the battery loss and unable to charge
Photo/video cannot be saved	1. Check if memory card is damaged. Replace the card,.2. Check if memory card slot with foreign objects of deformation.
Broken cable	1. It is recommended to use the cable on pipes with diameter ≥ 60mm. Pay attention to the force of pus cable to avoid breaking cable.2. This product is only used for pipeline detection inspection, and cannot be used for other purposes.
Cable knotting	1. When retracting and releasing cables, the cables not be crossed and knotted, and the bending arc should not be less than 90 degrees2. When retracting the cable, pay attention to the retract with the rotating iron frame, and do not use violently
Equipment cleaning	1. When cleaning the equipment, turn off the power cleaning to avoid damage to the equipment.
Note	If the fault cannot be solved, do not disassemble it Please contact the after-sales service team.

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to

following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Disposal information:

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be

discarded with normal domestic waste, but must be taken to a collection poir recycling electrical and electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Pipe Inspection System Instruction Manual

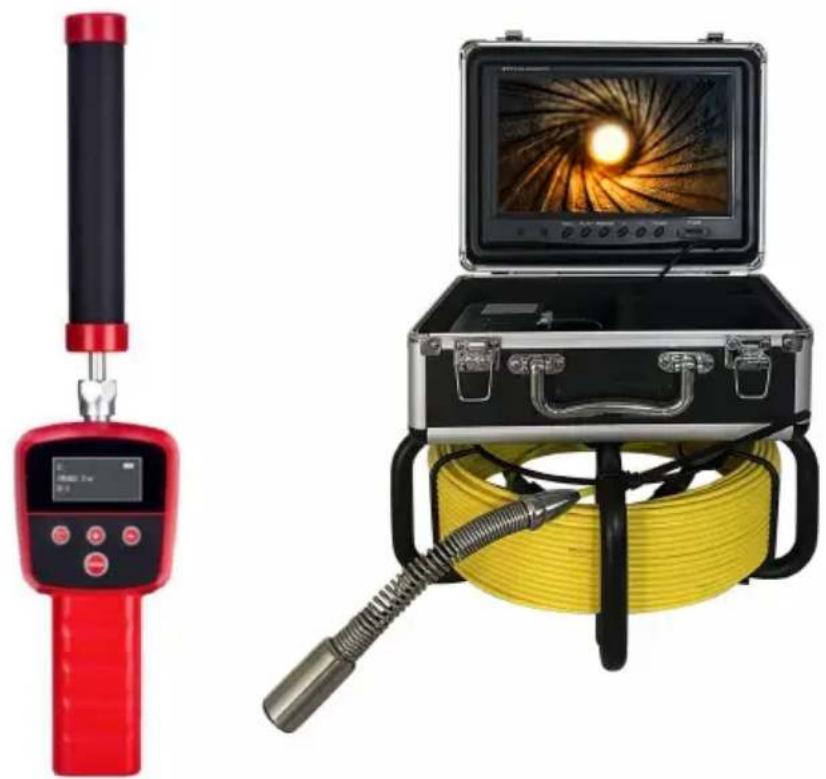

Two scientific equipment setups: a red handheld device labeled 'Digital Sensor' and a black-and-white photo of an open display case with a yellow coiled cable.

Exploded view diagram of an electrical testing device with numbered parts for identification

Close-up of a metallic threaded pipe fitting (no text or symbols visible)

23mm

Close-up of a metallic cylindrical tool with black and white end caps (no visible text or symbols)

38mm

Close-up of a mechanical component with threaded shaft and flanged base (no visible text or symbols)

90mm

274mm 9 TFT COLOR MONITOR REC: PLAY+ MEN/EXIT > < POWER TF CARD start/stop recording To switch between recording and photographing Tap to enter menu Settings/exit to Power on/off to Zoom in the image0-36 to zoom out

Bobine

High quality fiberglass detection cable

Pay-off direction Take-up direction

Boîte à cellules

Diagram of a scientific instrument setup with a device, yellow cable, and monitor, connected by wires (no readable text or symbols)

Chargement

The red indicator means charging. The green indicator means finishing charging

Red handheld scientific instrument with a black cylindrical body and digital display (no visible text or symbols)

1. receiver base plate 2. receiver main board 3. Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Antenna Signal strength indicator Far / Near Mode Signal Sensitivity Value Far / Near Button Power:On/Off Connector (Removable) Battery indacation Increase Signal Sensitivity Value Reduce Signal Sensitivity Value Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Person holding a red handheld device inside an open metal case with a tool, no visible text or symbols

Diagram showing four steps of a red handheld device with battery polarity and charge distribution, including hand movement and battery arrangement.

Close-up of a red handheld device with a screwdriver and a separate close-up showing internal components (no text or symbols visible)

I am Be Fe (10)

Diagram showing a red handheld device connected to a black cylindrical device with a downward arrow, indicating a process or transformation.

Diagram showing two red handheld devices with digital displays and a sensor probe below, illustrating signal transmission or measurement process.

Three red handheld devices: a hand holding a small plug, a gas vent device with ventilation, and a digital measuring device connected to cables (no visible text or symbols)

5. Questions courantes

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Pipe Inspection System Instruction Manual

Two scientific equipment setups: a red handheld device labeled 'Digital Sensor' and a black-and-white photo of an open display case with a yellow coiled cable.

Exploded view diagram of an electrical testing device with numbered parts for identification

Close-up of a metallic threaded pipe fitting (no text or symbols visible)

23mm

Close-up of a metallic cylindrical tool with black and white ends (no visible text or symbols)

38mm

Close-up of a mechanical component with threaded shaft and flanged base (no visible text or symbols)

90mm

274mm 9 TFT COLOR MONITOR 210mm REC: PLAY+ MENUEXT > POWER TP CARD start/stop recording To switch between recording and photographing Tap to enter menu Settings/exit to Power on/off to Zoom in the image0-36 to zoom out

Spule

High quality fiberglass detection cable

Pay-off direction Take-up direction

Zellenbox

Diagram of a scientific instrument setup with a device, yellow cable, and monitor, connected by wires (no readable text or symbols)

Laden

The red indicator means charging. The green indicator means finishing charging

Red handheld device with black cylindrical body and digital display, no visible text or symbols on the device itself.

1. receiver base plate 2. receiver main board 3. Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Antenna Signal strength indicator Far / Near Mode Signal Sensitivity Value Far / Near Button Power:On/Off Connector (Removable) Battery indacation Increase Signal Sensitivity Value Reduce Signal Sensitivity Value 6PCS AA Battery Earphone Plugin Speaker Battery Cover

Hands holding a red digital thermometer inside an open metal case (no visible text or symbols)

Diagram showing a red handheld device with battery charging process, illustrating step-by-step charging and discharging steps.

Red handheld electronic device with a screwdriver and mechanical components, shown from two different angles (no text or symbols visible)

Image showing a hand interacting with two red handheld devices, one displaying a digital display and the other displaying 'goodkey' text.

Initial Read 1.7 Initial Read 1.0 Initial Read 1.9 Initial Read 1.1

GEANS Rear S: 9 GEANS Rear S: 9

Diagram showing a red handheld device connected to a black-and-white segmented device, with a red arrow indicating the process.

Diagram showing two red handheld devices with digital display and signal detection, illustrating a wireless signal transmission process.

Three red handheld devices: a hand holding a screwdriver, a gas meter with sound waves, and a digital measuring device with earphones (no visible text or symbols)

5. Häufige Fragen

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Pipe Inspection System Instruction Manual

Two scientific equipment setups: a red handheld device labeled 'Digital Sensor' and a black-and-white photo of an open display case with a yellow coiled cable.

Exploded view diagram of an electrical testing device with numbered parts for identification

Close-up of a metallic threaded connector or fitting (no text or symbols visible)

23mm

Close-up of a metallic cylindrical tool with black and white end caps (no visible text or symbols)

38mm

Close-up of a mechanical component with threaded shaft and flanged base (no visible text or symbols)

90mm

274mm 9 TFT COLOR MONITOR RECIT. PLAY+ MEN/EXIT > C POWER TF CARD 210mm start/stop recording To switch between recording and photographing Tap to enter menu Settings/exit to Power on/off to Zoom in the image0-36 to zoom out

Bobina

High quality fiberglass detection cable

Pay-off direction Take-up direction

Cella telefonica

Diagram of a scientific instrument setup with a device, yellow case, and cable, connected by wires (no readable text or symbols)

Ricarica

Batteries Wireless scales: 120 NMR (5V) = 62.4 V Batteries: LID: = 40 Batteries: C5V: = 3 Battery REEDUSTR PowerLight

The red indicator means charging. The green indicator means finishing charging

Red handheld scientific instrument with a black cylindrical body and digital display (no visible text or symbols)

1. receiver base plate 2. receiver main board 3. Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Antenna Signal strength indicator Far / Near Mode Signal Sensitivity Value Far / Near Button Power:On/Off Connector (Removable) Battery indacation Increase Signal Sensitivity Value Reduce Signal Sensitivity Value 6PCS AA Battery Earphone Plugin Speaker Battery Cover

Person holding a red handheld device inside an open metal toolbox (no visible text or symbols)

Diagram showing a red handheld device being processed into battery cells, with four views of the device's internal structure.

Close-up of a red handheld electronic device with a screwdriver inserted, showing internal components and a close-up view of its internal structure (no text or symbols visible)

GSSING 2.0

Diagram showing a red handheld device connected to a black pen, with a red arrow pointing to a small segmented object below.

Diagram showing two red handheld devices connected to a sensor probe with signal waves, illustrating the process of monitoring or sensing.

Three red handheld devices: a small electronic device with a probe, a gas vent device with ventilation grille, and a digital pressure meter (no visible text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plac Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Pipe Inspection System Instruction Manual

Two scientific equipment setups: a red handheld device labeled 'Digital Sensor' and a black-and-white photo of an open display case with a yellow coiled cable.

Exploded view diagram of an electrical testing device with numbered parts for identification

Close-up of a metallic threaded pipe fitting (no text or symbols visible)

23mm

Close-up of a metallic cylindrical tool with black and white ends (no visible text or symbols)

38mm

Close-up of a mechanical component with threaded shaft and flanged base (no visible text or symbols)

90mm

274mm 9 TFT COLOR MONITOR REC: PLAY+ MEN/OUT > < POWER TP CARD start/stop recording To switch between recording and photographing Tap to enter menu Settings/exit to Power on/off to Zoom in the image0-36 to zoom out

Bobina

High quality fiberglass detection cable

Pay-off direction Take-up direction

Caja de celdas

Diagram of a scientific instrument setup with a device, yellow coil, and monitor (no visible text or symbols)

Cargando

The red indicator means charging. The green indicator means finishing charging

Red handheld laboratory instrument with digital display and black handle (no visible text or symbols)

1. receiver base plate 2. receiver main board 3. Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Antenna Signal strength indicator Far / Near Mode Signal Sensitivity Value Far / Near Button Power:On/Off Connector (Removable) Battery indacation Increase Signal Sensitivity Value Reduce Signal Sensitivity Value Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Person holding a red handheld device inside an open black and silver case (no visible text or symbols)

Diagram illustrating the process of battery charging and discharging using a red handheld device, showing step-by-step states and battery arrangement.

Red and black handheld device with a screwdriver inserted, showing internal components and a close-up of the tool (no text or symbols visible)

Image showing a red handheld device with a digital display and control buttons, one being adjusted to press the button.

Four-panel image showing a hand interacting with a red digital blood glucose meter, displaying 'Blood Flow' status and control buttons.

Diagram showing a red handheld device connected to a black cylindrical device with a downward arrow, indicating a process or transformation.

Diagram showing two red handheld devices with digital displays and a sensor probe below, illustrating signal transmission or measurement setup.

Three red handheld devices: a hand holding a small tool, a gas vent device with ventilation, and a digital measuring instrument with earplugs (no visible text or symbols)

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Pipe Inspection System Instruction Manual

Two scientific equipment setups: a red handheld device labeled 'Digital Sensor' and a black-and-white photo of an open display case with a yellow coiled cable.

Exploded view diagram of an electrical testing device with numbered parts for identification

Close-up of a metallic threaded pipe fitting (no text or symbols visible)

23mm

Close-up of a metallic cylindrical tool with black and white ends (no visible text or symbols)

38mm

Close-up of a mechanical component with threaded shaft and flanged base (no visible text or symbols)

90mm

274mm 9TFT COLOR MONITOR REC: PLAY+ MEUXEXT POWER TFCARD start/stop recording To switch between recording and photographing Tap to enter menu Settings/exit to Power on/off to Zoom in the image0-36 to zoom out

Cewka

High quality fiberglass detection cable

Pay-off direction Take-up direction

Skrzynka komórkowa

Diagram of a scientific instrument setup with a device, yellow case, and probe connected by wires (no readable text or symbols)

Ładowanie

Batteries Wireless scales: 120 NMR (5V) = 62.4 V Batteries: LID: = 4 V Batteries: 0.0V = 3 V Battery REEDUSTR PowerLight

The red indicator means charging. The green indicator means finishing charging

Red handheld scientific instrument with a black cylindrical body and digital display (no visible text or symbols)

1. receiver base plate 2. receiver main board 3. Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Antenna Signal strength indicator Far / Near Mode Signal Sensitivity Value Far / Near Button Power:On/Off Connector (Removable) Battery indacation Increase Signal Sensitivity Value Reduce Signal Sensitivity Value 6PCS AA Battery Earphone Plugin Speaker Battery Cover

Procedura użycia

Person holding a red handheld device inside an open black and silver case (no visible text or symbols)

Diagram showing four steps of a red handheld device with battery polarity and charging mechanism, including hand positioning and charge distribution.

Close-up of a red handheld electronic device with a screwdriver inserted, showing internal components and a close-up view of its internal structure (no text or symbols visible)

Image showing a hand interacting with two red handheld devices, one displaying a digital display and the other displaying 'grrn-Eng' on its screen.

Diagram showing a red handheld device connected to a black cylindrical device with a downward arrow, indicating a process or transformation.

Diagram illustrating a sensor testing setup with two red handheld devices and a sensor probe, showing signal flow from sensor to ground.

Three red handheld devices: a small electronic device with a screw, a red handheld device with earphones and a digital display, and a black-and-white photo of its ear (no visible text or symbols)

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Pipe Inspection System Instruction Manual

Two scientific equipment setups: a red handheld device labeled 'Digital Sensor' and a black-and-white photo of an open display case with a yellow coiled cable.

Exploded view diagram of an electrical testing device with numbered parts for identification

Close-up of a metallic threaded pipe fitting (no text or symbols visible)

23mm

Close-up of a metallic cylindrical tool with black and white end caps (no visible text or symbols)

38mm

Close-up of a mechanical component with threaded shaft and flanged base (no visible text or symbols)

90mm

Productspecificatie

274mm 9 TFT COLOR MONITOR REC: PLAY+ MEN/EXIT > < POWER TP CARD start/stop recording To switch between recording and photographing Tap to enter menu Settings/exit to Power on/off to Zoom in the image0-36 to zoom out

Spoel

High quality fiberglass detection cable

Pay-off direction Take-up direction

Cellenbox

1. Monitor video

Diagram of a scientific instrument setup with a device, yellow coil, and monitor (no visible text or symbols)

Opladen

Batteries Wireless scales: 120 NMR (5V) = 62.4 V Batteries: LID: = 40 Batteries: C5V: = 3 Battery REEDUSTR PowerLight

The red indicator means charging. The green indicator means finishing charging

Productcomponenten en accessoires

PRODUCT COMPONENTS

VEVOR 512 Hz PIJPLOCATOR

GEBRUIKERSHANDLEIDING

Red handheld scientific instrument with a black cylindrical body and digital display (no visible text or symbols)

1. receiver base plate 2. receiver main board 3. Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Antenna Signal strength indicator Far / Near Mode Signal Sensitivity Value Far / Near Button Power:On/Off Connector (Removable) Battery indacation Increase Signal Sensitivity Value Reduce Signal Sensitivity Value Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Person holding a red handheld device inside an open black and silver case (no visible text or symbols)

Diagram illustrating the process of battery charging and discharging using a red handheld device, showing step-by-step states and battery arrangement.

Red handheld electronic device with a screwdriver and mechanical components, shown from two different angles (no text or symbols visible)

Image showing a red handheld device with a digital display and control buttons, one being adjusted to press the button.

Diagram showing a red handheld device connected to a black-and-white segmented component, with a red arrow indicating the process.

Diagram showing two red handheld devices connected to a sensor with signal waves, illustrating the process of monitoring or sensing.

Three red handheld devices: a small tool, a portable device with sound waves, and a digital stopwatch (no visible text or symbols)

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Pipe Inspection System Instruction Manual

Two scientific equipment setups: a red handheld device labeled 'Digital Sensor' and a black-and-white photo of an open display case with a yellow coiled cable.

Exploded view diagram of an electrical testing device with numbered parts for identification

Close-up of a metallic threaded pipe fitting (no text or symbols visible)

23mm

Close-up of a metallic cylindrical tool with black and white ends (no visible text or symbols)

38mm

Close-up of a mechanical component with threaded shaft and flanged base (no visible text or symbols)

90mm

Produktspecifikation

274mm 9 TFT COLOR MONITOR REC: PLAY+ MEN/EXIT > C POWER TF CARD start/stop recording To switch between recording and photographing Tap to enter menu Settings/exit to Power on/off to Zoom in the image0-36 to zoom out

Spole

High quality fiberglass detection cable

Pay-off direction Take-up direction

Cellbox

64.Övervaka video

65.Skärmens kraft

66.En intilliggande spolplugg

67.AV-utgång

68.Batteriindikator

Diagram of a scientific instrument setup with a sensor, coil, and display unit (no text or symbols visible)

Laddning

The red indicator means charging. The green indicator means finishing charging

Red handheld scientific instrument with a black cylindrical body and digital display (no visible text or symbols)

1. receiver base plate 2. receiver main board 3. Earphone Plugin Speaker Battery Cover 6PCS AA Battery

1. Säkerhetsinformation

Antenna Signal strength indicator Far / Near Mode Signal Sensitivity Value Far / Near Button Power:On/Off Connector (Removable) Battery indacation Increase Signal Sensitivity Value Reduce Signal Sensitivity Value Earphone Plugin Speaker Battery Cover 6PCS AA Battery

Person holding a red handheld device inside an open metal case (no visible text or symbols)

Diagram illustrating the process of battery charging and discharging using a red handheld device, showing step-by-step states and battery arrangement.

Red handheld electronic device with a screwdriver and mechanical components, shown from two different angles (no text or symbols visible)

Read For good-bay

Diagram showing a red handheld device connected to a black-and-white segmented device, with a red arrow indicating the process.

Diagram showing two red handheld devices with digital display and signal detection, illustrating a wireless signal transmission process.

Three red handheld devices: a hand pin on a small component, a gas vent device with ventilation, and a digital pressure meter (no visible text or symbols)

5. Vanliga frågor

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
