USER MANUAL WP9613FT Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Pipe Inspection System

Model: WP9613FT

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us on represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminit to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Pipe Inspection System Instruction Manual

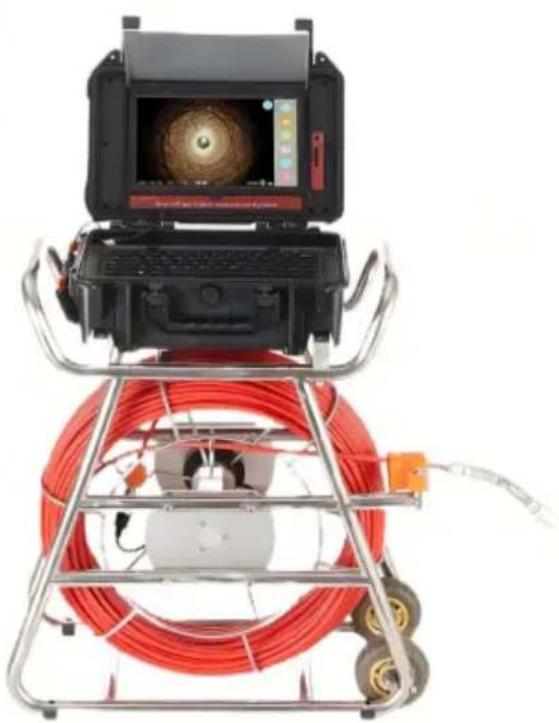

Exterior view of a scientific instrument with red cables and a mounted display (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to us: Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Please read this manual carefully before use!

Attentions

1. Please read the manual carefully before using it.
2. Handle it carefully during operation, avoid throwing down or pressing it he
3. If the users disassemble or deliberately damage the machine, it will beyon warranty.
4. Please keep distance from the system when charging
5. After being used, turn off the display and pull out all the connection joint
6. Due to the version upgrades, if mentioned in this manual content does not accord with your machine, please refer to our machine.

Description

1. 10.1" Color TFT LCD Screen.
2. High resolution camera, clear picture
3. Video taking and photo function
4. Support keyboard input
5. With meter counting function, the depth of the camera into the pipe can shown on the display
6. One-button start
7. Super bright white LED adjustable
8. Waterproof durable suitcase
9. High quality special cable, waterproof and anti-corrosion/cold/tensile.
10. 12V4500MA lithium battery.
11. The lights can on/off.night lights adjustable.
12. Range of Application: Water-supply pipe / Air-conditioner pipe / Cable pipe Pipeline vacuum system / PLUNBIN pipe / Buildings / Sunken pipe
13. Cable diameter: 7mm
14. Camera: 512Hz Self-Leveling

Product Specification

Item:	parameter
Charger:	AC100-240V DC12.6V
Battery:	Lithium battery 12V
Continuous use time for battery:	Approximate 6h
Investigation depth:	100m
Material:	Fiber tube with /high intensi
Camera light source:	With high while light
Camera material:	Stainless steel
Menu languages	Multi-language
Camera picture:	Color

Instruction for Product

product manual

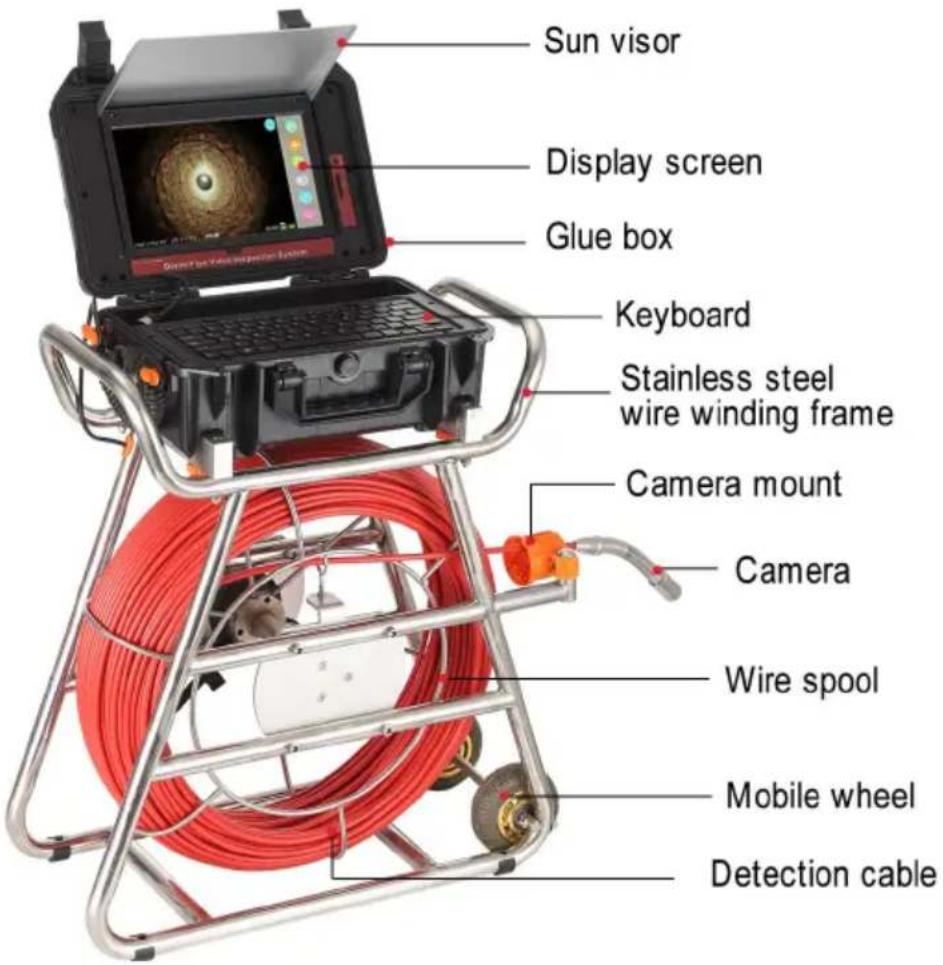

Sun visor Display screen Glue box Keyboard Stainless steel wire winding frame Camera mount Camera Wire spool Mobile wheel Detection cable

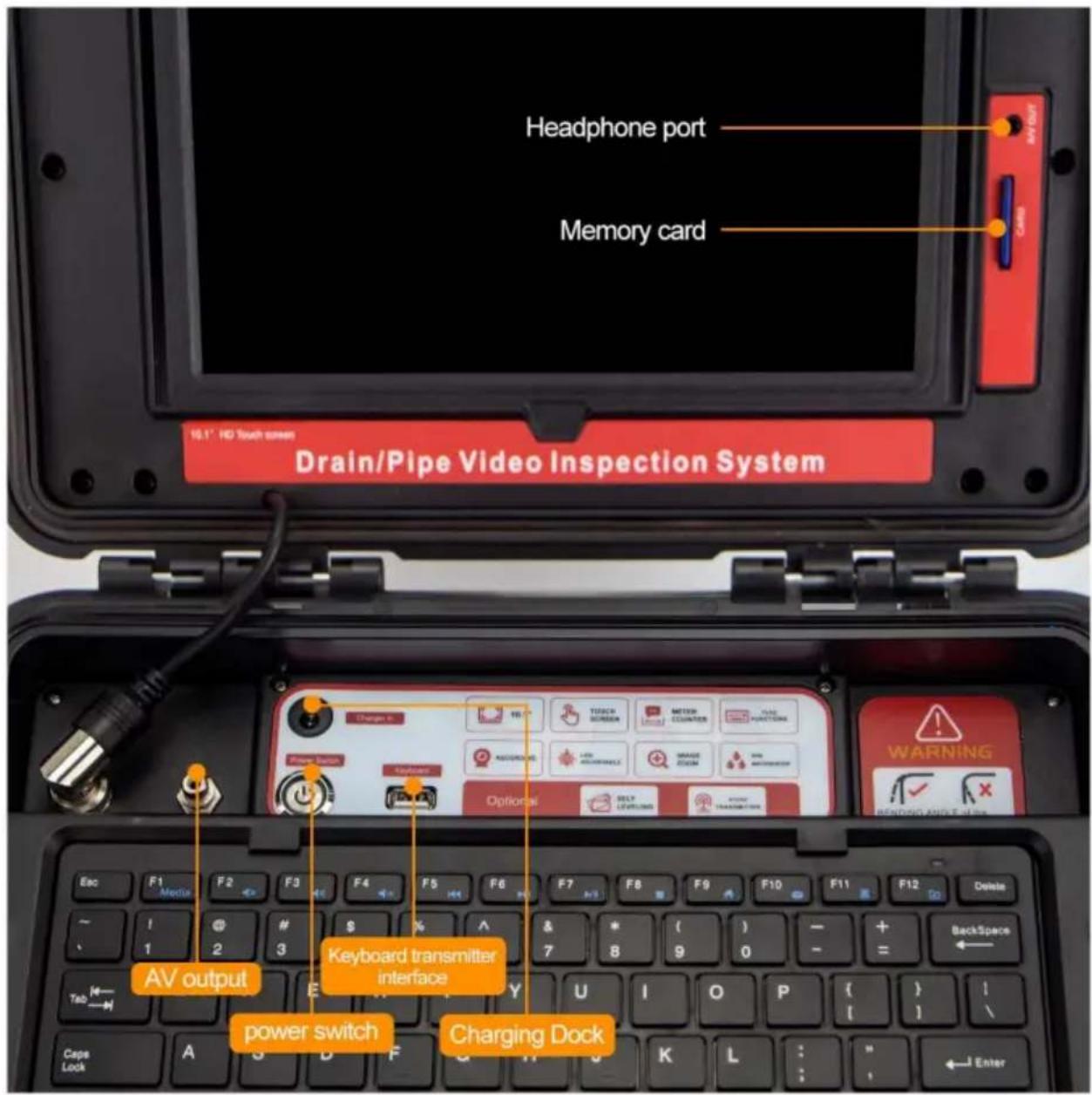

Headphone port Memory card 10.1" HD Touch screen Drain/Pipe Video Inspection System AV OUT WARNING AV output Keyboard transmitter interface power switch Charging Dock

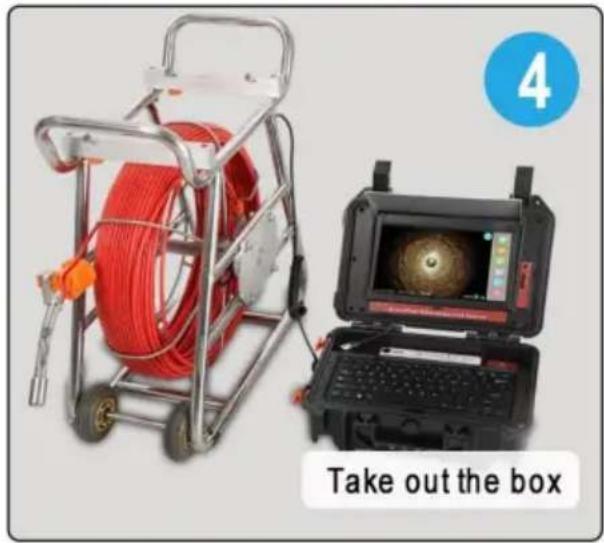

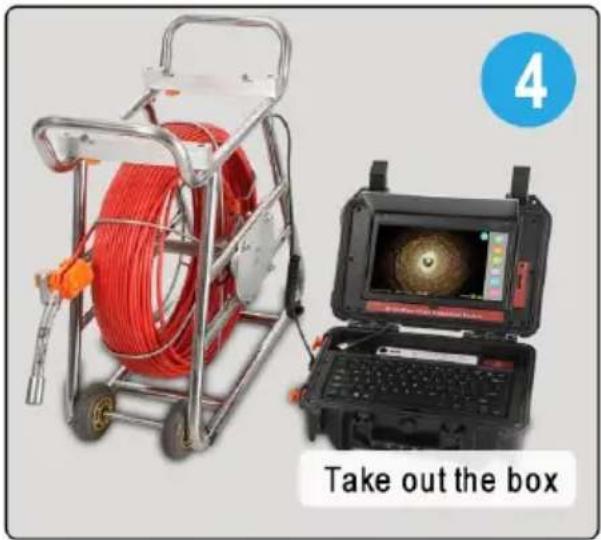

Plastic box disassembly method

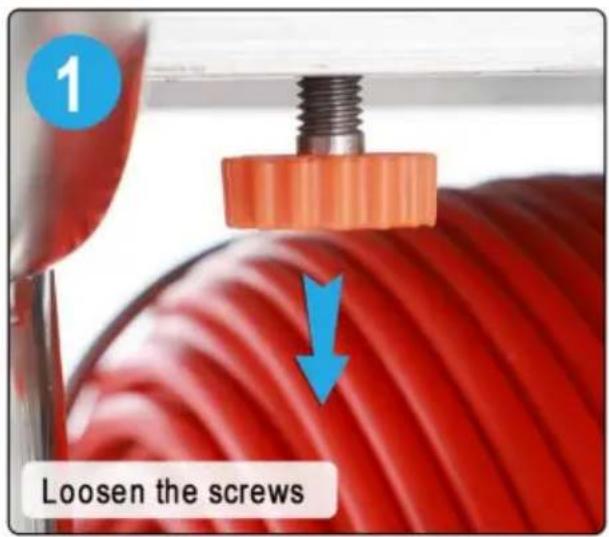

1 Loosen the screws

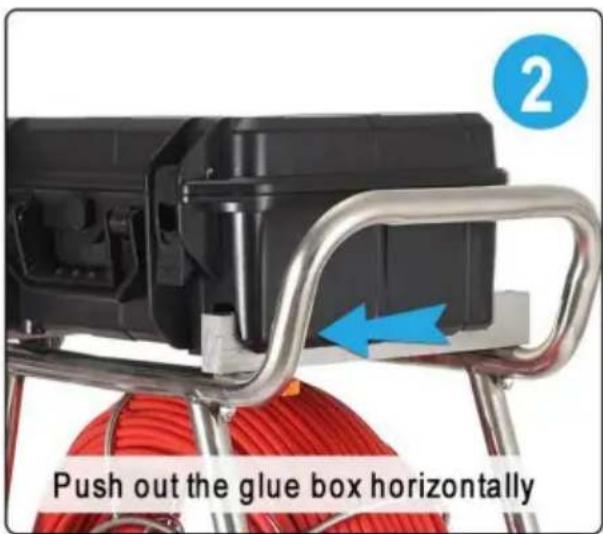

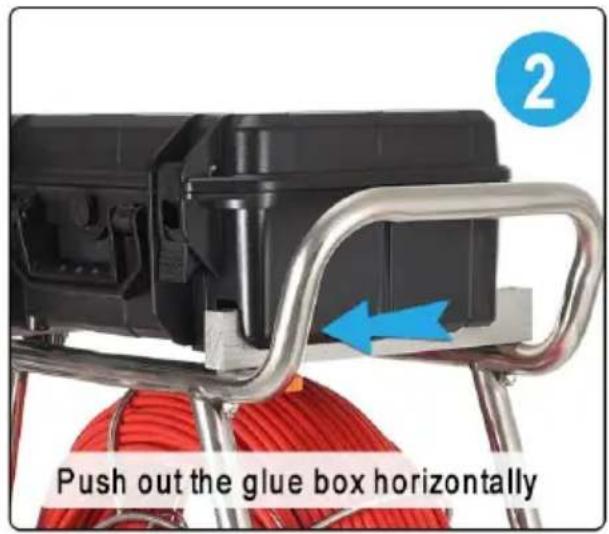

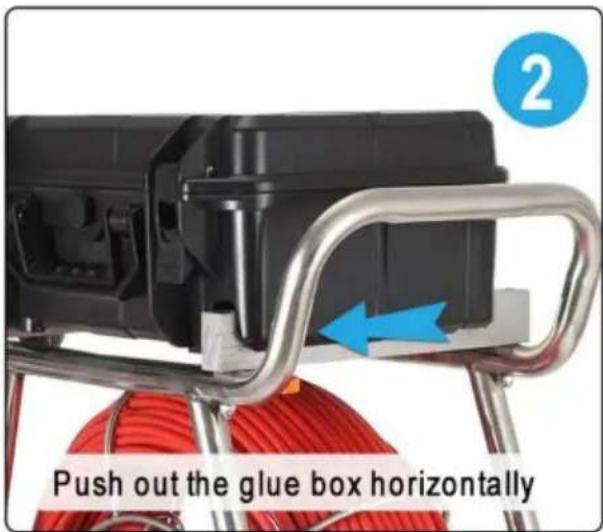

2 Push out the glue box horizontally

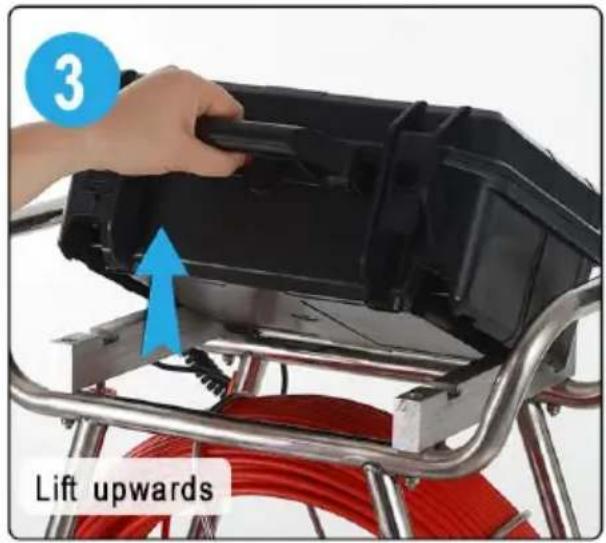

3 Lift upwards

Two equipment cases: a metal rack with red cable and a black-and-white photo of a scuba device (no visible text or symbols)

Camera

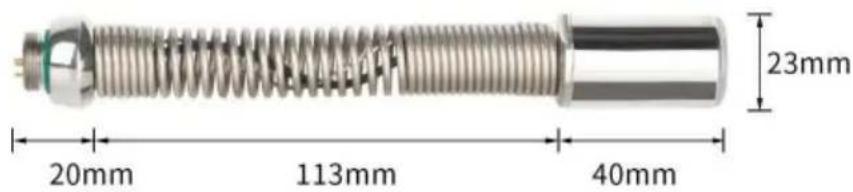

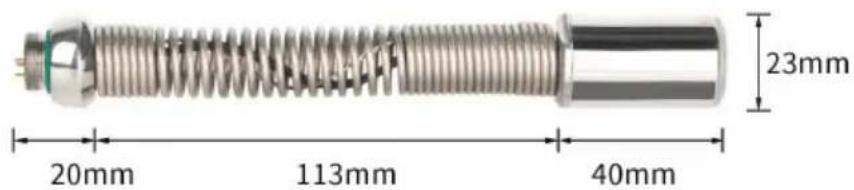

20mm 113mm 40mm 23mm

Metal cylindrical mechanical component with threaded end (no text or symbols visible)

23mm

Close-up of a metallic cylindrical tool with black and white end caps (no text or symbols visible)

38mm

Close-up of a mechanical pulley or lever component (no visible text or symbols)

90mm

Product Specification

Item:	parameter
Camera diameter:	23mm
With the tube diameter:	>25mm
Camera light source:	12 LED with high while light(adjust
Camera working voltage:	5V
Lights working voltage:	12V
Camera assist function:	self-balancing
Camera assist function:	512Hz
Water proof:	IP68
Camera material:	stainless steel
Camera size:	23mm
Camera protective cover parts material:	plastic-steel
Camera protective cover parts size:	29mm* 40mm
Camera protective cover parts size:	40mm* 90mm

Monitor

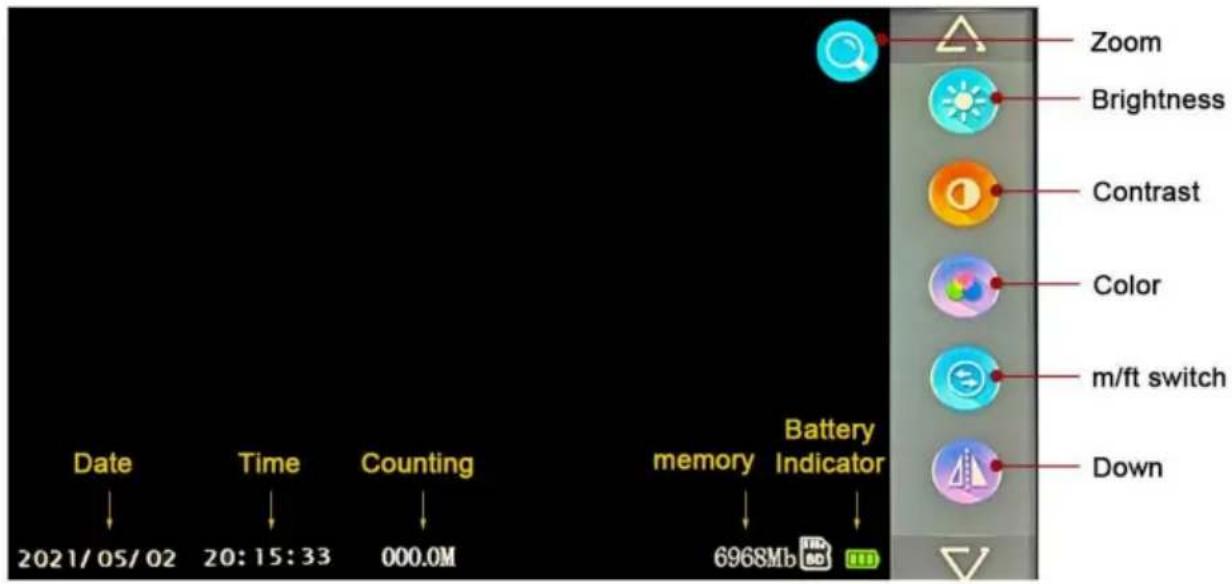

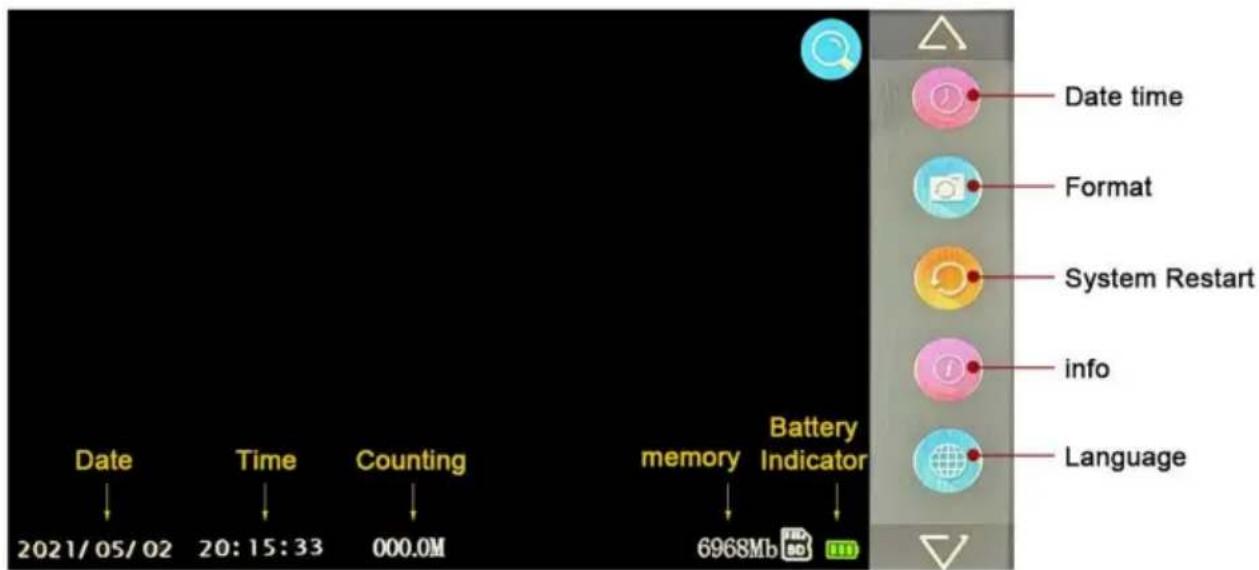

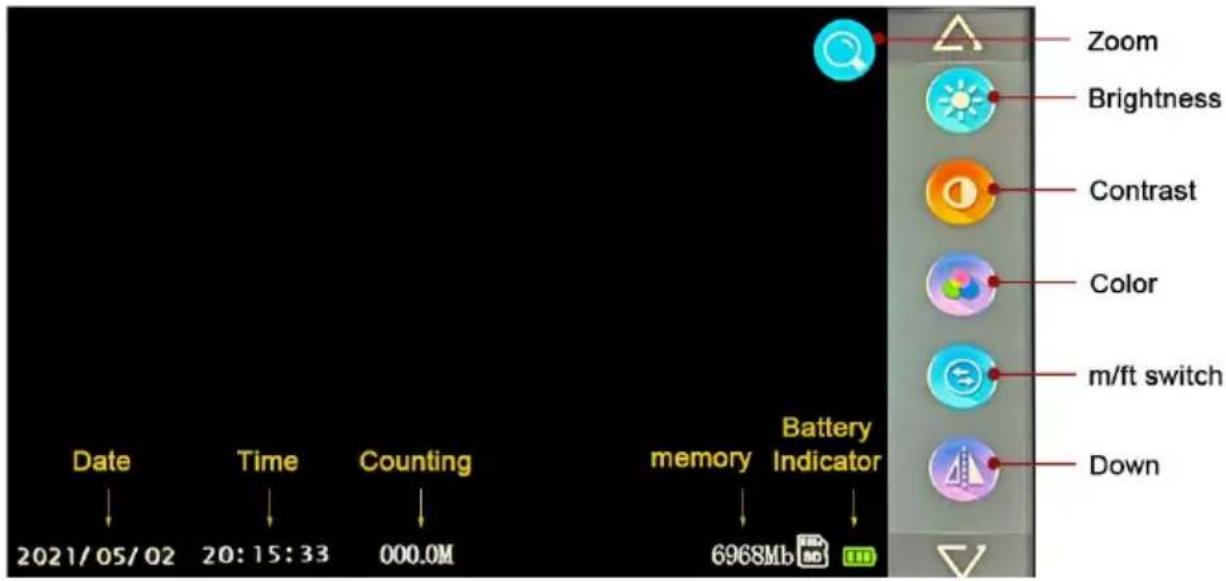

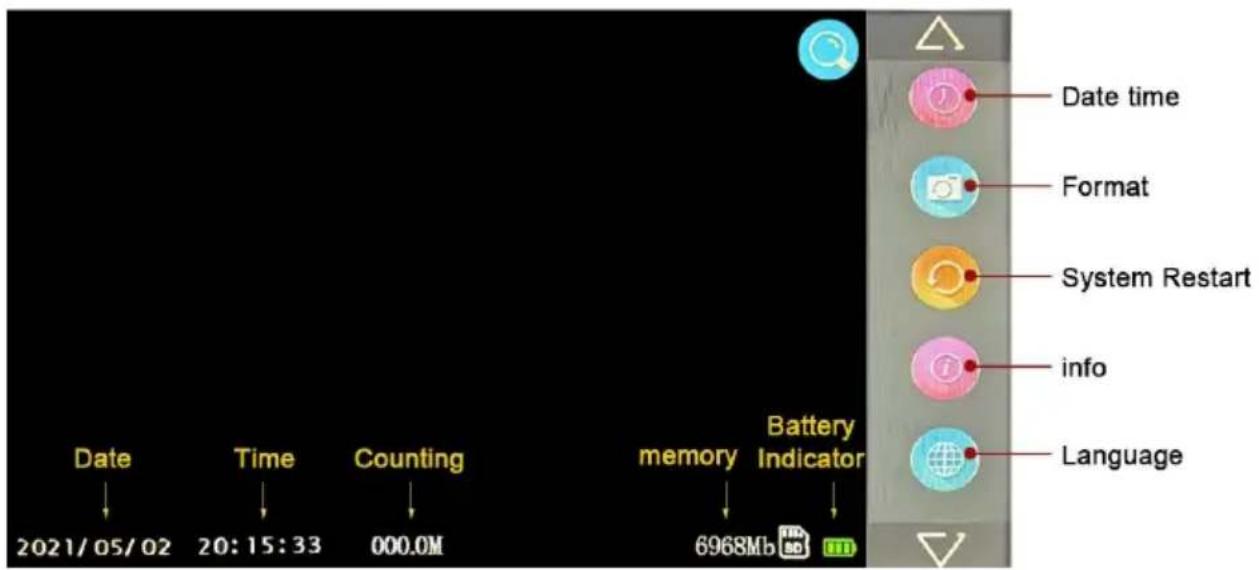

Zoom Date 2021/05/02 Time 20:15:33 Counting 000.0M memory Battery Indicator 6968Mb Photo Record Menu LED Adjustment Counter Clear Replay

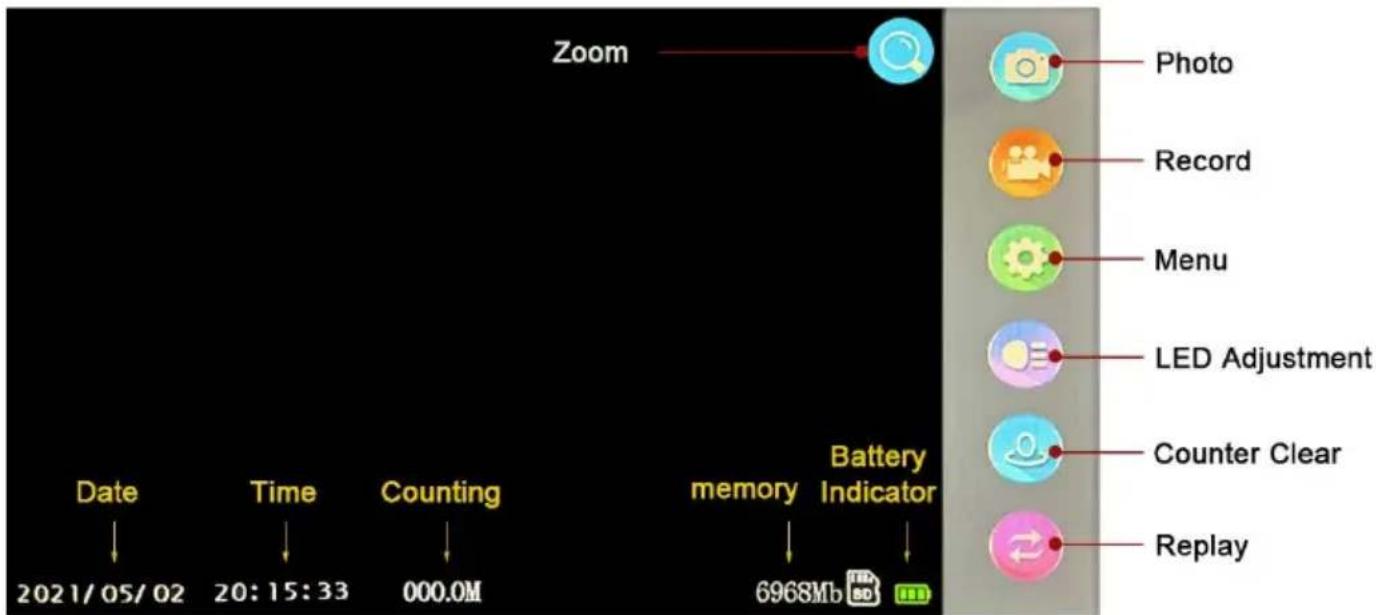

Date 2021/05/02 Time 20:15:33 Counting 000.0M memory Battery Indicator 6968Mb Zoom Brightness Contrast Color m/ft switch Down

Date 2021/05/02 Time 20:15:33 Counting 000.0M memory Battery Indicator 6968Mb Date time Format System Restart info Language

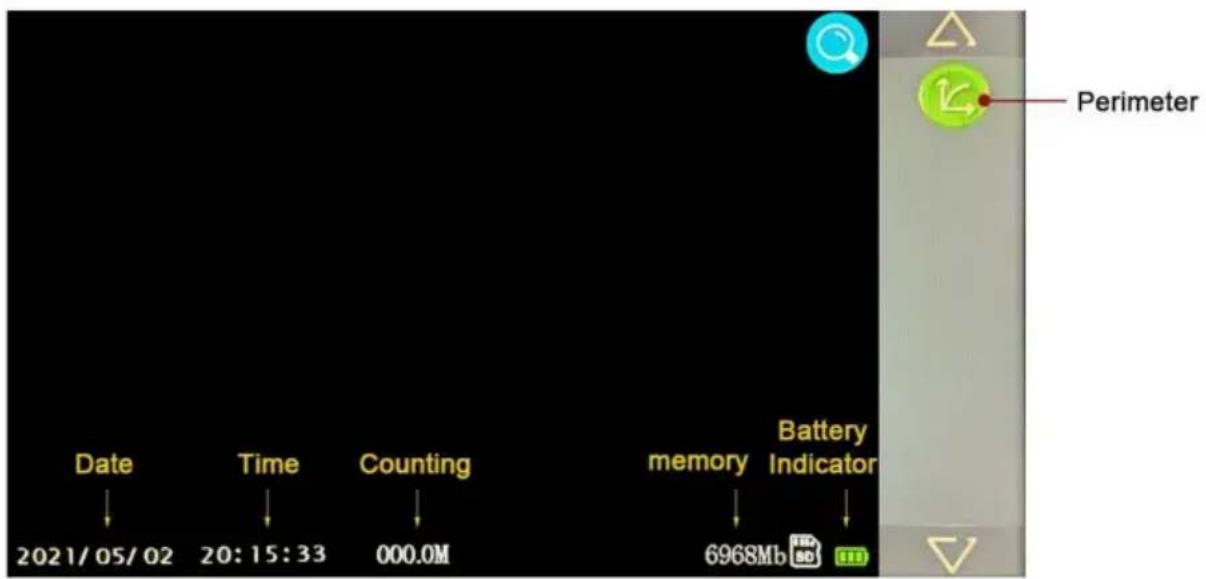

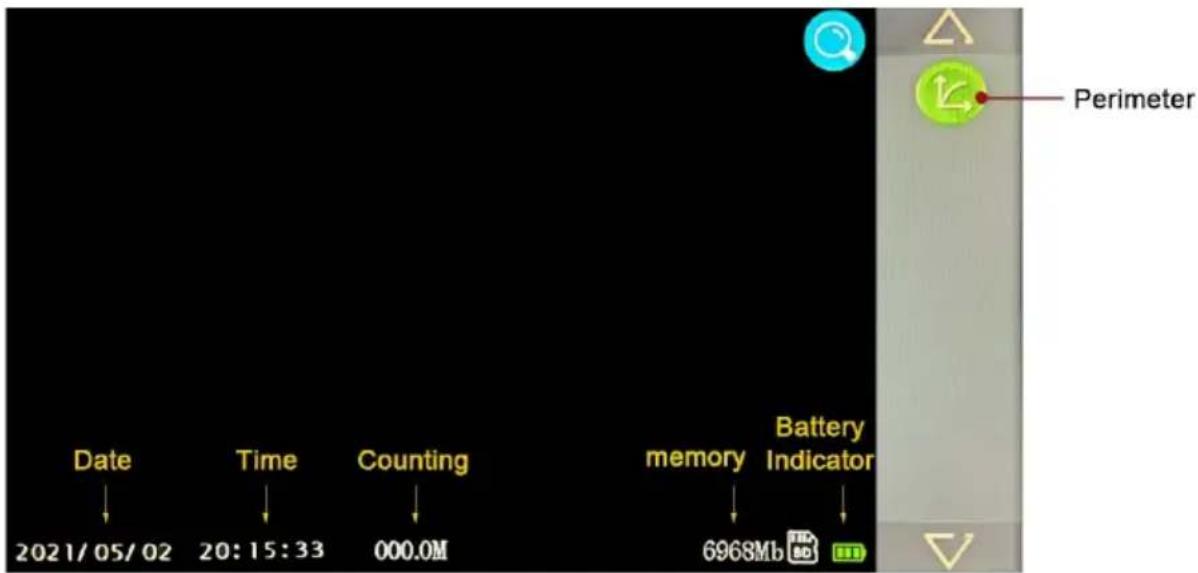

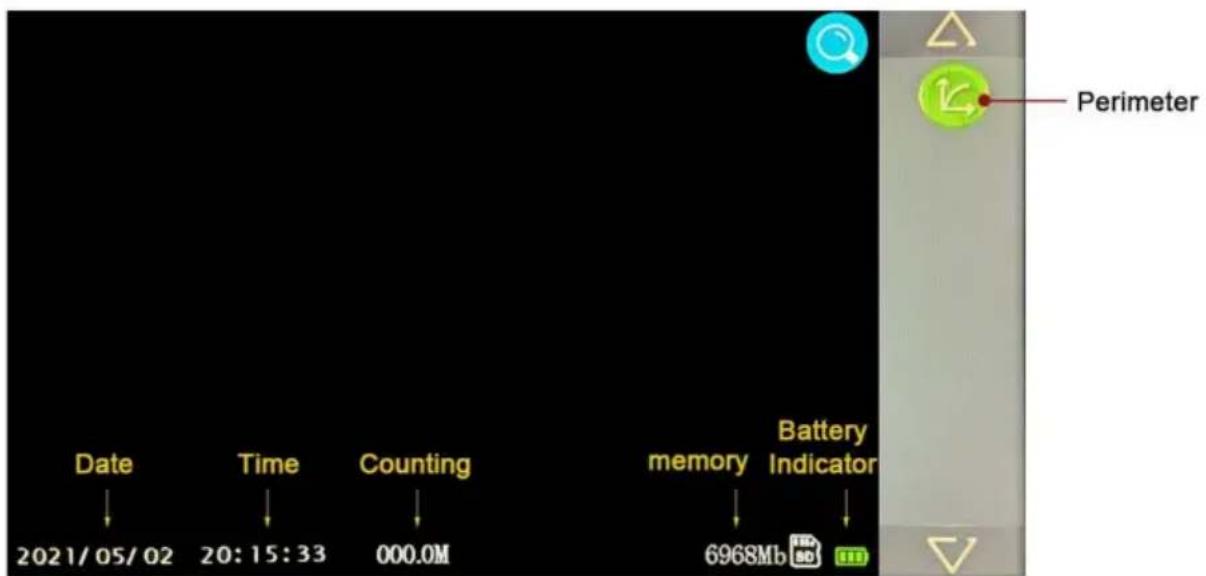

Perimeter Date Time Counting memory Battery Indicator 2021/05/02 20:15:33 000.0M 6968Mb

Coil

High quality fiberglass detection cable

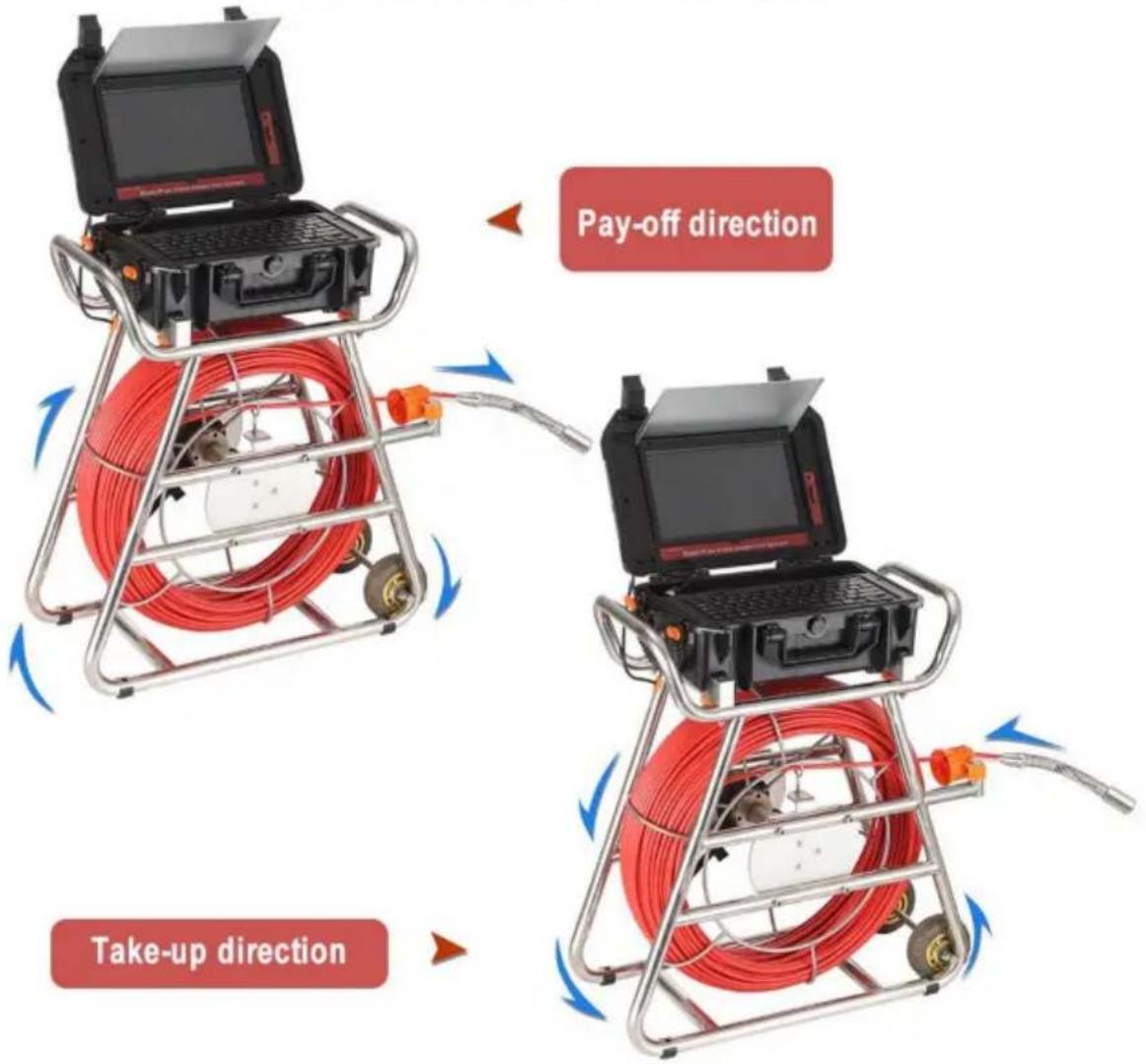

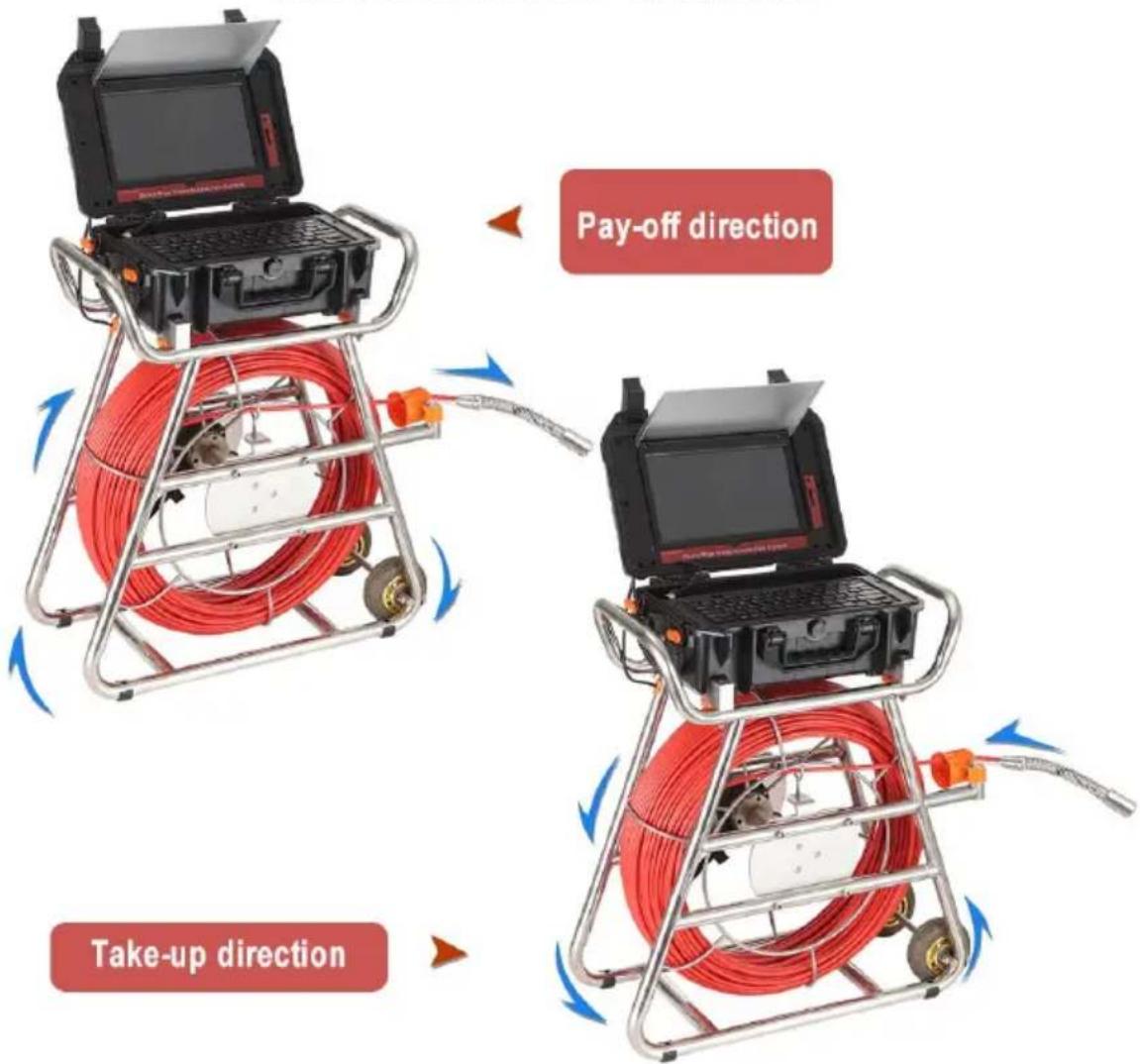

Pay-off direction Take-up direction

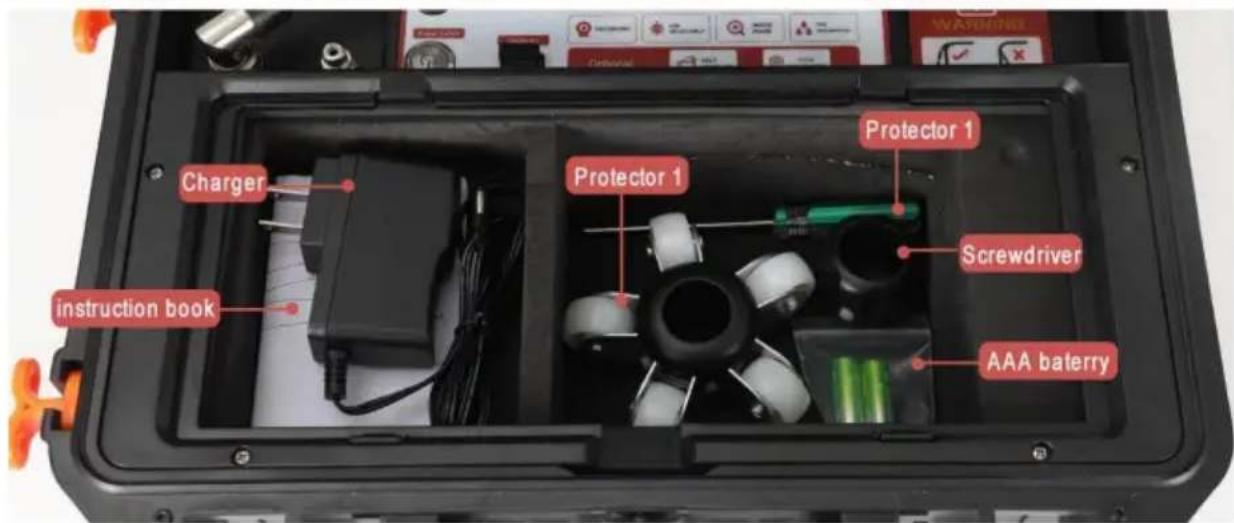

Product accessories

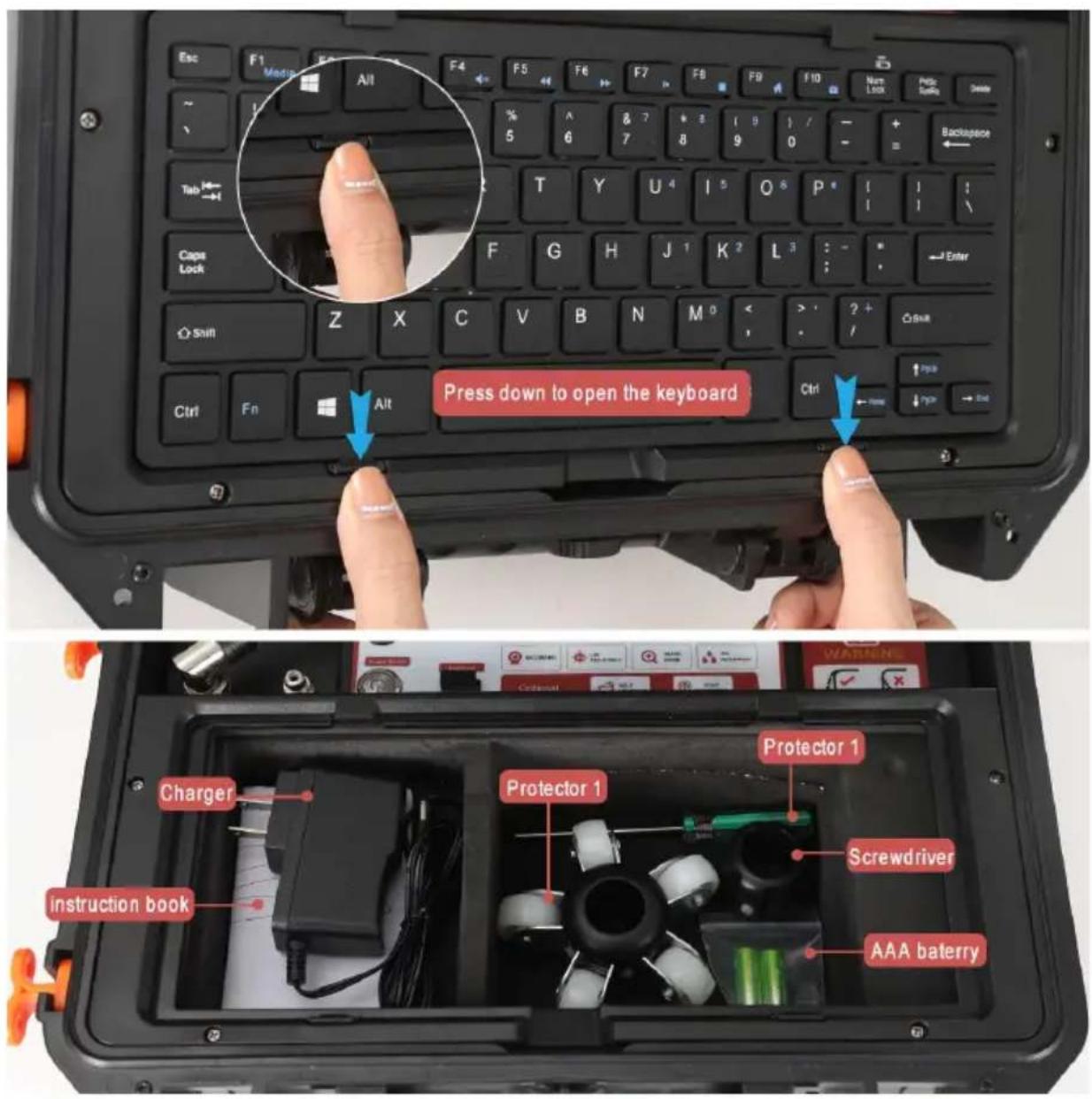

Esc F1 Media All F4 F5 F6 F7 F8 F9 F10 Num Lock Prep Tube Tab → ← Caps Lock Shift Z X C V B N M 0 < ? + Ctrl Ctrl Fn Alt Ctrl ← Home → End Press down to open the keyboard Charger instruction book Protector 1 Protector 1 Screwdriver AAA baterry

System Installation

1. Vital: turn off the power switch, connect the video camera and the motor or the video camera and the monitor may be damaged.
2. Connect camera -coil -cell box -monitor (Pic)
3. Turn on the power switch in the power box, the indicator light on the is on, the switchboard starts.
4. Install the video camera with the protective cover slightly and put it in pipe, rotate coil to proper depth.
5. Adjust LED light degree adjuster to proper light degree.

For videotape, refer to the DVR operation details (display operation:Record Type)

1. Switch video to another large screen through video line.

2. After utilization, mover the camera from the pipe carefully, take clean, and dry cloth to clear up it and put it back.

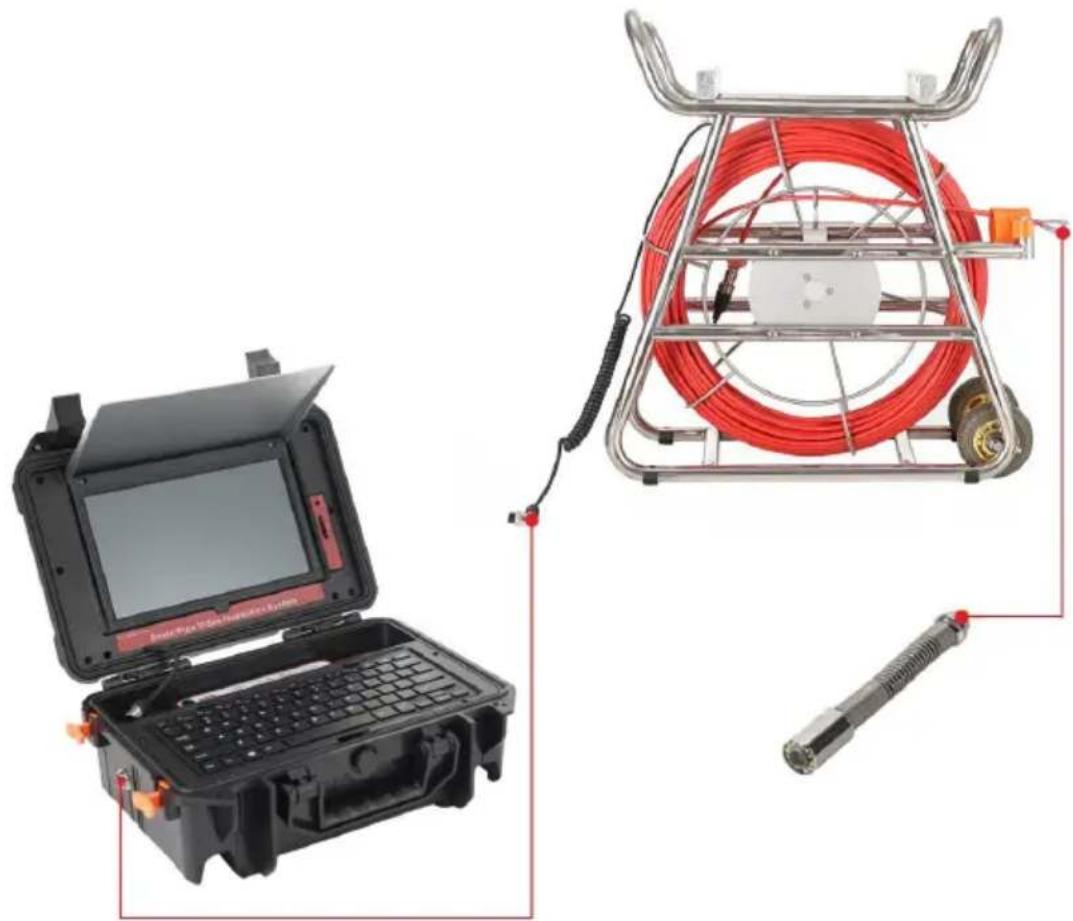

Product connection

Two electronic equipment cases: a laptop open and a coiled red cable inside a metal rack (no visible text or symbols)

Charging

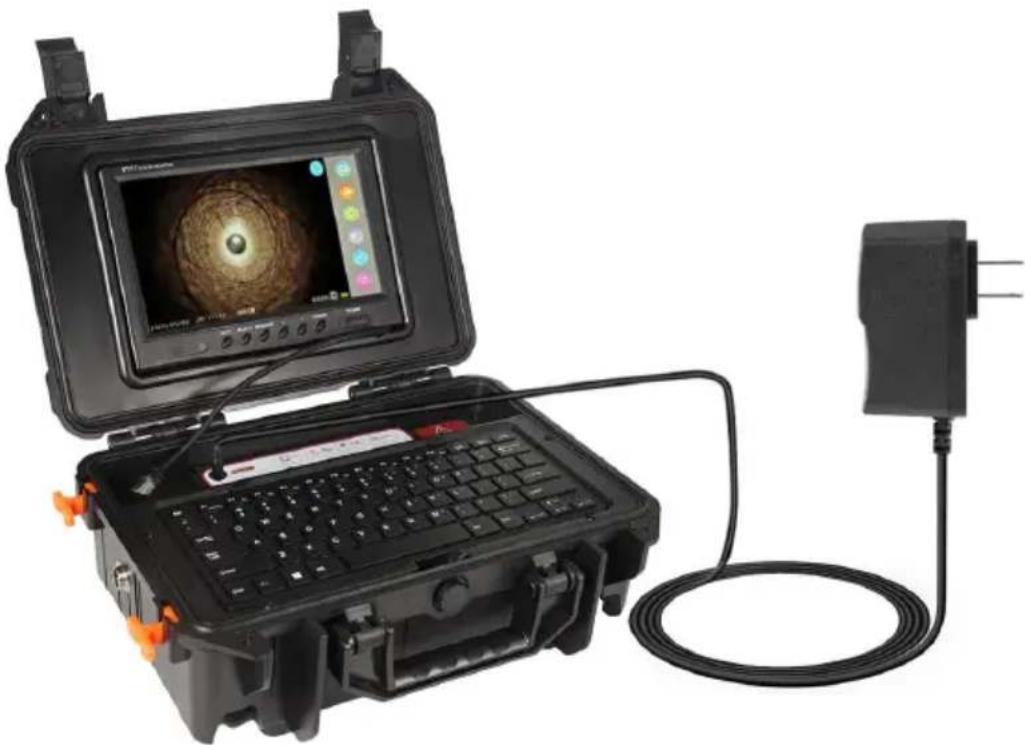

When the battery power is low, it needs charging, and the method is as

1. Take out the charger from the box.
2. Connect the charger to the battery.
3. Connect the charger to the alternating current of 100-240v. The red indicator means charging.
4. The green indicator means finishing charging.

Notes: to make sure the battery using age longer, please recharge it time otherwise, it will make it can not recharged.

Battery recharge

12V 4500mah Super Hiht Capacity battery

Exterior view of a portable electronic device with a central display and connected cable (no visible text or symbols)

The red indicator means charging. The green indicator means finishing charging

Product components and accessories

Product Components

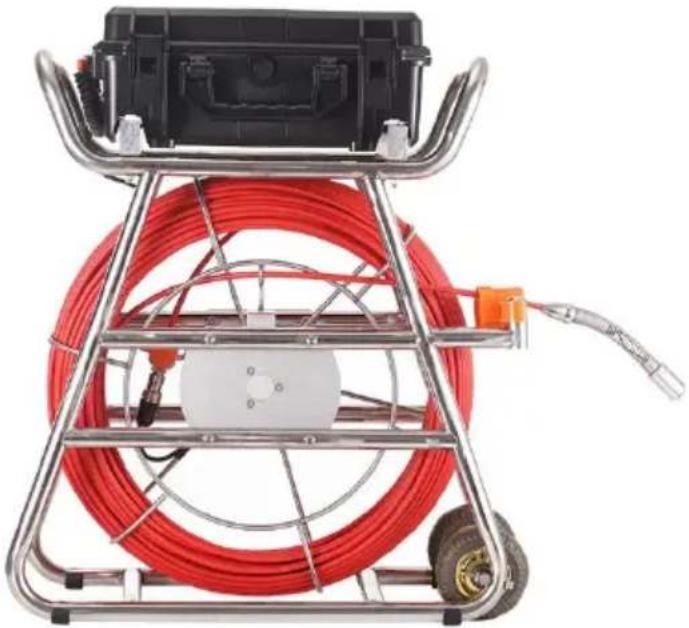

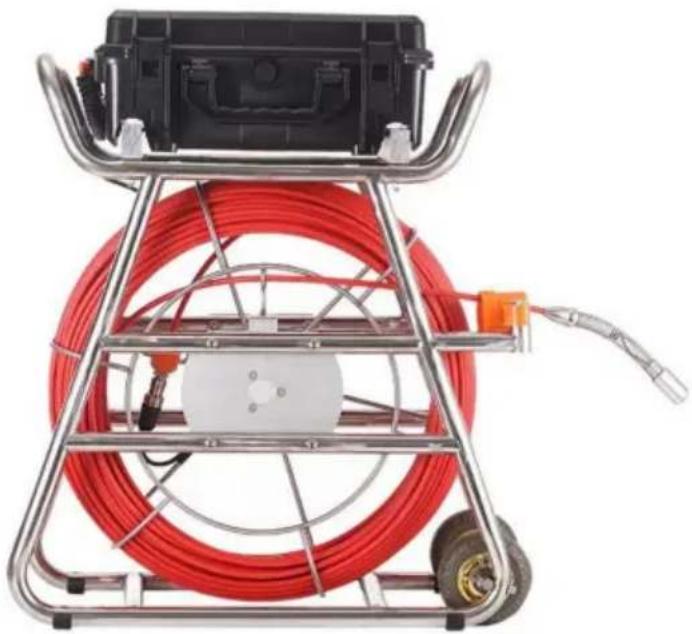

Exterior view of a mechanical testing rig with red coiled cable and attached control panel (no text or symbols visible)

Close-up of a metallic threaded pipe fitting (no text or symbols visible)

Camera

Front view of a black laptop with a red label, shown from front and back (no visible text or symbols on the device body)

TFT LCD Screen

Close-up of red diagonal striped fabric texture (no text or symbols)

Detection cable

Exterior view of a wire rack with red cable and metal frame (no text or symbols visible)

Wire rack wheel

User Manual

instruction book

Close-up of a mechanical component with six blades radiating from a central black ring (no text or symbols visible)

Protector 1

Black gear icon on white background (no text or symbols)

Protector 2

Black-and-white photo of a connected power adapter with cable (no text or symbols visible)

Charger

Black computer keyboard with standard keys and a small white screw (no visible text or labels)

keyboard

Green screwdriver with a green handle and metal shaft (no text or symbols visible)

Screwdriver

Pipe Failure Analysis

1. Ensure that each interface is properly connected during installation.
2. During the installation process, when a blue screen appears, means that the camera, battery box and display screen are not connected successfully

①Check whether the camera is loose, and tighten the camera.
②Check whether the camera video cable is in full contact with the batter
③ Check whether the video cable of the display screen and the power are in

complete contact.

1. During use, pay attention to charging in time when the battery power shows the last grid of power to prevent the battery from being lost and to be charged.
2. The cable should not be knotted when used, and the cable should not be bent

less than 90°.

1. Do not drop the product violently to prevent the cable from being bro
2. Please turn off the power before removing and inserting the memory ca

Failure analysis	Fault reasons and precautions
Blue screen	Check if camera connector is loose, and if it is loose, caused poor contact.Check if cable and power supply connectedCheck if monitor is connected with power sur normally.Check if cable is broken.Check if there is water leak to the front of camera or if camera is damaged.When using the camera, put on the protective first, protect camera not to collide with hard obj and damage, cause unable to display images
LED light not on	Read the manual to get the correct way tothe light.2. check if there is water in the camera, the v damage the camera LED.
No Power	1. Check if battery is fully charged.2. Check if display screen is damaged.3. check the power box and screen connecting, sure it is right.
Cannot format	1. The memory card is damaged. Replace the memory card.
Unable to charge	1. Check if charging port is with foreign matters deformation.2. Check whether the charger is damaged.3. If the power is too low, it should be charge to prevent the battery loss and unable to charge
Photo/video cannot be saved	1. Check if memory card is damaged. Replace memory card,.2. Check if memory card slot with foreign object deformation.
Broken cable	1. It is recommended to use the cable on pipe diameter ≥ 60mm. Pay attention to the force of pushing the cable to avoid breaking cable.2. This product is only used for pipeline detection inspection, and cannot be used for other purposes
Cable knotting	1. When retracting and releasing cables, the cable can not be crossed and knotted, and the bending of cables should not be less than 90 degrees2. When retracting the cable, pay attention to the orderly retract with the rotating iron frame, and use it violently
Equipment cleaning	1. When cleaning the equipment, turn off the pole before cleaning to avoid damage to the equipment
Note	If the fault cannot be solved, do not disassembled user. Please contact the after-sales service team
