USER MANUAL 38.4 Li HM comfort AL-KO

Line drawing of a lawn mower with attached ladder and wheels (no text or symbols)

Inhaltsverzeichnis

Deutsch 8

English....22

Nederlands 35

Français....49

Español 64

Italiano....79

Slovenščina 93

Hrvatski....107

Српски....120

Polski....135

Česky 150

Slovenská 164

Magyar 178

Dansk 192

Svensk....205

Norsk 218

Suomi 231

Eesti 244

Lietuvių 257

Latviešu 271

Român 285

български 299

Русский 315

Україна....331

© 2024

AL-KO KOBER GROUP Kötz, Germany

This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.

01 ① ② ③ ④ ⑦ ⑤ ⑨* ⑧ CLICK ⑥ *: Option 113868

02 ① ② 3 ④ ⑤ ⑥ 7 ⑧ ⑨ 10 ⑪

* Not included, option 113868

12* 15* 13* 14*

03 a b a b

04 a b c a b c

05 b a c c a b

06

07 CLICK b ① ③ a ② ① Option 113868

08 ② ① Option 113868

09 a 1 b 2

10 ① ② ③ ④ a b

11 ① ② ③ b a

12 ① ②

13 ① 4 mm ② ③

14 ① ② ③ a

38.4 Li HM comfort

114034 (appliance) 114035 (set)

(110 × 94 × 55) cm

11,8 kg

38 cm

14 – 38 mm

890 min ^-1

L_pA = 75dB(A),K = 3dB(A)

L_wA = 88 ~dB(A), K = 4,8 ~dB(A)

0,4m / s^2 K = 1,5m / s^2

0^ C - + 45^ C

-20^ - + 50^

ca. 50 l*

1 About these operating instructions...... 22

1.1 Symbols on the title page 23
1.2 Legends and signal words...... 23

2 Product description 23

2.1 Designated use.... 23
2.2 Possible foreseeable misuse.... 23
2.3 Residual risks ...... 23
2.4 Safety and protective devices...... 23
2.5 Symbols on the appliance.... 24
2.6 Product overview (01).... 24
2.7 Scope of supply (02).... 24

3 Safety instructions.... 25

3.1 General Power Tool Safety Warnings 25

3.1.1 Work area safety 25
3.1.2 Electrical safety 25
3.1.3 Personal safety.... 25
3.1.4 Power tool use and care.... 25
3.1.5 Battery tool use and care 26
3.1.6 Service 26
3.2 Lawnmower safety warnings ..... 26
3.3 Vibration load.... 27
3.4 Noise pollution 28
3.5 Safety notes for rechargeable battery and charger.... 28

4 Installation.... 28

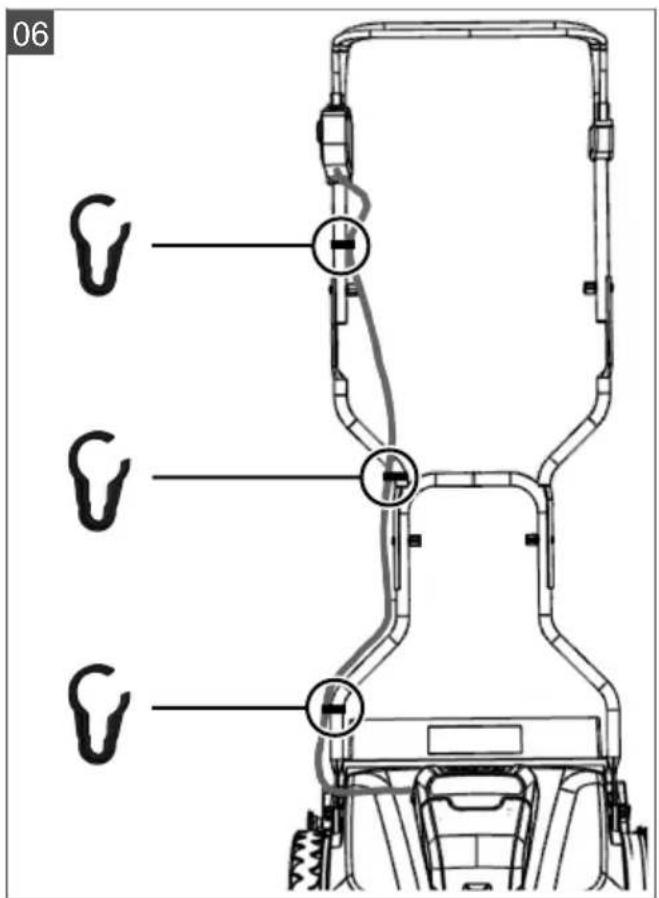

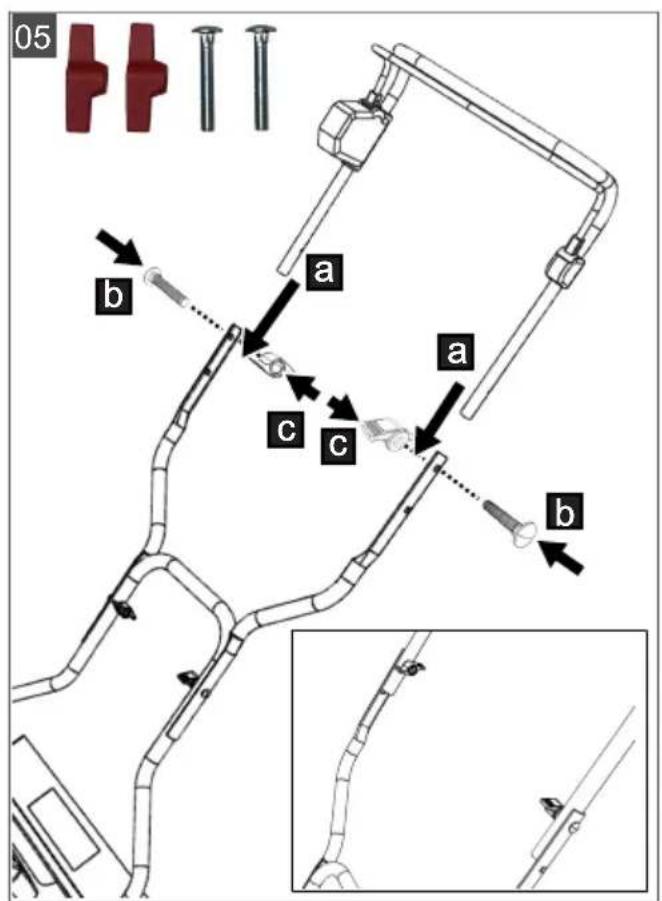

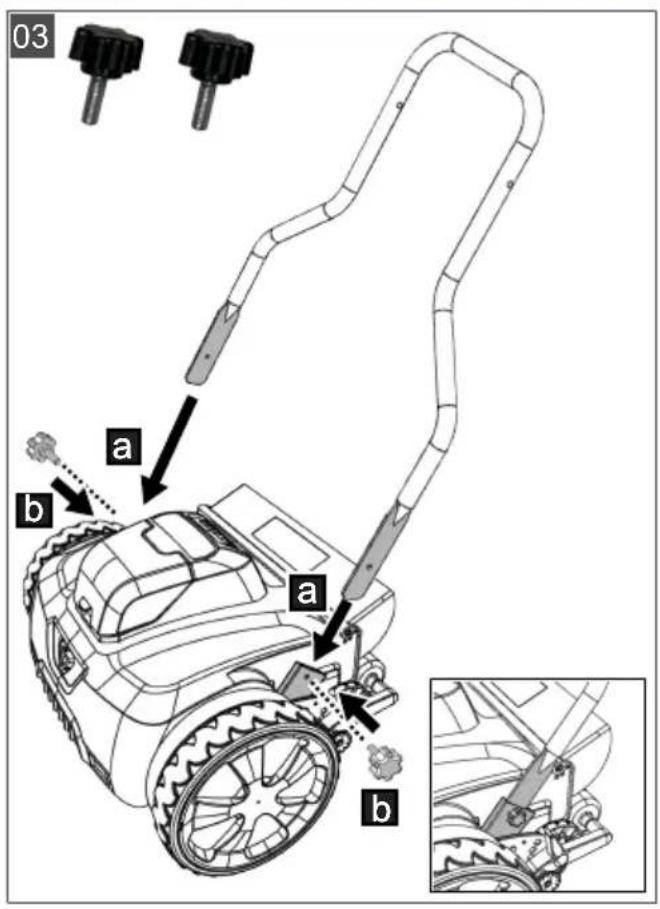

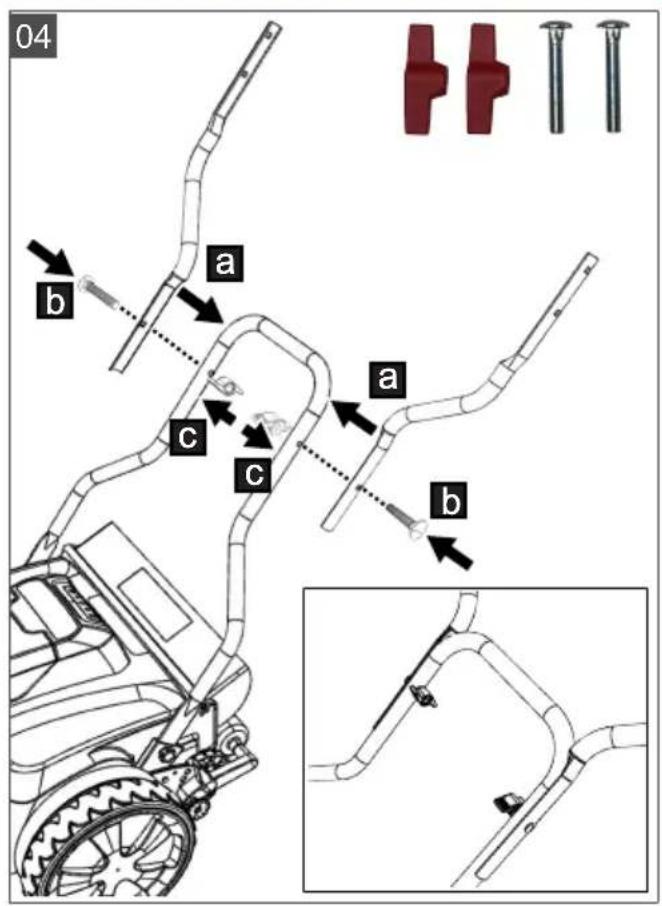

4.1 Assembling the cylinder mower (03 - 06)....28

5 Start-up 28

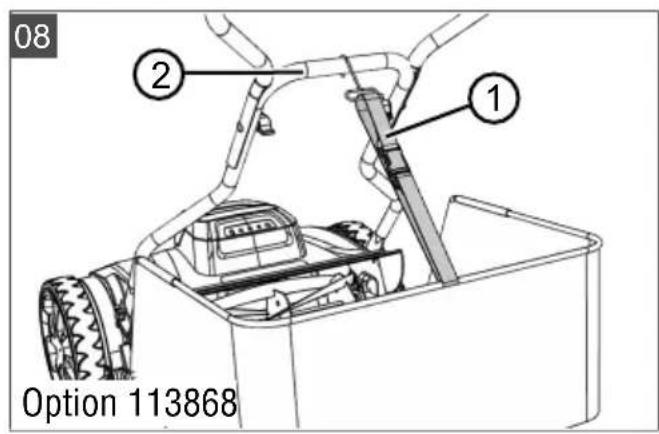

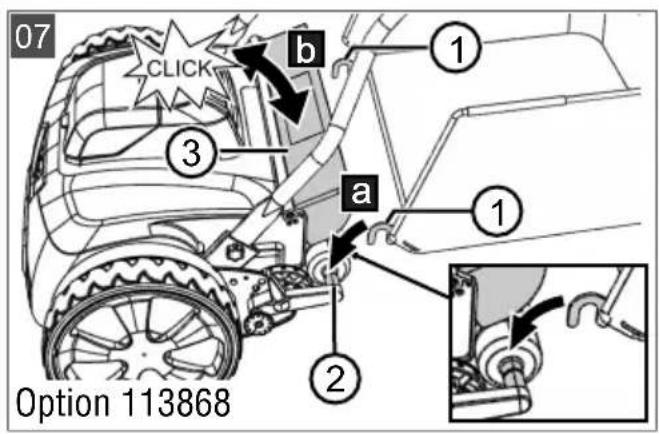

5.1 Mowing with grass collector* (07, 08) 28
5.2 Charging the rechargeable battery .... 29

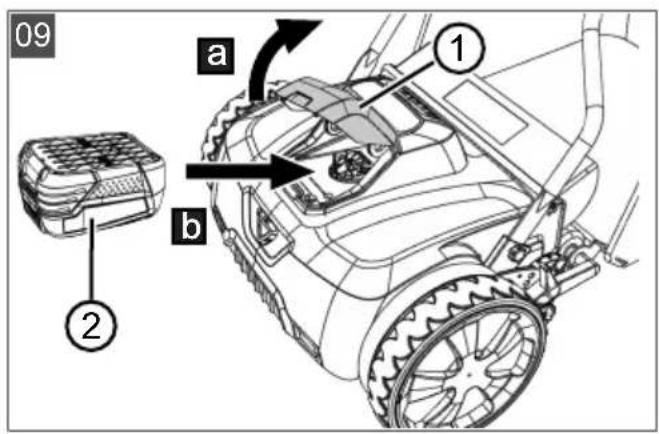

5.3 Fitting and removing the battery (09). 29

6 Operation 29

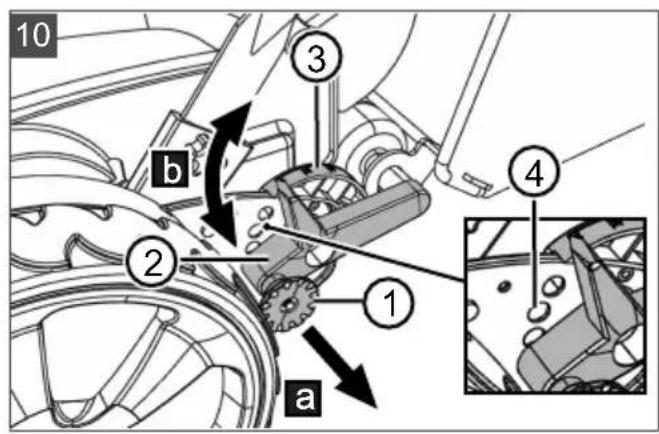

6.1 Setting the cutting height (10)...... 29

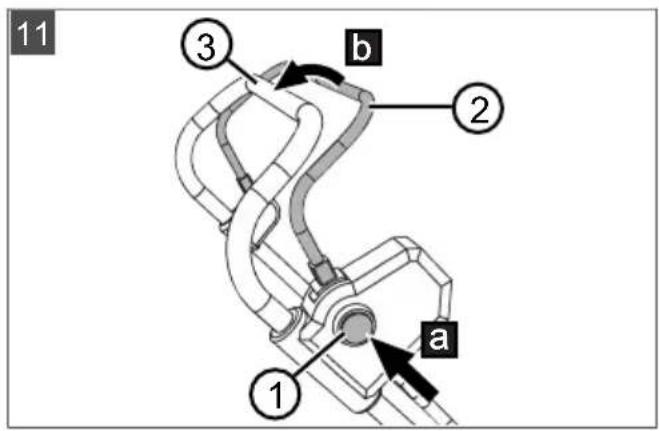

6.2 Starting and stopping the mower mechanism (11).... 29

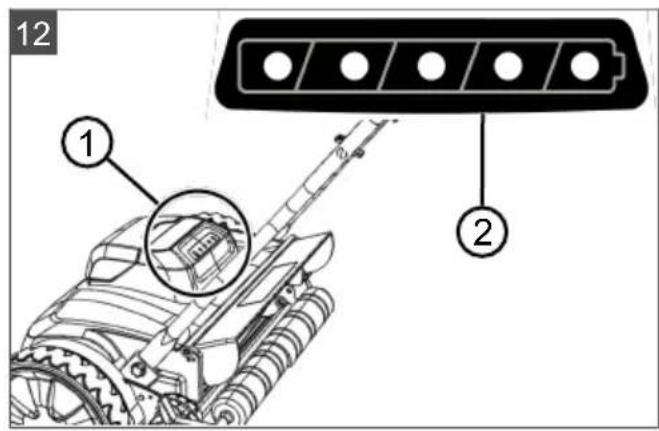

6.3 Checking the battery charge status (12) 30

7 Work instructions .... 30
8 Maintenance and care 30

8.1 Regular maintenance work 30
8.2 Cleaning the appliance and mower mechanism.... 30
8.3 Adjusting the counterblade.... 30

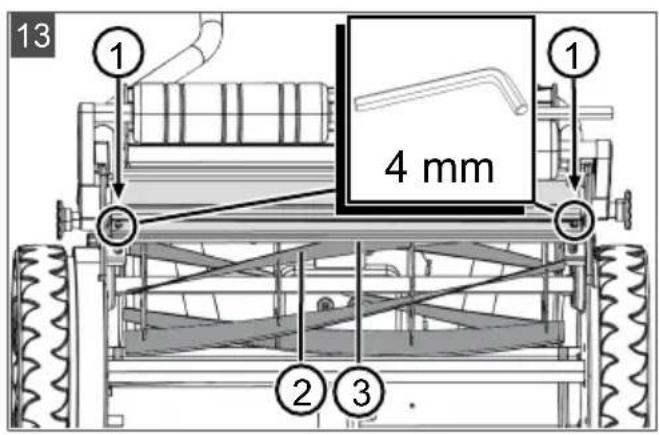

8.3.1 Adjusting the counterblade (13)... 30

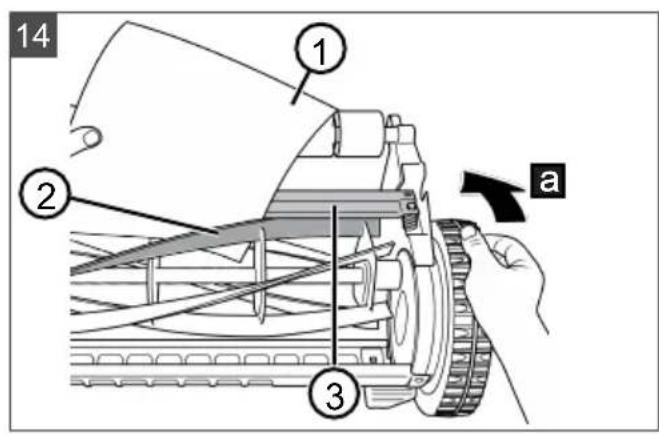

8.3.2 Carrying out a cutting test (14)..... 31

8.4 Repair work 31

9 Help in case of malfunction 31
10 Transport 32

10.1 Transporting the appliance.... 32
10.2 Transporting the battery 32

11 Storage 33

11.1 Storing the appliance 33
11.2 Storing the rechargeable battery and charging unit.... 33

12 Disposal.... 33
13 After-Sales/Service.... 34
14 Information on the Declaration of Confor- mity 34
15 Warranty 34

1 ABOUT THESE OPERATING INSTRUCTIONS

The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
- Keep these operating instructions in a safe place at all times so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.

1.1 Symbols on the title page

Symbol Meaning

It is essential to read through these operating instructions carefully before start-up. This is essential for safe working and trouble-free handling.

Operating instructions

Handle Li-Ion rechargeable batteries with care! In particular, observe the notes on transport, storage and disposal in these operating instructions!

1.2 Legends and signal words

⚠️ DANGER! Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.
WARNING! Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.
CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.

IMPORTANT! Denotes a situation which can result in material damage if not avoided.

NOTE Special instructions for ease of understanding and handling.

2 PRODUCT DESCRIPTION

These operating instructions describe a cylinder mower whose mowing cylinder is driven by a battery.

All batteries (Bxxx Li) and chargers (Cxxx Li) from the AL-KO 18V system can be used.

See the separate operating manuals for further information on batteries and chargers:

■ Operating instructions 443130: Batteries
■ Operating instructions 443131: Chargers

IMPORTANT! Danger of damage to the appliance and battery. If the appliance is operated with unsuitable batteries, both the device and the batteries may be damaged.

- Operate the appliance only with the specified rechargeable batteries.

2.1 Designated use

This appliance is intended for the mowing of lawns and may only be used on dry grass.

This appliance is intended solely for use in non-commercial applications. Any other use as well as unauthorised conversions or modifications are regarded as contrary to the intended use and will result in voiding of the warranty as well as loss of conformity; the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.

2.2 Possible foreseeable misuse

The tool is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.

• Do not use the appliance in the rain or on wet grass.
  There must be no foreign objects on the area to be mowed, e.g. stones, pieces of wood, bottles.

2.3 Residual risks

Even during correct use of the appliance, there is always a certain residual risk that cannot be excluded. Depending on the use, the following potential risks can be derived from the type and construction of the appliance:

■ Throwing out of cuttings, soil and small stones.
■ Inhalation of cuttings dust if no face mask is worn.
■ Lacerations from reaching into the mower mechanism.

2.4 Safety and protective devices

WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.

Operator presence control

The appliance is equipped with an operator presence control. Release the operator presence control in the event of danger. The motor and mower mechanism are stopped.

Start button (on the handlebar)

To be able to switch on the motor using the operator presence control, the start button must be pressed beforehand.

Baffle

The baffle offers protection against e.g. material particles and stones which can be flung out.

2.5 Symbols on the appliance

Symbol Meaning

Pay special attention when handling this appliance!

Read the operating instructions before starting operation!

Keep bystanders away!

Maintain a safety distance!

Keep your hands and feet away from the blade system!

Always remove the battery before working on the appliance!

Do not use the appliance in the rain or store it in the open air.

The mowing cylinder continues to run on after the appliance has been switched off. Touch the mowing cylinder only when all parts of the appliance have come to a standstill.

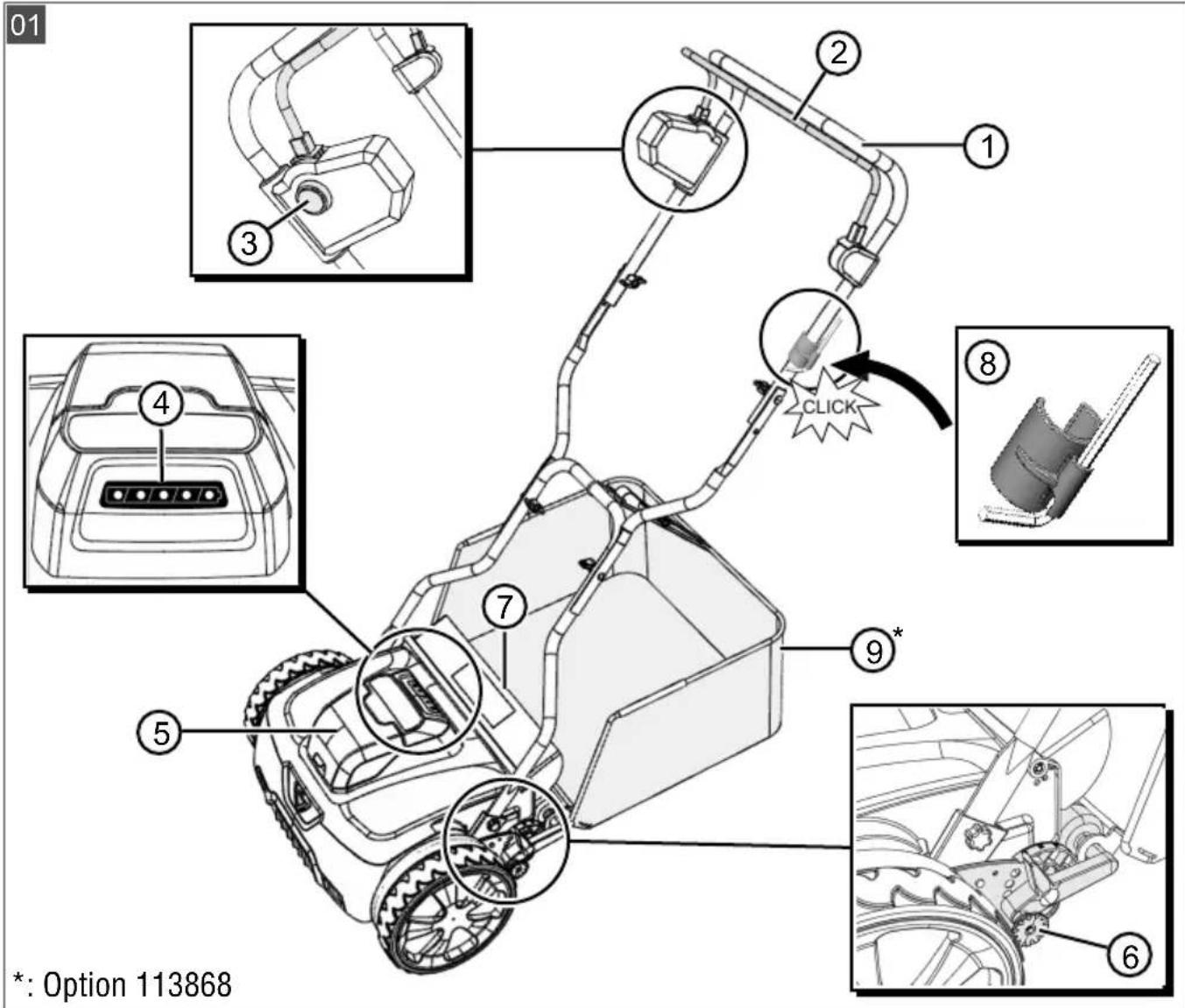

2.6 Product overview (01)

No. Component

1 Handle

2 Operator presence control

3 Start button

4 Battery charge status display

5 Battery slot cover

No. Component

6 Cutting height adjustment

7 Baffle

8 Socket wrench with holder

9* Grass collector*

*: Option 113868 (can be ordered separately)

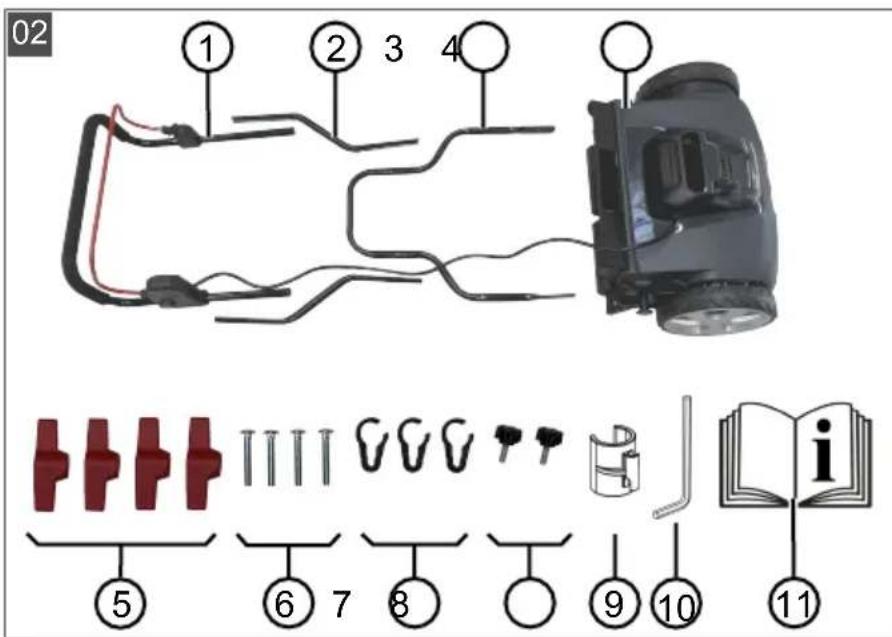

2.7 Scope of supply (02)

The items listed here are included in the standard scope of supply. Check that all items are present:

Battery-powered cylinder mower

No. Component

1 Upper brace

2 Intermediate braces (2x)

3 Lower brace

4 Cylinder mower

5 Wing nuts (4x)

6 Screws with square drive (4x)

7 Cable clips (3x)

8 Star handles (2x)

9 Holder for socket wrench

10 Socket wrench

11 Operating instructions

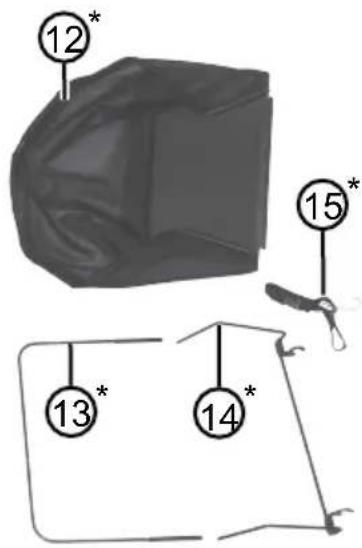

Grass collector\*

No. Component

12 Fabric sleeve

13 Rear frame section

14 Front frame section

15 Retaining strap

*: Optional. Not included in the scope of supply of the cylinder mower. Can be purchased separately, Art. No. 113868.

3 SAFETY INSTRUCTIONS

3.1 General Power Tool Safety Warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

■ Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

3.1.1 Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

3.1.2 Electrical safety

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
■ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current

device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3.1.3 Personal safety

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

3.1.4 Power tool use and care

- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

3.1.5 Battery tool use and care

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  ■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
• Do not expose a battery pack to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
  ■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the operating instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

3.1.6 Service

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

3.2 Lawnmower safety warnings

Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
■ Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
■ Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.

Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.
- Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury.
- Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
- Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
■ While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.
■ While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
- Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
- Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
- When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
■ Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.
- Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
- When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the

lawnmower may result in serious personal injury.

■ Always allow the product to cool down before storing.
■ Empty the grassbox before storing.
- When adjusting the machine, make sure not to pinch your fingers between the moving blades and fixed parts of the machine.

3.3 Vibration load

Vibration total values and noise emission values

The declared vibration total values and noise emission values have been measured according to a standardised test method and can be used to compare one power tool with another.
The declared vibration total values and noise emission values can also be used for an initial assessment of the exposure.
The vibration total values and noise emission values may differ from the given value during actual use of the power tool, depending on how the power tool is used.
Adhere the safety measures according to the safety chapter. Try to keep the vibration load as low as possible. Exemplary measures to reduce vibration are the wearing of gloves when using the tool and the limitation of working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and those in which it is switched on but runs without load).

Danger due to vibration

The actual magnitude of the vibration emissions during the use of the appliance may deviate from that stated by the manufacturer. Observe the following influencing factors before or during use:

Is the appliance being used as intended?
Is the material being cut or processed in the proper manner?
Is the appliance in a proper condition of use?
Is the cutting tool properly sharpened or is the correct cutting tool installed?
Are the handle grips and any optional vibration grips mounted, and are they firmly attached to the appliance?

■ Only operate the tool at the motor speed required for the respective work. Avoid using

the maximum speed in order to reduce noise and vibrations.

The noise and vibrations of the tool may increase due to improper use and maintenance. This leads to health damage. In this case, immediately switch off the tool and have it repaired by an authorised service workshop.
The degree of stress due to vibration depends on the work to be performed or on the use of the tool. Estimate the stress and plan appropriate work breaks. This considerably reduces stress due to vibration over the entire working time.
■ Extensive use of the tool exposes the operator to vibrations, which can lead to circulatory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If any symptoms of "white fingers" occur, immediately consult a physician. These symptoms include: Numbness, loss of feeling, tingling, itching, pain, reduced muscular strength, changes in the colour or condition of the skin. Normally these conditions affect the fingers, hands or pulse. The risk increases at low temperatures.
Take long breaks during your working day so you can recover from the noise and the vibrations. Plan your work in such a way that the use of appliances that generate strong vibrations is spread over several days.
If you notice an unpleasant sensation or discoloration of the skin on your hands when using the tool, stop work immediately. Take sufficient work breaks. Without sufficient breaks, a hand/arm vibration syndrome can occur.
- Minimise your risk of being exposed to vibrations. Maintain the tool according to the instructions in the operating instructions.
If the tool is used frequently, contact your dealer to purchase anti-vibration accessories (e.g. handles).
- Avoid working with the tool at temperatures below 10 °C. Define how the vibration load can be limited in a work plan.

3.4 Noise pollution

A certain level of noise exposure from this appliance is inevitable. Carry out noisy work at approved and specified time periods. Observe rest periods as necessary and restrict the duration of the work to a minimum. For your personal protection and protection of persons in the vicinity, appropriate hearing protection must be worn.

3.5 Safety notes for rechargeable battery and charger

■ Remove the batteries from the appliance before charging.
- Do not use different battery types or new and used batteries together in the appliance.
- Install the batteries in the appliance with the correct polarity.
■ Remove the batteries from the appliance before putting it into storage for an extended period.
- Do not short-circuit the terminals of the appliance or battery.

Operating instructions

Please observe the safety instructions for the battery and charger in the separate operating instructions:

■ Operating instructions 443130: Batteries
■ Operating instructions 443131: Chargers

4 INSTALLATION

WARNING! Danger if assembly is not carried out completely! Use of an incompletely assembled appliance can result in serious injury.

• Operate the appliance only when it is fully assembled!
• Do not insert the battery into the appliance until it is fully assembled!

4.1 Assembling the cylinder mower (03 - 06)

See figures (03) to (06).

5 START-UP

5.1 Mowing with grass collector\* (07, 08)

The appliance can be operated with and without grass collector.

*: Optional. Not included in the scope of supply of the cylinder mower. Can be purchased separately, Art. No. 113868.

Attaching the grass collector

1. Make sure that the appliance is switched off and the mower mechanism has come to a standstill.
2. Hook the hooks (07/1) of the grass collector into the roller axis (07/2) (07/a).
3. Open or close the baffle (07/3) (07/b) until the grass is ejected at the desired height. The

baffle can be locked in 3 positions on both sides.

1. Attach the grass collector to the lower brace (08/2) using the retaining strap (08/1).

Removing and emptying the grass collector

CAUTION! Danger of lacerations. Danger of lacerations when reaching into the running mower mechanism.

■ Only remove the grass collector when the mower mechanism has stopped.

1. Make sure that the appliance is switched off and the mower mechanism has come to a standstill.
2. Lift the grass collector out of the holders and take off to the rear.
3. Empty the grass collector.
4. Attach the grass collector again (see above).

5.2 Charging the rechargeable battery

Charge the battery as described in the separate operating instructions:

■ Operating instructions 443130: Batteries
■ Operating instructions 443131: Chargers

5.3 Fitting and removing the battery (09)

IMPORTANT! Danger of damage to the rechargeable battery. If the rechargeable battery is left in the appliance after use, it may damage the rechargeable battery.

• Immediately after use, pull the rechargeable battery out of the appliance and store in a frost-protected area.
  ■ Only insert the rechargeable battery in the appliance immediately before starting work.

Installing the battery

1. Open the battery compartment cover (09/1) (09/a).
2. Push the battery (09/2) into the battery slot (09/b) until it engages.
3. Close the battery compartment cover.

Removing the battery

1. Open the battery compartment cover.
2. Press and hold the unlock button on the battery.
3. Pull out the battery.

6 OPERATION

WARNING! Risk of injury! Defective and disabled safety and protective devices can result in serious injury.

■ Before switching on, check that all safety and protective devices are in place and functioning correctly!

6.1 Setting the cutting height (10)

The cutting height is set by adjusting the height of the roller. The roller must be at the same height on both sides.

1. Pull the pull knob (10/1) out on both sides (10/a).
2. Turn lever (10/2) (10/b) until the desired cutting height is reached. The set cutting height can be read off on the scale (10/3).
3. Allow the pull knob on both sides to engage in the same hole (10/4).

6.2 Starting and stopping the mower mechanism (11)

Start the mower mechanism on level ground and not in long grass. The ground must be free of foreign bodies such as stones, etc. Do not lift or tilt the appliance to start it.

Starting the mower mechanism

1. If you have not already done so: Install a battery.
2. Press (11/a) and hold the start button (11/1).
3. Pull the operator presence control (11/2) towards the handlebar (11/3) (11/b). The mower mechanism is started.
4. Release the start button and keep holding the operator presence control.

NOTE The operator presence control does not lock in place. Hold it tight against the handlebar during the entire working period.

Stopping the mower mechanism

1. Release the operator presence control. It automatically returns to its starting position.
2. Wait for the mower mechanism to come to a standstill.

CAUTION! Danger of cuts and lacerations. Danger of lacerations when reaching into the running mower mechanism.

• Wait until the mower mechanism has come to a standstill.
  Before all maintenance and care work: Switch off the appliance and wait until the mower mechanism has come to a standstill. Remove the battery.

6.3 Checking the battery charge status (12)

The battery charge status indicator (12/1) consists of 5 LEDs (12/2). The LEDs have a steady green light and go out one after the other as the battery charge level decreases.

LED Battery charge status

5 LEDs are lit. Battery fully charged.

4 LEDs are lit. Battery 80% charged.

3 LEDs are lit. Battery 60% charged.

2 LEDs are lit. Battery 40% charged.

1 LED is lit. Battery 20% charged.

7 WORK INSTRUCTIONS

Mow the lawn while it is still short. The best cutting results are achieved when cutting short, dry grass. The longer the lawn, the higher the power consumption.

NOTE To prolong the operating time, an additional battery can be purchased.

i NOTE The cylinder mower also works when the battery is flat. The mowing cylinder rotates when you push the cylinder mower over the lawn.

8 MAINTENANCE AND CARE

WARNING! Danger of cuts and lacerations. Danger of cuts and lacerations when reaching into sharp-edged, moving appliance parts and into cutting tools.

■ Before maintenance, care and cleaning work, always switch off the appliance. Remove the rechargeable battery.
■ Always wear protective gloves during maintenance, care and cleaning work.

8.1 Regular maintenance work

■ Make sure that all nuts, bolts and screws are tightened and the trailer is in a safe working condition.
- Inspect the appliance, mower mechanism and grass collector at regular intervals for proper function and wear.

8.2 Cleaning the appliance and mower mechanism

Accumulations of material have an adverse effect on the cutting quality and grass discharge. Therefore, clean the appliance after every mowing session.

IMPORTANT! Danger from water. Water in the appliance causes short-circuits and destroys electrical components.

• Do not spray the appliance with water.
  ■ Use only a hand brush, broom and damp cloth for cleaning.

• Stop the motor.

• Pull out the battery.
• Removing and cleaning the grass collector.
• Clean the appliance.
• Clean the mower mechanism:

■ Tilt the appliance to one side.
Lightly lubricate the blades on the spindle and the counterblade using a low viscosity oil.

8.3 Adjusting the counterblade

NOTE The blade system of your cylinder mower has been optimally adjusted at the factory. Should the mowing quality deteriorate after a prolonged period of use, readjust the counterblade.

8.3.1 Adjusting the counterblade (13)

1. Turn the appliance over so that the blade cylinder is facing upwards.
2. Turn the adjusting screws (13/1) evenly and slowly on both sides using a 4 mm Allen key to adjust the distance between the counter-blade and the cylinder blades.
3. Check whether the cylinder blades (13/2) touch the counterblade (13/3) slightly over the whole width when turning. None of the cylinder blades may collide with or grind against the counterblade.

8.3.2 Carrying out a cutting test (14)

1. Hold a sheet of paper (14/1) between cylinder blades (14/2) and counterblade (14/3).
2. Rotate the cylinder by hand (14/a).

The counterblade is correctly set when a sheet of paper between the blades is cut when the cylinder is rotated.

8.4 Repair work

WARNING! Risk of injury during repair work. Improper repairs can lead to serious injuries and damage to the appliance.

■ Have repair work performed by the manufacturer's service centres and authorised specialist companies only!

In the following cases, contact one of the manufacturer's service centres:

■ Motor no longer starts.

■ Appliance has run onto an obstacle.
■ Mowing cylinder and/or counterblade are bent.
■ Appliance vibrates and does not run smoothly.
■ Battery has leaked or is damaged.

9 HELP IN CASE OF MALFUNCTION

CAUTION! Risk of injury. Sharp-edged and moving appliance parts can lead to injury.

■ Always wear protective gloves during maintenance, care and cleaning work!

NOTE For malfunctions that are not listed in this table or that you cannot resolve yourself, please contact our customer service.

*: Option 113868 (can be ordered separately)

Malfunction Cause Remedy
Motor does not start.	Battery missing or not seated correctly.	Install the battery correctly.
	Battery is flat. Charge the battery.
	Mower mechanism is blocked.	Remove any obstacles from the mower (e.g. branches).Start the cylinder mower on short grass.
	Cables or switches are defective.	Do not operate the appliance! Contact one of the manufacturer's service centres.
Engine loses power.	Battery is flat. Charge the battery.
	Mowing cylinder and/or counterblade are blunt.	Have them sharpened at one of the manufacturer's service centres.
	Too much grass in the ejector.	Remove the grass.Clean the baffle and open further.
Motor stops during mowing.	Mowing cylinder and/or counterblade are blunt.	Have them sharpened at one of the manufacturer's service centres.
	Motor is overloaded. Switch off the cylinder mower, set down on level ground or short grass and restart.
Grass collector* does not fill sufficiently	Grass is wet. Allow the lawn to dry.
	Mowing cylinder and/or counterblade are blunt.	Have them sharpened at one of the manufacturer's service centres.
Battery operating time drops significantly.	Cutting height is too low. Set the cutting height higher
Malfunction Cause Remedy
	Grass is too long or too wet. Improve the conditions: allow the grass to dry, set the cutting height higher
	Mowing speed is too high.■ Reduce the mowing speed■ Clean the discharge channel/housing, the mowing cylinder must rotate freely.
	The service life of the battery has expired. Replace the battery. Use only genuine accessories from the manufacturer.
Battery cannot be charged.	Battery contacts are soiled. Clean the battery contacts with a non-metallic object and spray with a contact spray.Caution: Do not short-circuit the battery contacts with a metallic object!
	Battery or charger is defective. Order replacement parts from the manufacturer.
	Battery is too hot. Allow the battery to cool down.

10 TRANSPORT

10.1 Transporting the appliance

IMPORTANT! Risk of damage to the mower mechanism. At the lowest cutting height, the mower mechanism can be damaged by driving over steps, edges or kerbs.

■ Set the cutting height to the highest level for transport.

1. Stop the mower mechanism and wait until it has come to a standstill.
2. Set the highest cutting height.

Transporting the appliance between two working areas

■ Move the appliance to the working area with the mower mechanism set to the highest cutting height.
■ Use the handlebar to carry the appliance.

Transporting the appliance in a vehicle

■ Remove the batteries.
■ Fold down the handlebar.
- Secure the appliance in the vehicle against falling over and slipping.
■ Protect the appliance against collisions with loose objects.
■ Do not place objects on the appliance.

10.2 Transporting the battery

Perform the following measures before transporting the appliance:

1. Switch off the appliance.
2. Remove the battery from the appliance.
3. Pack the battery properly (see below).

NOTE The following transport instructions apply only to a battery with more than 100 Wh nominal energy.

The Li ion battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified conditions:

The battery can be transported on public roads by the private user without further conditions provided it is packaged for retail sale and the transport serves personal purposes.
■ Commercial users who carry out the transport in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification.

In both cases, it is essential to take the mandatory precautions mentioned above to prevent any leakage of the contents. In other cases, it is essential to comply with the regulations of the hazardous goods law! In the case of non-compliance, severe penalties can be imposed on the sender and possibly the transporter.

Additional notes on transport and shipment

■ Only transport or ship the Li ion battery in an undamaged condition!

■ Use only the original cardboard box or a suitable hazardous goods cardboard box for transporting the battery (not required for batteries with a nominal energy less than 100 Wh).
■ Apply adhesive tape over exposed battery contacts to avoid the risk of a short circuit.
- Secure the battery against shifting in the packaging to avoid damage to the battery.
■ Ensure the correct marking and documentation of the shipment for transport or shipping (e.g. by parcel service or freight forwarding).
- Check in advance that transport with the selected service provider is possible and indicate the shipment.

We recommend involving a hazardous goods specialist in preparation of the shipment. Also heed any further national regulations.

11 STORAGE

Thoroughly clean the appliance after each use and – if present – attach all covers. Store the appliance in a dry, lockable place out of the reach of children.

11.1 Storing the appliance

CAUTION! Risk of injury during storage. There is a risk of injury from sharp parts on the stored appliance.

■ Store the appliance out of the reach of children and unauthorised persons.
■ Store the appliance only when the batteries have been removed.

1. Switch off the appliance.
2. Set the cutting height to the highest level.
3. Pull out the battery.
4. Thoroughly clean the appliance.
5. Apply a thin coat of oil or silicon to all metal parts for corrosion protection.
6. Fold down the handlebar.
7. Store the appliance in a dry, clean location protected from frost. Cover with a breathable tarpaulin to protect against dust. Do not use plastic film in order to avoid the accumulation of moisture.

11.2 Storing the rechargeable battery and charging unit

NOTE For detailed information, heed the separate operating instructions for the rechargeable battery and for the charging unit.

12 DISPOSAL

Information on the German Electrical and Electronic Equipment Act

■ Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately!

■ Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed before disposal. Their disposal is regulated by the battery law.
- Owners or users of electrical and electronic appliances are obliged by law to return them after use.
■ The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.

The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.

Electrical and electronic appliances can be handed in at the following places at no charge:

■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) if dealers are obliged to take them back or offer this voluntarily.

These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

Information on the German Battery Act (BattG)

■ Used batteries and rechargeable batteries do not belong in household waste, but should be collected and disposed of separately.

For safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, follow the further information within the operating or installation instructions.
- Owners or users of batteries and rechargeable batteries are obliged by law to return them after use. Return is limited to the handover of customary household quantities.

Used batteries can contain harmful substances or heavy metals that can cause damage to the environment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities.

The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish.

In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the following:

■ Hg: Battery contains more than 0.0005 % mercury
Cd: Battery contains more than 0.002 % cadmium
■ Pb: Battery contains more than 0.004 % lead

Rechargeable batteries and batteries can be handed in at the following places at no charge:

■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of batteries and rechargeable batteries
■ Disposal points of the common take-back system for the used batteries of appliances
■ Disposal point of the manufacturer (if not a member of the common take-back system)

These statements apply only to rechargeable batteries and batteries that are sold in the countries of the European Union and that are subject to European Directive 2006/66/EU. Different provisions can apply to the disposal of rechargeable batteries and batteries in countries outside the European Union.

13 AFTER-SALES/SERVICE

In the event of questions of warranty, repair or spare parts, please contact your nearest AL-KO Service Centre. These can be found on the Internet at: www.alko-garden.com/service-contacts

Further information on spare parts can be found at: www.alko-garden.com/spareparts

14 INFORMATION ON THE DECLARATION OF CONFORMITY

We hereby declare, as the exclusively responsible party, that this product in its marketed form meets the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards. The Declaration of Conformity forms part of the operating instructions and is included with the machine.

15 WARRANTY

We will remedy any material or manufacturing defects discovered in the device during the statutory period of limitation for claims for defects by repair or replacement at our discretion. The period of limitation is determined in each case by the law of the country in which the device was purchased.

Our warranty promise applies only if:

■ These operating instructions are observed
■ The device is handled correctly
■ Original spare parts have been used

The warranty becomes void in the case of:

■ Unauthorised repair attempts
■ Unauthorised technical modifications
■ Use for other than the intended purpose

The warranty does not include:

■ Paint damage attributable to normal wear
■ Wear parts that are marked with a box xxxxxx (x) on the spare parts card

The warranty period commences with the purchase by the first end user. The date on the proof of purchase is decisive. In the event of a warranty claim, please contact your dealer or the nearest authorised customer service centre with this declaration and the original proof of purchase. This declaration does not affect the purchaser's statutory claims for defects against the vendor.

VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING Inhoudsopgave

10.2 Accu's transporteren 46

11 Opslag 47

11.1 Machine opbergen 47

11.2 Accu en oplader opslaan.... 47

2 PRODUCTOMSCHRIJVING

10.2 Accu's transporteren

12 Involucro in stoffa

10.2 Transport akumulatora

Prije transporta provedite sljedeće korake:

8 VEDLIKEHOLD OG PLEIE

8.3 Stille inn motkniv

Imported by: AL-KO Gardentech UK Ltd, Murray way, Wincanton, Somerset, BA9 9RS / UK | [phone]

[e-mail] | www.alko-garden.uk
