USER MANUAL STH3000 PHILIPS

White Philips hair dryer with a standard T-shaped body and control buttons (no visible text or symbols on the device body)

Simple line drawing of an open book with a grid pattern on the left and a curved arrow pointing to the right page (no text or symbols)

-1

1_

-1

1

-1

1_

-1

1

English 6

Azərbaycanca 18

Bahasa Indonesia 30

Bahasa Melayu 42

Čeština 54

Dansk 66

Deutsch 78

Eesti 90

Español 102

Français 114

Hrvatski 126

Italiano 138

Latviešu 150

Lietuviškai 162

Magyar 174

Nederlands 186

Norsk 198

O'zbek 210

Polski 222

Português 234

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome. Read this user manual, the important information leaflet, and the quick start guide carefully before you use the appliance. Save them for future reference.

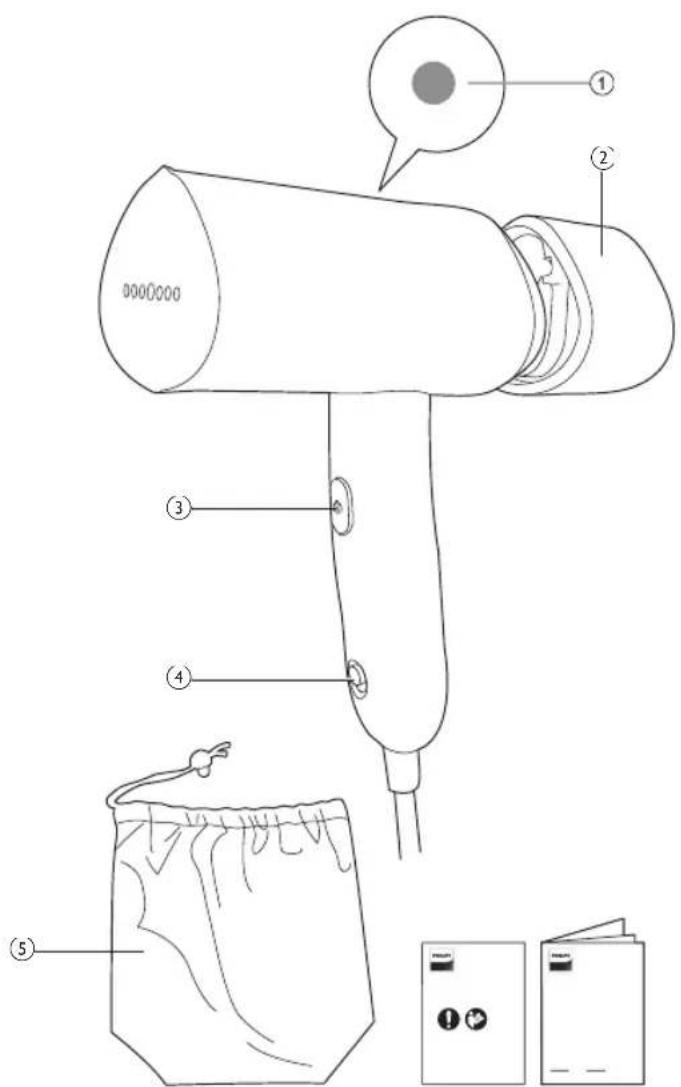

Product overview

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014 STH3020, STH3024

Warnings

Diagram showing two open book illustrations with icons and Chinese labels, likely illustrating a concept or educational illustration.

1 Steam ready light
2 Detachable water tank
3 Steam trigger button
4 Power button
5 Storage pouch

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

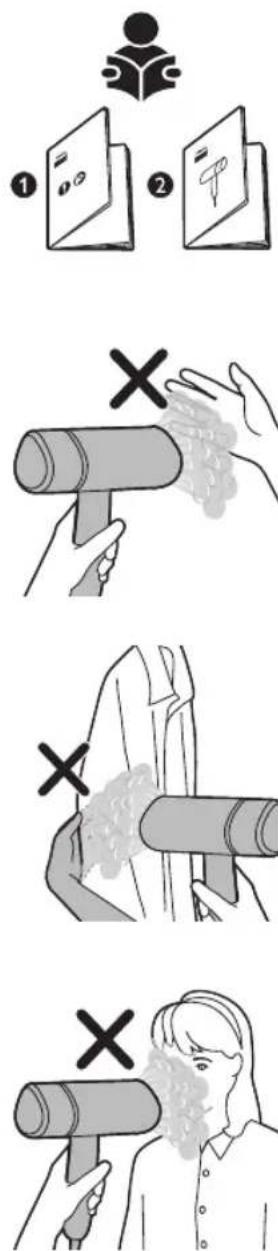

1 Please refer to the Quick Start Guide and the Important Information Leaflet on how to use the appliance.

2 Beware of hot steam that comes out of the steamer. Steam can cause burns.

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

3 Do not use your bare hand as a supporting surface when you steam.

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

4 Do not position the appliance towards your/ another person's face.

8

English

Illustration of a person holding a spray can with a cross mark (no text or symbols)

5 Do not position the appliance towards yourself/ another person.

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

6 Do not place the steamer head on the power cord after use.

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

7 Stretch the sides of the garment.

Preparing for use

Type of water to use

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling water tank

Hand holding a pen with a circular object, no text or symbols visible

1 Remove the detachable water tank. Locate the water tank lid at the water tank. Flip up the water tank lid to open the lid of the water tank.

50% +

2 Fill 50% tap water and 50% distilled/ demineralized water into the water tank.

Distilled/ Demineralized water

50%

3 Close the water tank lid firmly.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

4 Hold the appliance in your hand, with one hand firmly gripping onto the steamer head.

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

10 English

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Flip the handle up.

Illustration of two hands holding a can with a spark effect (no text or symbols)

6 The handle should straighten up with a 'click' sound.

Illustration of a hand holding a gavel and pulling a rolled-up object with an arrow indicating motion (no text or symbols)

7 Attach the water tank onto the appliance.

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

8 You should hear a 'click' sound to indicate that the water tank is secured firmly.

Preparation before use

1 Plug in the mains plug in an earthed wall socket.

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

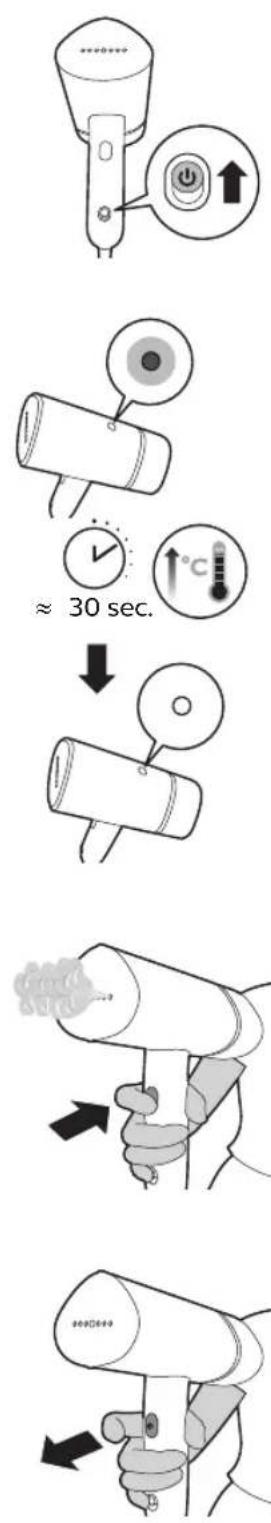

2 Turn on the power button by sliding it up.

3 Steam ready light will light up indicating the appliance is heating up. The appliance is ready to be used approximately 30 seconds. When the steam ready light has gone out, it indicates the appliance is ready to be used.

4 Direct the steam away for a few seconds and press and hold the steam trigger button, as the initial steam may contain water droplets.

5 Release the steam trigger button to stop steam from emitting.

12 English

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

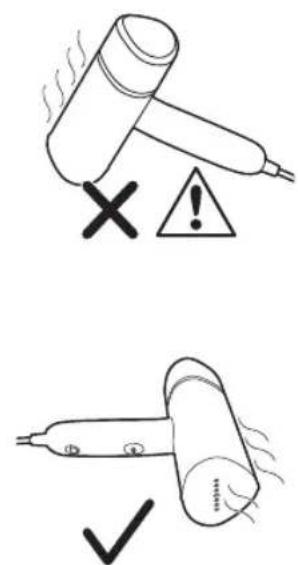

6 Do not place the steamer head directly on any surfaces to avoid burns.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

7 Lay the appliance sidewards on the surface to avoid direct contact of the steam plate with the surface.

Using the appliance

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

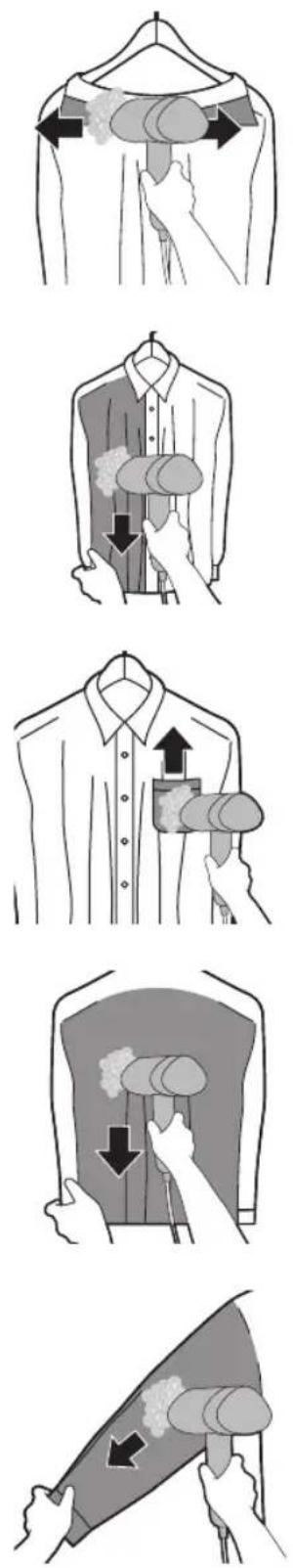

1 Hang the garment on a hanger. Stretch the sides/ bottom of the garment for a better result.

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

2 When you are steaming, press the steamer head against the garment and stretch the sides of the garment with your hand. For garment with buttons such as shirts, jackets and pants, close the first button to help straighten the fabric.

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

3 For garment with buttons such as shirts, jackets and pants, close the first button to help straighten the fabric.

Illustration of a hand holding a curved object on a garment, with arrows indicating direction (no text or symbols)

4 For garment with collar, move the steamer horizontally along the collar.

Note: The appliance can be used for creating a natural look and for quick touch-ups. For garments with tough wrinkles and for a more formal look, it is recommended to use an iron in addition.

Illustration of a person hanging a shirt with a bag being lifted, showing a downward arrow (no text or symbols)

5 Keep the steamer head a slight distance away from shirt, or dresses with frills, ruffles, ranching or sequins. Use only the steam to loosen the fabric. You can also steam from the inside.

Line drawing of a shirt collar with an upward arrow and a magnified inset showing the fold (no text or symbols)

6 For shirt pockets, move the steamer head upwards while pressing against the fabric.

Illustration of hands holding a device with a downward arrow indicating compression or disassembly (no text or symbols present)

7 For pleats, pull the sides of the garment, press the steamer head against the pleats and steam downwards.

Illustration of hands holding a pen or stylus with a brush, no text or symbols present

8 To steam sleeves, start from the shoulder area and move the steamer head downwards. Steam while you stretch the sleeve diagonally down with the other hand.

Cleaning and maintenance

Diagram showing electrical switch components with labeled parts and directional arrows indicating connection to a power outlet.

1 Turn off the power button by sliding it downwards and unplug the appliance from the earthed wall socket.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

2 Let the appliance cool down for approximately 60 minutes.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

3 Wipe flakes and other deposit off the soleplate with a damp cloth.

Safety warning symbol showing a hammer striking a warning sign with an exclamation mark

4 Do not place the steamer head directly on any surfaces to avoid burns.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols on the diagram itself.

5 Lay the appliance sidewards on the surface to avoid direct contact of the steam plate with the surface.

Storage

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

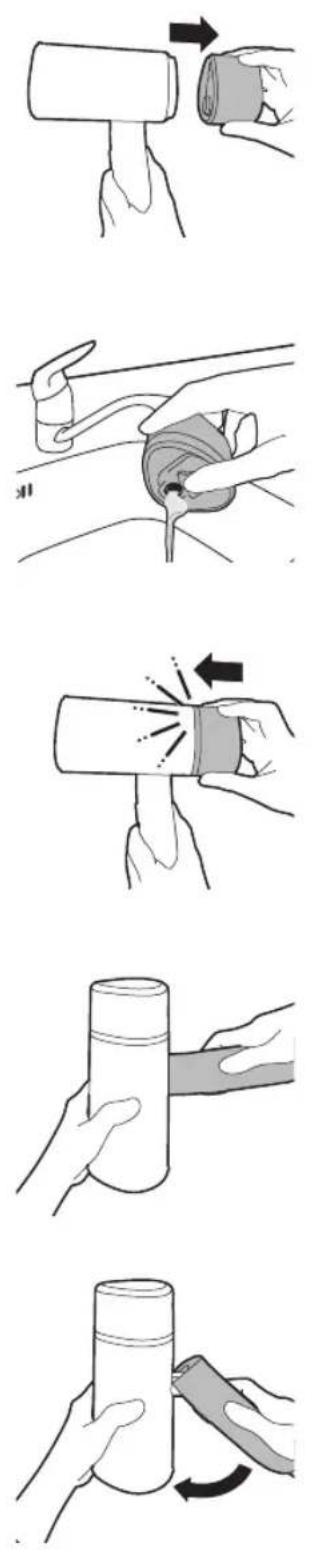

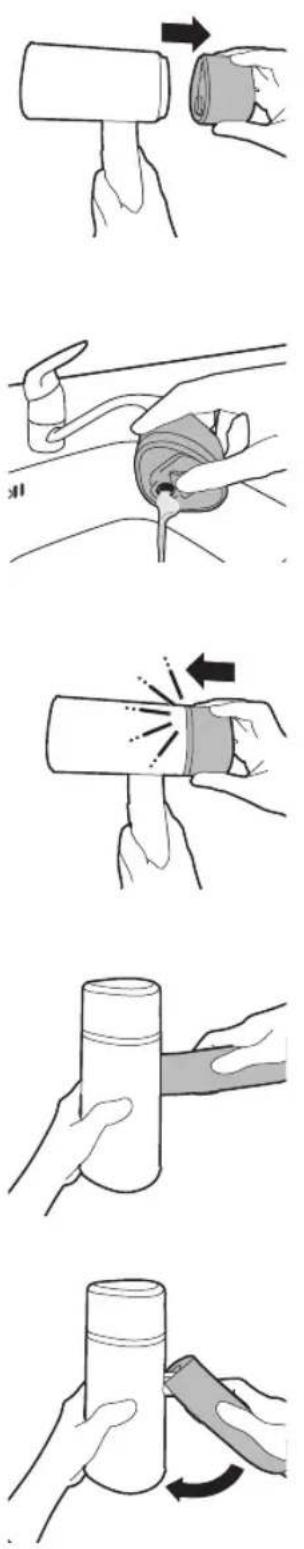

1 Detach the water tank.

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

2 Pour any remaining water out of the water tank.

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 Attach the water tank.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

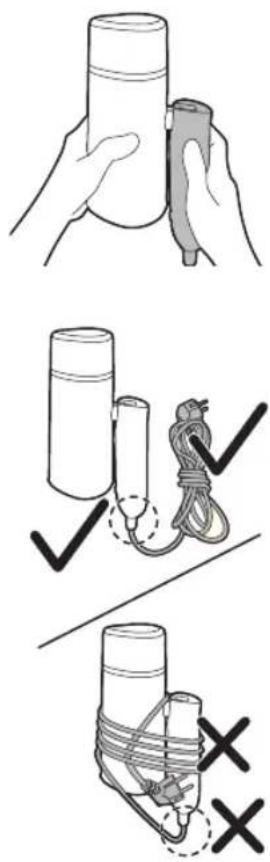

4 Hold the appliance firmly in a horizontal position.

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

5 Fold the handle towards the steamer head.

6 Ensure the handle is folded fully.

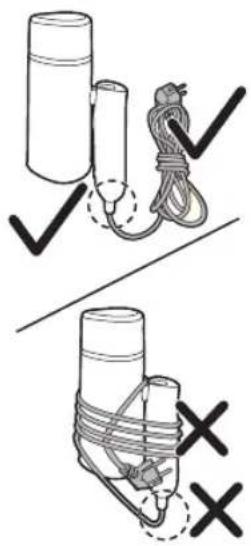

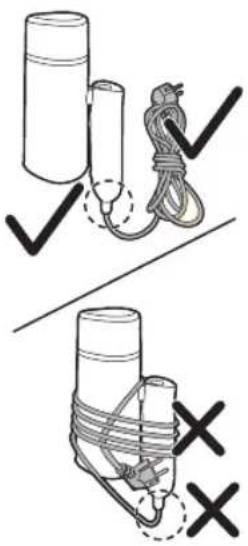

7 Wind the power cord away from the appliance, ensuring that the power cord is not bend or stretched.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The appliance does not heat up. The appliance is not plugged in properly or not switched on.		Check if the mains plug is inserted properly and its wall socket is working.Check if the appliance is switched on.
The appliance does not produce any steam.	The appliance is not plugged in properly or not switched on.	Check if the mains plug is inserted properly and its wall socket is working.Check if the appliance is switched on.

English

	The appliance has not heated up sufficiently.	Let the appliance heat up ≈30 seconds ('steam-ready" light will be on). When the appliance is ready for use, the light turns off.
	You have not pressed the steam trigger fully.	Press the steam trigger rfully for a few seconds.
	The water level in the water tank is too low or it has all been used up.	Unplug the appliance and refill the water tank.
	Steam plate is placed in a horizontal position.	Use the appliance vertically, wait for a few seconds for the steam to be released.
Water droplets drop from the appliance steamer head.	The appliance has not been fully heated up.	To allow the appliance to fully heat up.
The appliance produces a pumping sound/the handle vibrates.	Water is pumped to the steamer head to be converted into steam.	This is normal.
	The water level in the water tank is too low or it has all been used up.	Unplug the appliance and refill the water tank.
Steamer head and/or handle is wet.	Filling door is not fully inserted. Detach the tank and ensure filling door has been fully inserted.
	The tank has been overfilled with water residue around it.	Wipe off the water residue left on tank.

Giriş

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014
STH3020, STH3024

Illustration showing two open book designs with icons and Chinese text labels, one labeled ① and the other ②.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark and a small pile of granular material (no text or symbols)

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

22 Azərbaycanca

Illustration of hands holding a can with a slide and arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a ring and the other holding a drum (no text or symbols)

Diagram showing electrical switch and power button with labeled parts 1 and 2

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a warning sign with an exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols on the diagram itself.

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating rope knotting and knot termination, showing correct and incorrect states with checkmarks and X marks.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Peringatan

Diagram showing two open book illustrations with labeled parts, one containing a book and the other with a pencil and a key.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

7 Rentangkan sisi pakaian.

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

34

Bahasa Indonesia

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

7 Pasang tangki air ke alat.

Illustration of a hand holding a gavel and a rolled paper object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow indicating power cord (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment sleeve with a hand holding a sleeve, showing fabric and shading (no text or symbols)

Illustration of a garment hanger with hands holding a bag, showing clothing being placed (no text or symbols)

Line drawing of a shirt collar with an upward arrow and a magnified inset showing the handle (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a pen or stylus with a brush, no text or symbols present

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pouring liquid into a cylindrical container (no text or symbols)

Illustration of a hand holding a small object with a curved line, no text or symbols present

3 Pasang tangki air.

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

5 Lipat gagang ke arah kepala penguap.

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating rope knotting and knot termination, showing correct and incorrect states with checkmarks and X marks.

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014
STH3020, STH3024

Amaran

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a handheld hairdryer with a cross symbol above (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

5 Jangan halakan perkakas ke arah diri anda/orang lain.

Warning symbol showing a gavel striking a warning sign with an exclamation mark

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

7 Tarik sisi pakaian.

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Persediaan sebelum penggunaan

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, no text or symbols present

Illustration of a hand holding a handheld device with an arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a hand holding a shoulder with arrows indicating movement or force direction (no text or symbols)

Illustration of a person hanging a shirt with a bag being lifted, showing hand positioning (no text or symbols)

Illustration of a shirt collar with an upward arrow and a magnified inset showing the handle (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a pen or stylus with a brush, no text or symbols present

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols on the diagram itself.

Illustration of a hand holding a gavel and pouring liquid into a cylindrical container (no text or symbols)

Illustration of a hand holding a small object with a curved line, no text or symbols present

3 Pasang tangki air.

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating rope knotting and knot termination, showing correct and incorrect states with checkmarks and X marks.

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014 STH3020, STH3024

Varování

Illustration showing two open book designs with icons and text labels, one labeled ① and the other ②.

Illustration of hands holding a hairdryer with a cross mark above indicating no text or symbols (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a handheld hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a beaker with liquid.

Hand holding a medical or surgical tool with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled paper object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, no text or symbols present

Illustration of a hand holding a handheld device with an arrow indicating left-hand rule (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Diagram showing electrical switch components with labeled parts and directional arrows indicating connection to a power outlet.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a warning sign with an exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and a rolled-up object, with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a medical device with a catheter, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 Nasad'te nádržku na vodu.

Illustration of two hands holding a cylindrical object with a bandage, no text or symbols present

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Advarsler

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a flask (no text or labels)

Hand holding a medical device with a black arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Vip håndtaget op.

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up object with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, no text or symbols present

Illustration of a hand holding a handheld device with an arrow indicating left-hand rule (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols on the diagram itself.

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device near a vertical line, with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other adjusting its shirt (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand holding a garment with a bag being placed on top, showing a downward arrow (no text or symbols)

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

6 Når du damper skjortelommer, skal du flytte damphovedet opad, mens du trykker ind mod stoffet.

Illustration of hands holding a tool interacting with a device, showing a downward arrow (no text or symbols present)

Illustration of hands holding a bag with a pen and ink, no text or symbols present

Diagram showing electrical plug connection with labeled parts: power switch and socket, and plug outlet with switch and power plug.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

1 Afmonter vandtanken.

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

3 Monter vandtanken.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

4 Hold godt fast i apparatet i vandret position.

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration showing two open book designs with icons and a person reading above them, labeled ① and ②.

Illustration of hands holding a handheld hairdryer with a cross symbol above (no text or labels)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a handheld hairdryer with a cross symbol above (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

82 Deutsch

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up cable (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pouring liquid into a cylindrical container (no text or symbols)

Illustration of a hand holding a small object with a curved line, no text or symbols present

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, filter, and cover case

STH3010, STH3014 STH3020, STH3024

Hoiatused

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

4 Ärge asetage seadet enda/teise inimese poole.

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

5 Ärge asetage seadet enda/teise inimese poole.

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Hand holding a medical device with a black arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other adjusting its shirt (no text or symbols)

3 Kui aurutate nööpidega röivaid, nagu särgid, jakid ja püksid, pange esimene nööp kinni, et kangas paremini pingule tömmata.

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

2 Laske seadmel umbes 60 minutit jahtuda.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a warning sign with an exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

3 Lisage veepaak.

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

4 Hoidke seadet kindlalt horisontaalasendis.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

5 Voltige käepide auruti otsaku poole.

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

100 Eesti

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

Illustration of hands holding a hairdryer with a cross mark above indicating no text or symbols (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

Hand holding a medical or surgical tool with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

6 El mango emitirá "clic" al enderezarse por completo.

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke rising, no text or symbols present

Illustration of a hand holding a cylindrical device with a black arrow pointing to the handle (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating clothing fit or disposal.

Illustration of a shirt collar with an upward arrow and a magnifying glass (no text or symbols)

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a triangular object with a downward arrow and smokestack (no text or symbols)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a cloth partially visible, no text or symbols present.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a beaker (no text or labels)

Hand holding a medical or surgical device with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Français

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled paper object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow indicating power cord (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a device (no text or symbols visible)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pouring liquid into a cylindrical container (no text or symbols)

Illustration of a hand holding a medical device with a catheter, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage, no text or symbols present

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Upozorenja

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

1 Indikator spremnosti pare
2 Odvojivi spremnik za vodu
3 Gumb za paru
4 Gumb za uključivanje/isključivanje
5 Torbica za pohranu

1 Pogledajte Kratke upute i Letak s važnim informacijama za upute o uporabi aparata.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

3 Nemojte golom šakom podržavati odjevni predmet prilikom primjene pare.

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

4 Nemojte aparat držati uperen prema svojem licu / licu druge osobe.

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

6 Nakon uporabe glavu steamer glačala nemojte stavljati na kabel za napajanje.

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

7 Rastegnite rubove odjevnog predmeta.

Priprema za uporabu

Vrsta vode koju treba upotrebljavati

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a beaker (no text or labels)

Nemojte dodavati parfem, vodu iz sušilice, ocat, izbjeljivač, sredstva protiv kamenca, sredstva za olakšavanje glačanja, vodu koja je kemijski očišćena od kamenca ili druge kemikalije jer mogu uzrokovati naglo izbacivanje vode, smeđe mrlje ili oštećenje aparata.

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

1 Uklonite odvojivi spremnik za vodu. Pronadite poklopac spremnika za vodu na spremniku za vodu. Podignite poklopac spremnika za vodu prema gore kako biste ga otvorili.

50% +

2 U spremnik za vodu ulijte 50 % vode iz slavine i 50 % destilirane/demineralizirane vode.

Distilled/ Demineralized water

50%

3 Čvrsto zatvorite poklopac spremnika za vodu.

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

4 Držite aparat u ruci, a drugom rukom čvrsto primite glavu steamer glačala.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Podignite dršku prema gore.

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

7 Pričvrstite spremnik za vodu na aparat.

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

8 Trebali biste čuti „klik“ koji vam daje do znanja da je spremnik za vodu čvrsto pričvršćen.

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

4 Usmjerite paru nekoliko sekundi dalje od sebe te pritisnite i držite gumb za paru jer početna para može sadržavati kapljice vode.

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

132

Hrvatski

Warning symbol for a hand holding a gavel with an exclamation mark and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of a person hanging clothes with a hand holding a device (no text or symbols visible)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

1 Isključite gumb za uključivanje/isključivanje tako da ga pomaknete prema dolje i isključite aparat iz uzemljene zidne utičnice.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

2 Ostavite aparat da se hladi približno 60 minuta.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

2 Ispraznite ostatak vode iz spremnika za vodu.

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 Pričvrstite spremnik za vodu.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

5 Dršku preklopite prema glavi steamer glačala.

6 Provjerite je li drška u potpunosti sklopljena.

7 Namotajte kabel za napajanje dalje od uredaja, pazeći da se kabel za napajanje ne savije ili rastegne.

Rješavanje problema

U ovom poglavlju opisani su uobičajeni problemi vezani uz uporabu aparata. Ako problem ne možete riješiti s pomoću informacija u nastavku, posjetite www.philips.com/support kako biste pronašli popis čestih pitanja ili se obratite centru za korisničku podršku u svojoj državi.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Avvertenza

Diagram showing two book illustrations with icons and Chinese labels, likely illustrating a concept or educational context.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

142 Italiano

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up cable (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Warning symbol for a hand holding a gavel with an exclamation mark and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating clothing fit or disposal.

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a tool with a magnified view of a cylindrical object, no text or symbols present

Illustration of hands holding a triangular object with a downward arrow and smokestack (no text or symbols)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pouring liquid into a cylindrical container (no text or symbols)

Illustration of a hand holding a small object with a curved line, no text or symbols present

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Brīdinājumi

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

5 Neversiet ierici pret sevi vai citiem cilvékiem.

Warning symbol image showing a gavel striking a warning sign with an exclamation mark

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a flask (no text or labels)

Hand holding a medical or surgical tool with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Paceliet rokturi uz augšu.

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

7 Lieciet ierīci sāniski uz virsmas, lai tvaika platne nesaskartos ar virsmu.

Ierīces lietošana

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a ring and the other holding a drum (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand holding a garment with a bag being placed on top, showing a downward arrow (no text or symbols)

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a tool interacting with a device, showing a downward arrow (no text or symbols present)

Illustration of hands holding a bag with a paper airplane and a pen, no text or symbols present

Diagram showing electrical switch components with labeled parts and directional arrows indicating connection to a power outlet.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a warning sign with an exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

5 Lieciet ierici sāniski uz virsmas, lai tvaika plātne nesaskartos ar virsmu.

Glabāšana

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 Piestipriniet üdens tvertni.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Perspèjimai

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

3 Garindami nelaikykite plikomis rankomis.

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a flask (no text or labels)

Hand holding a medical or surgical tool with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Atlenkite rankena.

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand holding a garment with a bag being placed on top, showing a downward arrow (no text or symbols)

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a bag with a brush and a paper roll, no text or symbols present

Diagram showing electrical switch installation with labeled components: power button, socket, and socket outlet

Diagram illustrating temperature measurement with temperature scale and directional arrows, showing two identical test tubes.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper (no text or symbols)

1 Nuimkite vandens bakelj.

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 Pritvirtinkite vandens bakelj.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating rope knotting and knot termination, showing correct and incorrect states with checkmarks and X marks.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Figyelmeztetés

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

Illustration of hands holding a hairdryer with a cross mark above indicating no text or symbols (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a flask (no text or labels)

Hand holding a medical or surgical tool with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Pattintsa fel a markolatot.

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other adjusting its shirt (no text or symbols)

Diagram showing electrical switch and power button with labeled parts 1 and 2

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a warning sign with an exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper (no text or symbols)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014 STH3020, STH3024

Waarschuwingen

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a flask (no text or labels)

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

190 Nederlands

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Klap de hendel omhoog.

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up object with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating fabric or material applied to the chest.

Illustration of a shirt collar with an upward arrow and a magnified inset showing a magnified view (no text or symbols)

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a device with a downward arrow and smokestack (no text or symbols)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper (no text or symbols)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Advarsler

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

1 Dampindikatorlampe
2 Avtakbar vannbeholder
3 Dampbryter
4 På/av-knapp
5 Oppbevaringsetui

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

4 Ikke rett apparatet mot ditt eget eller en annen persons ansikt.

200 Norsk

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

Hand holding a medical or surgical instrument with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

202 Norsk

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up cable (no text or symbols)

7 Fest vannbeholderen på apparatet.

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

4 For plagg med krage flytter du dampenheten vannrett langs kragen.

Illustration of a hand holding a garment with a bag being placed on a hanger (no text or symbols)

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a tool interacting with a device, showing a downward arrow (no text or symbols present)

Illustration of hands holding a bag with a paper airplane and a pen, no text or symbols present

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a gavel with a cross and warning sign, indicating incorrect safety.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

3 Fest vannbeholderen.

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

4 Hold apparatet fast i horizontal stilling.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

208 Norsk

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014
STH3020, STH3024

1 Bug' tayyor chirog'i
2 Ajraladigan suv baki
3 Bug' triggeri tugmasi
4 Quvvat tugmasi
5 Saqlash sumkasi

Ogohlantirishlar

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a handheld hairdryer with a cross symbol above, no text or symbols present

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

6 Foydalangandan keyin bug'latkich kallagini quvvat shnuri ustiga qo'ymang.

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

Jihozga vodoprovod suvini ham ishlatish mumkin. Biroq, agar siz suvi qattiq hududlarda yashasangiz, teng miqdordagi distillangan yoki demineralizatsiyalangan suv bilan aralashtirishni tavsiya qilamiz. Bu cho'kmaning tez to'planishing oldini oladi va jihozning xizmat muddatini oshiradi.

Xushbo'y, quritish mashinasining suvi, sirka, kraxmal, cho'kmalarni tozalash vositalari, dazmol qilish vositalari, kimyoviy cho'kmalardan tozalangan suv yoki boshqa kimyoviy moddalarni quymang, chunki ular sizib chiqishi, jigarrang dog'lar hosil qilishi yoki jihozingizga shikast yetishiga sabab bo'lishi mumkin.

Suv bakini to'Idirish

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

1 Ajraladigan suv bakini chiqarib oling. Suv bakida suv baki qopqog'ini toping. Suv baki qopqog'ini ochish uchun uni qopqoqni olib tashlang.

50% +

2 Suv bakiga 50% vodoprovod suvi va 50% distillangan/mineral tuzlardan tozalangan suv quying.

Distilled/ Demineralized water

50%

3 Suv baki qopqog'ini mahkam yoping.

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

214

O'zbek

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Dastakni yuqoriga harakatlantiring.

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

6 Dastak "shiq" etgan tovush bilan to'g'rilanishi kerak.

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

2 Yuqoriga surib quvvat tugmasini yoqing.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, no text or symbols present

4 Bug'ni bir necha soniya boshqa tarafga qaratib qo'ying va bug' triggeri tugmasini bosib turing, chunki dastlabki chiqqan bug'da suv tomchilari bo'lishi mumkin.

Illustration of a hand holding a handheld device with an arrow indicating left motion (no text or symbols)

5 Bug' chiqishini to'xtatish uchun bug' triggeri tugmasini qo'yib yuboring.

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

6 Kuyib qolmaslik uchun bug'latkich kallagini biror bir sirtga bevosita qo'ymang.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

7 Yuzaga bug' plastinasi bevosita tegmasligi uchun jihozni yon tomoni bilan qo'ying.

Jihozdan foydalanish

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

1 Kiyimni ilgakka iling. Yaxshi natijaga erishish uchun kiyimning yon tomonlari/quyi qismini yoying.

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

2 Bug'layotganingizda, bug'latkich kallagini kiyimga qarab bosing va kiyimning yon tomonlarini yozib qo'ying. Ko'ylak, kurtka va shim kabi tugmali kiyimlarda matoni tekislash oson bo'lishi uchun birinchi navbatda tugmalarni o'tkazing.

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other adjusting its shirt (no text or symbols)

3 Ko'ylak, kurtka va shim kabi tugmali kiyimlarda matoni tekislash oson bo'lishi uchun birinchi navbatda tugmalarni o'tkazing.

4 Yoqali kiyimlarda bug'latkichni yoqa bo'ylab horizontal harakatlantiring.

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

1 Pastga surib quvvat tugmasini o'chiring va jihozni yerga ulangan devor rozetkasidan uzing.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

2 Jihozni 60 daqiga soviting.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

3 Dazmol plitasidagi parchalar va har qanday qoldiqlarni nam mato bilan artib tozalang.

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

4 Kuyib qolmaslik uchun bug'latkich kallagini biror bir sirtga bevosita qo'ymang.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

5 Yuzaga bug' plastinasi bevosita tegmasligi uchun jihozni yon tomoni bilan qo'ying.

Saqlash

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

1 Suv bakini ajrating.

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

4 Jihozni horizontal holatda qattiq ushlang.

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

5 Dastakni bug'latkich kallagiga qarab eging.

220 O'zbek

Illustration of two hands holding cylindrical containers and a handheld tool (no text or symbols)

6 Dastak to'liq egilgan bo'lsin.

Diagram illustrating rope knotting and knot termination, showing correct and incorrect states with checkmarks and X marks.

7 Quvvat shnuri egilib yoki yoyilib qolmasligini ta'minlagan holda, jihozdan uni bir chetga olib qo'ying.

Nosozliklarni aniqlash

Bu bobda jihozda uchraydigan eng keng tarqalgan muammolar umumlashtirilgan. Agar quyidagi ma'lumotga asoslanib muammoni hal qila olmasangiz, savol-javoblar ro'yxati uchun www.philips.com/support manziliga kiring yoki mamlakatingizdagi mijozlarga xizmat ko'rsatish markazi bilan bog'laning.

Muammo Ehtimoliy sabab Yechim

Illustration showing two open book designs with icons and Chinese text labels, likely illustrating a reading or writing process.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or store items on a shirt (no text or symbols visible)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a beaker with liquid.

Hand holding a medical or surgical device with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

226 Polski

Illustration of hands holding a can with a slide and arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up cable (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other adjusting its shirt (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow and a circular object, indicating a process or movement.

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a device with a downward arrow and smokestack (no text or symbols)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a cloth partially inserted, showing a curved arrow indicating rotation (no text or symbols)

232 Polski

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014 STH3020, STH3024

Avisos

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a beaker (no text or labels)

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Português

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

7 Deite o aparelho na superfície para evitar o contacto direto da placa de vapor com a superfície.

Utilizar o aparelho

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of a person hanging clothes with a hand holding a device (no text or symbols visible)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

3 Limpe partículas e outros resíduos da base com um pano húmido.

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

5 Deite o aparelho na superfície para evitar o contacto direto da placa de vapor com a superfície.

Armazenamento

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

244 Português

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating two methods of tying a rope knot, with checkmark and cross symbols indicating correct and incorrect states.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Avisos

Diagram showing two open book illustrations with labeled parts, one containing a book and the other with a pencil and a key.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol showing a gavel striking a warning sign with an exclamation mark

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a flask (no text or labels)

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating clothing fit or disposal.

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a triangular object with a downward arrow and a spray bubble (no text or symbols)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a gavel with a cross and warning sign

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pouring liquid into a cylindrical container (no text or symbols)

Illustration of a hand holding a small object with a curved line, no text or symbols present

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating rope knotting and knot termination, showing correct and incorrect states with checkmarks and X marks.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or store items on a shirt (no text or symbols visible)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

262 Română

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Ridică mânerul.

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up object with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating clothing fit or disposal.

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a tool with a magnified view of a cylindrical object, no text or symbols present

Illustration of hands holding a triangular object with a downward arrow and a spray bubble (no text or symbols)

Diagram showing electrical outlet installation with labeled components and directional arrows

Diagram illustrating temperature measurement with temperature readings and a clock, showing two identical devices.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and triangle indicating incorrect safety.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pushing a rolled object with an arrow (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

5 Mos e poziciononi pajisjen drejt vetes/dikujt tjetër.

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a beaker with liquid.

Hand holding a medical device with a black arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

274 Shqip

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Kthejeni dorezën lart.

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up cable (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

2 Ndizni butonin e ndezjes duke e rrëshqitur lart.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, no text or symbols present

Illustration of a hand holding a handheld device with an arrow indicating left-hand rule (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand holding a garment with a bag being placed on top, showing a downward arrow (no text or symbols)

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a bag with a paper airplane and a pen, no text or symbols present

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols on the diagram itself.

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

2 Derdheni ujin e mbetur nga depozita e ujit.

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating two methods of tying a rope knot, with checkmark and cross symbols indicating correct and incorrect states.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Opozorila

Illustration showing two open book designs with icons and text labels, one labeled ① and the other ②.

Illustration of hands holding a hairdryer with a cross mark above indicating no text or symbols (no text or symbols present)

Illustration of a person applying a granular substance to a cylindrical tube, with a cross mark indicating the left side (no text or symbols present)

Illustration of a person using a handheld hairdryer with a cross symbol above their head (no text or symbols present)

4 Aparata ne usmerjajte v svoj obraz/obraz druge osebe.

284 Slovenščina

Illustration of a person holding a spray can with a cross mark (no text or symbols)

5 Aparata ne usmerjajte vase ali v drugo osebo.

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

6 Glave parne enote po uporabi ne postavljajte na napajalni kabel.

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

7 Raztegnite stranska dela oblačila.

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a beaker with liquid.

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

3 Trdno zaprite pokrov posode za vodo.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

4 Primate aparat in z eno roko trdno držite glavo parne enote.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

286 Slovenščina

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up object with an arrow indicating motion (no text or symbols)

7 Na aparat namestite posodo za vodo.

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

2 Vklopite gumb za vklop/izklop tako, da ga potisnete navzgor.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, no text or symbols present

Illustration of a hand holding a handheld device with an arrow indicating left-hand rule (no text or symbols present)

5 Sprostite sprožilnik pare, da aparat neha sproščati paro.

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

6 Glave parne enote ne polagajte neposredno na površino, da se izognete ožganinam.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

4 Pri oblačilih z ovratnikom parno enoto premikajte vodoravno ob ovratniku.

Illustration of a hand holding a garment with a bag being placed on top, showing a downward arrow (no text or symbols)

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

6 Pri likanju žepov srajc glavo parne enote pritisnite na oblačilo in premikajte navzgor po tkanini.

Illustration of hands holding a tool with a magnified view of a device (no text or symbols)

7 Pri likanju naborkov povlecite stranska dela oblačila, pritisnite glavo parne enote na naborke in likajte v smeri navzdol.

Illustration of hands holding a bag with a brush and a paper roll, no text or symbols present

8 Pri likanju rokovov s paro začnite pri ramenu in glavo parne enote premikajte navzdol. Rokav med likanjem s paro z drugo roko raztegnite navzdol.

290 Slovenščina

Diagram showing electrical switch installation with labeled components: power button, socket, and socket outlet

Diagram illustrating temperature measurement with temperature scale and directional arrows, showing two identical containers with a clock above.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and warning triangle

4 Glave parne enote ne polagajte neposredno na površino, da se izognete ožganinam.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols)

2 Iz posode za vodo izlijte preostalo vodo.

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

3 Namestite posodo za vodo.

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

5 Ročaj preganite proti glavi parne enote.

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

292 Slovenščina

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

6 Zagotovite, da je ročaj preganjen do konca.

Diagram illustrating two methods of cordage or rope knotting, with checkmark and cross symbols indicating correct and incorrect states.

Illustration showing two open book designs with icons and Chinese text labels, likely illustrating a reading or writing process.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

3 Oblečenie pri naparovaní nepridržiavajte holou rukou.

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

7 Napnite okraje oblečenia.

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

3 Veko zásobníka na vodu pevne zatvorte.

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

4 Zariadenie držte v ruke a jednou rukou ho pevne uchopte za naparovaciu hlavicu.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

298 Slovensky

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

6 Ked'zaznie „cvaknutie“, rukovät by mala myt narovnaná.

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, no text or symbols present

Illustration of a hand holding a handheld device with an arrow indicating left-hand rule (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and a warning triangle

6 Naparovaciu hlavicu neumiestňujte priamo na žiadne povrchy, aby ste predišli popáleninám.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

7 Položte zariadenie bokom, aby ste zabránili priamemu kontaktu naparovacej plochy s povrchom.

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

3 Navlhčenou tkaninou utrite šupiny a iné usadeniny zo žehliacej plochy.

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

4 Naparovaciu hlavicu neumiestňujte priamo na žiadne povrchy, aby ste predišli popáleninám.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

5 Položte zariadenie bokom, aby ste zabránili priamemu kontaktu naparovacej plochy s povrchom.

Odkladanie

Illustration of a hand holding a gavel and pouring liquid into a cylindrical container (no text or symbols)

Illustration of a hand holding a medical device with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force direction (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical object with a curved arrow indicating rotation (no text or symbols)

5 Rukovät sklopte smerom k naparovacej hlavici.

304 Slovensky

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating two methods of cordage or rope knotting, with checkmark and cross symbols indicating correct and incorrect states.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Upozorenja

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

1 Indikator spremnosti pare
2 Odvojivi rezervoar za vodu
3 Dugme za dodatnu količinu pare
4 Dugme za uključivanje
5 Torbica za odlaganje

1 Pročitajte vodič za brzi početak i brošuru sa važnim informacijama da biste saznali kako da koristite ovaj aparat.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

3 Nemojte da koristite golu šaku kao površinu za podršku prilikom primene pare.

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

6 Ne stavljajte glavu aparata za paru na kabl za napajanje nakon upotrebe.

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

7 Razvucite ivice odevnog predmeta.

Pre upotrebe

Tip vode koji bi trebalo koristiti

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

Nemojte da dodajete parfem, vodu iz mašine za sušenje veša, sirće, štirak, sredstva za uklanjanje kamenca, aditive za peglanje, vodu čiji je sadržaj kamenca smanjen hemijskim putem niti druge hemikalije zato što to može da dovede do prskanja vode, pojave braon fleka ili oštećenja aparata.

Punjenje rezervoara za vodu

Hand holding a medical device with a black arrow indicating rotation (no text or symbols)

1 Uklonite odvojivi rezervoar za vodu. Pronadite poklopac rezervoara za vodu na posudi za vodu. Podignite poklopac rezervoara za vodu da biste ga otvorili.

50% +

Distilled/ Demineralized water

50%

3 Čvrsto zatvorite poklopac rezervoara za vodu.

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

4 Držite aparat u ruci, dok jednom rukom čvrsto držite glavu aparata za paru.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Okrenite dršku nagore.

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, no text or symbols present

4 Usmerite paru u stranu na nekoliko sekundi i pritisnite i zadržite dugme za paru jer prvi mlaz pare može da sadrži kapljice vode.

Illustration of a hand holding a handheld device with an arrow indicating left motion (no text or symbols)

5 Otpustite dugme za paru da biste prekinuli emitovanje pare.

312

Srpski

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

7 Postavite aparat postrance na površinu da biste izbegli direktan kontakt ploče za nanošenje pare sa površinom.

Upotreba aparata

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

1 Okačite odevni predmet na vešalicu. Razvucite bočne ivice ili donju ivicu odevnog predmeta da biste postigli bolje rezultate.

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

2 Kada koristite paru, prislonite glavu aparata za paru uz odevni predmet, a drugom rukom vucite ivice odevnog predmeta. Kod odevnih predmeta sa dugmadi, kao što su košulje, jakne i pantalone, zakopčajte prvo dugme da biste doprineli ispravljanju tkanine.

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

3 Kod odevnih predmeta sa dugmadi, kao što su košulje, jakne i pantalone, zakopčajte prvo dugme da biste doprineli ispravljanju tkanine.

Illustration of a garment sleeve with arrows indicating movement or force direction (no text or symbols)

4 Za odevne predmete sa kragnom, aparat za paru pomerajte horizontalno duž kragne.

Napomena: Ovaj aparat može da se koristi za kreiranje prirodnog izgleda i za brzo doterivanje. Za odevne predmete sa velikim naborima i za formalniji izgled, preporučuje se da upotrebite i peglu.

Illustration of a garment hanger with hands holding a bag, showing clothing being lifted (no text or symbols)

Illustration of a shirt collar with an upward arrow and a magnified inset showing a sleeve detail (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

7 Ako odevni predmet ima falte, povucite bočne ivice odevnog predmeta, pritisnite glavu aparata za paru uz falte i primenjujte paru nadole.

Illustration of hands holding a pen or stylus with a brush, no text or symbols present

Diagram showing electrical plug connection with labeled parts: power switch and socket, and plug outlet with switch and power plug.

1 Isključite dugme za uključivanje tako što ćete ga prevući nadole, a zatim isključite aparat iz uzemljene zidne utičnice.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

2 Ostavite aparat da se hladi oko 60 minuta.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

3 Vlažnom krpom obrišite ljuspice i druge naslage sa grejne ploče.

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

5 Postavite aparat postrance na površinu da biste izbegli direktan kontakt ploče za nanošenje pare sa površinom.

Odlaganje

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

2 Prospite preostalu vodu iz rezervoara za vodu.

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 Pričvrstite rezervoar za vodu.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

4 Držite aparat čvrsto u horizontalnom položaju.

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

5 Preklopite dršku prema glavi aparata za glavu.

6 Uverite se da je drška sklopljena do kraja.

7 Namotajte kabl za napajanje dalje od aparata, pazeći da se ne savija niti razvlači.

Rešavanje problema

U ovom poglavlju ukratko su navedeni najčešći problemi do kojih može da dođe sa aparatom. Ako ne uspete da rešite problem pomoću informacija navedenih u nastavku, posetite www.philips.com/support da biste pronašli listu najčešćih pitanja ili se obratite centru za korisničku podršku u svojoj zemlji.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Varoitukset

Diagram showing two book illustrations with icons and Chinese labels, likely illustrating a concept or educational process.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or store items on a shirt (no text or symbols visible)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a beaker with liquid.

Hand holding a medical device with a black arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

322 Suomi

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up cable (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a hairdryer with a downward arrow indicating force or pressure (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand holding a garment with a bag being placed on a hanger (no text or symbols)

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a tool with a magnified view of a device (no text or symbols)

Illustration of hands holding a bag with a paper airplane and a pen, no text or symbols present

Diagram showing electrical switch components with labeled parts and directional arrows indicating connection to a power outlet.

Diagram illustrating temperature measurement with temperature scale and directional arrows, showing two identical containers with a clock above.

Line drawing of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and a warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, filter, and cover case

STH3010, STH3014 STH3020, STH3024

Varningar

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

7 Dra i plaggets sidor.

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a beaker with liquid.

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

334 Svenska

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other adjusting its shirt (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand holding a garment with a bag being inserted (no text or symbols)

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a bag with a paper airplane and a pen, no text or symbols present

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols on the diagram itself.

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

4 Håll apparaten i en horisontell position.

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014 STH3020, STH3024

Cảnh báo

Illustration showing a person reading a book with two open pages, labeled ① and ②, each containing an icon.

Illustration of hands holding a hairdryer with a cross mark above indicating no text or symbols (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a beaker with liquid.

Hand holding a medical device with a black arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

346 Tiếng Việt

5 Lật tay cảm lên.

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand holding a garment with a bag being placed on a hanger (no text or symbols)

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a bag with a paper airplane and a pen, no text or symbols present

Diagram showing electrical switch components with labeled parts and directional arrows indicating connection to a power outlet.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Uyarılar

Illustration showing two book covers with icons and a person reading above them, labeled ① and ②.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a beaker (no text or labels)

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, no text or symbols present

Illustration of a hand holding a handheld device with an arrow indicating left-hand rule (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a ring and the other holding a drum (no text or symbols)

Diagram showing electrical switch components with labeled parts and directional arrows indicating connection to a power outlet.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test tube with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pushing a rolled object with an arrow (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating rope knotting and knot termination, showing correct and incorrect states with checkmarks and X marks.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Duýduryşlar

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

4 Enjamy özüñiziň/başga biriniň yüzüne yakyn yerleşdirmän.

Illustration of a person holding a spray can with a cross mark (no text or symbols)

5 Enjamy özüñize/başga birine yakyn yerleşdirmän.

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or store items on a shirt (no text or symbols visible)

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

4 Bir eliñiz bilen bug çykaryjy ujuny mäkäm basmak arkaly enjamyňzy eliñiz bilen tutuň.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

370 Türkmençe

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

5 Tutawajy yokaryk yatyryň.

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

6 Tutawaç "şyrk" edip gönelýan bolmaly.

Illustration of a hand holding a gavel and a rolled paper object, with an arrow indicating motion (no text or symbols)

7 Suw gabyny enjama dakyň.

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols)

2 Kuwwat düwmesini yokaryk taýdyrmak arkaly işlediň.

Safety warning symbol showing a hammer striking a test with an 'X' and a warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

2 Bug bilen ütükleyän wagtyñyz bug çykían ujuny geýime basyň we beýleki eliñiz bilen geýimiň gyralaryndan çekmek arkaly ony uzaldyň. Köýnekler, penjekler we balaklar yaly ilikli geýimleri ütükläniñizde matany göneltmek üçin ilki iliklerini iliklăň.

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Arassalamak we abatlamak

Diagram showing electrical switch components with labeled parts and directional arrows indicating connection steps

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

2 Enjamyn 60 minutlap sowamagyna may beriñ.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test tube with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

2 Suw gabynda galan suwy dökün.

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

3 Suw gabyny dakyň.

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

4 Enjamy kese yagdaýda berk tutuň.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

5 Tutawajy bug çykarýan ujuna tarap epläň.

Illustration of hands holding a cylindrical container with a cloth partially visible, no text or symbols present.

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014
STH3020, STH3024

Illustration showing two open book designs with icons and Chinese text labels, likely illustrating a reading or writing process.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a white substance on a shirt (no text or symbols present)

Four black-and-white symbolic icons representing chemical or biological concepts: a bomb, a droplet with liquid, a bottle, and a flask.

Hand holding a medical or surgical tool with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

382 Ελληνικά

Illustration of hands holding a can with a slide and arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up cable (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

Diagram of a handheld device with an icon indicating power input and upward arrow, showing a button or indicator.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke or vapor rising, indicated by an arrow (no text or symbols present)

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and a warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device near a vertical line, with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other adjusting it (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating clothing fit or disposal.

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a tool with a magnified view of a cylindrical object, no text or symbols present

Illustration of hands holding a bag with a hammer and ink, no text or symbols present

Diagram showing electrical switch installation with labeled components: power button, socket, and socket outlet

Diagram illustrating temperature measurement with temperature scale and directional arrows, showing two identical containers with a clock above.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a cloth partially inserted, showing a curved arrow (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Предупреждения

Illustration showing a person reading a book with two open pages, labeled ① and ②, indicating different types of reading or writing.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a beaker (no text or labels)

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating fold changes or movement (no text or symbols)

Illustration of a garment hanger with hands holding a bag and a black arrow indicating a specific part (no text or symbols present)

Line drawing of a shirt collar with an upward arrow and a magnified inset showing the fold (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a bag with a brush and a paper roll, no text or symbols present

Diagram showing a hairdryer with labeled parts including a power button and electrical socket, marked with arrows.

Diagram illustrating temperature measurement with two identical thermometers and a clock, showing heat transfer from a thermometer to a thermometer.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and triangle indicating incorrect safety.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 Прикрепете водния резервоар.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014
STH3020, STH3024

Illustration showing two open book designs with icons and Chinese text labels, one labeled ① and the other ②.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

7 Кийимдин капиталдарын тартыңыз.

Колдонууга даярдоо

Hand holding a medical or surgical tool with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

406 Кыргызча

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled tube, with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating clothing fit or disposal.

Illustration of a shirt collar with an upward arrow and a magnified inset showing the handle (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a device with a downward arrow and smokestack (no text or symbols)

Diagram showing electrical switch components with labeled parts and directional arrows indicating connection to a power outlet.

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test tube with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols on the diagram itself.

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

Illustration of a hand holding a small object with a curved line, possibly a tool or device (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a hairdryer with a black X mark above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol showing a gavel striking a warning sign with an exclamation mark

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a beaker (no text or labels)

Illustration of a hand holding a medical device with an arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating clothing fit or disposal.

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a device with a downward arrow and smokestack (no text or symbols)

Diagram showing electrical switch installation with labeled components: power button, socket, and socket outlet

Diagram illustrating temperature measurement with temperature scale and directional arrows, showing two identical containers with a clock above.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014
STH3020, STH3024

Illustration showing two open book designs with icons and Chinese text labels, one labeled ① and the other ②.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol showing a gavel striking a warning sign with an exclamation mark

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Hand holding a pen with a circular object, no text or symbols visible

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object with a black arrow pointing to it (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other adjusting its shirt (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration of a garment hanger with hands holding a bag and a black arrow indicating direction (no text or symbols)

Illustration of a shirt collar with an upward arrow and a magnified inset showing a magnified view (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a pen or stylus with a brush, no text or symbols present

Diagram showing a hairdryer with labeled parts including a power button and electrical socket, marked with arrows.

Diagram illustrating temperature measurement with temperature readings and a clock, showing two identical thermometers.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and triangle indicating incorrect safety.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014
STH3020, STH3024

Огохй

Illustration showing two open book designs with icons and Chinese text labels, likely illustrating a reading or writing process.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark and a small pile of granular material (no text or symbols)

3 Хангоми буғ кардан дасти лучро хамчун сатхи пуштибонй истифода набаред.

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or store items on a shirt (no text or symbols visible)

Hand holding a medical device with a black arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Дастакро боло гардонед.

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

6 Дастак бояд бо садои «клик» рост шавад.

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

8 Шумо садои «клик»-ро мешунавед, ки нишондихандаи махкам шудани зарфи об аст.

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

2 Вакте шумо буғ мекунед,сараки дарзмоли буғиро ба болои либос пахш кунед, ва пахлухои либосро бо дасти дигар кашед то онро рост кунед. Барои либосхое, ки тугмахо ба монанди курта, куртка ва шим доранд, тугмаи аввалро пўшед, то матоъро рост кунад.

Illustration of two hands hanging clothes with a bag, one holding a device (no text or symbols visible)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating clothing fit or disposal.

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a tool with a magnified view of a cylindrical object, no text or symbols present

Illustration of hands holding a device with a downward arrow and smokestack (no text or symbols)

Diagram showing a hairdryer with labeled parts including a power button and electrical socket, with numbered annotations.

Diagram illustrating temperature measurement with temperature readings and a clock, showing two identical thermometers.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and triangle indicating incorrect safety.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper (no text or symbols)

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014 STH3020, STH3024

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a hairdryer with a cross mark above indicating a warning or rejection (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or store items on a shirt (no text or symbols visible)

Hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

454 Українська

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up object with an arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow and a circular object, indicating a process or movement.

Illustration of a shirt collar with an upward arrow and a magnified inset showing a magnified view (no text or symbols)

Illustration of hands holding a device with a downward arrow, no text or symbols present

Illustration of hands holding a pen or stylus with a brush, no text or symbols present

Diagram showing a hairdryer with labeled parts including a power button and electrical socket, marked with arrows indicating direction.

Diagram illustrating temperature measurement with two identical thermometers and a clock, showing heat transfer from a thermometer to a thermometer.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and triangle indicating incorrect safety.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014
STH3020, STH3024

Ескертулер

Illustration showing two open book designs with icons and Chinese labels, one labeled ① and the other ②.

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

Illustration of a hand holding a medical device with an arrow indicating rotation (no text or symbols)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and pulling a rolled-up cable (no text or symbols)

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating a process or change, possibly for clothing or clothing repair.

Illustration of a shirt collar with an upward arrow and a magnified inset showing the handle (no text or symbols)

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a device with a downward arrow and smokestack (no text or symbols)

Diagram showing a hairdryer with labeled parts including a power button and electrical outlet, marked with arrows.

Diagram illustrating temperature measurement with two identical thermometers and a clock, showing heat transfer from a thermometer to a thermometer.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and triangle indicating incorrect safety.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

1 Су ыдысын ажыратыңыз.

Illustration of a hand holding a small object with a curved line, possibly a tool or device (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Uwnwuph nunhwunin punipawqhn

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and accessories

STH3010, STH3014
STH3020, STH3024

2qn12wgniu5tn

Illustration showing two open book designs with icons and Chinese text labels, one labeled ① and the other ②.

1 «9n1nn2hnu wqn1yúwù wwwnpwuu» gnighs
2 Rwunuh gnh unwnw
3 9n1nn2ni uwwunwlywnwnpuiu ynǎwly
4 Uünigüwü lynäwü
5 Whu wui u unwynw

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

1 Guynwgtp uwnpu oqnwnqndtlni ultnwptnjwl hwuwznn nintgnygn lu ywnlunntntblynyjniuttn wynniuwynn pnyltung:

2 2qnizwgtp unwp qnnnn2nig, nnn nninu 5 qwjhu 2nqtiwnnnniyhg: 9nnnn2hù lwwnn 5 wjnluwdputnh wwnǎun nwnǔwù;

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

3 Uh oqunwqnnpdp atn utny atnpn npwtu httuwiu uwwtnttu, tnp wnynlnniú tp:

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

4 Uh wuhtp uwnpn atn ywu uby ninh2h nbuiphu:

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

6 Oqunwqnndtlnig htunn 2nqtiwnnnliyh qihuhyn uh nptp hnuwuph lwnh unw:

Illustration of hands using a handheld tool to clean or store items on a shirt (no text or symbols visible)

7 2qtp hwqnluunh lynptphg:

Lwhwwwnpwnnni

hùn unuwgh gnn wtpnp 5 oqunwqnndt

Uwnpn hwnuwn t δnnwlyh gnnl oqnwnqnpduiwu hwuiwn: Uuwujju, bpt nni p wwnniu ti p wjuwuh unwnwδpniu, nnntn gnh lynzunnijwù wunhǎwùn pwnàn t, hunphnnn tup unwihu δnnwlyh gnnn hwnutl jannwó yuuí ntúhútnwihqwuguwò gnh htun hwulwwwn puwuwyniŋwúp: Tw lywuhuh uwnylwδph lynwnwlniún l ytnywnwgǔh uwnph yjwūpn:

Uh wultiwgntp odwutihp, znpwngh gnn, pwgwfu, oulu, uunylwoph uwpniuu, wnnniyuwu odwunwly uhongutn, phuhwlywu uhongutpnu lwwpnuwd gnn lwwi phuhwlywu wjl uyniatn, pwuh nn nnuup lwwnn tui wnwwgutl gnh gwjuntn, 2wqwulwqnyu potn lwwi yuwutl atn uwnpn:

Ωnh υωρωμη χρισινή

Hand holding a tool interacting with a circular object, no text or symbols visible

1 3wùtp gnh hwùnzh unwnwù: 9untip gnh unwnwjh ynwjh ywwhwnhzn: Pwnànwgntap gnh unwnwjh ywwhwnhzn` wjù pwgtjni hwúwn:

50% +

2 2nh unwnwjnu lgntap 50% dnpwlyh u 50% pannwô/ntúhùtnwihqwguwô gnn:

Distilled/ Demineralized water

50%

3 Uünin yhuytip qnh unwnwjh ywhwnhyn:

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

4 Uwnpn wuhtp atn attnpniu' uh attnpnl wunin pnutlnl 2nqtwnnnniy h qihuhyn:

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 Fnuwyn pwnanwngtp ytnu:

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

7 3wqgnp2nh unwnwù uwnphù:

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

8 7nup wtpnp 5 «yununngh» àwju lutp, hùxn ù2wùwwlnu 5, nn ənh unwnwù wúnin hwagylwó 5:

Lwhwwwnnnwnnnn oqnwnqndtlnig wnwg

1 3nuwùph lwnn úhwgntp hnnwùgulwò lwnnnwlyhù:

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

2 Uhwqntp hnuuuph ynawyn' wju ntuwh qtnu uwhtgutiny:

3 «9n1nn2hnu wwnnlqiwu wwnnpwun» gnighsh [nijn 4ywn2yh` gnyg unwnj, np uwnpn unwpwuniw t: Uwnpn uwwnpwnun t oqnwwqnndiwi uunwwynnwwbu 30 ywjnljwuhg: tnp «9n1nn2hnu wwnnlqiwu wwnnpwun» [nijn 4wnniw t, 4zwiuwlni w uwnpn uwwnpwnun t oqnwwqnndiwi:

4 Uh puùh yuynlyjwù qninn2hù ninh2 untn ninntap u utnútip ni wuhtp qninn2ni úwwunwlywnwnúwù lynówlyn, puùh nn ulyqpniú qninn2hù ywnnn 5 gnh yuwahlúttn ywnniúwylti:

5 Fug panbp qnnn2ni uwnwlywnwnu wlu ynawlyn` qnnn2ni wnawlynwn nwnwnptgutni huuwn:

Warning symbol for a hand holding a gavel with an exclamation mark and warning triangle

6 Cnqtiwnnniuh qihuhyn uhi nntp wuiuhgwlywutnptu nnlu5 uwwytntuh ynwi' wijnluwoputnhg huniwwuhtni hwuiwn:

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

7 Uwnpn lynnpnu nntp uwltyntuh ynw` 2nqtwnpnniqh unwlyh uwwuh wuuhgwlywu 2hhnihg huniwwihtini hwuiwn:

Uwnph oqunwqnpnniun

Illustration showing a hand holding a bag with a downward arrow, indicating a decrease or reduction in clothing or material.

1 3wqnwnn ywhutp ywhuhhg: 2qtp hwqnwnh lynptnhg/ ütnpluh üwwhg' wultih puu wnnnilytini hwuwn:

Illustration of a person using a handheld device to lift or stand (no text or symbols visible)

2 9n1nn2hnu wnnniyltju hnu 2nqtawnnniuh qihuhyn utnutip hwqnwnnhu, huy ujniu attnpnu aqtip hwqnwnuh lynptngh: yndwylutpnu hwqnwnnp, onhawly ytnuww2wwhlutnp, pwolynutnp u unwpwnutnp, wultih ht2un wnnniyltini hwuwn lynytip wnwghu ynowyn:

Illustration of two hands hanging clothes with a bag, one holding a ring and the other holding a drum (no text or symbols)

3 LNÖWLYÜTPNLY HWQNIUUN, onHÜWLY ÜTINÜW2WWHYÜTNN, PWÖYNÜÜTNN U UNWPWNÜTNN, WÜLTİH HT2N WPNNIYTINI HWÜUN LNÖLYAP WNZWGHÜ LNÖWLYN:

4 Oàhpù wùnnìyīnì huúwùn 2nqtiwnnniún hnhqnǔwlywù nǐnnnǚajwùp 2wndtp oàhph tŋlywjùpnú:

U2niú. Uju uwnpn lwwnn t oqnwnqnpδutl hwqnwnhù pùwlywù untup hwnnnpntjni l uwnwq hwnnpuntjni hwiśwn: ἡdʒwn wwnnliyunn δωρτη hwnptgùtjni l huqnwnhù qnpδuwlqwù untup hwnnnpntjni hwiśwn hunphninp t unplniú tiwlu oqnwnqnpδtj wwnniú:

5 4qnüw2wwjhy yhuí pninnwöwltpnu, qhnætnnu yhuí ðwiylwópūtnnu qqtuunutn wpnnilytihu 2nqtwpnnnliyh qjhuhyn nnn2wlyh htnwuynnniəjuwù yhuu ywhtp yunnhg: 9npölwöpn hwnatgntap ühwjù qinn2hny: 7nip ywnnn tpr üwu qinn2hnu wpnnilyti yunnhh jawnu lynühg:

6 vtnüw2wwhlyh qnwüüutnu wnnnilytju 2nqtiwnnnilyh qihuhyn ntuwh vtnu 2wndtp' uhwudwüuwly wju utnüütinu yunnphu:

Diagram showing electrical plug connection with labeled parts: power switch and socket, plus directional arrows indicating charging direction.

1 Uguwntp hnuwuph lynawyn' wju uwhtgutlnu ntiuh utnplu, u wugwntp uwnpn hnnwuguwio uwnnwlyhg:

Diagram illustrating temperature measurement with temperature readings and directional arrows, including a clock icon and thermometer symbols.

2 ∅nntip, nnwbuqh uwnpn ünn 60 nnwta hnuwüuw:

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

3 lunluul 2nnuul wunnluyh unwuh hwnuqwdhg htizwgntp luunuqwdpn u wjl uuwgnnnutn:

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

4 Cnqtawnnniyh qfuhyn shi nnpw wuuhgwlywunntbu nnlu s uwytnbuh ynwi' wjnluwoputnhg hnuwwhtjni hwuiwn:

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

5 Uwnpn lynnpnu nntp uwlvtntuh ynw` 2nqtwnnnliyh unwuh uwwh wuuhqwywu 2yhnihg hniuwuhtjni hwudwn:

اللهمنيُمْ

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

1 3wùtp qnh unwnwù:

Illustration of a hand holding a curved object with a pointed tip, no text or symbols present

2 2nh hughyng pawhtp d'uwgwò gninn:

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 3wqgntp gnh unwnwu:

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

4 Uwnpn wùnīn wqwhāp hnnhqnǔwlywǔ nhhnpniú:

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

5 Fniwln dwlp 2nqwnnnlhy qihuh h ninnipajwup:

6 3wúnqutp, nn pnùwln úhúsu útng ówúlti t:

7 3nuuuph luun yhuwepap uwnphg htnni' hwuynqutinyl, nn hnuuwph lwnp dwlquw dwwu dqulwds:

Uuuwnpniŋniùtph niŋnnu

Uju qjhuniú útnlywjwgluwð tǔ wútúwùnwnpudluwð huùnhnúttn, npnúp lqwnnn tǔ huùnhwúti uwnph oqnwwqnndúwù dwúwúwú: ʒrát ʒtip lqwnnnwúniú huùnhŋ įniðti uunnplu pānjuwð unṭnītywnunlnjuəwù oqūnipjwúp, wjgtitp www.philips.com/support hwaówhuwlyh unplnn hwngtinh hwuīwn lyuši nhútip ðtín tplynniú qnpónn 3wǎwhunpnntuhh uwwuwwnyúwù lytiunpnù:

Hunhn Ruwwnwnn wwnawn Lnidniu

Uwnpn sh unwpwünui: Uwnpù hùswbu hwnlù tśuhwgulwò s5 quwnnwlyhù lwwúuhwgulwò s5 lynǎwlyhg:	Unniqtpr' wnnjnp hnuwùph lwnpǎh2un t5 uìngulwò quwnnwlyh útg, luwnjnp quwnnwlyu w2huwinnui t:Unniqtpr' wnnjnp uwnpnúhwgulwò s lynǎwlyhg:
Uwnpn qnnnzh sh wnàwlnui: Uwnpù hùswbu hwnlù tśuhwgulwò s5 quwnnwlyhù lwwúuhwgulwò s5 lynǎwlyhg:	Unniqtpr' wnnjnp hnuwùph lwnpǎh2un t5 uìngulwò quwnnwlyh útg, luwnjnp quwnnwlyu w2huwinnui t;Unniqtpr' wnnjnp uwnpnúhwgulwò s lynǎwlyhg:

	Uwnpn puwlwlywùwzwh zh unwpwùnui:	@niyl unutp, nnwtuqh uwnpn unwpwùw ≈30 ywjnljuwù («qnlnn2hnu wnnnljuwù uwwnnwuun» gnighsh injyn wtunp t ywnzh): tnpe uwnpn wwwnnwuun t oqnwqnndúwù, injyu wǔgwwnulniú t:
	?niip úhùslu útng stp utnúti qnlnn2ni úwwnwlywnwnúwù lynǎwluŋ:	Uh pwùh ywjnljuwù úhùslu útng utnútip qnlnn2ni úwwnwlywnwnúwù lynǎwluŋ:
	2nh hughlynui znh úwwywnnwlyn szwihwquug gwòn t ywu ʒnɪn slyw:	Uügwuntip uwnpn ywnnwlyhg l ünphg lgntip ʒnh hughluŋ:
	čnqtwnnnliyh unwlyh úwwn hnnhqnùwlywù nħnpniú t:	Uwnpù ninnwhuwjwg nħnpnul wuhtip, uwwutip úh pwùh ywjnljuwù, úhùslu qnlnn2hù nninu qw:
Čnqtwnnnliyh qihuhlyhg znh ywwphúttn bù ywwəniú:	Uwnpù wúpnnnqnluhù sh unwpwgti:	@nntip, nnwtuqh uwnpn wúpnnnqnluhù unwpwùw:
Uwnphg wnúwgh w2huwwunwúph àwju t qwihu/pnùwluŋ pānənniú t:	2ninn únylniú t ηtawh 2nqtwnnnliyh qihuhlyn, nnwtuqh wjūnihbunu útwnòdh qnlnn2ni:	7w ünnúwú t:
	2nh hughlynui znh úwwywnnwlyn szwihwquug gwòn t ywu ʒnɪn slyw:	Uügwuntip uwnpn ywnnwlyhg l ünphg lgntip ʒnh hughluŋ:
Čnqtwnnnliyh qihuhlyn l/ywu pnùwluŋ pawg t:	2ninn igutini nnùwluŋ úhùslu útng hwagglud s5:	3wutip ʒnh hughlyn l huwúnqutp, nn gnin ʒgutini nnùwluŋ wúpnnnnujwúp untwnwnluwó t:
	2nh hughlynui znh úwwgnnnúttn ywu:	Uwpntip ʒnh hughlyníú wnlyw ʒnh úwwgnnnúttn:

ข้อมูลเบื้องต้น

Illustration showing two open booklets with icons and Chinese labels, one labeled ① and the other labeled ②.

Illustration of hands holding a hairdryer with a cross mark above indicating no text or symbols (no text or symbols present)

Illustration of a person using a handheld device to clean or exhaust air (no text or symbols present)

Illustration of a person using a handheld hairdryer with a cross symbol indicating toxicity (no text or symbols present)

Illustration of a person holding a spray can with a cross mark, no text or symbols present

Warning symbol showing a gavel striking a warning triangle with an exclamation mark

Illustration of a person using a handheld tool to clean or spray a hair roller on a shirt (no text or symbols present)

Hand holding a pen with a circular object, no text or symbols visible

Distilled/ Demineralized water

50%

490 ภาษาไทย

Line drawing of a hand holding a cylindrical object with a black arrow pointing to it (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

5 พลิกที่จับขึ้น

Illustration of hands holding a can and a scraper, with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container with a glowing effect (no text or symbols)

Illustration of a hand holding a gavel and pouring liquid into a cylindrical container (no text or symbols)

Illustration of a hand holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols)

Diagram of a handheld device with an icon indicating power input and upward arrow, showing control buttons.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a warning sign with an exclamation mark and triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool with a downward arrow, next to a device component (no text or symbols)

Illustration of hands using a tool to remove or brush a curved object, with no visible text or symbols.

Diagram showing a hairdryer with labeled parts including a power button and electrical outlet, marked with arrows.

Diagram illustrating temperature measurement with temperature readings and a clock, showing two identical devices.

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a surface with an 'X' and a warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

1 ถอดแท้งค์น้ำออก

Illustration of a hand holding a medical device with a pointed tip, no text or symbols present

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical object with a curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a cylindrical container and a handheld tool (no text or symbols)

Diagram illustrating rope knotting and safety check symbols, showing correct and incorrect ways to tie a rope knot.

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014 STH3020, STH3024

yghgng:

Illustration showing two open book designs with icons and Chinese text labels, likely illustrating a reading or writing process.

1 mంచ్యాని అసంగు బార్యస
2 6yqnnu dmubb6gmn m98gm3yu5n
3 m ^m ng ^d g ^n nl b ^s d ^z g ^d nl b ^n n ^e ns ^z n
4 330ðnú ๑๐๓๔๖
5 ∂glubsbn ∂sμησις

Illustration of hands holding a handheld device with a cross symbol above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol with gavel, cross, and warning triangle indicating hazard or caution

Illustration of hands using a handheld tool to clean or absorb a textured substance on a shirt (no text or symbols present)

7 836000000000000000000000000000000000000000

zsdmbsygbdunso dmdbsggds

zsdmlsyy6gdoqmn bymnbl 0n3n

Hand holding a medical or surgical instrument with a curved arrow indicating rotation (no text or symbols present)

Distilled/ Demineralized water

50%

Line drawing of a hand holding a cylindrical object with a handle and spiral pattern (no text or symbols)

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a cloth, showing a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of a plug with a black arrow pointing to its cable (no text or symbols)

Diagram of a handheld device with an icon indicating the right-hand rule for setting up a button.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

7 89033n66 m6m6mn5 g6m6ng6nl 3n6n6s3n6n 3mb6y6fnl 023n66 sl5m6o6dmsq dmbymdnmmds 89033n68 831m6y6msq dmsns3lgn.

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a spray gun with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other adjusting its shirt (no text or symbols)

3 ฐมหกศน์ ๑๕๕๖๕๘๐๙ ๒๕๕๖๗๙ ๓๐๐๓ ๔๖๖๘๙, ๓๗ ๓๖๗ ๓๐๐๖๘๕ ๕๕๕๖๘๘ ๔๖๖๘๘ ๔๖๖๘๘, ๓๗ ๓๖๗ ๓๐๐๖๘๕ ๕๕๕๖๘๘ ๔๖๖๘๘ ๔๖๖๘๘, ๓๗ ๓๖๗ ๓๐๐๖๘๕ ๔๖๖๘๘, ๔๖๖๘๘, ๔๖ ๔๖.

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a garment with a downward arrow indicating clothing fit or usage, alongside a shirt photo.

5 mfonjmnls sssmsgns oszn mq6s3 qssdmfgn 3gm6bgdu sb zsdgdu, mnmdmgydus ggtmgydqn, smdnjdn, gmqmnfgdymn bsgfmdn sb zomnfgdun sjbl. jlmzmnns foalsmdnmgdemsq dbmmmcg mnmonjmn gsdmnygbgn. mnmonjmn sssgmgds slg3g dgludmgtdgmns daagbnw6.

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

6 307562915 70890015 307562915 307562915 307562915 307562915 307562915 307562915 307562915 307562915 307562915 307562915 307562

Illustration of hands holding a tool with a downward arrow, no text or symbols present

7 632010100000000000000000000000000000000000000000000000000000000000

Illustration of hands holding a bag with a hammer and ink, no text or symbols present

8 mnmjmnon lubgmmgdnl gsdydszjds qsnbyon dbnncosb qss nsbqosn6 bsdmyjznon dzjdmn. gsdydszgdnlsu nsgnlcygsmn bymnon qnszmbcymfum odmjuhgn lubgmmb.

35679033905 408 4m3m5-4g6b33

Diagram showing a hairdryer with labeled parts including a power button and electrical socket, with numbered annotations.

Diagram illustrating temperature measurement with temperature readings and a clock, showing two identical thermometers.

Illustration of hands cleaning a hairdryer (no text or symbols)

3 domnqosb dmsyngngon gssghgngdun qo lubz subnu bsggndn u3gmn bsgfmm.

Safety warning symbol showing a hammer striking a test with an X and triangle indicating incorrect safety.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

5 89033n666 m6m4mn10 g9m4gnfnl 3n4n4s3n4n 3m6fujfnl 023n4s6 s5m4n4g7m5o 4m6ymdnmmds 89033n68 y33n4y7m5o 4m6ns3lgn.

508 ยงดิมพูตรน จ63

∂g6sb3s

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

Illustration of a hand holding a small object with a curved line, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating two methods of cordage or rope knotting, with checkmark and cross symbols indicating correct and incorrect states.

Illustration showing a person reading a book and its corresponding card with a medical symbol, labeled ① and ②.

Illustration of a hand holding a hairdryer with a cross mark above, no text or symbols present

Illustration of a hand holding a cylindrical object with a cross mark and smoke, no text or symbols present

3 熨烫时请不要用手作为支撑面。

Illustration of a person using a hairdryer with a cross symbol indicating rejection (no text or symbols present)

4 切勿将产品朝向自己/他人的脸。

Illustration of a person holding a cylindrical object with a cross symbol, no text or symbols present

5 切勿将产品朝向自己/他人。

Warning symbol showing a gavel striking a warning sign with an exclamation mark and triangle

Illustration of hands using a handheld device to clean or absorb a white substance from a shirt (no text or symbols)

7 展开衣物两侧。

使用准备

所用水质类型

Four black cross icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a beaker with liquid.

Hand holding a pen with a circular object inside, no text or symbols visible

Distilled/ Demineralized water 50%

Line drawing of a hand holding a circular object with a handle, no text or symbols present

3 盖紧水箱盖。

Illustration of two hands holding a cylindrical container and a pen-like object (no text or symbols)

Illustration of hands holding a cylindrical container with a paper clip, showing a curved arrow indicating rotation (no text or symbols)

5 向上翻转手柄。

Illustration of two hands holding a can with a lit fuse, emitting sparkles (no text or symbols)

6 发出“咔哒”声既表示手柄安装到位。

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating direction (no text or symbols)

7 将水箱安装到本产品上。

Illustration of a hand holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a cable plugged into a socket with an arrow indicating direction (no text or symbols)

1 将电源插头插入接地电源插座。

Diagram of a handheld device with an icon indicating power input and directional arrow

2 向上滑动电源按钮，启动蒸汽熨烫机。

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a cylindrical device with a black arrow indicating motion (no text or symbols)

5 松开蒸汽开关按钮，停止逸出蒸汽。

Safety warning symbol showing a hammer striking a test with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating inspection (no text or symbols)

Illustration of a hand holding a cylindrical object with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes, one holding a hook and the other holding a bag (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration showing a hand holding a bag with a downward arrow indicating a process or change, possibly illustrating clothing or garment usage.

Illustration of a shirt collar being held by a hand holding a button (no text or symbols)

Illustration of a hand holding a tool with a magnified view of a device, no text or symbols present

Illustration of hands holding a pen-like object with a brush, no text or symbols present

Diagram showing a plug with two labeled parts: one with an arrow indicating direction, the other with a power button and arrow indicating direction.

Diagram illustrating temperature measurement with temperature scale and directional arrows, showing two identical containers with heat symbols.

2 让产品冷却大约 60 分钟。

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test tube with an 'X' and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a gavel and pulling a rolled paper or tape (no text or symbols present)

1 拆下水箱。

Illustration of a hand holding a curved object with a handle, no text or symbols present

2 将水箱中剩余的水倒出。

Illustration of a hand holding a cylindrical object with arrows indicating motion or force direction (no text or symbols)

3 安装水箱。

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

4 沿着水平方向握紧该产品。

Illustration of hands holding a cylindrical object with a curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a cylindrical container and a handheld device (no text or symbols)

6 确保手柄已完全折叠。

Diagram illustrating rope knotting and knot termination, showing correct and incorrect ways to tie a rope knot.

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014
STH3020, STH3024

524 繁體中文

警告

Illustration showing two open book designs with icons and text labels, one reading a book and the other writing a key.

Illustration of hands holding a hairdryer with a cross mark above indicating no text or symbols (no text or symbols present)

Illustration of a hand holding a cylindrical object with a cross mark, no text or symbols present

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

4 請勿將產品朝向自己/他人的臉部。

Illustration of a person holding a cylindrical object with a 'X' mark, no text or symbols present

5 請勿將產品朝向自己/他人。

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

7 拉伸衣物兩側。

使用前準備

使用的水質

Hand holding a medical or surgical instrument over a curved anatomical structure (no text or symbols visible)

Distilled/ Demineralized water

50%

3 確實蓋好水箱蓋。

Line drawing of a hand holding a cylindrical object with a handle, no text or symbols present

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a can with a tool, showing a curved arrow indicating rotation (no text or symbols)

5 將握把往上扳。

Illustration of two hands holding a can with a spark effect (no text or symbols)

6 發出「喀噠」聲代表握把應已拉直。

Illustration of a hand holding a gavel and pulling a rolled-up cable (no text or symbols)

7 將水箱裝到產品上。

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols)

1 將電源線插頭插入接地插座。

528 繁體中文

Diagram of a handheld device with an icon and directional arrow, indicating power or current control.

≈ 30 sec.

Simple line drawing of a cylindrical object with a circular component and an arrow pointing downward (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

2 向上滑動電源按鈕將其開啟。

Safety warning symbol showing a hammer striking a test with an 'X' and a warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object over a garment, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a downward arrow, next to another person (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a cloth and the other holding a magnifying glass (no text or symbols)

Illustration of a garment hanger with arrows indicating movement or force direction (no text or symbols)

Illustration showing a hand holding a garment with a bag being placed on top, indicating clothing or clothing movement.

Illustration of a shirt collar with a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a pen or stylus with a brush, no text or symbols present

Diagram showing a hairdryer with labeled parts including power switch, socket, and plug, with numbered annotations.

Diagram illustrating temperature measurement with temperature scale and directional arrows, showing two identical thermometers.

2 等待約 60 分鐘，讓產品冷卻。

Illustration of hands cleaning a hairdryer (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and triangle indicating incorrect safety.

Simple line drawing of a hairdryer with a checkmark indicating the correct mark (no text or symbols present)

Illustration of a hand holding a gavel and pouring liquid into a cylindrical container (no text or symbols)

1 拆下水箱。

Illustration of a hand holding a medical device with a pointed tip, no text or symbols present

2 將水箱中剩餘的水倒空。

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 装上水箱。

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

4 將產品穩穩地保持在水平位置。

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

5 將握把朝蒸氣噴頭方向折疊。

Illustration of two hands holding cylindrical containers and a handheld device (no text or symbols)

6 確保握把完全折叠。

Diagram illustrating two methods of cordage technique with checkmark and cross symbols indicating inspection or failure.

Technical diagram of a hair dryer with labeled parts including air purifier, cloth cover, and accessories

STH3010, STH3014
STH3020, STH3024

경고

Illustration showing two open book designs with icons and a person reading above them, labeled ① and ②.

Illustration of hands holding a hairdryer with a cross mark above indicating no text or symbols (no text or symbols present)

Illustration of a person using a pipe to clean or exhaust (no text or symbols)

Illustration of a person using a hairdryer with a cross symbol above their head (no text or symbols present)

Illustration of a person holding a cylindrical object with a cross mark, no text or symbols present

Warning symbol image showing a gavel striking a warning sign with an exclamation mark and a triangle

Illustration of hands using a handheld tool to clean or spray a white object on a shirt (no text or symbols)

7 옷감의 측면을 당겨 펴십시오.

사용 준비

사용할 물의 종류

Hand holding a pen with a circular object inside, no text or symbols visible

Distilled/ Demineralized water

50%

3 물탱크 뚜껑을 꼭 닫으십시오.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of two hands holding a cylindrical container and a bulbous object (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

5 손잡이를 위로 젖합니다.

Illustration of two hands holding a can with a spark effect (no text or symbols)

Illustration of a hand holding a gavel and a rolled object, with an arrow indicating motion (no text or symbols)

7 물탱크를 제품에 장착합니다.

Illustration of a hand holding a cylindrical object with motion lines indicating movement (no text or symbols)

Illustration of a plug with a curved wire and an arrow indicating direction (no text or symbols)

Diagram of a handheld device with an icon and directional arrow, indicating power or current control.

≈ 30 sec.

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

Safety warning symbol showing a hammer striking a test with an 'X' and a warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of two hands hanging clothes with a bag, one holding a device (no text or symbols visible)

Illustration of a garment hanger with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand holding a garment with a bag being placed on a hanger (no text or symbols)

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

Illustration of hands holding a tool with a magnified view of a device (no text or symbols)

Illustration of hands holding a bag with a pen and ink, no text or symbols present

Diagram showing electrical switch installation with labeled components: power button, socket, and socket outlet

Diagram illustrating temperature measurement with temperature scale and directional arrows, showing two identical test tubes.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an X and warning triangle

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

1 물탱크를 분리합니다.

Illustration of a hand holding a small object with a curved line, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating motion or force (no text or symbols)

3 물탱크를 장착합니다.

Illustration of two hands holding a cylindrical object with a bandage (no text or symbols)

Illustration of hands holding a cylindrical container with a curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a cylindrical container and a handheld tool (no text or symbols)

Diagram illustrating two methods of cordage or rope knotting, with checkmark and cross symbols indicating correct and incorrect states.

Technical diagram of a hair dryer with labeled parts including air purifier, bag, and printer

STH3010, STH3014 STH3020, STH3024

، أن البخار جاهز 1

, مياه قابل للفك 2

زر مشغّل البخار 3

زر الطاقة 4

حقية لل tangزين 5

التحذيرات

استخدام الجهاز.

يسب الحروق.

Illustration of a person holding a spray can with a cross mark (no text or symbols)

حو شخص آخر.5

Warning symbol image showing a gavel striking a warning sign with an exclamation mark

بعد استخدامه.6.

Illustration of hands using a handheld tool to remove or spray a smoke from a shirt (no text or symbols)

لابس لمديدها.

التحضير للاستخدام

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a flask (no text or labels)

Hand holding a pipette over a curved surface with concentric rings (no text or symbols)

50% +

Distilled/

Demineralized water

50%

Line drawing of a hand holding a small object with a black arrow pointing to it (no text or symbols)

Illustration of two hands holding cylindrical containers and a pen (no text or symbols)

تعبئة خزان المياه

لمياه لفتح غطاء 1

خزان المياه.

1. منزوع المعادن

ن المياه إحكام 3.

٤ ياحدى اليدين 4.

العربية 551

ارفع المقبض.5

Illustration of hands holding a can and a cloth with a curved arrow indicating rotation (no text or symbols)

6." ع صوت "نقرة"

Illustration of two hands holding a can with a spark effect (no text or symbols)

мыاه على الجهاز.

Illustration of a hand holding a gavel and a rolled document, with an arrow indicating motion (no text or symbols)

ن المياه ياحكام.

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols)

Diagram showing a device with a button labeled 'Power' and an arrow pointing to it, indicating direction or action.

ق تحریکه لأعل 2.

≈ 30 sec.

ببح الجهاز جاهزآ3

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present.

دار من الانبعاث.5

Illustration of a hand holding a handheld device with a black arrow pointing to the left side (no text or symbols present)

العربية 553

. لتجنب الحروق 6.

Warning symbol showing a gavel with a cross and warning triangle, indicating incorrect safety or hazard.

بخار مع السطح.

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols on the diagram itself.

استخدام الجهاز

على نتائجがあった.

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow, next to a garment (no text or symbols)

ة الملابس بيدك 2

Illustration of a person hanging clothes with a hand holding a device (no text or symbols visible)

الأول لمساعدتك 3

Diagram illustrating shoulder joint movement with arrows indicating direction of movement and shaded regions

على طول الياقة.

Illustration of a garment with hands holding a jacket and a bag, showing clothing items (no text or symbols)

نة باللكشاikhى أو 5

Illustration of a shirt collar with a hand holding a pen and cap, showing a pointing up arrow (no text or symbols)

ط على القميص.

Illustration of hands using a tool to press down a surface with a downward arrow (no text or symbols)

خار على الطitions 7

Illustration of hands holding a pen or tool with a brush and inkwell, no text or symbols present

إلى الكي بالbxار8

Diagram showing a hairdryer with labeled parts including power switch, socket, and plug, with numbered annotations.

Diagram illustrating temperature change with temperature scale and directional arrows, showing two identical containers with heat symbols.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

لمدة 60 دقيقة.

كَة قماش رطبة.

لتجنب الحروق 4.

خار مع السطح.

مل خزان المياه 1.

أي مياه متبقية.

بت خزان المياه.

Diagram illustrating three steps of a cable or wire installation procedure: holding a cylindrical container, connecting a cable to a wire with a knot, and securing a wrapped package with a knot.

Technical diagram of a hair dryer with labeled parts including spray gun, bag, and printer

STH3010, STH3014 STH3020, STH3024

560 قارسی

آماده بودن بخار 1

ن آب چداشدنی 2

لمه فشاری بخار 3

روشن/خاموش4

کیف نگهداری 5

هشدارها

بم مراجعه کنید.

Illustration showing four steps of a person using a handheld device to prevent fever, with numbered instructions and X marks indicating absence or rejection.

سوختگل شود. 2.

استفاده نكنید.

خودداری کنید.

561 قارس

ز خودداری کنید.5

Illustration of a person holding a spray can with a cross mark (no text or symbols)

Warning symbol showing a gavel striking a warning sign with an exclamation mark

Illustration of hands using a handheld tool to remove or spray a smoke from a shirt (no text or symbols)

برق قرار ندهید. 6.

لباس را بکشید. 7.

Four black-and-white icons representing chemical symbols: a bomb, a droplet with liquid, a bottle, and a flask (no text or labels)

Hand holding a pipette over a curved surface with concentric rings (no text or symbols)

50% +

Distilled/

Demineralized water

50%

Line drawing of a hand holding a small object with a black arrow pointing to it (no text or symbols)

Illustration of two hands holding cylindrical containers and a pen (no text or symbols)

پرکردن مخزن آب

ن آب را باز کنید.

ن املاح پر کنید. 2.

را محكم بندید.

را محكم بگیرید. 4.

563 فارسی

رف بالا باز کنید.5.

Illustration of hands holding a can and a scraper, with a curved arrow indicating rotation (no text or symbols)

بالا باز مى شود.

Illustration of two hands holding a cylindrical container with a glowing spark effect (no text or symbols)

گاه متصل کنید. 7.

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

چا افتاده است. 8.

Illustration of two hands holding a cylindrical object with radiating lines, no text or symbols present

Illustration of a plug with a coiled cable, showing an arrow indicating direction (no text or symbols present)

564 قارسی

Diagram showing a device with a button labeled 'Power' and an arrow pointing to it, indicating direction or action.

- تا روشن شود.

≈ 30 sec.

، حدود 30 ثانيه 3

Simple line drawing of a cylindrical object with a downward arrow and a speech bubble (no text or symbols)

Illustration of a hand holding a cylindrical object with smoke rising, no text or symbols present

بخار اوليه ممکن 4

Illustration of a hand holding a handheld device with a black arrow indicating left motion (no text or symbols)

دار متوقف شود.5.

565 فارسی

لحي قرار ندهید.6

سطح بخوابانيد. 7

استفاده از دستگاه

تیجه بهتر باشد.

Illustration of a hand holding a bag with a downward arrow, no text or symbols present

Illustration of a hand holding a handheld device with a downward arrow, next to a garment (no text or symbols)

مت بکشید. برای 2

Illustration of a person hanging clothes with a hand holding a cylindrical object (no text or symbols visible)

ردن پارچه کمک 3

کند.

566 قارسى

Illustration of a garment sleeve with arrows indicating fabric direction (no text or symbols)

قه جرکت دهید.4

Illustration of a garment with hands holding a bag, showing clothing and a downward arrow (no text or symbols)

ن بگیرید. از بخار 5

Illustration of a shirt collar being held by a hand holding a magnifying glass (no text or symbols)

و به بالا بکشید.6

Illustration of hands holding a device with a downward arrow, no text or symbols present

به پایین بکشید. 7.

Illustration of hands holding a pen or pencil, with a brush applying material to a curved object (no text or symbols)

， دهید. در حال 8

Diagram showing a hairdryer with labeled parts including power switch, socket, and plug, with numbered annotations.

Diagram illustrating temperature change with temperature scale and directional arrows, showing a clock, thermometer, and two identical thermometers.

Illustration of hands cleaning a hairdryer with a cloth (no text or symbols)

Safety warning symbol showing a hammer striking a test with an 'X' and exclamation mark

Simple line drawing of a hairdryer with a checkmark indicating no text or symbols

تگاه خنک شود. 2.

ف اتو پاک کنید. 3.

حى قرار ندهید. 4.

سطح بخوابانيد.5.

آب را جدا کنید.

ب بيرون بريزید.

را متصل کنید. 3.

افقی نگهدارید.4.

بخارشو تا کنید.5.

Illustration of hands holding a cylindrical container and a pen-like object (no text or symbols)

Diagram illustrating two methods for tying a rope knot, with checkmark and cross symbols indicating correct and incorrect states.

عيب يابى

PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.

2024 © Versuni Holding B.V.

642001005887 (06/2024)
