USER MANUAL PORT10UHF-BT IBIZA SOUND

WITH USB, FM, BLUETOOTH Remote Control & UHF + wired mics

REF:

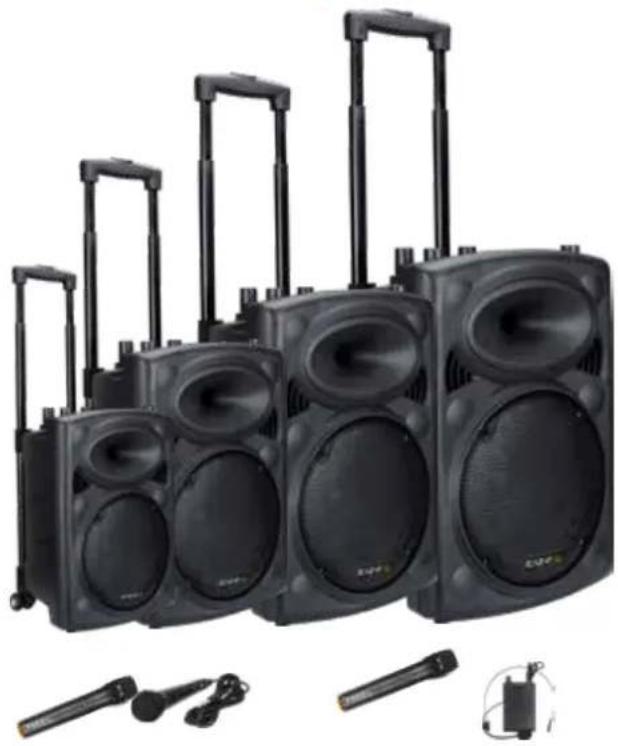

PORT8UHF-BT / PORT10UHF-BT
PORT12UHF-BT / PORT15UHF-BT

MANUAL

ACCESSORIES: 1x handheld UHF mic + 1 wired mic + 1 remote control + 1 protection bag (only black version)

ACCESSORIES: 1x handheld UHF mic + 1 headset mic + 1 remote control + 1 protection bag (only black version)

WITH USB, BLUETOOTH, TWS, REMOTE CONTROL & UHF + WIRED MICS

INSTRUCTION MANUAL

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

Please read the manual carefully and keep it for future reference.
All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. We assume no liability for any consequent damage.
We assume no liability for personal injury or damage to property caused by incorrect handling or non-observance of the safety instructions. Any guarantee claims expire in such cases.
Unauthorized conversions and/or modifications of the appliance are not permitted for safety and licensing reasons (CE).
The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.
The appliance may not be exposed to extreme temperatures (< +5^ / > +35^) in operation.
The appliance may not be subjected to strong vibrations or heavy mechanical strain.
The appliance may not be exposed to excessive moisture (due to dripping or sprayed water, for example).

Do not place any recipients filled with liquids, such as glasses or vases, on top of or directly next to the appliance. They could fall over, causing water to enter the appliance. Never pour out liquids above the appliance. Do not place any small objects, such as coins or paper clips, on the appliance since they could fall inside the appliance. You run a high risk of causing a fire or life-threatening electrocution! If any liquid or objects enter the appliance nevertheless, pull the mains plug out of the socket immediately and contact a specialist.
- Only pull the mains plug out of the socket by the intended gripping surface. Do not pull it by the cable.
- Never plug the mains plug in or out with damp or wet hands.
Always pull the mains plug out of the mains socket:
Before cleaning the appliance
If there is a thunderstorm
If you will not be using the appliance for a long period of time (>1 week)
- Electrical appliances must be kept out of the reach of children. Be particularly careful if children are present. Children are not aware of the hazards involved in handing electrical appliances improperly. Children could attempt to poke objects into the appliance. There is a life-threatening danger of electrocution.
Do not leave the appliance unattended while operating it.
- Never place the appliance on an unstable or movable surface. Persons could be injured or the appliance damaged by it falling down.
- When using a rack, make sure it is in a stable position and is transported securely. Installation on uneven, slanted surfaces or stopping the rack abruptly during transport can result in the rack overturning or appliances falling from or out of the rack and injuring people.
Live components can be exposed by opening covers or removing components (unless this can be done without tools). Contact points can also be live. If the appliance has to be opened in order to calibrate, service, repair or replace components or assemblies, all of its poles must be disconnected from all sources of voltage first. If the appliance has to be kept open and under voltage during maintenance or repairs, this work may only be carried out by a specialist who is familiar with the risks involved and the relevant regulations.
- Never connect the appliance directly after transferring it from a cold to a warm room. The condensation water that forms could destroy the appliance or result in an electric shock. Allow the device to reach room temperature before connecting it. Wait until the condensation water has evaporated. This can take some hours.
Do not place any naked flames such as those of burning candles on or next to the appliance.
Do not place the appliance on soft surfaces such as carpets or beds. Do not cover the air vents of the appliance. Do not obstruct the air circulation with objects such as magazines, table cloths or curtains. This prevents the dissipation of heat from the appliance and can result in overheating.
- Only use the appliance in a moderate climate, not in tropical environments.
All persons involved in operating, installing and servicing the appliance and putting it into service must be trained and qualified accordingly and observe these operating instructions.
Defective mains cables may only be replaced by specialists. Danger of shock hazard!

Do not leave the packaging material lying around carelessly since it can become a source of danger for children playing with it.
The accident prevention regulations and the regulations of the employers' liability insurance association should be observed at commercial institutions.
If you are not sure about the correct connection or if questions arise which are not answered by the operating instructions, please do not hesitate to contact support or a specialist of your choice. Consult a specialist if you are in doubt the operating principle or the safety of the product.

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

POWER SUPPLY: BATTERY & AC OPERATION

Built-in rechargeable battery and AC power. Prior to using this system for the first time, please insert the AC lead into the AC socket of the player and plug the other end on a suitable wall outlet. Make sure that the "CHARGE INDICATOR" is ON 14 hours continuously.

PORT8UHF-BT & PORT10UHF-BT: Insert the supplied mains adaptor into the DC input socket (22) and the other end into a suitable wall outlet.

PORT12UHF-BT & PORT15UHF-BT: Insert the AC lead into the AC socket (26) on the rear panel and the other end into a suitable wall outlet.

Please charge the battery when the LED indicator (22) lights up in red. During the charging process, the LED indicator (21) lights up in orange. It lights up in green when the battery is fully charged.

NOTE: Please shut down the power switch after you have finished using the system.

IMPORTANT NOTE ON BATTERIES

1. PRIOR to using the unit for the first time, please charge fully the battery without any interruption.
2. Charge the battery regularly after each use. Don't wait until it is discharged!
3. DON'T allow the battery to discharge completely! Once the battery is fully discharged, the current drain for recharging will be so high that it will damage the charger and/or the power supply of the unit.
4. If you don't use the unit for a longer period of time, please CHARGE THE BATTERY COMPLETELY AT 100% and check/charge it once per month otherwise the battery will be out of use. The life time of the battery depends on the observance of these recommendations.

** BATTERIES ARE NOT COVERED BY THE WARRANTY **

We cannot be held responsible for damaged batteries further to the non-observance of these basic rules.

PORT12UHF-BT & PORT15UHF-BT ONLY

These models have a 12-15V4A input (24) on the rear panel which allows the user to power the unit via an external battery or car lighter socket in case that there is no mains power supply at hand and the built-in battery is exhausted or unsufficiently charged. This input does not allow to charge the built-in battery.

NO PORT8UHF-BT / PORT10UHF-BT PORT12UHF-BT / PORT15UHF-BT

1 USB port USB port
2 SD slot EQ: Press to cycle through various music styles
3 MODE: Cycle through USB / LINE / BLUETOOTH MODE: Cycle through USB / LINE / BLUETOOTH
4 Mic Volume MIC ECHO control
5 Mic Echo control Microphone Volume
6 UHF microphone Volume UHF microphone ON/OFF/volume controls
7 UHF Mic power ON/RF/AF indicator UHF Mic signal indicator
8 Line in Line input
9 Microphone/Guitar inputs Microphone/Guitar inputs
10 Ipod input	AUX (Ipod) input
11 Mix output	Mixed output
12 Display	Display
13 Short press: Backward/Forward; Long press: reduce/increase volume	SD socket
14 Short press: Play/Pause; Long press: REC function	Short press: Repeat one/all tracks; Long press: pairing 2 PORT-UHF-BT boxes with 1 BT source
15 Short press: Repeat one/all tracks; Long press: enable TWS to pair 2 units of PORT8UHF-BT	REC: Short Press to record, long press to play recorded file
16 Volume	Play/Pause
17 VCV control	Short press: Backward/Forward; Long press: VOL-/VOL+
18 Treble & Bass control	Master volume control
19 Battery level and Charge LED	VOX control activated/deactivated
20 Power on or Low Battery LED	Treble & Bass control
21 Power Switch	Battery Volume and Charge LED
22 DC 12-15V input Power ON (green) and Battery low (red) LED	Power Switch
23
24	15V= 4A power supply input
25	Fuse
26	Mains input

1. Switch power source to ON. The LED indicator lights up in green.
2. Insert a USB stick (1) or an SD card into the relevant input
3. Select USB via the MODE button (3)
4. Select a title via the or buttons and press

1. Insert an RCA plug into the LINE IN sockets (8)
2. Insert a wired microphone into MIC INPUT (9)
3. Adjust the MIC VOL (5)

TO USE VOX FUNCTION

When VOX function is enabled, the music level will decrease when somebody talks into one of the microphones. The music level becomes normal when the user stops talking into the microphone.

To activate this function, switch the VCV switch (19) to on. If you want to disable this function, set this switch to off position

REC FUNCTION

Disconnect the speakerbox from your Bluetooth device. Insert a USB stick or SD card. The speaker will automatically switch into USB/SD mode. Connect now the speakerbox to your Bluetooth device and start playing your music.

PORT8/10UHF-BT: Long press the REC button to record your voice and the music on the inserted USB stick or SD card.

Press again to stop recording. Keep the REC button pressed to play the recorded file.

PORT12/15UHF-BT: Short press the REC button to record your voice and the music on the inserted USB stick or SD card.

Press again to stop recording. Keep the REC button pressed to play the recorded file.

BLUETOOTH FUNCTION

1. Switch on your Bluetooth device and activate the Bluetooth connect function
2. Select IBIZA-PORT in the list of found devices and connect.
3. Press the MODE switch to BT function,
4. Now you can play Bluetooth music.

TWS FUNCTION

This function allows to pair 2 units of the PORT-UHF-BT range with 1 single Bluetooth source to enjoy wireless stereo sound. Turn off the Bluetooth feature on your smartphone. Switch on both speakers and select BT-AUDIO mode on both. Keep the TWS button on one of the speakers (master speaker) pressed for a few seconds. If the connection was successful, you will hear the message "left channel" from the master speaker, and "right channel" from the slave speaker. Activate the Bluetooth function of your smartphone and select IBIZA-PORT in the list of found devices. Now the master speaker is connected to your Bluetooth source. After that, you can use any mode to play music in TWS mode.

HOW TO USE THE UHF MICS

Switch on the UHF microphone via the switch on the mic body. The box will automatically select the wireless microphone. Adjust the volume via the UHF mic volume controls (6).

REMOTE CONTROL

ON/OFF button

MODE: Press until the desired operating mode is displayed

MUTE:Sound stop

Play/pause: Press to play a track, press to pause

BAND: Radio band selector between FM1, FM2 and FM3

/ - : back to the previous track. In FM mode: back to the previous radio station

/ CH + : Go to the next track. In FM mode: Go to the next radio station

RPT: Repeat one/repeat all tracks/random play

AMS: inactive

VOL-: Reduce the volume

Vol+: Increase the volume

USB/SD: Select between USB & SD input

TRK: Track selection. Press the TRK button, select a track via the number keys (0-9) and press ENTER to confirm

Number buttons: Press the number of the desired track

ENTER: Once you have made your selection, press ENTER to confirm.

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposited in separate collection points for recycling.

ATTENTION: Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.

WARNING

Do not swallow the battery. Danger of chemical burns. The supplied remote control contains a button cell. In case of ingestion, it might cause serious internal burns within only 2 hours that might lead to death.

Keep new and old batteries out of the reach of children.

If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.

If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.

CARE

Before cleaning the unit, disconnect it from the mains. Do not use aggressive cleaning agents. Use a clean cloth to wipe any dust or dirt from the product. We are not liable for damage arising from incorrect handling, improper use or wear and tear. We reserve the right to make technical changes.

SPECIFICATIONS

	PORT8UHF-BT	PORT10UHF-BT	PORT12UHF-BT	PORT15UHF-BT
Woofer 8"/20cm 10"/25cm	12"/30cm	15"/38cm
Tweeter 1"/25mm compression driver
Sensitivity 96dB±2dB 98dB±2dB 99dB±2dB 101dB±2dB
Max. SPL	105dB	107dB	109dB	115dB
Impedance	4 Ohms
Freq. range 60-20,000Hz 55-20,000Hz 45-20,000Hz 40-20,000Hz
Built-in battery 12V/2.3Ah 12V/4.5Ah 12V/4.5Ah 12V/7.2Ah
Bluetooth frequency 2402-2480MHz
BT max. RF power 3.29dBm 3.29dBm 3.29dBm 3.29dBm
UHF handheld mic freq. 863MHz 863MHz 863MHz 863MHz
UHF headset mic freq. 865MHz 865MHz
Max. RF power 8.37dBm 8.37dBm 8.16dBm 8.16dBm
Power supply	15V= 4A		220-240Vac / 50-60Hz
Dimensions	330x310x490mm	370x360x525mm	398 x 370 x 630mm	485x445x728mm
Weight	9.2kg	10.5kg	13.07kg	19.8kg

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe

recycling.
