Instructions for use

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

INSTRUCTIONS FOR USE

ZEISS products are famous for outstanding optical performance, precision workmanship and a long service life.

Please observe the following instructions for use in order to obtain the best from your riflescope and to ensure that it remains your constant companion for many years to come.

Information for your safety

Battery disposal

Batteries do not belong in household rubbish!

Please use a recycling facility in your area to dispose of used batteries.

Please only recycle discharged batteries.

As a rule, batteries are discharged if the device being run

■ shuts off and signals "Battery empty".

■ no longer functions properly after extended use of the batteries.

Environmental influences

■ Do not under any circumstances look through the riflescope at the sun or laser light sources! Serious eye injury may otherwise result.
■ Never leave the device in the sun for extended periods without the protective lens cap. The objective lens and eyepiece can function as a burning glass and damage the interior components.
■ Avoid touching the metal surface after exposure to sunlight or cold.

Danger of swallowing

Do not leave the batteries and removable exterior parts within reach of children (danger of swallowing).

Function

■ Before working on the gun-mounted riflescope, always check to ensure that the weapon is not loaded.
■ Be sure to leave sufficient eye relief in the mounted position to prevent injuries.
■ Please make sure that the riflescope is functioning properly before use.
■ Look through the lens to ensure it provides a clear, undisturbed image.
■ It may no longer be properly adjusted due to rough handling.
■ Check correct setting of the reticle by test shooting.

Scope of supply

ZEISS Conquest® V6 Riflescope with reticle illumination:

	Product Order number		Scope of supply
Conquest V6 3-18x50 52 22 41			RiflescopeProtective capElevation capOptical cleaning clothQuick guide
Conquest V6 5-30x50 52 22 51

TECHNICAL DATA 3-18x50 5-30x50

Magnification		3.0	18.0	5.0	30.0
Effective lens diameter	mm	28.6	50.0	47.8	50.0
Exit pupil diameter	mm	9.5	2.8	9.5	1.7
Twilight factor		8.5	30.0	14.1	38.7
Field of view	ft/100yds (m/100m)	37.2(12.4)	6.3(2.1)	22.2(7.4)	3.6(1.2)
Objective viewing angle	°	7.1	1.2	4.2	0.7
Diopter range	dpt	-3/+2		-3/+2
Eye relief	in (mm)	3.5 (90)		3.5 (90)
Parallax-free	yds (m)	50 -∞		50 -∞
Adjustment range	MOA (cm/100m)	103x58(300x170)		62x34(180x100)
Adjustment per click	MOA (cm)	1/4 (0.7)		1/4 (0.7)
Centre tube diameter	mm	30		30
Eyepiece tube diameter	mm	45.5		45.5
Lens tube diameter	mm	56		56
Coating		LotuTec®		LotuTec®
Nitrogen filling		√		√
Waterproof	mbar	400		400
Operating temperature	°F (°C)	-12/+122(-25/+50)		-12/+122(-25/+50)
Length	in (mm)	13.3 (338)		14.9 (380)
Weight without rail mount	oz (g)	22.2 (630)		27.9 (740)

Subject to changes in design and scope of supply due to technical improvements.

Technical diagram of a mechanical component with labeled parts and cross-sectional views

Focusing the reticle

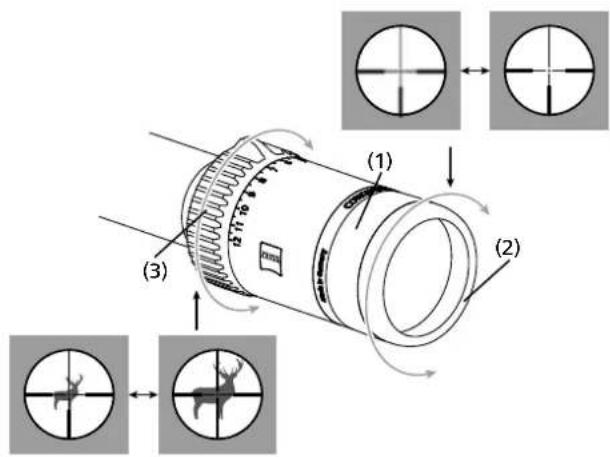

Focusing the reticle is done by turning the eyepiece. (1).

We recommend making this adjustment with a higher magnification level. The reticle then remains in sharp focus over the entire range of magnification.

Note: A rubber ring (2) is attached to the eyepiece mount.

Changing the magnification

All magnifications, from the lowest to highest magnification level, allow infinitely variable setting. Change of magnification is done by turning the changer (3) on the eyepiece support. The magnification levels are marked by numbers and markings.

Note: When using at dusk or at night:

Turn left as far as possible – maximum magnification

Turn right as far as possible – minimum magnification.

The middle magnification is set when the cam of the magnification changer is pointing upward.

(4) 50 m (4) ...∞

Parallax Adjustment

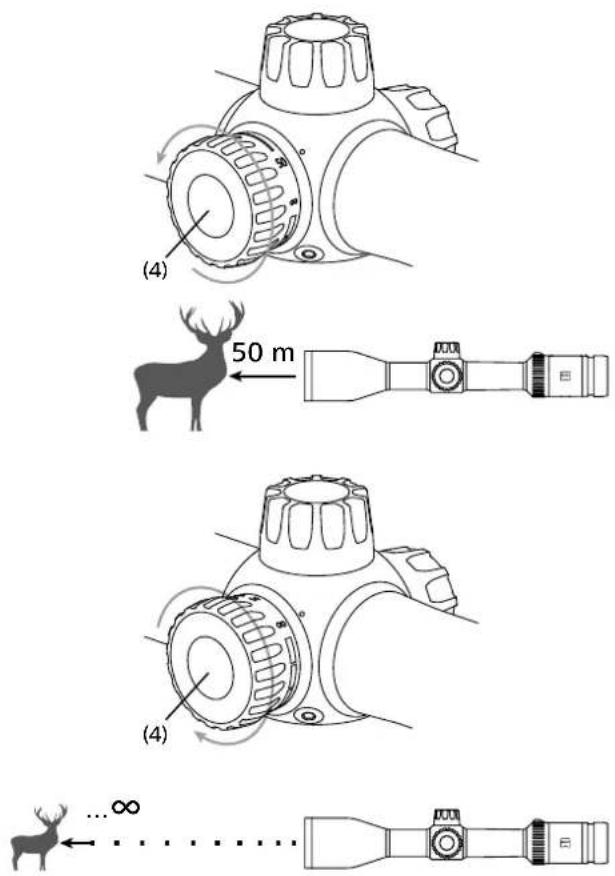

By turning the adjustment knob (4) the optimum focus for every target distance can be set and aiming errors due to parallax can be avoided.

Basic mounting setting

To ensure that the weapon and riflescope work together perfectly as a single unit, the riflescope should always be mounted by a qualified gunsmith. Eye injury, caused by recoil of the weapon, can be avoided by proper mounting with the correct eye relief. The correct eye relief also guarantees a complete field of vision.

(5) (9) (10) (7) (8) (6) (10) (9)

Adjusting the ZEISS Conquest V6 riflescope to the weapon

Adjusting the ZEISS Conquest V6 rifle scope to the weapon, i.e. correction of deviations for the point of impact, is simplified by the click-catch in the elevation and windage adjustment of the reticle. Proceed as follows:

a) After unscrewing the protective lens cap (5 or 6) the reticle can be adjusted by turning the adjustment knob (7) in elevation and (8) windage.
For ZEISS Conquest V6 series riflescopes, 1 click corresponds to an adjustment of 14 MOA.
If the weapon shoots low, it requires a shot correction upward (direction "H"), corresponding to one anti-clockwise turn of the adjustment knob (7). If the weapon shoots high, it requires a shot correction downward, corresponding to one clockwise turn of the adjustment knob (7).
If the weapon shoots left, it requires a shot correction to the right (direction "R"), corresponding to one anti-clockwise turn of the adjustment knob (8). If the weapon shoots right, it requires a shot correction left, corresponding to a clockwise turn of the adjustment knob (8).
b) After shooting, pull the knob (7 or 8) upward out of the catch and set the zero mark of the sub-ring (9) on the index mark (10). Press the knob (7 or 8) downward into the catch. The index is used to again find the original location when adjusting the reticle later (for other distances or other loads).
c) Do not forget: Screw the protective lens cap (5 or 6) back on.

Note: When the ZEISS Conquest V6 series riflescope is delivered, the reticle is set to the middle of the adjustment range and the zero mark of the adjusting ring (7 or 8) to the indexmark (10). From this initial setting, an upward, downward, right or left adjustment is possible for more than half of the adjustment ranges given in the following table.

Note: The ZEISS Conquest V6 riflescopes are designed so that when the reticle is adjusted, even a corresponding movement of the reticle to the centre of the image is not noticeable. The reticle always remains in the centre of the image during all adjustments.

Ballistic Turret I T 8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) → "0" T 8 1,0 Nm (~ 0,77 lbf ft)

Ballistic Turret for ZEISS CONQUEST V6 riflescope

If your ZEISS CONQUEST V6 riflescope is fitted with the ballistic turret, you have the option of staying on the spot quickly and easily at a range of distances. The bullet drop is compensated in line with the distance by adjusting the sight line of the riflescope without removing the protective cap from the bullet drop compensation feature.

The rotary knob (13) has a linear graduation of 1 to 75. The distance between each graduation is equivalent to 1 click, corresponding to 14 MOA. Each tenth graduation is labelled with a number between 10 and 70.

If the ballistic values for an accurate aiming at 100 yds/m are known, the number of required clicks can be directly calculated and noted for the various distances.

Note: A limit stop in the ballistic turret prevents adjustment below the "0" mark.

Firing the weapon with the ballistic turret:

The following procedure should be followed to adjust a shot:

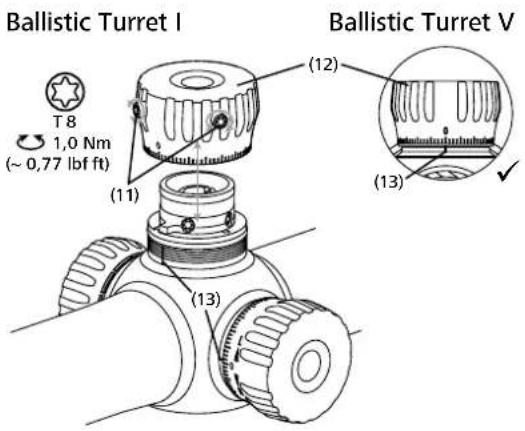

Ballistic Turret I Unscrew the screws (11) and pull out the adjustment knob (12).

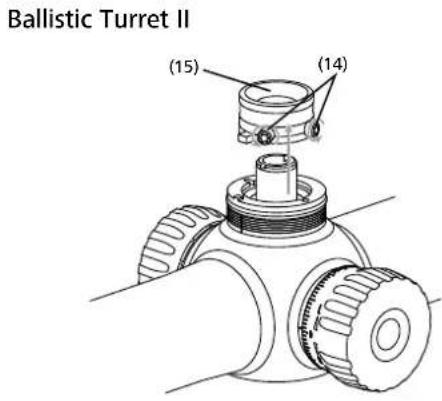

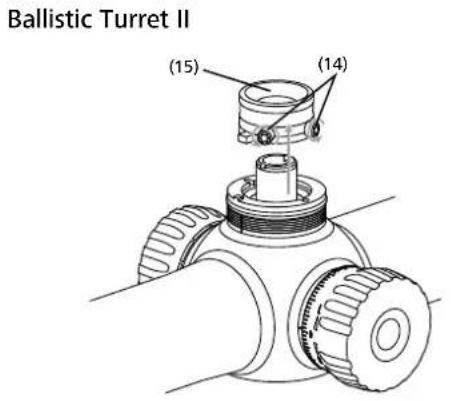

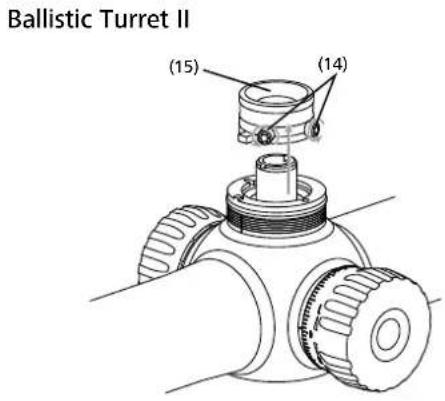

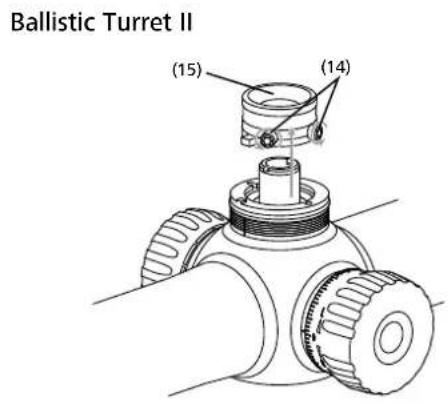

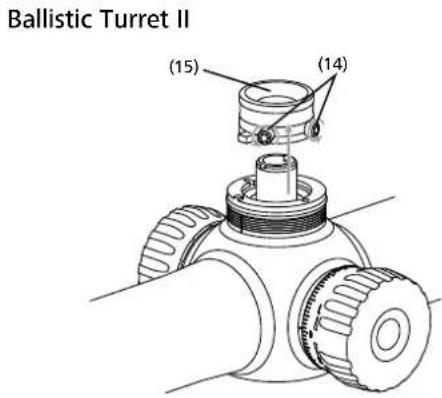

Ballistic Turret II Unscrew the screws (14) and lift out the driver (15).

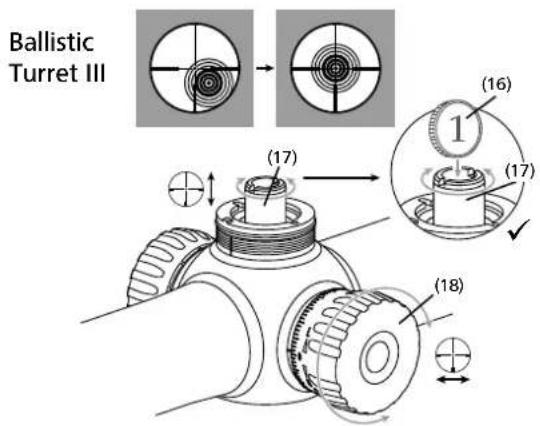

Ballistic Turret III Insert a coin (16) in the slot provided in the adjustment head (17).

If the weapon shoots low, it requires a shot correction upward (direction "H"), corresponding to one anti-clockwise turn of the coin (16).

If the weapon shoots high, it requires a shot correction downward, corresponding to one clockwise turn of the coin (16).

If the weapon shoots left, it requires a shot correction to the right (direction "R"), corresponding to one anti-clockwise turn of the adjustment knob (17).

If the weapon shoots right, it requires a shot correction to the left, corresponding to one clockwise turn of the adjustment knob (17).

After the rifle has been zeroed in to 100 yds/m target:

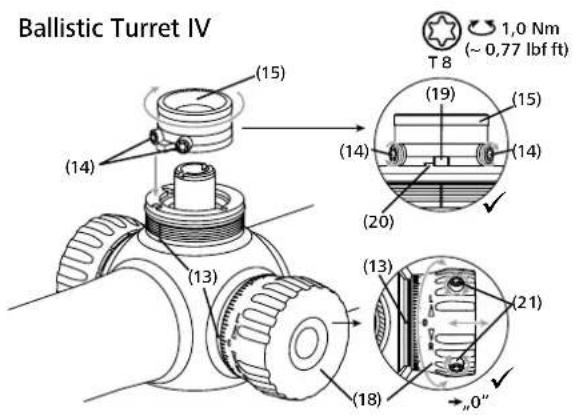

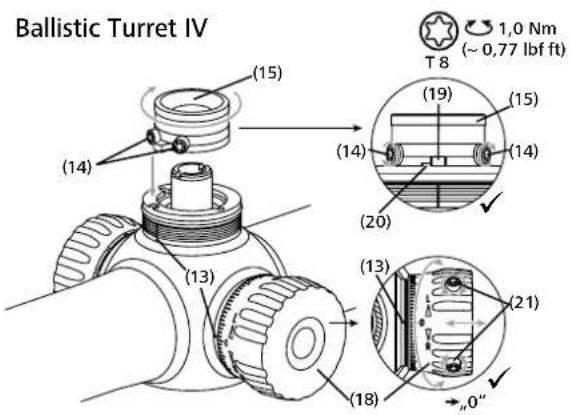

Ballistic Turret IV Height adjustment: Set the driver (15) so that the stop pin of the driver (19) lies on the stop of the riflescope (20). Then retighten the screws (14).

Windage adjustment: Loosen screws (21) and set the adjustment knob (18) so that the "0" mark is aligned with the index mark on the locking ring (13).

Ballistic Turret V Set the adjustment knob (12) so that the "0" mark is aligned with the index mark on the locking ring (13). Retighten the screws (11).

Note: To utilise the entire range of the height and lateral adjustment of the and windage of the riflescope, more than 2 revolutions are required. Circumferential markings that are located under the adjustment knob mark the position of which revolution the reticle adjustment is found. If the adjustment knob is correctly mounted, one is in the first revolution and the first ring is visible. An anti-clockwise turn has the effect that the adjustment knob (12 or 18) screws out. A clockwise turn has the effect that the adjustment knob (12 or 18) screws in.

If after a correction of the reticle adjustment, circumferential marks are visible, then a complete revolution (80 click) is effected in the zero position. Three visible, circumferential marks correspond in the zero position to 2 revolutions (160 click).

Seal integrity

The riflescope is waterproof, pressure tested to ISO 9022-80 and filled with nitrogen. The integrity of the seal is also guaranteed if the protective lens caps (5 or 6) of the reticle adjustment are not screwed on. However, always ensure a good seat of these protective lens caps (5 or 6) and the sealing ring under them.

Reticle

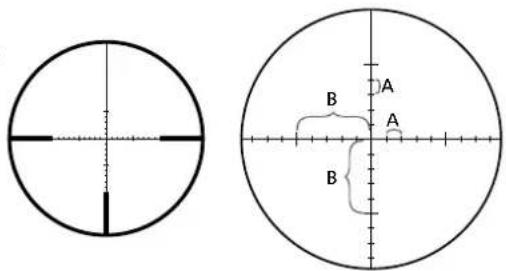

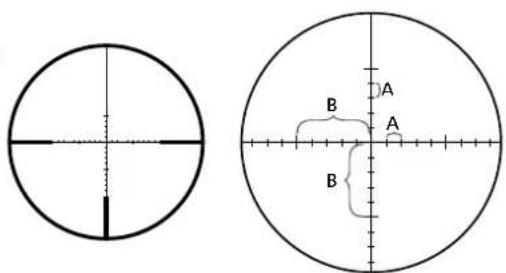

Your riflescope is equipped with the reticle of your choice. For the ZEISS Conquest V6 models the reticle is in the second level. The reticle is not magnified during magnification change, but rather it always remains the same. Thus for these riflescopes the dimension of change of the reticle is dependent on the magnification.

ZBR

Simple circular diagram with crosshair and vertical tick marks (no text or symbols)

A B A A C

3-18x50 5-30x50

Reticle	ZBR-2 ZBR-1
Magnification	18x 25x
	MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Distance A	2 2.10 5.82 1 1.05 2.91
Distance B	10 10.48 29.10 5 5.24 14.55
Distance C	4 4.19 11.64 4 4.19 11.64
Opening	40	41.9	116.4	20	20.95	58.20

ZMOA

Simple geometric diagram of a circle with intersecting diameter and central tick marks (no text or labels)

A B A B

3-18x50 5-30x50

Reticle	ZMOA-2	ZMOA-1
Magnification	18x 25x

MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m

Distance A 2 2.10 5.82 1 1.05 2.91
Distance B 10 10.48 29.10 5 5.24 14.55
Opening	80	83.81	232.80	20	20.95	58.20

For an overview of the reticles and dimensions of coverage currently available, visit www.zeiss.de/subtensions or contact us at:

Carl Zeiss

Sports Optics GmbH

ZEISS Gruppe

Gloelstraße 3 - 5

D-35576 Wetzlar

Reticle retrofitting

The ZEISS Conquest V6 riflescope can of course also be retrofitted with other available reticles. For reticle retrofitting, please send the riflescope to our customer service.

Care and maintenance

Your riflescope has ZEISS LotuTec coating. The effective protective coating for the lens surfaces noticeably reduces contamination of the lenses through an especially smooth surface and the resulting water-beading effect. All types of contamination stick less and can be quickly and easily removed without smearing. LotuTec coating is durable and abrasion-resistant.

Your ZEISS riflescope requires no special maintenance. Do not wipe coarse particles (e.g. sand) from the lenses. Blow them off, or use a soft brush! Over time, fingerprints can corrode the lens surface. Breathing on the lens and polishing with a clean optical cleansing cloth/tissue is the easiest method of cleaning the lens surface.

To avoid a possible fungal coating which is common in the tropics, store the optics in a dry place and always ensure good aeration of the lens surface.

Replacement parts for ZEISS Conquest V6

If you need any replacement parts for your riflescope, e.g. protective lens caps, please contact your local dealer, your country's distributor or our customer service team.

Our customer service team is available from Monday to Friday from 8:00 am until 6:00 pm (CET) should you have any questions.

Tel.: [phone]

Fax: [phone]

[e-mail]

* Accessory not included in the delivery program!

ZEISS is a byword for reliability and a high level of quality. Therefore, quite independently of the seller's warranty obligations to the customer, we the manufacturer offer a ten year guarantee on this ZEISS product.

The scope of the guarantee can be seen by accessing the following link: www.zeiss.com/sports-optics/premium-warranty-conditions

For US, please follow this link:

www.zeiss.com/sports-optics/us-warranty-conditions

Register your product at: www.zeiss.com/sports-optics/registration

Subject to changes in design and scope of supply due to technical improvements. No liability for mistakes and printing errors.

ZEISS CONQUEST V6 3-18x50 | 5-30x50

Mode d'emploi

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

MODE D'EMPLOI

Diagram illustrating a mechanical or biological process with labeled components and cross-sectional views, including arrows and circular insets.

(4) 50 m (4) ...∞

Technical diagram of a mechanical device with numbered components and cross-sectional views

Ballistic Turret I T8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (12) (11) (10) (9) (8) (7) (6) (5) (4) (3) (2) (1) (0) T 8 1,0 Nm (~ 0,77 lbf ft) (19) (15) (14) (20) (13) (21) (18) "0"

Simple circular diagram with crosshair and concentric lines, no text or symbols present

A B A A C

3-18x50 5-30x50

Réticule	ZBR-2 ZBR-1
Grossissement	18x 25x
	MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Distance A	2 2.10 5.82 1 1.05 2.91
Distance B	10 10.48 29.10 5 5.24 14.55
Distance C	4 4.19 11.64 4 4.19 11.64
Ouverture	40	41.9	116.4	20	20.95	58.20

ZMOA

Simple circular diagram with intersecting lines and a vertical tick mark at the center (no text or labels)

A B A B

3-18x50 5-30x50

Réticule	ZMOA-2			ZMOA-1
Grossissement	18x 25x
MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Distance A 2 2.10 5.82 1 1.05 2.91
Distance B 10 10.48 29.10 5 5.24 14.55
Ouverture	80	83.81	232.80	20	20.95	58.20

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

ISTRUZIONI D'IMPIEGO

(4) 50 m (4) ...∞

Ballistic Turret I T 8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) (18) T 8 1,0 Nm (~ 0,77 lbf ft)

Simple circular diagram with crosshair and concentric lines, no text or symbols present

A B A A C

3-18x50 5-30x50

MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m

Distanza A	2 2.10 5.82 1 1.05 2.91
Distanza B	10 10.48 29.10 5 5.24 14.55
Distanza C	4 4.19 11.64 4 4.19 11.64
Aperlura	40	41.9	116.4	20	20.95	58.20

ZMOA

Simple geometric diagram of a circle with intersecting diameter and center lines (no text or labels)

A B A B

3-18x50 5-30x50

Reticolo	ZMOA-2			ZMOA-1
Ingrandimenti	18x 25x
MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Distanza A 2 2.10 5.82 1 1.05 2.91
Distanza B 10 10.48 29.10 5 5.24 14.55
Apertura	80	83.81	232.80	20	20.95	58.20

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

MODO DE EMPLEO

(4) 50 m (4) ...∞

Ajuste del paralaje

Ballistic Turret I T8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

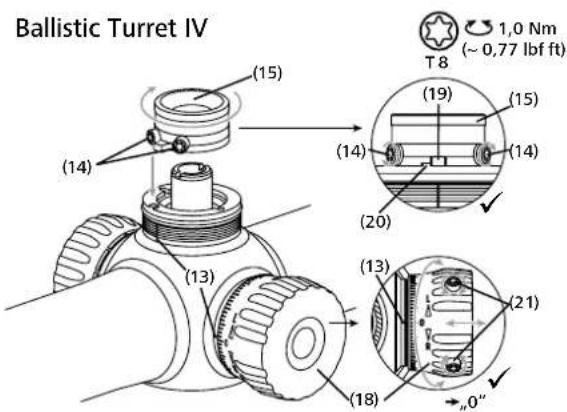

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) (18) T 8 1,0 Nm (~ 0,77 lbf ft)

Two circular diagrams with crosshairs and labeled geometric shapes, likely illustrating optical or measurement systems.

3-18x50 5-30x50

Reticula	ZBR-2 ZBR-1
Aumento	18x 25x
	MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Distancia A	2 2.10 5.82 1 1.05 2.91
Distancia B	10 10.48 29.10 5 5.24 14.55
Distancia C	4 4.19 11.64 4 4.19 11.64
Apertura	40	41.9	116.4	20	20.95	58.20

ZMOA

Two circular diagrams with crosshairs and labeled points A and B, likely illustrating geometric or optical relationships.

3-18x50 5-30x50

Reticula	ZMOA-2			ZMOA-1
Aumento	18x 25x
MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Distancia A 2 2.10 5.82 1 1.05 2.91
Distancia B 10 10.48 29.10 5 5.24 14.55
Apertura	80	83.81	232.80	20	20.95	58.20

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

Technical diagram of a mechanical component with labeled parts and cross-sectional views

(4) 50 m (4) ...∞

Parallaxinstelling

Ballistic Turret I T 8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) → "0" T 8 1,0 Nm (~ 0,77 lbf ft)

Two circular diagrams with crosshairs and labeled regions A, B, C, showing alignment or measurement systems.

3-18x50 5-30x50

Vizier	ZBR-2 ZBR-1
Vergroting	18x 25x
	MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Afstand A	2 2.10 5.82 1 1.05 2.91
Afstand B	10 10.48 29.10 5 5.24 14.55
Afstand C	4 4.19 11.64 4 4.19 11.64
Opening	40	41.9	116.4	20	20.95	58.20

ZMOA

Two circular diagrams with crosshair and labeled geometric shapes, including points A and B.

3-18x50 5-30x50

Vizier	ZMOA-2			ZMOA-1
Vergroting	18x 25x
MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Afstand A 2 2.10 5.82 1 1.05 2.91
Afstand B 10 10.48 29.10 5 5.24 14.55
Opening	80	83.81	232.80	20	20.95	58.20

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

BRUKSANVISNING

Diagram illustrating a mechanical or optical system with labeled components and cross-sectional views, including arrows and circular insets.

(4) 50 m (4) ...∞

Parallaxinställning

Ballistic Turret I T 8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) → "0" T 8 1,0 Nm (~ 0,77 lbf ft)

Simple circular diagram with crosshair and concentric lines, no text or symbols present

A B A A C

3-18x50 5-30x50

Riktmedel	ZBR-2 ZBR-1
Förstoring	18x 25x
	MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Avständ A	2 2.10 5.82 1 1.05 2.91
Avständ B	10 10.48 29.10 5 5.24 14.55
Avständ C	4 4.19 11.64 4 4.19 11.64
Öppning	40	41.9	116.4	20	20.95	58.20

ZMOA

Simple geometric diagram of a circle with intersecting lines and a vertical tick mark at the center (no text or labels)

A B A B

3-18x50 5-30x50

Riktmedel	ZMOA-2			ZMOA-1
Förstoring	18x 25x
	MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Avständ A	2	2.10	5.82	1	1.05	2.91
Avständ B	10	10.48	29.10	5	5.24	14.55
Öppning	80		83.81	232.80	20	20.95

www.zeiss.com/sports-optics/premium-warranty-conditions

Registrera din produkt på: www.zeiss.com/sports-optics/registration

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

KÄYTTÖOHJE

TEKNISET TIEDOT 3-18x50 5-30x50

Technical diagram of a mechanical component with labeled parts and cross-sectional views

(4) 50 m (4) ...∞

Parallaksiasetus

Ballistic Turret I T8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) → "0"

Simple circular diagram with intersecting lines and a central vertical line, no text or symbols present.

A B A A C

3-18x50 5-30x50

Tähtäys	ZBR-2 ZBR-1
Suurennos	18x 25x
	MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Etäisys A	2 2.10 5.82 1 1.05 2.91
Etäisys B	10 10.48 29.10 5 5.24 14.55
Etäisys C	4 4.19 11.64 4 4.19 11.64
Aukko	40	41.9	116.4	20	20.95	58.20

ZMOA

Simple geometric diagram of a circle with intersecting diameter and center lines (no text or labels)

A B A B

3-18x50 5-30x50

Tähtäys	ZMOA-2			ZMOA-1
Suurennos	18x 25x
MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Etäisyys A 2 2.10 5.82 1 1.05 2.91
Etäisyys B 10 10.48 29.10 5 5.24 14.55
Aukko	80	83.81	232.80	20	20.95	56.20

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

POKYNY K POUŽÍVÁNÍ

Diagram illustrating a mechanical or optical system with labeled components and cross-sectional views, including arrows and circular insets.

(4) 50 m (4) ...∞

Nastavení paralaxy

Ballistic Turret I T 8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) → "0" T 8 1,0 Nm (~ 0,77 lbf ft)

Simple circular diagram with intersecting lines and a small vertical line segment (no text or symbols)

A B A A C

3-18x50 5-30x50

Simple geometric diagram of a circle with intersecting perpendicular lines and a dashed centerline (no text or labels)

A B A B

3-18x50 5-30x50

www.zeiss.com/sports-optics/premium-warranty-conditions

Zaregistrujte si výrobek: www.zeiss.com/sports-optics/registration

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

INFORMACJE DOTYCZĄCE UŻYTKOWANIA

(4) 50 m (4) ...∞

Ballistic Turret I T8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) → "0"

Simple circular diagram with crosshair and concentric lines, no text or symbols present

A B A A C

3-18x50 5-30x50

Siatka celownicza	ZBR-2 ZBR-1
Powiększenie	18x 25x
	MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Dystans A	2 2.10 5.82 1 1.05 2.91
Dystans B	10 10.48 29.10 5 5.24 14.55
Dystans C	4 4.19 11.64 4 4.19 11.64
Otwór	40	41.9	116.4	20	20.95	58.20

ZMOA

Simple geometric diagram of a circle with intersecting diameter lines and center point (no text or labels)

A B A B

3-18x50 5-30x50

Siatka celownicza	ZMOA-2			ZMOA-1
Powiększenie	18x 25x
MOA in / 100yds cm / 100m MOA in / 100yds cm / 100m
Dystans A 2 2.10 5.82 1 1.05 2.91
Dystans B 10 10.48 29.10 5 5.24 14.55
Otwór	80	83.81	232.80	20	20.95	58.20

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

HASZNÁLATI UTASÍTÁS

(4) 50 m (4) ...∞

Ballistic Turret I T 8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) → "0" T 8 1,0 Nm (~ 0,77 lbf ft)

Simple circular diagram with crosshair and concentric lines, no text or symbols present

A B A A C

3-18x50 5-30x50

Simple geometric diagram of a circle with intersecting diameter lines and center mark (no text or labels)

A B A B

3-18x50 5-30x50

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

(4) 50 m (4) ...∞

Ballistic Turret I T 8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) → "0"

Simple circular diagram with crosshair and vertical tick marks, no text or symbols present

A B A A C

3-18x505-30x50

Simple geometric diagram of a circle with intersecting diameter and central tick marks (no text or labels)

A B A B

3-18x505-30x50

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

使用上の注意

(4) 50 m (4) ...∞

Ballistic Turret I T 8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) → "0"

ZEISS CONQUEST V6 ブのレクチル簡易調節機能 Ballistic Turret

Simple circular diagram with crosshair and concentric lines, no text or symbols present

A B A A C

3-18x505-30x50

レチクル		ZBR-2 ZBR-1
倍率	18x			25x
	MOA	in / 100yds	cm / 100m	MOA	in / 100yds	cm / 100m
距離 A	2	2.10	5.82	1	1.05	2.91
距離 B	10	10.48	29.10	5	5.24	14.55
距離 C	4	4.19	11.64	4	4.19	11.64
オープニング	40	41.9	116.4	20	20.95	58.20

ZMOA

Simple geometric diagram of a circle with intersecting diameter and center lines (no text or labels)

A B A B

3-18x505-30x50

レチクル		ZMOA-2		ZMOA-1
倍率		18x		25x
	MOA	in / 100yds	cm / 100m	MOA	in / 100yds	cm / 100m
距離 A	2	2.10	5.82	1	1.05	2.91
距離 B	10	10.48	29.10	5	5.24	14.55
オープニング	80	83.81	232.80	20	20.95	58.20

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

使用说明

(4) 50 m (4) ...∞

视差设置

Ballistic Turret I T 8 1,0 Nm (~ 0,77 lbf ft) (11) (12) Ballistic Turret V (13)

Ballistic Turret III (17) (16) (17) (18)

Ballistic Turret II (15) (14)

Ballistic Turret IV (15) (14) (13) (18) (20) (19) (15) (14) (13) (21) (18) T 8 1,0 Nm (~0,77 lbf ft)

蔡司 CONQUEST V6 Ballistic Turret

Simple circular diagram with intersecting lines and a vertical grid of dots (no text or symbols)

A B A A C

3-18x505-30x50

分划板	ZBR-2 ZBR-1
放大倍率	18x 25x
	MOAin / 100yds cm / 100m MOAin / 100yds cm / 100m
距离A	2	2.10	5.82	1	1.05	2.91
距离B	10	10.48	29.10	5	5.24	14.55
距离C	4	4.19	11.64	4	4.19	11.64
开盘	40	41.9	116.4	20	20.95	58.20

ZMOA

Simple circular diagram with intersecting lines and a central dashed line (no text or symbols)

A B A B

3-18x505-30x50

分划板	ZMOA-2			ZMOA-1
放大倍率	18x 25x
	MOAin / 100yds cm / 100m MOAin / 100yds cm / 100m
距离A	2	2.10	5.82	1	1.05	2.91
距离B	10	10.48	29.10	5	5.24	14.55
开盘	80	83.81	232.80	20	20.95	58.20

www.zeiss.com/sports-optics/premium-warranty-conditions

请在以下网页注册您的产品：www.zeiss.com.cn/product-registration
