DIGITAL CALIPER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is suitable for outside, inside, depth measurement. This product is intended for personal use. Not for commercial use.

- Scope of delivery

1 x Digital caliper
1 x Battery
1 x Storage box
1 x Instruction for use

● Description of parts

1 Measuring surfaces
2 Internal measuring jaws
3 Inch / mm key
4 Locking screw
5 LCD display
6 Depth-measuring blade
7 Handwheel for measuring jaws
8 Battery compartment lid
9 Key for zero setting (ZERO)
10 ON / OFF key (ON / OFF)
11 External measuring jaws
12 Body of the caliper

- Technical data

Measurement unit: mm / inch

Measuring range: 0 - 150 mm / 0-6"

Resolution: 0.01 mm / 0.0005"

Accuracy

(Length measurement): 0 - 100 mm ± 0.02 mm / 0.001"

$$ 1 0 0 - 1 5 0 \mathrm{mm} \pm 0. 0 3 \mathrm{mm} / 0. 0 0 1 ^ {\prime \prime} $$

(Depth measurement): 0 - 100 mm ± 0.04 mm / 0.002"

$$ 1 0 0 - 1 5 0 \mathrm{mm} \pm 0. 0 5 \mathrm{mm} / 0. 0 0 2 ^ {\prime \prime} $$

Maximum measuring

speed: 1.5 m/s, 60" /s

Measuring system: Liner capacitive measuring system

Display: LCD display

Operating temperature: +5 °C to +40 °C

Influence of humidity: within a range from 0 % to 80 %

relative humidity irrelevant

Battery: 3 V ---

CR2032 (included)

Auto off: 5 minutes +/- 30 seconds

Safety instructions

BEFORE USING THIS DEVICE, PLEASE READ THE DIRECTIONS FOR USE! PLEASE KEEP THE DIRECTIONS FOR USE IN A SAFE PLACE!

⚠️ CAUTION! RISK OF INJURY!

KEEP THE PRODUCT OUT OF THE REACH OF CHILDREN. THIS PRODUCT IS NOT

A TOY! This product should never be used by children unsupervised.

⚠️ DANGER TO LIFE AND RISK OF ACCIDENT FOR TODDLERS AND CHILDREN! Never leave children alone and unsupervised with the packaging material.

There is a risk of suffocation from the packaging material. Children often underestimate risks. Always keep children away from the product.

⚠️DANGER TO LIFE! Batteries could be swallowed and pose a lethal hazard. Consult a doctor immediately if anyone swallows a battery.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

■ Never expose the product to high temperatures, water or moisture as this may damage the product.
- Keep the caliper clean and dry. Fluids could damage the caliper.
- Keep away from electrical current and electrically charged pins to prevent damage to the chip.
- Do not put the product under tension. Keep the product away from electrical pins. Otherwise, the product's built-in chip might be damaged.

Safety instructions for batteries / rechargeable batteries

■ DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION!

Never recharge non- rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.
■ Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of battery leakage

■ Avoid extreme environmental condition and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.

- Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a battery leak, immediately remove it from the product to prevent damage.

■ Remove the batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!
■ When inserting ensure the correct polarity! This is shown inside the battery compartment!
■ Clean the contacts on the battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.

● Before start of operation

- Insert / replace battery (see Figure B)

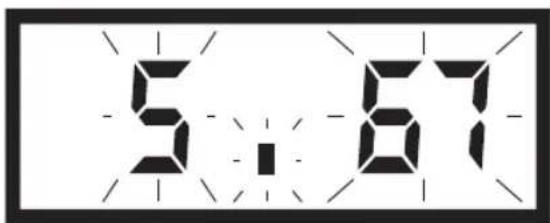

Tip: Flashing numbers indicate a discharged / flat battery (see Figure G).

Tip: When changing the battery, the LCD display 5 may experience faults. Remove the battery and insert it again after waiting more than 30 seconds.

■ Push open the lid to the battery compartment 8 (see Fig. B).

■ Remove the old battery.

Insert the new battery into the battery compartment and ensure correct polarity (+ and -). Make sure that the plus terminal points outwards.

■ Push the lid to the battery compartment 8 shut again (see Fig. B).

● Preparing the caliper

■ Loosen the locking screw 4 so that you can move the caliper.
- Clean all measuring surfaces 1 and the depth-measuring blade 6 with a dry cloth. Otherwise, faulty measuring results may occur due to, for example, humidity.
- Check that all keys and the LCD display 5 work correctly.

● Starting up the device

Using the caliper

■ Loosen the locking screw 4 by turning it anti-clockwise.
■ Push the external measuring jaws 11 and the internal measuring jaws 2 together.
■ Switch the LCD display 5 on by pressing the ON / OFF key 10.
Press the inch / mm key 3 to set the unit of measurement (inch or mm) you wish to use. Either "mm" or "in" will appear to the right of the figures in the LCD display 5.
Press the key to obtain the zero setting (ZERO) 9 in order to reset the LCD display 5 to zero.

Tip: The LCD display 5 will also automatically switch on by moving the internal measuring jaws 2 or the external measuring jaws 11.

Measuring an object from the outside (see Fig. C.1):

■ Move the external measuring jaws 11 apart by turning the handwheel 7 outwards anti-clockwise. Place the external measuring jaws 11 against the object to be measured.
Turn the handwheel 7 inwards clockwise. Move the external measuring jaws 11 together until they touch both sides of the object you want to measure. Please ensure that you do not damage the object you want to measure by subjecting it to too much pressure.
The LCD display 5 now displays the dimensions.

Measuring an object from the inside (see Fig. C.2):

Place the internal measuring jaws 2 against the object you want to measure.
Turn the handwheel 7 outwards anti-clockwise. Move the internal measuring jaws 2 apart until they touch the object on both its inner sides. Please ensure that you do not damage the object you want to measure by subjecting it to too much pressure.
■ The LCD display 5 now displays the dimensions.

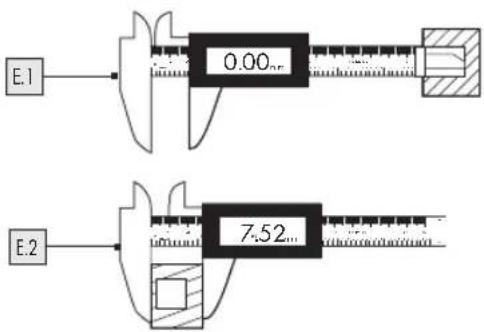

Measuring the depth of an object (see Fig. E.1):

■ Move the depth-measuring blade 6 out of the caliper.
Put the depth-measuring blade 6 in position until it touches the surface (e.g. inside a hole).
■ Slide the body of the caliper 12 downward until you feel resistance.

■ Ensure that you do not damage the depth-measuring blade 6 or the object you want to measure by exerting too much pressure on them.

■ The LCD display 5 now displays the dimensions.

After measurement:

After carrying out the measurement, move the external measuring jaws 11 / internal measuring jaws 2 together again by turning the handwheel 7 inwards clockwise.

■ Switch the LCD display 5 off again by pressing the ON / OFF key 10.

Tip: The LCD display 5 automatically switches itself off after approx. 5 minutes.

- Tighten the locking screw 4 again by turning it clockwise until you feel some resistance.

Examples of use

Tip: When measuring, always proceed as described in the chapter on using the caliper.

Comparison of plug and socket (see Fig. C):

■ First measure the dimensions of the plug (see Fig. C.1).
■ You may wish to make a note of the measurement.
■ Then, measure the socket (see Fig. C.2).

Deviation from a reference value (see Fig. D):

■ Measure a reference object (in this case A) (see Fig. D.1).

Leave the measuring jaws 2 / 11 in this position and press the key to obtain the zero setting (ZERO) 9.

■ Then measure the second object (see Fig. D.2). The LCD display 5 now shows the deviation of the measurement of the second object to that of the reference object (A).

Measuring the thickness of the floor of an object (see Fig. E):

■ First measure the depth of the object (see Fig. E.1).

Leave the depth blade 6 in this position and press the key to obtain the zero position (ZERO) 9.

Now measure the entire object (see Fig. E.2). The LCD display 5 now shows the thickness of the floor of the object.

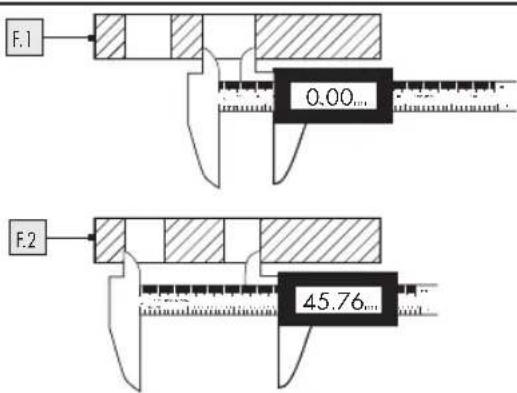

Measuring the distance between two identical holes (see Fig. F):

First measure one of the two, equally sized holes (see Fig. F.1).

Leave the measuring jaws 2 / 11 in this position and press the key to obtain the zero position (ZERO) 9.

Now measure the total dimension (see Fig. F.2). The LCD display 5 now shows the average distance.

Characteristics of metric ISO screw threads:

Nominal diameter: [mm]	Increase: [mm-1]	Core diameter: [mm]	Drill diameter: [mm]
3 0.5 2.46 2.5
4 0.7 3.24 3.3
5 0.8 4.13 4.2
6 1 4.92 5
8 1.25 6.65 6.8
10 1.5 8.38 8.5
12 1.75 10.11	10.2
16	2	13.84	14
20	2.5	17.29	17.5

● Troubleshooting

The device contains sensitive electronic components. That is why it experiences interference when in close proximity to radio transmission devices. If any indication errors appear in the display, remove such devices out of the proximity of the caliper.

Electrostatic discharge could result in malfunctions.

- When such malfunctions occur, remove the battery for a short while and re-insert.

Failure	Cause	Solution
Five digits flash simultaneously every second.	The battery voltage is lower than 2.7 V.	Replace the battery in line with the chapter "Insert / replace battery".
The LCD display 5 does not continue to count.	Faulty wiring or circuit	Remove battery and re-insert after 30 seconds.
Nothing is displayed on the LCD display 5	1. LCD display 5 is switched off.2. Battery is the wrong way round or the battery contact is poor.3. The battery voltage is lower than 2.1 V.	1. Switch the LCD display 5 on by pressing the ON / OFF key 10.2. Remove the battery and insert / replace it in line with the terminals and the chapter "Insert / replace battery" so that it touches all contacts.3. Replace the battery in line with the chapter "Insert / replace battery".

● Cleaning and maintenance

• Clean the caliper before and after using it with a dry cloth; never use petrol, solvents or cleaning agents.
• Do not immerse the caliper into water. Liquids can damage the caliper.

■ Always switch the LCD display 5 off when not using the caliper. This will extend the life of the battery.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 380693_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]
