Product type	Wireless cross-line laser level with 360° line and vertical line
Working area	20 m (normal conditions)
Leveling accuracy	± 0.4 mm/m
Self-leveling range	± 3°
Leveling time	Approx. 4 seconds
Power supply	Built-in Li-ion battery 2600 mAh / 9.36 Wh, rechargeable via USB-C (5 V, 1.3 A)
Weight (without tripod)	Approx. 440 g
Laser class	2 (Pmax < 1.0 mW, λ = 510-530 nm)
Package contents	1 laser level, 1 tripod, 1 storage case, 1 instruction manual, 1 USB-C charging cable
Material and finish	Robust body with integrated magnets for attachment to flat metal surfaces
Usage	Indoors only, domestic use (non-professional)
Main functions	Horizontal and vertical lines, combined mode, manual mode without self-leveling, magnetic attachment
Cleaning and maintenance	Wipe with a dry cloth; clean laser openings with a gentle air stream or slightly damp cotton swab; do not immerse
Warranty	5 years from date of purchase (spare parts available during warranty)
Special features	Charging indicator (red/green), leveling indicator (green/red), tripod adjustable in height and tilt

Frequently Asked Questions - PKLLP 360 B3 PARKSIDE

How to recharge the battery of the Parkside PKLLP 360 B3 laser level?

Plug the supplied USB-C cable into the charging socket (3) and connect it to a USB port (computer or mains adapter). The control indicator (15) is red during charging and turns green when the battery is fully charged. First disconnect the cable from the power supply, then from the product.

Can I replace the battery myself?

No, the Li-ion battery is built-in and cannot be replaced by the user. For any issues, contact Parkside customer service.

How to use the self-leveling mode?

Place the product on a firm, level surface, or mount it on the tripod. Push the sliding leveling latch (14) to the left (position ). The indicator (17) lights up green when self-leveling is complete (lines stable). If it flashes red, self-leveling is not possible; orient the device parallel to the ground.

How to work without self-leveling (manual mode)?

Push the sliding latch (14) to the right (position ). The leveling indicator remains red. Press and hold the V/H button (16) to activate the laser lines. You can then freely tilt the device to project non-leveled lines.

What to do if the laser does not turn on?

Check that the battery is charged (connect the USB-C cable and observe the charging indicator). If the problem persists, contact customer service.

How to clean the laser openings?

Clean the 360° laser opening (1) and the vertical laser opening (18) with a gentle air stream or a slightly damp cotton swab. Never use a damp cloth or abrasive products.

What is the leveling time and accuracy?

The leveling time is approx. 4 seconds. Accuracy is ± 0.4 mm/m, with a self-leveling range of ± 3°.

How to adjust the tripod height?

Open the clamp closures (8) on the legs, slide each leg to the desired length, then close the clamps. Use the crank (10) for fine adjustment: unfold it, loosen the ring (11), adjust, then retighten.

Where should I store the device when not in use?

Store the laser level in the supplied storage case, in a clean, dry place away from direct sunlight.

How to claim the 5-year Parkside warranty?

Keep the receipt and the reference number (IAN 465675_2404). Contact customer service by phone or email (France: 0800904879, [e-mail]). Send the defective product with proof of purchase and a description of the defect.

USER MANUAL PKLLP 360 B3 PARKSIDE

QR code image containing encoded data, with a central logo or watermark

PDF ONLINE
parkside-diy.com

Illustration of a tripod-mounted surveying instrument with a triangular pointer (no text or symbols visible)

4 V AKKU-KREUZLINIENLASER/4V CORDLESS CROSS LINE LASER/4 V NIVEAU LASER EN CROIX SANS FIL PKLLP 360 B3

DE AT CH

4 V AKKU-KREUZLINIENLASER

Bedienungsanleitung

GB IE

4V CORDLESS CROSS LINE LASER

User manual

FR BE

4 V NIVEAU LASER EN CROIX SANS FIL

Mode d'emploi

NL BE

4 V ACCU-KRUISLIJNLASER

Gebruiksaanwijzing

PL

4 V AKUMULATOROWY LASER KRZYŻOWY

Instrukcja obsługi

CZ

4 V AKU KRÍŽOVÝ LINIOVÝ LASER

Návod na obsluhu

SK

4 V AKU KRÍŽOVÝ LÍNIOVÝ LASER

Návod na obsluhu

ES

4 V NIVEL LÁSER DE LÍNEAS CRUZADAS RECARGABLE

GB/IE User manual Page 21

Warnings and symbols used..... Page 22

Introduction Page 23

Intended use.... Page 23

Scope of delivery Page 23

Description of parts ...... Page 24

Technical data.... Page 24

Safety instructions Page 25

Safety instructions for batteries/rechargeable batteries Page 26

Before first use Page 27

Operation...... Page 27

Charging the rechargeable battery . . . . . . . . . Page 27

Switching on/off Page 28

Using horizontal and vertical laser lines ..... Page 28

Working with the automatic leveller.... Page 28

Working without the automatic leveller..... Page 29

Working with the tripod Page 29

Adjusting the tripod Page 29

Cleaning and care Page 30

Storage Page 30

Troubleshooting Page 31

Disposal Page 31

Warranty.... Page 32

Warranty claim procedure.... Page 32

Service Page 33

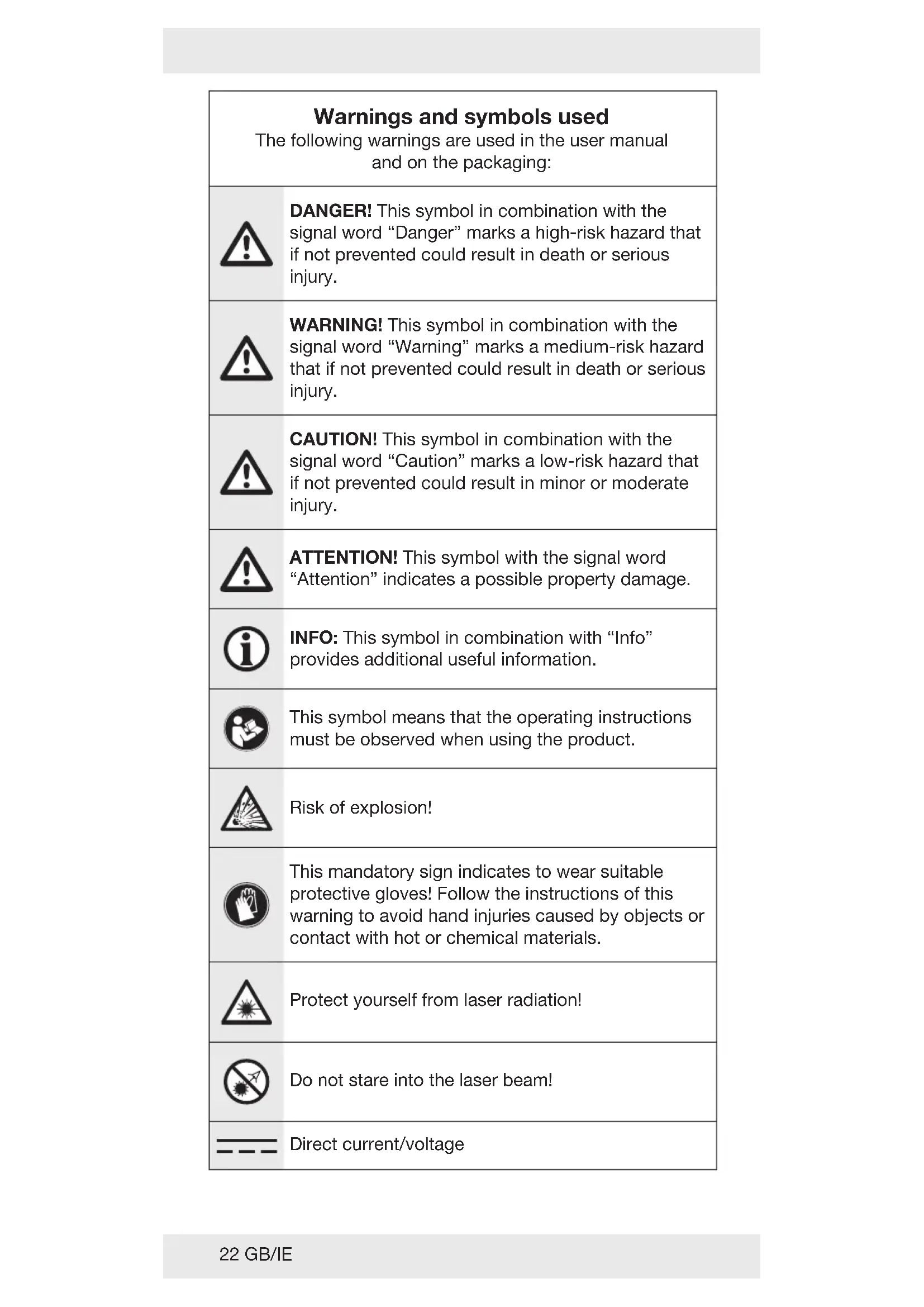

Warnings and symbols usedThe following warnings are used in the user manualand on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.
	INFO: This symbol in combination with “Info” provides additional useful information.
	This symbol means that the operating instructions must be observed when using the product.
	Risk of explosion!
	This mandatory sign indicates to wear suitable protective gloves! Follow the instructions of this warning to avoid hand injuries caused by objects or contact with hot or chemical materials.
	Protect yourself from laser radiation!
	Do not stare into the laser beam!
- - - -	Direct current/voltageUSB connection
	Use in dry indoor rooms only.
[SYY0]	Safety informationInstructions for use
	CE mark indicates conformity with relevant EU directives applicable for this product.

4V CORDLESS CROSS LINE LASER

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable for projecting vertical and horizontal lines. The laser lines can be used both individually and together.
- Do not use this product for any other purpose.
This product is only intended for normal indoor use.
This product is only intended for private household use, not for commercial purposes.
The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

□ After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.
□ Contact customer service if parts are missing or damaged.

1 Cordless Cross Line Laser

1 Storage pouch

1 Tripod

1 User manual

1 USB-C charging cable

• Description of parts

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

(Fig. A)

1	360° laser	12	Adjusting screw
2	Magnets	13	Dragonfly (bubble vial)
3	Charging socket	14	Levelling slide switch
4	Butterfly screw	15	Charge indicator
5	Handwheel bolt	16	V/H button (V=vertical/ H=horizontal)
6	Lever
7	Tripod legs	17	Leveller light
8	Snap fasteners	18	Vertical laser
9	Locking ring	19	Tripod mount
10	Crank handle	20	USB-C charging cable
11	Locking ring	21	Storage pouch

(Fig. B)

22 Internal thread

23 Tripod screw

• Technical data

Working range: 20 m*
Weight (without tripod): approx. 440 g
Rechargeable battery: INR18650, Li-ion, 2,600 mAh, 9.36 Wh
Operating voltage U_max : 4 V	---
Charging voltage U_IN : 5 V	---
Charging current: 1.3 A
Self-levelling range: ± 3°
Levelling accuracy: ± 0.4 mm/m
Laser wavelength:	510–530 nm
Laser class:	2
Levelling time:	approx. 4 seconds

* The working range may be restricted by environmental conditions (e.g. bright light).

Safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid!

No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities ⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the dangers. Always keep children away from the packaging material.

■ The product is to be used by adults only. Children under the age of 16 may not use the product except under supervision.

- Keep children away from the product.

General notes

• Observe the information on operation, cleaning, storage and disposal in the operating instructions.
• Check the product each time before using. If damaged, have the product repaired. Do not use the product if damaged.

■ Turn off the product when not in use. Do not leave the product unsupervised.

- Keep the product away from medical devices, magnetic data storage media and magnetically sensitive devices.

Handling the laser

WARNING! Protect yourself from laser radiation!

LASER 2

P_max < 1.0 mW λ = 510 - 530 mm EN 50689:2021 CONSUMER LASER PRODUCT

⚠️ CAUTION! Laser beam – Do not look into the beam! Laser class 2.

• Do not aim the laser beam at people.
  ■ Markings and warnings are located on the top and bottom of the product.

Safety instructions for batteries/rechargeable batteries

⚠️ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

• Never throw batteries/rechargeable batteries into fire or water.
• Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of leakage of batteries/rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
  If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES! Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.

Before first use

☐ Remove the packaging. Check if all parts are complete.
☐ Charge the rechargeable battery (see “Charging the rechargeable battery”).

Operation

● Charging the rechargeable battery

i INFO:

☐ The rechargeable battery is not replaceable. If you have any problems with the battery, please contact the service centre.
☐ The product can be used whilst charging. It is normal for the product to warm up slightly whilst charging. During the charging process, you may not be able to work with the product if the battery is almost or completely empty. This depends on the charger used.

1. Plug the USB-C charging cable 20 into the charging socket 3.

2. Connect the USB-C charging cable 20 to a USB port.

Charge indicator 15	Meaning
Red Rechargeable battery	ry is charging.
Green Rechargeable battery	ry is fully charged.

1. Once charging is complete, first remove the USB-C charging cable 20 from the USB port.
2. Remove the USB-C charging cable 20 from the product.

- Switching on/off

CAUTION! Laser beam – Do not look into the beam 1 18! Turn your head away or close your eyes to prevent looking into the laser beam. Risk of eye injury!

☐ Switching on: Push the levelling slide switch 14 to the left (○ position). The 360° laser line 1 and the vertical laser line 18 are activated.
☐ Switching off: Push the levelling slide switch 14 to the right (○ position). The 360° laser line 1 and the vertical laser line 18 are deactivated.

● Using horizontal and vertical laser lines

□ After switching on, the 360° laser line 1 and the vertical laser line 18 are activated.
□ Activate the 360° laser line 1 only: Briefly press the V/H button 16.
□ Activate the vertical laser line 18 only: Briefly press the V/H button 16.

● Working with the automatic leveller

① INFO: In the event of vibrations, the laser will level itself automatically. Wait until the laser lines no longer move.

1. Place the product on a horizontal, solid surface or fasten the product to a tripod (see "Working with the tripod").
2. Push the levelling slide switch 14 to the left (unknown position). The leveller light 17 lights up.

Leveller light 17	Meaning
Green Automatic levelling is possible.Levelling is complete once the laser lines no longer move.
Red Automatic levelling is not possible.The laser lines flash.

● Working without the automatic leveller

i INFO:

☐ The leveller light 17 will illuminate permanently in red when working without the automatic leveller. The laser lines depicted are not levelled.
☐ The product has 2 magnets 2 . The magnets allow you to attach the product to surfaces that attract magnetic objects, e.g. steel shelves.

⚠️ ATTENTION! The magnetic surface used should be flat and not curved or uneven surface. Otherwise, the product will fall down and will be damaged.

1. Push the levelling slide switch 14 to the right (position).
2. Press and hold the V/H button 16 until the 360° laser line 1 and the vertical laser line 18 are activated.
3. Activate the 360^ laser line only: Briefly press the V/H button 16.
4. Activate the vertical laser line 18 only: Briefly press the V/H button 16.
5. Switching off: Press and hold the V/H button 16 until the leveller light 17, the 360° laser line 1, and the vertical laser line 18 are deactivated.

● Working with the tripod

(Fig. B)

Screwing the laser onto the tripod mount 19

☐ Screw the internal thread 22 of the product hand tight onto the tripod screw 23.

Removing/inserting the tripod mount

⚠️ ATTENTION! Do not use excessive force. This may damage the product.

1. Open the lever 6.
2. Remove the tripod mount 19 in an upward direction.
3. Place the tripod mount 19 on the tripod for insertion.
4. Lock the tripod mount 19 by closing the lever 6.

- Adjusting the tripod

(Fig. C)

① INFO: You can use the dragonfly 13 to check the horizontal alignment of the tripod.

1. Pull the tripod legs 7 apart.
2. Lock the tripod legs 7 into position with the locking ring 9.

Setting the height, tripod feet

1. Open the snap fasteners 8.
2. Extend the tripod legs 7 to the desired length.
3. Close the snap fasteners 8.

Setting the height, crank handle

1. Fold up the crank handle 10.
2. Hold the crank handle 10 firmly with one hand.
3. Unscrew the locking ring 11 by turning it to the left.
4. Crank the tripod to the desired height.
5. Turn the locking ring 11 to the right to lock this position.

Adjusting the inclination, forward/back

1. Turn the handwheel bolt 5 to the left to loosen.
2. Set the desired inclination.
3. Turn the handwheel bolt 5 to the right to lock the inclination into place.

Adjusting the inclination, sideways

1. Turn the butterfly screw 4 to the left to loosen.
2. Fold the tripod to the desired inclination.
3. Turn the butterfly screw 4 to the right to lock into place.

Rotating the tripod

1. Turn the adjusting screw 12 to the left to loosen.
2. Hold the handwheel bolt 5 and turn the tripod in the desired direction.
3. Turn the adjusting screw 12 to the right to lock into place.

● Cleaning and care

⚠ WARNING! Never submerge the product in water or other liquids.

⚠ WARNING! For repair purposes the product may only be opened by a professional. Have the product repaired by qualified professionals and only with original replacement parts. This ensures that the safety of the product is maintained.

• Do not exert any strong pressure.
• Do not allow water to enter into the product during cleaning.

☐ The product requires no maintenance.

□ Keep the product clean to ensure good, secure work.
□ Use a dry cloth to clean the outside.
☐ Clean the openings of the 360^ laser 1 and the vertical laser 18 with a soft air jet. In cases of heavy contamination, remove the dirt with a slightly damp cotton swab.

Storage

☐ If you will not be using the product for a prolonged period of time, store it in a clean, dry place that is not exposed to direct sunlight.

☐ Store the product in the storage pouch 21.

● Troubleshooting

Problem Possible cause Solution
Product does not start.	Rechargeable battery is flat.	Charge the rechargeable battery.
Automatic leveller does not work.	Automatic leveller cannot oscillate freely. Product is not aligned sufficiently parallel with the floor.	Align the product so it is parallel with the floor.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

ve the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/rechargeable batteries must be recycled. Return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

For this product, rechargeable battery is also covered by its warranty period.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 465675_2404) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

PDF ONLINE parkside-diy.com

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 465675_2404 takes you to the operating instructions for your item.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

QR code image containing encoded data, with a central logo or watermark

PDF ONLINE
parkside-diy.com
