USER MANUAL ISOFIX Premium Chipolino

Line drawing of a baby car seat with a vertical support post (no text or symbols)

ChipoliNo

продуктов номер / item number / cikkszám/ número de artículo / codice articolo / artikelnummer / numéro d'article / broj proizvoda / αριθμός προϊόντος / numărul produsului / número de produto / productnummer / číslo produktu / ʒῆμπρησχυξησ θεδυξησ:

STKPR02xxxxx

UN Regulation №129/03

ФИГУРИ / FIGURES / ÁBRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES /

FIGURE / ΦΙΓΟΥΡΕΣ / FIGURILE / FIGURAS / FIGUREN / OBRÁZKY / gradesynjod

1 8 7 9 6 10 5 11 12 4 13 3 2 14 15 1 16 17 18

Diagram of a medical procedure showing a hand holding a device with a blue arrow indicating direction (no text or symbols present)

Diagram showing two mechanical components with blue arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with a blue arrow indicating force or movement (no text or symbols)

click 2-4

3-13

1

Diagram illustrating human body posture with directional indicators and checkmark symbols

4-24

Line drawing of a hand holding a tool above a mechanical component (no text or symbols)

Line drawing of a car seat with blue motion arrows indicating movement (no text or symbols)

ФИГУРИ / FIGURES / ÁBRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ФІГОYPEΣ / FIGURILE / FIGURAS / FIGUREN / OBRÁZKY / ۲۰۹۶۲۱۵۱۰۱

Line drawing of a car seat with a seatbelt, labeled 40-105 cm (no text or symbols on the diagram itself)

Line drawing of a car seat with seatbelt and tassel, labeled 76-150 cm (no text or symbols on the diagram itself)

Line drawing of a car seat with seatbelt and seatbelt buckle, labeled '6-3' (no text or symbols on the diagram itself)

6-4

6-5

6-6

Diagram showing a left-pointing arrow, a blue double-headed arrow with three vertical lines, and a separate 3D object labeled '7' in the top-right corner.

8-1

Line drawing of a mechanical device with a green tool inserted, labeled '8-2' (no text or symbols on the diagram itself)

click 8-3

8-48 ✓ ×

5

9-19

210-1

Diagram showing car seatbelt mechanism with highlighted component and directional arrow

ФИГУРИ / FIGURES / ÁBRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ФІГОYPEΣ / FIGURILE / FIGURAS / FIGUREN / OBRÁZKY / ۲۰۹۶۲۱۵۱۰۱

ФИГУРИ / FIGURES / ÁBRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ФІГОYPEΣ / FIGURILE / FIGURAS / FIGUREN / OBRÁZKY / gradesMDOD

13-4

Line drawing of a butterfly seat with blue motion arrows indicating rotation (no text or symbols)

14-2

13-3

Line drawing of a person wearing a car seatbelt and headband, with no visible text or symbols

Line drawing of a person seated in a car seat with a green belt and seatbelt (no text or symbols)

Illustration of a person lying on the back with hands placed on the abdomen, no text or symbols present

4-715-1

Simple line drawing of a curved object with a circular hole and an arrow pointing to it (no text or symbols)

15-2

Warning sign with red triangle and black exclamation mark symbol

Diagram of a car with traffic sign icons and facial expressions, including 'NO' and ' Happy' signs

40-105 cm ≤18 kg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

TO ASSURE SAFE USAGE OF THIS PRODUCT

FOLLOW ALL WARNINGS, INSTRUCTIONS AND

RECOMMENDATIONS GIVEN IN THIS USER MANUAL!

NOTE for i-Size Enhanced Child Safety System (40-105 cm)

This is an enhanced i-Size child safety system. It is approved according to Regulation No. 129 for use in “i-size compatible” seating positions in the vehicle, as indicated by the vehicle manufacturers in the vehicle’s user manual.

If in doubt, consult the manufacturer or retailer of the child safety system.

NOTE for i-Size Enhanced Child Safety System, Booster Seat Category (100-150 cm)

This is an i-Size enhanced child safety system, type “booster seat.” It is approved according to Regulation No. 129 for use primarily in “i-Size” seating positions in the vehicle, as indicated by the vehicle manufacturers in the vehicle’s user manual.

If in doubt, consult the manufacturer or retailer of the child safety system.

Warning sign with red triangle and black exclamation mark symbol

NO SYSTEM CAN GUARANTEE ABSOLUTE PROTECTION AGAINST INJURY IN THE EVENT OF A COLLISION OR ACCIDENT! DRIVE WITH INCREASED CARE, ESPECIALLY WHEN THERE IS A CHILD IN THE VEHICLE!

TO ENSURE THE SAFE USE OF THIS PRODUCT, FOLLOW THE WARNINGS, INSTRUCTIONS, AND RECOMMENDATIONS PROVIDED IN THIS MANUAL!

IMPROPER USE OF THE SEAT WILL REDUCE ITS PROTECTIVE AND SAFETY FUNCTIONS! FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL INCREASES THE RISK OF SERIOUS INJURY OR DEATH!

WARNING!

NEVER INSTALL OR USE A CHILD SEAT REAR-FACING ON A PASSENGER SEAT EQUIPPED WITH AN ACTIVE FRONT AIRBAG! THIS COULD RESULT IN DEATH OR SERIOUS INJURY! Review the vehicle's manual for information on airbags and child transport conditions!

IMPORTANT - NEVER USE THE SEAT WITH THE CHILD FACING FORWARD BEFORE THE CHILD REACHES 15 MONTHS OF AGE.

THIS SEAT IS ONLY SUITABLE FOR INSTALLATION IN VEHICLES EQUIPPED WITH A 3-POINT SAFETY BELT APPROVED UNDER UN REGULATION NO. 16.

NEVER USE THE SEAT WITH A 2-POINT SAFETY BELT!

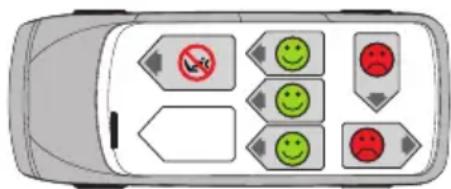

INSTALLATION LOCATIONS IN THE VEHICLE

Diagram showing traffic sign placement on a car with no traffic, smiling faces, and red-frowning faces

40-105 cm ≤18 kg

Installation direction: Rear-facing

76-150 cm

15 months

Installation direction: Forward-facing

WARNING! CAUTIONS!

WARNING! NEVER LEAVE THE CHILD UNATTENDED!

✿ WARNING! DO NOT USE ANY OTHER CONTACT POINTS EXCEPT THE ONES DESCRIBED IN THE INSTRUCTIONS AND MARKED ON THE CAR SEAT!
✿ WARNING! WHEN INSTALLING THE SEAT IN A REAR-FACING POSITION, NEVER PLACE IT ON A PASSENGER SEAT EQUIPPED WITH AN ACTIVE AIRBAG! THIS COULD LEAD TO DEATH OR SERIOUS INJURY!
✿ WARNING! NEVER INSTALL THE SEAT IN THE DIRECTION OF NORMAL VEHICLE MOVEMENT WITH THE CHILD FACING FORWARD BEFORE THE CHILD IS OVER 15 MONTHS OLD!
✿ WARNING! THE VEHICLE SAFETY BELTS THAT SECURE THE SEAT TO THE CAR SEAT MUST BE TIGHTENED AND FIXED!
✿ WARNING! THE SAFETY BELTS OF THE CAR SEAT THAT HOLD THE CHILD MUST BE TIGHTENED AND FIXED, ADJUSTED ACCORDING TO THE BODY AND SIZE OF THE CHILD SO THAT THEY FIT SECURELY.
✿ WARNING! THE CROTCH STRAP MUST BE POSITIONED LOW AND EVERY PROTECTIVE BARRIER MUST BE INSTALLED CORRECTLY SO THAT THE CHILD'S HIPS ARE FIRMLY HELD WITHOUT BEING COMPRESSED.
✿ WARNING! DO NOT MODIFY, ADD OR ALTER THE CAR SEAT WITHOUT APPROVAL FROM THE NOTIFYING AUTHORITY! FAILURE TO FOLLOW THE INSTRUCTIONS PRECISELY CAN BE DANGEROUS!

WARNING! KEEP AWAY FROM FIRE!

The installation of the product on the car seat and securing the child must only be done by an adult!
The hard components and parts of the child safety system, made of plastic, must be positioned and installed so that when the vehicle is in normal operation, they cannot be trapped by the sliding seat or the vehicle door.
Do not allow the seat belts of the car seat to become twisted, frayed, or torn. The buckles and fasteners must always be functional and securely fixed.
If you notice any insecurity or malfunction in the construction, fasteners, belts, or locking mechanisms of the seat or the ISOFIX system, cease use until the damaged parts are removed and replaced with new ones.

❖ Replace the seat with a new one if it has been subjected to damaging forces in an accident.

Do not use a “second-hand” seat, as you do not know what forces it may have been subjected to.

Do not use the seat without the upholstery and do not replace it with another one unless specified by the manufacturer, as it is an integral part of the child safety system.

✿ Any luggage or items that could cause injury in a collision should be properly secured. Remove or secure any luggage that could harm the child in case of sudden braking or an accident.

Always check if the seat is securely fixed to the vehicle seat, even when no child is placed in it. A loose seat, even without a child, can cause injury in a collision.

Do not add extra cushions to the seat, other than those specified by the manufacturer!

Do not use spare parts or other components that are not supplied by the manufacturer! The manufacturer is not responsible for safety if non-original spare parts are used or those not recommended by them.

Store the user manual in the designated place of the seat or in the vehicle where the seat will be used.

Do not expose the seat to direct sunlight to prevent potential child burns, deformation of the seat, and especially the plastic parts.

The seat does not replace a baby cradle or bed. When the child needs to sleep, place them in an appropriate stroller, baby cradle, or bed.

Do not attach additional cords or ties to the product to avoid the risk of strangulation!

✿ Never place the seat on beds, sofas, or other soft surfaces!

Do not allow children to play with the product!

Do not remove the labels or warnings placed on the seat! They are important for anyone using it!

- Keep the plastic packaging away from children to prevent the risk of suffocation!

INSTRUCTIONS FOR USING THE SAFETY SYSTEM

This is an enhanced child safety system for children with a height of 40-150 cm, approximately 0-12 years old. It is classified as an i-Size universal ISOFIX system for children from 40 to 105 cm, and an i-Size booster seat suitable for children with a height of 100-150 cm, approximately 0-12 years old.

i-Size seat 40-105cm ≤18kg i-Size Booster seat 100cm-150 cm ISO/R2, ISO/F2x, ISO/B2

Installation in the vehicle:

For a child height of 40-105 cm, facing BACKWARD, with ISOFIX + Support leg (i-Size universal ISOFIX system).
For a child height of 76-105 cm, facing FORWARD, with ISOFIX + Support leg (i-Size universal ISOFIX system).
For a child height of 100-150 cm, facing FORWARD, with ISOFIX connectors + 3-point vehicle belt or only with the 3-point vehicle belt (i-Size booster seat).

IMPORTANT! Always follow the instructions and sequence for installation and use of the product as per the text and illustrations in the manual. Check the security of the fixation after each operation! ALWAYS CHECK THE SECURING OF THE BELTS! After each installation, make sure the vehicle seat belts are not twisted and are in the correct position.

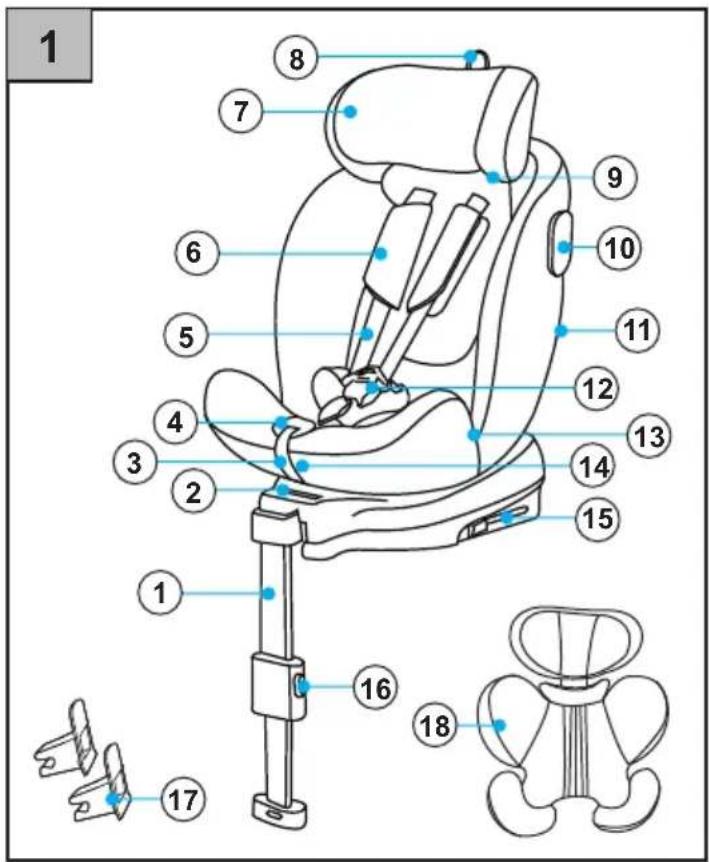

1. MAIN PARTS

1. Support leg
2. Seat rotation button
3. Shoulder strap adjustment strap
4. Shoulder strap adjustment button
5. Shoulder straps
6. Soft pads for shoulder straps
7. Headrest
8. Headrest adjustment ring
9. Diagonal seatbelt guide
10. Upper seatbelt guide
11. Compartment for the user manual
12. Buckle connector
13. Lower seatbelt guide
14. Seat recline adjustment lever
15. ISOFIX connectors
16. Buttons for adjusting the support leg
17. ISOFIX connector guides
18. Additional cushion

Note: Use the additional cushion only for children with a height ≤75 cm.

2. CONNECTING THE BUCKLE

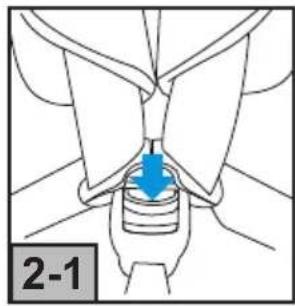

Unbuckling: Press the red button until both metal ends of the shoulder straps pop out of the buckle (2-1).

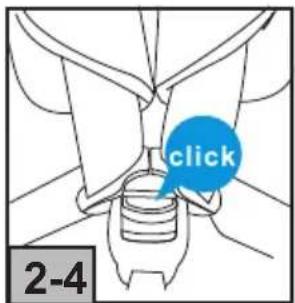

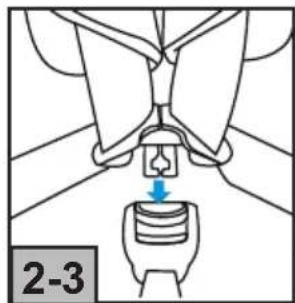

Buckling: Join the two metal ends of the shoulder straps (2-2). Insert the connected metal ends into the connecting buckle (2-3) and press until you hear a "click" sound (2-4). Make sure the straps are locked in place by pulling them.

IMPORTANT! The buckle will not lock if only one of the metal ends is inserted!

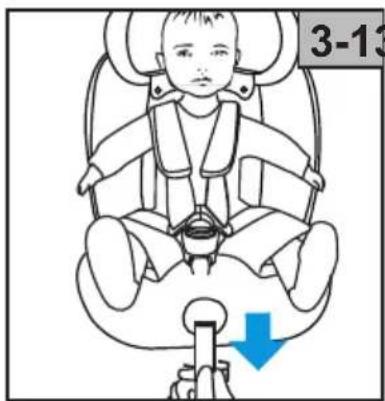

3. ADJUSTING THE SEAT BELT (TIGHTENING AND LOOSENING)

3-1. Tightening the belt: Pull the shoulder strap adjustment belt (3) to tighten the straps around the child. The straps should wrap well around the child's body without pressing too tightly or causing discomfort. The recommended distance between the child's body and the straps is two fingers (about 2-3 cm). The crotch strap should be low near the child's groin, not on the belly.

CAUTION! Make sure the straps are not twisted and fit around the child without pressing!

3-2. Loosening the straps: Press the shoulder strap adjustment button (4) with one hand while pulling the shoulder straps outwards with the other hand.

IMPORTANT! Pull the shoulder straps, not the soft pads on them.

4. ADJUSTING THE HEADREST

4-1. When the child is secured with the 5-point harness, adjust the headrest so that the shoulder straps are at shoulder level as shown in the figure.

CAUTION! The shoulder straps should not pass behind the child's back or be at ear level or higher!

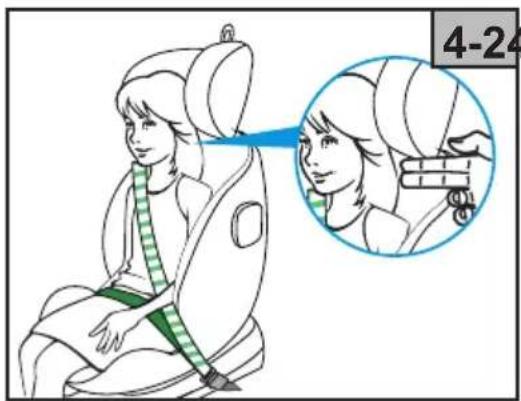

4-2. When the child is secured with the car's 3-point seatbelt, adjust the headrest so there's a gap of two fingers' width between the headrest

and the child's shoulders, and the diagonal belt should be on the child's shoulder, not their neck.

4-3. To adjust the headrest height, pull the adjustment ring (8) and simultaneously move the headrest up or down to the desired position. You'll hear a "click" when it locks.

IMPORTANT! Before installing the seat, adjust the headrest according to your child's height.

IMPORTANT! Ensure the headrest is locked in the chosen position by pulling it up or pressing it down!

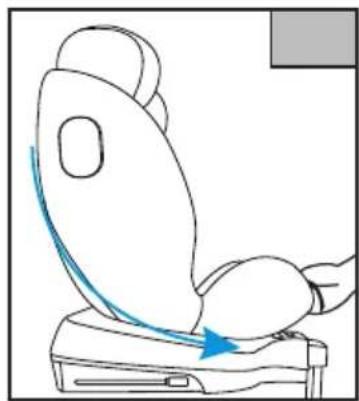

5. ADJUSTING THE SEAT ANGLE

The seat can be tilted in five positions for both the rear-facing and forward-facing positions.

Pull the seat tilt adjustment lever (14) and place the seat in the desired position.

6. ROTATING THE SEAT

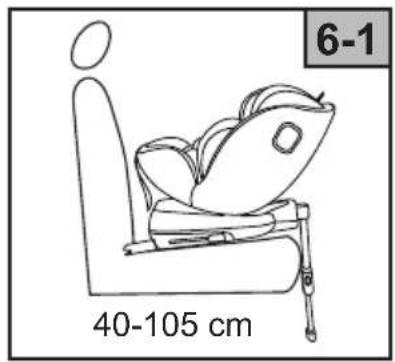

6-1. Rear-facing position – for a child height of 40-105 cm (from newborn to about 4 years old and weight ≤18 kg).

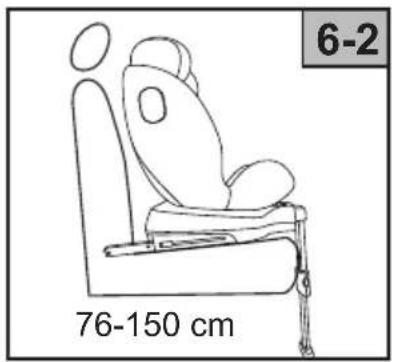

6-2. Forward-facing position – for a child height of 76-105 cm (from 15 months to about 12 years old).

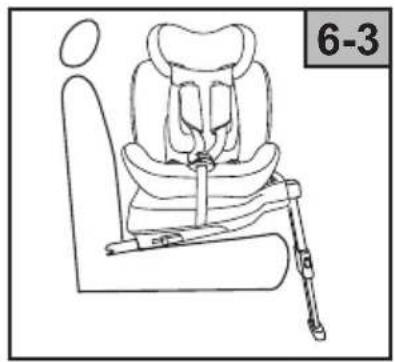

6-3. Side-facing position – for easy placing and removing the child from the seat.

WARNING! The side-facing position is prohibited during vehicle movement!

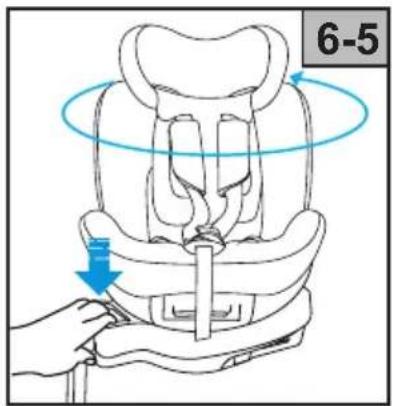

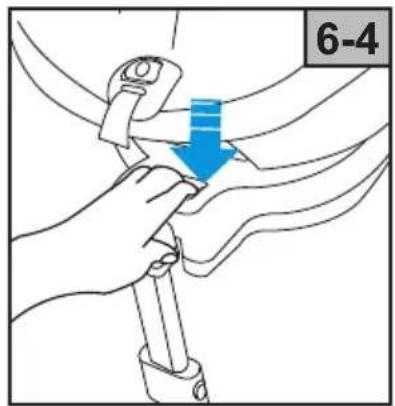

6-4 & 6-5. Pull the seat rotation button (2) and simultaneously rotate it in the desired direction.

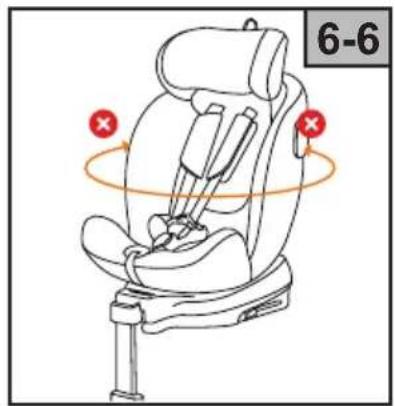

6-6. When the seat is fixed in the desired position, you'll hear a "click" sound. Make sure it's locked by trying to rotate it.

7. ISOFIX GUIDES

ISOFIX guides help with easier and more accurate attachment of the seat to the ISOFIX anchor points in the vehicle. They facilitate the correct placement of the seat and protect the car upholstery from damage.

If ISOFIX guides are not part of your car's standard equipment, place both ISOFIX guides from the set. Ensure that the slots are facing upward and insert both guides into the ISOFIX anchor points in the car.

Note: ISOFIX anchor points are located between the seat and backrest of the car. In some cars, they are marked with the following symbol 📋.

ISOFIX

8. INSTALLING ISOFIX CONNECTORS TO THE CAR

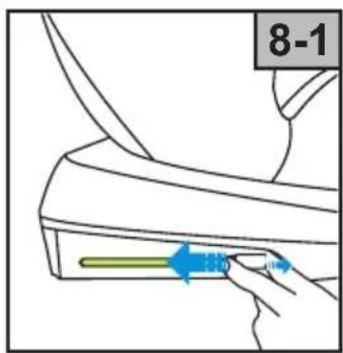

8-1, 8-2. Grab and press the button (1) to release the ISOFIX connectors.
8-2. At the same time, move the ISOFIX connectors fully outward.

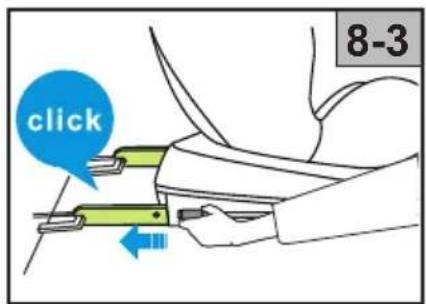

8-3. Insert the connectors into the vehicle's ISOFIX points. Press the seat back until you hear a "click" sound and the indicators turn fully green.

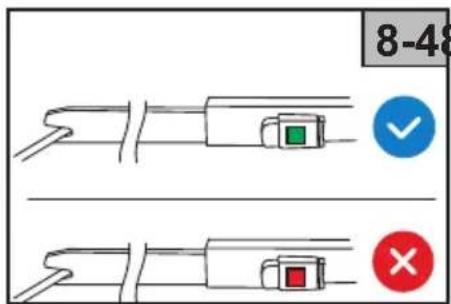

WARNING! The ISOFIX connectors are fixed when both indicators are fully green.

Note: If the indicators are red, repeat the installation by following the above steps.

WARNING! The bottom of the seat must fit tightly against the vehicle seat without any gaps between the bottom of the seat and the surface of the vehicle seat.

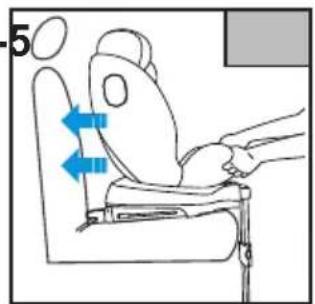

8-5. Press the child seat firmly against the car's backrest by applying pressure from both sides. Shake the seat to make sure it is securely and safely attached.

9. REMOVING ISOFIX CONNECTORS

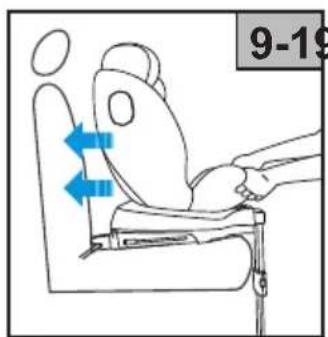

9-1. Press the child seat firmly against the car's backrest.
9-2. At the same time, press the release button (1) and pull the connectors backward.

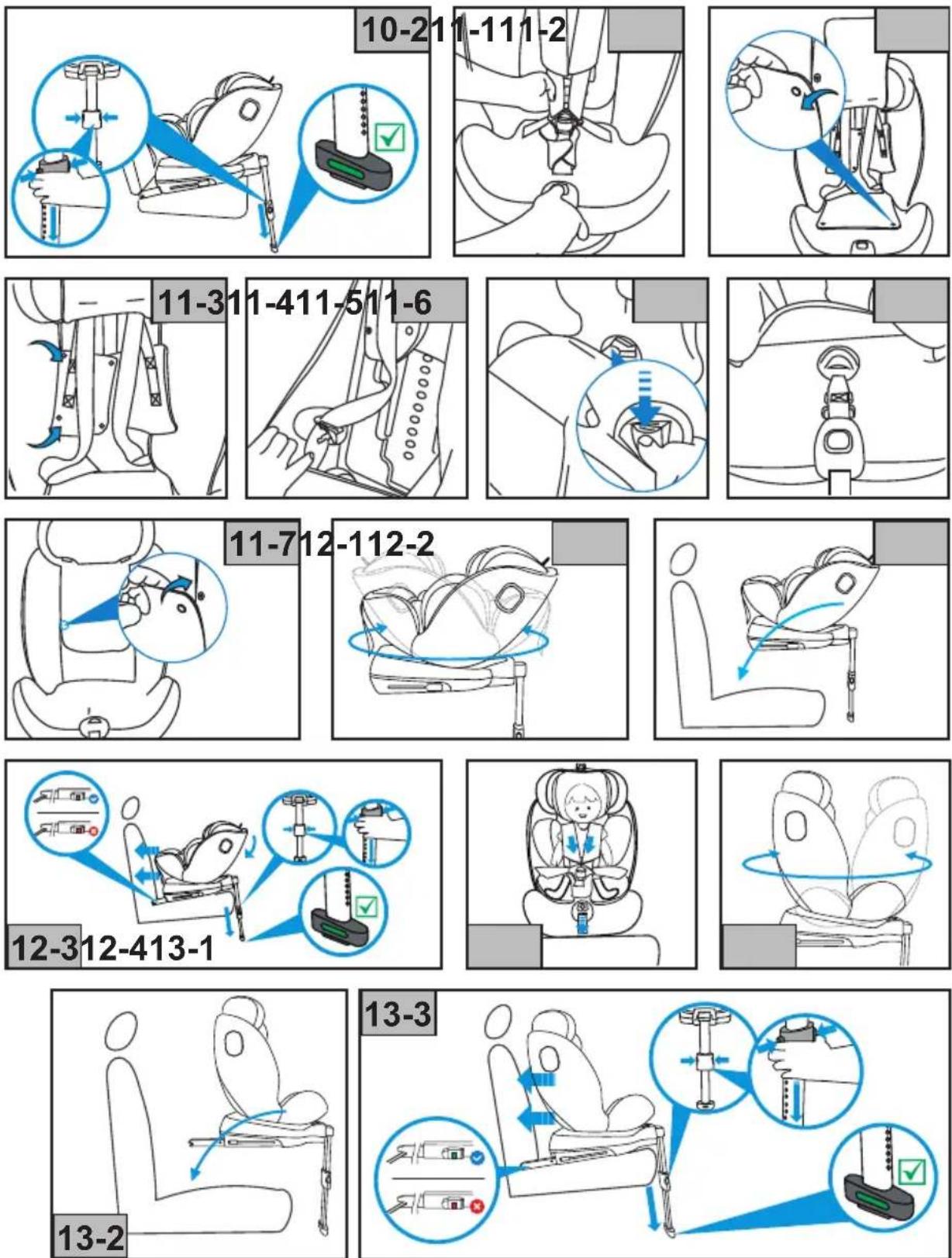

10. SUPPORT LEG

The support leg is used for a child height of 40-105 cm.

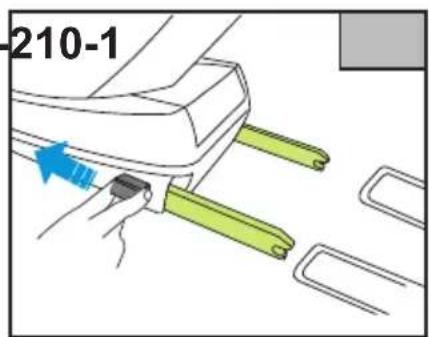

10-1. Pull the support leg from the bottom of the seat until it is fully extended.

10-2. Press the adjustment buttons (2) for the support leg and pull it down until it firmly touches the floor. Ensure that the support leg is firmly in contact with the vehicle floor with no gap between them.

WARNING! The support leg is properly fixed when the indicator is fully green, the bottom of the seat is not separated from the vehicle seat, and the adjustment buttons (2) are locked.

Note: If the indicator is red, repeat the installation following the steps above.

11. STORING THE STRAPS UNDER THE COVER

11-1. Loosen the shoulder straps as much as possible, then unbuckle the main buckle.
11-2. Unfasten the snap buttons on the cover and move the respective parts of the cover up and down.

11-3. Remove the pads on the shoulder straps.
11-4. Insert the metal ends of the shoulder straps into the corresponding openings in the backrest so that the straps are stored under the cover.
11-5. Unfasten the seat cover and pull it forward. Remove the main buckle from the soft pad and cover.
11-6. Place the main buckle into the designated opening in the seat base.
11-7. Reattach the snap buttons of the seat and backrest cover.

To retrieve and reuse the seat straps, reverse the steps described above.

IMPORTANT! Ensure that the strap is not twisted.

12. INSTALLING THE SEAT REAR-FACING (40-105 CM, UP TO APPROXIMATELY 4 YEARS, ≤18 KG)

WARNING! Use the additional cushion only for children with a height of no more than 75 cm.

12-1. Extend the support leg from the bottom of the seat. Rotate the seat to face the rear of the vehicle (see Section 6: ROTATING THE SEAT).
12-2. Adjust the seat to its most reclined position (see Section 5: ADJUSTING THE SEAT'S RECLINE). Place the car seat on the vehicle seat so that it is rear-facing.
12-3. Secure the car seat in the vehicle using the ISOFIX connectors, following the steps in Section 8: FIXING THE ISOFIX CONNECT TO THE VEHICLE. Attach the support leg to the vehicle floor, following the steps in Section 10: SUPPORT LEG.
12-4. Place the child in the seat. Adjust the headrest to the appropriate height for your child (see Section 4: ADJUSTING THE HEAD Secure the 5-point harness around the child and fasten it in the main buckle. Tighten the harness (see Section 3: ADJUSTING THE SEAT HARNESS (Tightening and Loosening)).

WARNING! Ensure the shoulder straps are at the correct height!

WARNING! Ensure the straps are not twisted and fit snugly around the child without causing discomfort!

13. INSTALLING THE SEAT FORWARD-FACING (76-105 CM, FROM 15 MONTHS UP TO APPROXIMATELY 4 YEARS, ≤18 KG)

13-1. Extend the support leg from the bottom of the seat. Rotate the seat to face forward in the direction of travel (see Section 6: ROTATING THE SEAT).

13-2. Place the car seat on the vehicle seat so that it is forward-facing.

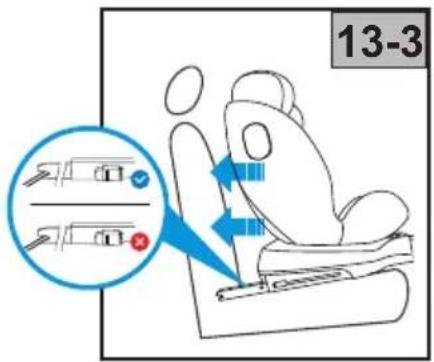

13-3. Secure the car seat in the vehicle using the ISOFIX connectors, following the steps in Section 8: FIXING THE ISOFIX CONNECTORS TO THE VEHICLE. Attach the support leg to the vehicle floor, following the steps in Section 10: SUPPORT LEG.

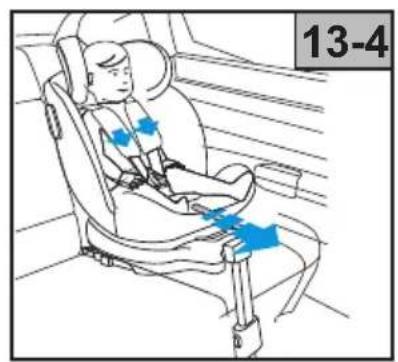

13-4. Place the child in the seat. Adjust the headrest to the appropriate height for your child (see Section 4: ADJUSTING THE HEADREST) Secure the 5-point harness around the child and fasten it in the main buckle. Tighten the harness (see Section 3: ADJUSTING THE SEAT HARNESS (Tightening and Loosening)).

WARNING! Ensure the shoulder straps are at the correct height!

WARNING! Ensure the straps are not twisted and fit snugly around the child without causing discomfort!

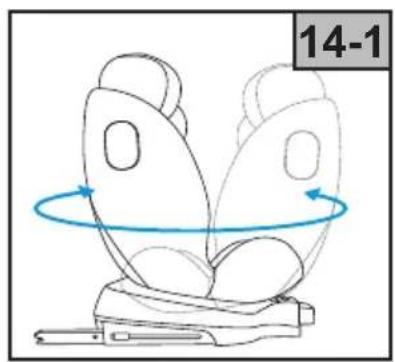

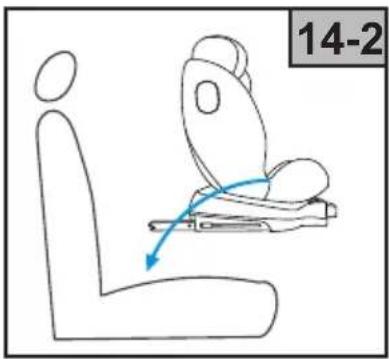

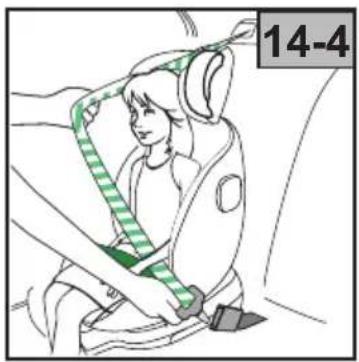

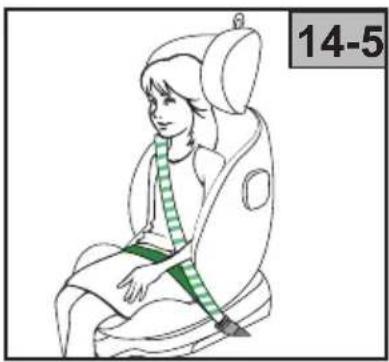

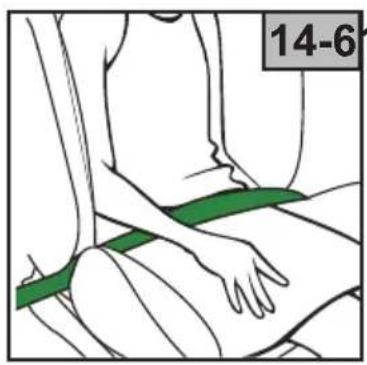

14. INSTALLING THE SEAT FORWARD-FACING (100-150 CM, APPROXIMATELY 3 TO 12 YEARS)

Fold the support leg under the base of the seat and adjust the seat to an upright position.

WARNING! For children between 100-150 cm in height (approximately 3-12 years of age), the car seat can be installed in two ways:

• Using the vehicle's 3-point seat belt and ISOFIX Connectors, or
• Using only the vehicle's 3-point seat belt.

WARNING! For children between 100-150 cm (3-12 years of age), the support leg is not used in either installation method.

Installation using the vehicle's 3-point seat belt and ISOFIX connectors

14-1. Rotate the car seat to face forward (see Section 6: ROTATING THE SEAT).
14-2. Place the car seat on the vehicle seat so that it is forward-facing.
14-3. Secure the car seat in the vehicle using the ISOFIX connectors, following the steps in Section 8: FIXING THE ISOFIX CONNECTORS TO THE VEHICLE.
14-4. Place the child in the seat. Adjust the headrest to the appropriate height for your child (see Section 4: ADJUSTING THE HEADREST) Pull the vehicle's seat belt and pass it in front of the child toward the buckle of the car seat. Insert the end of the seat belt into the buckle until you hear a "click."
14-5. Pass both the lap belt and the diagonal belt through the lower belt guide on the side near the buckle.

14-6. Pass the lap belt through the lower belt guide on the other side.

WARNING! The lap belt should be positioned as low as possible over the child's thighs!

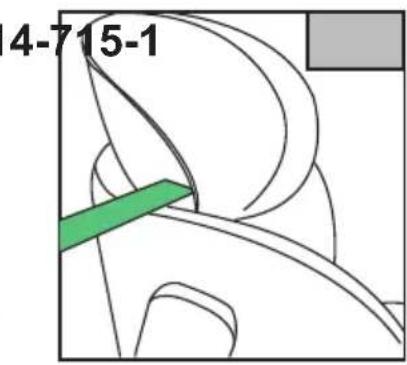

14-7. Pass the diagonal belt through the shoulder belt guide. Ensure it is not twisted!

Installation using only the vehicle's 3-point seat belt

Follow the above steps while skipping Step 14-3 for attaching the ISOFIX connectors. In this case, retract the ISOFIX connectors.

15. REMOVING AND ATTACHING THE COVER

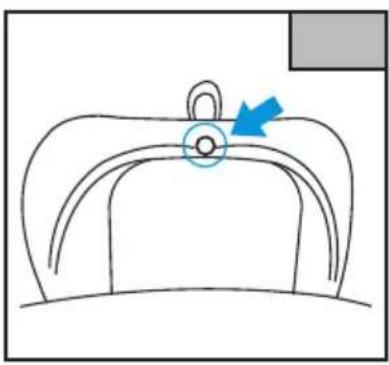

15-1. Unfasten the snap buttons on the back of the headrest to remove the headrest cover. To reattach the cover, reverse the steps.

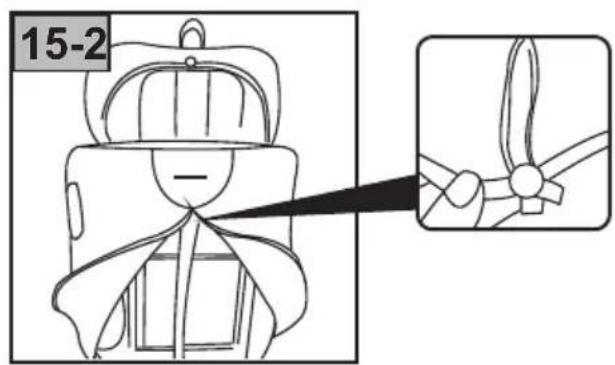

15-2. Unfasten the snap buttons and unzip the back of the cover. Pull the cover forward and remove it from the car seat.

CARE AND MAINTENANCE

• Clean plastic or metal parts with a soft cotton cloth or sponge dampened with water or mild detergent.
• Wash the cover and soft pads by hand at 30°C with mild detergent!
  Do not bleach!
  Do not tumble dry!
  Do not iron!
  Do not use abrasive cleaning products containing ammonia, bleach, or alcohol.
  ✿ After cleaning, allow the car seat to dry completely before use or storage.
• Clean the straps only on the surface with mild soap and a damp cloth!
  Do not wet or remove labels! They contain important information!
• Store the product in a clean and dry place. Avoid direct exposure to environmental factors such as sunlight, rain, moisture, or sudden temperature changes!

A TERMÉK BIZTONSÁGOS HASZNÁLATÁNAK BIZTOSÍTÁSA

ÉRDEKÉBEN KÖVESSE A FELHASZNÁLÓI KÉZIKÖNYVBEN TALÁLHATÓ

Warning sign with red triangle and black exclamation mark symbol

EGYIK RENDSZER SEM KÉPES ABSZOLÚT VÉDELMET NYÚJTANI ÜTKÖZÉS VAGY BALESET ESETÉN! KÜLÖNÖS FIGYELEMMEL VEZESSEN, KÜLÖNÖSEN, HA GYERMEK IS VAN A JÁRMÜBEN!

A TERMÉK BIZTONSÁGOS HASZNÁLATA ÉRDEKÉBEN KÖVESSE AZ EBBEN AZ ÚTMUTATÓBAN TALÁLHATÓ FIGYELMEZTETÉSEKET, UTASÍTÁSOKAT ÉS AJÁNLÁSOKAT!

A HELYTELEN HASZNÁLAT CSÖKKENTI AZ ÜLÉS VÉDELMI ÉS BIZTONSÁGI FUNKCIÓIT! AZ ÚTMUTATÓ UTASÍTÁSAINAK FIGYELMEN KÍVÜL HAGYÁSA NÖVELI A SÚLYOS SÉRÜLÉSEK VAGY HALÁLESET KOCKÁZATÁT!

FIGYELEM!

Diagram showing traffic sign placement with no stop sign, smiling faces, and sad faces on a car ahead

40-105 cm
≤18 kg

Telepítési irány:

Hátrafelé néző

76-150 cm

15 hónap

Telepítési irány:

Előrefelé néző

FIGYELEM! FIGYELMEZTETÉSEK!

✿ FIGYELEM! SOHA NE HAGYJA A GYERMEKET FELÜGYELET NÉLKÜL!
FIGYELEM! NE HASZNÁLJON MÁS TÁMASZPONTOT, KIVÉVE AZOKAT, AMELYEK A HASZNÁLATI ÚTMUTATÓBAN ÉS AZ AUTÓSÜLÉSBEN FEL VANNAK TÜNTETVE!
FIGYELEM! HAA GYERMEKSZÉKET „HÁTRA FELÉN” HELYEZI EL, SOHA NE TEGYE AZAUTÓBAN A MÓDOSÍTOTT LÉGZSÁKOS ÜLÉSEKRE! EZ HALÁLOS VAGY SÚLYOS SÉRÜLÉSHEZ VEZETHET!
FIGYELEM! SOHA NE HELYEZZE A GYERMEKSZÉKET AZ AUTÓ MOZGÁSI IRÁNYÁBA, HA A GYERMEK MÉG NEM TÖLTÖTTE BE A 15 HÓNAPOS KORÁT!
FIGYELEM! A JÁRMÜBÖL SZÁRMAZÓ BIZTONSÁGI ÖVEKET, AMELYEK TARTJÁK A GYERMEKSZÉKET, JÓL BE KELL HÚZNI ÉS RÖGZÍTENI!
FIGYELEM! A GYERMEKSZÉK BIZTONSÁGI ÖVEKET JÓL MEG KELL HÚZNI ÉS RÖGZÍTENI KELL, A GYERMEK TESTÉNEK MÉRETÉRE ALKALMAZVA, HOGY JÓL RÁHAGYJON.
FIGYELEM! A COMBHEZ VONATKOZÓ ÖVNEK ALACSONYAN KELL ELHELYEZKEDNIE, ÉS A VÉDELEMNEK JÓL KELL ELHELYEZNIE A GYERMEK DERÉKÁT, ANÉLKÜL, HOGY MEGNYOMNÁ.
✿ FIGYELEM! NE VÉGEZZEN MÓDOSÍTÁSOKAT, KIEGÉSZÍTÉSEKET VAGY ÁTALAKÍTÁSOKAT A GYERMEKSZÉKEN ANÉLKÜL, HOGY AZOKTÓL A MEGFELELŐ ENGEDÉLYT KAPNÁ! A HASZNÁLATI ÚTMUTATÓ SZERINTI ALAPVETŐ ELŐÍRÁSOK FIGYELMEN KÍVÜL HAGYÁSA VESZÉLYES!

FIGYELEM! TARTSA TÁVOL A TÜZTÖL!

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

Warning sign with red triangle and exclamation mark symbol

Diagram showing traffic sign placement with no stop sign and various smiley face icons on a car ahead

40-105 cm

≤18 kg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

Warning sign with red triangle and black exclamation mark symbol

NESSUN SISTEMA PUÒ GARANTIRE UNA PROTEZIONE ASSOLUTA DA LESIONI IN CASO DI IMPATTO O INCIDENTE! GUIDARE CON MAGGIORE ATTENZIONE, SPECIALMENTE QUANDO C'È UN BAMBINO NEL VEICOLO!

Diagram showing traffic sign icons with angry and sad faces, including a 'No Sign' symbol and directional arrows

40-105 cm ≤18 kg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

Warning sign with red triangle and black exclamation mark symbol

KEIN SYSTEM KANN ABSOLUTE SCHUTZ VOR VERLETZUNGEN BEI EINEM UNFALL ODER ZUSAMMENSTOSS GARANTIEREN! FAHREN SIE MIT VORSICHT, BESONDERS WENN EIN KIND IM FAHRZEUG IST!

Diagram showing traffic sign icons with red and green faces, including a 'No' symbol and various emotions like happy and sad.

40-105 cm ≤18 kg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

POUR ASSURER UNE UTILISATION SÛRE DE CE PRODUIT,

SUIVEZ TOUS LES AVERTISSEMENTS, INSTRUCTIONS ET

RECOMMANDATIONS DONNÉS DANS CE MANUEL D'UTILISATION !

Warning sign with red triangle and exclamation mark symbol

AUCUN SYSTÈME NE PEUT GARANTIR UNE PROTECTION

TOTALE CONTRE LES BLESSURES EN CAS D'ACCIDENT OU DE COLLISION ! CONDUISEZ AVEC UNE ATTENTION PARTICULIÈRE SURTOUT SI UN ENFANT SE TROUVE DANS LE VÉHICULE !

POUR ASSURER UNE UTILISATION SÉCURISÉE DE CE PRODUIT, RESPECTEZ LES AVERTISSEMENTS, INSTRUCTIONS ET RECOMMANDATIONS INDIQUÉS DANS CE MANUEL !

UNE UTILISATION INCORRECTE DU SIÈGE RÉDUIRA

SES FONCTIONS DE PROTECTION ET DE SÉCURITÉ !

NE PAS RESPECTER LES INSTRUCTIONS DE CE MANUEL

AUGMENTE LE RISQUE DE BLESSURES GRAVES OU DE DÉCÈS !

ATTENTION!

NE MONTEZ JAMAIS ET N'UTILISEZ JAMAIS UN SIÈGE DOS À LA ROUTE SUR UNE PLACE PASSAGER ÉQUIPÉE D'UN AIRBAG FRONTAL ACTIF ! CELA PEUT

Diagram showing traffic sign icons with no symbols and colored smiley faces, likely indicating congestion or sentiment zones in a car ahead.

40-105 cm
≤18 kg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

HR: UPUTE ZA UPORABU

VAŽNO! ZADRŽATI ZA BUDUĆU REFERENCU: ČITAJTE PAŽLJIVO!

KAKO BISTE OSIGURALI SIGURNU UPOTREBU OVOG

PROIZVODA, SLIJEDITE SVA UPOZORENJA, UPUTE I PREPORUKE

NAVEDENE U OVOM KORISNIČKOM PRIRUČNIKU!

NAPOMENA za i-Size poboljšani sustav za sigurnost djece (40-105 cm)

Warning sign with red triangle and exclamation mark symbol

NITI JEDAN SUSTAV NE MOŽE JAMČITI POTPUNU ZAŠTITU

OD OZLJEDA U SLUČAJU UDARCA ILI NESREĆE! VOZITE

S POVEĆANOM PAŽNJOM, OSOBITO KADA IMA DJETETA U VOZILU

ZA OSIGURANJE SIGURNOG KORIŠTENJA OVOG

PROIZVODA, PRIDRUŽITE SE UPOZORENJIMA, UPUTAMA

I PREPORUKAMA IZ OVOG UPUTSTVA!

NEISPRAVNA UPOTREBA SJEDALICE SMANJUJE

NJEGOVE ZAŠTITNE I SIGURNOSNE FUNKCIJE!

NEPOSTIVANJE UPUTA U OVOM UPUTSTVU

POVEČAVA RIZIK OD OZLJEDA ILI SMRTI!

PAŽNJA!

NIKADA NE POSTAVLJAJTE I NE KORISTITE SJEDALICU OKRENUTU „NAZAD“ NA SJEDALICI PUTNIKA KOJA JE OPREMLJENA AKTIVNIM PREDNJIM ZRAČNIM JASTUKOM! TO MOŽE DOVESTI DO SMRTI ILI OZBILJNIH OZLJEDA!

Diagram showing traffic sign placement on a car with no stop sign, smiling faces, and red/frowning faces

40-105 cm
≤18 kg

Smjer montaže:

Okrenuto unatrag

76-150 cm

15 mjeseci

Smjer montaže:

Okrenuto naprijed

PAŽNJA! UPOZORENJA!

PAŽNJA! NIKADA NE OSTAVLJAJTE DIJETE BEZ NADZORA!
PAŽNJA! NE KORISTITE DRUGE PODUPIRAČKE KONTAKTNE TOČKE, OSIM ONIH OPISANIH U UPUTAMA I OZNAČENIH NA AUTO SJEDALICI!
PAŽNJA! KADA POSTAVLJATE AUTO SJEDALICU U POZICIJU "OKRENUTO UNATRAG", NIKADA JE NE STAVLJAJTE NA SJEDALO U VOZILU KOJE JE OPREMLJENO AKTIVNIM ZRAČNIM JASTUKOM! TO MOŽE UZROKOVATI SMRT ILI TEŠKE OZLJEDE!
PAŽNJA! NIKADA NE POSTAVLJAJTE AUTO SJEDALICU U SMJERU VOŽNJE SA DIJETEOM "OKRENUTO PREMA NAPRIJED", PRIJE NEGO DIJETE NAVRŠI 15 MJESECI!
PAŽNJA! SIGURNOSNI POJASEVI VOZILA KOJI DRŽE AUTO SJEDALICU NA SJEDALU VOZILA MORAJU BITI ČVRSTO ZATEZENI I OSIGURANI!
PAŽNJA! SIGURNOSNI POJASEVI AUTO SJEDALICE KOJI DRŽE DIJETE MORAJU BITI DOBRO ZATEZENI I OSIGURANI, PODEŠENI PREMA TIJELU I VELIČINI DIJETETA TAKO DA GA DOBRO OBUHVAĆAJU.
PAŽNJA! NADMADNI POJAS MORA BITI POSTAVLJEN NISKO I SVAKA ZAŠTITNA BARRIJERA MORA BITI ISPRAVNO POSTAVLJENA, TAKO DA JE DIJETE DOBRO DRŽANO, A DA NIJE STISNUTO.
PAŽNJA! NE VRŠITE NIKAKVE IZMJENE, DODATKE ILI MODIFIKACIJE AUTO SJEDALICE BEZ ODOBRENJA NOTIFICIRANOG TIJELA! OPASNO JE NE PRIDRŽAVATI SE TOČNO UPUTA KOJE DOLAZE OD PROIZVOĐAČA!

PAŽNJA! ZAŠTITITE SE OD VATRE!

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

Instalacija u vozilu:

Za visinu djeteta od 40-105 cm, okrenuto unatrag s ISOFIX + nosačem (i-Size univerzalni ISOFIX sustav).
Za visinu djeteta od 76-105 cm, okrenuto naprijed s ISOFIX + nosačem (i-Size univerzalni ISOFIX sustav).
Za visinu djeteta od 100-150 cm, okrenuto naprijed s ISOFIX konektorima + trotočkastim sigurnosnim pojasom vozila ili samo s trotočkastim sigurnosnim pojasom vozila (i-Size povišenje sjedalice).

Warning sign with red triangle and black exclamation mark symbol

Diagram showing traffic sign placement on a car with no traffic, smiling faces, and red-frowning faces

40-105 cm
≤18 kg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

Warning sign with red triangle and exclamation mark symbol

NIMENI SISTEM NU POATE GARANTA PROTECTIE ABSOLUTĂ ÎMPOTRIVA LEZIONELOR ÎN CAZ DE ACCIDENT SAU IMPACT! CONDUCEȚI CU ATENȚIE SPORITĂ, MAI ALES CÂND AVETI UN COPIL ÎN VEHICUL!

PENTRU A ASIGURA UTILIZAREA SIGURĂ A ACESTUI PRODUS, URMAȚI AVERTISMENTELE, INSTRUCTIUNILE ȘI RECOMANDĂRILE DIN ACEST MANUAL!

UTILIZAREA INCORRECTĂ A SCUNELUI VA REDUCE FUNCTIILE SALE DE PROTECTIE ȘI SIGURANȚĂ! NEPURTAREA LA INSTRUCTIUNILE DÎN ACEST MANUAL CREȘTE RISCUL DE LEZIÚNI GRAVE SAU MOARTE!

ATENTIE!

Diagram showing traffic sign placement on a car with directional arrows and sentiment icons for positive and negative emotions

40-105 cm ≤18 kg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

Warning sign with red triangle and exclamation mark symbol

NENHUM SISTEMA PODE GARANTIR PROTEÇÃO ABSOLUTA

CONTRA LESÕES EM CASO DE IMPACTO OU ACIDENTE!

CONDUZA COM MAIOR ATENÇÃO, ESPECIALMENTE

QUANDO HÁ UMA CRIANÇA NO VEÍCULO!

Diagram showing traffic sign placement with no stop sign and various happy/neutral faces on a car ahead

40-105 cm
≤18 kg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

Warning sign with red triangle and exclamation mark symbol

GEEN ENKEL SYSTEEM KAN ABSOLUTE BESCHERMING GARANDEREN TEGEN LETSELS BIJ EEN CRASH OF ONGEVAL! RIJD MET VERHOOGDE AANDACHT, VOORAL WANNEER ER EEN KIND IN HET VOERTUIG IS!

VOOR DE VEILIGE GEBRUIK VAN DIT PRODUCT, VOLG DE WAARSCHUWINGEN, INSTRUCTIES EN AANBEVELINGEN IN DEZE HANDLEIDING!

ONJUIST GEBRUIK VAN HET ZITJE VERLAAGT DE BESCHERMINGS- EN VEILIGHEIDSFUNCTIES! HET NIET VOLGEN VAN DE INSTRUCTIES IN DEZE HANDLEIDING VERHOOGT HET RISICO OP ERNSTIGE LETSELS OF DEATH!

LET OP!

Diagram showing traffic sign placement on a car with no stop sign, smiling faces, and red/frowning faces

40-105 cm
≤18 kg

Installatierichting:

Achterwaarts

76-150 cm

15 maanden

Installatierichting:

Voorwaarts

LET OP! WAARSCHUWINGEN!

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2

Warning sign with red triangle and exclamation mark symbol

ŽÁDNÝ SYSTÉM NEMŮŽE GARANTOVAT ABSOLUTNÍ OCHRANU PROTI ZRANĚNÍM PŘI NEHODĚ NEBO NÁRAZU! JEZDITE S VYŠŠÍM DŮRAZEM, ZVLÁŠŤ KDYŽ JE V AUTĚ DÍTĚ!

PRO ZAJIŠTĚNÍ BEZPEČNÉHO POUŽÍVÁNÍ TOHOTO PRODUKTU, POSTUPUJTE PODLE UPOZORNĚNÍ, INSTRUKCÍ A DOPORUČENÍ V TÉTO PŘÍRUČCE!

NESPRÁVNÉ POUŽITÍ SESTAVY ZNÍŽÍ JEJÍ OCHRANNÉ A BEZPEČNOSTNÍ FUNKCE! NEPOSLECHNUTÍ INSTRUKCÍ TÉTO PŘÍRUČKY ZVÝŠÍ RIZIKO VÁŽNÝCH ZRANĚNÍ NEBO SMRTI!

POZOR!

Diagram showing traffic sign placement on a car with no stop sign, smiling and sad face indicators

40-105 cm ≤18 kg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

Warning sign with red triangle and black exclamation mark symbol

3000000000000000000000000000000000000000000000000000000000

sđ 3đmđevjčinlu žlusozmton gšdmygđognlu žbčnýbžgnušymogša, dnižygzon sđ lusbghodwzšbğmmdn ođmđimovdyg m gšzčmtonmugdođu, nbičkčnýkngdođu s̄s mvrzmđigbčosbnogdođu!

Diagram showing traffic sign and emoji indicators on a car, including no stop sign and happy/frowning faces

40-105 bð

≤18 38

ஏமேர்களைகளு

∂ησδηστηγμηρός:

Corruption Democracy

76-150 bə

15 m30

நெடுக்குளுகளு

∂ησδησηγημός:

நெ அஷ்சாயாடு

ghmngwds! gngmngwddg

i-Size seat 40–105cm ≤18kg i-Size Booster seat 100cm–150 cm

ISO/R2, ISO/F2x, ISO/B2
