USER MANUAL T.Flight Hotas 4 THRUSTMASTER


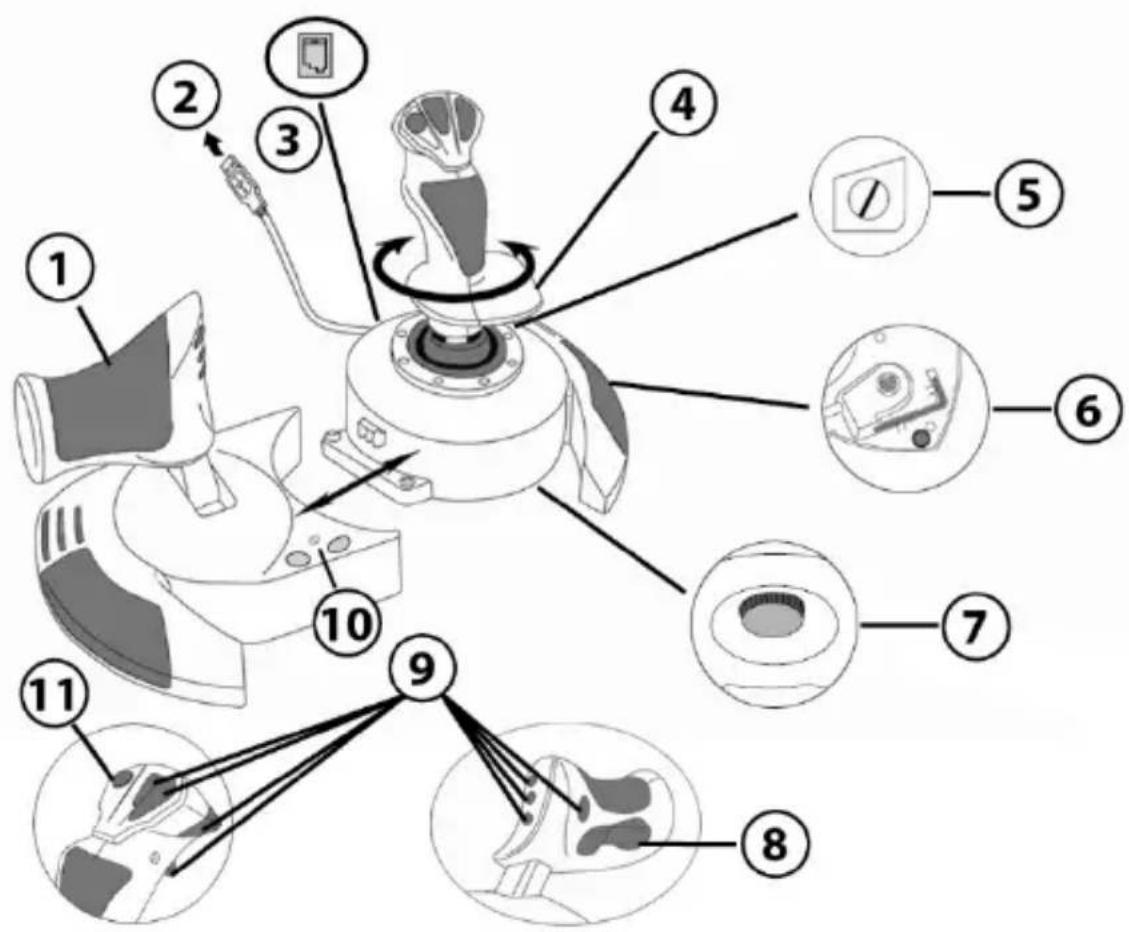

Diagram of a device with numbered parts and labeled parts, including a computer mouse, battery, and camera.TECHNICAL FEATURES
- Throttle
- USB connector
- Rudder connector: RJ12 Thrustmaster Rudder (sold separately) connector
- Rudder function via twisting handle
- Rudder locking screw on handle
-
Allen key to install or separate the throttle
-
Handle resistance adjustment dial
- Rudder via rocking button
- Action buttons
- PS button with LED
- Multidirectional "Point Of View" hat-switch
GETTING TO KNOW YOUR HOTAS JOYSTICK
THROTTLE
Your joystick features a large throttle which you can use to easily control the acceleration of your aircraft.
The throttle is detachable and may be positioned in 2 different ways, either:
Detached and separated from the joystick
(to re-create authentic piloting conditions)
Attached to the joystick
(for greater stability and to take up less space).
By default, the throttle comes detached from the joystick.
To attach the throttle to the joystick:
- Turn both items upside down (the throttle and the joystick).
- Take the Allen key (6) attached underneath the base of the joystick.
- Position the throttle to the left of the joystick.
Insert the connecting tab on the left of the joystick's base into the opening on the right hand side of the throttle. - Using the key, tighten the two Allen screws underneath the base
(located on the left-hand side of the joystick's base). - Wind up the throttle cable and thread it through the cable guide slot.
- Put the Allen key back in its place so as not to lose it.
Carry out this procedure in reverse to detach the throttle from the joystick.
ADJUSTABLE HANDLE RESISTANCE
Depending on your style of gaming, you may wish to have an ultra-sensitive joystick, which responds to the slightest touch, or you may prefer to have a firmer joystick, which offers some resistance when you move it.
Your joystick's handle resistance is adjustable, in order to adapt to all players. To adjust it, use the handle resistance adjustment dial (7) located underneath your joystick's base.
RUDDER FUNCTION
Your joystick features a rudder function, which in a plane corresponds to the pedals used by the pilot to turn the steering, allowing the plane to pivot around its vertical axis (therefore making the plane turn left or right). This rudder function is accessible on your joystick by rotating the handle to the left or right.
This rudder function is accessible in two ways:
- on your joystick by rotating the handle (4) to the left or right.
- or via the rocking button (8) on the throttle.
If you are only using the rocking button (or if you are not using the rudder function), you can disable the handle's rotation thanks to the locking screw (5) located on the base of the joystick. Use a flat head screwdriver to change the screw's position and thus lock/unlock the rudder function.
MULTIDIRECTIONAL "POINT OF VIEW" HAT-SWITCH
Your joystick features a “Point Of View” hat-switch (11) which, as its name indicates, allows you (in games which permit) to instantly view everything that’s going on around your plane. To do so, simply go to your game’s configuration menu and program the different views (rear view, left view, right view, and also external views) onto the directions of the “Point Of View” hat-switch.
Of course, you can also use the "Point Of View" hat-switch for other functions instead (firing, etc.).
PLAYSTATION®5 / PLAYSTATION®4
INSTALLATION ON PLAYSTATION®5 / PLAYSTATION®4
- Connect the USB connector (2) to one of your system's USB ports.
- Switch on your system.
- The joystick's led turns RED.
- Press the joystick's PS button (10) and sign in to your Sony Entertainment Network account, in order to be able to use the joystick.
- Launch a game that supports the Flight Stick mode.
You are now ready to play!
LIST OF COMPATIBLE PLAYSTATION®5 / PLAYSTATION®4 GAMES
On PlayStation®5 / PlayStation®4, the T.Flight Hotas 4:
- Is only compatible with the games that support the Flight Stick mode.
- Is recognized in games as a real joystick and not a gamepad, for better responsiveness and enhanced precision, and possibility to access the joystick's options in these games.
A list of PlayStation®5 / PlayStation®4 games compatible with the joystick is available at https://support.thrustmaster.com/. Go to Joysticks / T.Flight Hotas 4, then select Games Settings.
This list will be added to regularly, with the arrival of new PS5 ^™ /PS4 ^™ games compatible with T.Flight Hotas 4.
UPDATING YOUR JOYSTICK'S FIRMWARE
The firmware included in your joystick's base can be updated to a more recent version featuring product enhancements.
To display the firmware version that your joystick is currently using and update it if required: on PC, visit https://support.thrustmaster.com/, click Joysticks / T.Flight Hotas 4, then select Firmware and follow the instructions describing the download and installation procedure.
TROUBLESHOOTING AND WARNINGS
- My joystick doesn't function correctly or appears to be improperly calibrated:
- Switch off your system, disconnect your joystick, reconnect your joystick and then re-launch your game.
- When connecting your joystick: Leave the handle, rudder and throttle centered and do not move them (to avoid any calibration problems).
- Exit the game, unplug your joystick, plug it again, then press the PS button (10) on the joystick. Sign in to your Sony Entertainment Network account, in order to be able to use the joystick.
- My joystick is too sensitive or not sensitive enough:
- Your joystick self-calibrates on its own after you have made a few movements on the different axes.
- In your game's "Options / Controller / Gamepad or Joystick" menu: Adjust the sensitivity or dead zones for your controller (if this option is available).
- Adjust the handle resistance using the dial (7) located under your joystick's base.
• The rudder function is too sensitive:
- Disable the handle's rotation using the locking screw (5) located on the base of the joystick and use the rocking button for the rudder function.
HELP FILES AND FAQs (NOT INCLUDED IN THIS MANUAL)
Please visit https://support.thrustmaster.com/. Click Joysticks / T.Flight Hotas 4, and then select Manual or FAQ.
CONSUMER WARRANTY INFORMATION
Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter "Guillemot") warrants to the consumer that this Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Thrustmaster product).
Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase.
Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).
Within the context of this warranty, the consumer's defective product shall, at Technical Support's option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer's request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose.
This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product's lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.
This warranty is nontransferable.
The consumer's legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.
Additional warranty provisions
During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Thrustmaster product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process – and by providing the consumer with the required spare part(s), where applicable).
Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product whose warranty period has expired.
In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.
Liability
If permitted under applicable law, Guillemot Corporation S.A. (hereinafter "Guillemot") and its subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).
DECLARATION OF CONFORMITY
CANADIAN COMPLIANCE NOTICE: this Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
USA COMPLIANCE NOTICE: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
THRUSTMASTER®
TECHNICAL SUPPORT
https://support.thrustmaster.com
UK: 020 3147 4889
US: (866) 889-5036
Canada: 866-889-2181
COPYRIGHT
©2022 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Manufactured and distributed by Guillemot Corporation S.A. All other trademarks and brand names are hereby acknowledged and are the property of their respective owners. Contents, design, and specifications are subject to changes without notice and may vary from one country to another. Photos and illustrations not binding. Designed in North America and Europe, made in China.
For use exclusively with PlayStation®5 consoles, PlayStation®4 consoles.
“”, “PlayStation”, “PS5”, “PS4” and “PlayStation Shapes Logo” are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment LLC.
WARNING: This product can expose you to chemicals including Bisphenol A (BPA)
which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov/
ENVIRONMENTAL PROTECTION RECOMMENDATION
This is confirmed by the symbol found on the product, user manual or packaging.
Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.
Please contact your local authorities for information on the collection point nearest you.
For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.
Retain this information. Colors and decorations may vary.
Plastic fasteners and adhesives should be removed from the product before it is used.
www.thrustmaster.com
*Applicable to EU, UK and Turkey only
T.Flight Hotas 4
PlayStation®5 - PlayStation®4
INFORMATIONS RELATIVES A LA GARANTIE AUX CONSOMMATEURS
https://support.thrustmaster.com
COPYRIGHT
https://support.thrustmaster.co
COPYRIGHT
www.thrustmaster.com
Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)*
www.thrustmaster.com
https://support.thrustmaster.com
COPYRIGHT
https://support.thrustmaster.com
COPYRIGHT
www.thrustmaster.com
T.Flight Hotas 4
www.thrustmaster.com
EAC
T.Flight Hotas 4
https://support.thrustmaster.com
https://support.thrustmaster.com
TELİF HAKKI
www.thrustmaster.com
www.thrustmaster.com
All rights reserved.
Manufactured and distributed by Guillemot Corporation S.A.
環境保護推獎
www.thrustmaster.com
Made in China.
:外箱
T.Flight Hotas 4
PlayStation®5 / PlayStation®4
用户手册
©2021 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Manufactured and distributed by Guillemot Corporation S.A. All other trademarks and brand names are hereby acknowledged and are the property of their respective owners. Contents, design, and specifications are subject to changes without notice and may vary from one country to another. Photos and illustrations not binding. Designed in North America and Europe, made in China.
For use exclusively with PlayStation®5 consoles, PlayStation®4 consoles.
"◀", "PlayStation", "PS5", "PS4" and "PlayStation Shapes Logo" are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment Inc.
ENVIRONMENTAL PROTECTION RECOMMENDATION
Please adhere to local recycling laws for electrical and electronic equipment.
Retain this information. Colors and decorations may vary.
Plastic fasteners and adhesives should be removed from the product before it is used.
www.thrustmaster.com
PlayStation®5 - PlayStation®4
사용설명서

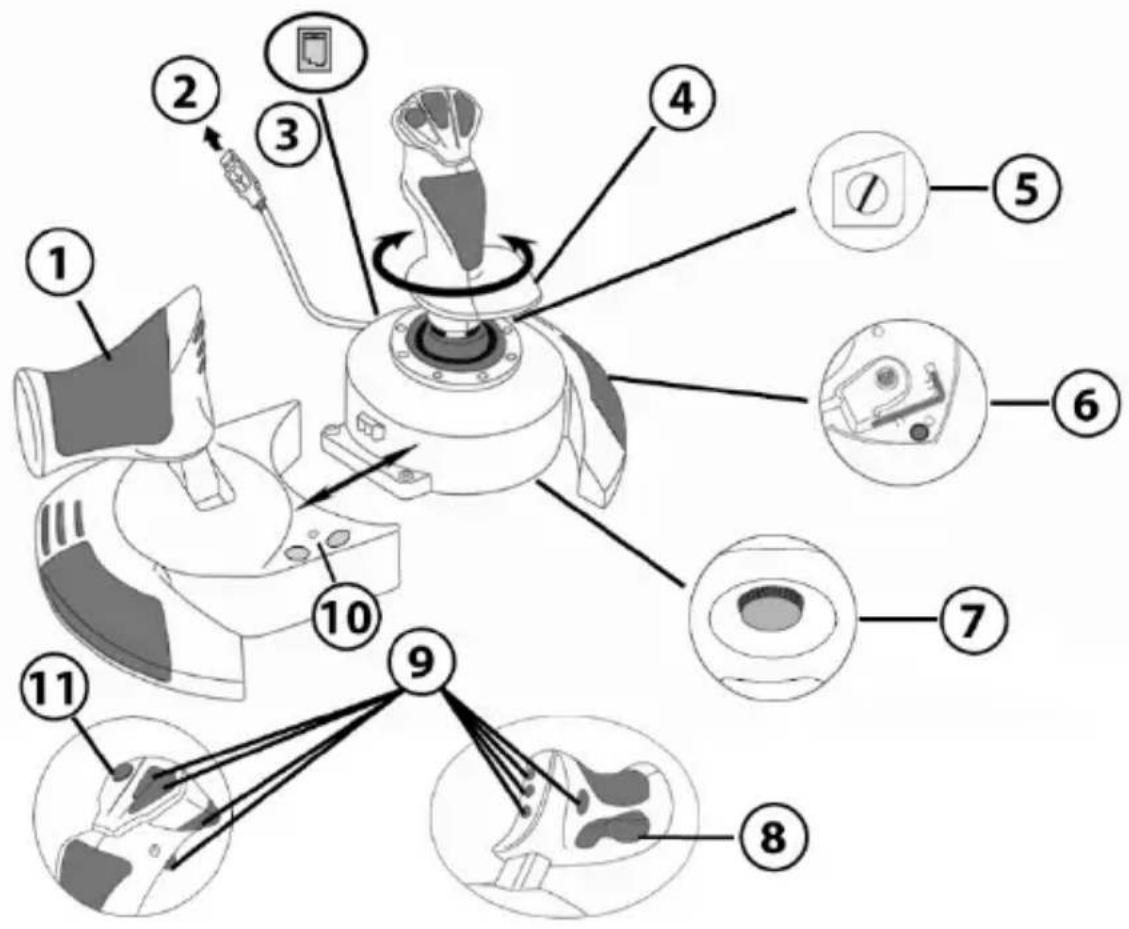

©2021 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Manufactured and distributed by Guillemot Corporation S.A. All other trademarks and brand names are hereby acknowledged and are the property of their respective owners. Contents, design, and specifications are subject to changes without notice and may vary from one country to another. Photos and illustrations not binding. Designed in North America and Europe, made in China.
For use exclusively with PlayStation5 consoles, PlayStation*4 consoles.
"LP", "PlayStation", "PS5", "PS4" and "PlayStation Shapes Logo" are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment Inc.
ENVIRONMENTAL PROTECTION RECOMMENDATION
Please adhere to local recycling laws for electrical and electronic equipment.
Retain this information. Colors and decorations may vary.
Plastic fasteners and adhesives should be removed from the product before it is used.
www.thrustmaster.com
MSIP-REI-MF0-TF-HOTAS4
T.Flight Hotas 4
PlayStation®5 - PlayStation®4 Bruksanvisning

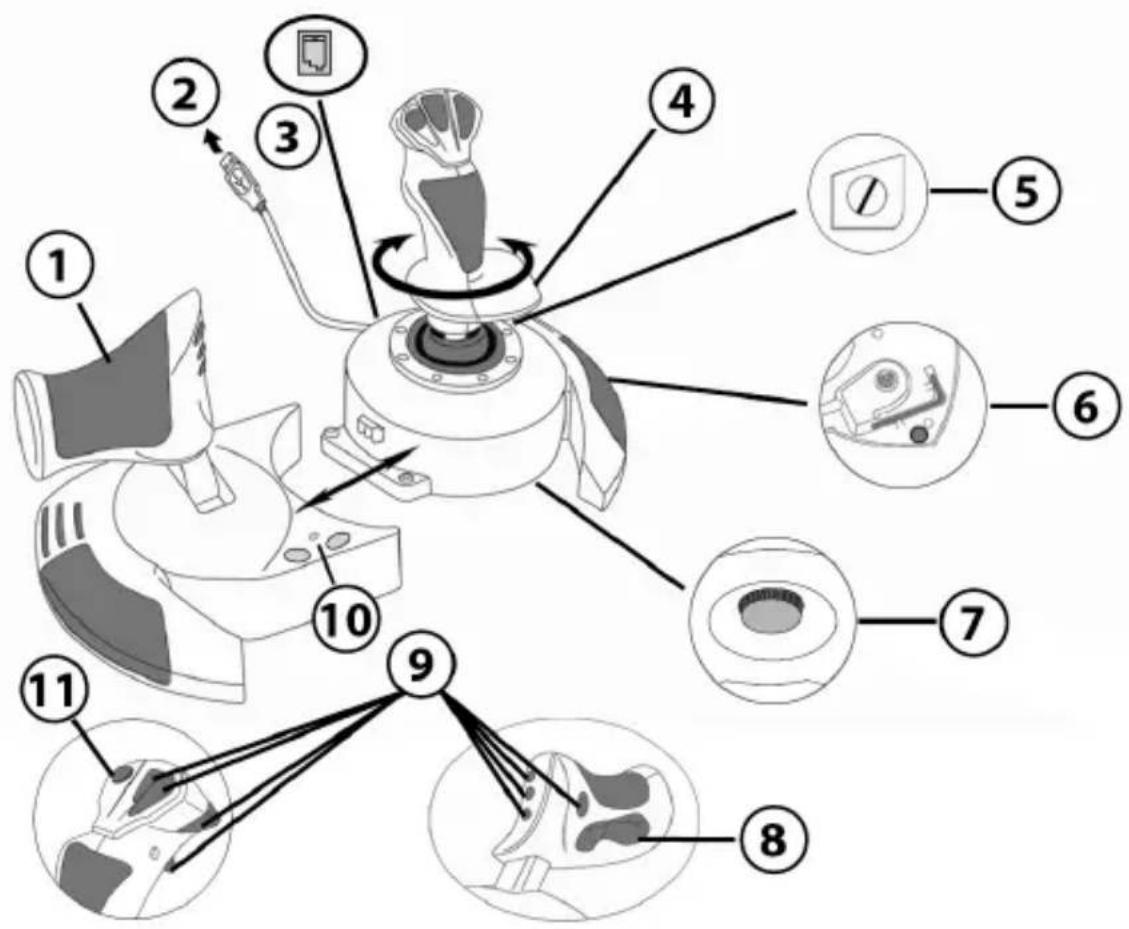

www.thrustmaster.com
https://support.thrustmaster.com
*Použitel'né pre EÚ, UK a Turecko
T.Flight Hotas 4
https://support.thrustmaster.com
SZERZÓI JOG
(يابعذفصلا) Thrustmaster
https://support.thrustmaster.com
حقوق النشر
https://support.thrustmaster.com
www.thrustmaster.com
תְבָרִי, בְּרַעֹה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָם
CE*
