CORDLESS HEDGE TRIMMER 12V

HT507DC / S\_HT507DC

S2\_HT507DC / S3\_HT507DC

White silhouette of a diagonal power tool against a black background (no text or symbols)

CE Declaration of conformity 113

WEE Directive 114

A

2 4 5 6 7 1 3 10 8 9 UONRDC

B

11 11 3

C

3 12 13

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock.

Wear hearing protection.

Wear eye protection.

Wear safety gloves.

DANGER! Keep hands away from blade.

Risk of flying objects. Keep bystanders away from the work area.

Do not expose to rain.

The guaranteed sound power level LWA = 96 dB(A).

Max temperature 40°C.

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Do not throw the battery into fire.

Do not throw the battery into water.

Do not dispose of the product in unsuitable containers.

Separate collection for Li-ion battery.

The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot

be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid

contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

ADDITIONAL SAFETY WARNINGS FOR HEDGE TRIMMER

• Keep the area you are working in clean and tidy.
• Always hold the trimmer properly. When operating us both hands.
• If you are using a means of support to raise yourself off the ground, ensure that it is stable and cannot topple over - do not overreach at any time.
• Do not use power tools in the rain or wet environments. Do not use power tools where there is a risk of fire or explosion - i.e. near flammable liquids or gases.
• Do not allow children into the area where you are working.
• Do not let children or other people touch power tools.
• Do not leave the power tool unattended.
• Store in a dry place well out of reach of children.
• Always use safety glasses and gloves. We also recommend the use of ear protectors.

• Wear the right clothes - not loose fitting or jewellery and ensure garments cannot come into contact with moving parts.

• If you have long hair, tie it back safely to avoid tangling it in moving parts.

• Before using any power tool, check first for damaged parts and if found do not use it before the part or parts have been replaced with new ones.
• Do not use power tools when you are tired or have been drinking alcohol.
• Do not force the appliance - let it work at the rate for which it was intended.
• Do not overreach while working - you may lose your balance.
• Never use this appliance without the blade guard fitted. It must always remain fitted.
• Only use spare parts and attachments supplied by Vonroc. Use of attachments other than those supplied or recommended by Vonroc will invalidate your guarantee and could be dangerous.
• Only use this appliance for its intended purpose trimming hedges and bushes.

Above all be careful!

ger!

a) Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
b) Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
c) When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.
d) When clearing jammed material or servicing the unit, make sure all power switches are off and the power cord is disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.
e) Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring or its own cord. Blades contac-

ting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.

f) Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.
g) Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
h) Inspect and maintain the trimmer regularly. Have the trimmer repaired only by an authorised repairer.
i) Keep your hands and feet away from the cutting area at all times.
j) Always hold the trimmer at a safe distance from the body.
k) Always wear protective goggles.
I) Always wear gloves.
m) Only use the trimmer in daylight.
n) Ensure the ventilation openings are clear of debris at all times.
o) Ensure there are no people of animals within 5 metres of your trimming area.

ADDITIONAL SAFETY WARNINGS FOR CORDLESS HEDGE TRIMMER

• Do not charge hedge trimmer in rain, or in wet locations.
• Do not use battery-operated hedge trimmer in rain.
• Remove or disconnect battery before servicing, cleaning, or removing material from the hedge trimmer.
• Do not dispose of the battery(ies) in a fire. The cell may explode. Check with local codes for possible special disposal instructions.

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of short-circuiting.
b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints.

The vapours can irritate the respiratory system.

d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.
e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER

Intended use

Charge only CD832AA and CD833AA type rechargeable Battery packs with the charger. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
b) Children being supervised not to play with the appliance.
c) Do not recharge non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!

Electrical safety

Warning! When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate this product and save these instructions.

2. MACHINE INFORMATION

Intended use

This hedge trimmer is only intended for cutting branches from shrubs, bushes, ornamental plants and hedges.

TECHNICAL SPECIFICATIONS

This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set.

Model No.	Batteries included	Chargers included
HT507DC	-	-
S_HT507DC	CD832AA USB-C cable
S2_HT507DC	2 x CD832AA USB-C cable
S3_HT507DC	CD833AA USB-C cable

Machine information
Model No. HT507DC
Voltage 12V
No-load speed 1200/min.
Blade length 400 mm
Blade bridge Aluminium
Cutting length 350 mm
Cutting width 12 mm
Tooth spacing 15 mm
Switch Double action safety switch(lock-off and on/off)
Weight	1.645 kg
Sound pressure level L_PA	84dB(A) K=3dB(A)
Sound power level L_WA	92dB(A) K=3dB(A)
Vibration a_hD	Rear handle: a_h = 5.4 m/s^2 Front handle: a_h = 3.0 m/s^2 K=1.5m/ s^2
Recommended battery	CD832AA 12V~ 2.0Ah / CD833AA 12V~ 4.0Ah

Model No.	CD832AA
Battery Type	Lithium-Ion
Voltage	12V=
Capacity	2.0 Ah
Recommended charger	USB-C (5V 1-2A)
Weight	0.18 kg

Model No.	CD833AA
Battery Type	Lithium-Ion
Voltage	12V—
Capacity	4.0 Ah
Recommended charger	USB-C (5V 1-2A)
Weight	0.4 kg

To charge the battery only use the following recommended charger:

Charger model	XZ0500-2200WU
	XZ0500-2200WUB
Charger power supply
Input	100-240 V~; 50/60 Hz; 0.3 A
Output	5 V d.c.; 2.0 A

Only use the following batteries of the VONROC VPOWER 12V battery platform. Using any other batteries could cause serious injury or damage the tool.

CD832AA 12V, 2Ah Lithium-Ion

CD833AA 12V, 4Ah Lithium-Ion

The following charger of the can be used to charge these batteries.

USB-C cable

The batteries of the VONROC VPOWER 12V battery platform are interchangeable with all the VONROC VPOWER 12V battery platform tools.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN 62841-1; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

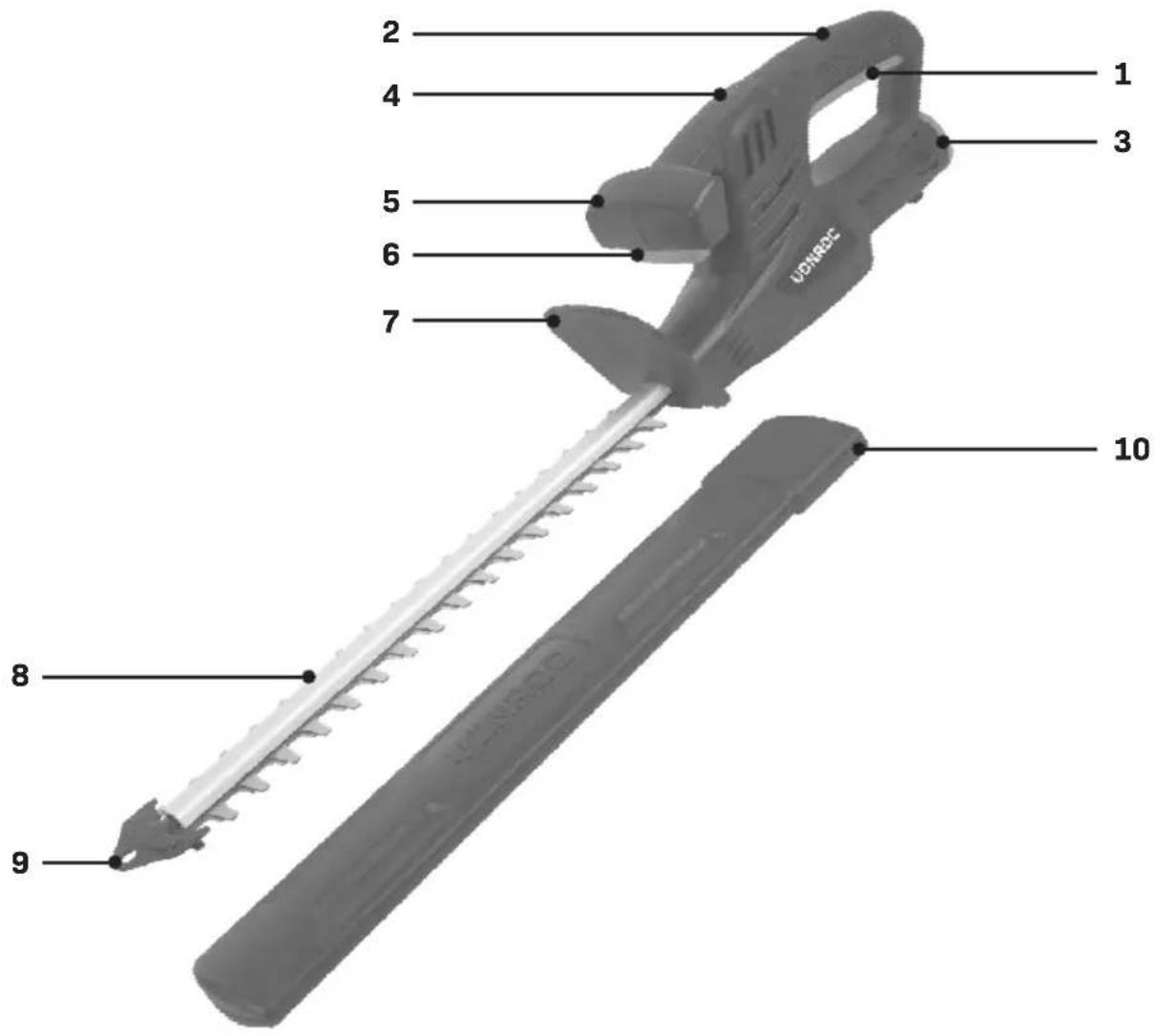

DESCRIPTION

The numbers in the text refer to the diagrams on page 2.

1. On/off switch
2. Rear Handle
3. Battery
4. Battery Indicator

5. Front Handle

6. Safety Switch

7. Hand guard
8. Cutting blade
9. Blade guide
10. Blade sleeve
11. Battery release buttons
12. Charger LED indicator
13. USB charger cable

3. ASSEMBLY

Before any work on the power tool, remove the battery.

The battery must be charged before first use.

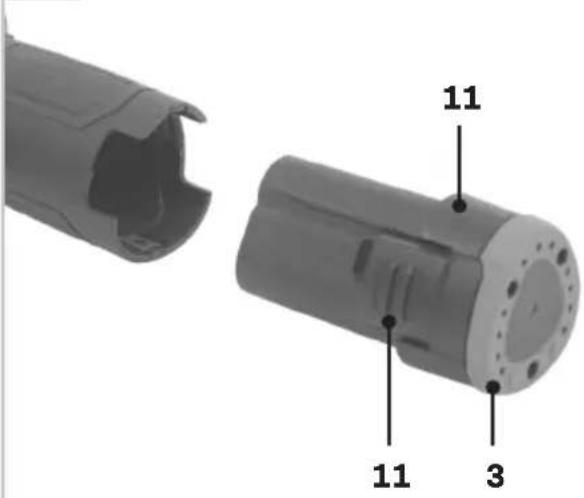

Inserting the battery into the machine (Fig. B)

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

• Insert the battery into the base of the machine (3).
• Push the battery further forward until it clicks into place.

Removing the battery from the machine (Fig. B)

- Push the battery release buttons (11) and pull the battery out of the machine (3).

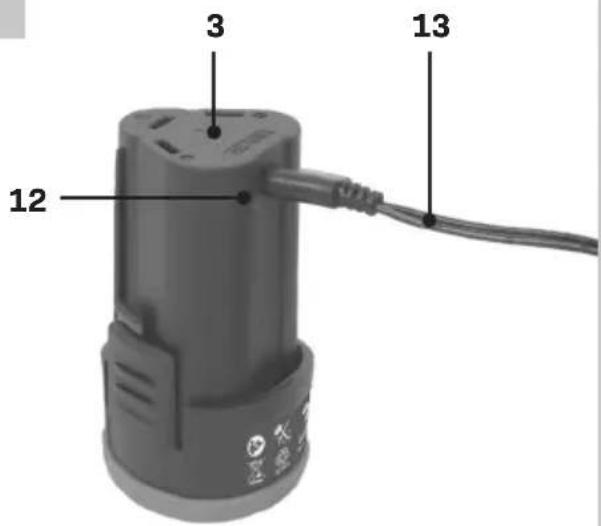

Charging the battery (with the charger) (Fig. C)

• Plug the USB-C connector of the charger cable (13) into the battery (3).
• Plug the other USB-C connector of the charger cable into an USB power adapter (not included).
• Alternatively, for example a power bank or laptop can be used as a power source.
• The charger indication light (12) will lighten up and show the charging status.

LED indicator (Fig. C)

The battery has 1 LED indicator (12) which indicates the status of the charging process:

LED Charger status

Red Battery charging in progress

Green Battery charging finished, battery fully charged

After the battery is fully charged remove the charger plug from the outlet and unplug the charging cable from the battery.

When the machine is not being used over a longer period of time it is best to store the battery in charged condition.
Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged.
Warning! You may not use the grass trimmer without the protection guard.

4. OPERATION

Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged.
You may not use the grass trimmer without the protection guard.
Always use both hands to hold the hedge trimmer and keep it away from your own body.

Using your hedge trimmer

• For your own safety and for best results read the following user advice and do not use this product for anything other than its intended purpose.
• This hedge trimmer is made for cutting hedges and bushes. All other use that is not specifically allowed in this manual mat lead to manage to the hedge trimmer or injury to the user.

Switching on and off (Fig. A)

• To switch the trimmer on, press the safety switch (6) and the start switch (1) at the same time.
• To switch off, release one or both switches.

Trimming a hedge - best method

• Apart from hedges the hedge trimmer may also be used for cutting bushes.
• The best cutting effect is achieved when holding the blade at an angle to the of approx. 15°.
• The opposite rotating knives cut on both sides, and it is therefore possible to trim the hedge in both directions.

• The side of the hedge are trimmed using curved shaped movements from the bottom and upwards.

• Ideally a hedge should be wider at the bottom than the top. This will improve light penetration, keeping the hedge healthy. If possible, trim both sides of the hedge.

• When trimming the sides of the hedge, trim from the bottom upwards. This will ensure there are no hedge trimmings obscuring or interfering with your cut strokes. The blade should not be forced to cut too deep. Cut lightly through the surface of the hedge.
• When trimming the top of the hedge, trim away from you but do not over-reach. It is much wiser and safer to move along and cut within your reach remaining on two feet at all times.

Safety transport

The hedge trimmer includes a transport protection cover (10) to safeguard the machine during transportation.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

Cutting blade

• Always wear gloves when handling or cleaning the cutting blade.
• Clean the cutting blade and spray with a protective oil after every use. We recommend lubricating the cutting blade with protective oil at regular intervals during long working periods.
• Visually inspect the condition of the cutting blade Check that the screws are firmly seated in the cutter bar.
• Ensure that the blade guard is fitted on the machine.

Storage

The hedge trimmer should be kept in a safe, dry place, well out of the reach of children. Do not place other objects on top of it.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

2. MACHINE-INFORMATIE

Beoogd gebruik

S2_HT507DC	2 x CD832AA Cablu USB-C
S3_HT507DC	CD833AA Cablu USB-C

CD833AA 12V, 4Ah Lityum-lyon

(EN) This product is labelled with this crossed out wheel bin symbol in accordance with European Directive 2012/19/EU to indicate that it must not be disposed of with your other household waste. Due to the presence of hazardous substances, mixtures or components, electrical and electronic devices that are not subject to selective sorting are potentially dangerous to the environment and human health. Please check your local city office or waste disposal service for the return and recycling of this product.
