USER MANUAL GS503AC Vonroc

Simple white line drawing of a mechanical lever or lever (no text or symbols)

EN Original Instructions 04

Exterior view of a portable industrial power tool with a clear plastic bucket (no text or symbols visible)

Top-down view of a mechanical lawn mower with four wheels and a flat blade (no visible text or symbols)

E

18 14 16 15 17

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the instructions!

Risk of personal injury.

Indicated danger, warning, or caution.

r eye and hearing protection.

Switch off and remove plug from mains before adjusting, cleaning or if the cord is entangled or damaged.

attention that bystanders are not injured through foreign objects thrown from the machine. Warning: Keep a safe distance from the machine when operating.

Danger: Rotating blades. Keep your hands and feet away from the openings while the machine is running.

Wait until all machine components have completely stopped before touching them.

Do not use as a step.

Do not expose to rain.

The guaranteed sound power level LWA = 92 dB(A)

Earthing symbol. This appliance is classified as protection class I and must be connected to an earthed mains socket.

Do not dispose of the product in unsuitable containers.

CE The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ADDITIONAL SAFETY INSTRUCTION FOR SHREDDERS

- Only use this shredder when a Residual Current Device (RCD) with a tripping current of not more than 30mA is in the circuit.

- If an extension cord is used make sure it is for outdoor use and marked as such. The recommended size of extension cord is a H05VV-F or H05RN-F type, not lighter than 1.5 mm ^2 and a maximum of 10 metres in length.

- Completely uncoil your extension cable before use to prevent overheating and loss of machine efficiency. When tidying away the cable, wind it carefully to avoid kinking.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

WARNING: After switching off the machine, the cutting cylinder continues to rotate for a few more seconds.

• Before use check the supply and extension cord for signs of damage or ageing. If the cord becomes damaged during use, disconnect the cord from the supply immediately.
• DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
• Not to connect a damaged cord to the supply or touch a damaged cord before it is disconnected from the supply. A damaged cord can lead to contact with live parts.
• Do not use the shredder if the cord is damaged or worn.
• Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Avoid using the machine in bad weather conditions especially when there is a risk of lightning. Always wear substantial footwear and long trousers while operating the machine.
• Keep children and pets well away from the work area and never allow children to use this appliance or touch the main power cord or extension cord at any time. When not in use, keep this appliance stored in a safe place out of reach of children.

WARNING: In order to reduce the risk, disconnect the plug from the supply power, only use recommended accessories as required, otherwise personal injury may result.

• Wear ear protection and safety glasses at all times while operating the machine
• Wear a dust protection if the shredding action causes the raising of dust or particles.

• Dress sensibly for the job in hand - no loose clothing that could get caught in the moving parts of the appliance.

• Pull long hair back out of the way and wear a protective hat.

• Only operate the machine in open space (e.g. not close to a wall or other fixed object) and on a firm, level surface.
• Do not operate the machine on a paved or gravel surface where ejected material could cause injury.
• Thoroughly inspect the shredder for loose or damaged parts before each use. Do not use the shredder until adjustments or repairs are made.
• Replace damaged or unreadable labels.
• Only use a waterproof, fully unwound extension cable suitable for outdoor use.
• This appliance is for outdoor use only.
• Do not expose this appliance to rain.
• Use the shredder only in daylight or good artificial light.
• Never leave the appliance unattended.
• Do not use the appliance in an area where it could cause an explosion or fire - keep it away from flammable liquids and gases.
• Guard against electric shock - prevent body contact with earthed or grounded surfaces i.e. metal gates, posts or other metal objects in the work area.
• Never pull the appliance by its power cord. Wheel it or carry it with two hands.
• Do not allow the power cord to lay on or across sharp objects that might pierce the outer insulation.
• Do not use this appliance if you are on strong medication, unwell or have been drinking alcohol.
• Never attempt to put your hand inside the feeder hopper. If you want to push material into the cutting chamber use the push stick.
• Before starting the machine, look into the feeding chamber to make certain that it is empty.
• Keep your face and body away from the feed intake opening.
• Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
• Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.
• Always stand clear of the discharge zone when operating this machine.

• When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.

• If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, shut off the power source and allow the machine to stop (electric unit disconnect from supply):

• inspect for damage
• check for and tighten any loose parts
• have any damaged parts replaced or repaired and use only the manufacturer's recommended replacement parts and accessories.
• Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the feed intake opening.
• If the machine becomes clogged, shut-off the power source (electric unit disconnect from supply) before clearing debris. Keep the power source clear of debris and other accumulations to prevent damage to the power source or possible fire. Remember that operating the starting mechanism on engine powered machines will still cause the cutting means to move.
• Keep all guards and deflectors in place and in good working condition.
• Do not tamper with the power source governor settings; the governor controls the safe maximum operating speed and protects the power source and all moving parts from damage caused by over-speed. Seek authorized service if a problem exists.
• Do not transport this machine while the power source is running.
• Shut off the power source and disconnect from supply whenever you leave the work area.
• Do not tilt the machine while the power source is running.
• Your shredder must be placed on firm, level ground.
• Never lay the shredder on its back, front or sides - keep it upright at all times.
• Do not overload the shredder - feed it slowly and let it work at its own pace.
• Before starting, ensure the inlet cavity is empty. Do not start the shredder with material in the shredder.
• Unless there is an emergency, do not switch the shredder off until it is completely empty of material.

• Remove stones or other hard objects from plant roots before shredding.

• Hold large twigs or fine branches firmly when feeding them into the shredder.

• Do not allow the outlet to get covered or blocked at any time.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the power supply corresponds to the voltage on the rating plate.

Connecting to the power supply

Check that the power supply and plug used in accordance with your machine. Have a look at the rating plate on the machine. Any changes should always be carried out by a qualified electrician.

Warning! This machine must be earthed. If not properly earthed this machine can cause an electrical shock. Be sure that the power supply outlet is earthed. If there is any doubt, have it checked by a qualified electrician.

Warning! Avoid contact with the terminals on the plug when installing (removing) the plug to (from) the power supply outlet. Contact will cause a severe electrical shock.

Replacing cables or plugs

If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm^2 . When using a cable reel always unwind the reel completely.

2. MACHINE INFORMATION

Intended use

This shredder is developed to chop up branches, twigs and other pruning. It can easily be reduced to wood chips for reuse. The shredder is intended for medium to large sized private gardens. This shredder is for domestic use only and not for commercial, industrial or trade use.

TECHNICAL SPECIFICATIONS

Model No. GS503AC
Voltage 230-240 V~
Frequency 50 Hz
Power 2800 W (P40)*
No load speed 2980/min.
Max. cutting diameter 45 mm**
Collection box capacity 60 L
Weight 27 kg
Protection level IPX4
Protection type Class I
Sound power level (Lwa) 92 dB(A)***
Sound pressure level (LpA) 76 dB(A), K=3 dB(A)

* The P40 operating mode means the machine shall be operated intermittently, it was operated intermittently until stabilization or for 30 cycles in heating compliance test, each cycle comprising a period of operation of 40s at rated power input and a period of 60s with the machine at no load.
** Depending on the hardness of the wood.
*** According to 2000/14/EC&2005/88/EC (included K=3 dB(A))

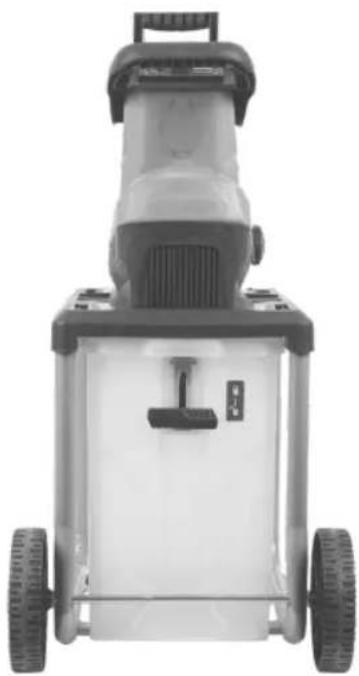

DESCRIPTION

The numbers in the text refer to the diagrams on pages 2-3.

1. Feeder hopper
2. Machine body
3. Frame
4. Wheel axle
5. Washer
6. Wheel
7. Cotter pin

8. Wheel cover

9. Feet

10. Collection box
11. Safety switch
    12.Push stick
12. Socket
13. Power indicator
14. Function switch
    16.ON switch
    17.OFF switch
15. Overload protection reset
16. Counter blade knob

3. ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Assembling the wheels and the frame (Fig. B & C)

1. Stand the machine body (2) upside down. Attach the machine body (2) on the frame (3) using the four screws enclosed. See figure B.
2. Push the wheel axle (4) through the two lower holes of the frame (3).
3. Attach on each side of the axle a washer (5), a wheel (6) and another washer (5). Then fit a cotter pin (7) through the hole at each end of the axle (4) and bend the cotter pins to lock the wheels on the axle.
4. Mount the wheel cover (8) onto the wheel (6).

Assembling the feet and the collection box (Fig. A & D)

1. Attach the two feet (9) to the frame (3) using the two screws enclosed with a Philips screw-driver.
2. Slide the collection box (10) with the safety switch (11) to the front into the guide rails and insert the box completely into the frame (3).
3. Lock the safety switch (11) in position by pushing it upwards.

4. OPERATION

If the machine starts to vibrate abnormally (check immediately):

• inspect for damage,
• replace or repair any damaged parts,
• check for and tighten any loose parts.

Immediately switch of the machine in the following cases:

• whenever you leave the machine,
• before clearing blockages or unclogging chute,
• before checking, cleaning or working on the machine,
• after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the machine;

Put the machine on a solid and even surface at all times. Never tilt or move the machine when the engine is running.

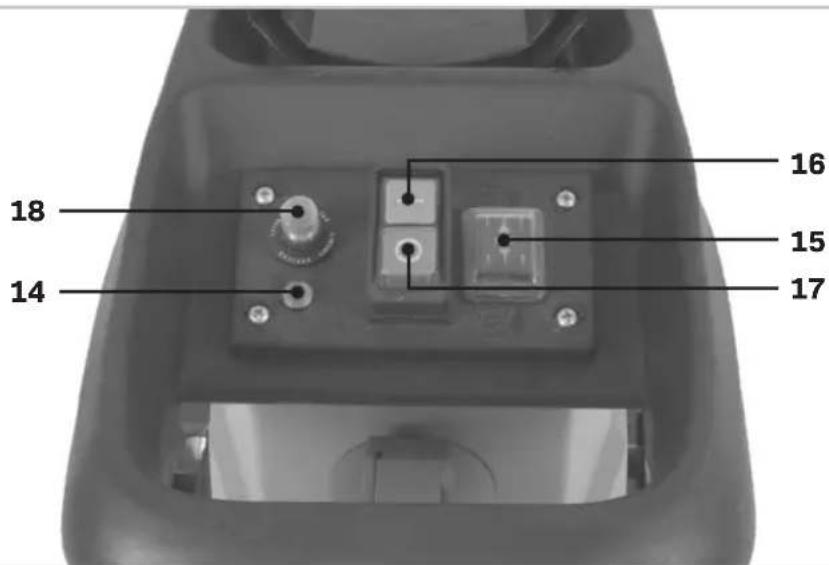

Switching the machine on/off (Fig. A & E)

Never attempt to put your hand inside the feeder hopper (1). If you want to push material into the cutting chamber use the push stick (12).

• Connect the extension cable to the socket (13) and check the power on indicator (14) is lightning up.
• Check if the feeder hopper (1) is empty.
• As a safety feature, the shredder will not start unless the safety switch (11) is locked in the upwards position. To start shredding press the function switch (15) downwards, then press the ON switch (16). To use the reverse mode, press the function switch (15) in the upwards, then press the ON switch (16). The machine starts returning material. The reverse mode is used when too much material has been fed in and the machine threatens to clog.
• To stop the machine, press the OFF switch (17), then press the function switch (15) to the neutral middle position.

Working instructions

• Branches and pruning waste become harder to shred depending on the type age and dryness of the wood. Best results are obtained by shredding fresh, soft cuttings with dry branches.

• The suitability of the shredder for cutting garden waste which is soft and contains large amounts of sap (e.g. pomaceous fruit, wet plant waste) is limited. This material should be composted straight away.

• Empty the collection box (10) when it is 80% full. The collection box (10) fills unevenly under the ejector opening. When the ejector opening is blocked by shredding waste this will have a negative influence on the machine performance.

• Insert the material to be processed into the feeding hopper (1). The material is drawn into the machine automatically. Use the push stick (12) to help feed the machine.
• Always allow the machine to cool down before storing.

Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories.

Adjusting the counter blade knob

Inside the machine there is a cutting cylinder and a counter blade. For optimal performance both components are perfectly adjusted in the factory. Only if it is subject to wear the counter blade needs an adjustment. This wear can be noticed by reduced performance of the machine, the shredded material is only compressed and leaves the machine in long strings. For proper adjustment turn the machine on and press the function switch downwards in the shredding mode, then turn the knob (19) clockwise till the cutting unit slightly touches the counter blade. This touch can be heard when the machine is running. When this point is reached turn the knob (19) a half turn ANTI-clockwise.

Restart protection

This protection prevents accidental machine start after power failure. When power is restored, turn on the machine again.

Overload protection and blockages

If the machine is exposed to a high load (e.g. cutting cylinder is blocked), it will stop after a few seconds.

• Press the function switch (15) to the neutral central position.
• Wait for at least one minute before you press the overload protection reset (18).
• Press the function switch (15) in the upwards position to allow the machine to return the clogged material.
• Press the ON switch (16) to start the machine.

- Check if the blockage is fixed by pressing the function switch (15) in the down position. If the blockage is not fixed repeat above steps. For a better result the counter blade knob (19) can be turned anti clockwise to create more distance between the cutting cylinder and the counter blade. After the blockage is fixed the counter blade must be fine tuned by adjusting the counter blade knob (19) as prescribes in heading 'Ajusting the counter blade knob'!

5. MAINTENANCE

Always disconnect the machine from the main power supply before carrying out any maintenance work.

Your shredder has been designed to operate over a long period of time with minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning.

• Keep the shredder clean and dry.
• To clean the shredder, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid. Do not use any abrasive or solvent-based cleaner.
• When maintaining the shredder, be aware that although the power source is switched off, due to the locking function of the safety device, the shredder can still be moved.
• After every work stint, clean the machine thoroughly to remove all dust and debris, and repair or replace any faulty parts.
• Keep the device, in particular the air vents, clean at all times.
• Never spray water on the device body!
• Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition;
• Repairs and works specified in these Instructions may only be performed by qualified authorized staff.
• Use only original accessories and original spare parts. Components for which there are no instructions for exchanging should be replaced by the manufacturer only. Using other spare parts can result in accidents/injuries of the user. The manufacturer will not be liable for any such damage.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

- Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;

- Normal wear and tear;

- The tool has been abused, misused or improperly maintained;

- Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

2. INFORMATIE OVER HET APPARAAT

Bedoeld gebruik

Protection anti-surcharge et bourrages
