1. TECHNICAL DATA

Parameter description	Parameter value
Product name	Orange squeezeer
Model	RCOS-01
Voltage/frequency	230 V / ~50 Hz
Power	120 W
Speed	~20 pcs/min
Dimensions (LxWxH)	40 x 50 x 90 cm
Weight	33.9 kg
Protection rating	IPX0
Protection class	I
Suitable orange/lemon size	Ø 40-80 mm (best: 65-75 mm)

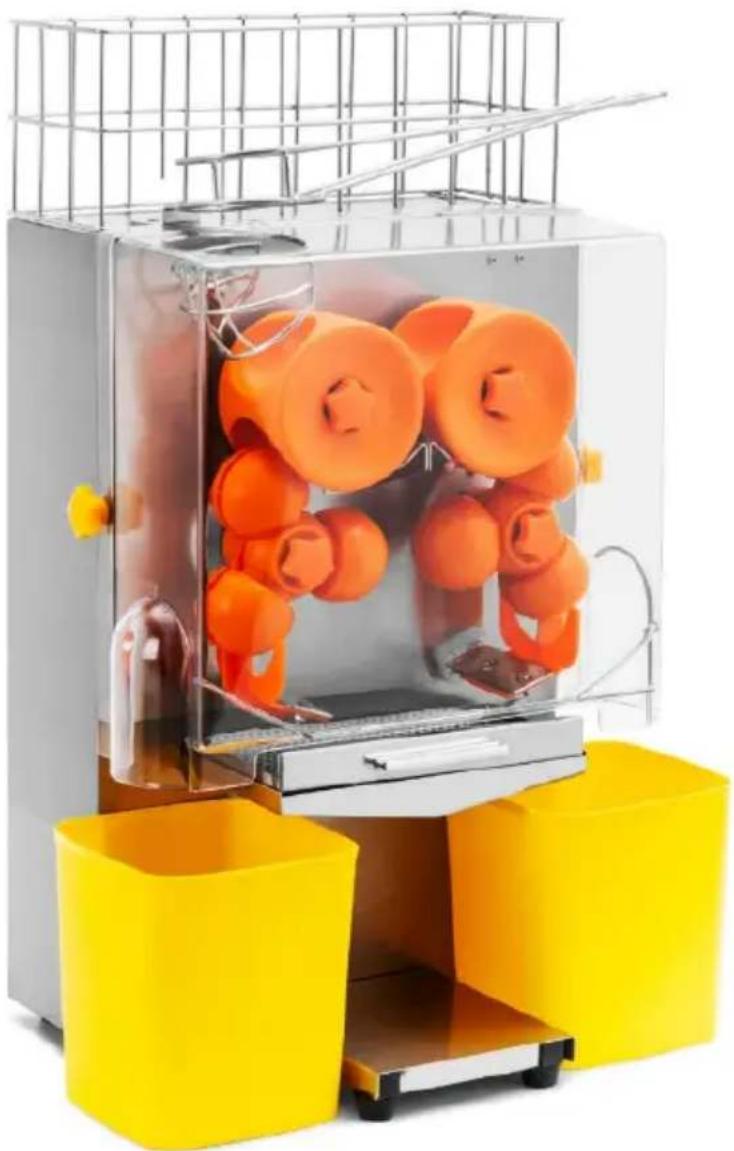

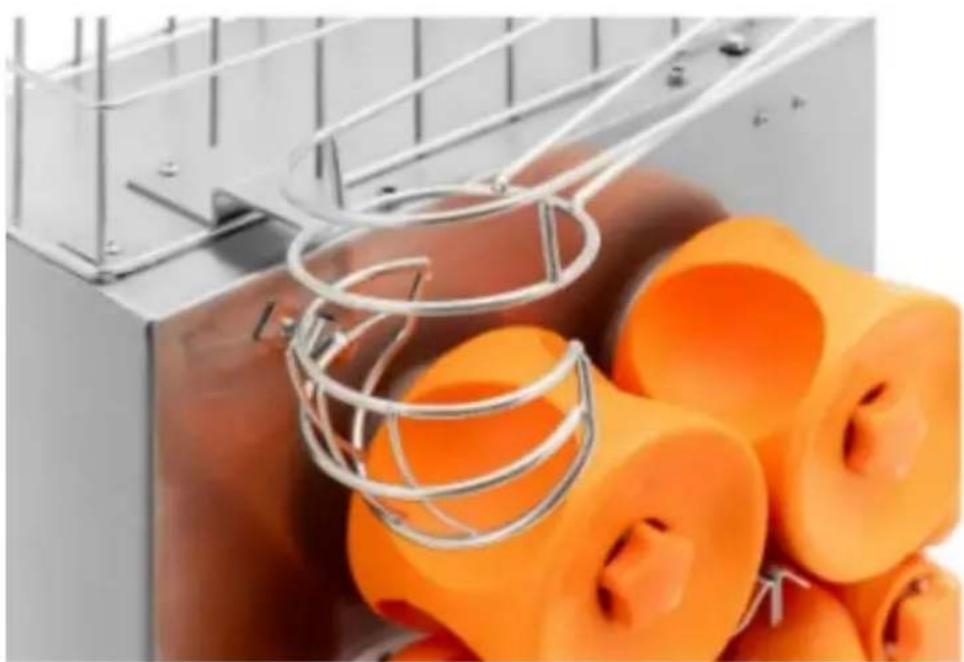

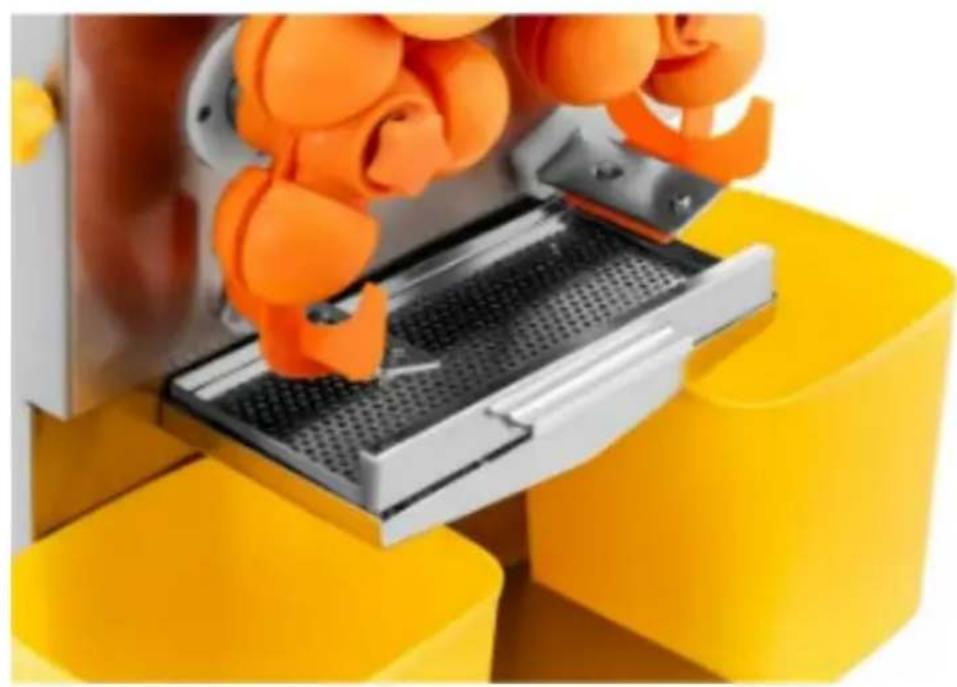

2.PRODUCT OVERVIEW

3. General product information

Commercial juicer. Users must read this manual carefully, follow the instructions and procedures, and read all warnings when using this instrument.

Caution

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

4. Safety

Before using the machine, please read and understand all instructions.

For safety purposes, when operating the machine, please do not disassemble the machine parts and the protective cover; please remember to cut off the power.

Before cleaning and doing maintenance of the machine, the machine can be squeezed 60 80mm oranges. The whole process is simple and convenient, juice fast, and juice residue separation, automatic slag.

Before operation:

1:Please refer to the product image after unpacking, fixed up the required accessories.
2:Use the power supply must have a safety grounding system, not changed cables in the machine randomly.
3:Check the components are installed well or not, especially if the cover is in place, make sure the top right of the cover completely suppresses the micro switch cap, otherwise it is difficult to start the machine.

Principle operation:

This machine is only designed to squeeze orange juice and lemon juice and not applied to other fruits, especially to some fruits with hard-core, so as to avoid damage to the machine. When the machine is working, you cannot reach into the machine to avoid personal injury.

Before using the machine, please clean and put dried fruit into the basket, which can be continuously fed into the feed inlet boot, fresh orange juice automatically flows from the opening, slag automatic separation of juice, peels automatically into a collection bucket.

Cleaning steps:

1: shutdown, power off, unplug the machine.
2: Remove the mask, please remove irregularities ball in pairs.
3: Remove the filter, if necessary, remove the orange bucket.
4: Use cleaning bump ball juicing part neutral detergent soak, use detergent suction soft cloth to wipe the machine, if necessary, use a small brush to remove pomace.

Tips:

A: sharp knife - carefully clean the device, to avoid injury to your hands.
B: After installing the bump ball juice member, please fasten the screws, before starting the fixed cover installation.
C: Once the machine is being blocked, please turn off the switch, cut off the power supply to avoid accidents.

5. Device use

It is very simple to handle the machine, first to select between the 40 80mm oranges and wash then, put the oranges into the fruit basket continuously. Connect to power, turn on the power switch. The juice would flow, and the rests would be separated automatically into remaining collector.

6. Cleaning and maintenance

The orange juicer should be washed completely after using.

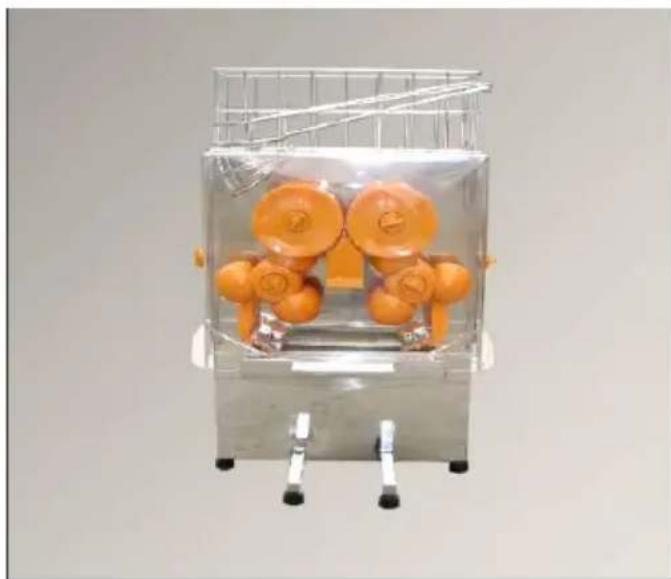

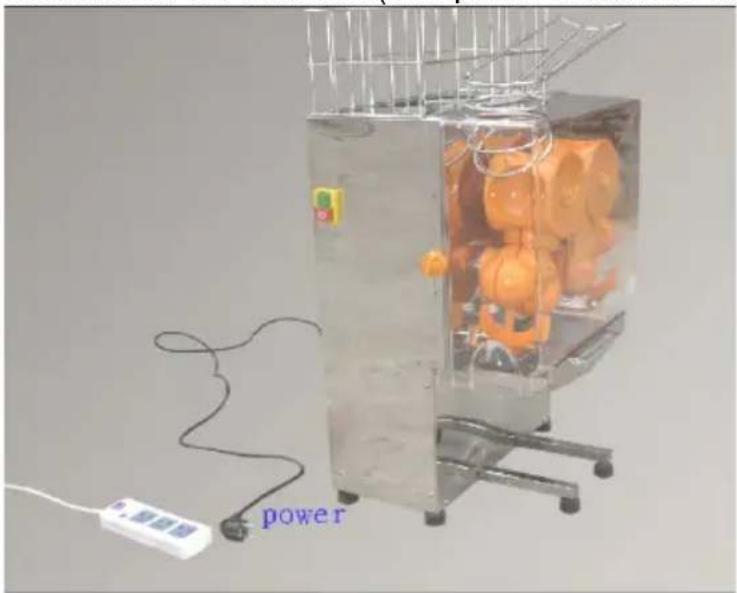

1. Switch off the machine (The power should be cut off), let it stop.

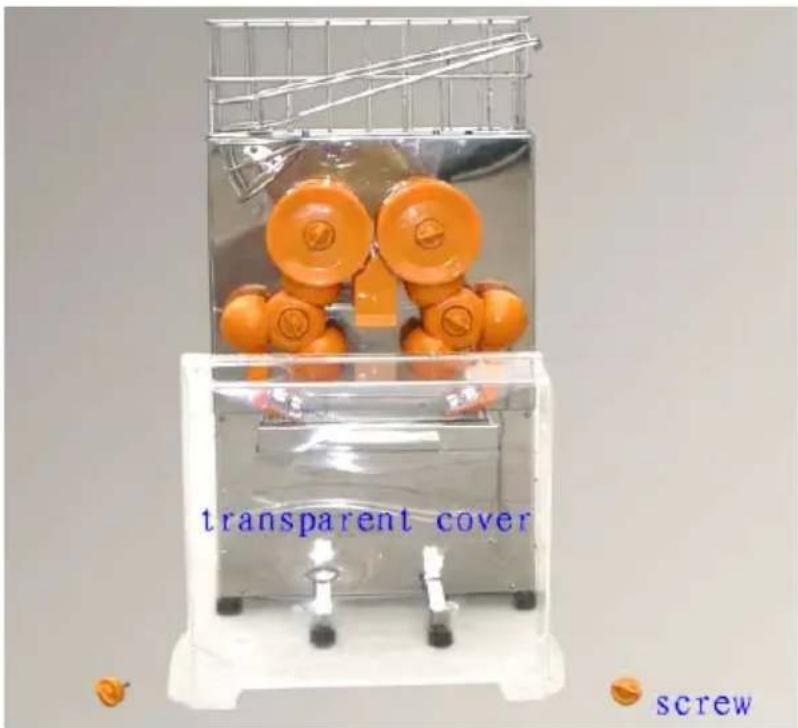

2.Screw off the nut two sides, take out the cover.

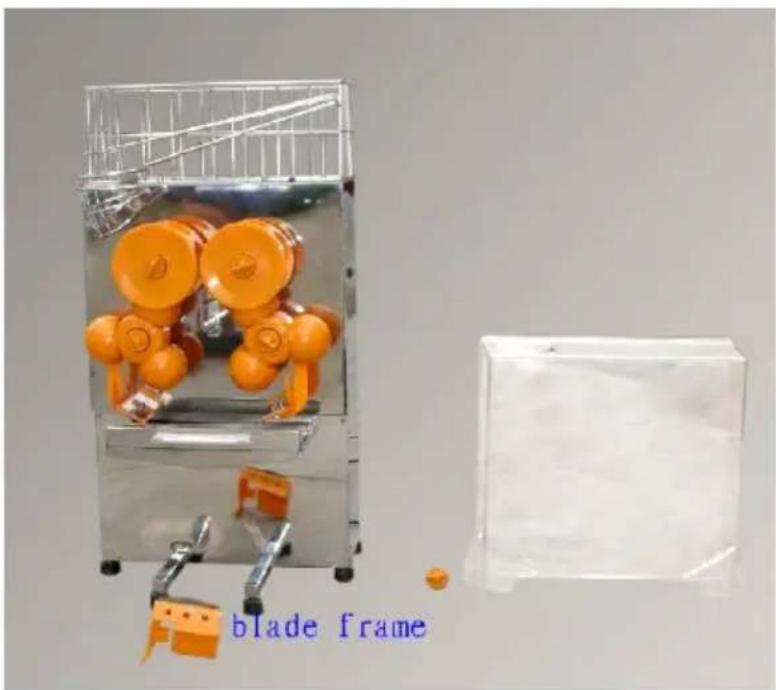

1. Take out the blade frame in the middle (blade is very sharp).

1. Take out the peeling machine obliquely.

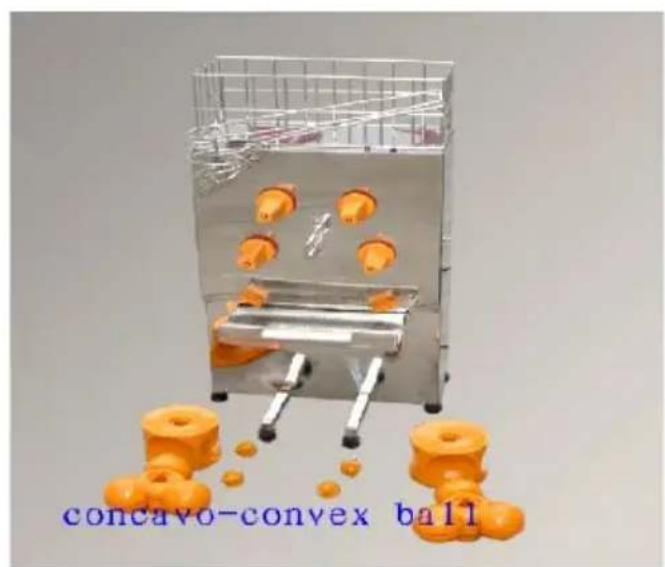

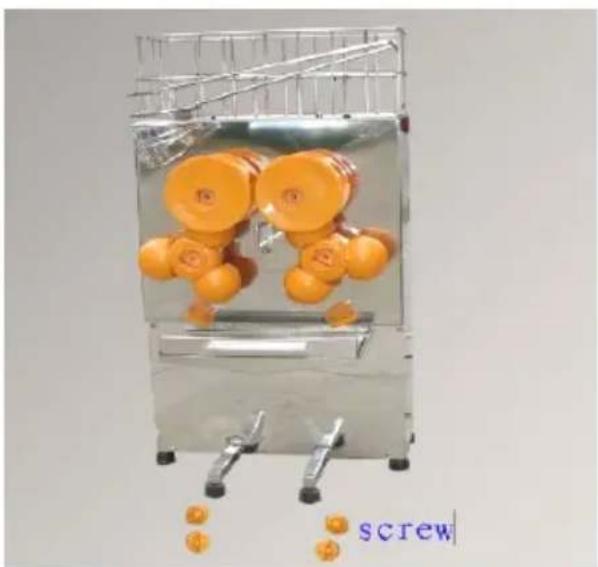

1. Screw off the nut in front of the concavo-convex balls (two groups) at the same time.

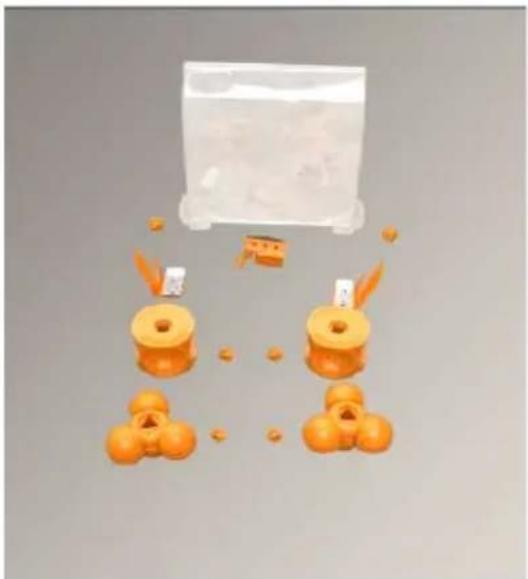

1. After you clean all the parts, set up the parts in an opposite order before using next time.

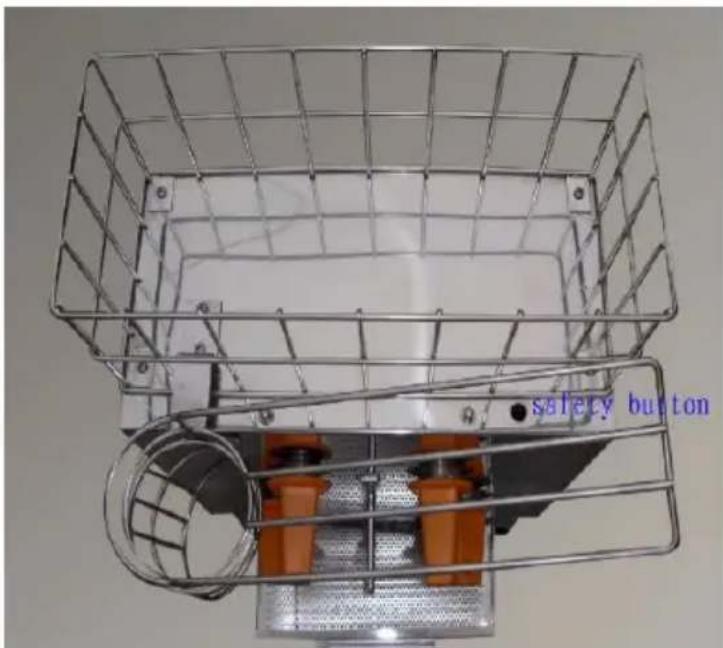

1. Install the cover, pay attention to turn on the safety button, screw tightly.

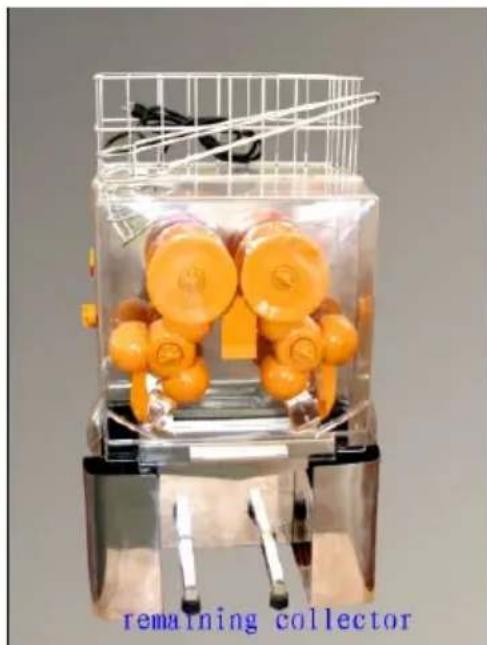

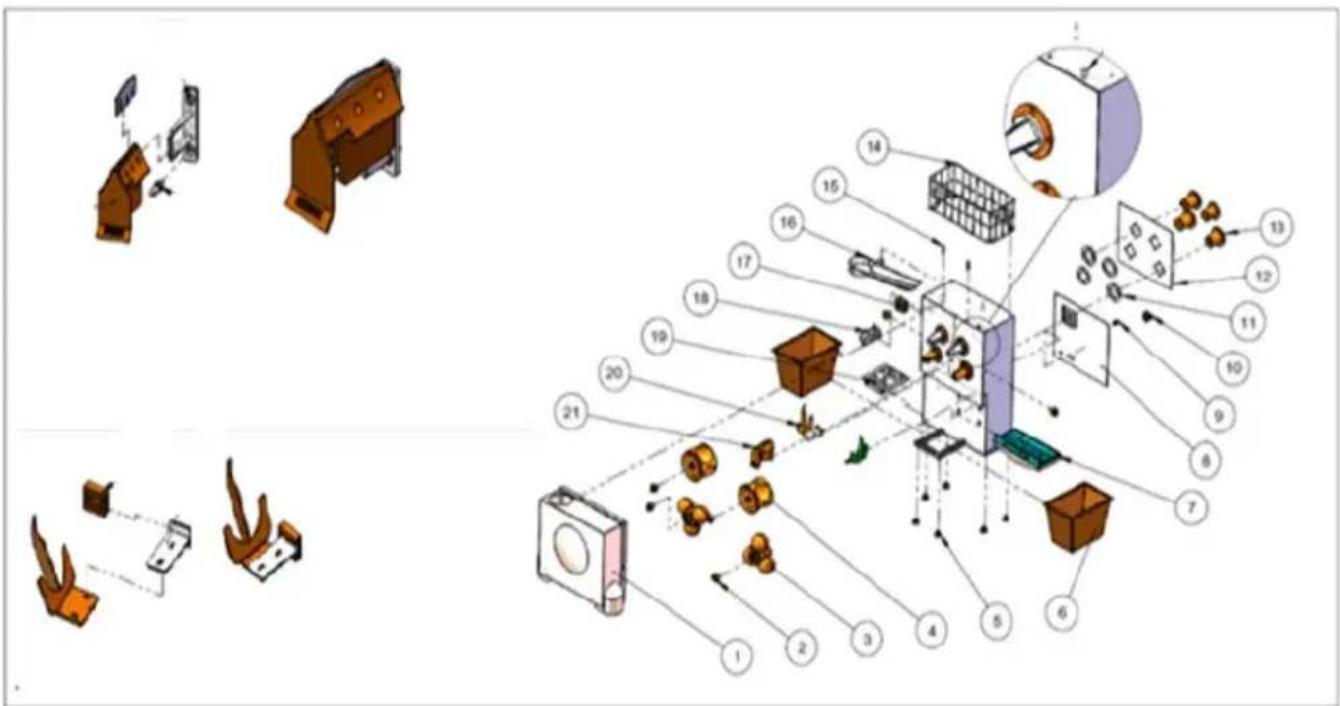

External structure chart of the orange juicer

No.	Description
1.	Cover
2.	Screw
3.	Convex ball
4.	Concave ball
5.	Machine leg screw
6.	Peel bucket
7.	Juice bucket combination
8.	Rear lower panel
9.	Fuseholder
10.	Power line socket
11.	Reinforcing sleeve
12.	Rear top panel
13.	Rear nylon sleeve
14.	Fruit basket
15.	Locating pin
16.	Upper guide rail
17.	Starting switch
18.	Lower guide rail
19.	Tray combination
20.	Scaper combination
21.	Knife combination

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
