RCSQ01E - Juicer Royal Catering - Free user manual and instructions

USER MANUAL RCSQ01E Royal Catering

Manufacturer Address

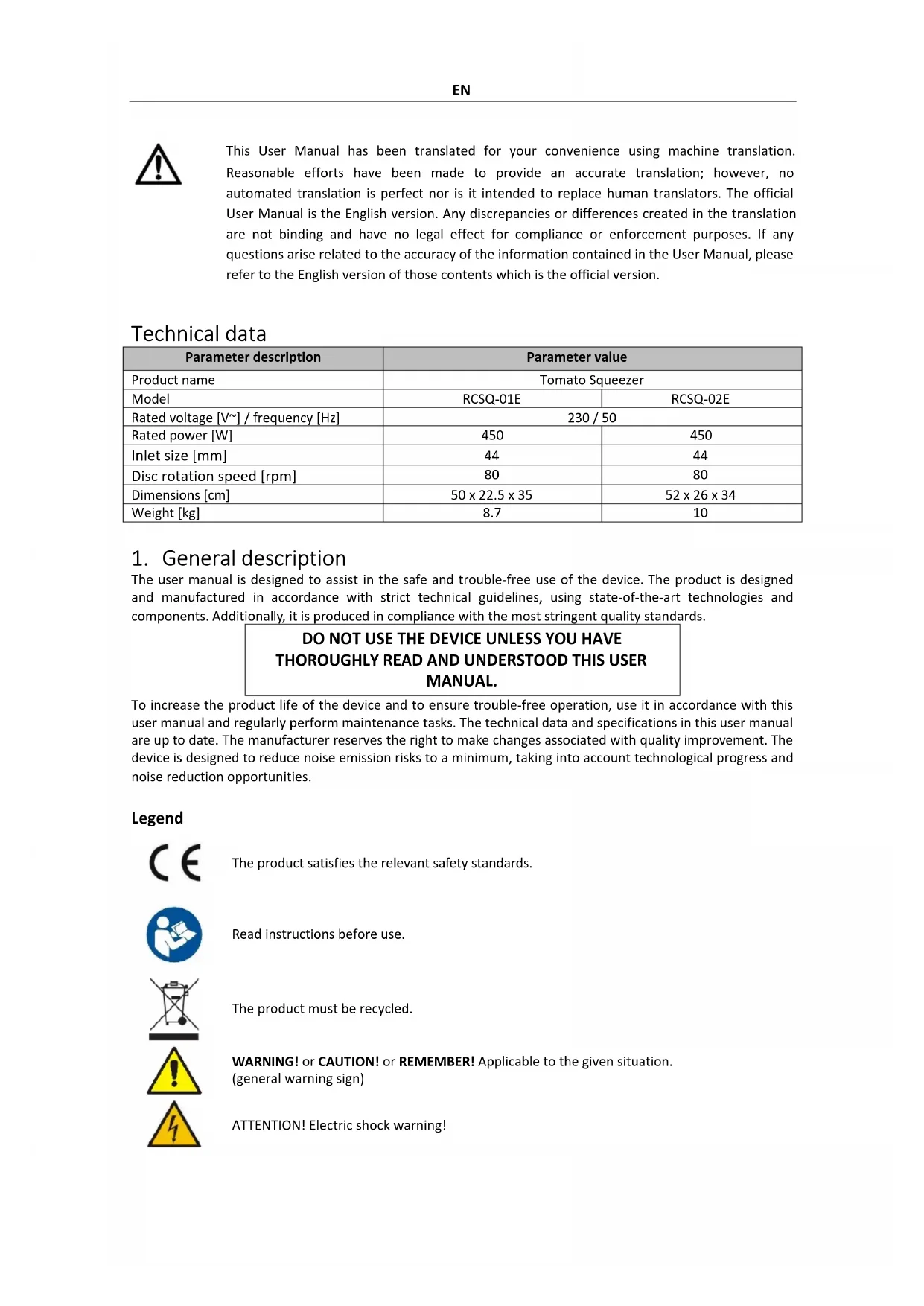

Gummifüße 4EN This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Disc rotation speed [rpm]

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards. DO NOT USE THE DEVICE UNLESS YOU HAVE

THOROUGHLY READ AND UNDERSTOOD THIS USER

MANUAL. To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities. Legend The product satisfies the relevant safety standards. Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to: Tomato squeezer 2.1. Electrical safety a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock. b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock. c) Do not touch the device with wet or damp hands. d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock. e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock. f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer‘s service centre. g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces. h) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.

i) Do not use in very humid environments or in the direct vicinity of water tanks.

j) Prevent the device from getting wet. Risk of electric shock! 2.2. Safety in the workplace a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device. b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. c) If there are any doubts as to the correct operation of the device, contact the manufacturer‘s support service. d) Only the manufacturer‘s service point may repair the device. Do not attempt any repairs independently!EN e) In case of fire, use a powder or carbon dioxide (CO2 ) fire extinguisher (one intended for use on live electrical devices) to put it out. f) Children or unauthorised persons are forbidden to enter a work station. g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it. h) Keep packaging elements and small assembly parts in a place not available to children. i) Keep the device away from children and animals.

Remember! When using the device, protect children and other bystanders. 2.3. Personal safety a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device. b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/ or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device. c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries. d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source. e) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts. f) The device is not a toy. Children must be supervised to ensure that they do not play with the device. do not play with the device. g) Do not put your hands or other items inside the device while it is in use! 2.4. Safe device use a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired. b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation. c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users. d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use. e) Keep the device out of the reach of children. f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use. g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws. h) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.

i) Do not touch articulated parts or accessories unless the device has been disconnected from the power

source. j) Do not move, adjust or rotate the device in the course of work. k) Do not leave this appliance unattended while it is in use. l) Clean the device regularly to prevent stubborn grime from accumulating. m) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person. n) Do not run the device when empty.EN o) It is forbidden to interfere with the structure of the device in order to change its parameters or construction. p) Keep the device away from sources of fire and heat. q) Do not overload the device. r) Never push food products through the feeding duct by hand or fingers. Always use the pusher. s) Before starting the device, make sure that all moving parts are firmly fixed in their bases. t) Keep all parts of the appliance and accessories that come into contact with food clean. Thoroughly clean all parts of the appliance before each use. u) Do not use solvents, benzene or alcohol to clean the machine.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

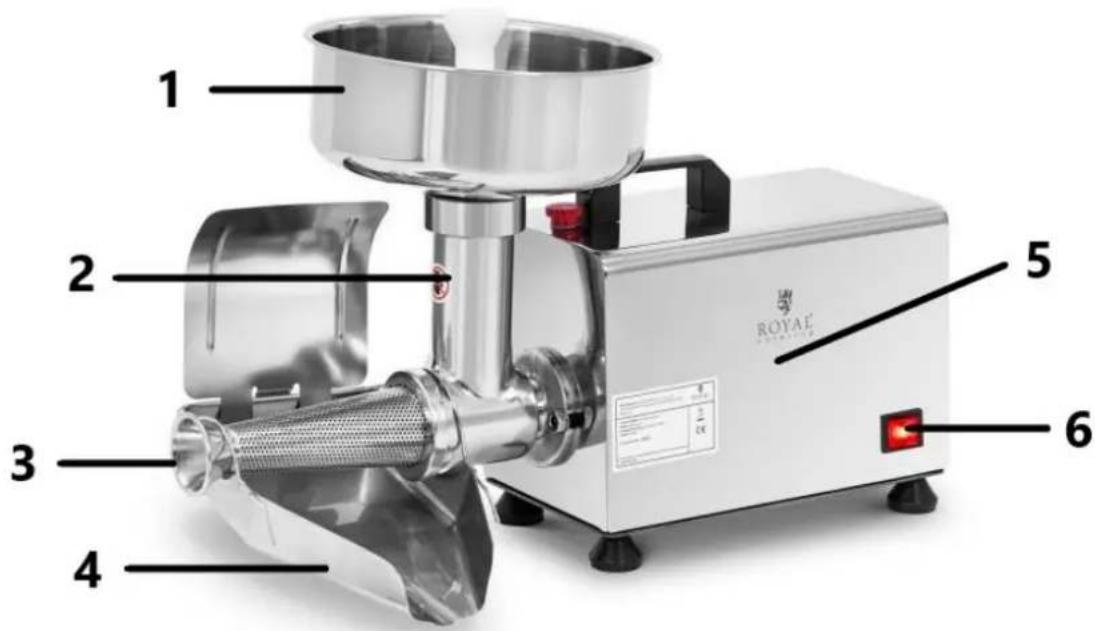

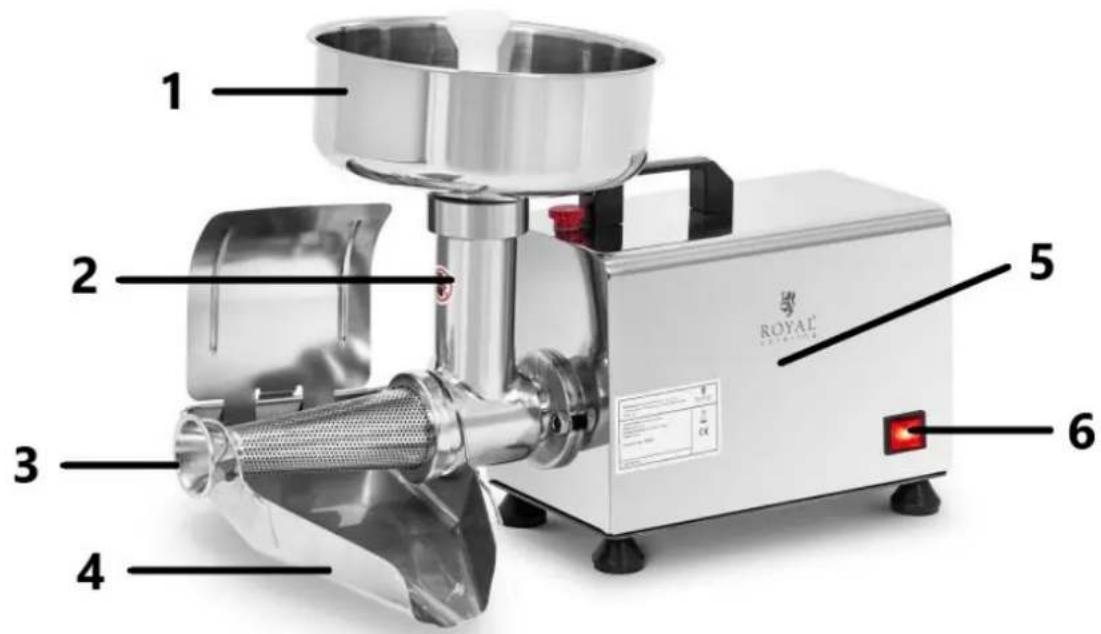

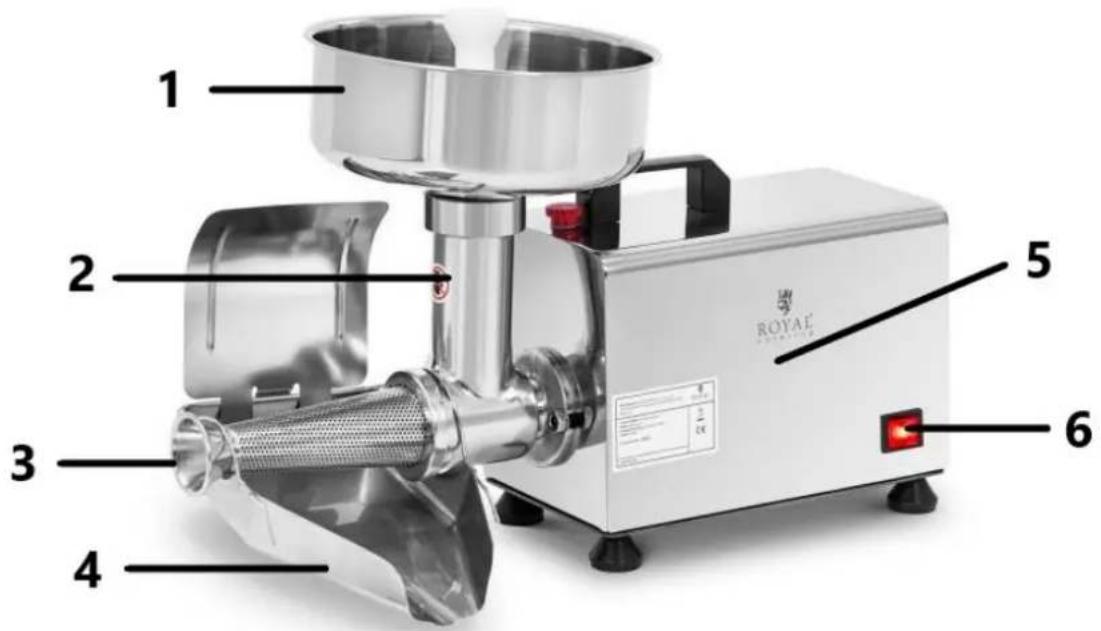

The product is intended for separating juice from tomato pulp. The user is liable for any damage resulting from unintended use of the device. 3.1. Device description RCSQ-01E

3.2. Preparing for use APPLIANCE LOCATION The temperature of environment must not be higher than 40°C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label. The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food. 3.3. Device use

Please note! the maximum operating time (without interruption) is 15 minutes. Allow the unit to cool down for 5 minutes before further use.

Important Safety Instructions:

1. Powering Off Before Unplugging: Always ensure the unit is turned off before unplugging the

power cord. If you accidentally unplug the unit while it is still on, wait at least 10 seconds before reconnecting the power to prevent any potential damage.EN

2. Unattended Unit: Never leave the unit unattended while it is connected to the power source.

To ensure safety, always unplug the power cord from the electrical outlet in the following situations:

• If the unit will not be in use.

• Before moving the unit to a different location.

• Prior to removing or installing components.

• When cleaning the unit. By following these guidelines, you help ensure your safety and prolong the lifespan of the unit. 3.4. Cleaning and maintenance a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used. Wait for the rotating elements to stop. b) Use only non-corrosive cleaners to clean the surface. c) Use only mild, food-safe detergents to wash the device. d) After cleaning the device, all parts should be dried completely before using it again. e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight. f) Do not spray the device with a water jet or submerge it in water. g) Do not allow water to get inside the device through vents in the housing of the device. h) Use a soft, damp cloth for cleaning.

i) After use, the machine must be thoroughly cleaned to prevent the formation of bacteria.

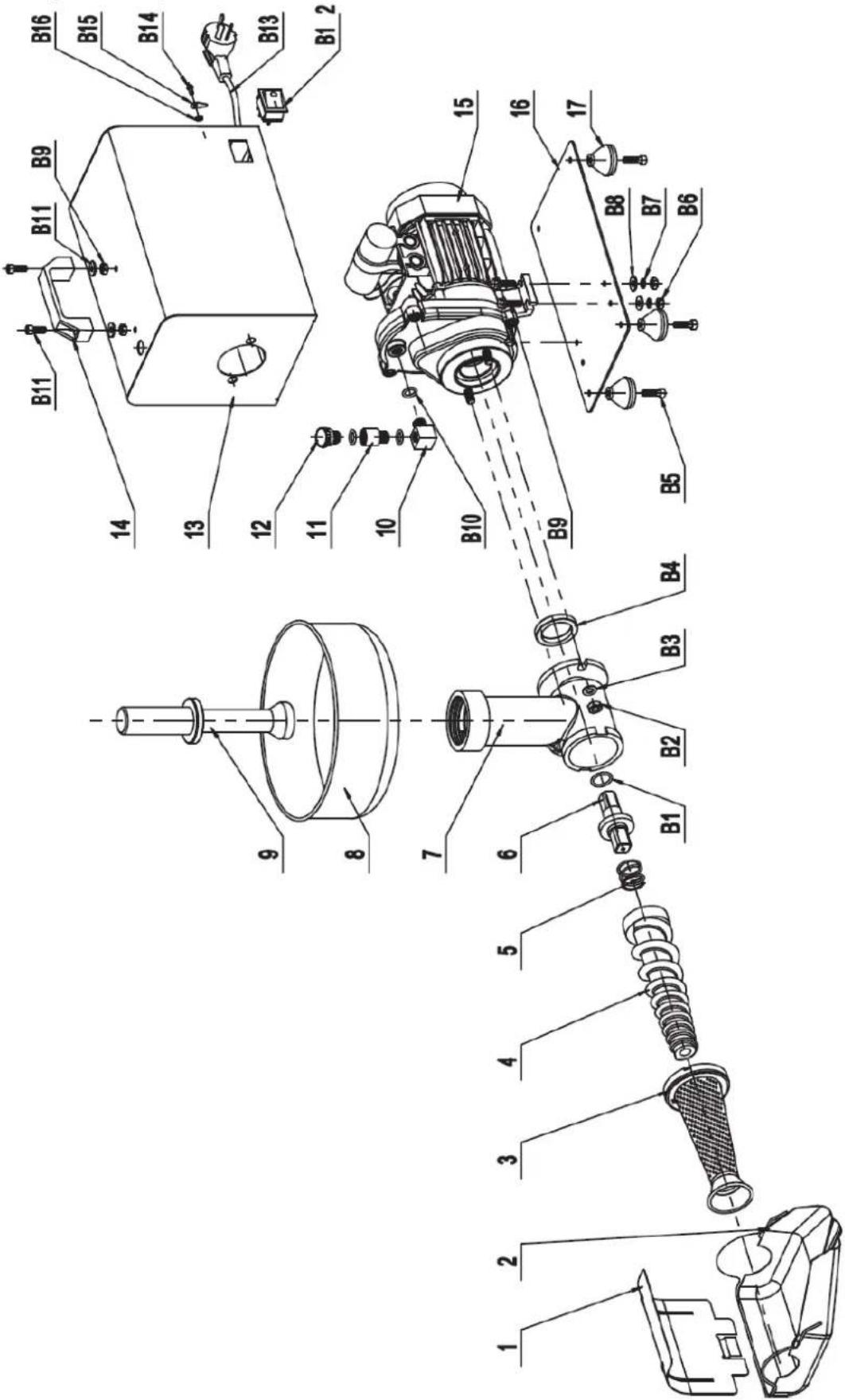

j) We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning. DISPOSING OF USED DEVICES: Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment. Contact local authorities for information on your local recycling facility.EN Assembly drawingEN List of parts Number Description Quantity Number Description Quantity

Hexagon Bolt with Flange

B14 Hexagon Screw M14x10

Parafuso hexagonal com

B11 Parafuso hexagonal
