RCSQ-02E - Juicer Royal Catering - Free user manual and instructions

Brand	Royal Catering
Model	RCSQ-02E
Product type	Juice extractor / Tomato press
Rated voltage	230 V ~
Frequency	50 Hz
Rated power	450 W
Input size	44 mm
Disc rotation speed	80 rpm
Dimensions (L × W × H)	52 × 26 × 34 cm
Weight	10 kg
Main material	Stainless steel and plastic
Intended use	Separation of juice and pulp from tomatoes
Maximum operating time (continuous)	15 minutes
Required rest time	5 minutes
Included accessories	Tank, funnel, pusher, sieve, feed screw, etc.
Maintenance and cleaning	Clean with a damp cloth; do not immerse; use mild food-grade detergents
Safety	On/off switch; read the manual; do not leave unattended
Spare parts and repairability	Repair by after-sales service only; parts listed in the assembly drawing
General information	Indoor use; max ambient temperature 40 °C; humidity < 85 %

Frequently Asked Questions - RCSQ-02E Royal Catering

How to use the RCSQ-02E juice extractor?

Place the appliance on a flat and stable surface. Make sure the switch is OFF. Plug in the appliance. Place the tomatoes in the tank or funnel. Turn on the appliance with the switch. Use the pusher to guide the tomatoes. The juice comes out through the spout and the pulp through the separate outlet. Respect a maximum operating time of 15 minutes, then let it cool down for 5 minutes.

What foods can be processed with this extractor?

This extractor is specially designed for tomatoes. It separates juice from pulp. Use with other fruits or vegetables is not recommended in the manual.

How to clean the appliance?

Unplug the appliance and let it cool down. Disassemble the removable parts (tank, sieve, screw, etc.). Clean them with warm water and a mild non-corrosive detergent. Use a damp cloth for the housing. Never immerse the motor in water. Dry all parts before reassembling. Do not use solvents, benzene, or alcohol.

What to do if the appliance does not start?

Check that the plug is properly inserted and the switch is ON. Check the circuit breaker. If the cord is damaged, have it replaced by an electrician. If the problem persists, contact customer service. Do not attempt to repair yourself.

Can I run the appliance continuously?

No, the maximum uninterrupted operating time is 15 minutes. Afterwards, turn off the appliance and let it cool down for at least 5 minutes before using it again.

How to assemble the parts?

Refer to the assembly drawing in the manual. Generally, mount the sieve and feed screw into the body, attach the tank or funnel, and place the pusher. Make sure all parts are properly locked before starting.

Is the appliance safe?

Yes, it is designed with safety features. However, read the manual carefully. Do not touch moving parts during operation. Always use the pusher. Keep children away. Unplug after use.

How to store the appliance?

After cleaning and drying, store the appliance in a dry and cool place, away from humidity and direct sunlight. Clean regularly to avoid dirt buildup.

Where to find spare parts?

Spare parts are available from the manufacturer or after-sales service. Use only original parts. A list of spare parts is provided in the manual with reference numbers.

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Drop it off at a collection point for waste electrical and electronic equipment. Recycling helps protect the environment.

USER MANUAL RCSQ-02E Royal Catering

Abstract white line drawing of a stylized creature or mythical creature on a dark blue background (no text or symbols)

DE	Produktname	TOMATENPRESSE
EN	Product name	TOMATO SQUEEZER
PL	Nazwa produktu	WYCISKARKA DO POMIDORÓW
CZ	Název výrobku	LIS NA RAJČATA
FR	Nom du produit	PRESSE À TOMATES
IT Nome del prodotto		SPREMI POMODORI
ES	Nombre del producto	PRENSA PARA TOMATES
HU	Termék neve	PARADICSOMPRÉS
DA	Produktnavn	TOMATPRESSE
FI	Tuotteen nimi	TOMAATTIPURISTIN
NL	Productnaam	TOMATENPERS
NO	Produktnavn	TOMATPRESSER
SE	Produktnamn	TOMATPRESSARE
PT	Nome do produto	ESPREMEDOR DE TOMATE
SK	Názov produktu	LIS NA PARADAJKY
DE	Modell	RCSQ-01E
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell	RCSQ-02E
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SE	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SE	Tillverkare
PT	Produtor
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SE	Tillverkarens adress
PT	Endereço do produtor
SK	Adresa výrobcu

RCSQ-02E

Liste der Teile

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Tomato Squeezer
Model	RCSQ-01E	RCSQ-02E
Rated voltage [V~] / frequency [Hz]	230 / 50
Rated power [W]	450	450
Inlet size [mm]	44	44
Disc rotation speed [rpm]	80	80
Dimensions [cm]	50 x 22.5 x 35	52 x 26 x 34
Weight [kg]	8.7	10

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Hand crush hazard!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Tomato squeezer

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.

b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.

c) Do not touch the device with wet or damp hands.

d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.

f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.

g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.

h) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.

i) Do not use in very humid environments or in the direct vicinity of water tanks.

j) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.

b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust.

c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.

d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!

e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorised persons are forbidden to enter a work station.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children. i) Keep the device away from children and animals.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
f) The device is not a toy. Children must be supervised to ensure that they do not play with the device. do not play with the device.
g) Do not put your hands or other items inside the device while it is in use!

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
i) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
j) Do not move, adjust or rotate the device in the course of work.
k) Do not leave this appliance unattended while it is in use.
I) Clean the device regularly to prevent stubborn grime from accumulating.
m) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
n) Do not run the device when empty.

o) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
p) Keep the device away from sources of fire and heat.
q) Do not overload the device.
r) Never push food products through the feeding duct by hand or fingers. Always use the pusher.
s) Before starting the device, make sure that all moving parts are firmly fixed in their bases.
t) Keep all parts of the appliance and accessories that come into contact with food clean. Thoroughly clean all parts of the appliance before each use.
u) Do not use solvents, benzene or alcohol to clean the machine.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is intended for separating juice from tomato pulp.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

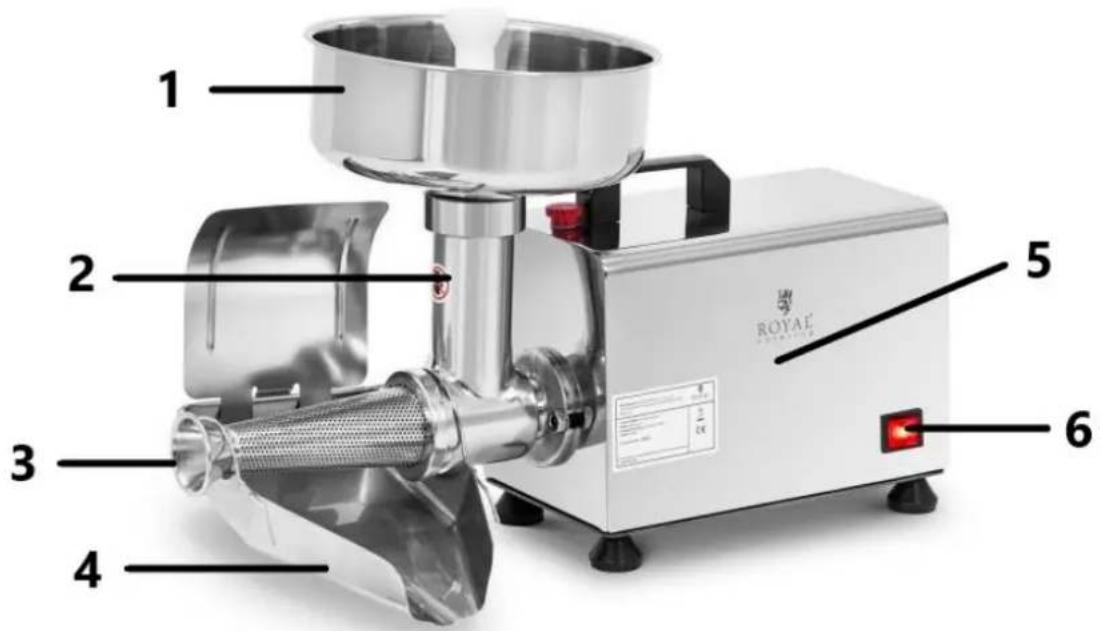

RCSQ-01E

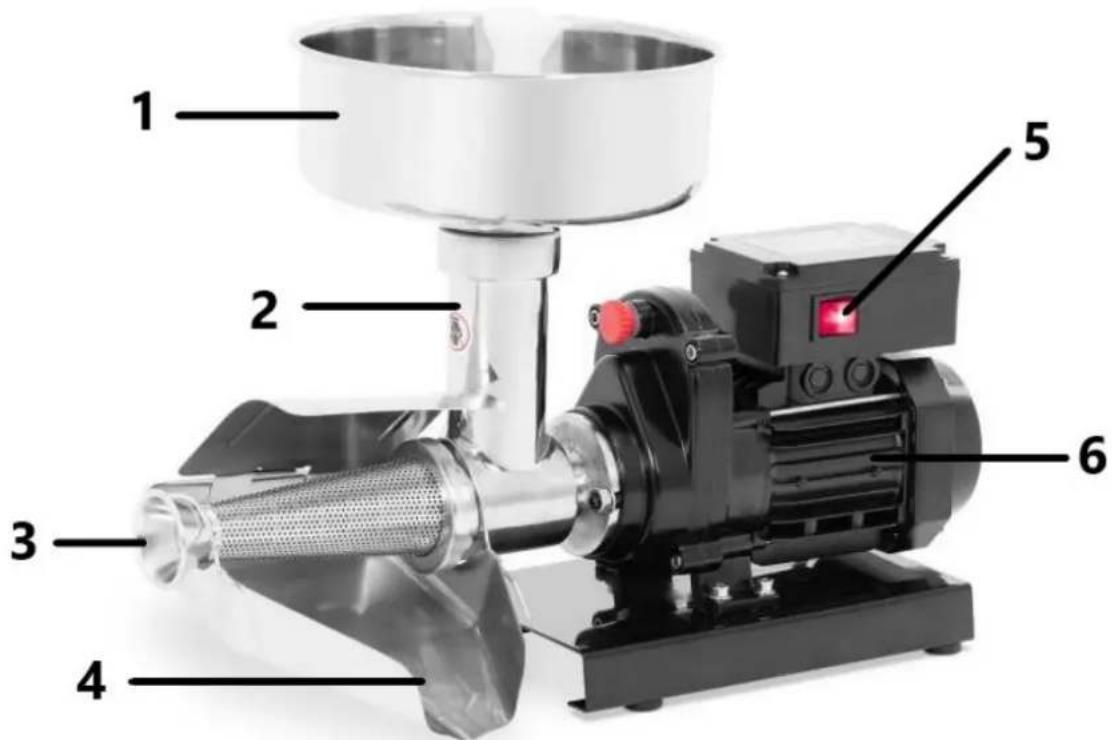

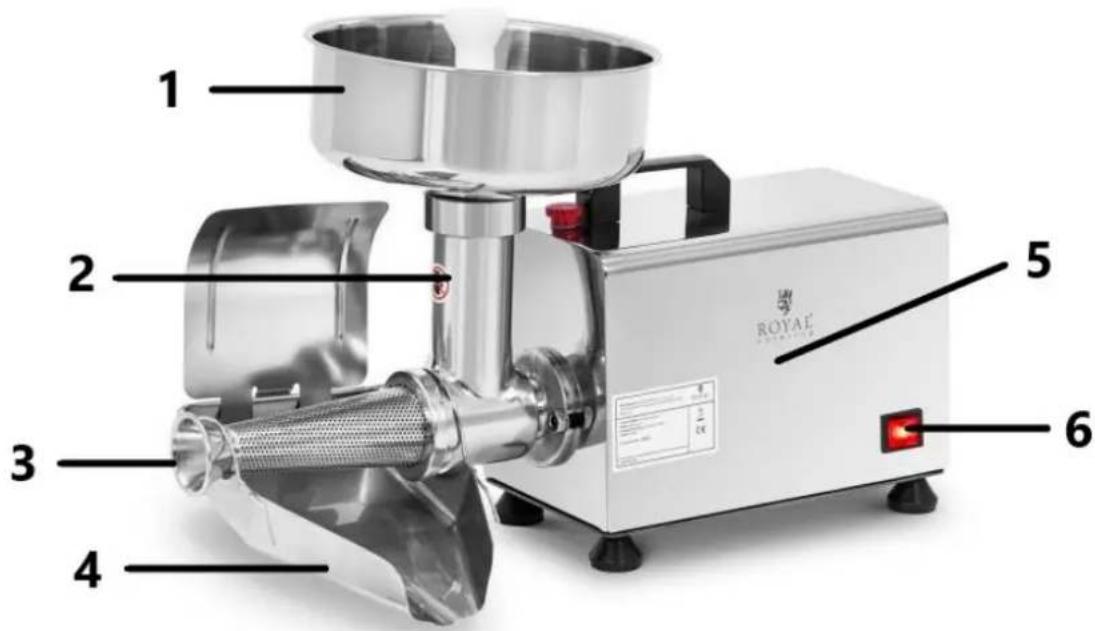

RCSQ-02E

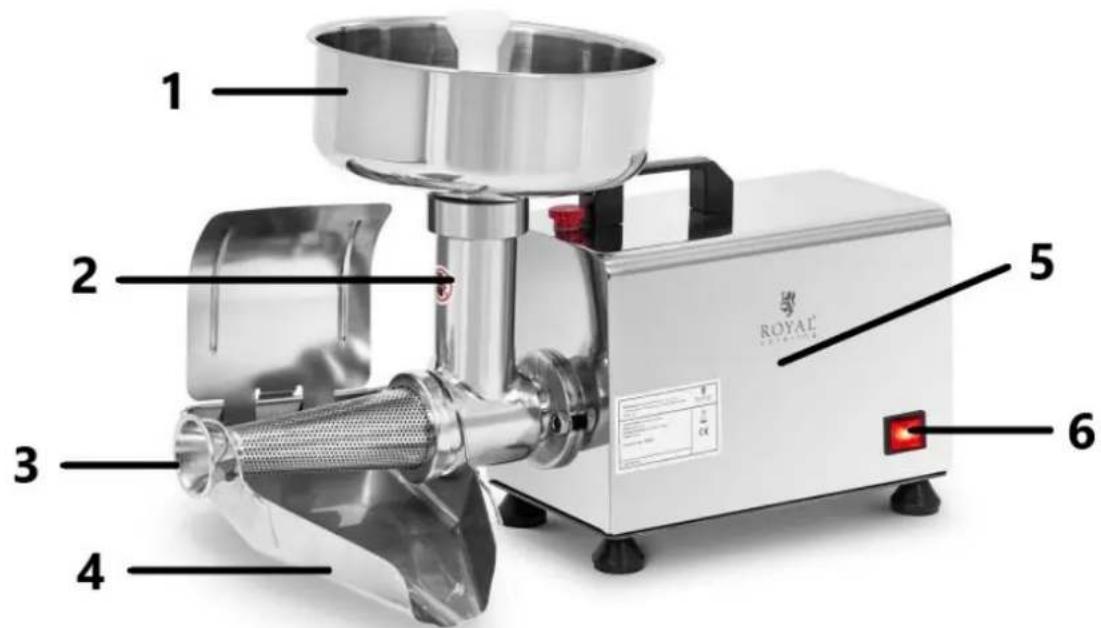

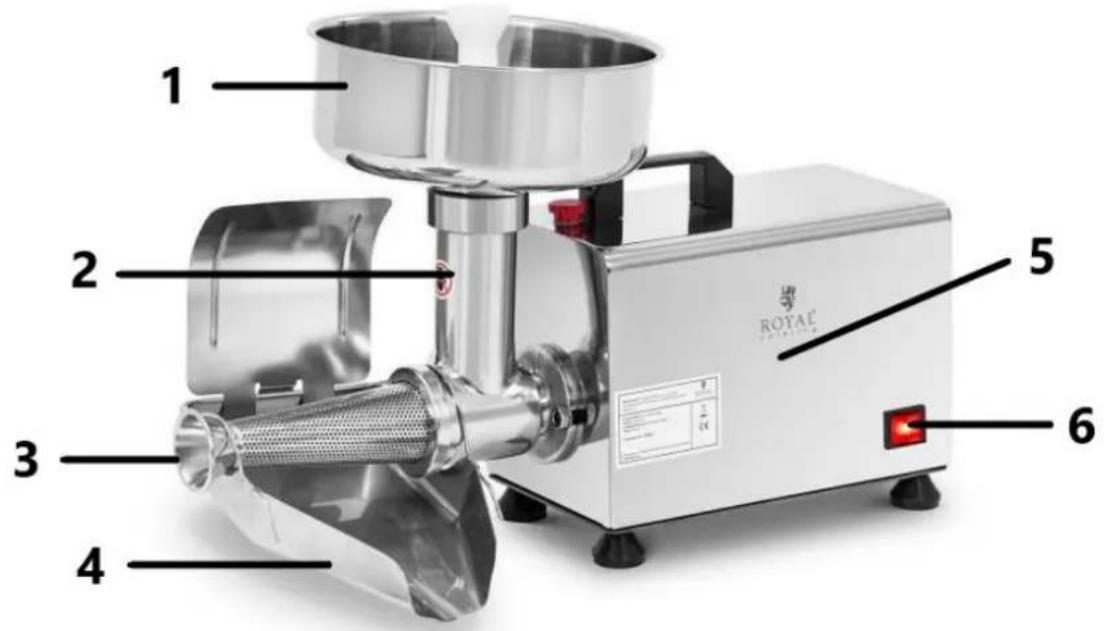

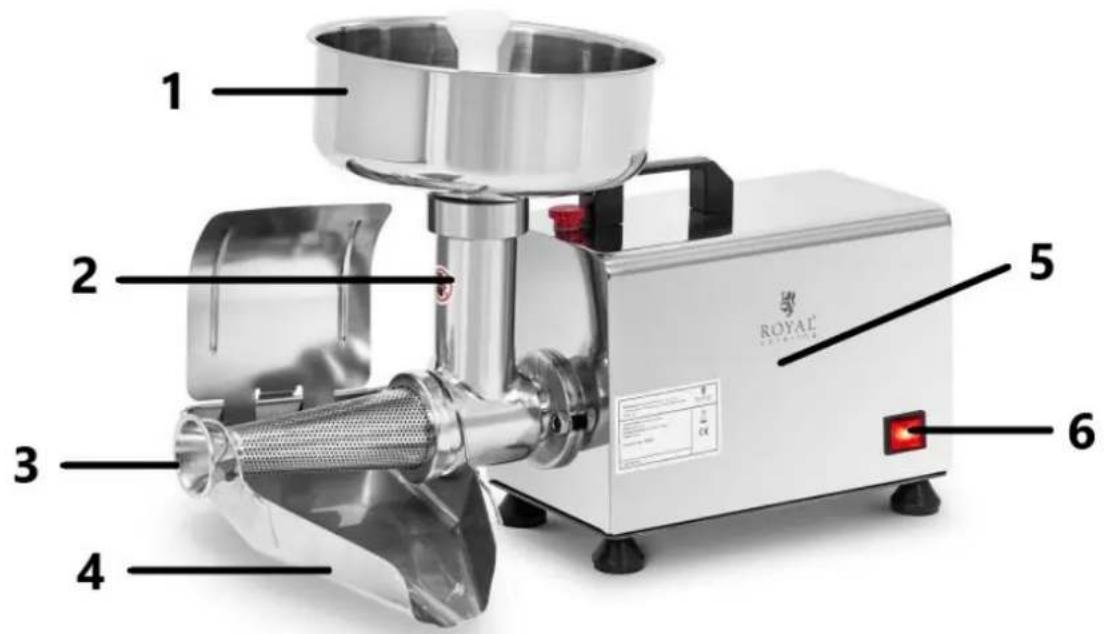

1 - Tomato tank
2 - Inlet pipe
3 - Tomato pulp outlet
4 - Juice outlet chute
5 - Main switch
6 - Engine

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food.

3.3. Device use

Please note! the maximum operating time (without interruption) is 15 minutes. Allow the unit to cool down for 5 minutes before further use.

Important Safety Instructions:

1. Powering Off Before Unplugging: Always ensure the unit is turned off before unplugging the power cord. If you accidentally unplug the unit while it is still on, wait at least 10 seconds before reconnecting the power to prevent any potential damage.

2. Unattended Unit: Never leave the unit unattended while it is connected to the power source.

To ensure safety, always unplug the power cord from the electrical outlet in the following situations:

• If the unit will not be in use.
• Before moving the unit to a different location.
• Prior to removing or installing components.
- When cleaning the unit.

By following these guidelines, you help ensure your safety and prolong the lifespan of the unit.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used. Wait for the rotating elements to stop.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Use a soft, damp cloth for cleaning.
i) After use, the machine must be thoroughly cleaned to prevent the formation of bacteria.
j) We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

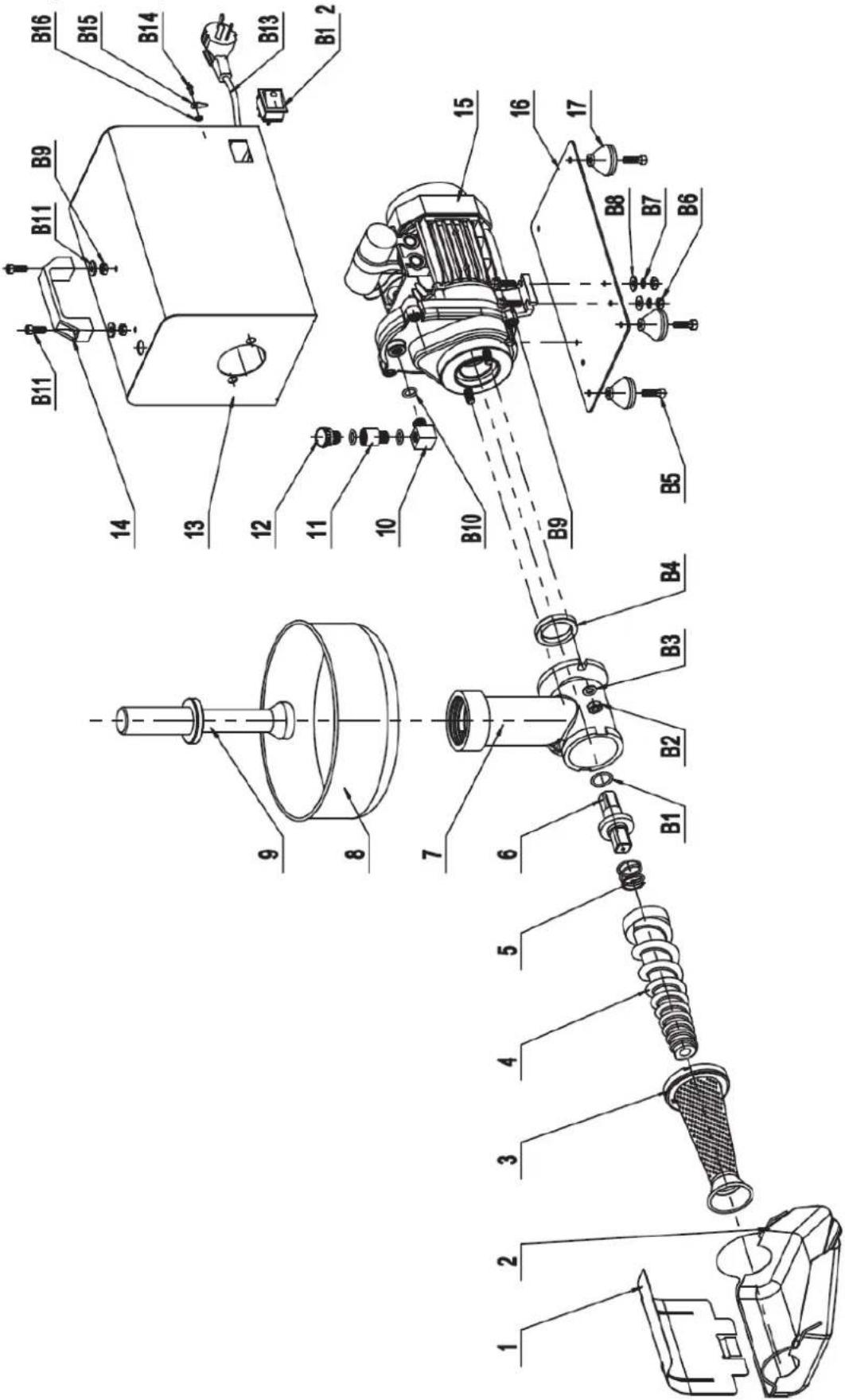

Assembly drawing

List of parts

Number	Description	Quantity	Number	Description	Quantity
1	Trough Brace	1	B1	O-Ring	1
2	Trough	1	B2	Hex Nut M8	2
3	Filter	1	B3	Flat Washer 8	2
4	Screw Feeder	1	B4	Oil Seal	1
5	Drive Spring	1	B5	Hexagon Screw	4
6	Drive Shaft	1	B6	Hex Nut M6	4
7	Body	1	B7	Standard Spring Washer	4
8	Funnel	1	B8	Flat Washer 6	6
9	Pestle	1	B9	Hexagon Bolt with Flange	4
10	Connector	1	B10	O Ring	3
11	Conector2	1	B11	Hexagon Screw	6
12	Oil Hole Bolt	1	B12	Switch	1
13	Motor Cover	1	B13	Power Line	1
14	Square Handle	1	B14	Hexagon Screw M14x10	1
15	Gearbox Assembly	1	B15	Card	1
16	Bottom Panel	1	B16	Hex Nut M4	1
17	Rubber Feet	4

RCSQ-02E

Lista części

RCSQ-02E

Seznam dílů

RCSQ-02E

Liste des pièces

RCSQ-02E

Elenco delle parti

RCSQ-02E

1 - tanque de tomate
2 - Tubo de entrada
3 - Salida de pulpa de tomate
4 - Tolva de salida de jugo
5 - Interruptor principal

6 - Motor

Lista de piezas

RCSQ-02E

RCSQ-02E

APPARATETS PLACERING

Liste over dele

RCSQ-02E

Luettelo osista

RCSQ-02E

PLAATS VAN HET APPARAAT

RCSQ-02E

Liste over deler

Antall	Beskrivelse	Antall	Nummer	Beskrivelse	Antall
1	Trough Brace	1	B1	O-ring	1
2	Trau	1	B2	Sekskantmutter M8	2
3	Filter	1	B3	Flat skive 8	2
4	Skrumater	1	B4	Oljepakning	1
5	Drive Spring	1	B5	Sekskantskrue	4
6	Drivaksel	1	B6	Sekskantmutter M6	4
7	Kanne	1	B7	Standard fjærskive	4
8	Trakt	1	B8	Flat skive 6	6
9	Støt	1	B9	Sekskantbolt med flens	4
10	Kobling	1	B10	O Ring	3
11	Kobling 2	1	B11	Sekskantskrue	6
12	Oljehullsbolt	1	B12	Bytte om	1
13	Motordeksel	1	B13	Høyspentlinje	1
14	Firkantet håndtak	1	B14	Sekskantskrue M14x10	1
15	Girkassemontering	1	B15	Kort	1
16	Bunnpanel	1	B16	Sekskantmutter M4	1
17	Gummi føtter	4

RCSQ-02E

APPARATENS PLACERING

Lista över delar

siffra	Beskrivning	Antal	Nummer	Beskrivning	Antal
1	Trough Brace	1	B1	O-ring	1
2	Tråg	1	B2	Sexkantsmutter M8	2
3	Filter	1	B3	Platt bricka 8	2
4	Skruvmatare	1	B4	Oljetätning	1
5	Drive Spring	1	B5	Hexagon skruv	4
6	Drivaxel	1	B6	Sexkantsmutter M6	4
7	Kropp	1	B7	Standard fjäderbricka	4
8	Pip	1	B8	Platt bricka 6	6
9	mortelstöt	1	B9	Sexkantsbult med fläns	4
10	Koppling	1	B10	O Ring	3
11	Kontakt 2	1	B11	Hexagon skruv	6
12	Oljehålsbult	1	B12	Växla	1
13	Motorkåpa	1	B13	Kraftledning	1
14	Fyrkantigt handtag	1	B14	Sexkantsskruv M14x10	1
15	Växellåda montering	1	B15	Kort	1
16	Bottenpanel	1	B16	Sexkantsmutter M4	1
17	Gummifötter	4

RCSQ-02E

1 - Tanque de tomate
2 - Tubo de entrada
3 - Saída de polpa de tomate
4 - Calha de saída de suco
5 - Interruptor principal

6 - Motor

Lista de peças

RCSQ-02E

Zoznam dielov

číslo	Popis	Množstvo	Číslo Číslo	Popis	Množstvo
1	Trough Brace	1	B1	O krúžok	1
2	Koryto	1	B2	Šesthranná matica M8	2
3	Filter	1	B3	Plochá podložka 8	2
4	Skrutkový podávač	1	B4	Olejové tesnenie	1
5	Drive Spring	1	B5	Šesthranná skrutka	4
6	Hnací hriadel'	1	B6	Šesthranná matica M6	4
7	Telo	1	B7	Štandardná pružinová	4
8	Lievik	1	B8	Plochá podložka 6	6
9	Pestle	1	B9	Šesthranná skrutka s	4
10	Konektor	1	B10	O Krúžok	3
11	Konektor2	1	B11	Šesthranná skrutka	6
12	Skrutka na otvor oleja	1	B12	Prepínač	1
13	Kryt motora	1	B13	Elektrické vedenie	1
14	Štvorcová rukovát'	1	B14	Šesthranná skrutka M14x10	1
15	Zostava prevodovky	1	B15	kard	1
16	Spodný panel	1	B16	Šesthranná matica M4	1
17	Gumové nohy	4

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
