USER MANUAL KTFC 6020 Koenic

Tower Fan with Air Cooler

XTEC 6020

F: ^1 T616020.101105.804

CE

Diagram of a modern electric fan with labeled components and control panel, showing internal structure and wiring details.

size = 34, size = 36

Diagram illustrating various bathroom fixture and lighting fixtures with red arrows indicating direction of movement or change.

B. CTRW(1) 15:04:136-17:18:29:17

Sicherheitshinweise

IEC 60879:1986+cor1:1992

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instructions concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• Caution! There is danger of explosion from improper replacement of the batteries. Replace batteries only with the same or equivalent type of batteries.
  • Always exchange the entire set of batteries.
• Make sure the batteries are correctly inserted. Observe the polarity (+) plus / (-) negative on the battery and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a fire or an explosion.
• Remove used batteries. Remove the batteries if you know that the product will not be used for a longer period of time. Otherwise, the batteries could leak and cause damage.
  • Non-rechargeable batteries must not be recharged.
• The connections must not be short-circuited.
• Remove the batteries from the product before disposal.

English

Safety Instructions

1. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

2. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

3. Never leave the product unsupervised while it is switched on.

4. Do not place any objects on top of the product.

5. Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.

6. Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

7. The mains voltage must match the information on the rating label of the product.

8. Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

9. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

10. Keep this product including power cord and power plug away from all heat sources such as, ovens, hot plates and other heat-producing products/objects.

11. Only unplug from the power socket by the plug itself. Do not pull on the cord.

12. Unplug the product ...

- when the product is not being used,

- in case of malfunctions,

- before attaching / detaching accessories and

- before cleaning the product.

10

1. Use this product in dry indoor areas only and never outdoors.

2. Place the product on a flat, sturdy and slip-resistant surface.

3. Never use, expose or put the product near to:

- direct sunlight and dust;

- fire (fireplace, grill, candles), water (water splashes, vases, bath tube) or heavy moisture.

1. This product is not intended for commercial use. It is designed for household use only.

2. Do not remove the guard or insert any object during operation.

3. Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

4. In order to avoid overheating, do not cover the product.

5. Small children, children and older people should not be exposed to cold air currents for a long time.

6. Keep product away from loose objects such as plants, curtains, etc.

7. The product may only be connected to the mains once it has been completely assembled.

8. Follow the instructions in the chapter Cleaning and care.

9. Caution! There is danger of explosion from improper replacement of the battery. Replace the battery only with the same or equivalent type of battery.

10. Make sure the battery is correctly inserted. Observe the polarity (+) plus / (-) negative on the battery and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a fire or an explosion.

11. The connections must not be short-circuited.

12. Remove the batteries from the product before disposal.

13. Never expose batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The batteries could explode.

Safety Instructions

1. Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.
2. If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery fluid from coming into contact with skin and eyes. If you do get battery fluid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery fluid comes into contact with your skin, wash the affected area with lots of water and soap.
3. Warning! Do not ingest the battery, Chemical Burn Hazard.
4. This product (remote control) contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
5. Keep new and used batteries away from children.
6. If the battery compartment does not close securely, stop using the product and keep it away from children.
7. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

English

Congratulations

Thank you for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The product is only intended for circulating and cooling the room air. Any other use may result in damage to product or injuries.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner Do not put batteries into the household waste.

Please use the return and collection systems in your community or contact the dealer where you purchased the product.

Content

1 x Tower fan

1 x Remote Control

1 x Assembly kit (4 x screws)

2 x Cooling packs

1 x User manual

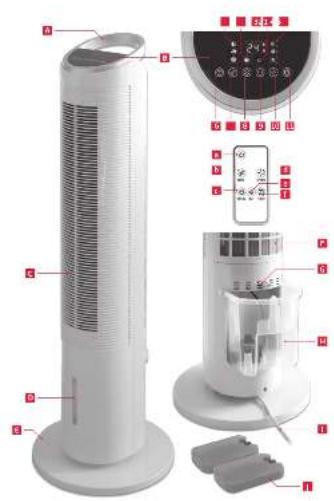

Controls and components

A Handle

B Control panel with display

1 Mode display

2 Display wet on/off

3 Timer/temperature display

4 Oscillation display

5 Fan speed display

6 Timer button

7 Mode button

8 Wet button

9 Oscillation button

10 Fan speed button

11 On/standby button

Air outlet

D Water level scale

Stand (2-parts)

F Air inlet grille

G Water tank lock

H Water tank with water pump

Power cord with plug

J Cooling pack (x2)

Remote control

a On/standby button

b MODE button

SWING button

d SPEED button

e Wet button

f TIMER button

Changing Battery

One battery is already inserted. Remove the battery protection before the first time use.

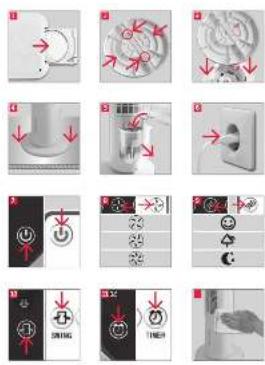

Fig. 1 Open the battery compartment. Insert 1 x battery (not included) of type CR2025 observing the + and - polarities as indicated on the battery and inside the battery compartment.

Assembly and installation

Fig. 2 Put both halves of the base together.

Fig. 3 Screw the base to the ventilator and screw both halves together.

Fig. 4 Place the fan on stable ground.

Fig. 5 If you want to operate the unit with water for better cooling, pull out the water tank and fill it up to the MAX mark at the most. Take care when doing so, to make sure, that no water enters the product, e.g. through the air inlet.

Note: You can also fill the supplied cooling packs with water, freeze them and put them in the water tank.

Close the water tank again and turn the latch down.

Attention

If the water tank is filled, do not move or tilt the fan, otherwise water will leak from the tank.

Warning

• The product may only be connected to the mains once it has been completely assembled.
• The product must not be disassembled during operation, general care, cleaning and user maintenance.
• The product may never be operated without the stand or in a horizontal position.

Operation

Note: The function settings and on/off switch can operate from the control panel on the ventilator as well as remotely.

Fig. 6 Plug the power plug into the socket. The room temperature is shown in the display.

Fig. 7 Turn on the ventilator using the on/ standby button.

Fig. 8 Select the fan strength using the SPEED button.

Symbol	Fan strength
	low
—	medium
	high

Note: You can also fill the supplied cooling packs with water, freeze them and put them in the water tank.

English

Fig. 9 Select the desired operating mode using the MODE button.

Mode Function
	Standard fan function
	Adjustable fan strength, which simulates natural wind.
	Comfort mode, display turns off automatically approx. 30 seconds after the last use. The previously set mode is unaffected, by this.

Fig. 10 Press the Swing button to turn the swivel function on and off.

Timer mode

The timer Ⓜ function switches the ventilator off at a set time. Times can be selected between 1 to 8 hour intervals.

Fig. 11 Press the TIMER 📋 button to set the turn-off time.

Note: If the timer is activated, an H will appear in the display below the °C unit.

Cleaning and care

Caution

• Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
• Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.

Fig. 12 Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.

Technical data

Rated voltage	: 220 - 230 V~
Rated power	: 60 W
Frequency	: 50 Hz
Protection class	: II
Height	: 117 cm
Weight	: approx. 3.7 kg
Remote control	: 1 x CR2025

Description Symbol Value Unit
Maximum fan flow rate F 13.5 m			^3 /min
Fan power input P 44.3 W
Service value SV 0.3 (m			^3 /min)/W
Standby power consumption P	SE	0.4 W
Fan sound power level L	WA	59 dB(A)
Maximum air velocity c 2.7	m/s
Measurement standard for service value	IEC 60879:1986+cor1:1992
Contact details for obtaining more information	Imtron GmbHWankelstraße 5, 85046 Ingolstadt, Germany
